Parts for Mercury Marine 75 HP (4 Cylinder) End Caps, Manifold & Exhaust Cover

Revise Search: All Models > 75 HP (4 Cylinder) > 7208573 & Up (Canada) > End Caps, Manifold & Exhaust Cover

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

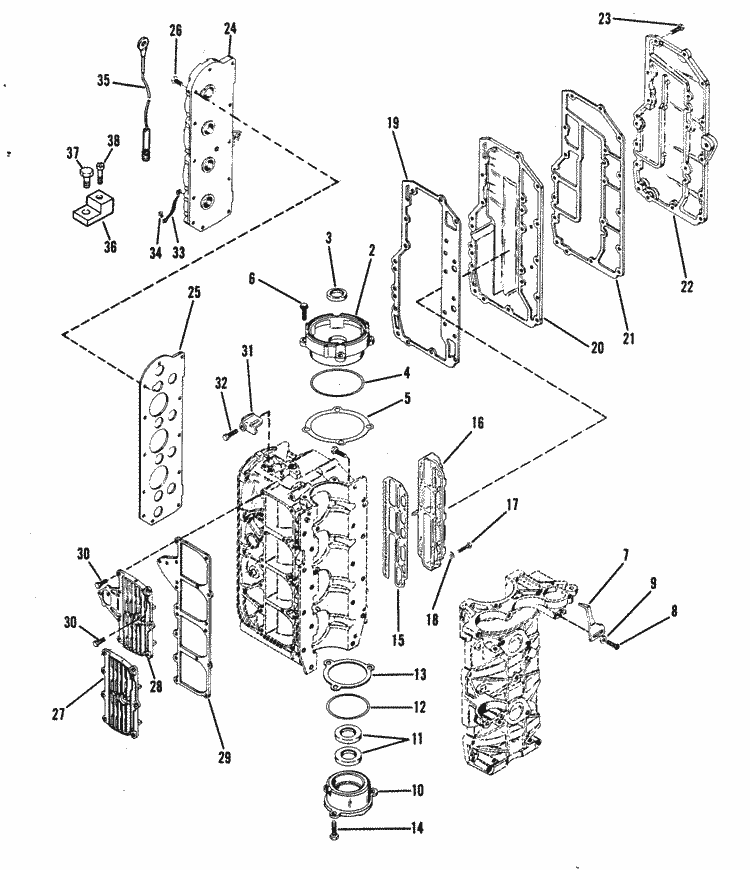

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#2	1161-5940A 2	END CAP ASSEMBLY, UPPER (1 required per assembly)
		1161-5940A 2 - End Cap Assembly, NLA [ More info ] Unavailable
#3	26-41953	OIL SEAL (1 required per assembly)
		26-41953 - Oil Seal - Priced Individually [ More info ] $19.45 4 In Stock.
		18-2016 - Seal, 26-41953 [ More info ] $13.99 6 In Stock.
#4	25-47254	"O"RING (1 required per assembly)
		25-47254 - O-ring, Upper End Cap [ More info ] $5.90 2 In Stock.
		18-7961 - O-Ring 25-97386 [ More info ] $3.99 10+ In Stock.
#5	15-73644A 1	SHIM, END CAP TO CRANKCASE (.006-10) (AR required per assembly)
		15-73644A 1 - Shim Set, NLA [ More info ] $24.20 3 In Stock.
#6	10-73169	SCREW, UPPER END CAP (1") (4 required per assembly)
		10-73169 - Screw - Priced Individually [ More info ] $1.27 5 In Stock.
		10-812618 - Screw [ More info ] $4.00 2 In Stock.
#7	43352	POINTER, TIMING (1 required per assembly)
		43352 - Pointer, NLA [ More info ] $7.77 10 In Stock.
#8	10-98510	SCREW, TIMING POINTER(3/4") (1 required per assembly)
		10-98510 - Screw [ More info ] $0.73 10 In Stock.
		10-65746 - Screw w/ Lw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#9	12-20533	WASHER, TIMING POINTER SCREW (1 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.40 3 In Stock.
#10	1148-5410A 1	END CAP ASSEMBLY, LOWER (1 required per assembly)
		1148-5410A 1 - End Cap Assembly [ More info ] Unavailable
		1148-5410T 1 - End Cap, NLA [ More info ] Unavailable
#12	25-32546	"O"RING (1 required per assembly)
		25-32546 - O-Ring - Priced Individually [ More info ] $3.90 3 In Stock.
		18-7161-9 - (PK5) O-Ring 25-32546 [ More info ] $14.99 $12.52 7 In Stock.
#13	15-20085A 1	SHIM, END CAP TO CRANKCASE (.005-10) (AR required per assembly)
		15-20085A 1 - Shim Set [ More info ] Unavailable
#14	10-69034	SCREW, LOWER END CAP(1") (3 required per assembly)
		10-69034 - Screw w/ Lw [ More info ] $2.21 6 In Stock.
		10-30225 - Screw w/ Lw - Priced Individually [ More info ] $0.90 4 In Stock.
#15	27-73665	GASKET, WATER JACKET COVER (1 required per assembly)
		27-73665 - Water Jacket Cover Gasket [ More info ] $8.50 10+ In Stock.
#16	76198	COVER, WATER JACKET-CYLINDER BLOCK (1 required per assembly)
		76198 - Water Jacket and Cylinder Block Cover [ More info ] $33.83 $33.49 5 In Stock.
#17	10-53167	SCREW, WATER JACKET COVER (7/8") (16 required per assembly)
		10-53167 - Screw - Priced Individually [ More info ] Unavailable
		10-53167T - Screw - Priced Individually [ More info ] $1.30 10+ In Stock.
#18	12-70132	WASHER,WATER JACKET COVER SCREW (16 required per assembly)
		12-70132 - Washer, (.323 X .563 X .063 - Stainless Steel) [ More info ] Unavailable
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.70 10+ In Stock.
#19	27-85498 1	GASKET, CYLINDER BLOCK TO BAFFLE PLATE (1 required per assembly)
		27-85498 1 - Gasket [ More info ] $10.70 $6.00 10+ In Stock.
#20	73436	PLATE, BAFFLE (1 required per assembly)
		73436 - Baffle Plate [ More info ] $85.99 $85.12 10+ In Stock.
#21	27-85496 1	GASKET, BAFFLE PLATE TO EXHAUST COVER (1 required per assembly)
		27-85496 1 - Gasket [ More info ] $18.52 3 In Stock.
#22	78277A 1	COVER, EXHAUST MANIFOLD (1 required per assembly)
		78277A 1 - Exhaust Manifold Cover [ More info ] $70.00 10+ In Stock.
#23	10-53576	SCREW, MANIFOLD COVER (1-1/8") (18 required per assembly)
		10-53576 - Screw - Priced Individually [ More info ] $1.50 Available to Order: Usually ships within 10 days.
#24	1021-8340	COVER, CYLINDER BLOCK (1 required per assembly)
		1021-8340 - Cylinder Block Cover, NLA [ More info ] Unavailable

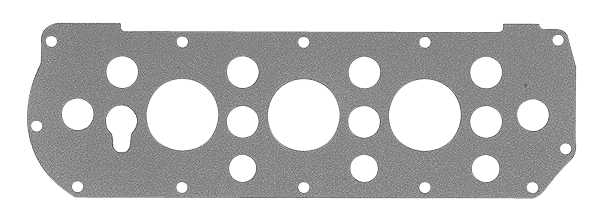

#25	27-96171 1	GASKET, CYLINDER BLOCK COVER (1 required per assembly)
		27-96171 1 - Gasket [ More info ] $12.60 Available to Order: Usually ships within 10 days.
#26	10-69100	SCREW, CYLINDER BLOCK COVER (1") (12 required per assembly)
		10-69100 - Screw [ More info ] Unavailable
		10-76630 - Screw - Priced Individually [ More info ] $1.24 10+ In Stock.
		108M0214943 - SCREW, Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#27	73320 1	COVER, TRANSFER PORT-TOP (1 required per assembly) (TRIANGLE FUEL PUMP)
		73320 1 - Cover, NLA [ More info ] $32.00 8 In Stock.
#27	14429T	COVER, TRANSFER PORT-TOP (1 required per assembly) (SQUARE FUEL PUMP)
		14429T - Transfer Port Cover [ More info ] Unavailable

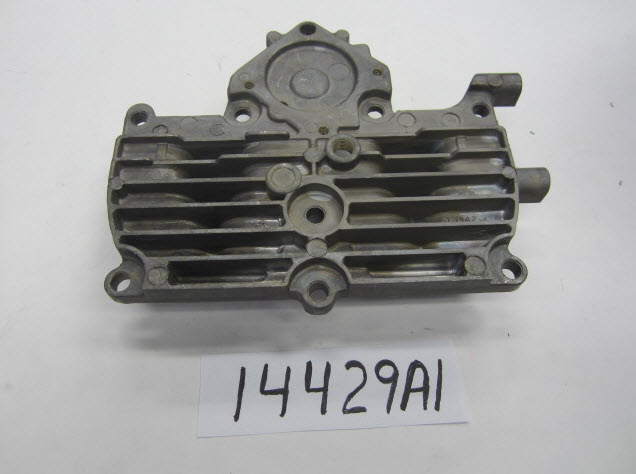

		14429A 1 - Transfer Cover, NLA [ More info ] $22.50 10 In Stock.
#28	87872	COVER, TRANSFER PORT-BOTTOM (1 required per assembly)
		87872 - Cover [ More info ] $14.00 1 In Stock.
#29	27-73645	GASKET, TRANSFER PORT COVER (1 required per assembly)
		27-73645 - Transfer Port Cover Gasket [ More info ] $12.00 10+ In Stock.
#30	10-49668	SCREW, TRANSFER PORT COVER (3/4") (14 required per assembly)
		10-49668 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#31	37440	BRACKET, MOUNT SUPPORT-CYLINDER BLOCK (1 required per assembly)
		37440 - Bracket, NLA [ More info ] $6.00 10+ In Stock.
#32	10-35386	SCREW, BRACKET TO CYLINDER BLOCK (1") (1 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#33	46933A 3	GROUND STRAP ASEMBLY (2 required per assembly) EXHAUST COVER SCREW
		46933A 3 - Strap Assembly, NLA [ More info ] $3.67 10+ In Stock.
#34	10-62568	SCREW, GROUND STRAP (3/8") (2 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 10+ In Stock.
#35	87-96829A 1	TEMPERATURE SWITCH ASSEMBLY (1 required per assembly)
		87-96829A 1 - Switch Assembly [ More info ] $410.67 10+ In Stock.
#36	45915	TERMINAL BLOCK (1 required per assembly)
		86-45915 - Terminal Block [ More info ] $0.90 1 In Stock.
#38	10-28192	SCREW, TERMINAL BLOCK (1/2") (1 required per assembly)
		10-28192 - Screw - Priced Individually [ More info ] $0.61 5 In Stock.
		10-72169 - Screw [ More info ] $1.10 $0.94 9 In Stock.
