Parts for Mercury Marine 75 HP (4 Cylinder) Cowling & Front Cover

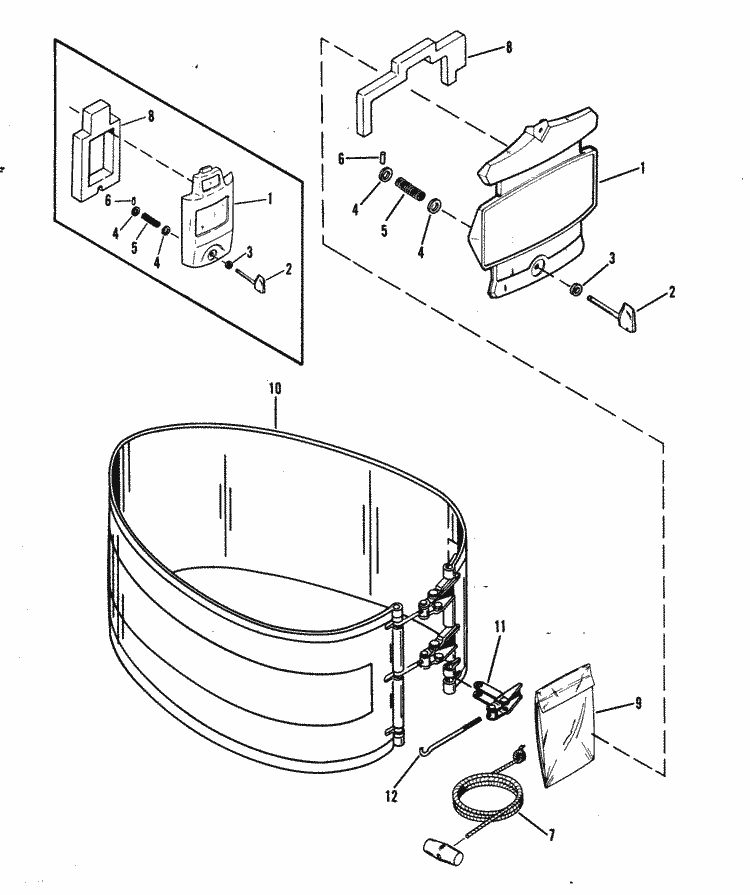

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2182-7927A 8 | FRONT COVER ASSEMBLY, MERCURY (1 required per assembly) |
 |
|
2182-7927A 8 - FRONT COVER ASSEM NLA [ More info ] Unavailable |

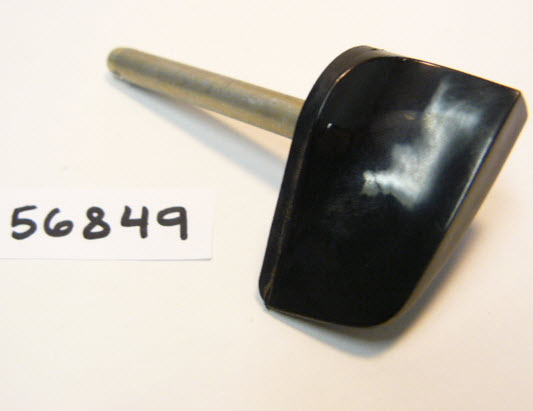

| #2 | 56849 | KNOB FRONT COVER (MERCURY) (1 required per assembly) |
  |
|
56849 - Knob, NLA [ More info ]
|
| #3 | 12-30771 | WASHER, COVER KNOB (RUBBER) (MERCURY) (1 required per assembly) |
|
|
12-30771 - Washer (rubber) [ More info ]
|
| #4 | 12-75246 | WASHER, COVER KNOB (STEEL) (MERCURY) (2 required per assembly) |
|
|
12-75246 - Washer, NLA [ More info ]
|
| #5 | 24-30772 | SPRING, TENSION-COVER KNOB (MERCURY) (1 required per assembly) |
|
|
24-30772 - Spring, Tension,NLA [ More info ]
|
| #6 | 17-29077 | ROLL PIN, TENSION SPRING TO KNOB (MERCURY) (1 required per assembly) |
|
|
17-29077 - Pin -roll, NLA [ More info ]
|

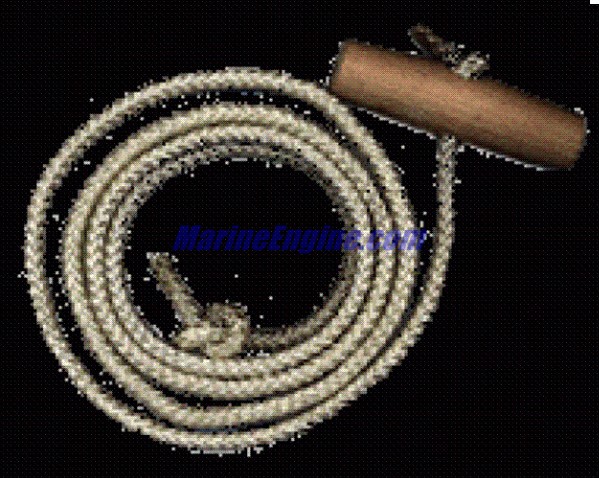

| #7 | 47341A 1 | ROPE, STARTER (MERCURY) (1 required per assembly) |
  |
|
47341A 1 - 47341A 1 - ROPE AND HANDLE K [ More info ] Unavailable Replaced by -47341A11 |
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #8 | 94923 | SEAL, SOUND ABSORBING (MERCURY) (2 required per assembly) |
|
|
94923 - PAD NLA [ More info ] Unavailable |
| #9 | 38674 | BLANKET, SOUND ABSORBING (MERCURY) (1 required per assembly) |
|
|
38674 - Bag - Starter Rope, NLA [ More info ]
|
| #10 | 2119-3248A16 | WRAP AROUND COWL ASSEMBLY (MERCURY) (1 required per assembly) |
|
|
2119-3248A16 - WRAP AROUND COWL NLA [ More info ] Unavailable |

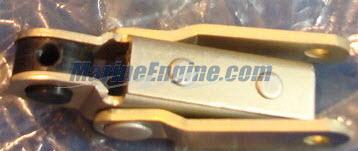

| #11 | 46785A 1 | COWL LATCH ASSEMBLY (MERCURY) (2 required per assembly) |
  |
|
46785A 1 - Latch Assembly [ More info ]
|

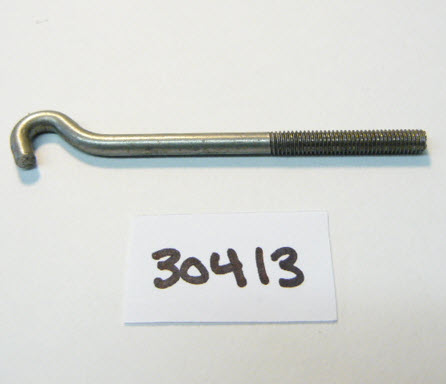

| #12 | 30413 | HOOK, COWL LATCH (MERCURY) (2 required per assembly) |
  |
|
30413 - Cowl Latch Hook, NLA [ More info ]
|
| #1 | 2163-6393A 6 | FRONT COVER, (MARINER) (1 required per assembly) |
|
|
2163-6393A 6 - FRONT COVER NLA [ More info ] Unavailable |
| #2 | 73786 | KNOB, FRONT COVER (MARINER) (1 required per assembly) |
|
|
73786 - Lock Knob, NLA [ More info ]
|
| #8 | 76434 | SEAL, SOUND ABSORBING (MARINER) (2 required per assembly) |
|
|
76434 - SEAL NLA [ More info ] Unavailable |
| #10 | 2164-6394A 7 | WRAP AROUND COWL (MARINER) (1 required per assembly) |
|
|
2164-6394A 7 - WRAP AROUND COWL NLA [ More info ] Unavailable |
