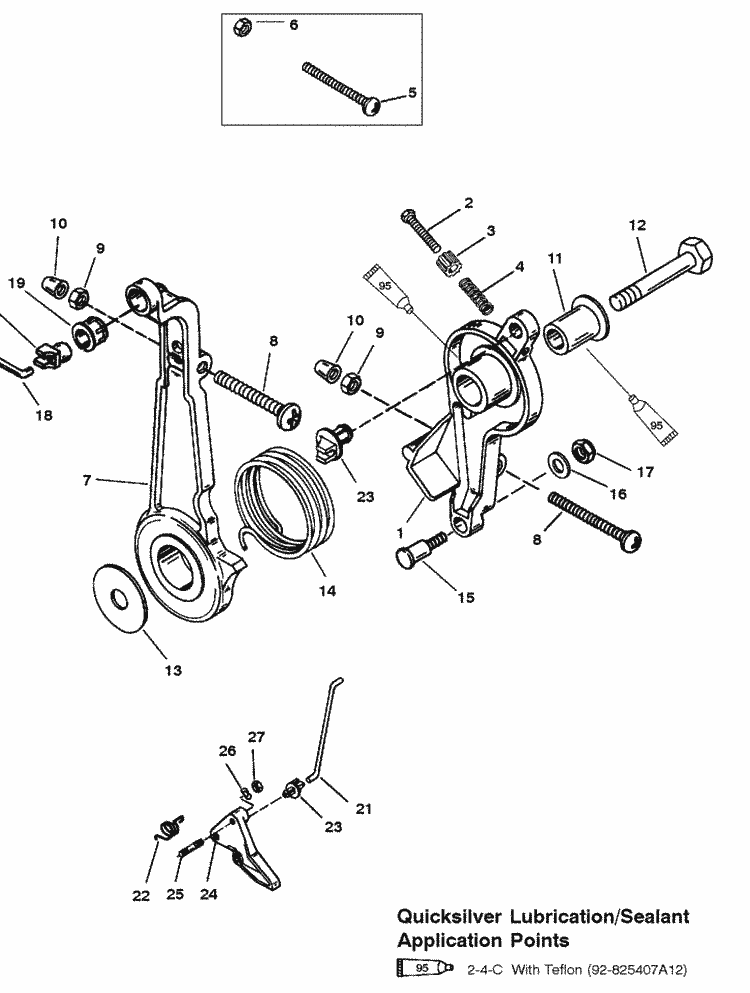

Parts for Mercury Marine 75 HP (3 Cylinder) Throttle Lever & Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 42946 1 | THROTTLE LEVER (1 required per assembly) |
 |
|
42946 1 - 42946 1 - LEVER Throttle [ More info ] Unavailable Replaced by -42946T 1 |
  |
|
42946T 1 - Throttle Lever [ More info ]
|
| #2 | 10-827008 | SCREW (M5 X 35) (1 required per assembly) DESIGN II |
  |
|
10-827008 - Screw - Priced Individually [ More info ]
|
| #3 | 826264 | CAP (1 required per assembly) DESIGN II |
  |
|
|
| #4 | 24-826382 | SPRING (1 required per assembly) DESIGN II |
|
|
24-826382 - Spring - Priced Individually [ More info ]
|
| #5 | 10-817582 | ADJUSTING SCREW (1 required per assembly) DESIGN I |
  |
|
10-817582 - Screw [ More info ]
|
| #6 | 11-40021 1 | JAM NUT (1 required per assembly) DESIGN I |
  |
|
11-40021 1 - Nut [ More info ]
|
| #7 | 42947 1 | SPARK ADVANCE LEVER (1 required per assembly) |
  |
|
42947 1 - Spark Advance Lever [ More info ]
|
| #8 | 10-814776 | ADJUSTING SCREW (M6 X 55) (2 required per assembly) |
  |
|
10-814776 - Screw [ More info ]
|
| #9 | 11-40021 2 | JAM NUT (2 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #10 | 42942 | NYLON CAP (2 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #11 | 23-812930A 1 | BUSHING (1 required per assembly) |
  |
|
23-812930A 1 - Bushing Kit [ More info ]
|
| #12 | 10-40071 80 | SCREW (M10 X 45) (1 required per assembly) |
  |
|
10-40071 80 - Screw [ More info ]
|
| #13 | 12-42980 | WASHER (1 required per assembly) |
|
|
12-42980 - Washer [ More info ]
|
| #14 | 24-55162 | SPRING (1 required per assembly) |
|
|
24-55162 - Spring, Return - Spark Advance Lever [ More info ]
|
| #15 | 42927 | PIN (1 required per assembly) |
  |
|
|
| #16 | 12-35459 | WASHER (1 required per assembly) |
|
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #17 | 11-826833 6 | NUT (1 required per assembly) |
|
|
11-826833 6 - 11-826833 6 - NUT (M6) [ More info ] Unavailable Replaced by 11-40144 |
|
|
11-40144 - 11-40144 - NUT (M6) [ More info ] Unavailable Replaced by 11-401386 |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #18 | 42918 | SPARK ADVANCE ROD (1 required per assembly) |
|
|
42918 - 42918 - ROD [ More info ] Unavailable Replaced by -878172 |
  |
|
878172 - Spark Advance Rod [ More info ]
|
| #19 | 93254 | SWIVEL BASE (1 required per assembly) |
  |
|
93254 - Swivel Base [ More info ]
|
| #20 | 93421 | SWIVEL BALL (1 required per assembly) |
  |
|
93421 - Swivel Ball [ More info ]
|
| #21 | 42919 | THROTTLE ROD (1 required per assembly) |
|
|
42919 - 42919 - ROD [ More info ] Unavailable Replaced by -878420 |
|
|
878420 - 878420 - ROD Throttle [ More info ] Unavailable Replaced by -878420T |
  |
|
878420T - Throttle Control Rod [ More info ]
|
| #22 | 24-14159 | SPRING (1 required per assembly) |
|
|
24-14159 - Spring, Cam Return [ More info ]
|
| #23 | 23-93248 1 | BUSHING (2 required per assembly) |
  |
|
23-93248 1 - BUSHING [ More info ] Unavailable |
| #24 | 42948C 2 | THROTTLE CAM (1 required per assembly) |
|
|
42948C 2 - 42948C 2 - CAM Throttle [ More info ] Unavailable Replaced by -42948A 7 |
  |
|
42948A 7 - Cam Kit [ More info ]
|
| #25 | 16-42984 | STUD (M6 X 40) (1 required per assembly) |
|
|
16-42984 - 16-42984 - STUD [ More info ] Unavailable Replaced by 16-429845 |
|
|
16-429845 - 16-429845 - ->8161949 [ More info ] Unavailable Replaced by -8161949 |
|
|
16-816194 9 - Stud [ More info ]
|
| #26 | 12-69056 | WASHER (1 required per assembly) |
|
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
