Parts for Mercury Marine 75 HP (3 Cylinder) Swivel Bracket & Steering Arm
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1499-8710A20 | SWIVEL BRACKET (1 required per assembly) (BLACK) NON-POWER TRIM |
  |
|
1499-8710A20 - 1499-8710A20 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1499-8710T20 |
  |
|
1499-8710T20 - 1499-8710T20 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1499-8M0102865 |
  |
|
14998M0102865 - Swivel Bracket, Black [ More info ]
|
| #1 | 1499-8710A21 | SWIVEL BRACKET (1 required per assembly) (GRAY) NON-POWER TRIM |
 |
|
1499-8710A21 - 1499-8710A21 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1499-8710T21 |
|
|
1499-8710T21 - SWIVEL BRACKET AS NLA [ More info ] Unavailable |

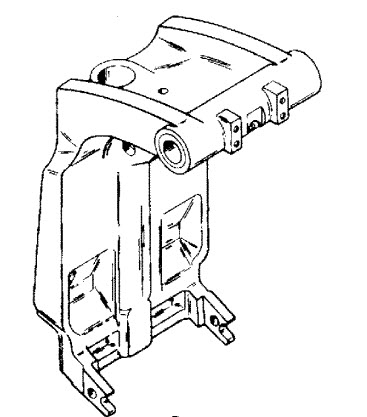

| #1 | 3408-818904A 1 | SWIVEL BRACKET (1 required per assembly) (BLACK) MANUAL TILT ASSIST/POWER TRIM |
|
|
3408-818904A 1 - 3408-818904A 1 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 3408-818904T 1 |
|
|
3408-818904T 1 - 3408-818904T 1 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 3408-881919T01 |
  |
|
3408-881919T01 - 3408-881919T01 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1400-898032A03 |
  |
|
1400-898032A03 - 1400-898032A03 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1400-8M0088881 |
|
|
1400-8M0088881 - 1400-8M0088881 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1400-8M0107419 |
  |
|
14008M0107419 - Swivel Bracket [ More info ]
|

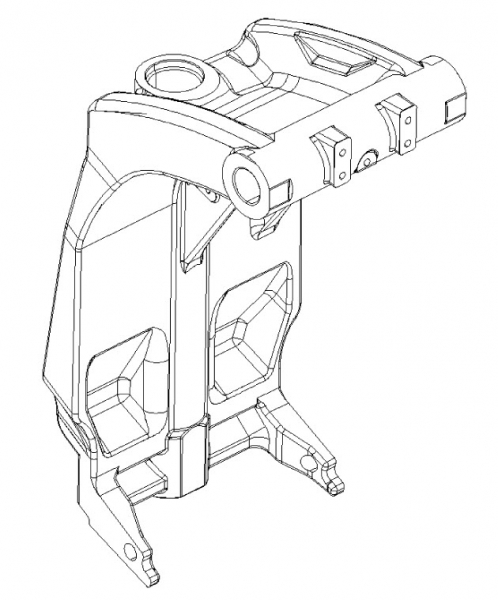

| #1 | 3408-818904A 2 | SWIVEL BRACKET (1 required per assembly) (GRAY) MANUAL TILT ASSIST/POWER TRIM |
|
|
3408-818904A 2 - 3408-818904A 2 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 3408-818904T 2 |
  |
|
3408-818904T 2 - Bracket Assembly - Gray [ More info ]
|
| #1 | 3408-818904A 3 | SWIVEL BRACKET (1 required per assembly) (TRACKER-GRAPHITE GRAY) MANUAL TILT ASSIST/POWER TRIM |
|
|
3408-818904A 3 - 3408-818904A 3 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 3408-818904A 4 |
  |
|
3408-818904A 4 - 3408-818904A 4 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3408-818904T 4 |
  |
|
3408-818904T 4 - BRKT ASY-STEEL/GR NLA [ More info ] Unavailable |
| #2 | 26-87735 | OIL SEAL (LOWER) (1 required per assembly) |
  |
|
|
| #3 | 23-818764 | BUSHING (2 required per assembly) |
  |
|
23-818764 - Bushing [ More info ]
|
| #4 | 25-33504 | O-RING (1 required per assembly) |
  |
|
25-33504 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7170-9 - O-Ring (PK5) 307239, 25-33504 [ More info ]
|
| #5 | 23-816039 | SPACER (1 required per assembly) |
  |
|
23-816039 - Spacer - Swivel Bracket [ More info ]
|
| #6 | 22-74036 | GREASE FITTING (2 required per assembly) |
  |
|
22-74036 - Fitting - Priced Individually [ More info ]
|
|
|
228M0169589 - FITTING Note: Priced Individually [ More info ]
|
| #7 | 23-821207 | BUSHING (2 required per assembly) |
  |
|
23-821207 - Bushing [ More info ]
|
| #8 | 10-64014 | SCREW (1/4-28 X 1/2) (2 required per assembly) |
  |
|
10-64014 - Screw [ More info ]
|
| #9 | 92876A 1 | STEERING LINK ASSEMBLY (1 required per assembly) |
  |
|
92876A 1 - 92876A 1 - LINK ASSEMBLY Ste [ More info ] Unavailable Replaced by -92876A10 |
  |
|
92876A10 - 92876A10 - LINK ROD ASSEMBLY [ More info ] Unavailable Replaced by -92876A12 |
  |
|
92876A12 - LINK ROD ASSEMBLY [ More info ] Unavailable |
| #10 | 10-14000 | SCREW (3/8 X 24 X 1-1/8) (1 required per assembly) |
|
|
10-14000 - Screw [ More info ]
|
  |
|
10-849838 - Screw [ More info ]
|
| #11 | 11-34863 | NUT (2 required per assembly) |
|
|
11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113 |
  |
|
11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636 |
|
|
11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726 |
|
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #12 | 12-34931 | WASHER (2 required per assembly) |
|
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #13 | 88882 1 | BUMPER-TOP YOKE (1 required per assembly) (X-LONG/LL) |
|
|
88882 1 - 88882 1 - BUMPER [ More info ] Unavailable Replaced by -8M0000516 |
|
|
8M0000516 - Top Yoke Bumper [ More info ]
|
| #14 | 99661A26 | SWIVEL PIN/STEERING ARM (1 required per assembly) (BLACK) |
|
|
99661A26 - 99661A26 - SWIVEL PIN ASSEMB [ More info ] Unavailable Replaced by -99661A35 |
  |
|
99661A35 - Swivel Pin Assembly -bk [ More info ]
|
| #14 | 99661A27 | SWIVEL PIN/STEERING ARM (1 required per assembly) (GRAY) |
|
|
99661A27 - 99661A27 - SWIVEL PIN ASSEMB [ More info ] Unavailable Replaced by -99661A36 |
|
|
99661A36 - ORD 99661A35 NLA [ More info ] Unavailable |
| #14 | 99661A28 | SWIVEL PIN/STEERING ARM (1 required per assembly) (TRACKER-GRAPHITE GRAY) |
|
|
99661A28 - 99661A28 - SWIVEL PIN ASSEMB [ More info ] Unavailable Replaced by -99661A31 |
|
|
99661A31 - 99661A31 - SWIVEL PIN ASSEMB [ More info ] Unavailable Replaced by -99661A26 |
| #15 | 12-816432 | THRUST WASHER (1 required per assembly) |
|
|
12-816432 - Washer, Thrust [ More info ]
|
| #16 | 55-99724A 2 | SHOCK (1 required per assembly) (BLACK) NO STAMPING |
|
|
55-99724A 2 - 55-99724A 2 - SHOCK ABSORBER [ More info ] Unavailable Replaced by 55-99724A15 |
|
|
55-99724A15 - 55-99724A15 - SHOCK STAMPED A12 [ More info ] Unavailable Replaced by 55-99724T15 |
|
|
55-99724T15 - SHOCK ABSORBER-BL NLA [ More info ] Unavailable |
| #16 | 55-99724A 3 | SHOCK (1 required per assembly) (GRAY) NO STAMPING |
|
|
55-99724A 3 - 55-99724A 3 - SHOCK ABSORBER [ More info ] Unavailable Replaced by 55-99724A16 |
|
|
55-99724A16 - 55-99724A16 - SHOCK STAMPED A12 [ More info ] Unavailable Replaced by 55-99724T15 |
| #16 | 55-99724A15 | SHOCK (1 required per assembly) (BLACK) STAMPED A12 OR A17 |
| #16 | 55-99724A16 | SHOCK (1 required per assembly) (GRAY) STAMPED A12 OR A17 |
| #18 | 99625 1 | SHAFT (UPPER) (1 required per assembly) |
  |
|
99625 1 - 99625 1 - SHAFT [ More info ] Unavailable Replaced by -99625002 |
  |
|
99625002 - Upper Shaft [ More info ]
|
| #19 | 42961A 1 | BOTTOM YOKE (1 required per assembly) (BLACK) |
  |
|
42961A 1 - 42961A 1 - YOKE ASSEMBLY Bot [ More info ] Unavailable Replaced by -42961A06 |
  |
|
42961A06 - Bottom Yoke [ More info ]
|
| #19 | 42961A 2 | BOTTOM YOKE (1 required per assembly) (GRAY) |
|
|
42961A 2 - 42961A 2 - YOKE ASSEMBLY Bot [ More info ] Unavailable Replaced by -42961T 2 |
|
|
42961T 2 - ORD 42961A06 NLA [ More info ] Unavailable |
| #19 | 42961A 4 | BOTTOM YOKE (1 required per assembly) (TRACKER-GRAPHITE GRAY) |
|
|
42961A 4 - 42961A 4 - YOKE ASSEMBLY Bot [ More info ] Unavailable Replaced by -42961A 5 |
|
|
42961A 5 - YOKE ASSEMBLY NLA [ More info ] Unavailable |
| #20 | 53-67684 | RETAINING RING (1 required per assembly) |
  |
|
53-67684 - Ring - Retaining [ More info ]
|
| #21 | 99653 | BRACKET (1 required per assembly) NON POWER TRIM |
  |
|
99653 - Bracket, NLA [ More info ]
|
| #22 | 99619 | SHAFT (LOWER) (1 required per assembly) NON POWER TRIM |
  |
|
99619 - Shaft, NLA [ More info ]
|
| #23 | 17-821539 | GROOVE PIN (1 required per assembly) NON POWER TRIM |
  |
|
17-821539 - Pin, Trilobe, Groove [ More info ]
|
| #24 | 10-40003 77 | SCREW (M10 X 1.5 X 30) (6 required per assembly) NON POWER TRIM |
  |
|
10-40003 77 - Screw [ More info ]
|
| #25 | 12-40023 19 | WASHER (6 required per assembly) NON POWER TRIM |
|
|
12-40023 19 - Washer (M10) [ More info ]
|
| #25 | 13-40025 6 | LOCKWASHER (6 required per assembly) (JET) NON POWER TRIM |
|
|
13-40025 6 - LockWasher - Priced Individually [ More info ]
|
| #26 | 818298A 1 | ANODE ASSEMBLY (1 required per assembly) |
  |
|
818298A 1 - 818298A 1 - ANODE KIT [ More info ] Unavailable Replaced by 97-818298Q 1 |
  |
|
97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ]
|
  |
|
18-6249A - Anode, Aluminum, 18-6249A [ More info ]
|
  |
|
18-6249 - Zinc Anode, 818298A1 [ More info ]
|
  |
|
97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ]
|
| #27 | 10-40003 30 | SCREW (M6 X 1 X 25) (2 required per assembly) |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #28 | 12-29245 | WASHER (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #29 | 11288 | BUMPER-BOTTOM YOKE (1 required per assembly) (X-LONG/LL) |
|
|
11288 - 11288 - BUMPER Bottom Yok [ More info ] Unavailable Replaced by -11288001 |
  |
|
11288001 - Bottom Yoke Bumper [ More info ]
|
