Parts for Mercury Marine 75 HP (3 Cylinder) Steering Handle Components

Revise Search: All Models > 75 HP (3 Cylinder) > 9793577 - 0P016999 (Belgium) > Steering Handle Components

NEED PARTS OR KITS?

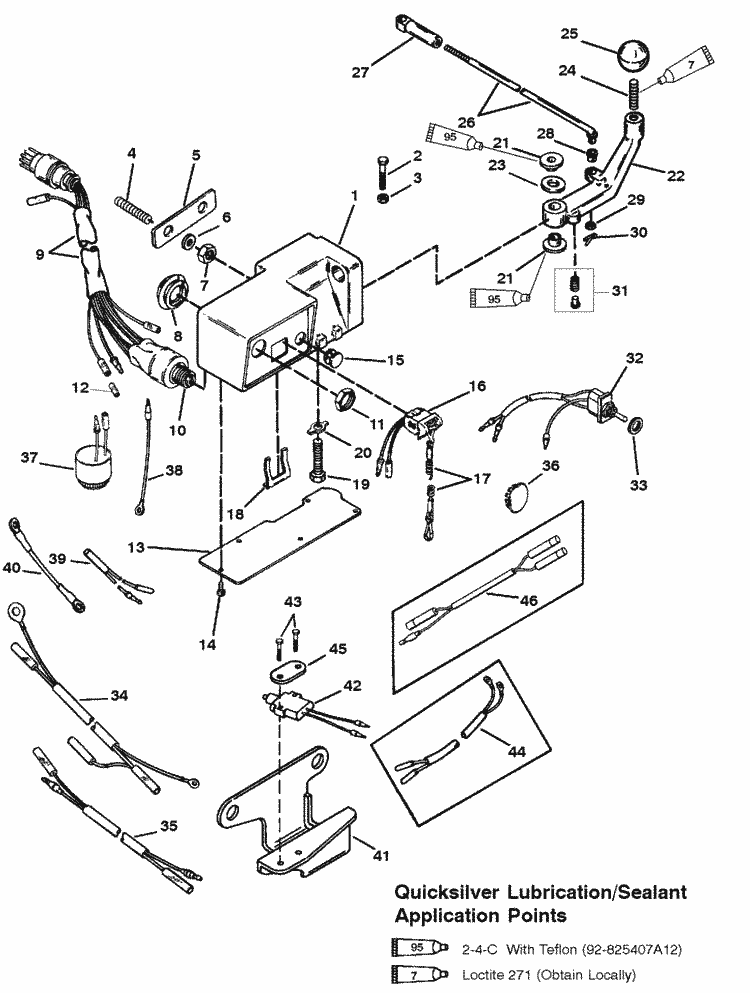

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	12022A22	BRACKET ASSEMBLY (1 required per assembly) (BLACK)
		12022A22 - Bracket Kit - Black [ More info ] $245.50 Available to Order: Usually ships within 10 days.
#1	12022A23	BRACKET ASSEMBLY (1 required per assembly) (GRAY)
		12022A23 - BRACKET ASSEMBLY NLA [ More info ] Unavailable
#2	10-14000	SCREW (3/8-24 X 1-1/4 IN.) (1 required per assembly)
		10-14000 - Screw [ More info ] $2.99 10+ In Stock.
		10-849838 - Screw [ More info ] $21.25 Available to Order: Usually ships within 10 days.
#3	11-34863	NUT (1 required per assembly)
		11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113
		11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636
		11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726
		11-8M0204726 - NUT-BRASS @3 [ More info ] Unavailable
#4	16-822320	STUD (5/16 X 2-1/2) (2 required per assembly)
		16-822320 - 16-822320 - STUD (.3125 x 2.5 [ More info ] Unavailable Replaced by 16-8M0034421
		16-8M0034421 - Stud [ More info ] $13.60 Available to Order: Usually ships within 10 days.
#5	822263	SPACER (1 required per assembly)
		822263 - Spacer - Steering Arm [ More info ] $9.40 Available to Order: Usually ships within 10 days.
#6	12-814806	WASHER (2 required per assembly)
		12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] $1.00 10+ In Stock.
		12-8M0204690 - WASHER [ More info ] Unavailable
#7	11-35814	NUT (2 required per assembly)
		11-35814 - 11-35814 - NUT (.312-24) Sta [ More info ] Unavailable Replaced by 11-82670911
		11-826709 11 - Nut (5/16-24) [ More info ] $4.80 4 In Stock.
#8	12105 1	GROMMET (1 required per assembly)
		12105 1 - Grommet [ More info ] $19.00 1 In Stock.
#9	84-12649A 4	HARNESS ASSEMBLY (1 required per assembly) (22 IN.)
		84-12649A 4 - Harness Assembly [ More info ] $322.17 Available to Order: Usually ships within 10 days.
#9	84-12649A 5	HARNESS ASSEMBLY (1 required per assembly) (33 IN.)
		84-12649A 5 - Harness Assembly [ More info ] $323.08 Available to Order: Usually ships within 10 days.
#10	87-88107A 5	KEY SWITCH (1 required per assembly) ( KEYS LISTED UNDER KEY CHART )
		87-88107A 5 - Ignition Switch Kit [ More info ] $72.72 2 In Stock.
		MP52000 - Ignition Switch, 87-88107A5 [ More info ] $57.72 $55.49 In Stock
		MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ] $24.01 10+ In Stock.
#11	11-93543	NUT (1 required per assembly)
		11-93543 - Nut, Special - Chrome Brass, Key Switch [ More info ] $3.49 10+ In Stock.
		11-879755 - Nut, (black Nylon) [ More info ] $5.90 1 In Stock.
#12	13541	PLUG (1 required per assembly) (ELECTRIC)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#13	12015A 1	COVER (1 required per assembly)
		12015A 1 - COVER NLA [ More info ] Unavailable
#14	10-812832	SCREW (10-16 X 1/2) (6 required per assembly)
		10-812832 - 10-812832 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-878608
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#15	19-12014	PLUG (1 required per assembly) (NON POWER TRIM)
		19-12014 - 19-12014 - PLUG [ More info ] Unavailable Replaced by 19-889730
		19-889730 - Plug [ More info ] $7.80 Available to Order: Usually ships within 10 days.
#16	87-11083A 4	STOP SWITCH ASSEMBLY (1 required per assembly)
		87-11083A 4 - Switch Assembly [ More info ] $56.75 Available to Order: Usually ships within 10 days.
#17	15920A54	LANYARD (1 required per assembly)
		15920A54 - 15920A54 - LANYARD ASSEMBLY [ More info ] Unavailable Replaced by -15920Q54
		15920Q54 - LANYARD ASSEMBLY NLA [ More info ] Unavailable
#18	12044 1	RETAINER (1 required per assembly)
		12044 1 - 12044 1 - RETAINER Brass [ More info ] Unavailable Replaced by -8M0032846
		8M0032846 - Brass Retainer [ More info ] $4.24 Available to Order: Usually ships within 10 days.

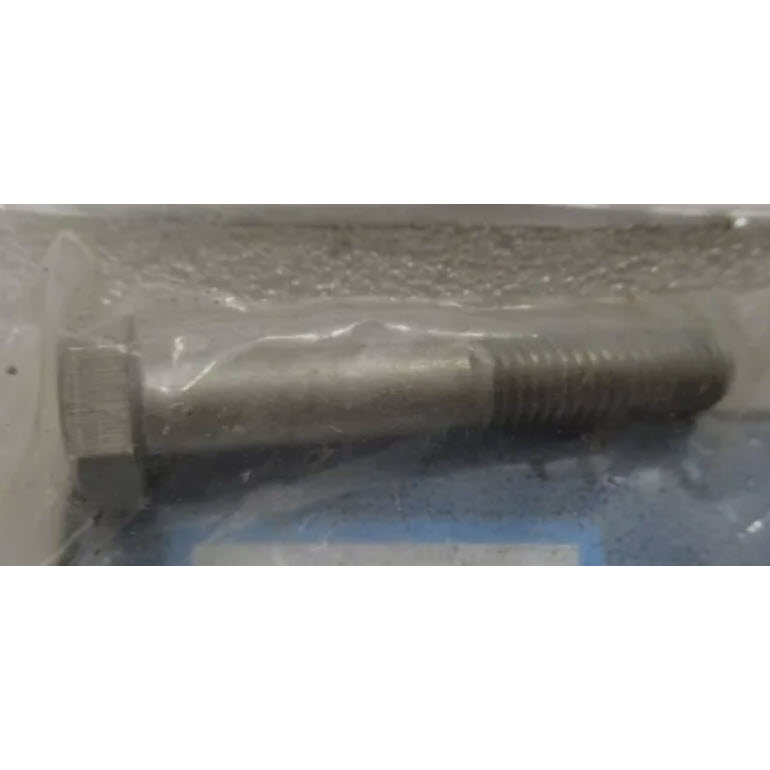

#19	10-40003 58	SCREW (M8 X 1.25 X 50) (1 required per assembly)
		10-40003 58 - Screw [ More info ] $4.40 $2.46 7 In Stock.
#20	14-42981	TAB WASHER (1 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#21	23-42992 1	BUSHING (2 required per assembly)
		23-42992 1 - 23-42992 1 - BUSHING [ More info ] Unavailable Replaced by 23-889732
		23-889732 - Bushing [ More info ] $7.50 Available to Order: Usually ships within 10 days.
#22	12021A 1	SHIFT LEVER (1 required per assembly) (BLACK)
		12021A 1 - Shift Lever - Black [ More info ] $170.17 Available to Order: Usually ships within 10 days.
#22	12021A 2	SHIFT LEVER (1 required per assembly) (GRAY)
		12021A 2 - LEVER ASSEMBLY Sh NLA [ More info ] Unavailable
#23	12-815351	WASHER (1 required per assembly)
		12-815351 - Washer [ More info ] $18.08 Available to Order: Usually ships within 10 days.
#24	16-58152	STUD (3/8-24 X 1-1/8) (1 required per assembly)
		16-58152 - 16-58152 - STUD (.375-24 x 1 [ More info ] Unavailable Replaced by 16-8M0034452
		16-8M0034452 - Stud [ More info ] $11.80 Available to Order: Usually ships within 10 days.
#25	98530	KNOB (1 required per assembly)
		98530 - KNOB [ More info ] Unavailable
#26	49563 6	SHIFT ROD (1 required per assembly)
		49563 6 - Shift Rod [ More info ] $70.92 Available to Order: Usually ships within 10 days.
#27	48419	ROD END (1 required per assembly)
		48419 - 48419 - ROD END [ More info ] Unavailable Replaced by -48419T
		48419T - ROD END-2.16 IN [ More info ] $13.10 Available to Order: Usually ships within 10 days.
#28	23-26856	BUSHING (1 required per assembly)
		23-26856 - Bushing [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#29	12-29245	WASHER (1 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#30	18-25191	COTTER PIN (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $4.60 10 In Stock.
#31	12016A 2	DETENT ASSEMBLY (1 required per assembly)
		12016A 2 - DETENT/SPRING KIT NLA [ More info ] Unavailable

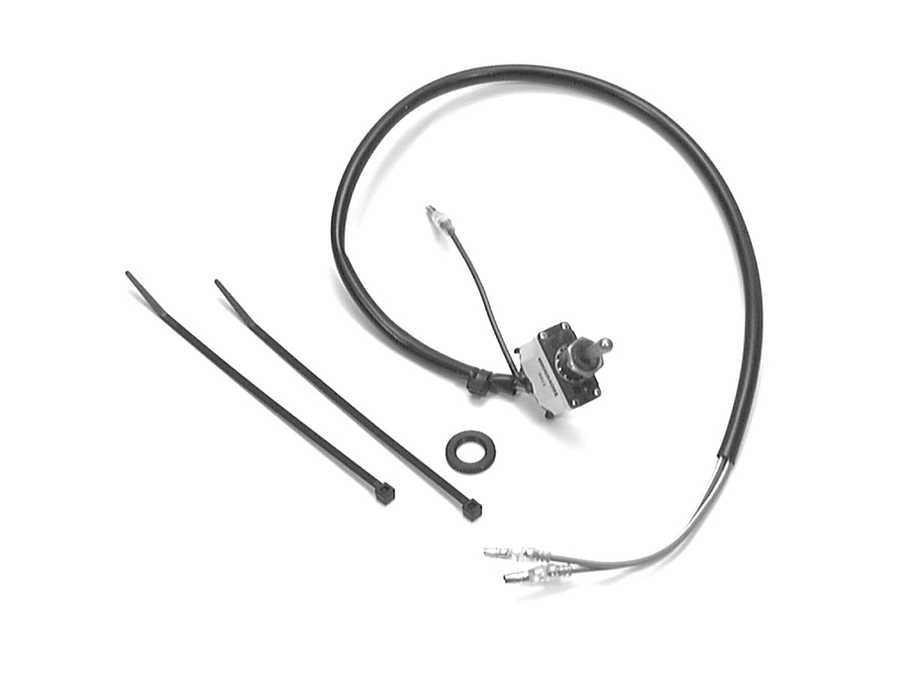

#32	87-14645A 4	TRIM SWITCH (1 required per assembly) POWER TRIM
		87-14645A 4 - Trim Switch Kit [ More info ] $226.58 $152.27 1 In Stock.

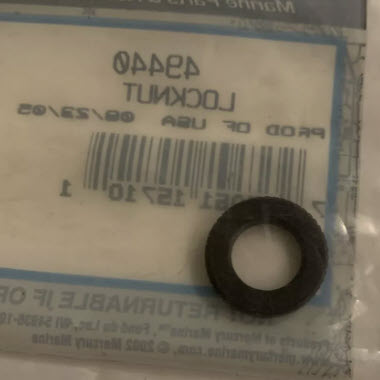

#33	49440	NUT (1 required per assembly) POWER TRIM
		49440 - Lock Nut [ More info ] $8.70 4 In Stock.
#34	84-815851A 2	STOP HARNESS (1 required per assembly) MANUAL
		84-815851A 2 - Harness Assembly - Stop [ More info ] $15.80 1 In Stock.
#35	84-821028A 2	CABLE (1 required per assembly) MANUAL
		84-821028A 2 - Cable Assembly [ More info ] $17.67 Available to Order: Usually ships within 10 days.
#36	815803	PLUG (1 required per assembly) MANUAL
		815803 - Plug [ More info ] $6.20 Available to Order: Usually ships within 10 days.
#37	816051A 2	HORN (1 required per assembly)
		816051A 2 - Horn Assembly [ More info ] $141.58 Available to Order: Usually ships within 10 days.
#38	84-11149A 3	CABLE (1 required per assembly)
		84-11149A 3 - Cable Assembly [ More info ] $4.50 1 In Stock.
#39	84-11149A10	ADAPTOR HARNESS (1 required per assembly) (MANUAL) (USE WHERE APPLICABLE)
		84-11149A10 - Harness Assembly, NLA [ More info ] $7.00 6 In Stock.
#40	84-86324A 2	CABLE (1 required per assembly) (RED/YELLOW - 3-1/2 IN. - ELECTRIC)
		84-86324A 2 - Cable Assembly [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#41	824930 2	BRACKET (1 required per assembly)
		824930 2 - 824930 2 - BRACKET [ More info ] Unavailable Replaced by -824930T 2
		824930T 2 - Bracket [ More info ] $71.75 1 In Stock.
#42	87-813960A 3	SWITCH ASSEMBLY (1 required per assembly)
		87-813960A 3 - 87-813960A 3 - SWITCH [ More info ] Unavailable Replaced by 87-8M0052927
		878M0052927 - Switch Assembly [ More info ] $105.42 Available to Order: Usually ships within 10 days.
#43	10-40011 68	SCREW (M3.5 X 0.6 X 20) (2 required per assembly)
		10-40011 68 - 10-40011 68 - SCREW (M3.5 x 20) [ More info ] Unavailable Replaced by 10-880750 20
		10-880750 20 - Screw [ More info ] $1.40 $0.78 10+ In Stock.
#44	84-824934A 1	HARNESS ASSEMBLY (1 required per assembly) (USE WHERE APPLICABLE)
		84-824934A 1 - Cable Assembly, NLA [ More info ] $9.00 10+ In Stock.

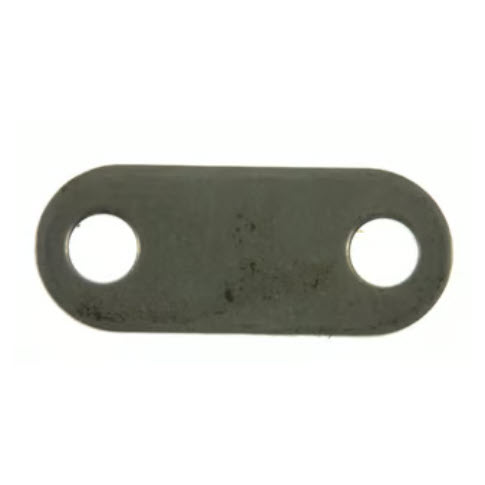

#45	824923	PLATE (1 required per assembly)
		824923 - Switch Plate [ More info ] $9.50 10+ In Stock.
#46	84-824934A 2	HARNESS (1 required per assembly) (USA-S/N-0G437999/BEL-9926999 & BELOW)
		84-824934A 2 - Harness Assembly, NLA [ More info ] $28.00 2 In Stock.
#46	84-824934A 3	HARNESS (1 required per assembly) (USA-S/N-0G4378000/BEL-9927000 & UP)
		84-824934A 3 - Harness Assembly [ More info ] $58.25 Available to Order: Usually ships within 10 days.
