Parts for Mercury Marine 75 HP (3 Cylinder) Throttle Lever & Linkage

Revise Search: All Models > 75 HP (3 Cylinder) > 0P325500 & Up (Belgium) > Throttle Lever & Linkage

NEED PARTS OR KITS?

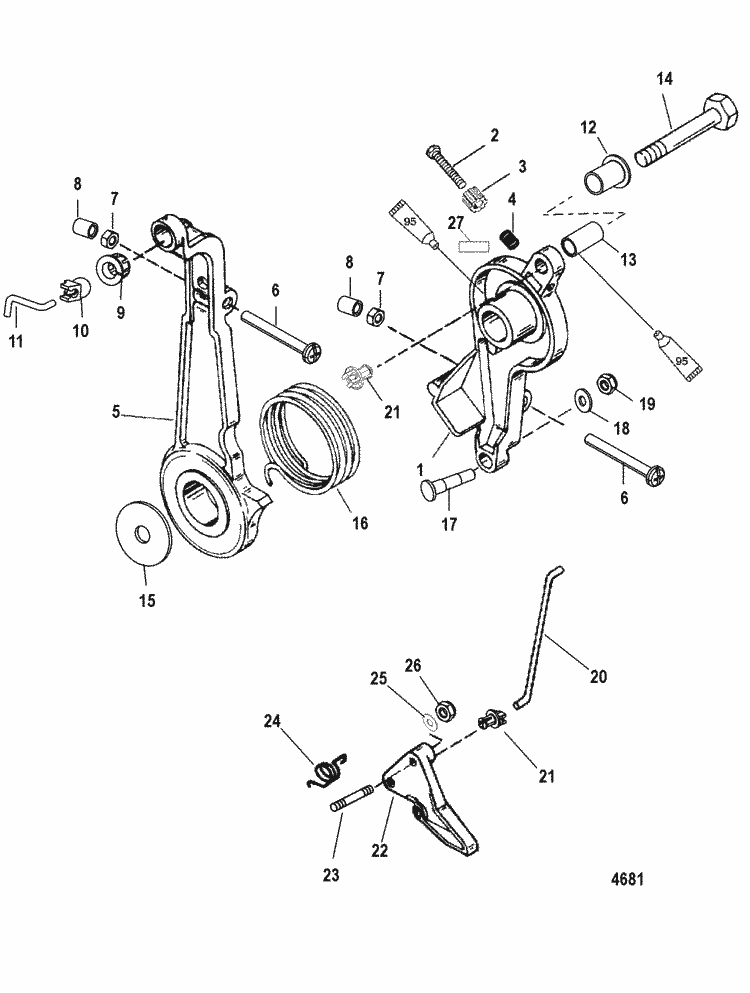

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

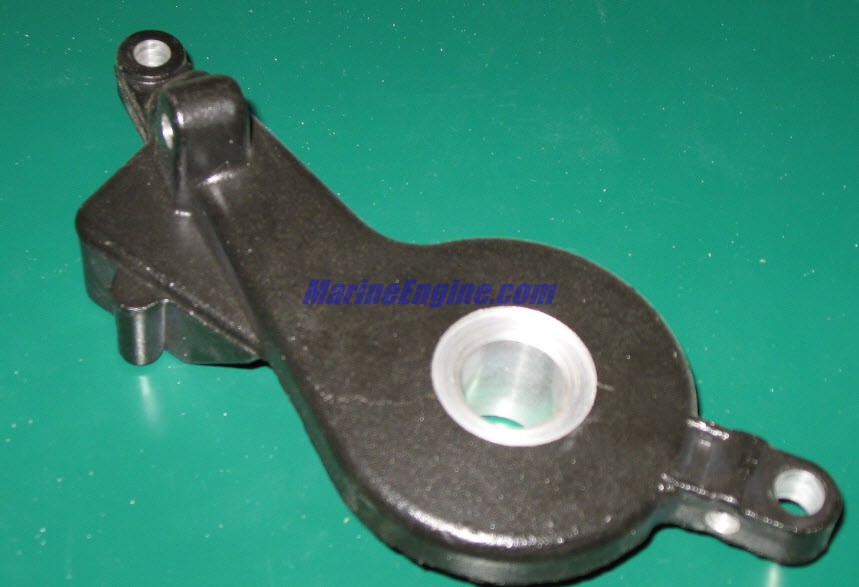

#1	42946T 1	LEVER, Throttle (1 required per assembly)
		42946T 1 - Throttle Lever [ More info ] $94.67 Available to Order: Usually ships within 10 days.

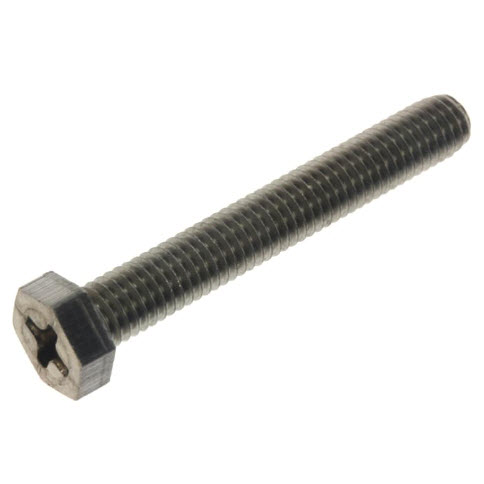

#2	10-827008	SCREW, (M5 x 35) (1 required per assembly)
		10-827008 - Screw - Priced Individually [ More info ] $3.70 $3.14 3 In Stock.

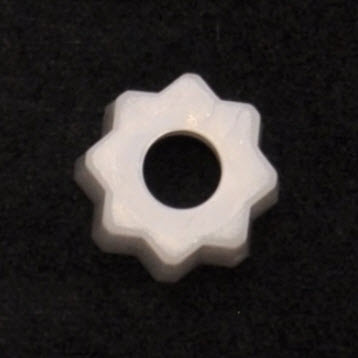

#3	826264	CAP (1 required per assembly)
		826264 - Cap [ More info ] $3.60 Available to Order: Usually ships within 10 days.
#4	24-826382	SPRING (1 required per assembly)
		24-826382 - Spring - Priced Individually [ More info ] $1.30 $1.10 10+ In Stock.

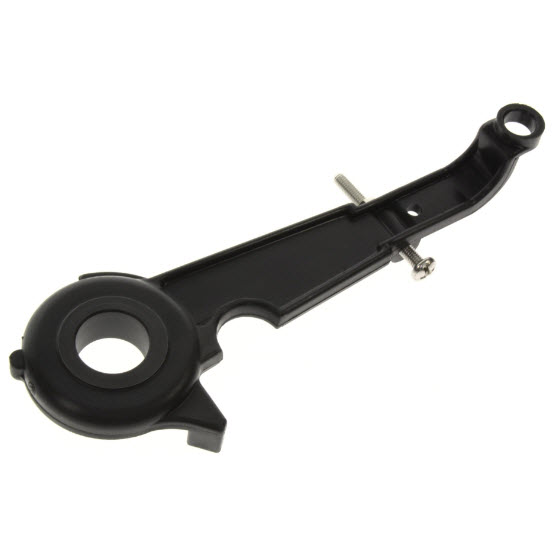

#5	42947 1	LEVER, Spark Advance (1 required per assembly)
		42947 1 - Spark Advance Lever [ More info ] $41.25 Available to Order: Usually ships within 10 days.

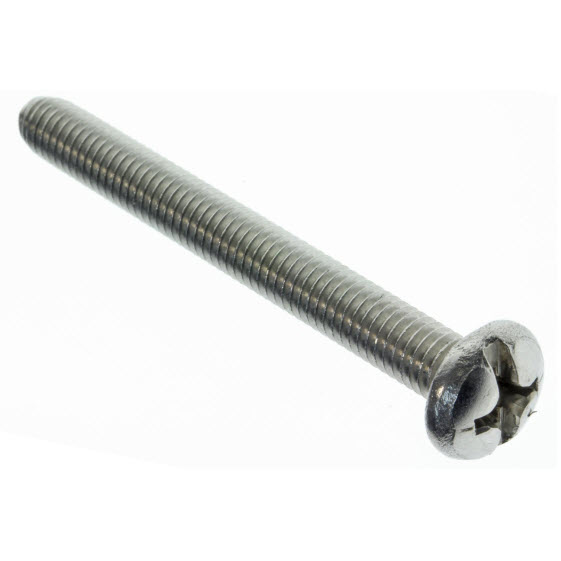

#6	10-814776	SCREW, Adjusting (M6 x 55) (2 required per assembly)
		10-814776 - Screw [ More info ] $3.10 7 In Stock.
#7	11-40021 2	NUT, (M6) Stainless Steel (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.80 10+ In Stock.
#8	42942	CAP (2 required per assembly)
		42942 - Nylon Cap [ More info ] $1.80 Available to Order: Usually ships within 10 days.
#9	93254	SWIVEL BASE (1 required per assembly)
		93254 - Swivel Base [ More info ] $12.70 9 In Stock.
#10	93421	SWIVEL BALL (1 required per assembly)
		93421 - Swivel Ball [ More info ] $13.70 10+ In Stock.

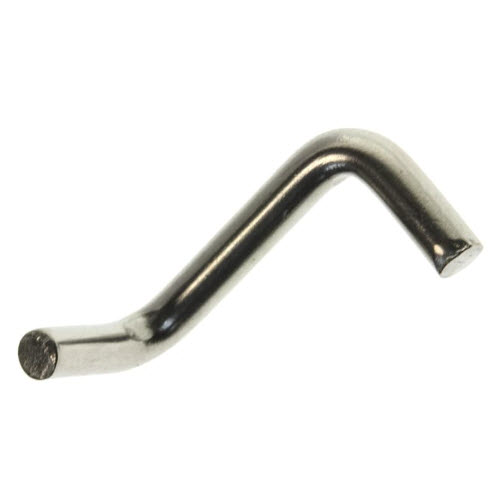

#11	878172	ROD, Spark Advance (1 required per assembly)
		878172 - Spark Advance Rod [ More info ] $19.42 Available to Order: Usually ships within 10 days.
#12	23-812930A 1	BUSHING (1 required per assembly)
		23-812930A 1 - Bushing Kit [ More info ] $6.80 Available to Order: Usually ships within 10 days.
#13	NSS	NOT SOLD SEPARATE, Insert (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#14	10-40071 80	SCREW, (M10 x 45) (1 required per assembly)
		10-40071 80 - Screw [ More info ] $5.20 2 In Stock.
#15	12-42980	WASHER (1 required per assembly)
		12-42980 - Washer [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#16	24-55162	SPRING (1 required per assembly)
		24-55162 - Spring, Return - Spark Advance Lever [ More info ] $7.70 Available to Order: Usually ships within 10 days.

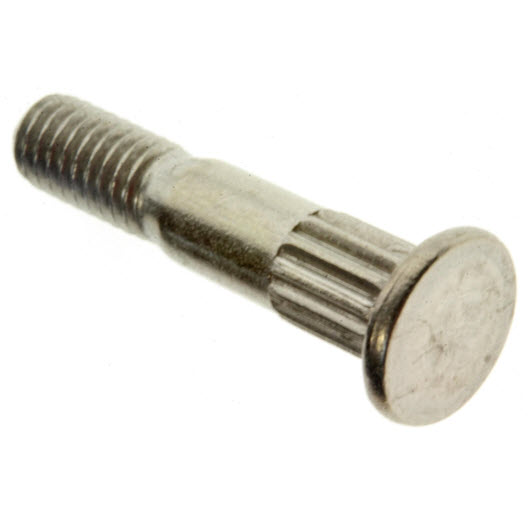

#17	42927	INSERT (1 required per assembly)
		42927 - Insert [ More info ] $16.40 $13.94 8 In Stock.
#18	12-35459	WASHER (1 required per assembly)
		12-35459 - Washer (.265 X .620 X .06) [ More info ] $1.60 6 In Stock.
#19	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.
#20	878420	ROD, Throttle (1 required per assembly)
		878420 -Throttle Rod [ More info ] Unavailable

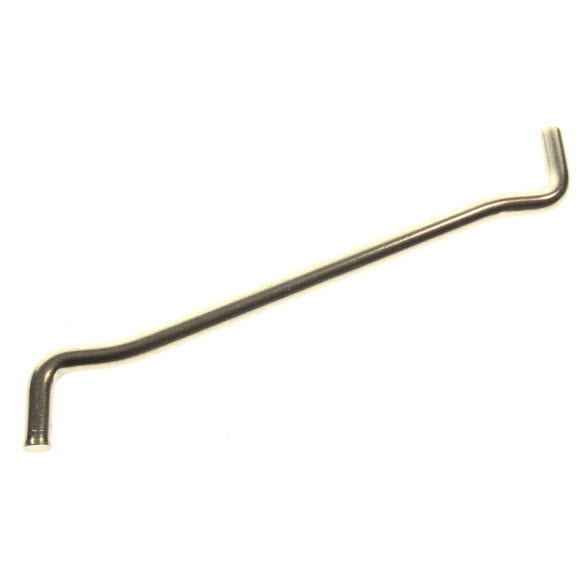

		878420T - Throttle Control Rod [ More info ] $24.07 10+ In Stock.

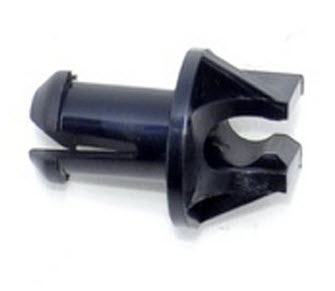

#21	23-93248 1	BUSHING (2 required per assembly)
		23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable
#22	42948A 7	CAM ASSEMBLY, Throttle (1 required per assembly)
		42948A 7 - Cam Kit [ More info ] $22.96 1 In Stock.
#23	16-816194 9	STUD, (M6 x 44) (1 required per assembly)
		16-816194 9 - Stud [ More info ] $11.70 Available to Order: Usually ships within 10 days.
#24	24-14159	SPRING (1 required per assembly)
		24-14159 - Spring, Cam Return [ More info ] $6.30 1 In Stock.
#25	12-69056	WASHER, (.255 x .620 x .030) Stainless Steel (1 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.70 4 In Stock.
