Parts for Mercury Marine 75 HP (3 Cylinder) Swivel Bracket & Steering Arm

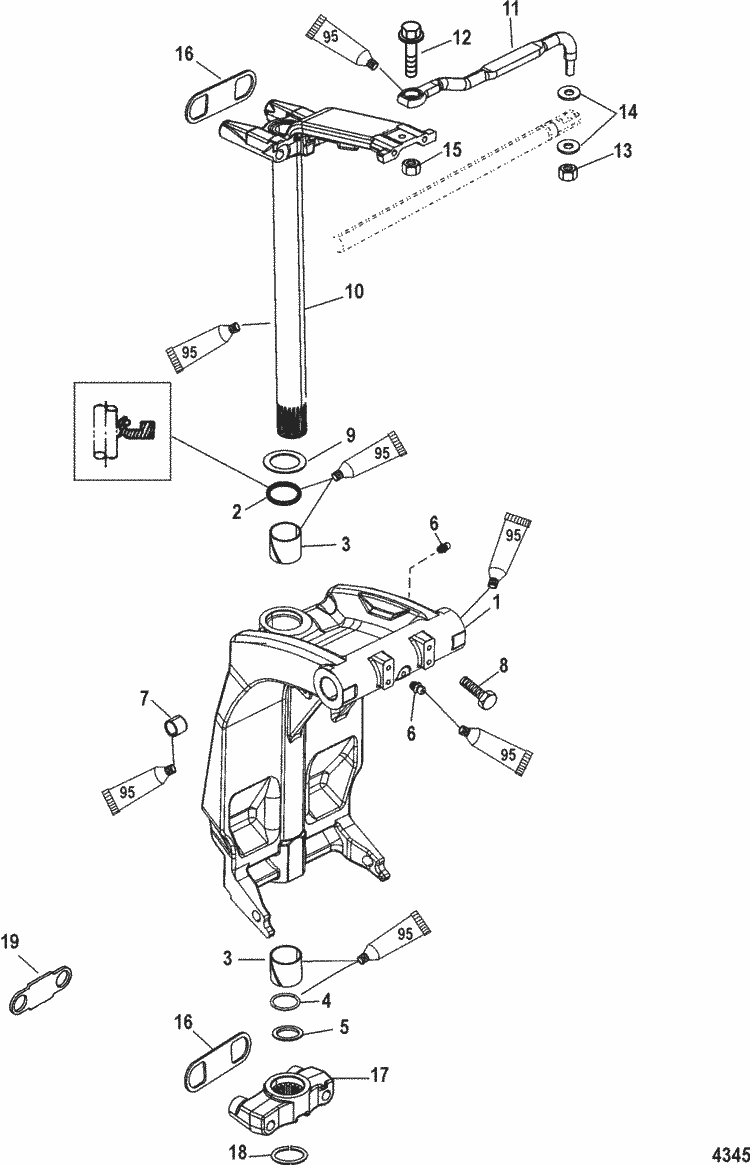

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3408-881919T01 | SWIVEL BRACKET (1 required per assembly) |
  |
|
3408-881919T01 - 3408-881919T01 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1400-898032A03 |
  |
|
1400-898032A03 - 1400-898032A03 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1400-8M0088881 |
 |
|
1400-8M0088881 - 1400-8M0088881 - SWIVEL BRACKET AS [ More info ] Unavailable Replaced by 1400-8M0107419 |
  |
|
14008M0107419 - Swivel Bracket [ More info ]
|
| #2 | 26-87735 | SEAL, Oil, Lower (1 required per assembly) |
  |
|
|
| #3 | 23-818764 | BUSHING (2 required per assembly) |
  |
|
23-818764 - Bushing [ More info ]
|
| #4 | 25-33504 | O-RING (1 required per assembly) |
  |
|
25-33504 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7170-9 - O-Ring (PK5) 307239, 25-33504 [ More info ]
|
| #5 | 23-816039 | SPACER (1 required per assembly) |
  |
|
23-816039 - Spacer - Swivel Bracket [ More info ]
|
| #6 | 22-74036 | FITTING, Grease (2 required per assembly) |
  |
|
22-74036 - Fitting - Priced Individually [ More info ]
|
|
|
228M0169589 - FITTING Note: Priced Individually [ More info ]
|
| #7 | 23-821207 | BUSHING (2 required per assembly) |
  |
|
23-821207 - Bushing [ More info ]
|
| #8 | 10-64014 | SCREW, (.250-28 x .500) (2 required per assembly) |
  |
|
10-64014 - Screw [ More info ]
|
| #9 | 12-816432 | THRUST WASHER (1 required per assembly) |
|
|
12-816432 - Washer, Thrust [ More info ]
|
| #10 | 99661A35 | SWIVEL PIN ASSEMBLY (1 required per assembly) |
  |
|
99661A35 - Swivel Pin Assembly -bk [ More info ]
|
| #11 | 92876A10 | LINK ROD ASSEMBLY (1 required per assembly) |
  |
|
92876A10 - 92876A10 - LINK ROD ASSEMBLY [ More info ] Unavailable Replaced by -92876A12 |
  |
|
92876A12 - LINK ROD ASSEMBLY [ More info ] Unavailable |
| #12 | 10-849838 | SCREW, (.375-24 x 1.250) (1 required per assembly) |
  |
|
10-849838 - Screw [ More info ]
|
| #13 | 11-826709113 | NUT, (.375-24) Stainless Steel (1 required per assembly) |
  |
|
11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636 |
|
|
11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726 |
|
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #14 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel (2 required per assembly) |
|
|
12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ]
|
| #16 | 881974 | BUMPER (2 required per assembly) |
|
|
881974 - 881974 - BUMPER [ More info ] Unavailable Replaced by -8M0000519 |
|
|
8M0000519 - Bumper - Priced Individually [ More info ]
|
| #17 | 881914T01 | YOKE, Bottom (1 required per assembly) |
|
|
881914T01 - YOKE Bottom [ More info ] Unavailable |
| #18 | 53-67684 | RING, Retaining (1 required per assembly) |
  |
|
53-67684 - Ring - Retaining [ More info ]
|
| #19 | 11288001 | BUMPER, Bottom Yoke (X-Long) (1 required per assembly) |
  |
|
11288001 - Bottom Yoke Bumper [ More info ]
|
