Parts for Mercury Marine 75 HP (3 Cylinder) Oil Injection Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-43004A99 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-43004A99 - Engine Gasket Set [ More info ]
|
  |
|
18-4336 - Gasket Set, 27-43004A99 [ More info ]
|

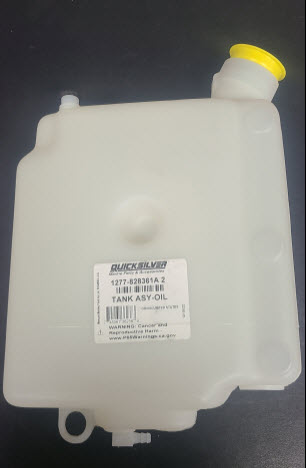

| #1 | 1277-828361A 2 | TANK ASSEMBLY, Oil (1 required per assembly) |
  |
|
1277-828361A 2 - Oil Tank Assembly [ More info ]
|

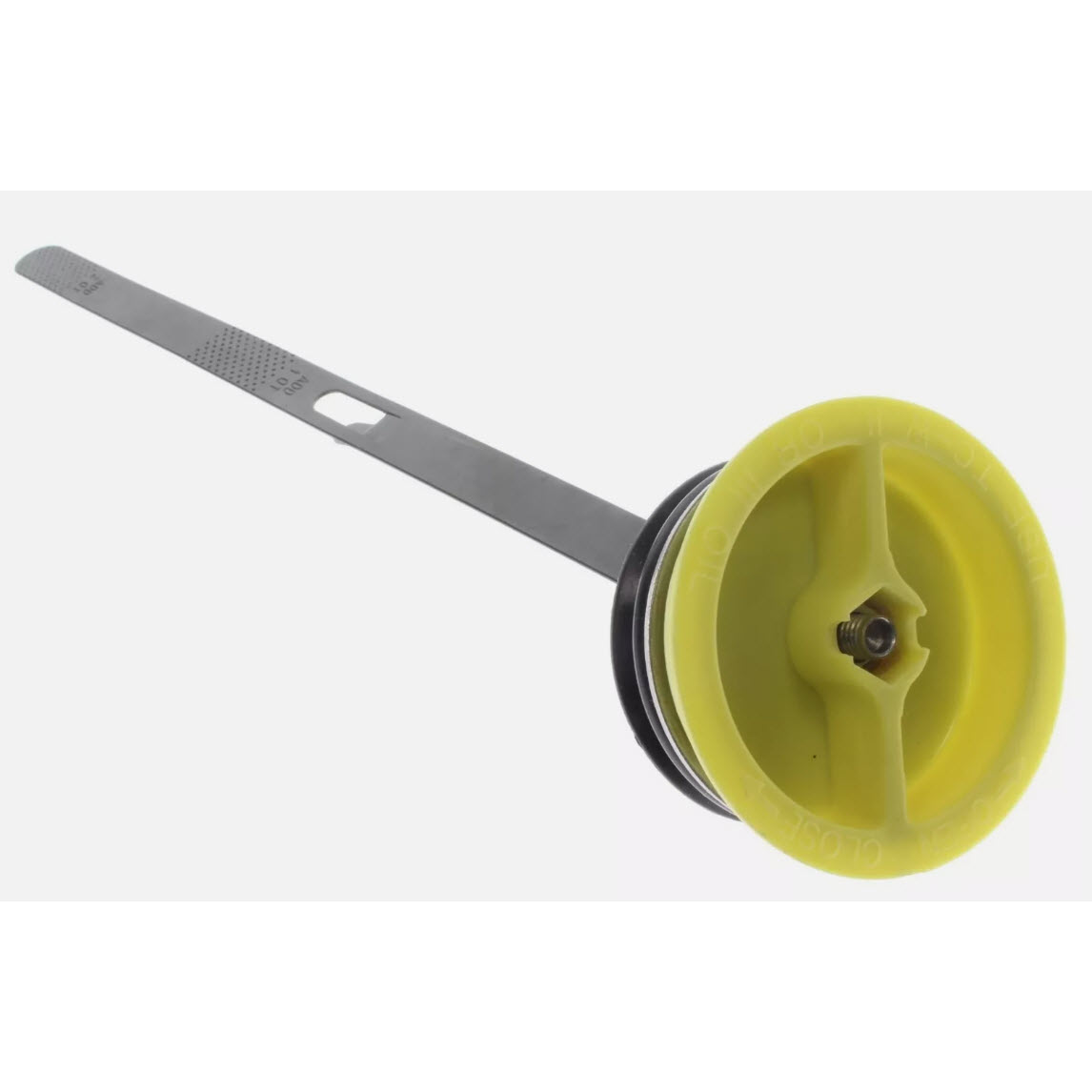

| #2 | 828475A 1 | CAP (1 required per assembly) |
  |
|
828475A 1 - Oil Tank Cap Assembly [ More info ]
|
| #3 | 25-26318 | O-RING (1 required per assembly) |
 |
|
25-26318 - 25-26318 - O-RING [ More info ] Unavailable Replaced by 25-26318T |
  |
|
25-26318T - O-Ring [ More info ]
|

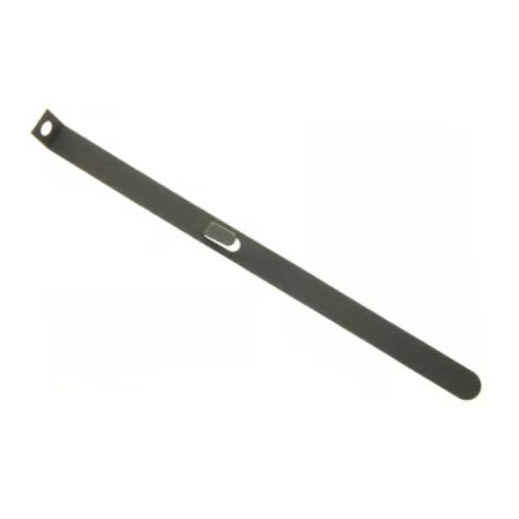

| #4 | 828793 | DIPSTICK (1 required per assembly) |
  |
|
828793 - Dipstick [ More info ]
|
| #5 | 11-11316 1 | NUT (1 required per assembly) |
  |
|
11-11316 1 - Nut [ More info ]
|
| #6 | 19299A 1 | VENT ASSEMBLY (1 required per assembly) |
  |
|
19299A 1 - Vent Assembly [ More info ]
|
| #7 | 21-64871 | VALVE (1 required per assembly) |
  |
|
21-64871 - Check Valve [ More info ]
|
| #8 | 828720 1 | BRACKET (1 required per assembly) |
|
|
828720 1 - Bracket [ More info ]
|
| #9 | 99160001 | BOOT (1 required per assembly) |
  |
|
99160001 - Boot - Oil Tank Nck [ More info ]
|

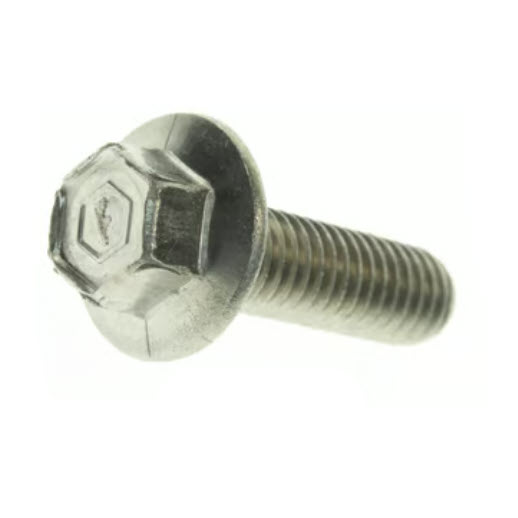

| #10 | 10-40106 20 | SCREW, (M6 x 20) Stainless Steel (2 required per assembly) |
  |
|
10-40106 20 - Screw [ More info ]
|

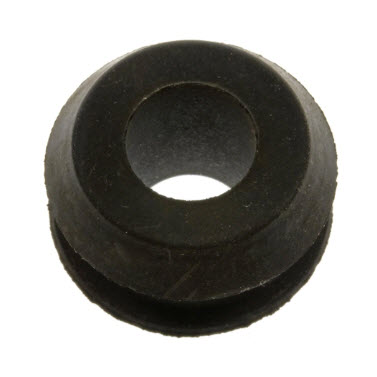

| #11 | 25-825380001 | GROMMET (1 required per assembly) |
  |
|
25-825380001 - Grommet - Priced Individually [ More info ]
|
| #12 | 23-828350 | BUSHING (1 required per assembly) |
|
|
23-828350 - Bushing [ More info ]
|
| #13 | 12-40023 18 | WASHER (1 required per assembly) |
|
|
12-40023 18 - Washer - Priced Individually [ More info ]
|
| #14 | 10-818934 35 | SCREW, (M8 x 35) (1 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|

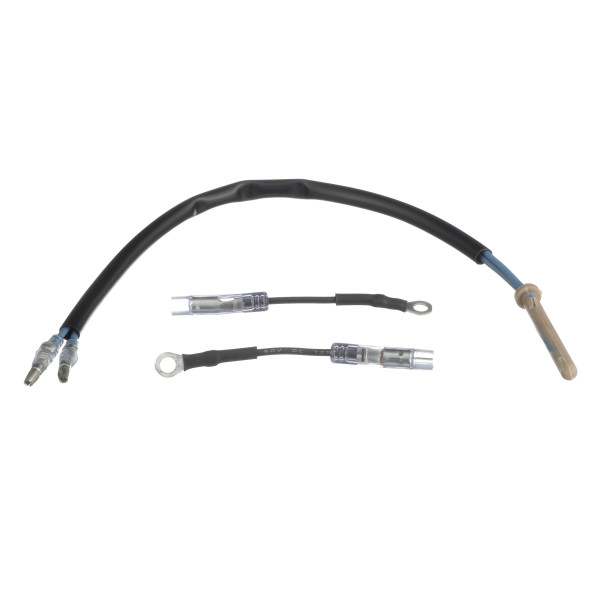

| #15 | 87-12886A 6 | SWITCH ASSEMBLY (1 required per assembly) |
  |
|
87-12886A 6 - Switch Assembly [ More info ]
|
  |
|

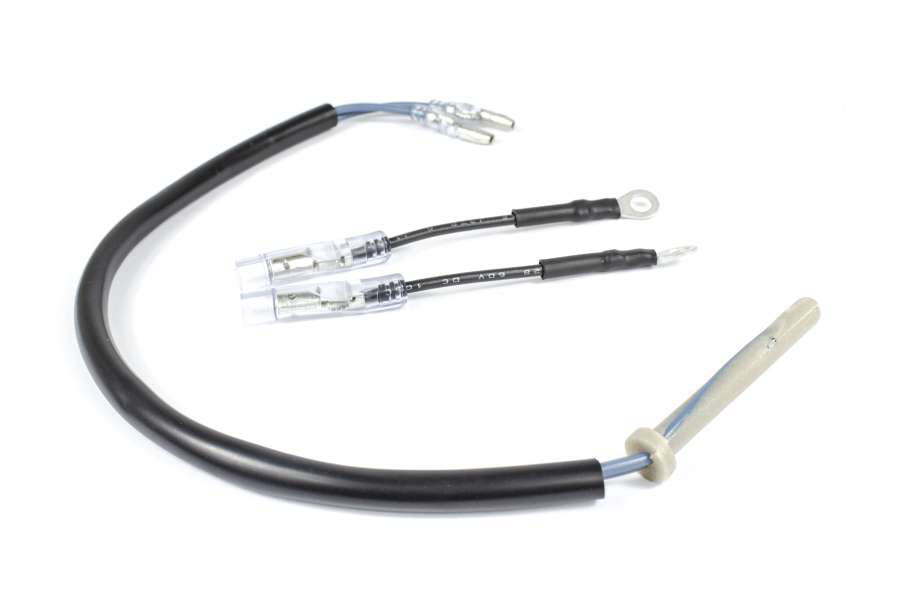

18-1800 - Oil Reservoir Float Switch, 12886A6 [ More info ]
|
| #16 | 10-58376 | SCREW, (.164-18 x .375) (1 required per assembly) |
  |
|
10-58376 - Screw [ More info ]
|
| #17 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel (1 required per assembly) |
  |
|
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ]
|
| #18 | 43-43020 4 | GEAR, Driven (1 required per assembly) |
  |
|
43-43020 4 - Driven Gear [ More info ]
|
| #19 | 25-62705 | O-RING (2 required per assembly) |
  |
|
25-62705 - 25-62705 - O-RING [ More info ] Unavailable Replaced by -8M0204667 |
|
|
25-8M0204667 - O RING Note: Priced Individually [ More info ]
|
  |
|
18-7105-9 - O-Ring (Pack of 5) 311338, 26-62705 [ More info ]
|

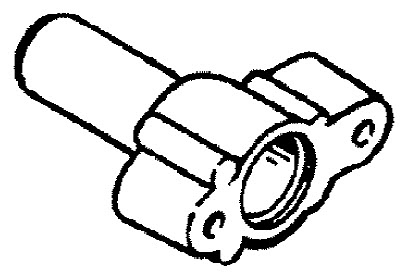

| #20 | 17335A 3 | ADAPTOR ASSEMBLY (1 required per assembly) |
  |
|
17335A 3 - Adaptor Assembly [ More info ]
|
| #21 | 23-17597 | BUSHING (1 required per assembly) |
|
|
23-17597 - Bushing [ More info ]
|
| #22 | 23-17596 | BUSHING (1 required per assembly) |
|
|
23-17596 - Bushing [ More info ]
|

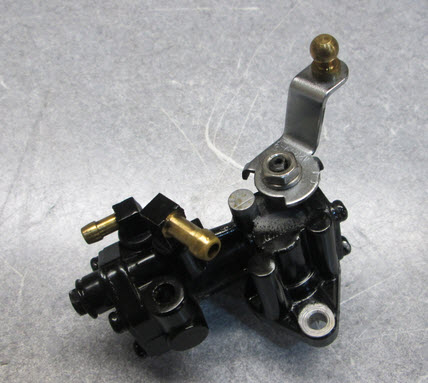

| #23 | 42959A 2 | PUMP ASSEMBLY, Oil (1 required per assembly) |
  |
|
42959A 2 - Oil Pump Assembly Injection [ More info ]
|
| #24 | 10-821045 40 | SCREW, (M5 x 40) (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|

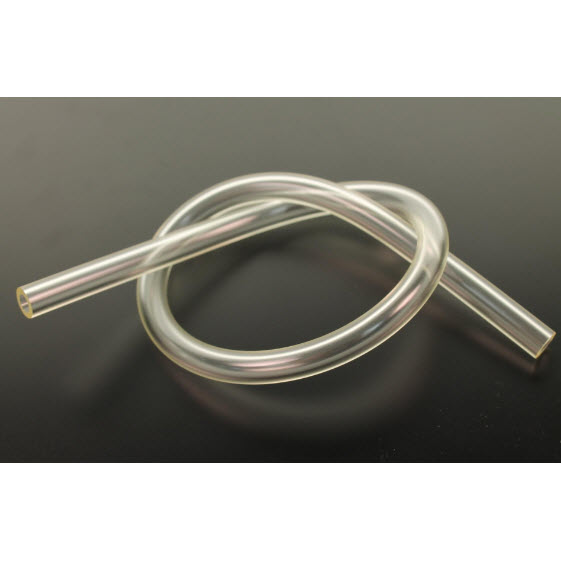

| #25 | 32-823813 35 | TUBING, (15.00 Inches Bulk) (Cut to 6.00 Inch Length) (1 required per assembly) A=To Fuel Pump |
  |
|
32-823813 35 - Tubing - 15 Inch [ More info ]
|
| #26 | 32-823814 55 | TUBING, (25.00 Inches Bulk) (Cut to 11.00 Inch Length) (1 required per assembly) |
  |
|
32-823814 55 - Tubing - 25 In - Priced Individually [ More info ]
|
| #27 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #27 | 69355 | TIE STRAP, (5.50 Inches) (AR required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
