Parts for Mercury Marine 75 HP (3 Cylinder) Fuel Pump
Tap to zoom. Scroll down to order.

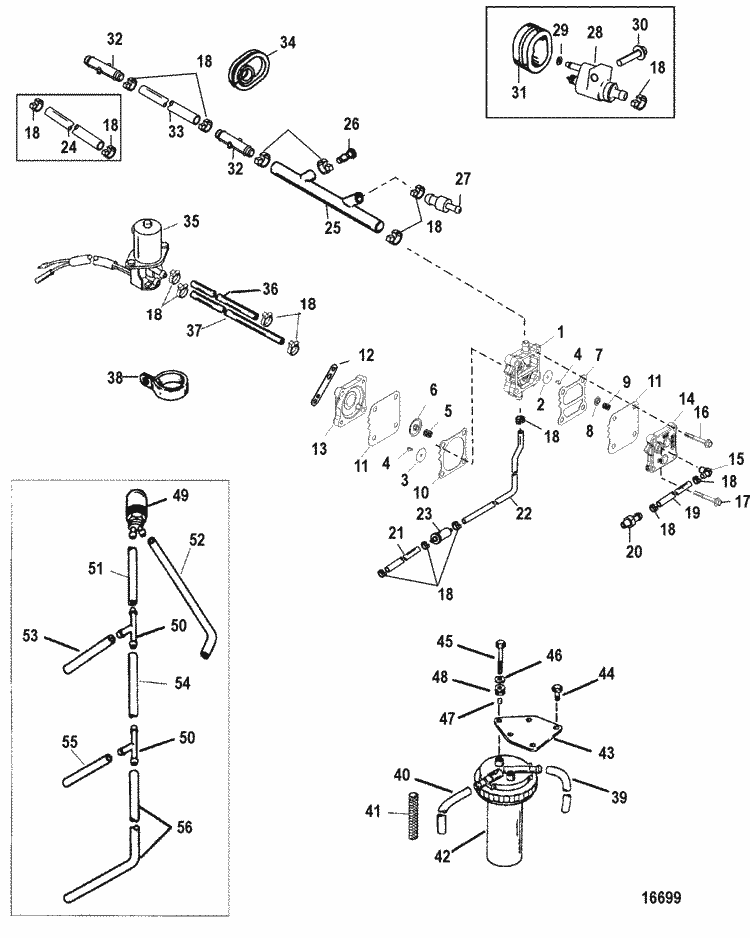

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

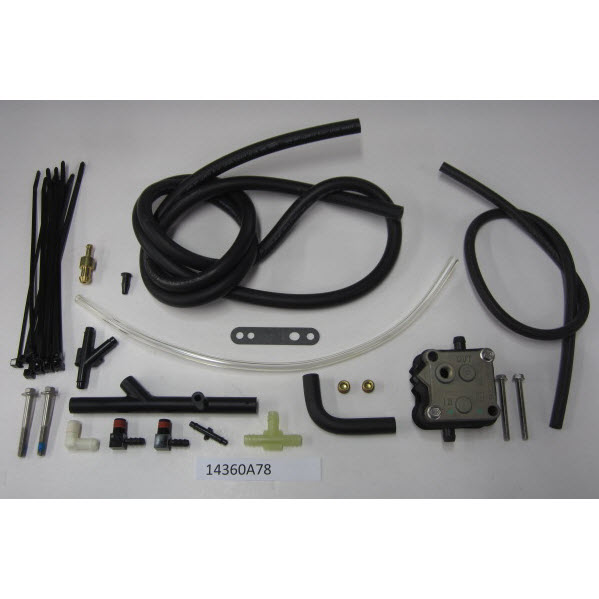

# | 14360A78 | PUMP KIT, Fuel (1 required per assembly) |
# | 27-43004A99 | GASKET SET, Powerhead (1 required per assembly) |
#1 | NSS | NOT SOLD SEPARATE, Fuel Pump (1 required per assembly) |
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
||
#2 | 21-857005A 1 | DIAPHRAGM KIT (1 required per assembly) |
#12 | 27-98769 1 | GASKET (1 required per assembly) |
27-98769 1 - Gasket [ More info ] Unavailable |
||
#13 | 14430 3 | BASE (1 required per assembly) |
#14 | 98775 2 | PLATE (1 required per assembly) |
#15 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |

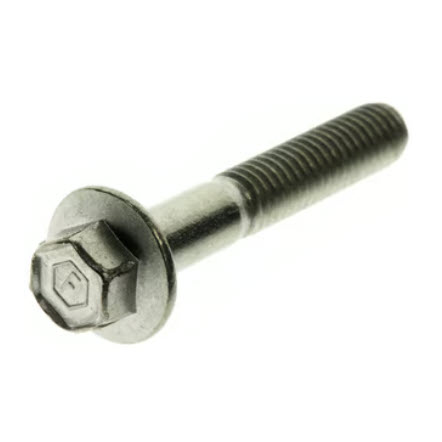

#16 | 10-821045 40 | SCREW, (M5 x 40) (2 required per assembly) |
#17 | 10-821300 50 | SCREW, (M6 x 50) (2 required per assembly) |
#18 | 69355 | TIE STRAP, (5.50 Inches) (AR required per assembly) |
8M0214940 - TIE STRAP @100 [ More info ] Unavailable |

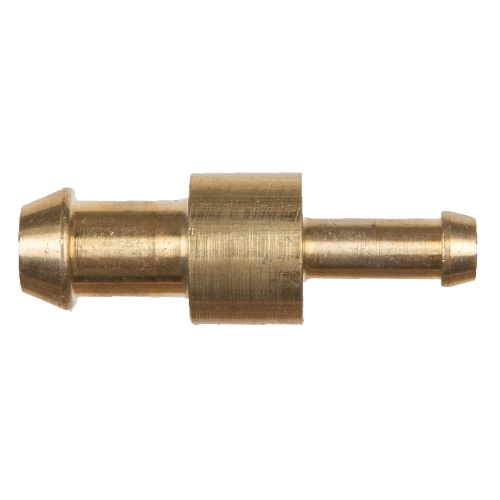

||
#19 | 32-897930 | Hose, Molded (1 required per assembly) |
#20 | 22-29111 2 | FITTING (1 required per assembly) (To Crankcase) |
#21 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length) (1 required per assembly) (Oil Injection)(To Carburetor) |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
||
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
||
32-8M0108349 - Hose-70 Inch [ More info ] Unavailable |
||

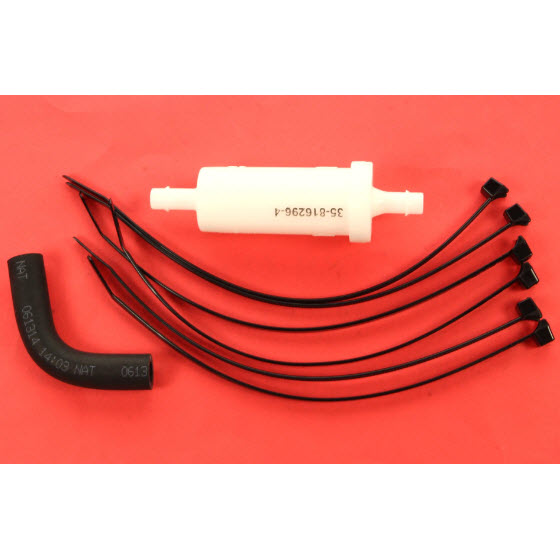

#22 | 32-19017A 1 | LINE ASSEMBLY, Fuel (1 required per assembly) (Oil Injection) |

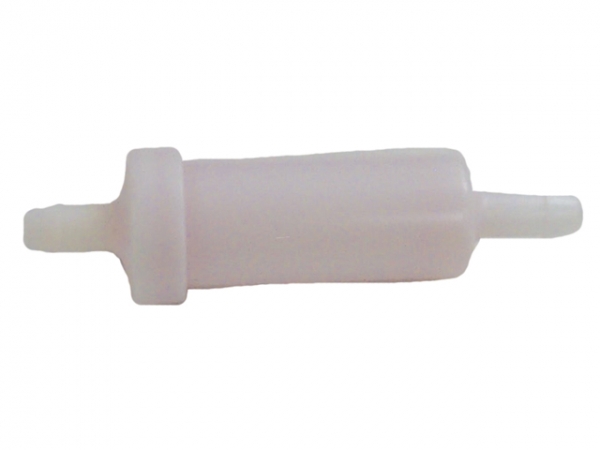

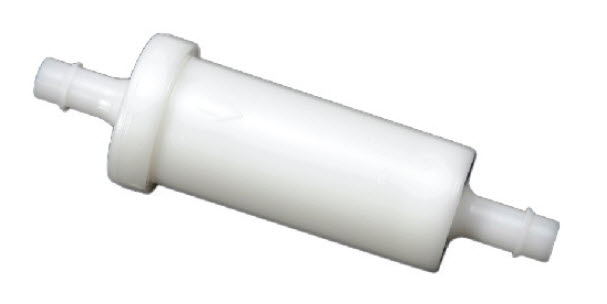

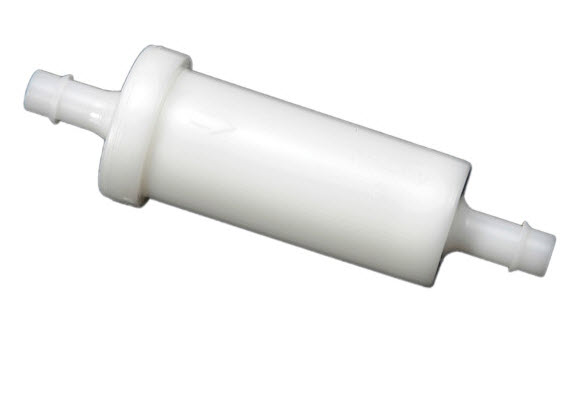

#23 | 35-816296Q 2 | FILTER, Fuel (1 required per assembly) (Oil Injection) |
35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] |
||
35-816296K 2 - Fuel Filter - Priced Individually [ More info ] |
||

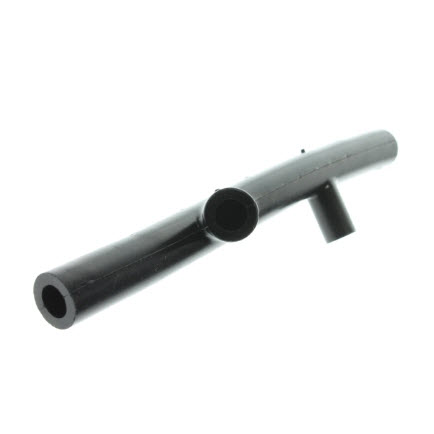

#25 | 32-822554 | MOLDED HOSE (1 required per assembly) (Oil Injection) |
#26 | 19-822772 | PLUG, Non Commercial Engines (1 required per assembly) (Oil Injection) |

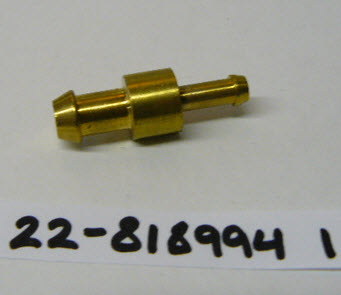

#27 | 22-818994 1 | CHECK VALVE (Oil Injection) (1 required per assembly) (Oil Injection)(To Oil Pump) |

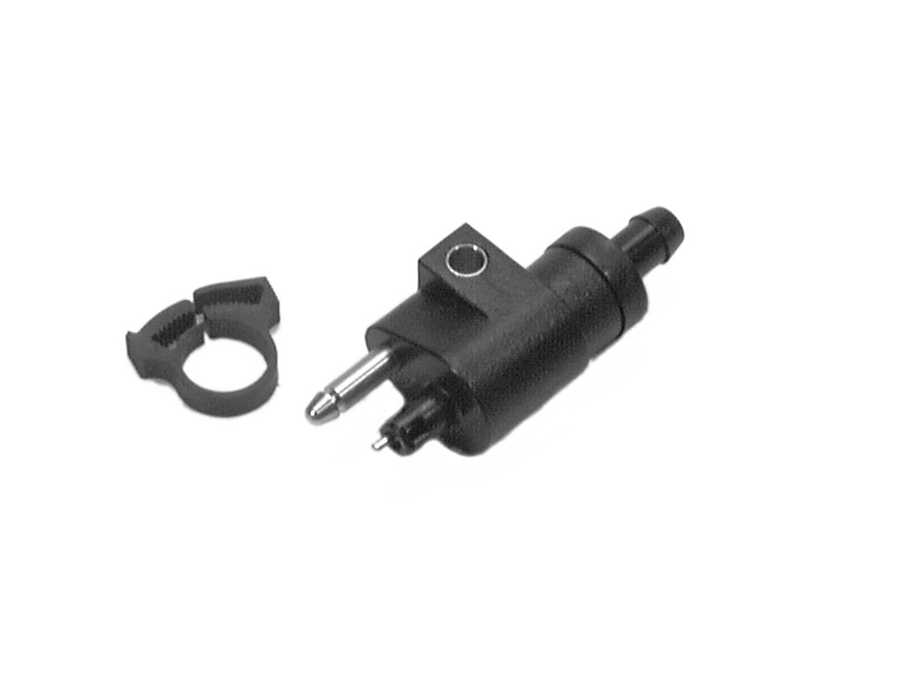

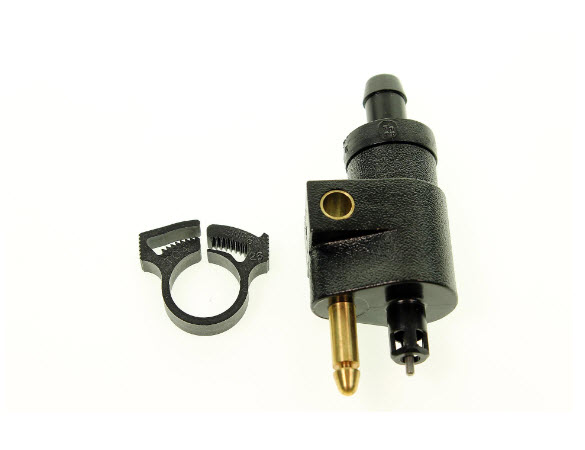

#28 | 22-816856Q 3 | CONNECTOR ASSEMBLY, Fuel (1 required per assembly) (Design I) |
22-816856Q 3 - Connector - Priced Individually [ More info ] |
||
22-816856T 3 - Connector - Priced Individually [ More info ] |
||

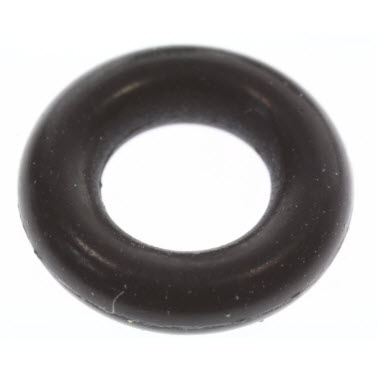

#29 | 25-16524 | O-RING, Fuel Connector (1 required per assembly) (Design I) |

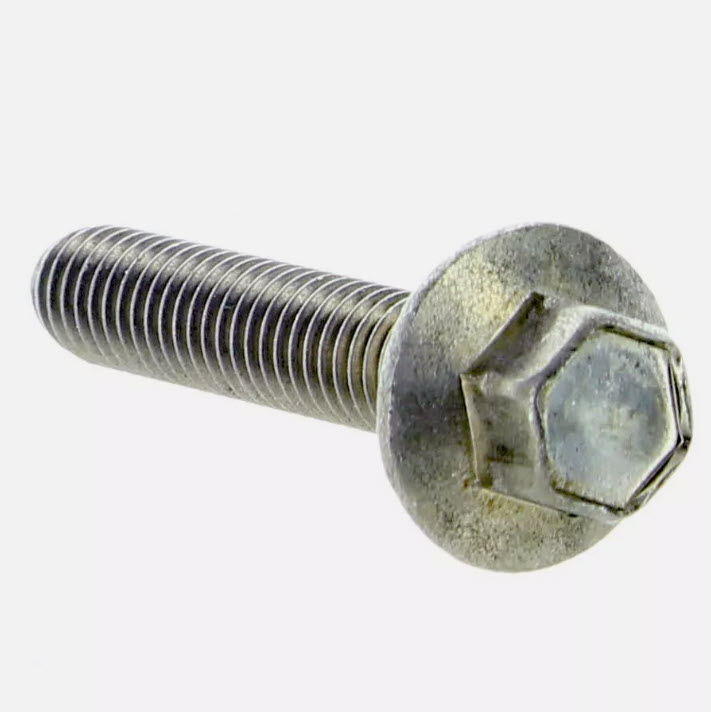

#30 | 10-40106 35 | SCREW, (M6 x 35) Stainless Steel (1 required per assembly) (Design I) |

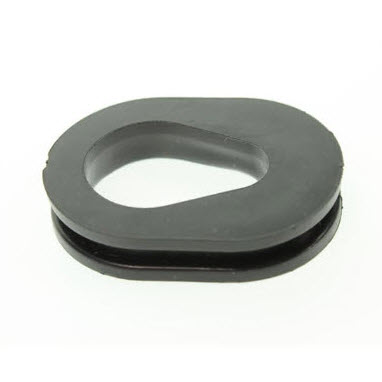

#31 | 25-14509 1 | GROMMET (1 required per assembly) (Design I) |
#32 | 22-822769 | CONNECTOR (2 required per assembly) (Design II) |
#33 | 32-859361 57 | TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length) (1 required per assembly) (Design II) |
32-859361 57 - Hose-26 INCH [ More info ] Unavailable |
||
#34 | 25-14509 3 | GROMMET (1 required per assembly) (Design II) |

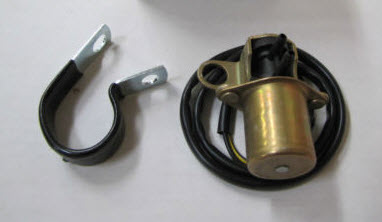

#35 | 89-819503A 1 | SOLENOID ASSEMBLY, Enrichner Valve (1 required per assembly) (Electric) |
89-819503A 1 - Solenoid Kit [ More info ] Unavailable |
||

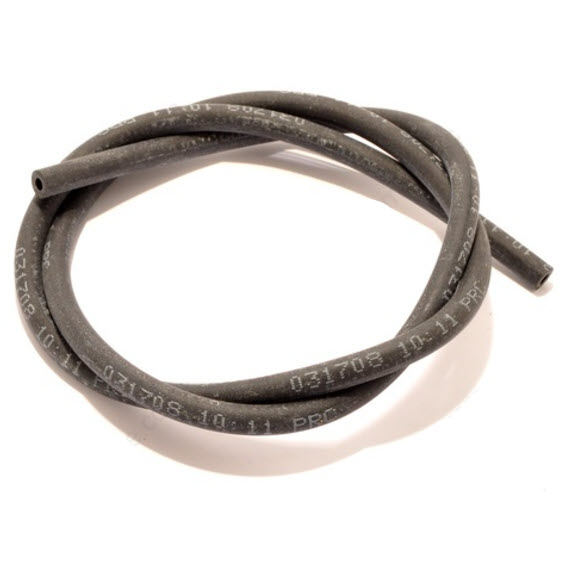

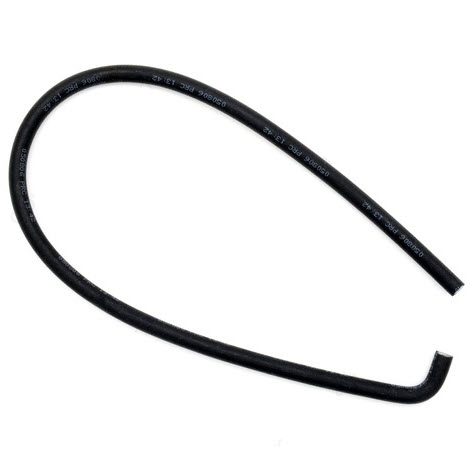

#36 | 32-14301 65 | TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length) (1 required per assembly) (Electric) |
#37 | 32-99126 88 | TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (1 required per assembly) (Electric) |
#38 | 54-18887 1 | CLAMP (1 required per assembly) (Electric) |
#40 | 32-834764 63 | TUBING, (32.00 Inches Bulk) (Cut to 13.00 Inch Length) (1 required per assembly) (Non Oil Injection) |
#41 | 23-833125 31 | INSULATING SLEEVE (1 required per assembly) (Non Oil Injection) |
23-833125 31 - Sleeve -16 Inch [ More info ] Unavailable |
||

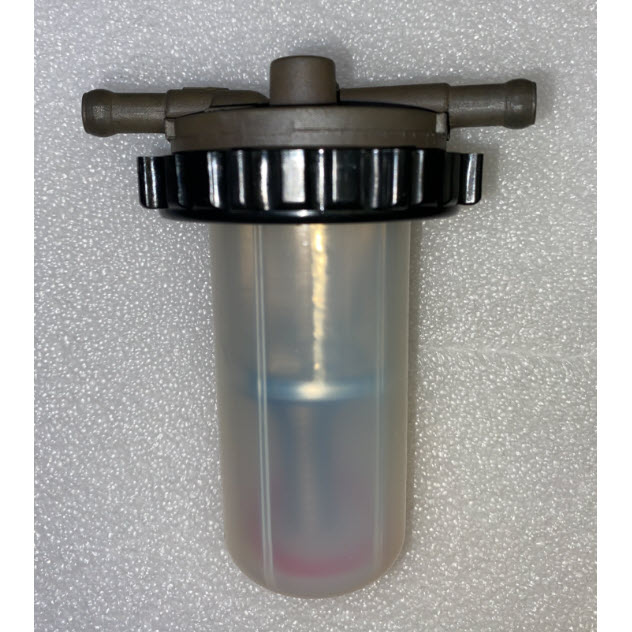

#42 | 35-826634T | FILTER, Fuel (1 required per assembly) (Non Oil Injection) |
35-826634T - Fuel Filter [ More info ] Unavailable |
||
#43 | 827961 | BRACKET (1 required per assembly) (Non Oil Injection) |
827961 - Bracket [ More info ] Unavailable |
||
#44 | 10-821291 14 | SCREW, (M6 x 14) (2 required per assembly) (Non Oil Injection) |
#45 | 10-40106 30 | SCREW, (M6 x 30) Stainless Steel (2 required per assembly) (Non Oil Injection) |
#46 | 12-40023 16 | WASHER (2 required per assembly) (Non Oil Injection) |
#47 | 23-42116 | BUSHING (2 required per assembly) (Non Oil Injection) |
#48 | 25-42117 | GROMMET (2 required per assembly) (Non Oil Injection) |

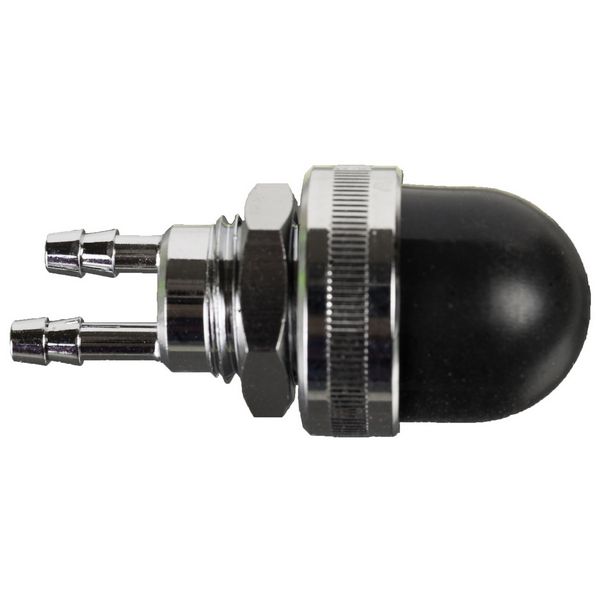

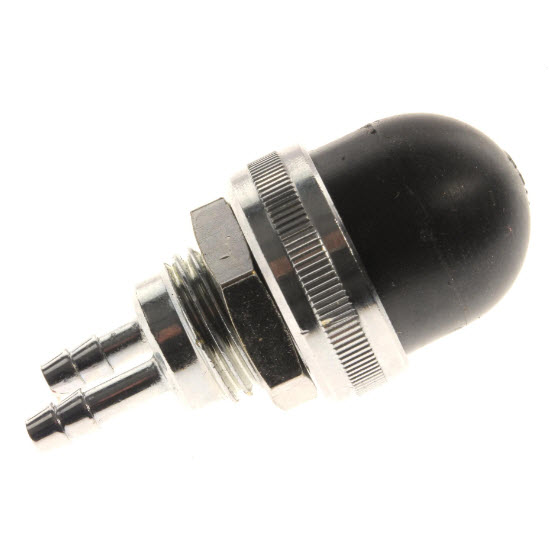

#49 | 858763 | PRIMER BULB (1 required per assembly) (Manual) |
#50 | 22-59169003 | FITTING, Tee (2 required per assembly) (Manual) |

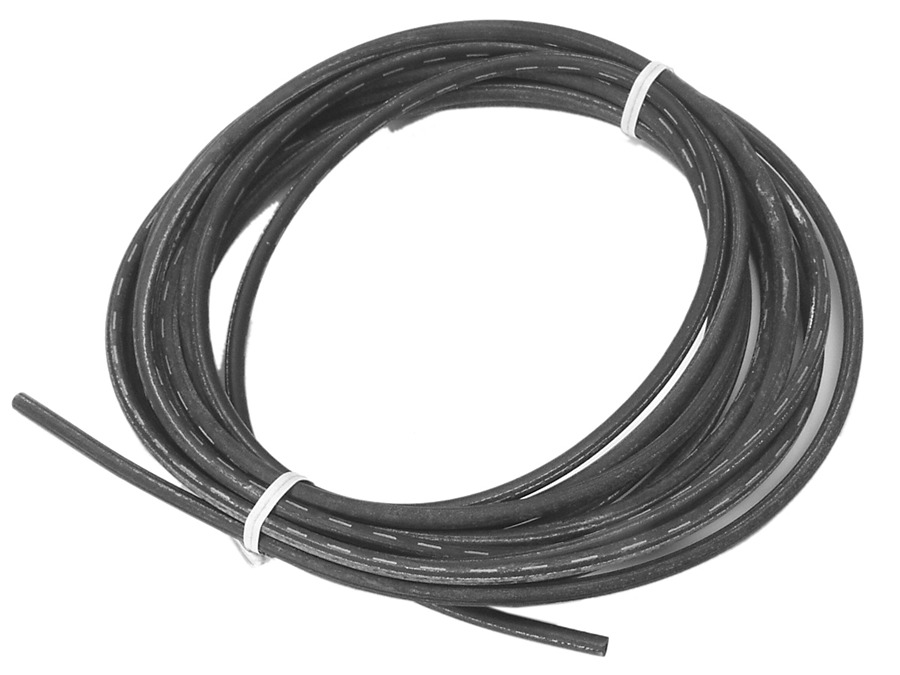

#51 | 32-892024122 | TUBING, (240.00 Inches Bulk) (Cut to 6.00 Inch Length) (1 required per assembly) (Manual) |
