Parts for Mercury Marine 75 HP (3 Cylinder) Transom Bracket (Sn- Usa 0T800999 / Bel 0P267999 & Below)

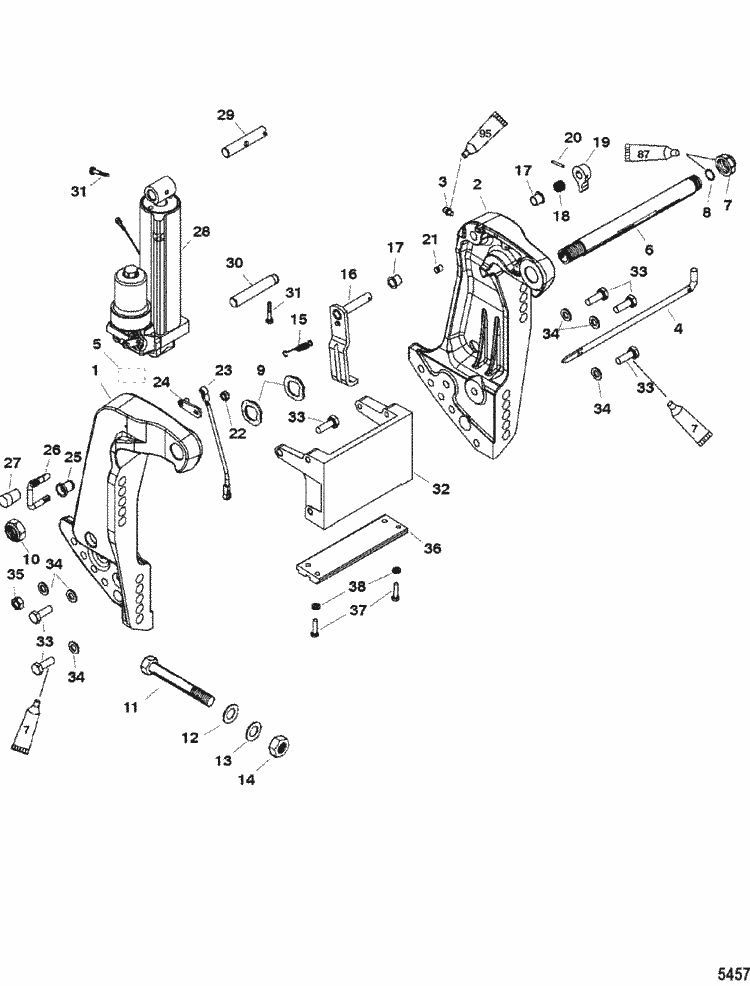

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3426-828334F 1 | BRACKET, Transom (1 required per assembly) (Stardboard) |
 |
|
3426-828334F 1 - 3426-828334F 1 - BRACKET Transom [ More info ] Unavailable Replaced by 3426-828334T02 |
|
|
3426-828334T02 - BRACKET ASSEMBLY NLA [ More info ] Unavailable |
| #2 | 3425-828333A 3 | BRACKET ASSEMBLY, Transom (1 required per assembly) (Port) |
|
|
3425-828333A 3 - 3425-828333A 3 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3425-828333T07 |
|
|
3425-828333T07 - BRACKET ASSEMBLY NLA [ More info ] Unavailable |
| #3 | 22-98727 | FITTING, Grease (1 required per assembly) (Port) |
|
|
22-98727 - Fitting [ More info ]
|
|
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #4 | 17-49930A 1 | PIN ASSEMBLY, Tilt Lock (1 required per assembly) |
|
|
17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068 |
  |
|
17-8M0026068 - Pin Assembly - Tilt [ More info ]
|
| #5 | 37-830253 | DECAL, Tilt Lock (1 required per assembly) |
|
|
37-830253 - Decal - Tilt/Lock [ More info ]
|
| #6 | 99170A 2 | TUBE KIT, Tilt (1 required per assembly) |
  |
|
99170A 2 - TUBE KIT Tilt NLA [ More info ] Unavailable |
  |
|
826125A 1 - Tilt Tube Kit [ More info ]
|
| #6 | 826125A 1 | TILT TUBE (1 required per assembly) (Coastal/Saltwater) |
| #7 | 11-859133 | NUT, (1.00-14) (1 required per assembly) |
  |
|
11-859133 - NUT (1.00-14) NLA [ More info ] Unavailable |
| #7 | 11-826135 | NUT, (1.00-14) Brass/Nickel Plate (1 required per assembly) (Coastal/Saltwater) |
|
|
11-826135 - Nut (1.0-14) [ More info ]
|
| #8 | 25-45711 | O-RING, (.612 x .103) (1 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
  |
|
18-7174-9 - O-Ring (PK5) 326649, 25-45711 [ More info ]
|
| #9 | 13-88750 | WASHER (2 required per assembly) |
|
|
13-88750 - Wave Washer - Priced Individually [ More info ]
|
| #10 | 11-858869 | NUT, (.875-14) (1 required per assembly) |
  |
|
11-858869 - Nut, (.875-14) [ More info ]
|
| #10 | 11-826164 | NUT, (.875-14) (1 required per assembly) (Coastal/Saltwater) |
|
|
11-826164 - Nut (7/8-14) [ More info ]
|
| #11 | 10-67755 1 | SCREW, (.500-20 x 4.500) (4 required per assembly) |
  |
|
10-67755 1 - SCREW (.500-20 x [ More info ] Unavailable |
| #12 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel (4 required per assembly) |
|
|
12-54012 - Washer, (.530 X .870 X .105) Stainless Steel [ More info ]
|
|
|
12-8M0204665 - WASHER Note: Priced Individually [ More info ]
|
| #13 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #14 | 11-826711 17 | NUT, (.500-20) (4 required per assembly) |
  |
|
11-826711 17 - Nut, (.500-20) [ More info ]
|
| #15 | 24-830899 | SPRING, Tension (1 required per assembly) |
|
|
24-830899 - Spring, Tension, Tilt Lock [ More info ]
|
| #16 | 821176T 1 | LEVER ASSEMBLY, Tilt Lock (1 required per assembly) |
|
|
821176T 1 - 821176T 1 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -821176T02 |
|
|
821176T02 - 821176T02 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -8M0109798 |
|
|
8M0109798 - Tilt Lock Lever Assembly [ More info ]
|
| #17 | 23-65830 | NYLINER (2 required per assembly) |
|
|
23-65830 - NyLiner [ More info ]
|
| #18 | 24-830900 | SPRING, Compression (1 required per assembly) |
|
|
24-830900 - Spring, Compression [ More info ]
|
| #19 | 99633 | KNOB (1 required per assembly) |
  |
|
99633 - Tilt Lock Lever Knob [ More info ]
|
| #20 | 17-99615 | PIN, Groove (1 required per assembly) |
|
|
17-99615 - Pin, Groove [ More info ]
|
| #21 | 17-99617 | PIN (1 required per assembly) |
|
|
17-99617 - 17-99617 - PIN [ More info ] Unavailable Replaced by 17-893709 |
|
|
17-893709 - Pin -grooved [ More info ]
|
| #22 | 11-846128 | NUT, (.312-18) Stainless Steel (1 required per assembly) |
|
|
11-846128 - 11-846128 - NUT (.312-18) Sta [ More info ] Unavailable Replaced by 11-826709110 |
|
|
11-826709110 - Nut, (.312-18) Stainless Steel [ More info ]
|
| #23 | 835351 1 | LINK ROD (1 required per assembly) |
|
|
835351 1 - Link Rod [ More info ]
|
| #24 | 832042 | ARM (1 required per assembly) |
  |
|
832042 - Tilt Lever Arm [ More info ]
|
| #25 | 23-832040 | BUSHING (1 required per assembly) |
|
|
23-832040 - Bushing [ More info ]
|
| #26 | 832039 | LEVER, Tilt (1 required per assembly) |
  |
|
832039 - Tilt Lever [ More info ]
|
| #27 | 19621 | TILT KNOB (1 required per assembly) |
|
|
19621 - 19621 - TILT KNOB [ More info ] Unavailable Replaced by -8M0007469 |
  |
|
8M0007469 - Knob - Tilt [ More info ]
|
| #28 | 835249T 1 | MANUAL TILT ASSEMBLY (1 required per assembly) (Breakdown Found on Manual Tilt Assist Components) |
|
|
835249T 1 - Manual Tilt Assembly [ More info ]
|
| #29 | 99625 1 | SHAFT, Upper (1 required per assembly) |
  |
|
99625 1 - 99625 1 - SHAFT [ More info ] Unavailable Replaced by -99625002 |
  |
|
99625002 - Upper Shaft [ More info ]
|
| #30 | 17-818898 | PIN, Anchor (1 required per assembly) |
  |
|
17-818898 - Anchor Pin [ More info ]
|
| #31 | 17-821539 | PIN, Trilobe (2 required per assembly) |
  |
|
17-821539 - Pin, Trilobe, Groove [ More info ]
|
| #32 | 818771T 1 | BRACKET, Anchor (1 required per assembly) |
|
|
818771T 1 - 818771T 1 - BRACKET Anchor [ More info ] Unavailable Replaced by -8M0086406 |
  |
|
8M0086406 - Bracket-Anchor [ More info ]
|
| #33 | 10-40003 77 | SCREW, (M10 x 30) (6 required per assembly) |
  |
|
10-40003 77 - Screw [ More info ]
|
| #34 | 12-40023 19 | WASHER (6 required per assembly) |
|
|
12-40023 19 - Washer (M10) [ More info ]
|
| #35 | 11-40114 | NUT, (M10) (1 required per assembly) |
|
|
11-40114 - Nut (M10 X 1.5) [ More info ]
|
| #36 | 818298Q 1 | ANODE KIT (1 required per assembly) |
  |
|
97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ]
|
  |
|
18-6249A - Anode, Aluminum, 18-6249A [ More info ]
|
  |
|
18-6249 - Zinc Anode, 818298A1 [ More info ]
|
  |
|
97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ]
|
| #37 | 10-40003 30 | SCREW, (M6 x 25) (2 required per assembly) |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #38 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
