Parts for Mercury Marine 75 HP (3 Cylinder) Steering Handle Components

Revise Search: All Models > 75 HP (3 Cylinder) > 0P017000 - 0P325499 (Belgium) > Steering Handle Components

NEED PARTS OR KITS?

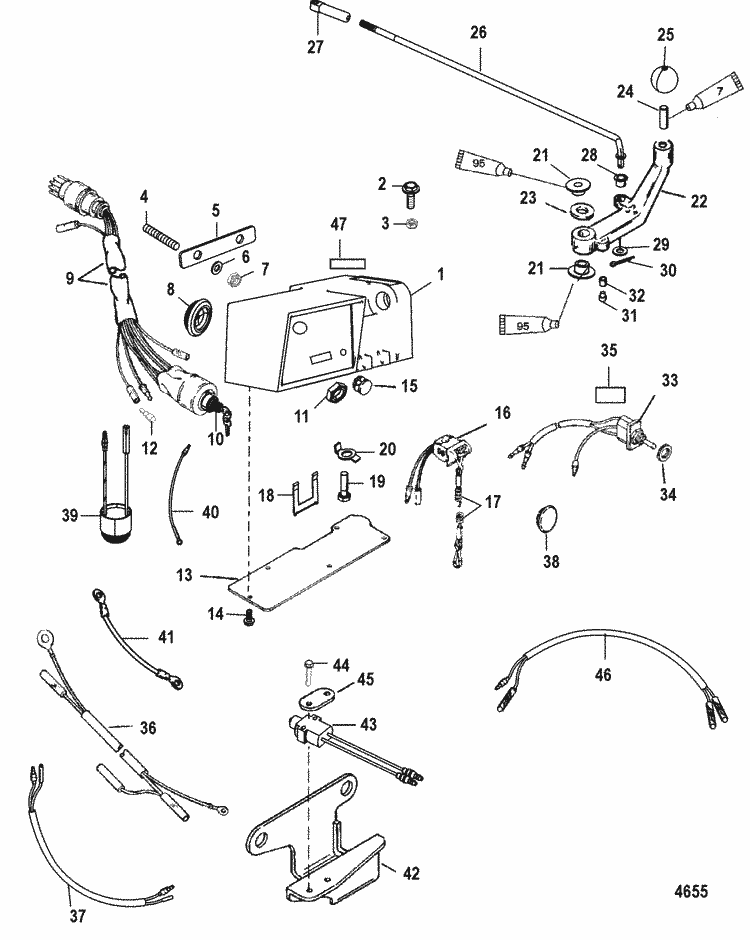

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	12022A22	BRACKET ASSEMBLY (1 required per assembly)
		12022A22 - Bracket Kit - Black [ More info ] $245.50 Available to Order: Usually ships within 10 days.
#2	10-14000	SCREW, (.375-24 x 1.25) (1 required per assembly)
		10-14000 - Screw [ More info ] $2.99 10+ In Stock.
		10-849838 - Screw [ More info ] $21.25 Available to Order: Usually ships within 10 days.
#3	11-826709113	NUT, (.375-24) Stainless Steel (1 required per assembly)
		11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636
		11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#4	16-822320	STUD, (.3125 x 2.50) (2 required per assembly)
		16-822320 - 16-822320 - STUD (.3125 x 2.5 [ More info ] Unavailable Replaced by 16-8M0034421
		16-8M0034421 - Stud [ More info ] $13.60 Available to Order: Usually ships within 10 days.
#5	822263	SPACER (1 required per assembly)
		822263 - Spacer - Steering Arm [ More info ] $9.40 Available to Order: Usually ships within 10 days.
#6	12-814806	WASHER, (.344 x .688 x .065) Stainless Steel (2 required per assembly)
		12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] $1.00 10+ In Stock.
		12-8M0204690 - WASHER [ More info ] Unavailable
#7	11-826709 11	NUT, (.312-24) Stainless Steel (2 required per assembly)
		11-826709 11 - Nut (5/16-24) [ More info ] $4.80 Available to Order: Usually ships within 10 days.
#8	12105 1	GROMMET (1 required per assembly)
		12105 1 - Grommet [ More info ] $19.00 1 In Stock.
#9	84-12649A 5	HARNESS ASSEMBLY (1 required per assembly) (Electric)
		84-12649A 5 - Harness Assembly [ More info ] $323.08 Available to Order: Usually ships within 10 days.
#10	87-88107A 5	SWITCH KIT, Key (1 required per assembly) (See Key Chart )(Electric)
		87-88107A 5 - Ignition Switch Kit [ More info ] $72.72 1 In Stock.
		MP52000 - Ignition Switch, 87-88107A5 [ More info ] $57.72 $55.49 In Stock
		MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ] $24.01 10+ In Stock.
#11	11-93543	NUT, Special - Chrome Brass (1 required per assembly) (Electric)
		11-93543 - Nut, Special - Chrome Brass, Key Switch [ More info ] $3.49 10+ In Stock.
		11-879755 - Nut, (black Nylon) [ More info ] $5.90 1 In Stock.
#12	13541	PLUG, Male (1 required per assembly) (Electric)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#13	12015A 1	COVER (1 required per assembly)
		12015A 1 - COVER NLA [ More info ] Unavailable
		12015 1 - Cover [ More info ] $5.80 1 In Stock.
#14	10-878608	SCREW, (#10-16 x .500) (6 required per assembly)
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#15	19-12014	PLUG (1 required per assembly) (Manual Tilt Assist)
		19-12014 - 19-12014 - PLUG [ More info ] Unavailable Replaced by 19-889730
		19-889730 - Plug [ More info ] $7.80 Available to Order: Usually ships within 10 days.
#16	87-11083A 4	SWITCH ASSEMBLY, Stop (1 required per assembly)
		87-11083A 4 - Switch Assembly [ More info ] $56.75 Available to Order: Usually ships within 10 days.
#17	15920Q54	LANYARD ASSEMBLY (1 required per assembly)
		15920Q54 - LANYARD ASSEMBLY NLA [ More info ] Unavailable
#18	12044 1	RETAINER, Brass (1 required per assembly)
		12044 1 - 12044 1 - RETAINER Brass [ More info ] Unavailable Replaced by -8M0032846
		8M0032846 - Brass Retainer [ More info ] $4.24 Available to Order: Usually ships within 10 days.
#19	10-40003 58	SCREW, (M8 x 50) (1 required per assembly)
		10-40003 58 - Screw [ More info ] $4.40 $2.46 7 In Stock.
#20	14-42981	TAB WASHER (1 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#21	23-42992 1	BUSHING (2 required per assembly)
		23-42992 1 - 23-42992 1 - BUSHING [ More info ] Unavailable Replaced by 23-889732
		23-889732 - Bushing [ More info ] $7.50 Available to Order: Usually ships within 10 days.
#22	12021A 1	LEVER ASSEMBLY, Shift (1 required per assembly)
		12021A 1 - Shift Lever - Black [ More info ] $170.17 Available to Order: Usually ships within 10 days.
#23	12-815351	WASHER (1 required per assembly)
		12-815351 - Washer [ More info ] $18.08 Available to Order: Usually ships within 10 days.
#24	16-58152	STUD, (.375-24 x 1.125) (1 required per assembly)
		16-58152 - 16-58152 - STUD (.375-24 x 1 [ More info ] Unavailable Replaced by 16-8M0034452
		16-8M0034452 - Stud [ More info ] $11.80 Available to Order: Usually ships within 10 days.
#25	98530	KNOB (1 required per assembly)
		98530 - KNOB [ More info ] Unavailable
#26	49563 6	SHIFT ROD (1 required per assembly)
		49563 6 - Shift Rod [ More info ] $70.92 Available to Order: Usually ships within 10 days.
#27	48419	ROD END (1 required per assembly)
		48419 - 48419 - ROD END [ More info ] Unavailable Replaced by -48419T
		48419T - ROD END-2.16 IN [ More info ] $13.10 Available to Order: Usually ships within 10 days.
#28	23-26856	BUSHING (1 required per assembly)
		23-26856 - Bushing [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#29	12-35950	WASHER, (.273 x .437 x .031) Stainless Steel (1 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#30	18-25191	COTTER PIN (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $4.60 10 In Stock.
#31	12016A 2	DETENT/SPRING KIT (1 required per assembly)
		12016A 2 - DETENT/SPRING KIT NLA [ More info ] Unavailable
#33	87-14645A 4	TRIM SWITCH (1 required per assembly) (Power Trim)
		87-14645A 4 - Trim Switch Kit [ More info ] $226.58 $152.27 1 In Stock.
#34	49440	NUT, (.468-32) (1 required per assembly) (Power Trim)
		49440 - Lock Nut [ More info ] $8.70 4 In Stock.
#35	NSS	NOT SOLD SEPARATE (1 required per assembly) (Power Trim)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#36	84-815851A 2	HARNESS ASSEMBLY, Stop (1 required per assembly) (Manual Tilt Assist)
		84-815851A 2 - Harness Assembly - Stop [ More info ] $15.80 1 In Stock.
#37	84-821028A 2	CABLE ASSEMBLY (1 required per assembly) (Manual Tilt Assist)
		84-821028A 2 - Cable Assembly [ More info ] $17.67 Available to Order: Usually ships within 10 days.
#38	815803	PLUG (1 required per assembly) (Manual Tilt Assist)
		815803 - Plug [ More info ] $6.20 Available to Order: Usually ships within 10 days.
#39	816051A 2	HORN ASSEMBLY (1 required per assembly)
		816051A 2 - Horn Assembly [ More info ] $141.58 Available to Order: Usually ships within 10 days.
#40	84-11149A 3	CABLE ASSEMBLY (1 required per assembly)
		84-11149A 3 - Cable Assembly [ More info ] $4.50 1 In Stock.
#41	84-86324A 2	CABLE ASSEMBLY (1 required per assembly) (Electric)
		84-86324A 2 - Cable Assembly [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#42	824930T 2	BRACKET (1 required per assembly)
		824930T 2 - Bracket [ More info ] $71.75 1 In Stock.
#43	87-813960A 3	SWITCH (1 required per assembly)
		87-813960A 3 - 87-813960A 3 - SWITCH [ More info ] Unavailable Replaced by 87-8M0052927
		878M0052927 - Switch Assembly [ More info ] $105.42 Available to Order: Usually ships within 10 days.
#44	10-40011 68	SCREW, (M3.5 x 20) Stainless Steel (2 required per assembly)
		10-40011 68 - 10-40011 68 - SCREW (M3.5 x 20) [ More info ] Unavailable Replaced by 10-880750 20
		10-880750 20 - Screw [ More info ] $1.40 $0.78 10+ In Stock.
#45	824923	PLATE (1 required per assembly)
		824923 - Switch Plate [ More info ] $9.50 10+ In Stock.
#46	84-824934A 3	HARNESS ASSEMBLY (1 required per assembly)
		84-824934A 3 - Harness Assembly [ More info ] $58.25 Available to Order: Usually ships within 10 days.
