Parts for Mercury Marine 75 HP (3 Cylinder) Exhaust Plate (Sn USA - 0T800999 / Belgium - 0P267999 & Below)

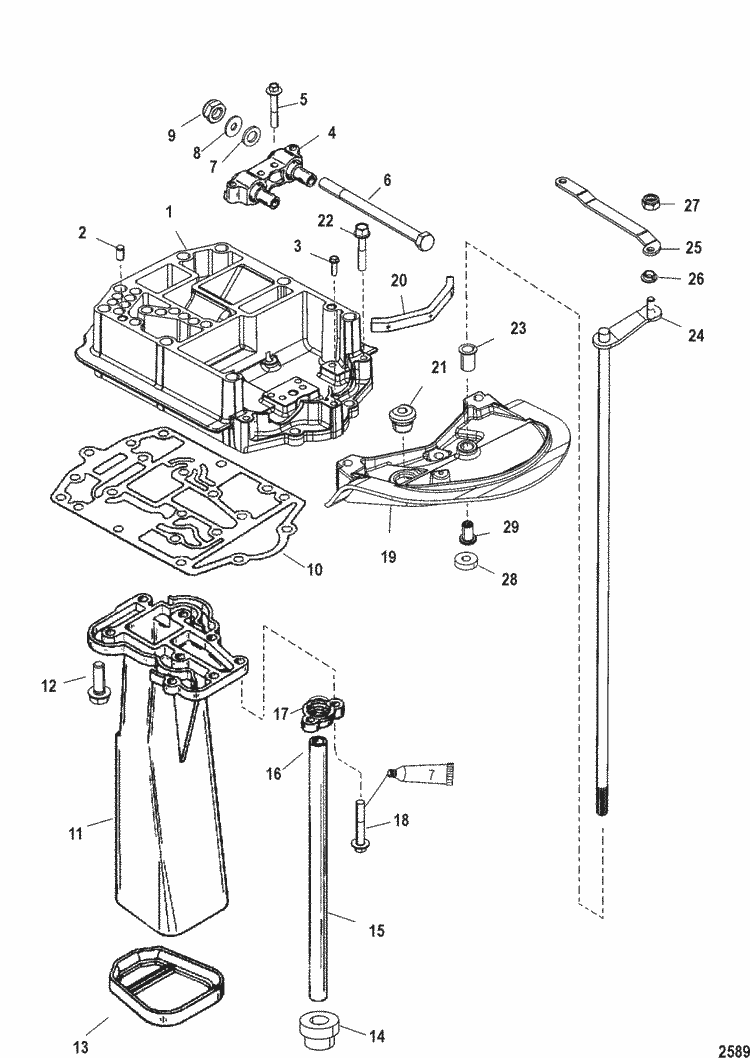

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-43004A99 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-43004A99 - Engine Gasket Set [ More info ]
|
  |
|
18-4336 - Gasket Set, 27-43004A99 [ More info ]
|
| #1 | 42954A 5 | PLATE ASSEMBLY, Exhaust (1 required per assembly) |
  |
|
42954A 5 - Exhaust Plate Assembly [ More info ]
|
| #2 | 17-23784 | PIN, Dowel (5 required per assembly) |
 |
|
17-23784 - Pin, Dowel [ More info ]
|
| #3 | 10-40011151 | SCREW, (M8 x 35) Stainless Steel (2 required per assembly) |
  |
|
10-40011151 - Screw [ More info ]
|
| #3 | 10-40011158 | SCREW, (M8 x 70) Stainless Steel (1 required per assembly) |
  |
|
10-40011158 - Screw [ More info ]
|
| #4 | 881900T | MOUNT (1 required per assembly) (Non Oil Injection) |
  |
|
881900T - 881900T - MOUNT [ More info ] Unavailable Replaced by -881900T01 |
  |
|
881900T01 - 881900T01 - MOUNT [ More info ] Unavailable Replaced by -881900T02 |
  |
|
881900T02 - 881900T02 - MOUNT [ More info ] Unavailable Replaced by -881900T03 |
  |
|
881900T03 - Mount [ More info ]
|
| #4 | 881901 | MOUNT (1 required per assembly) (Oil Injection) (Jet 65) |
  |
|
881901 - 881901 - MOUNT [ More info ] Unavailable Replaced by -8M0021331 |
  |
|
8M0021331 - ORD 881900T03 NLA [ More info ] Unavailable |
| #5 | 10-40107 50 | SCREW, (M8 x 50) (4 required per assembly) |
  |
|
10-40107 50 - Screw [ More info ]
|
| #6 | 10-42974 | BOLT, (M12 x 175) (2 required per assembly) |
|
|
10-42974 - 10-42974 - BOLT (M12 x 175) [ More info ] Unavailable Replaced by 10-898487 |
  |
|
10-898487 - Screw [ More info ]
|

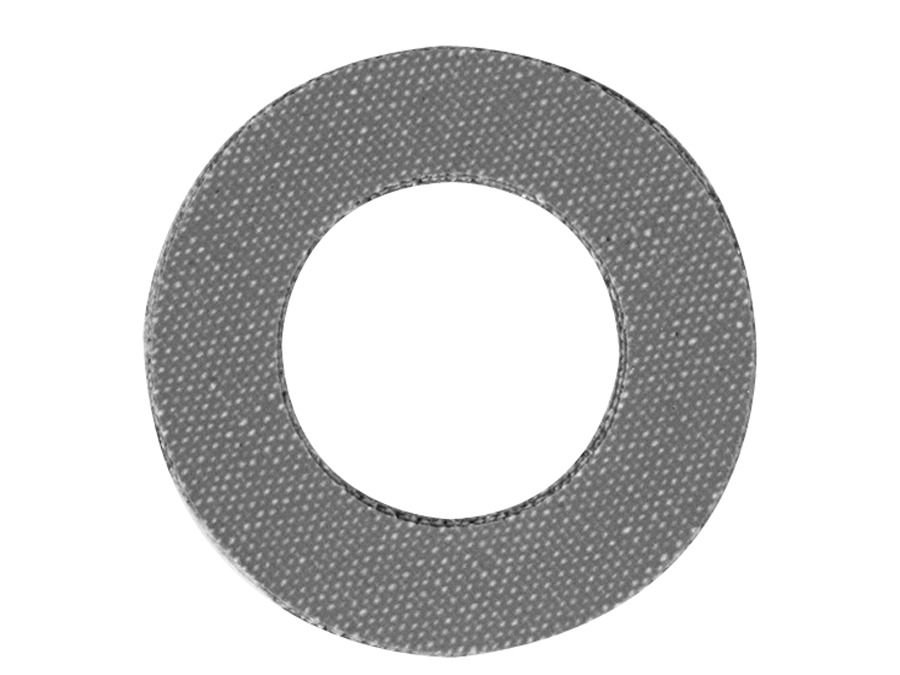

| #7 | 12-93416 1 | WASHER, Neoprene (2 required per assembly) |
  |
|
12-93416 1 - 12-93416 1 - WASHER Neoprene [ More info ] Unavailable Replaced by 12-32834 |
  |
|
12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ]
|
| #8 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #9 | 11-859129 | NUT, (M12) (2 required per assembly) |
|
|
11-859129 - 11-859129 - NUT (M12) [ More info ] Unavailable Replaced by 11-896963 |
  |
|
11-896963 - Nut, (M12) [ More info ]
|
| #10 | 27-43008 6 | GASKET (1 required per assembly) |
  |
|
27-43008 6 - Gasket [ More info ]
|
  |
|
18-0341 - Gasket, 27-43008 [ More info ]
|

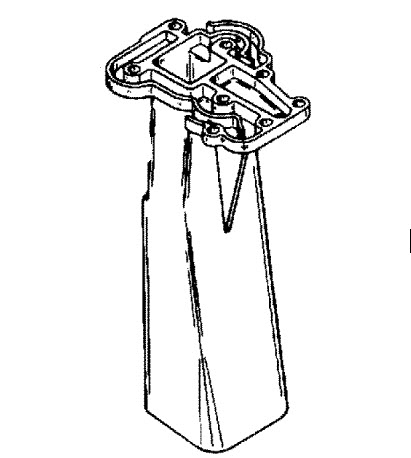

| #11 | 42966 4 | TUBE, Exhaust (1 required per assembly) |
  |
|
42966 4 - 42966 4 - TUBE Exhaust [ More info ] Unavailable Replaced by -87917216T |
  |
|
87917216T - Exhaust Tube [ More info ]
|
| #13 | 42962 | SEAL (1 required per assembly) |
  |
|
42962 - 42962 - SEAL [ More info ] Unavailable Replaced by -8M0039075 |
  |
|
8M0039075 - Seal [ More info ]
|
| #14 | 25-89417 1 | GROMMET (1 required per assembly) |
|
|
25-89417 1 - 25-89417 1 - GROMMET [ More info ] Unavailable Replaced by 25-89417004 |
|
|
25-89417004 - Grommet [ More info ]
|
| #15 | 32-881201 1 | TUBE, Water - Long (13.21 Inches) (1 required per assembly) (13.25 Inches) |
|
|
32-881201 1 - 32-881201 1 - TUBE Water - Long [ More info ] Unavailable Replaced by 32-8M0042791 |
|
|
32-8M0042791 - Water Tube - Long [ More info ]
|
| #15 | 32-881201 3 | TUBE, Water (15.71 Inches) X Long (1 required per assembly) (15.75 Inches) |
|
|
32-881201 3 - 32-881201 3 - TUBE Water (15.71 [ More info ] Unavailable Replaced by 32-8M0042793 |
|
|
328M0042793 - Water Tube -ll [ More info ]
|
| #15 | 32-881201 2 | TUBE, Water - X Long (18.21 Inches) (1 required per assembly) (18.25 Inches) |
|
|
32-881201 2 - 32-881201 2 - TUBE Water - X Lo [ More info ] Unavailable Replaced by 32-8M0042792 |
|
|
32-8M0042792 - Water Tube -xl [ More info ]
|
| #16 | 824661 | CLAMP (1 required per assembly) |
  |
|
824661 - Water Tube Clamp [ More info ]
|
| #17 | 814080 | SEAL, Upper (1 required per assembly) |
|
|
814080 - 814080 - SEAL [ More info ] Unavailable Replaced by -814080001 |
  |
|
814080001 - Upper Seal [ More info ]
|

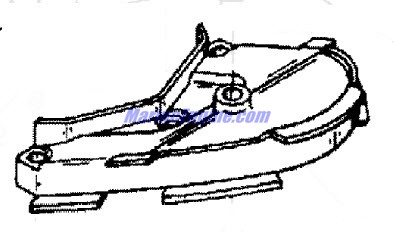

| #19 | 42953A 5 | BRACKET ASSEMBLY, Lower (1 required per assembly) (Black) |
  |
|
42953A 5 - Bracket - Black [ More info ]
|

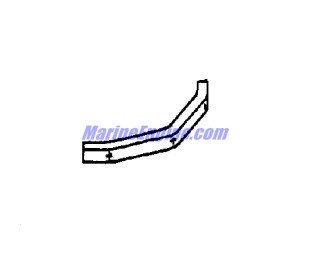

| #20 | 43405 | SEAL (1 required per assembly) |
  |
|
43405 - SEAL NLA [ More info ] Unavailable |
| #21 | 25-19564 | GROMMET (1 required per assembly) (Manual Tilt Assist)(Closed End) |
|
|
25-19564 - 25-19564 - GROMMET [ More info ] Unavailable Replaced by 25-19564001 |
|
|
25-19564001 - Grommet [ More info ]
|
|
|
258M0179867 - GROMMET [ More info ]
|
| #21 | 25-19565 | GROMMET (1 required per assembly) (Power Trim)(Split) |
  |
|
25-19565 - Grommet [ More info ]
|
  |
|
25-19565002 - Grommet [ More info ]
|
| #22 | 10-817427 50 | SCREW, (M8 x 50) (3 required per assembly) |
  |
|
10-817427 50 - SCREW (M8 x 50) [ More info ] Unavailable |
| #23 | 23-48237 | BUSHING (1 required per assembly) |
|
|
23-48237 - Bushing [ More info ]
|
| #24 | 79932A20 | SHIFT SHAFT ASSEMBLY (1 required per assembly) (Upper-Electric) |
|
|
79932A20 - Shift Lever Kit [ More info ]
|
  |
|
92-205-07K - Mid Section Shift Shaft Kit [ More info ]
|
| #24 | 79932A13 | SHIFT SHAFT ASSEMBLY (1 required per assembly) (Upper-Manual) |
|
|
79932A13 - 79932A13 - SHIFT SHAFT ASSEM [ More info ] Unavailable Replaced by -79932A23 |
|
|
79932A23 - Lever Assembly Shift [ More info ]
|
| #25 | 42912A 3 | SHIFT LINK (1 required per assembly) |
  |
|
42912A 3 - Shift Link Kit [ More info ]
|
| #26 | 23-48475 | BUSHING (2 required per assembly) |
|
|
23-48475 - Bushing [ More info ]
|
| #27 | 11-40138 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #28 | 23-813745 | SPACER (1 required per assembly) (Long) |
|
|
23-813745 - Spacer [ More info ]
|
| #28 | 23-11289 | SPACER (1 required per assembly) (LL) |
|
|
23-11289 - Spacer - Shift Shaft - XL [ More info ]
|
| #29 | 43585 | COUPLING (1 required per assembly) |
  |
|
43585 - Shift Shaft Coupling [ More info ]
|
  |
|
18-1730 - Coupling, 43585 [ More info ]
|
