Parts for Mercury Marine 75 HP (3 Cylinder) Bottom Cowl

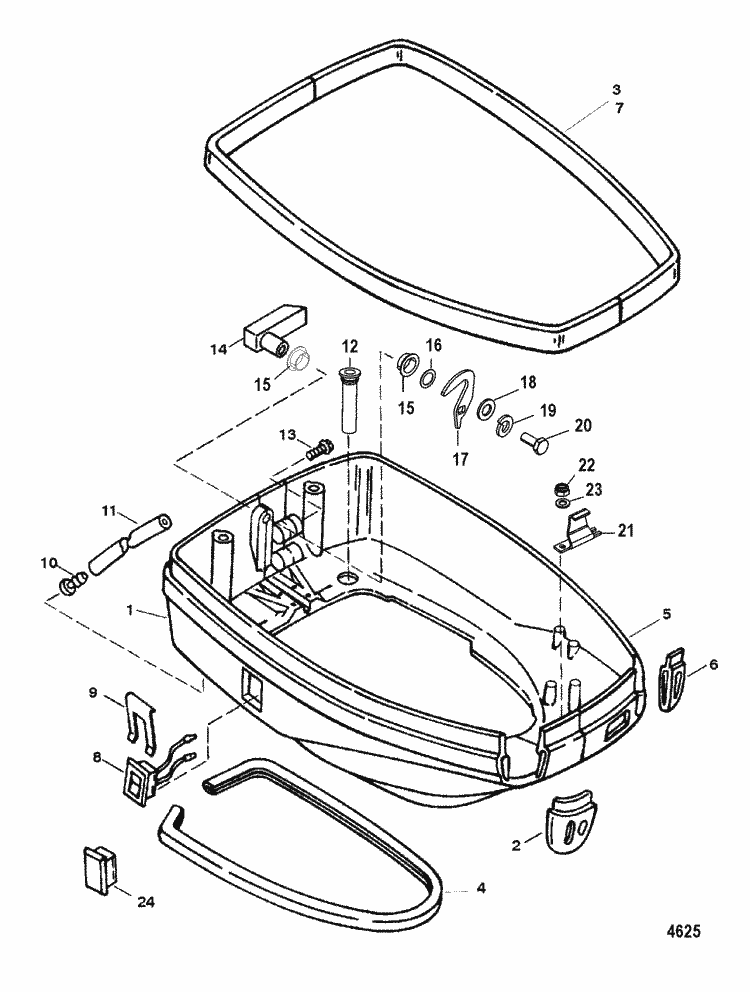

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2187-821873A 1 | BOTTOM COWL ASSEMBLY, Starboard (1 required per assembly) |
  |
|
2187-821873A 1 - BOTTOM COWL ASSEM [ More info ] Unavailable |
| #2 | 25-822556 2 | GROMMET (1 required per assembly) |
 |
|
25-822556 2 - 25-822556 2 - GROMMET [ More info ] Unavailable Replaced by 25-822556003 |
  |
|
25-822556003 - Grommet [ More info ]
|
| #3 | 825318 2 | SEAL, (36.00 Inches) (1 required per assembly) |
  |
|
825318 2 - 825318 2 - SEAL (36.00 Inche [ More info ] Unavailable Replaced by -8M0043273 |
|
|
8M0043273 - 8M0043273 - SEAL [ More info ] Unavailable Replaced by -8M0109216 |
|
|
8M0109216 - Cowl Seal [ More info ]
|

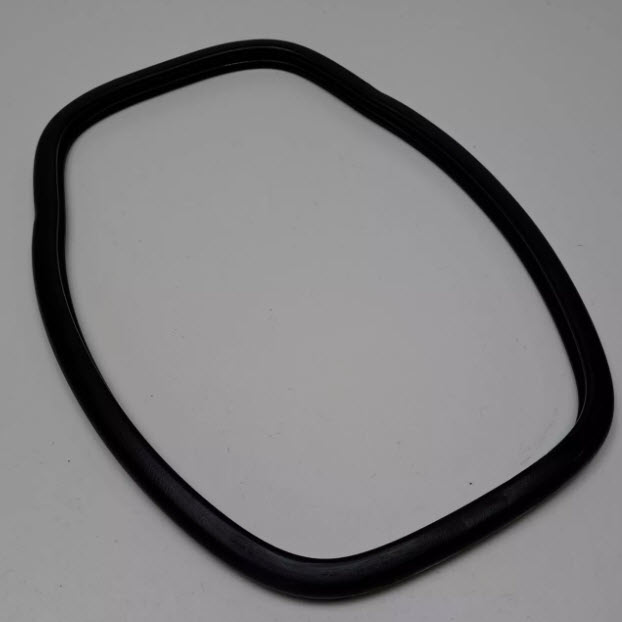

| #4 | 856055 2 | SEAL (1 required per assembly) SN# USA 0T800999/ BEL 0P267999 & Below |
  |
|
|
| #4 | 884256 4 | SEAL, Lower Cowl (44.75 Inches) (1 required per assembly) SN# USA 0T801000/ BEL 0P268000 & Up |
|
|
884256 4 - 884256 4 - SEAL Lower Cowl ( [ More info ] Unavailable Replaced by -8M0036668 |
|
|
8M0036668 - 8M0036668 - SEAL [ More info ] Unavailable Replaced by -8M0043167 |
|
|
8M0043167 - Seal [ More info ]
|
| #5 | 2188-821874A 1 | BOTTOM COWL ASSEMBLY, Port (1 required per assembly) |
|
|
2188-821874A 1 - 2188-821874A 1 - BOTTOM COWL ASSEM [ More info ] Unavailable Replaced by 100-8M0107328 |
|
|
100-8M0107328 - COWL-BOTTOM, PORT NLA [ More info ] Unavailable |
| #6 | 25-822555 | GROMMET (1 required per assembly) |
|
|
25-822555 - 25-822555 - GROMMET [ More info ] Unavailable Replaced by 25-822555001 |
|
|
25-822555001 - Grommet [ More info ]
|
| #8 | 87-856990 | SWITCH ASSEMBLY (1 required per assembly) (Power Trim) |
  |
|
87-856990 - 87-856990 - SWITCH ASSEMBLY [ More info ] Unavailable Replaced by 87-896620 |
  |
|
87-896620 - 87-896620 - SWITCH ASSEMBLY [ More info ] Unavailable Replaced by 87-8M0042301 |
  |
|
87-8M0042301 - Trim Switch [ More info ]
|
| #9 | 812443 1 | RETAINER (1 required per assembly) |
  |
|
812443 1 - 812443 1 - RETAINER [ More info ] Unavailable Replaced by -8M0032848 |
  |
|
8M0032848 - Retainer [ More info ]
|
| #10 | 22-813613 | FITTING (1 required per assembly) |
  |
|
22-813613 - Fitting [ More info ]
|
| #11 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 28 Inch Length) (1 required per assembly) |
  |
|
32-830757130 - 32-830757130 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0047448 |
|
|
32-8M0047448 - 32-8M0047448 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0108349 |
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #12 | 21-817519A 2 | CHECK VALVE ASSEMBLY, Drain (2 required per assembly) |
|
|
21-817519A 2 - Check Valve Assembly [ More info ]
|
| #13 | 10-821300 40 | SCREW, (M6 x 40) (3 required per assembly) |
  |
|
10-821300 40 - Screw [ More info ]
|
| #14 | 820000A 2 | HANDLE (1 required per assembly) (Black) |
|
|
820000A 2 - 820000A 2 - HANDLE [ More info ] Unavailable Replaced by -8M0041366 |
|
|
8M0041366 - Handle Assembly - Black [ More info ]
|
| #15 | 23-812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #16 | 13-F2047 | WASHER, Wave (1 required per assembly) |
|
|
13-F2047 - Wave Washer [ More info ]
|
| #17 | F481777 | CAM, Latch Shaft (1 required per assembly) |
|
|
F481777 - Latch Shaft Cam [ More info ]
|
|
|
889566 - 889566 - CAM [ More info ] Unavailable Replaced by -8M0001081 |
  |
|
|
| #18 | 12-40023 16 | WASHER (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #19 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #20 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #21 | 822363T 1 | RETAINER (1 required per assembly) |
|
|
822363T 1 - Retainer [ More info ]
|
| #22 | 11-40138 6 | NUT, (M6) Stainless Steel (2 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #24 | 812830 1 | PLUG (1 required per assembly) (Non Power Trim/Manual Tilt Assist) |
|
|
812830 1 - 812830 1 - PLUG [ More info ] Unavailable Replaced by -812830T01 |
|
|
812830T01 - Cap - Switch Lg [ More info ]
|
