Parts for MerCruiser Zeus 3000 HH Trim Components, S# 0m961605 & Below
Tap to zoom. Scroll down to order.

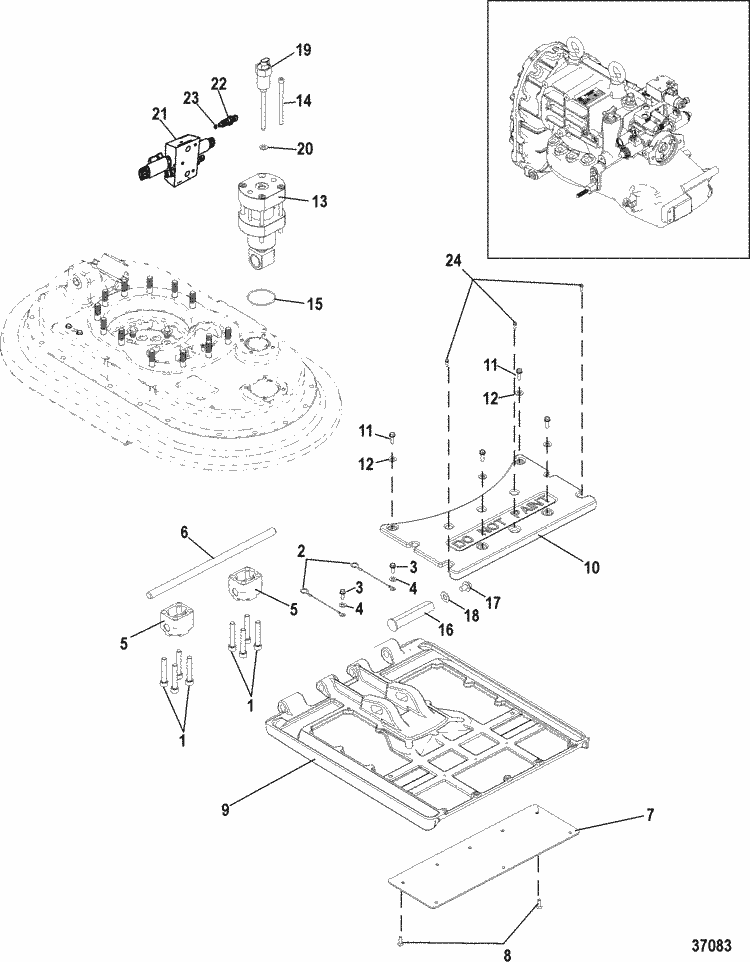

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 10-8M0025384 | SCREW, (M10 x 60) (8 required per assembly) |
#2 | 84-879148T50 | CABLE ASSEMBLY (2 required per assembly) |
#3 | 10-19937 16 | SCREW, (M6 x 16) (2 required per assembly) |
#4 | 12-43328 | WASHER (2 required per assembly) |
#5 | 8M0007600 | BLOCK, Hinge (2 required per assembly) |
#6 | 17-8M0007594 | PIN, Hinge (1 required per assembly) |
#7 | 8M0007616 | COVER (1 required per assembly) |
8M0007616 - Cover [ More info ] Unavailable |
||
#8 | 10-832838 | SCREW, (M6 x 20) (5 required per assembly) |
10-832838 - Screw [ More info ] Unavailable |
||
108M0199587 - SCREW [ More info ] Unavailable |
||
#9 | 879148T49 | TRIM TAB (1 required per assembly) |
879148T49 - ORD 879345T72 [ More info ] Unavailable |
||
#10 | 8M0031191 | ANODE (1 required per assembly) |
8M0031191 - Ord 879150A65, NLA [ More info ] Unavailable |
||
#11 | 10-824970 20 | SCREW, (M8 x 20) (4 required per assembly) |

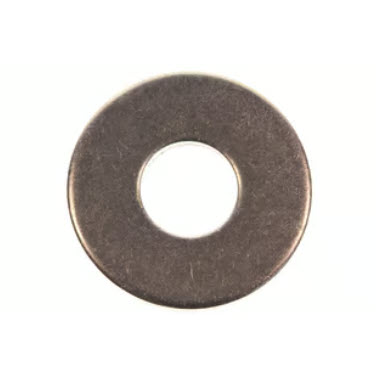

#12 | 12-814806 | WASHER, (.344 x .688 x .065) Stainless Steel (4 required per assembly) |

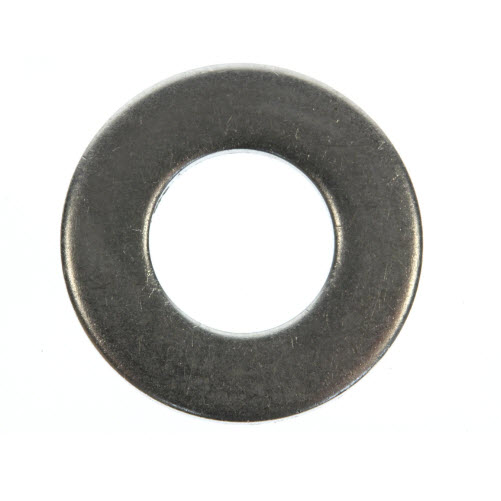

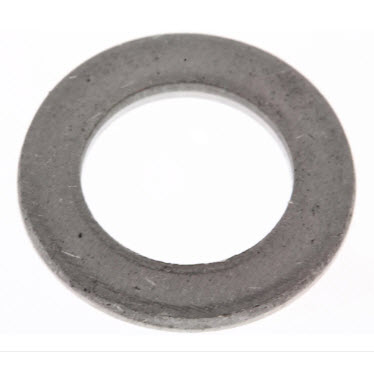

12-814806 - Washer, (.344 X .688 X .065) Stainless Steel [ More info ] |
||
12-8M0204690 - WASHER [ More info ] Unavailable |
||
#13 | 879148T47 | CYLINDER (1 required per assembly) |
879148T47 - CYLINDER [ More info ] Unavailable |
||
8M8023292 - Cylinder - Trim [ More info ] Unavailable |
||
#14 | 10-8M0027376 | SCREW, (M8 x 110) (4 required per assembly) |
#15 | 25-63351 | O RING, (2.550 x .103) (1 required per assembly) |
#16 | 17-8M0007595 | PIN (1 required per assembly) |
#17 | 10-40108 16 | SCREW, (M10 x 16) Hex Flange - Stainless Steel (1 required per assembly) |
#18 | 12-40023 20 | WASHER (1 required per assembly) |
#19 | 8M0007608 | SENSOR (1 required per assembly) |
8M0007608 - Sensor [ More info ] Unavailable |
||
8M0035810 - Sensor [ More info ] Unavailable |
||
8M0036658 - Sensor [ More info ] Unavailable |
||
8M8025308 - 8M8025308 - SENSOR [ More info ] Unavailable Replaced by -8M0050826 |
||

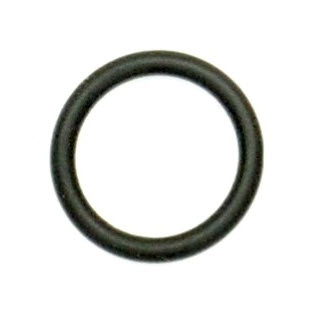

#20 | 25-831985 | O-RING, (.468 x .078) (1 required per assembly) |
#21 | 879148T48 | MANIFOLD (1 required per assembly) |
879148T48 - MANIFOLD [ More info ] Unavailable |
||
897345T75 - 8M0070852 [ More info ] Unavailable |
||
8M0070852 - Manifold - Trim [ More info ] Unavailable |
||
#22 | 8M0007569 | TRANSDUCER (2 required per assembly) |
8M0007569 - Transducer [ More info ] Unavailable |
||
#23 | 25-8M0024307 | O-RING, (8.92 x 1.83) (2 required per assembly) |
