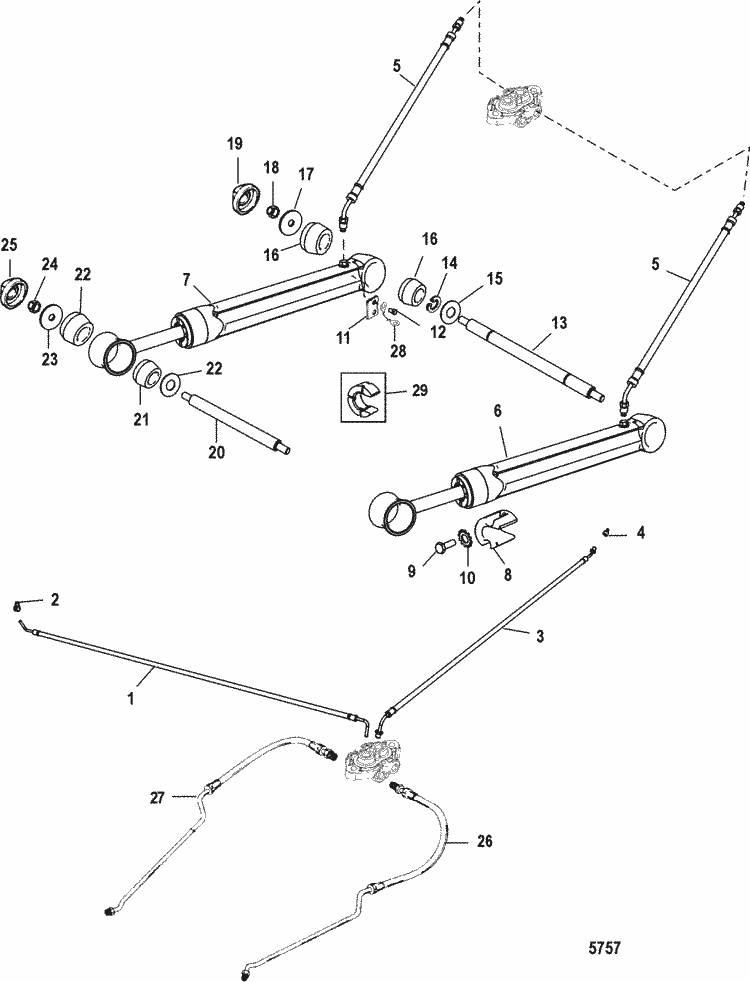

Parts for MerCruiser Bravo XR One Trim Cylinders & Hydraulic Hoses (Standard Transoms)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

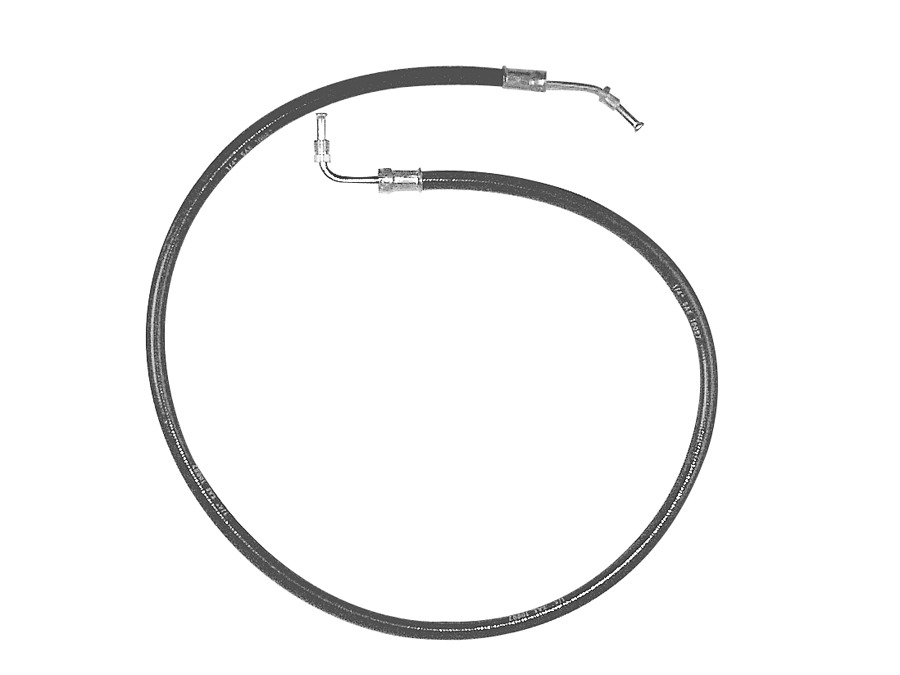

| #1 | 32-865384001 | HOSE, Black, Hydraulic Manifold to Pump (1 required per assembly) |
  |
|
32-865384001 - Hydraulic Hose [ More info ]
|
| #2 | 22-865410001 | FITTING, Female Quick Connect (1 required per assembly) |
  |
|
22-865410001 - Fitting -q/C [ More info ]
|

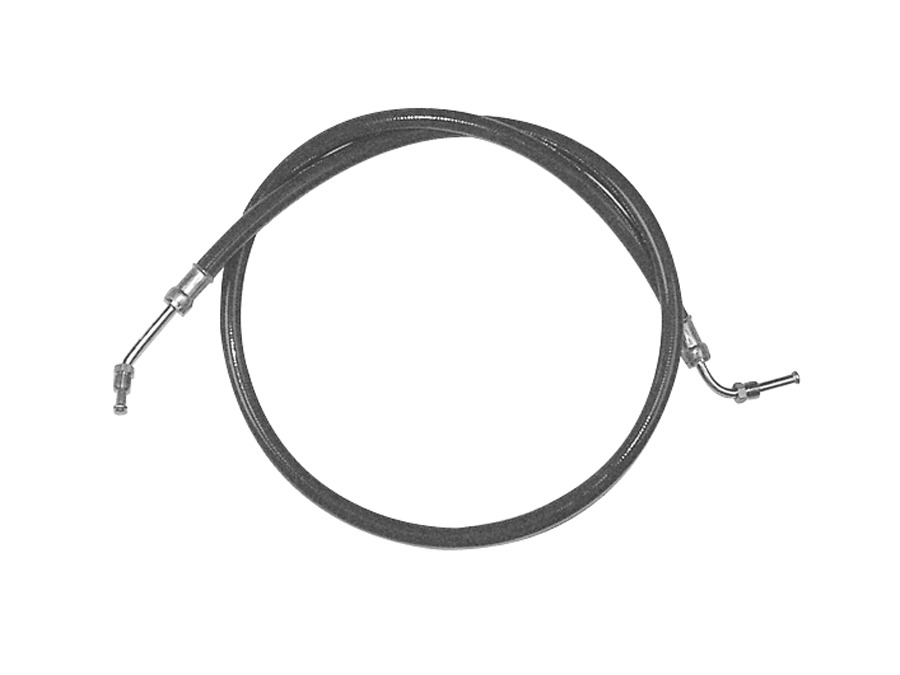

| #3 | 32-865385001 | HOSE, Gray, Hydraulic Manifold to Pump (1 required per assembly) |
  |
|
32-865385001 - Hydraulic Hose [ More info ]
|
| #4 | 22-865411001 | FITTING, Male Quick Connect (1 required per assembly) |
  |
|
22-865411001 - Fitting -q/C [ More info ]
|

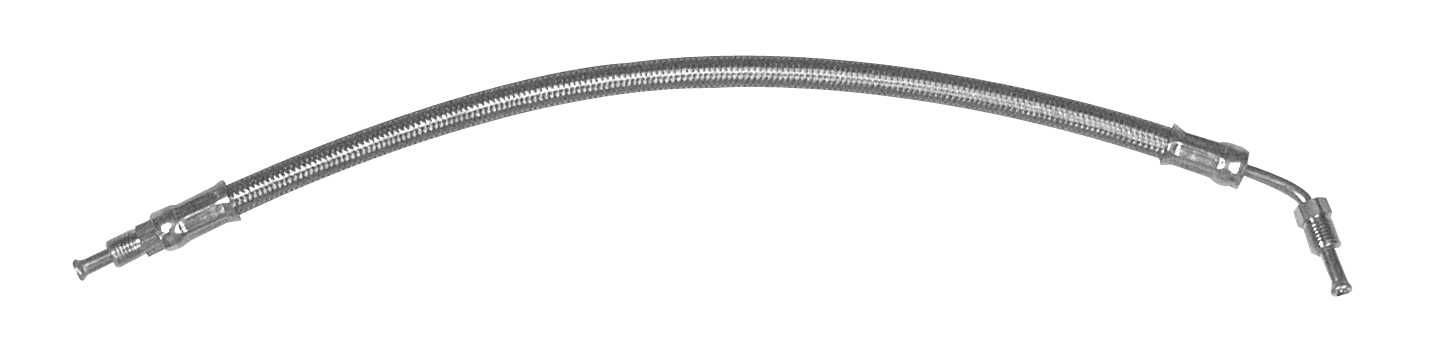

| #5 | 32-99904 | HOSE, Trim Cylinder To Connector (2 required per assembly) |
  |
32-99904 - Hydraulic Hose [ More info ] Unavailable |
|
  |
|
32-99904Q - Hydraulic Hose [ More info ]
|
  |
|

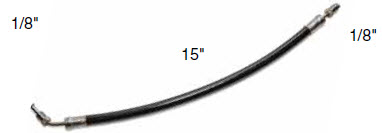

18-2116 - Hose, 32-99904 [ More info ]
|

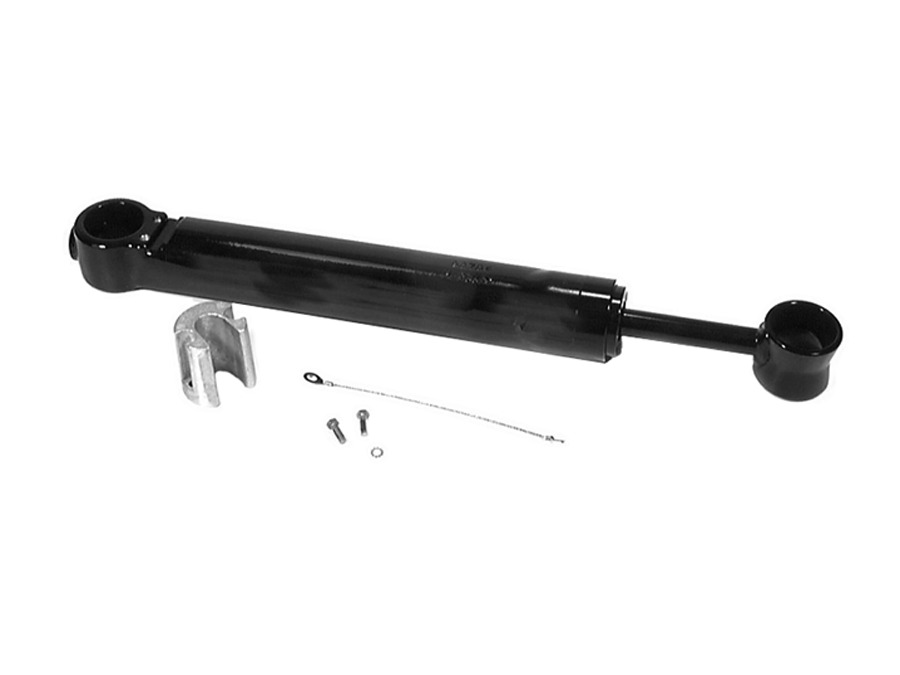

| #6 | 98704A26 | TRIM CYLINDER ASSEMBLY, Starboard (1 required per assembly) (See Power Trim Cylinder Repair Kits For Breakdown) |
  |
98704A26 - Trim Cylinder Assembly- Stbd [ More info ] Unavailable |
|
  |
8M0108280 - Trim Cylinder Assembly - Stbd [ More info ] Unavailable |
|
  |
|
8M0132610 - Trim Cylinder, Starbord Side [ More info ]
|
  |
|

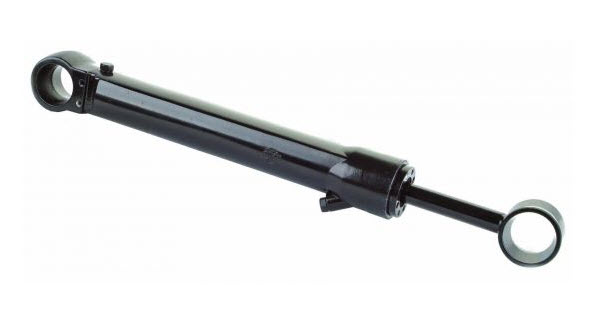

9B-121-01 - Trim Cylinder Starboard for All Bravo Drives [ More info ]
|

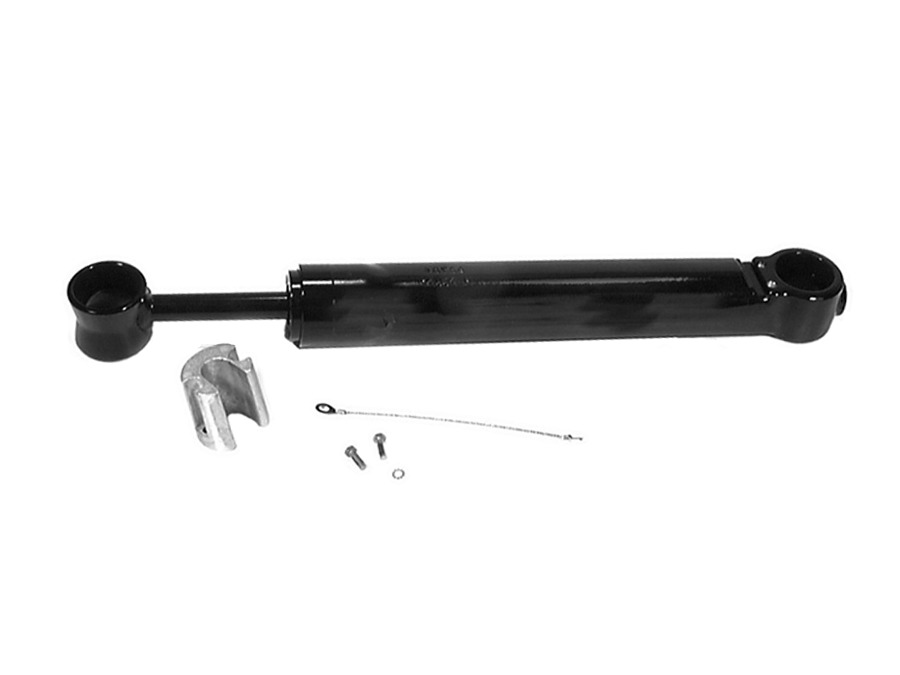

| #6 | 866464A02 | TRIM CYLINDER ASSEMBLY, Starboard (1 required per assembly) (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) |
  |
866464A02 - Cylinder Assembly [ More info ] Unavailable |
|
  |
8M0108282 - Cylinder Assembly, Stbd [ More info ] Unavailable |
|
  |
|
8M0128693 - CYL ASSEMBLY - Starboard [ More info ]
|
| #7 | 98703A26 | TRIM CYLINDER ASSEMBLY, Port (1 required per assembly) (See Power Trim Cylinder Repair Kits For Breakdown) |
  |
98703A26 - Trim Cylinder Assembly- Port [ More info ] Unavailable |
|
  |
8M0108279 - Trim Cylinder Assembly - Port [ More info ] Unavailable |
|
  |
|

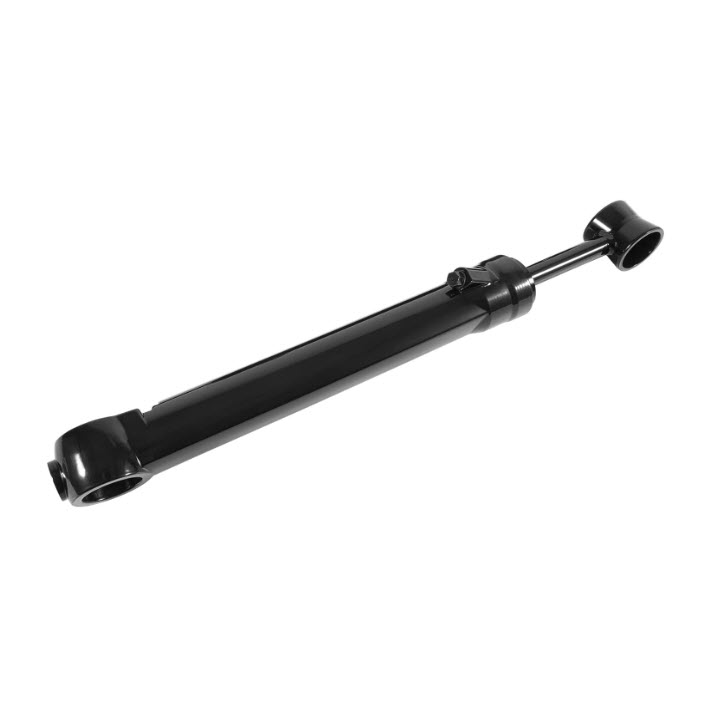

8M0132609 - Trim Cylinder-PORT [ More info ]
|
  |
|

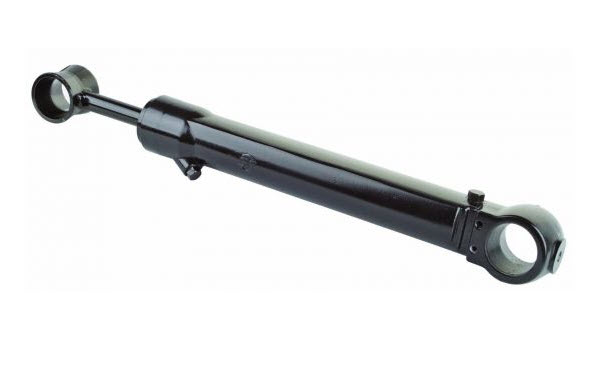

9B-121-02 - Trim Cylinder Port for All Bravo Drives [ More info ]
|
| #7 | 866465A02 | TRIM CYLINDER ASSEMBLY, Port (1 required per assembly) (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) |
  |
866465A02 - Cylinder Assembly [ More info ] Unavailable |
|
  |
|
8M0108281 - 8M0108281 - CYL ASSEMBLY-PORT [ More info ] Unavailable Replaced by -8M0128692 |
  |
|
8M0128692 - CYL ASSEMBLY-PORT [ More info ]
|
| #NS | 87399A 2 | OVERHAUL KIT (2 required per assembly) |
  |
|
87399A 2 - Overhaul Kit [ More info ]
|
| #NS | 25-87400A 2 | SEAL KIT (2 required per assembly) |
  |
|
25-87400A 2 - O-Ring Kit [ More info ]
|
  |
|
18-2649 - Seal Kit 25-87400A2 [ More info ]
|
| #8 | 806190Q 1 | ANODE ASSEMBLY (2 required per assembly) |
  |
|
97-806190Q 1 - Anode Kit - Trim Cylinder - Bravo 2 - Priced Individually [ More info ]
|
  |
|

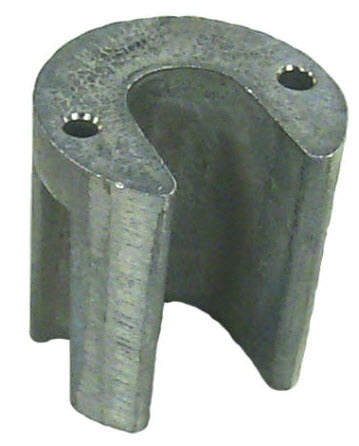

18-6089 - Anode, Magnesium, 806190 [ More info ]
|
  |
|
97-8M0059342 - Anode Bulk-10 PCS [ More info ]
|
  |
|

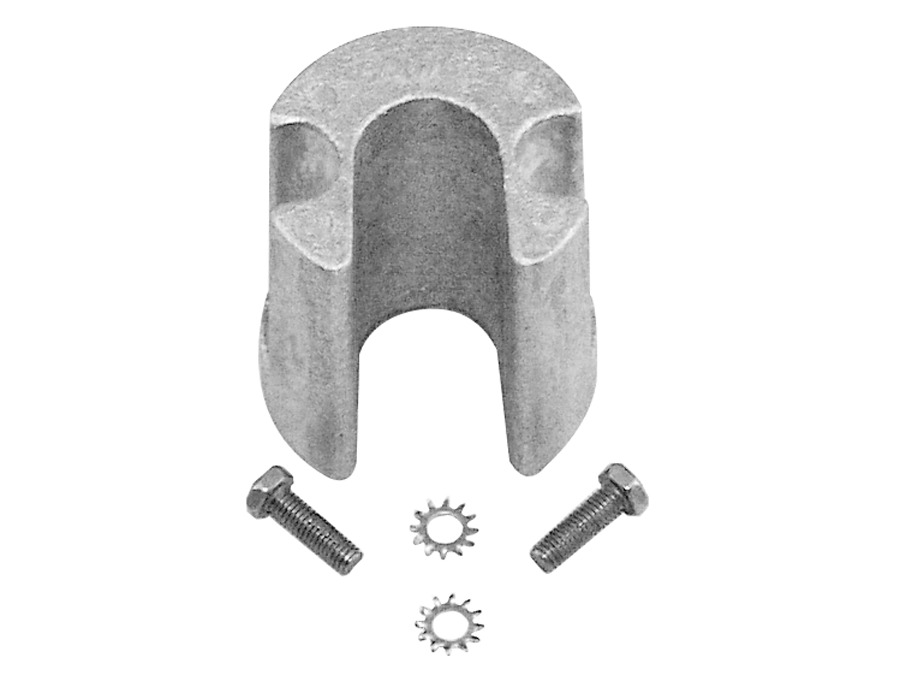

97-806190T 1 - Anode Kit - Trim Cylinder - Bravo - Priced Individually [ More info ]
|
| #9 | 10-806290 | SCREW, (#10-32 x .625) (4 required per assembly) |
  |
|
10-806290 - Screw [ More info ]
|

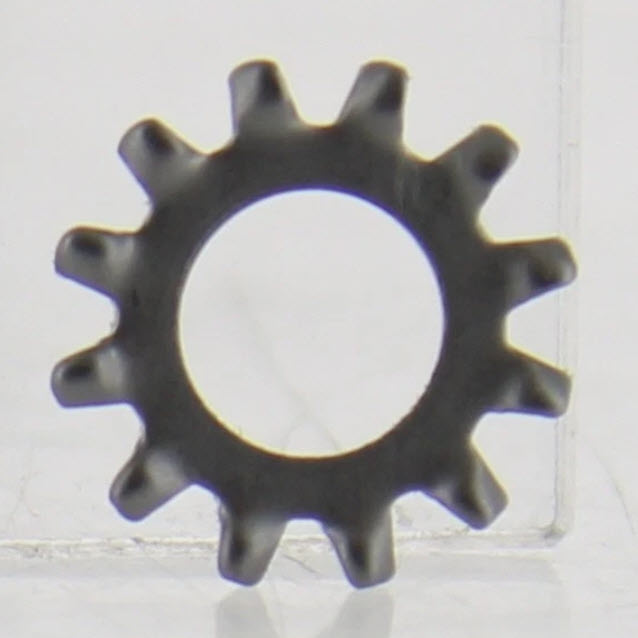

| #10 | 13-69432 | LOCKWASHER, External (#10) (4 required per assembly) |
  |
|
13-69432 - LockWasher - Priced Individually [ More info ]
|
| #11 | 85060 | PLATE (2 required per assembly) |
  |
|
|
| #12 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel (4 required per assembly) |
  |
|
10-85486 - Screw [ More info ]
|

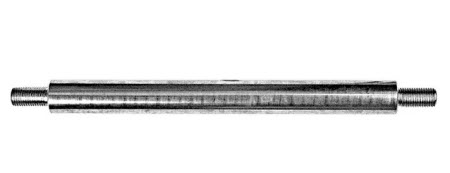

| #13 | 17-44167A 1 | PIN, Front Anchor (1 required per assembly) |
  |
|
17-44167A 1 - Pivot Pin [ More info ]
|
| #14 | 53-805272 | RING, Retaining (2 required per assembly) |
  |
|
53-805272 - Ring - Retaining [ More info ]
|
| #15 | 12-44164 | WASHER (2 required per assembly) |
  |
|
12-44164 - Washer [ More info ]
|

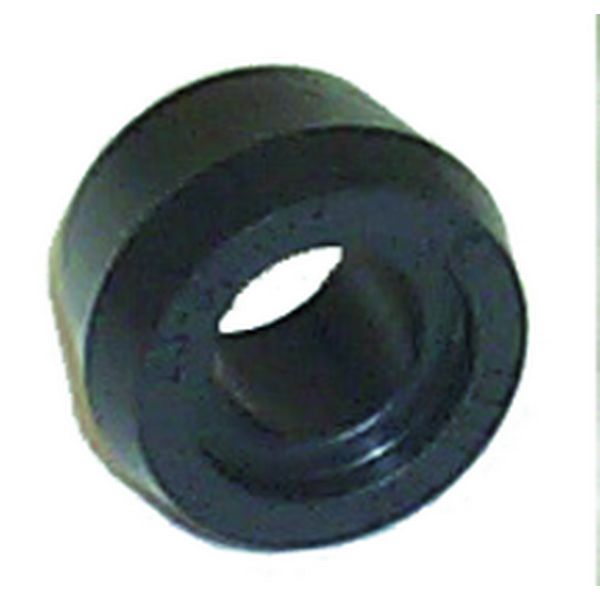

| #16 | 23-807073 | BUSHING (4 required per assembly) |
  |
|
23-807073 - Bushing [ More info ]
|
  |
|
18-4288-9 - Bushing, 23-807073, 8PK [ More info ]
|
| #17 | 12-44163 | WASHER, (.450 x 1.75 x .12) (2 required per assembly) |
  |
|
12-44163 - Washer, (.450 X 1.75 X .12) [ More info ]
|
| #18 | 11-34933 | NUT, (.437-20) Stainless Steel (2 required per assembly) |
  |
11-34933 - Nut (7/16-20) [ More info ] Unavailable |
|
  |
|

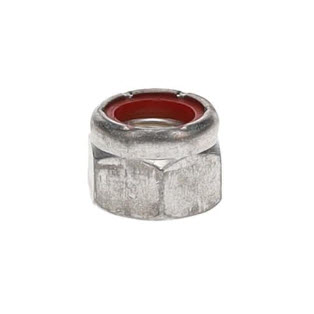

11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #19 | 19-14842 | CAP (2 required per assembly) |
  |
|
|
  |
|
18-2465-9 - Pivot Pin End Cap 2-Pack [ More info ]
|
| #20 | 17-44166 | PIN, Rear Anchor (1 required per assembly) |
  |
|
17-44166 - Pivot Pin [ More info ]
|
  |
|

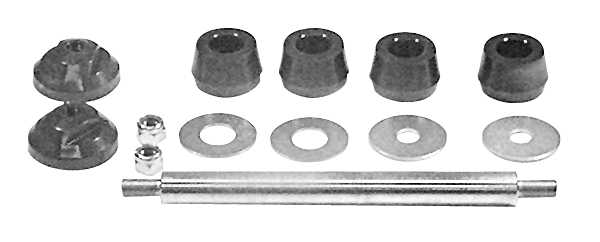

17-44166T 1 - Pin Kit - Rear Tilt [ More info ]
|

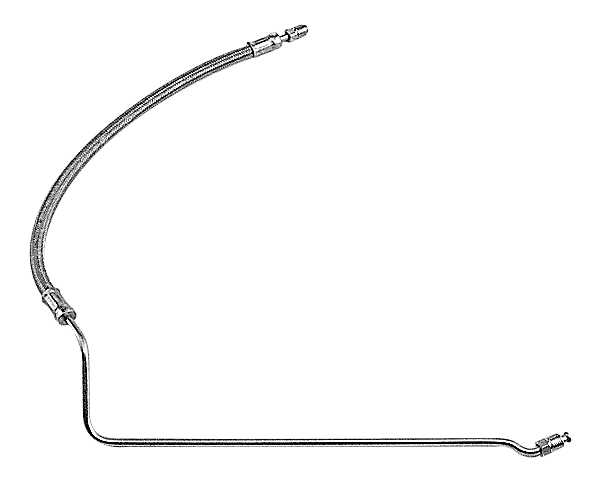

| #26 | 32-99902 | HOSE, Trim Cylinder (1 required per assembly) (Starboard) |
  |
32-99902 - Hydraulic Hose - Stbd [ More info ] Unavailable |
|
  |
|
32-864589 - Hydraulic Hose [ More info ]
|
  |
|

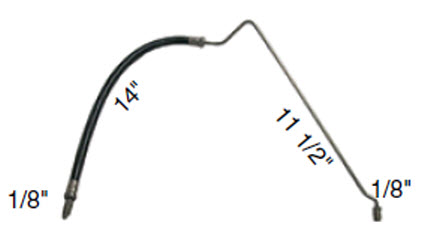

18-2136 - Hose 32-99902 [ More info ]
|

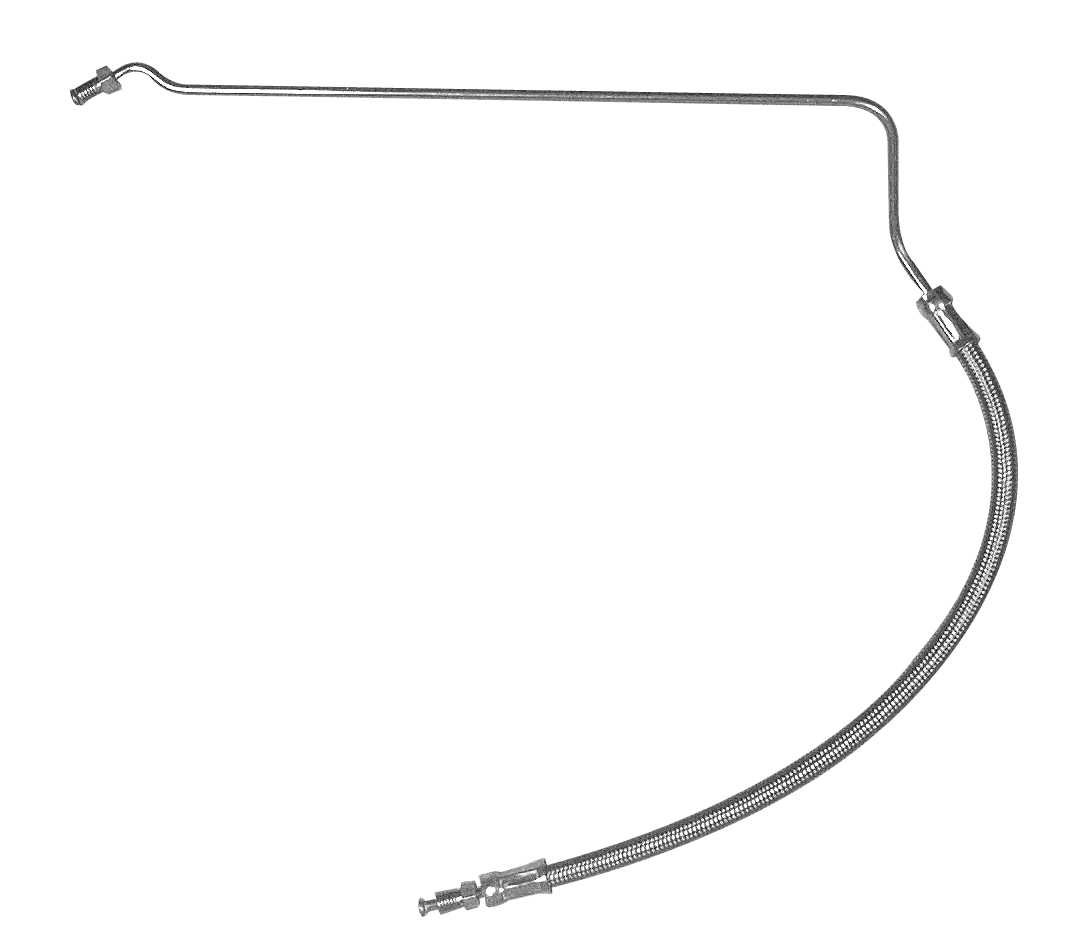

| #27 | 32-99903 | HOSE, Trim Cylinder (1 required per assembly) (Port) |
  |
32-99903 - Hydraulic Hose - Port [ More info ] Unavailable |
|
  |
|
32-864588 - Hydraulic Hose [ More info ]
|
  |
|

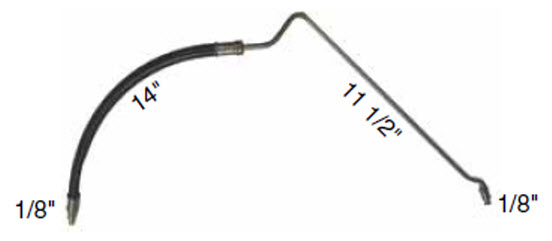

18-2137 - Trim Hose 32-99903 [ More info ]
|
| #28 | 88238A13 | CABLE ASSEMBLY, Ground (2 required per assembly) |
  |
|
88238A13 - Cable Assembly, Priced Individually [ More info ]
|
  |
|
8M0207768 - CABLE ASSY @5 [ More info ] Unavailable |
| #29 | 15768A 3 | SPACER KIT, TILT (1 required per assembly) |
  |
|
15768A 3 - Spacer Kit [ More info ]
|
