Parts for MerCruiser Bravo X One Sterndrive Unit Chart (Gasoline) Bravo X (I / II / III)
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | NS | NOT SHOWN, Bravo One X (- required per assembly) |
NS - NOT SHOWN [ More info ] Unavailable |
||
#1 | 5-5237100NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo One X) (With DWP) (1.36:1 Ratio) |
5-5237100NP - BRAVO I DR 1:36 [ More info ] Unavailable |
||
5-5237100PP - BRAVO I X 1.36:1,NLA [ More info ] Unavailable |
||
#1 | 1589-8868H81 | HOUSING ASSEMBLY, Driveshaft, Complete (1 required per assembly) |
1589-8868H81 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||
1589-863836A53 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||

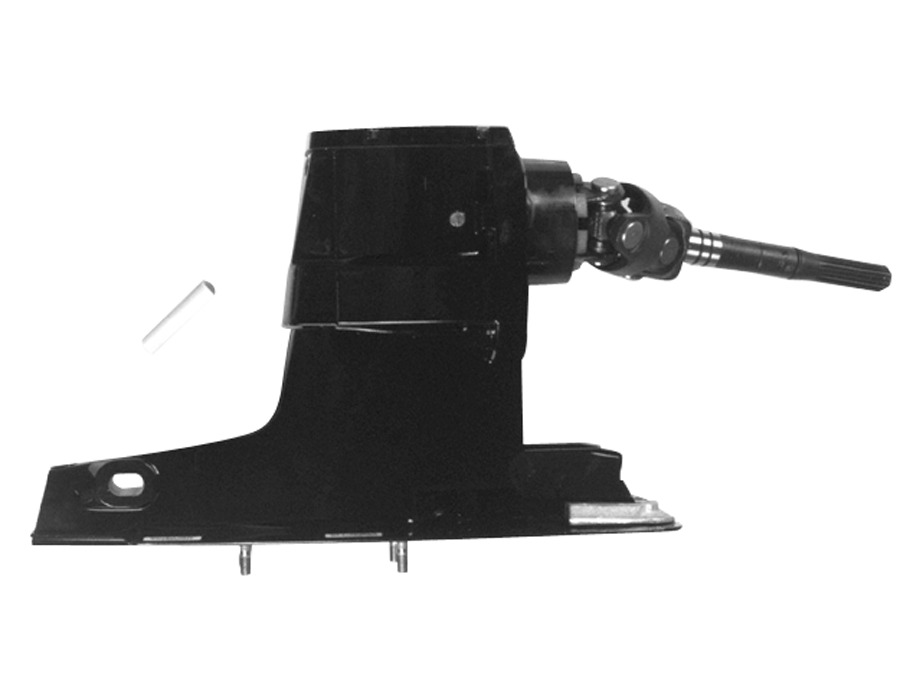

1589-863836A66 - Dsh Brv X 27/29 E [ More info ] Unavailable |
||
#1 | 43-858331A 3 | GEAR SET, (29/27) (1 required per assembly) |
43-858331A 3 - Gear Set [ More info ] Unavailable |
||
43-883476A 1 - Gear Set [ More info ] Unavailable |
||
43-887906A 1 - Gear Set [ More info ] Unavailable |
||
#1 | 1656-8866A63 | GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) |
1656-8866A63 - Gear Housing Assembly [ More info ] Unavailable |
||
90-122-02 - SE122 Lower Unit Mercruiser Bravo One, Dual Water Pickup [ More info ] |
||
#1 | 43-14063A 1 | GEAR SET, (15/19) (1 required per assembly) |

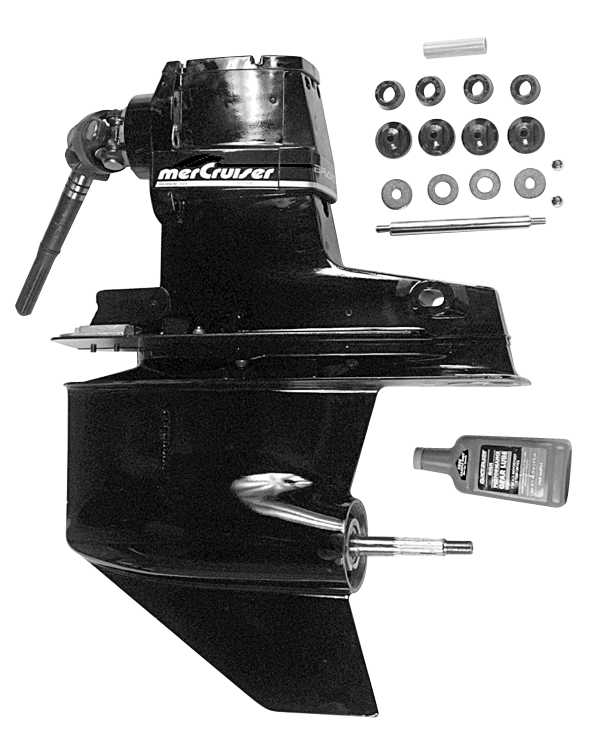

#2 | 5-5237200NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo One X) (With DWP) (1.50:1 Ratio) |
5-5237200NP - BRAVO I DR 1:50 [ More info ] Unavailable |
||
5-5237200PP - BRAVO I X 1.50:1,NLA [ More info ] Unavailable |
||
#3 | 5-5237300NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo One X) (With DWP) (1.65:1 Ratio) |
5-5237300NP - BRAVO I DR 1:65 [ More info ] Unavailable |
||
5-5237300PP - BRAVO I X 1.65:1,NLA [ More info ] Unavailable |
||
#4 | 5337400NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Two X) (1.81:1 Ratio) |
5-5337400NP - BRAVO II DR 1:81 [ More info ] Unavailable |
||

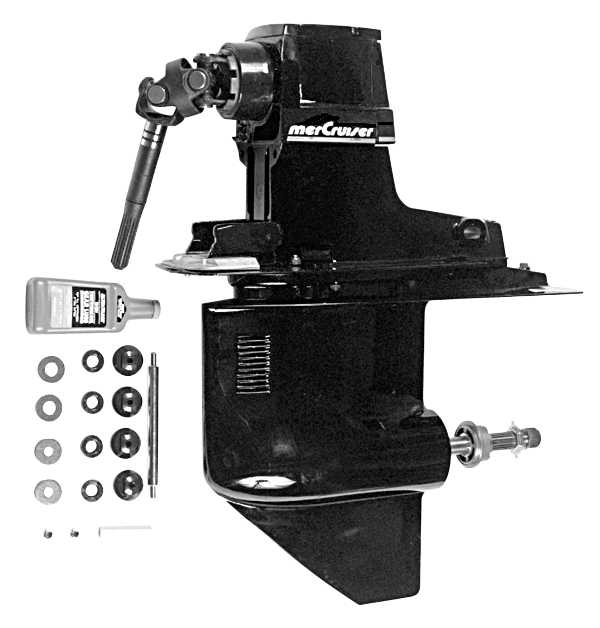

5-5337400PP - BRAVO II X 1.81:,NLA [ More info ] Unavailable |
||
#4 | 1641-8294A16 | GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) |
1641-8294A16 - Gear Housing Assembly [ More info ] Unavailable |
||
#4 | 43-41656T | GEAR, (16/27) (1 required per assembly) |
#4 | 43-41657T | GEAR, DRIVE (16/27) (1 required per assembly) |
#5 | 5337600NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Two X) (2.00:1 Ratio) |
5-5337600NP - BRAVO II DR 2:00 [ More info ] Unavailable |
||
5-5337600PP - BRAVO II X 2.00:,NLA [ More info ] Unavailable |
||
#5 | 1589-8868H82 | HOUSING ASSEMBLY, Driveshaft, Complete (1 required per assembly) |
1589-8868H82 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||
1589-863836A54 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||
1589-863836A67 - Dsh Brv X 27/32 E [ More info ] Unavailable |
||
#5 | 43-858327A 3 | GEAR SET, (32/27) (1 required per assembly) |
43-858327A 3 - Gear Set [ More info ] Unavailable |
||
43-883473A 1 - Gear Set [ More info ] Unavailable |
||
#6 | 5337500NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Two X) (2.20:1 Ratio) |
5-5337500NP - BRAVO II DR 2:20 [ More info ] Unavailable |
||
5-5337500PP - REF MCM SB 05-11,NLA [ More info ] Unavailable |
||
#6 | 1589-8868H86 | HOUSING ASSEMBLY, Driveshaft, Complete (1 required per assembly) |
1589-8868H86 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||
1589-863836A55 - HSG ASSY-D SHAFT [ More info ] Unavailable |
||
1589-863836A68 - Dsh Brv X 23/30 E [ More info ] Unavailable |
||
#6 | 43-858335A 3 | GEAR SET, (30/23) (1 required per assembly) |
43-858335A 3 - Gear Set [ More info ] Unavailable |
||
43-883479A 1 - Gear Set [ More info ] Unavailable |
||
#7 | 5447400NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Three X) (1.81:1 Ratio) |
5-5447400NP - BRAVO III X 1.81 [ More info ] Unavailable |
||

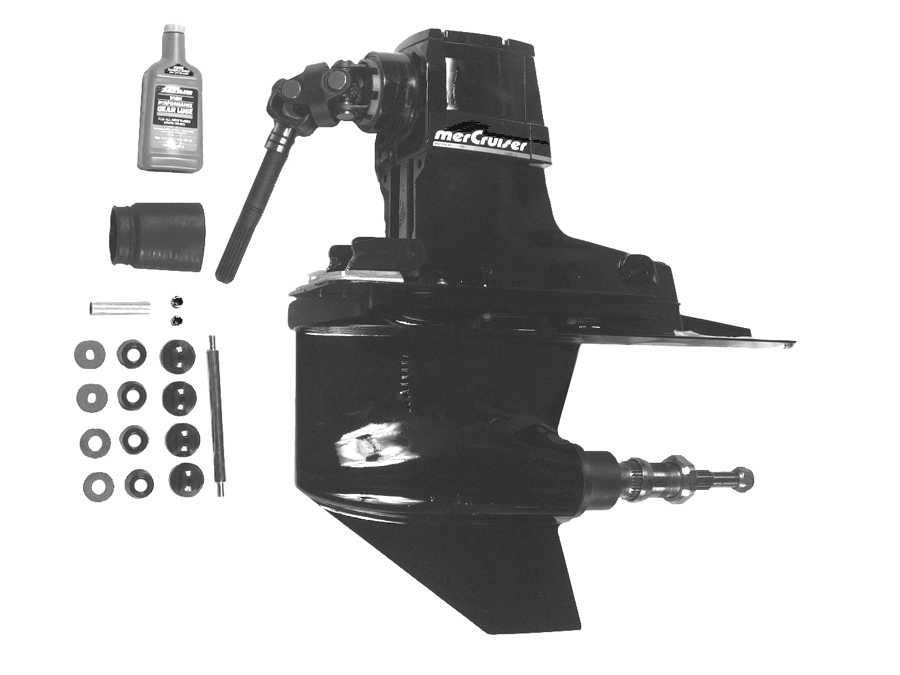

5-5447400PP - BRAVO III X 1.81,NLA [ More info ] Unavailable |
||

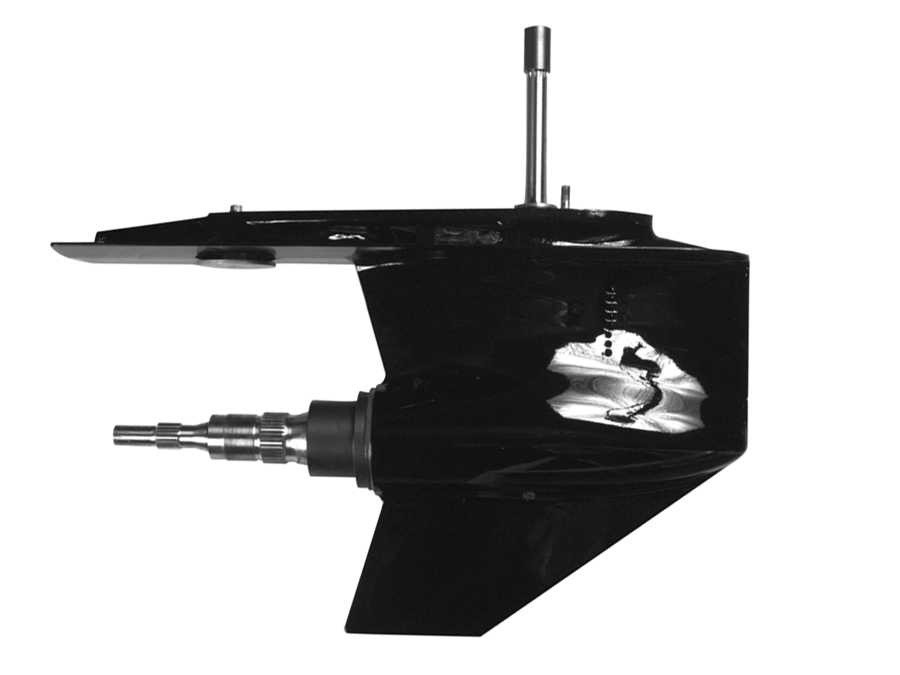

#7 | 1656-8866A35 | GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) |
1656-8866A35 - Gear Housing Assembly [ More info ] Unavailable |
||
1656-8866A67 - Gear Housing Assembly [ More info ] Unavailable |
||
1656-8866G04 - Gear Housing Assembly [ More info ] Unavailable |
||
1656-8866G09 - Gear Housing Assembly [ More info ] Unavailable |
||
1656-8M0046738 - Gear Housing Assembly [ More info ] Unavailable |
||
90-128-02CA - SE128 Bravo III Lower Unit 1.81:1, 2.00:1 and 2.20:1 Ratios [ More info ] |
||

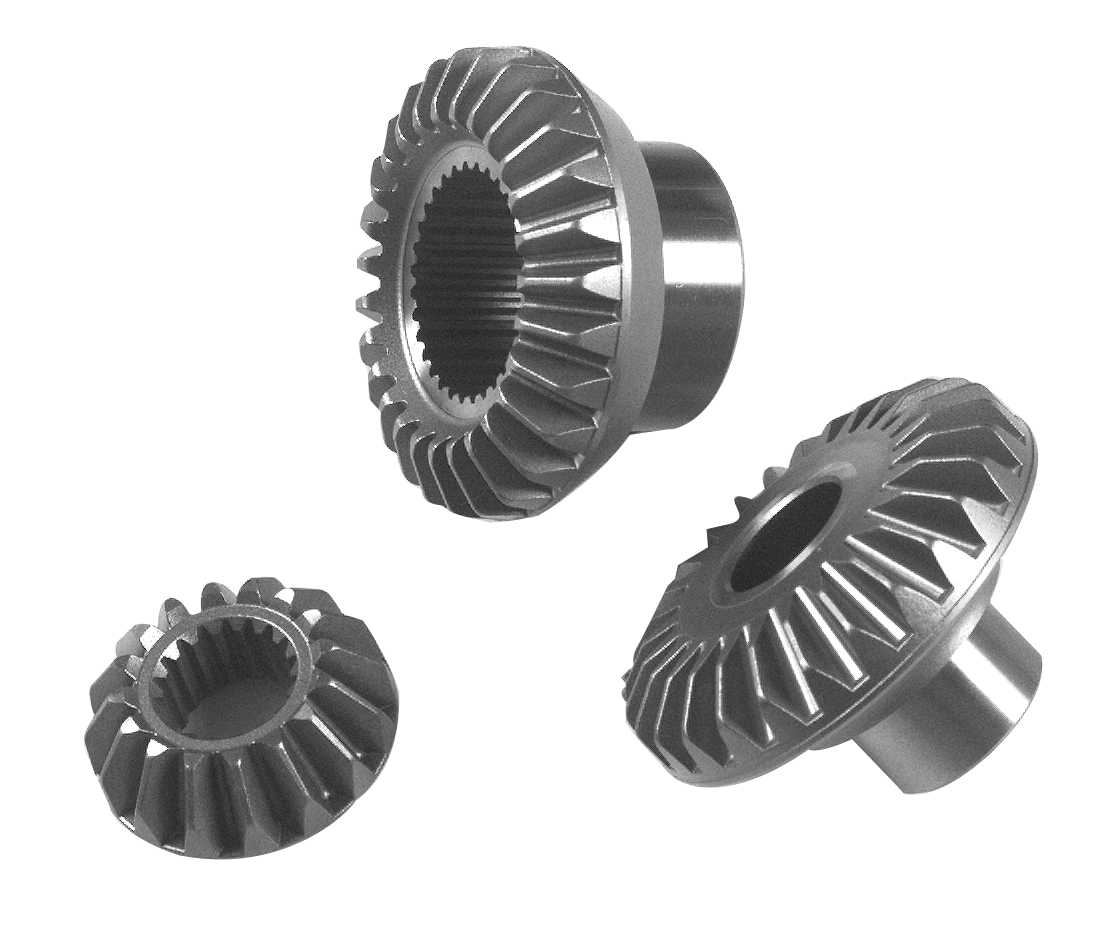

#7 | 43-822535A 1 | GEAR SET, (16/27) (1 required per assembly) |
#8 | 5447600NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Three X) (2.00:1 Ratio) |
5-5447600NP - B3X 2.0 DRIVE [ More info ] Unavailable |
||
5-5447600PP - BRAVO III X 2.00,NLA [ More info ] Unavailable |
||
#9 | 5447500NP | STERNDRIVE UNIT, Complete (1 required per assembly) (Bravo Three X) (2.20:1 Ratio) |
5-5447500NP - BRAVO III DR 2:20 [ More info ] Unavailable |
||
5-5447500PP - BRAVO III X 2.20,NLA [ More info ] Unavailable |
