Parts for MerCruiser Bravo Two Gimbal Housing
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 43881A13 | GIMBAL HOUSING ASSEMBLY (1 required per assembly) |
43881A13 - GIMBAL HSG. ASM. [ More info ] Unavailable |
||
43881A15 - GIMBAL HSG ASSY [ More info ] Unavailable |
||

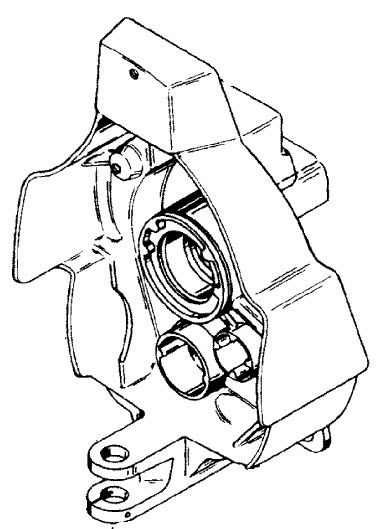

43881A17 - 8M0062517 [ More info ] Unavailable |
||
8M0062517 - Gimbal Housing [ More info ] Unavailable |
||
8M0096216 - Gimbal Housing [ More info ] Unavailable |
||
#2 | 16-56296 | STUD, (.437-20 x 4.750) (4 required per assembly) |
16-56296 - Stud [ More info ] Unavailable |
||
#2A | 16-818834 | STUD, (.437-20 x 4.250) (4 required per assembly) (NEW DESIGN) |
16-818834 - Stud [ More info ] Unavailable |
||
#3 | 23-98357 1 | BUSHING, Lower (1 required per assembly) |

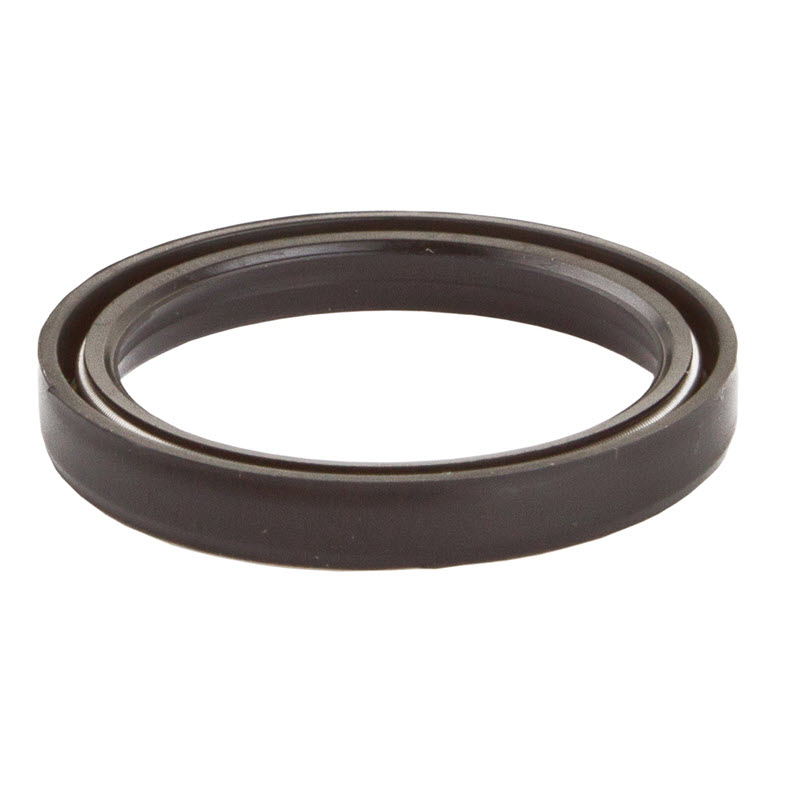

#4 | 26-41607 1 | SEAL, Oil (2 required per assembly) |
26-41607 1 - Seal [ More info ] Unavailable |
||
#5 | 23-98356 | BUSHING, Upper (1 required per assembly) |
#6 | 22-74036 | FITTING, Grease (2 required per assembly) (Use with greased bearing) |
22-74036 - Fitting - Priced Individually [ More info ] Unavailable |
||

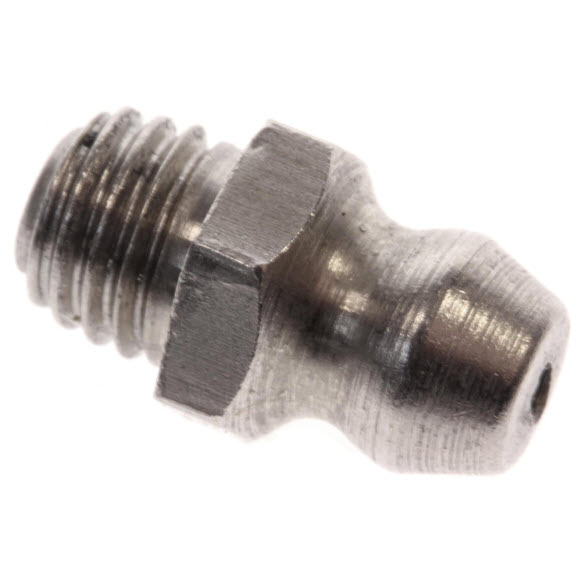

228M0169589 - Fitting Note: Priced Individually [ More info ] |
||
#6 | 10-8M2015913 | PLUG, (.250-28 x .320) (2 required per assembly) (Use with non-greased bearing) |
10-8M2015913 - Set Screw [ More info ] Unavailable |
||
10-8M0204738 - SET SCREW [ More info ] Unavailable |
||
#7 | 19-77633 | LUBRICAP (2 required per assembly) |
#8 | 26-88416 | SEAL, Oil (1 required per assembly) |
#9 | 30-60794A 4 | BEARING ASSEMBLY (1 required per assembly) |
30-60794A 4 - Ball Bearing Assembly [ More info ] Unavailable |
||

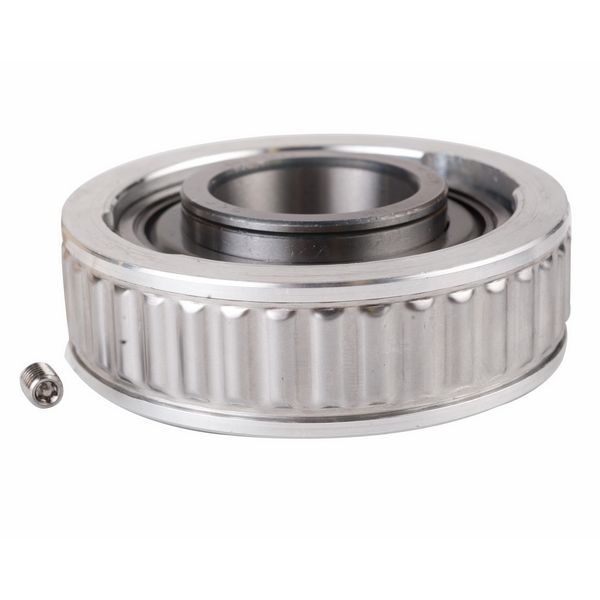

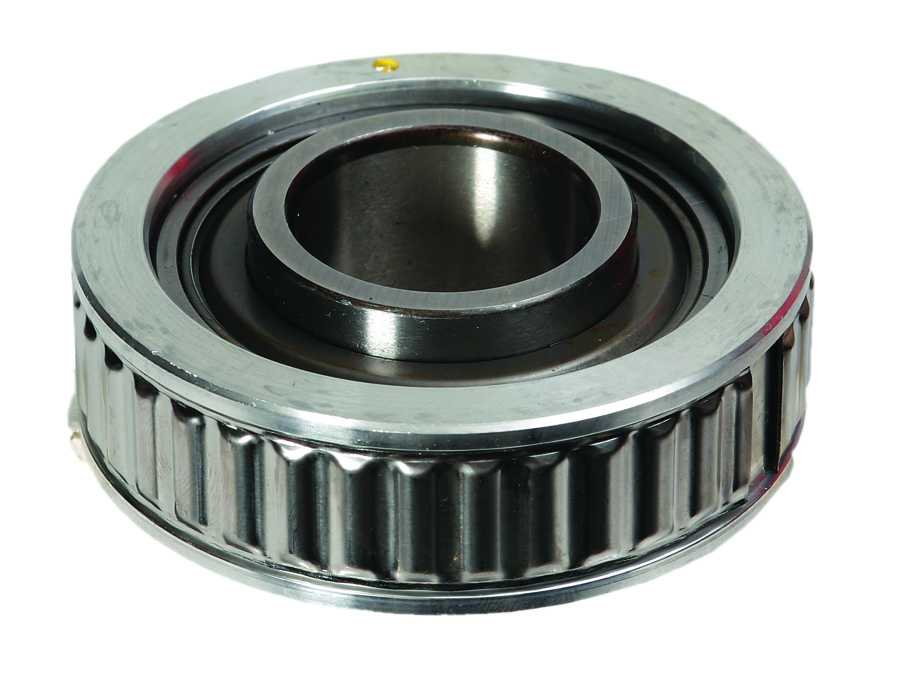

18-21001 - Gimbal Bearing, Sealed, 30-879194A02 [ More info ] |
||
18-2100 - Gimbal Bearing, Greaseable, 30-60794A4, 3853 [ More info ] |
||
#10 | 61075 | TOLERANCE RING (1 required per assembly) |
61075 - Tolerance Ring, NLA [ More info ] Unavailable |
||
#11 | 41802 | SEAL, Rubber, Exhaust Pipe (1 required per assembly) |
#12 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) (2 required per assembly) |
#13 | 43713 | SEAL (1 required per assembly) |

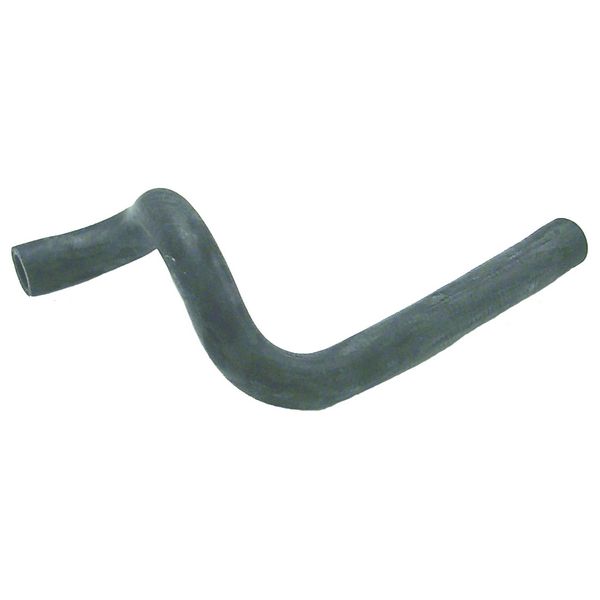

#14 | 32-43437 | HOSE (1 required per assembly) |
#15 | 41674 | INSERT (1 required per assembly) |

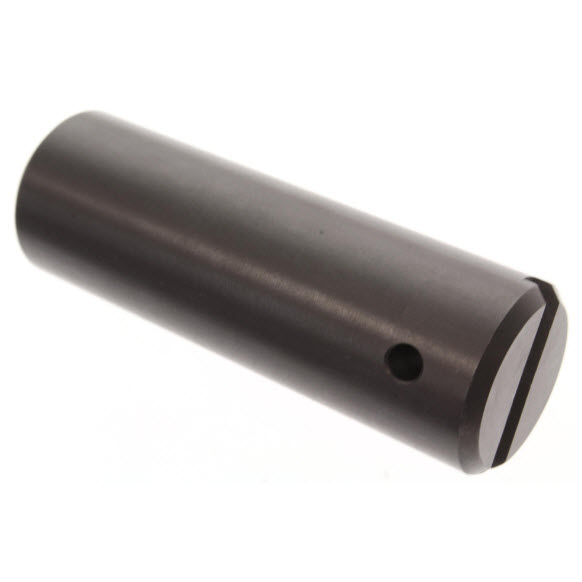

#16 | 17-99353 | SWIVEL PIN, Lower (1 required per assembly) |

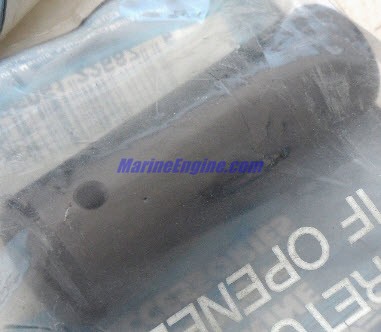

17-99353 - Pin-swivel (lower) [ More info ] Unavailable |
||
#17 | 18-54929 | COTTER PIN (1 required per assembly) |
#18 | 12-32518 | WASHER (1 required per assembly) |
#19 | 10-43691 | BOLT, (.500-13 x 4.00) (2 required per assembly) (OLD DESIGN) |

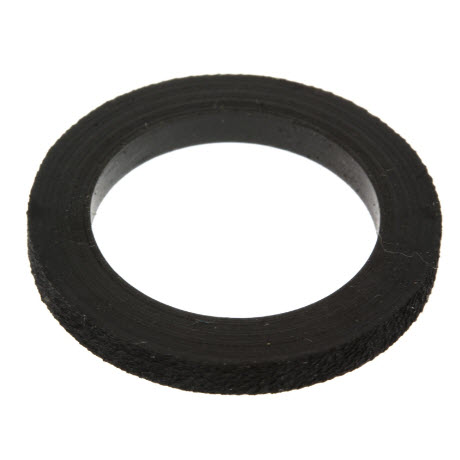

#20 | 12-32620 | WASHER (2 required per assembly) (OLD DESIGN) |

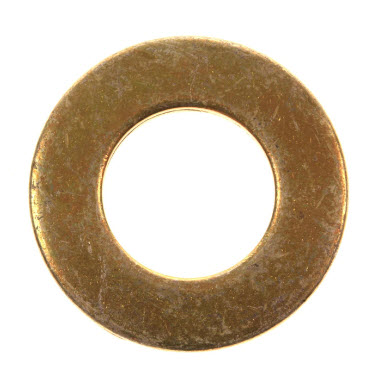

#21 | 12-21900 | WASHER (2 required per assembly) (OLD DESIGN) |
#22 | 11-34087 | NUT (2 required per assembly) (OLD DESIGN) |

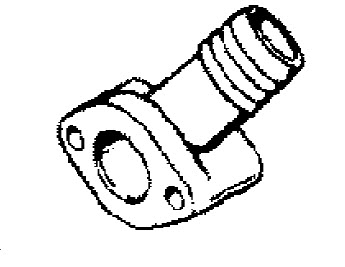

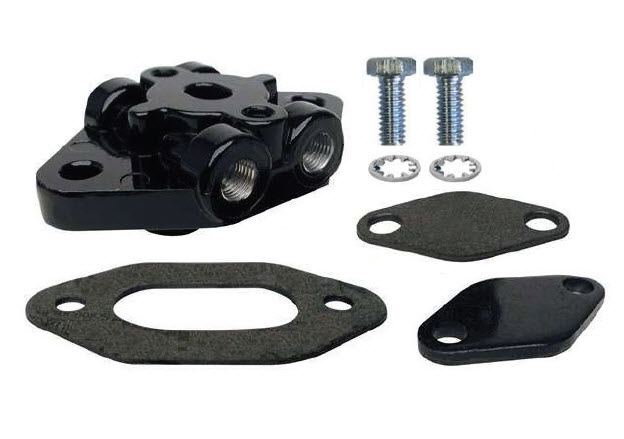

#23 | 22-43828 | CONNECTOR (1 required per assembly) |
22-43828T - Connector [ More info ] Unavailable |
||
#24 | 27-44108 1 | GASKET (1 required per assembly) |
27-44108 1 - Gasket [ More info ] Unavailable |
||
#25 | 10-78038 | SCREW, (.250-20 x 1.75) (2 required per assembly) |

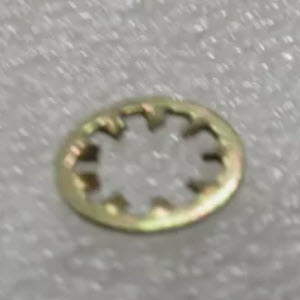

#26 | 13-21272 | LOCKWASHER, (.250) (2 required per assembly) |

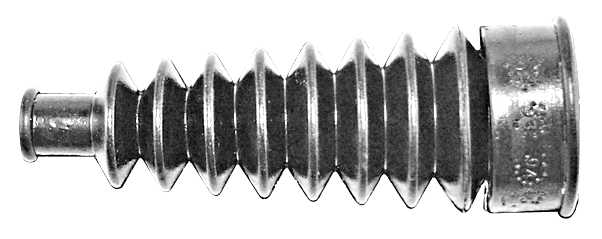

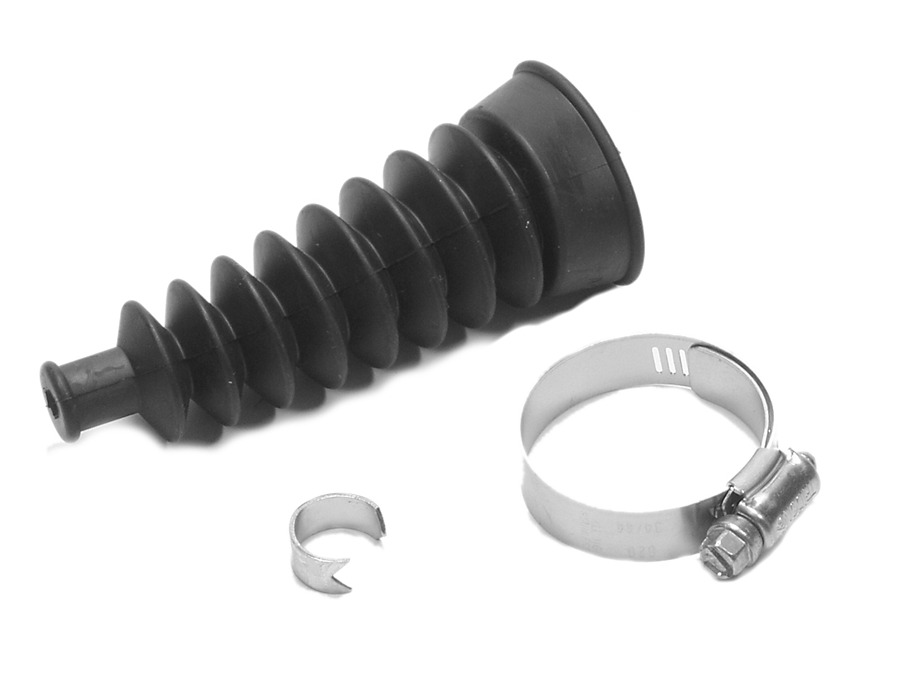

#27 | 74639 | BELLOWS, Shift Cable (1 required per assembly) |
74639 - Shift Cable Bellows [ More info ] Unavailable |
||

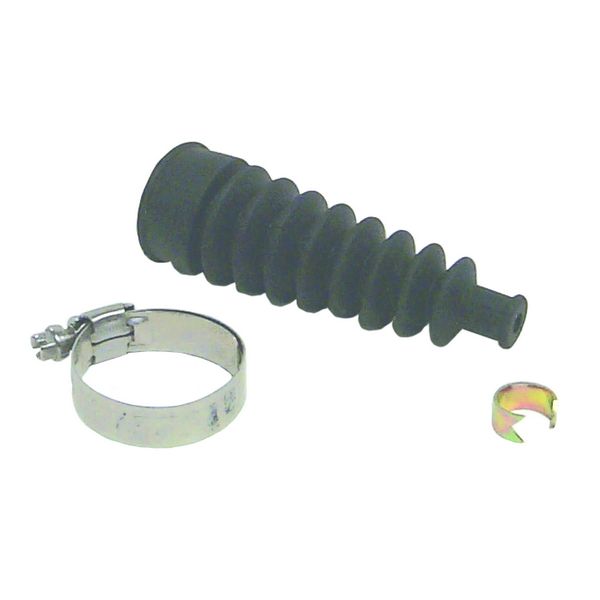

0775542 - Shift Cable Bellows [ More info ]
$24.49 $24.05 |
||
#28 | 54-38863 | CLAMP (1 required per assembly) |
54-866507 - Clamp [ More info ] Unavailable |
||

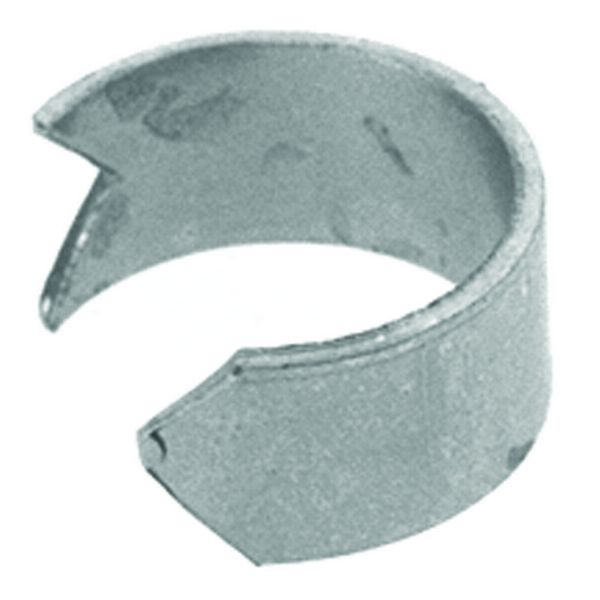

54-8M0090424 - Clamp - Priced Individually [ More info ] Unavailable |
||

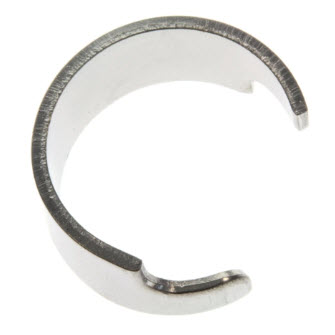

54-8M0204733 - CLAMP Note: Priced Individually [ More info ] |
||
#29 | 54-815504320 | CLAMP, Worm Gear (1 required per assembly) |
54-8M0204716 - CLAMP [ More info ] Unavailable |
||
#30 | 12-34567 | WASHER (8 required per assembly) |

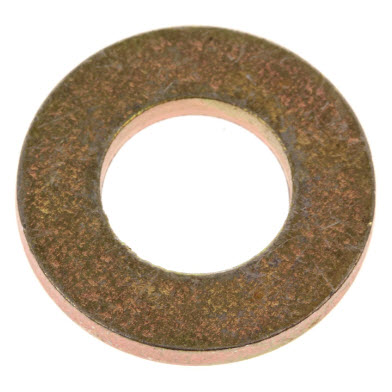

12-34567 - Washer (.453 X .875 X .12) Brace Slot [ More info ] |
||
#31 | 11-34933 | NUT, (.437-20) Stainless Steel (8 required per assembly) |
11-34933 - Nut (7/16-20) [ More info ] Unavailable |
||
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] |
||
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
$19.49 $16.48 |
||
#32 | 27-98823 1 | GASKET (1 required per assembly) |
18-0388 - Hose Connector Gasket, 27-98823 1 [ More info ]
$2.99 $2.46 |
||

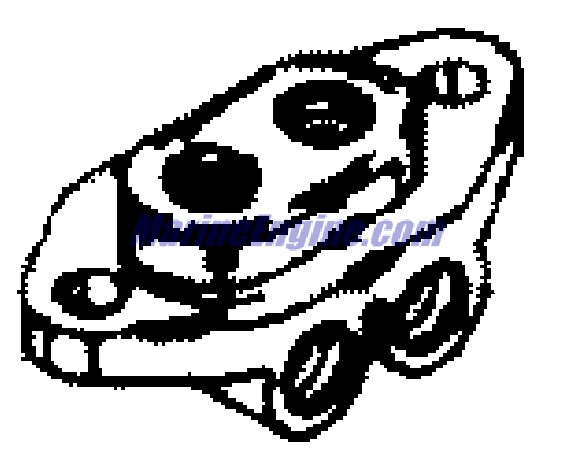

#33 | 98825A 4 | MANIFOLD ASSEMBLY (1 required per assembly) |
98825A 4 - Manifold Assembly -Gimbal HousingZZ [ More info ] Unavailable |
||
8M0080805 - Manifold Assembly [ More info ] Unavailable |
||
#34 | 13-78968 | LOCKWASHER, Internal (.250) (2 required per assembly) |
#35 | 11-13438 | NUT, (.250-28) (2 required per assembly) |
11-13438 - Nut (1/4-28) [ More info ] Unavailable |
||
#36 | 821631A 1 | ANODE ASSEMBLY (1 required per assembly) (OLD DESIGN) |
821631A 1 - Anode Kit [ More info ] Unavailable |
||
97-821631Q 1 - Anode Kit, Gimbal Housing, Aluminum, Priced Individually [ More info ] |
||

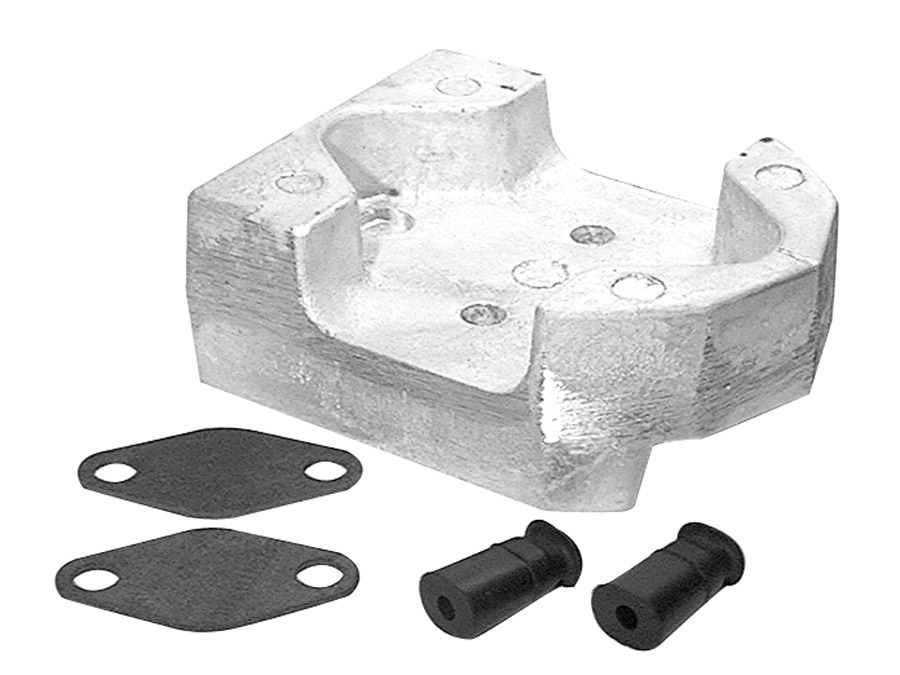

97-821631T 1 - Anode Kit -Gimbal Housing - Priced Individually [ More info ] |
||
#37 | 12077 | SEAL (1 required per assembly) (OLD DESIGN) |
#38 | 27-99506 1 | GASKET (1 required per assembly) (OLD DESIGN) |
#39 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel (2 required per assembly) (OLD DESIGN) |

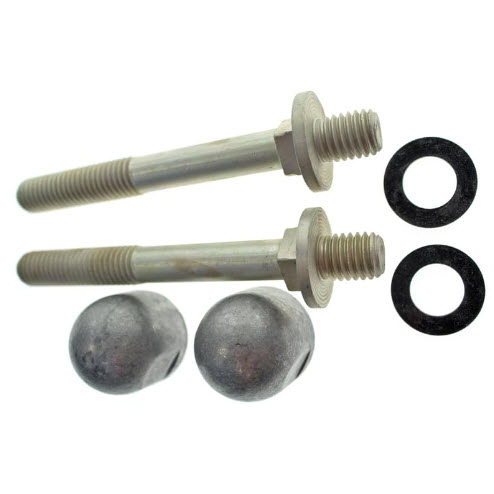

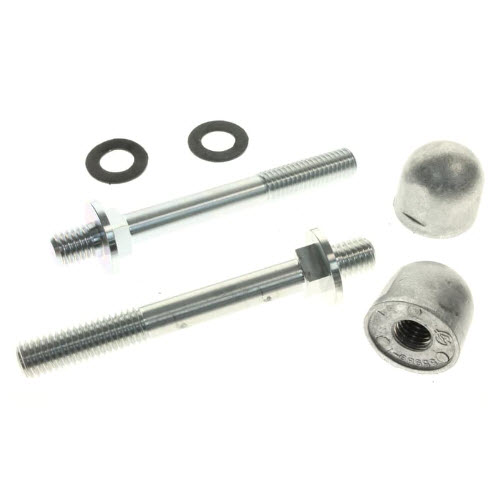

#41 | 55989A 1 | BOLT ASSEMBLY, Anodic (2 required per assembly) (OLD DESIGN) |
55989A 1 - Anodic Bolt Assembly [ More info ] Unavailable |
||
9755989A8 [ More info ] Unavailable |
||

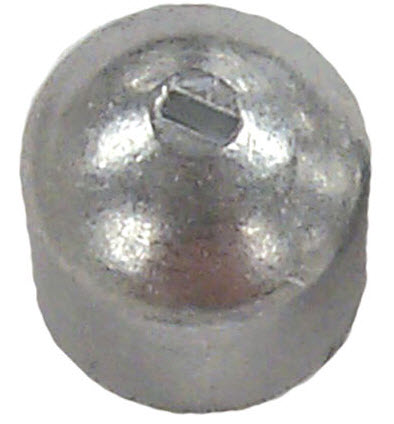

#42 | 55989A 3 | ANODE KIT (2 required per assembly) (OLD DESIGN) |
#43 | 12-56085 | WASHER (2 required per assembly) (OLD DESIGN) |
