Parts for MerCruiser Black Scorpion MX 6.2L MPI Throttle Body & Air Plenum
Tap to zoom. Scroll down to order.

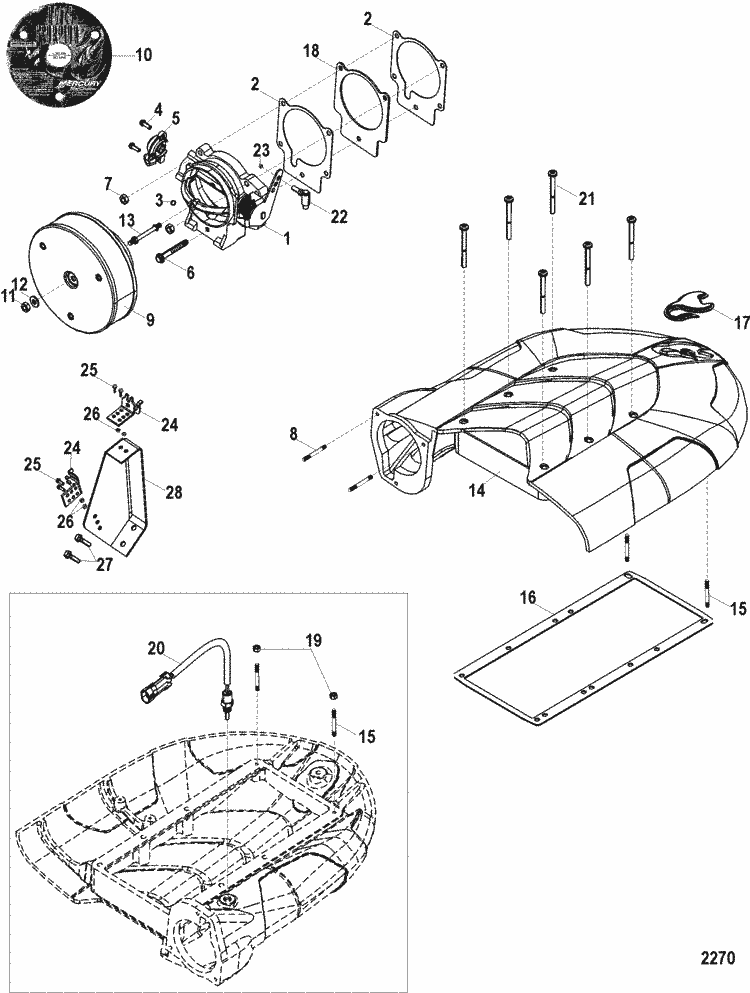

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 861484A02 | THROTTLE BODY ASSEMBLY (1 required per assembly) |

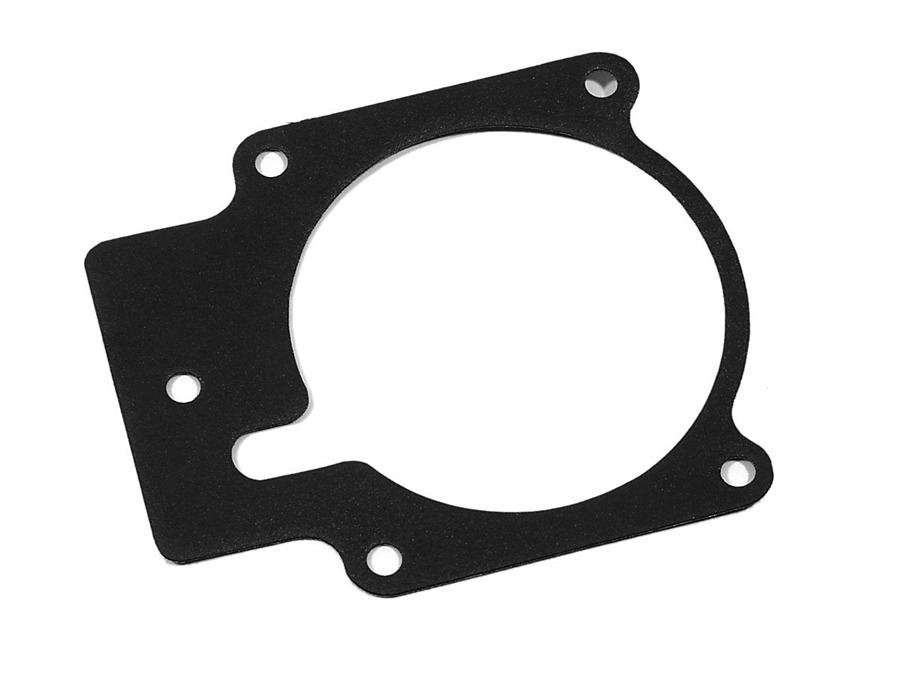

#2 | 27-861449 | GASKET, Throttle Body (2 required per assembly) |
#3 | 862999002 | PLUG, Intake Air Control Port (1 required per assembly) |
#4 | 10-803150 | SCREW (2 required per assembly) |

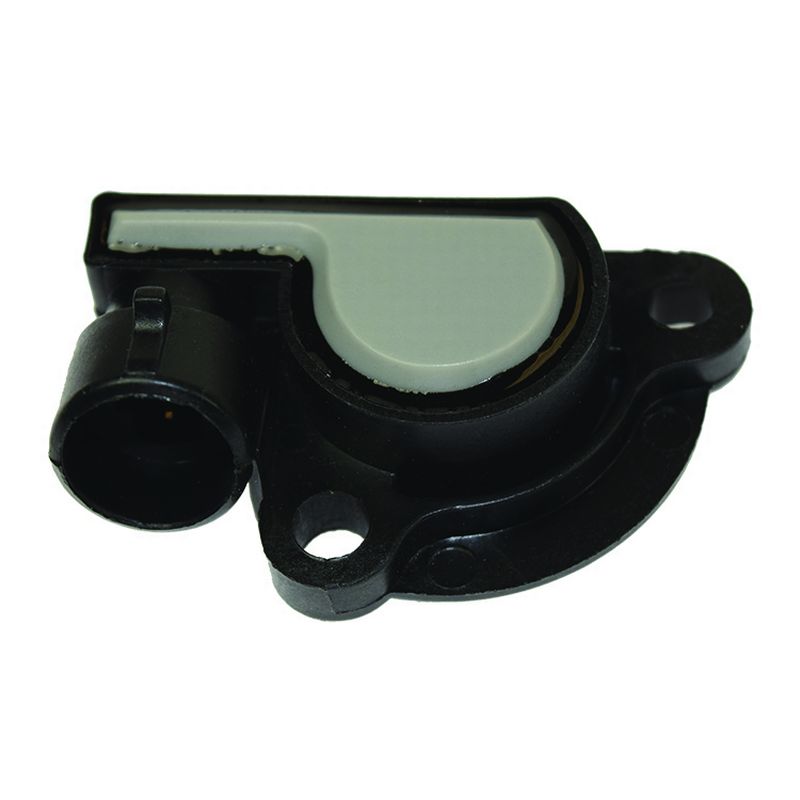

#5 | 803148 | SENSOR (1 required per assembly) |

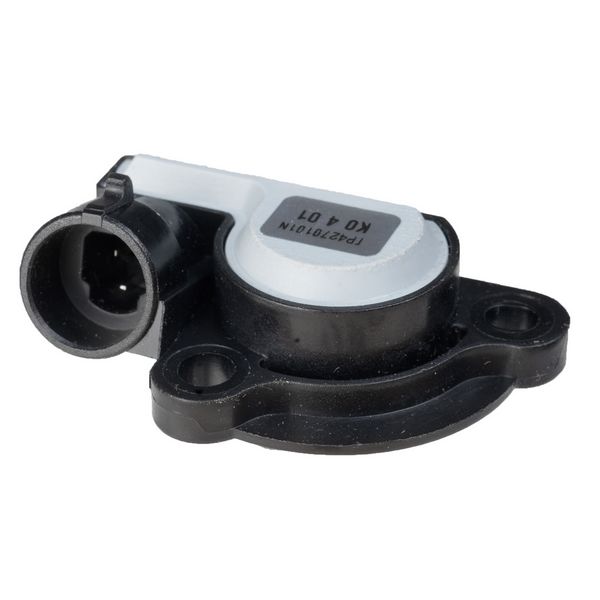

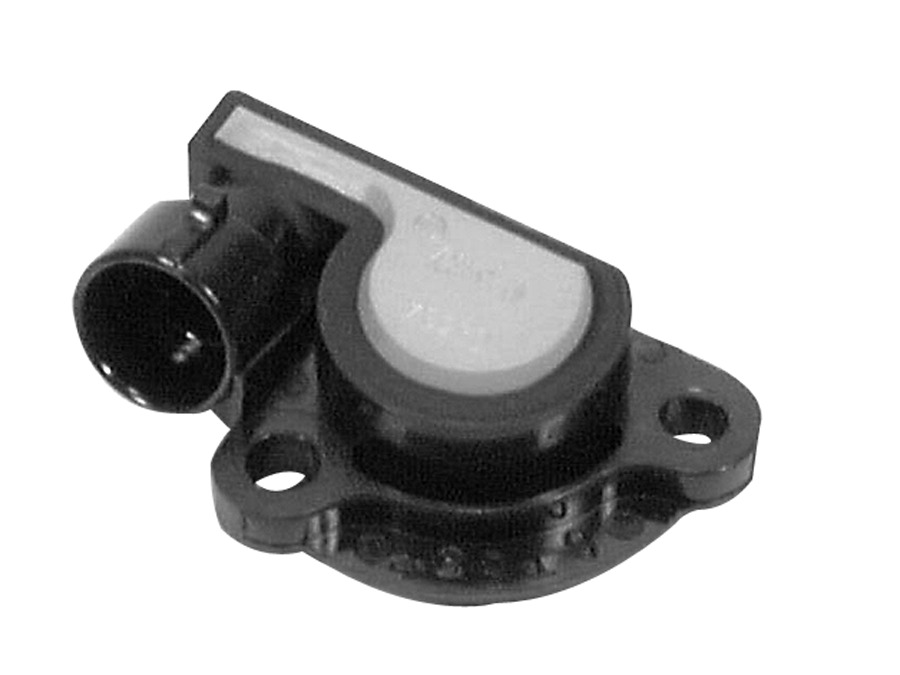

803148 - Throttle Position Sensor [ More info ] Unavailable |
||
8M0230659 - SENSOR-TPS [ More info ] Unavailable |
||
#6 | 10-861581 | SCREW, (.250-20 x 2.250) (2 required per assembly) |
10-861581 - Screw [ More info ] Unavailable |
||
#7 | 11-826708 9 | NUT, (.250-28) (2 required per assembly) |

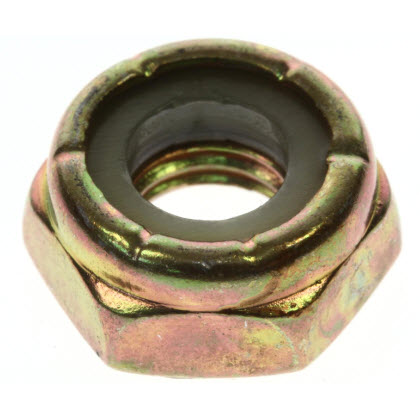

18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
$11.99 $6.88 |
||
#8 | 16-72809 | STUD, (.250-20/.250-28 x 1.620) (2 required per assembly) |
16-72809 - STUD [ More info ] Unavailable |
||

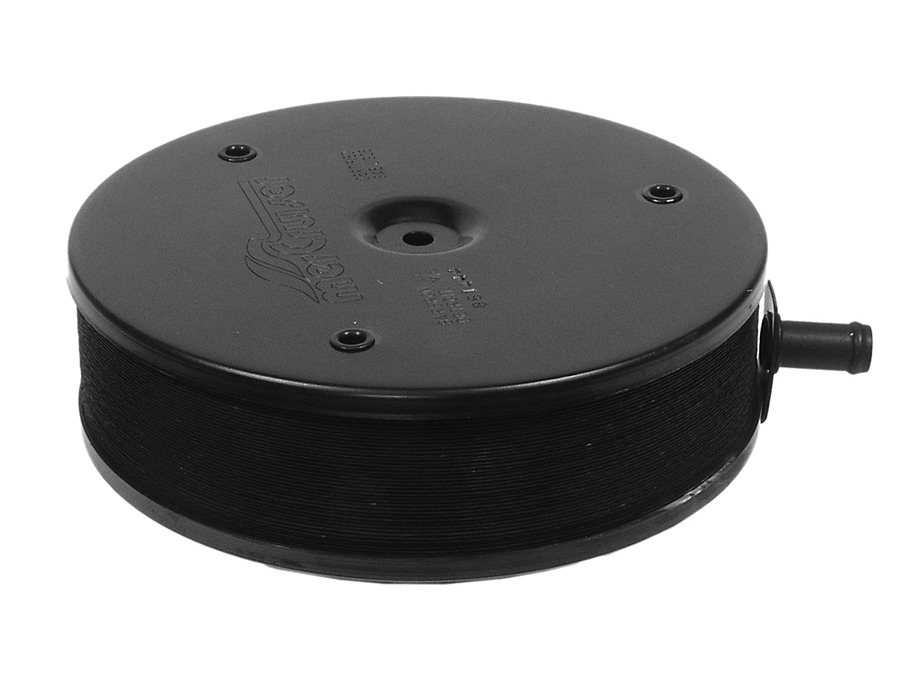

#9 | 861444 | FLAME ARRESTOR (1 required per assembly) |
861444 - Flame Arrestor [ More info ] Unavailable |
||
#10 | 37-865290 | DECAL, Flame Arrestor (1 required per assembly) (Black Scorpion, 350 ) |
#10 | 37-865291 | DECAL, Flame Arrestor (1 required per assembly) (Black Scorpion, 6.2L) |
37-865291 - DECAL [ More info ] Unavailable |
||
#11 | 11-826713 9 | NUT, (.250-28) (1 required per assembly) |
#12 | 12-86400 | WASHER (1 required per assembly) |
#13 | 16-865460 | STUD (1 required per assembly) |
#14 | 861334A08 | PLENUM ASSEMBLY, Black, Air Intake (1 required per assembly) |

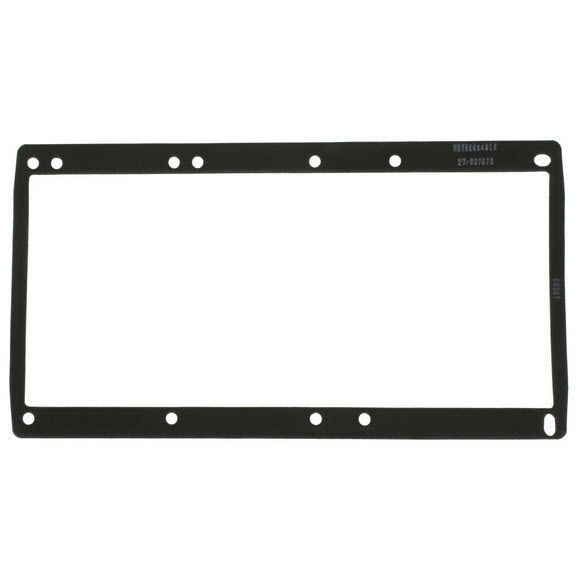

#16 | 27-807670 | GASKET, Air Plenum (1 required per assembly) |
#17 | 807895 | EMBLEM, Scorpion (Black Rubber) (1 required per assembly) |
#17 | 862960 | EMBLEM, Scorpion (Chrome) (1 required per assembly) |

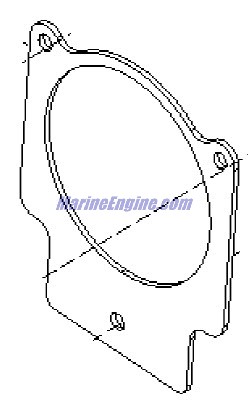

#18 | 861450 | ADAPTOR PLATE, Throttle Body (1 required per assembly) |
#19 | 11-807082 | NUT, (.250-28) (2 required per assembly) |
#20 | 885342002 | SENSOR ASSEMBLY (1 required per assembly) |
885342002 - Sensor Assembly [ More info ] Unavailable |
||
#21 | 10-806953 | SCREW, (.250-20 x 2.750) (6 required per assembly) |

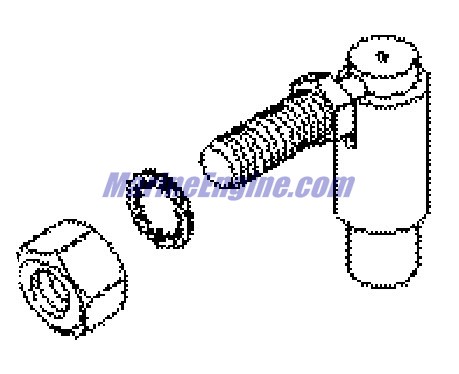

#22 | 807484 | BALL JOINT ASSEMBLY, Quick Release (1 required per assembly) |

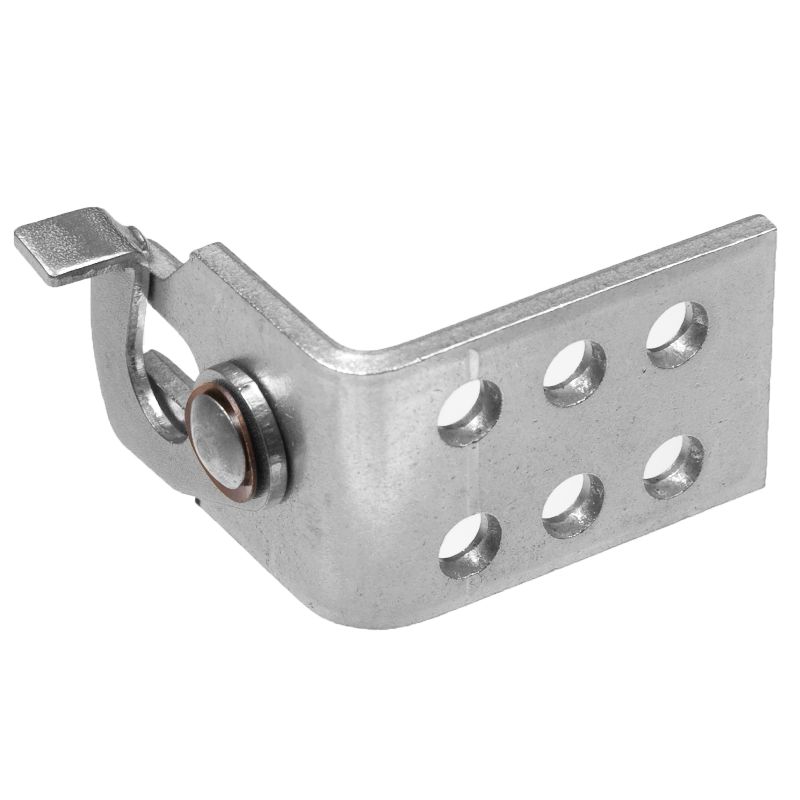

#24 | 807485 | BRACKET (1 required per assembly) |
807485 - BRACKET [ More info ] Unavailable |
||
#25 | 10-89766 | SCREW, (#10-32 x .620) Stainless Steel (2 required per assembly) |
#26 | 11-826709106 | NUT, (#10-32) Stainless Steel (2 required per assembly) |
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] Unavailable |
||
#27 | 10-65746 | SCREW, (.250-20 x .750) (2 required per assembly) |

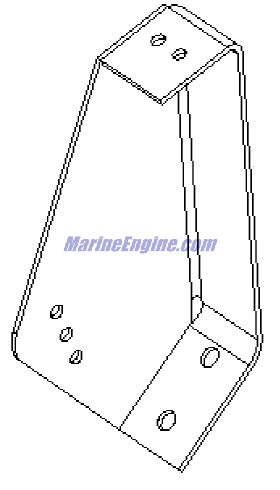

#28 | 861073T02 | BRACKET, Throttle Anchor (1 required per assembly) |
