Parts for MerCruiser Black Scorpion 350 Mag MPI Thermostat & Housing (Air Actuated Drain)

Revise Search: All Models > Black Scorpion 350 Mag MPI > 0M391600 - 0W689999 > Thermostat & Housing (Air Actuated Drain)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-861246A98	GASKET SET, Engine Overhaul (1 required per assembly)
		27-861246A98 - Engine Overhaul Gasket Set [ More info ] Unavailable

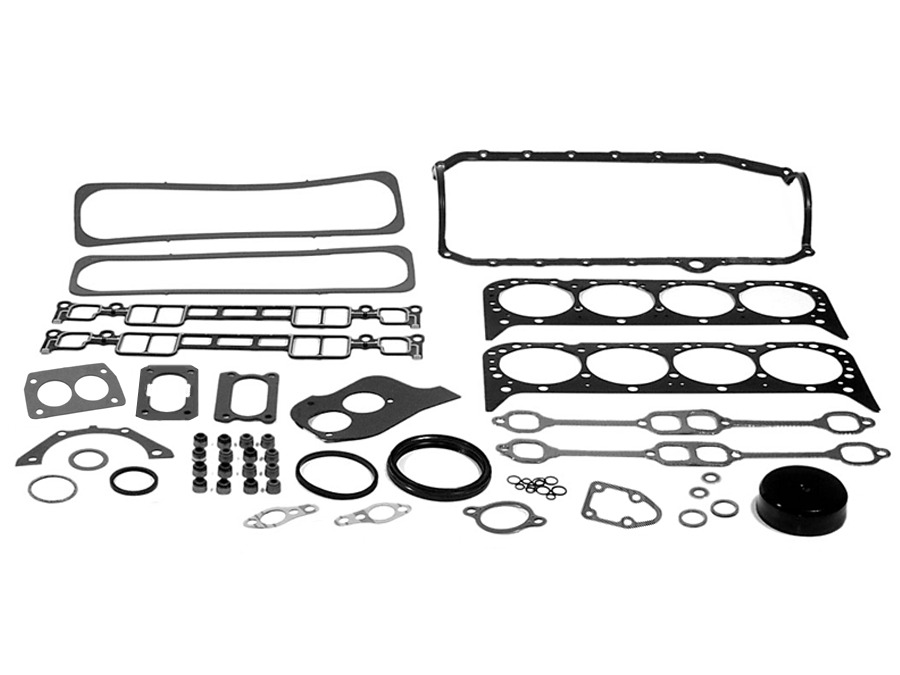

		27-861246A05 - Engine Overhaul Gasket Set [ More info ] $794.93 Available to Order: Usually ships within 10 days.
#1	863457A 2	HOUSING ASSEMBLY, Thermostat (1 required per assembly)
		863457A 2 - Thermostat Housing [ More info ] $415.86 In Stock
#2	22-32803	PLUG, Pipe (.375-18) Brass (2 required per assembly)

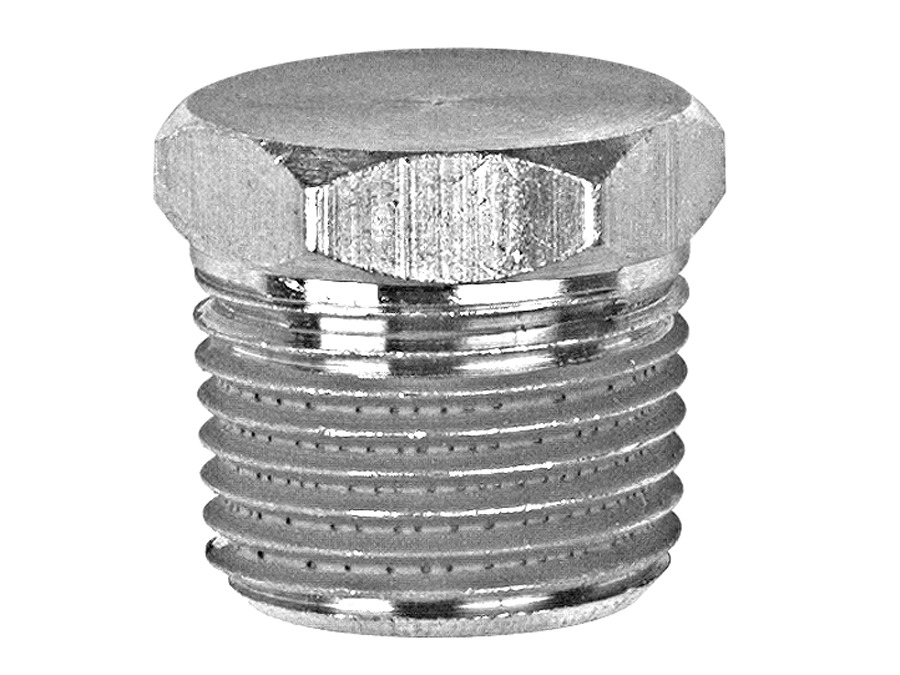

		22-32803 - Plug [ More info ] Unavailable

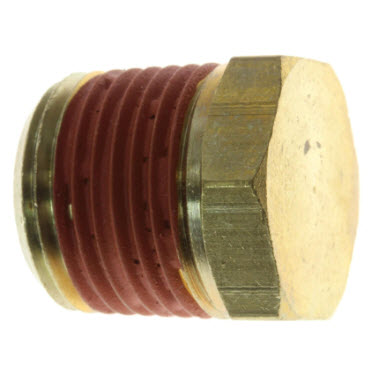

		228M0180565 - PLUG [ More info ] $7.70 1 In Stock.

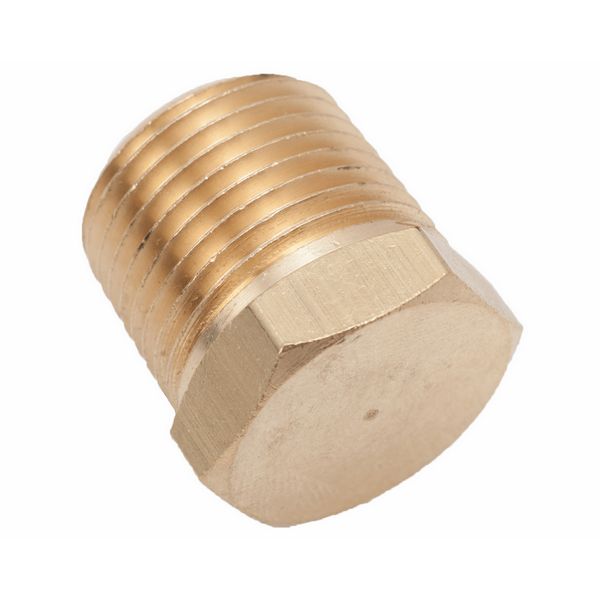

		18-4264 - Pipe Plug, 3/8-18 NPT [ More info ] $5.49 $4.05 10 In Stock.
#3	806490T	SENDER, Water Temperature (1 required per assembly)
		806490T - Water Temperature Sender [ More info ] $39.49 In Stock
		18-5897 - Sender, 97257A1 [ More info ] $35.99 $33.61 6 In Stock.
#4	13-26996	LOCKWASHER, (#10) Stainless Steel (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#5	11-68219	NUT, (#10-32) Stainless Steel (1 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#6	805218T	SENSOR (1 required per assembly)
		805218T - Temperature Sensor [ More info ] $67.49 In Stock
		18-7600 - Sensor 805218T [ More info ] $57.49 $54.70 In Stock

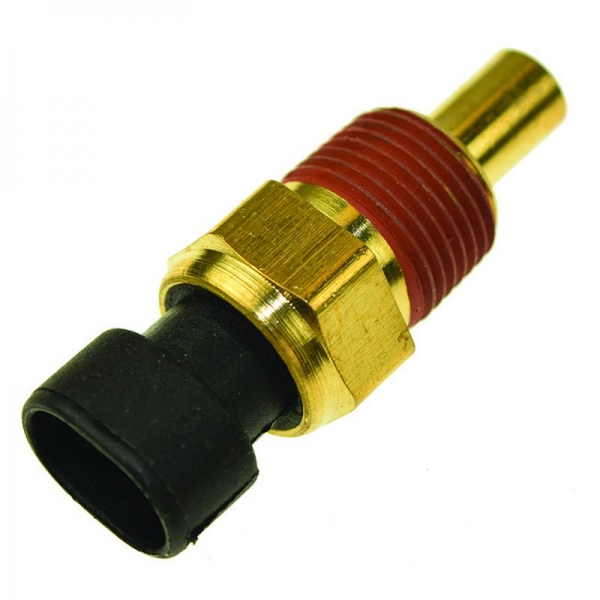

		E13-0009 - Coolant Temp Sensor [ More info ] $33.55 $32.41 1 In Stock.
#7	27-806871	GASKET, Thermostat Housing (1 required per assembly)
		27-806871 - Thermostat Gasket [ More info ] Unavailable
		27-8M0204687 - Thermostat Gasket, Priced Individually [ More info ] $9.80 10+ In Stock.
#8	807252T 2	THERMOSTAT, 71Â°C (160Â°F) (1 required per assembly)
		807252T 2 - Thermostat, 160 Degrees [ More info ] Unavailable
		8M0091470 - Thermostat, 160 Degrees [ More info ] Unavailable
		8M0109441 - Thermostat, 160 Degree [ More info ] $32.99 10+ In Stock.
		18-3649 - Thermostat, 160 Degree, 807252T2 [ More info ] $26.99 $26.28 10+ In Stock.
#9	23-806922	SLEEVE, Thermostat (1 required per assembly)
		23-806922 - Sleeve [ More info ] Unavailable

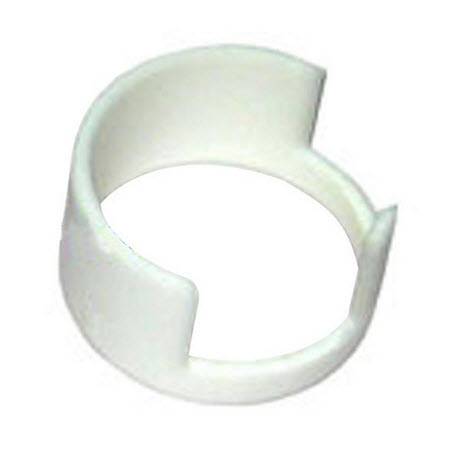

		23-8M0214947 - Thermostat Housing Sleeve, Plastic [ More info ] $17.19 10+ In Stock.
#10	27-53045 1	GASKET, Lower Thermostat Housing (1 required per assembly)
		27-53045 1 - Gasket - Priced Individually [ More info ] $5.50 10+ In Stock.
		18-2917-9 - Gasket 27-530451 2-Pack [ More info ] $7.99 $7.41 Available to Order: Usually ships within 10 days.
		27-53045Q01 - Gasket [ More info ] $5.49 10 In Stock.
#11	10-40107 75	SCREW, (M8 x 75) (2 required per assembly)
		10-40107 75 - Screw [ More info ] $12.40 Available to Order: Usually ships within 10 days.
#12	12552	LIFTING EYE (1 required per assembly)
		12552 - Lifting Eye [ More info ] $17.10 Available to Order: Usually ships within 10 days.
#13	22-806608A 1	PLUG KIT, (.500-13) Royal Blue (1 required per assembly)
		22-806608A 1 - Plug Kit, Priced Individually [ More info ] Unavailable
		22-806608A02 - Plug Assembly - Priced Individually [ More info ] Unavailable

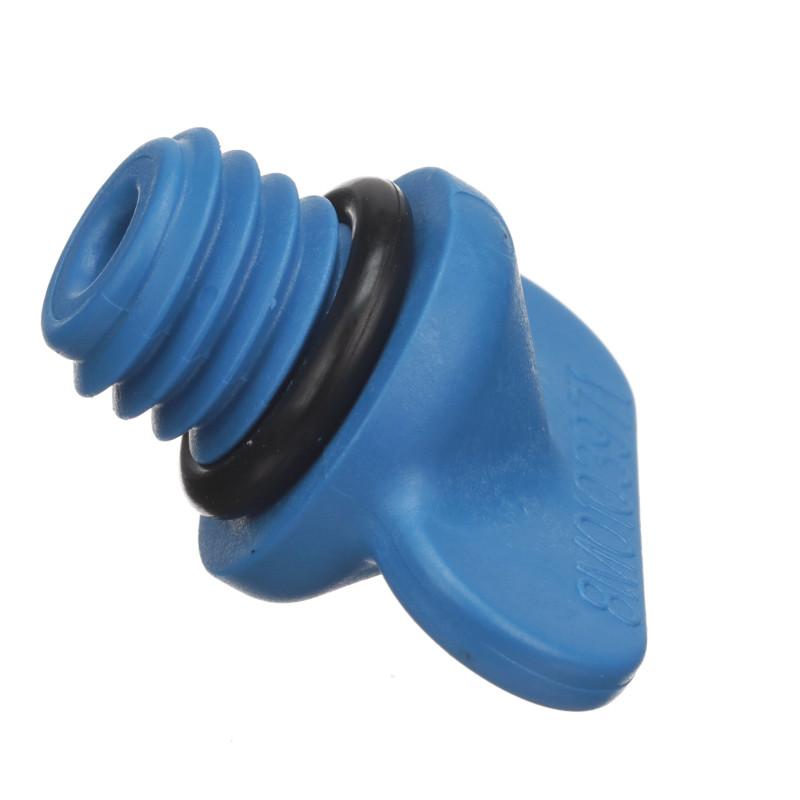

		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $9.79 9 In Stock.
		18-4226 - Blue Drain Plug, 22-806608A1 [ More info ] $4.49 10+ In Stock.
		22-806608Q01 - Plug - Priced Individually [ More info ] $9.89 Available to Order: Usually ships within 10 days.
#14	25-32509	O-RING, (.489 x .070) (1 required per assembly)
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.30 1 In Stock.

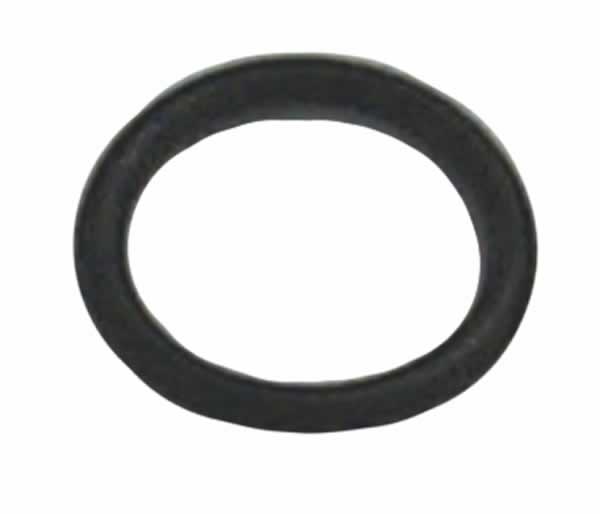

		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $9.04 Available to Order: Usually ships within 10 days.
