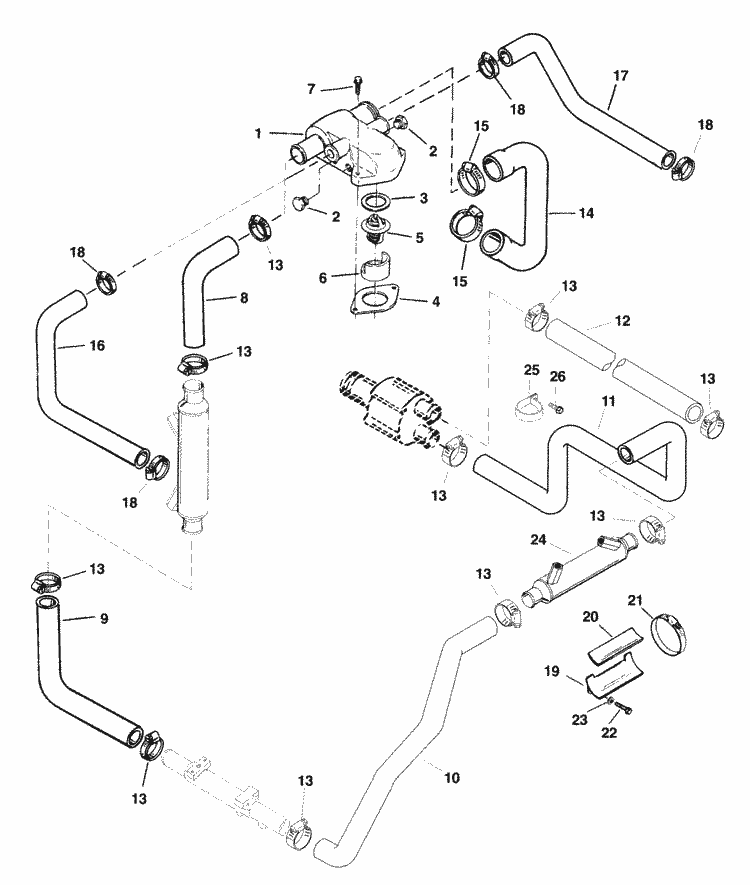

Parts for MerCruiser 8.2L MIE MPI (LH) Gen. VI GM 502 V-8 1996-1997 Thermostat Housing - Standard Cooling (Fuel Cooled System)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-805396A92 | GASKET SET-OVERHAUL (1 required per assembly) (8.2L) |
  |
|
27-805396A92 - Engine Overhaul Gasket Set [ More info ] Unavailable |
| # | 27-805396A95 | GASKET SET-OVERHAUL (1 required per assembly) (7.4L) |
  |
|
27-805396A95 - Engine Overhaul Gasket Set [ More info ] Unavailable |
| #1 | 806235A 1 | HOUSING ASSEMBLY-THERMOSTAT (1 required per assembly) |
  |
|
806235A 1 - MCM PART BUL.96-,NLA [ More info ] Unavailable |
| #2 | 22-32803 | PLUG-PIPE (3/8 IN.) (2 required per assembly) |
  |
22-32803 - Plug [ More info ] Unavailable |
|
  |
|
228M0180565 - PLUG [ More info ]
|
  |
|
18-4264 - Pipe Plug, 3/8-18 NPT [ More info ]
|
| #3 | 27-806871 | GASKET-THERMOSTAT (1 required per assembly) |
  |
27-806871 - Thermostat Gasket [ More info ] Unavailable |
|
  |
|
27-8M0204687 - Thermostat Gasket, Priced Individually [ More info ]
|
| #4 | 27-53045 1 | GASKET-THERMOSTAT HOUSING (1 required per assembly) |
  |
|
27-53045 1 - Gasket - Priced Individually [ More info ]
|
  |
|
18-2917-9 - Gasket 27-530451 2-Pack [ More info ]
|
  |
|
27-53045Q01 - Gasket [ More info ]
|
| #5 | 807252 2 | THERMOSTAT (1 required per assembly) |
  |
807252 2 - Thermostat-160 [ More info ] Unavailable |
|
  |
807252T 2 - Thermostat, 160 Degrees [ More info ] Unavailable |
|
  |
8M0091470 - Thermostat, 160 Degrees [ More info ] Unavailable |
|
  |
|
8M0109441 - Thermostat, 160 Degree [ More info ]
|
  |
|
18-3649 - Thermostat, 160 Degree, 807252T2 [ More info ]
|
| #6 | 23-806922 | SLEEVE (1 required per assembly) |
  |
23-806922 - Sleeve [ More info ] Unavailable |
|
  |
|
23-8M0214947 - Thermostat Housing Sleeve, Plastic [ More info ]
|
| #7 | 10-98794 | SCREW (3/8-16 X 1 IN.) (2 required per assembly) |
  |
|
10-98794 - Screw [ More info ]
|
  |
|
10-8M0113180 - MTG Screw AL/BRAV TOP Cover ZZ [ More info ]
|
| #8 | 32-807407 | HOSE-THERMOSTAT HOUSING. TO ENGINE OIL COOLER (1 required per assembly) |
  |
|
32-807407 - Thermostat Housing to Oil Cooler Hose [ More info ]
|
| #9 | 32-807989 | HOSE-COOLER TO COOLER (1 required per assembly) (USE WITH 10 IN. ENGINE OIL COOLER) |
  |
|
32-807989 - Molded Hose/NLA Order 32-71613 [ More info ] Unavailable |
| #9 | 32-807406 1 | HOSE-COOLER TO COOLER (1 required per assembly) (USE WITH 13 IN. ENGINE OIL COOLER) |
  |
|
32-807406 1 - Water Hose [ More info ]
|
| #10 | 32-808045 | HOSE-FUEL COOLER TO TRANSMISSION OIL COOLER (1 required per assembly) |
  |
|
32-808045 - Molded Hose [ More info ]
|
| #11 | 32-808044 | HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP (1 required per assembly) |
  |
|
32-808044 - Molded Hose [ More info ]
|
| #12 | 32-17435 79 | HOSE-SEA WATER PUMP TO TRANSOM (1 required per assembly) |
  |
32-17435 79 - Hose-96 INCH [ More info ] Unavailable |
|
  |
32-863343 79 - Hose-96 INCH [ More info ] Unavailable |
|
  |
32-865672079 - Hose-96 Inch [ More info ] Unavailable |
|
  |
|

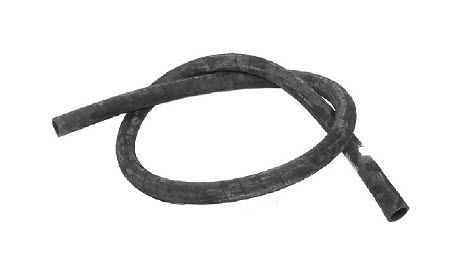

32-8M0062666 - Water Hose Bulk -96" [ More info ]
|
| #13 | 54-815504222 | CLAMP (10 required per assembly) |
  |
54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable |
|
  |
|
54-8M0188622 - CLAMP [ More info ] Unavailable |

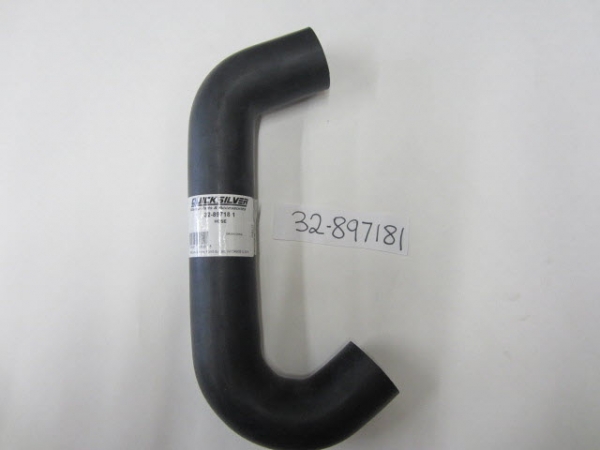

| #14 | 32-89718 1 | HOSE-THERMOSTAT HOUSING TO WATER PUMP (1 required per assembly) |
  |
|
32-89718 1 - Molded Hose [ More info ]
|
| #15 | 54-815504232 | CLAMP (2 required per assembly) |
  |
|
54-815504232 - Clamp [ More info ]
|
| #16 | 32-89749 1 | HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD (1 required per assembly) |
  |
|
32-89749 1 - Molded Hose [ More info ]
|
| #17 | 32-807201 | HOSE-THERMOSTAT HOUSING (1 required per assembly) STARBOARD EXHAUST MANIFOLD |
  |
|
32-807201 - Hose - Thermostat Housing [ More info ]
|
| #18 | 54-815504220 | CLAMP (4 required per assembly) |
  |
|
54-815504220 - Clamp [ More info ]
|
| #19 | 805546A 2 | BRACKET-TRANSMISSION OIL COOLER (1 required per assembly) |
  |
|
805546A 2 - Bracket - OilCooler [ More info ]
|
| #20 | 77223 3 | PAD (1 required per assembly) |
  |
|
|
| #22 | 10-37612 | SCREW (3/8-16 X 1-1/4 IN.) (1 required per assembly) |
  |
|
10-37612 - Screw - Priced Individually [ More info ]
|
| #23 | 13-35048 | LOCKWASHER (3/8 IN.) (1 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #24 | 807996T | COOLER-TRANSMISSION OIL COOLER (1 required per assembly) |
  |
807996T - Oil Cooler [ More info ] Unavailable |
|
  |
|
862837T - Transmission Oil Cooler [ More info ]
|
| #25 | 54-47715 | CLIP (1 required per assembly) |
  |
|
54-47715 - Clip [ More info ] Unavailable |
| #26 | 10-35765A 1 | SCREW & LOCKWASHER (5/16-18 X 5/8 IN.) (1 required per assembly) |
  |
|
10-35765A 1 - Screw Kit [ More info ]
|
