Parts for MerCruiser 8.2L MIE MPI (Gen. VI) GM 502 V-8 Transmission & Engine Mounting (Borg Warner 5000)
Tap to zoom. Scroll down to order.

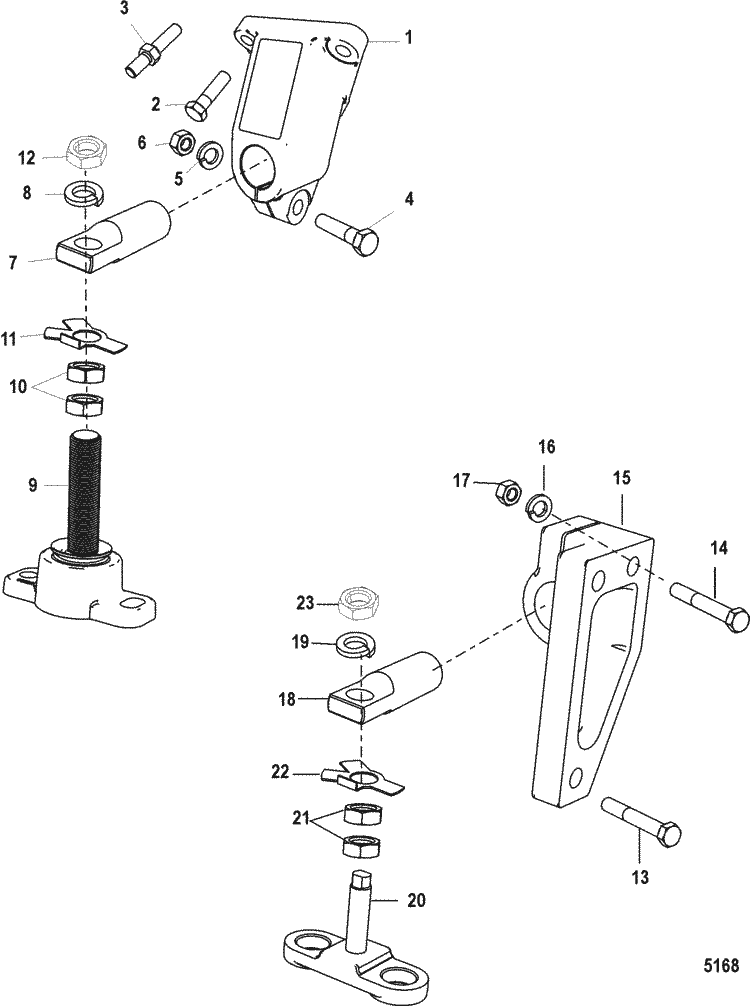

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

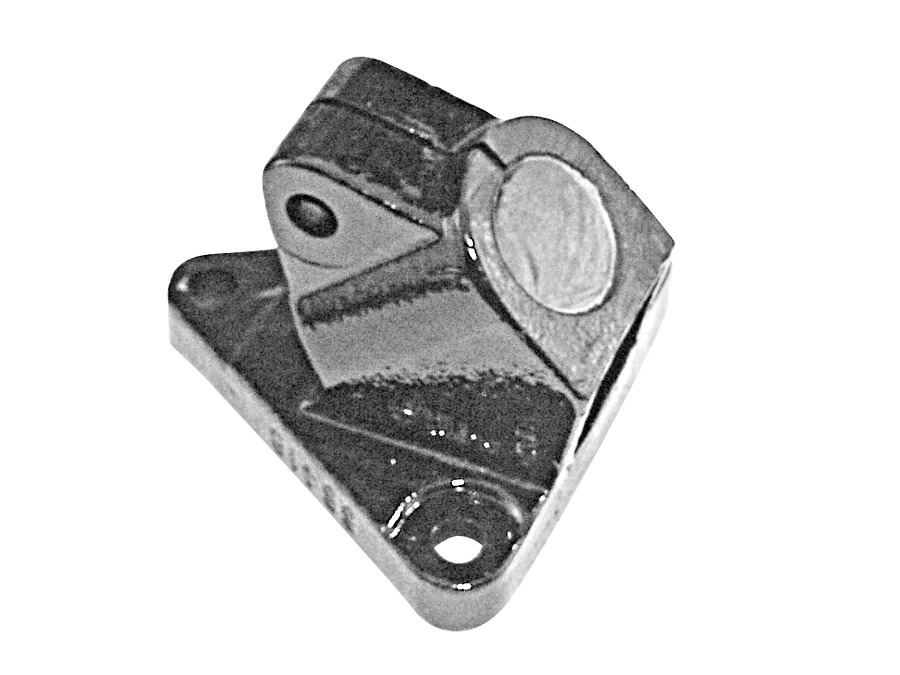

#1 | 66418T | BRACKET, Front (2 required per assembly) FRONT |

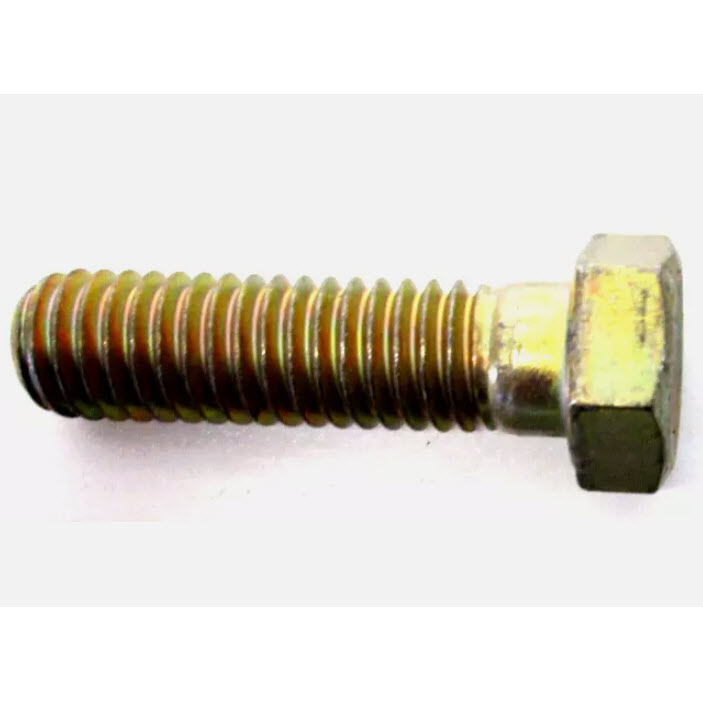

#2 | 10-68101 | SCREW, (.375-16 x 1.375) (2 required per assembly) |

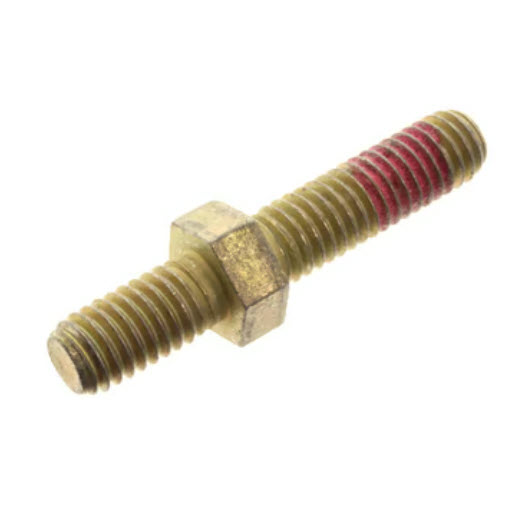

#3 | 16-805357 | STUD, (.375-16 x 2.130) (4 required per assembly) |
16-805357 - Stud [ More info ] Unavailable |
||

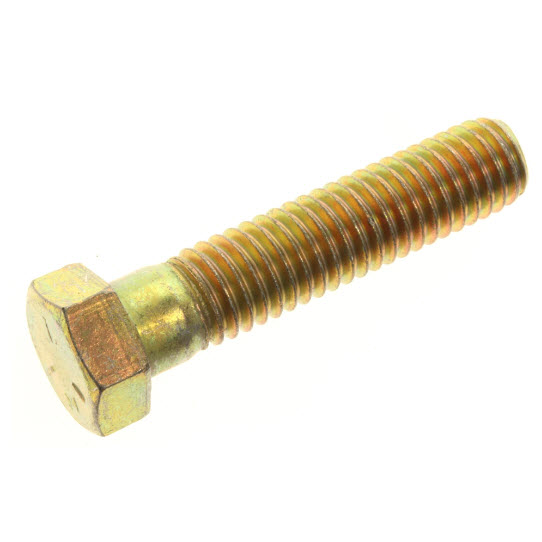

#4 | 10-37269 | SCREW, (.437-14 x 2.00) (2 required per assembly) |

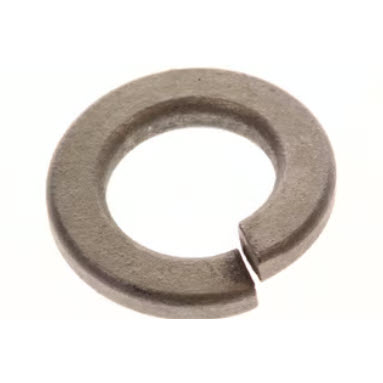

#5 | 13-32993 | LOCKWASHER, (.437) (2 required per assembly) |
#6 | 11-29553 | NUT, (.437-14) (2 required per assembly) |

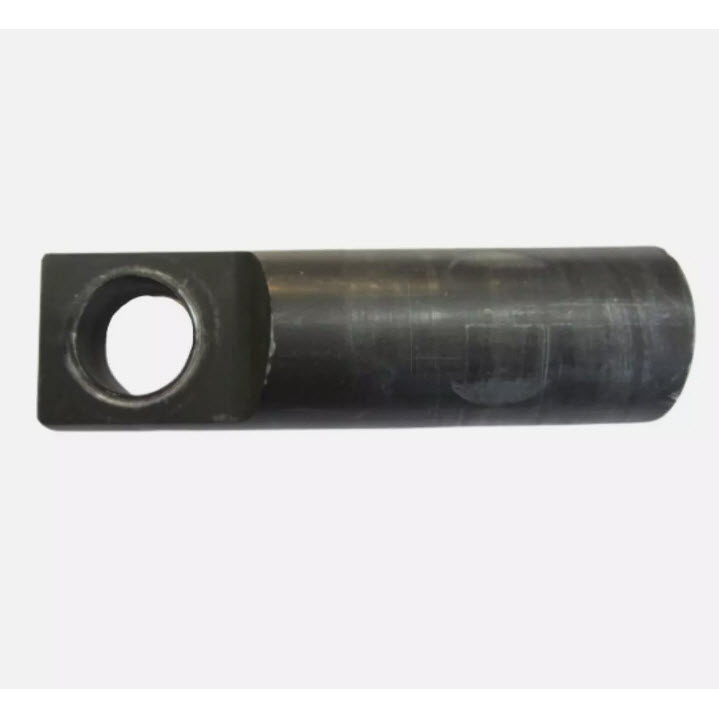

#7 | 66166A 4 | TRUNNION (2 required per assembly) |

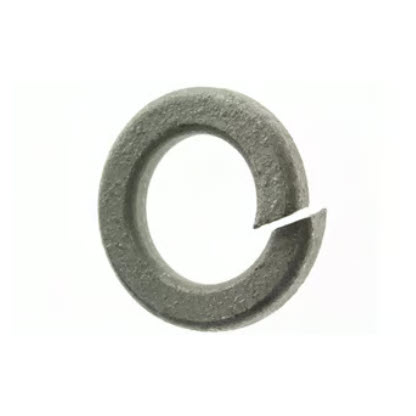

#8 | 13-68102 | LOCKWASHER, (.750) (2 required per assembly) |
#9 | 66284A 2 | BASE ASSEMBLY (2 required per assembly) FRONT |
#10 | 11-20739 | NUT, (.750-16) (2 required per assembly) |
#11 | 14-66658 | TAB WASHER (2 required per assembly) |
#13 | 10-40097 60 | SCREW, (M12 x 60) (4 required per assembly) |
#14 | 10-57357 | SCREW, (.437-13 x 2.250) (2 required per assembly) |

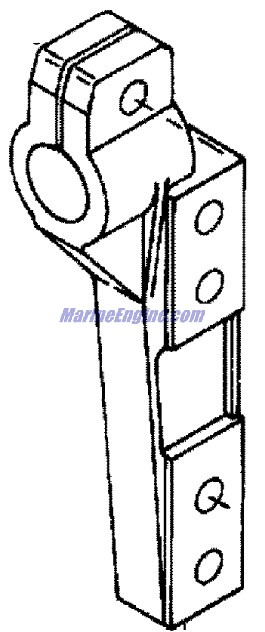

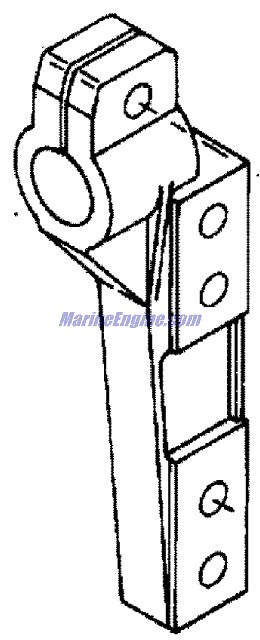

#15 | 805496T | BRACKET (1 required per assembly) PORT, DOWN ANGLE TRANSMISSION |
#15 | 805496T 1 | BRACKET (1 required per assembly) STARBOARD, DOWN ANGLE TRANSMISSION |

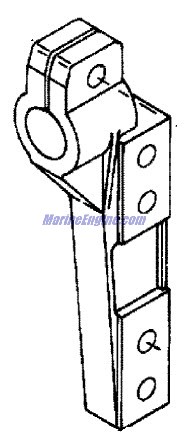

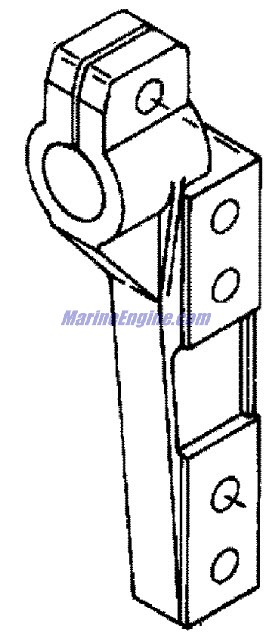

#15 | 807724T | BRACKET (1 required per assembly) PORT, V-DRIVE TRANSMISSION |
#15 | 807725T | BRACKET (1 required per assembly) STARBOARD, V-DRIVE TRANSMISSION |

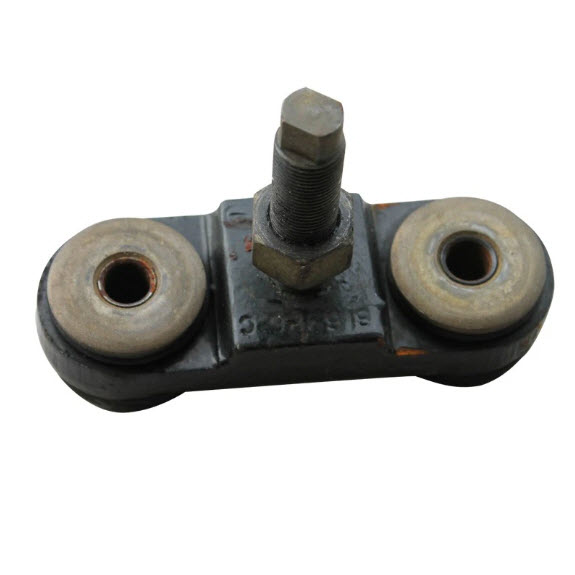

#20 | 816326A 2 | BASE ASSEMBLY (2 required per assembly) REAR |

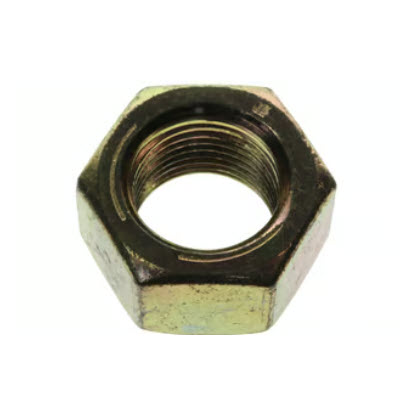

#21 | 11-816331 | NUT, (.750-16) (2 required per assembly) |
