Parts for MerCruiser 8.1L Inboard (Base) Transmission & Engine Mounting (Hurth 630 / 800)

Revise Search: All Models > 8.1L Inboard (Base) > 0W390000 - 0W689999 > Transmission & Engine Mounting (Hurth 630 / 800)

« Previous

NEED PARTS OR KITS?

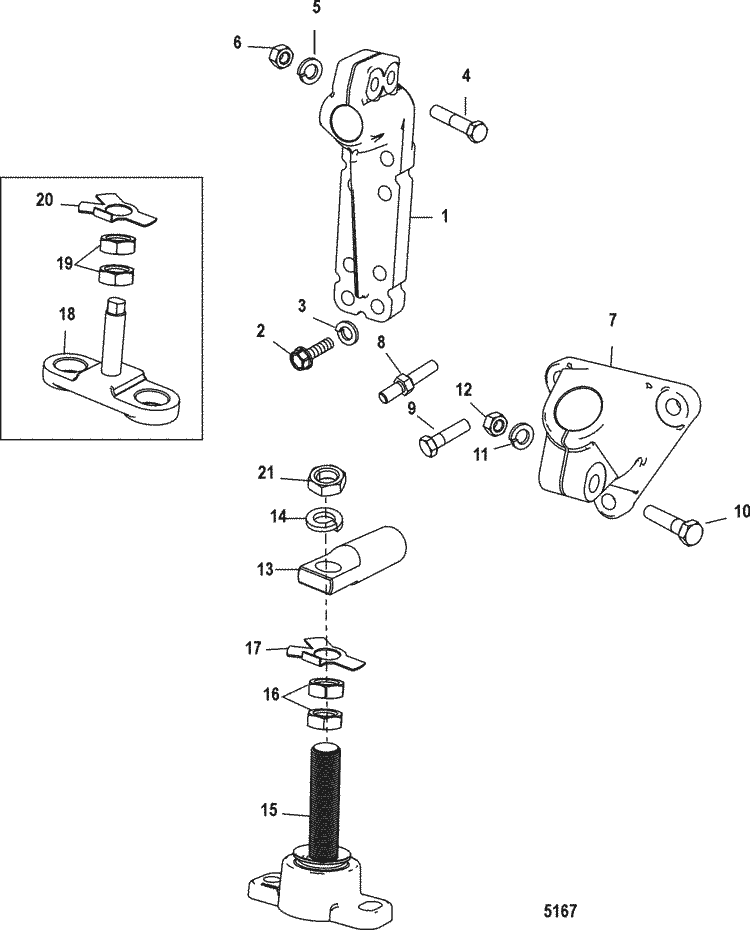

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	18903T	BRACKET (2 required per assembly)
		18903T - Bracket [ More info ] Unavailable
		18903T02 - Bracket [ More info ] $253.92 Available to Order: Usually ships within 10 days.
#2	10-806195	SCREW, (M12 x 45) (8 required per assembly)
		10-806195 - Screw [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#3	13-38829	LOCKWASHER, (.500) (8 required per assembly)
		13-38829 - LockWasher - Priced Individually [ More info ] $1.80 Available to Order: Usually ships within 10 days.
#4	10-37269	SCREW, (.437-14 x 2.00) (4 required per assembly)
		10-37269 - Screw - Priced Individually [ More info ] $5.30 10 In Stock.
#5	13-32993	LOCKWASHER, (.437) (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 1 In Stock.
#6	11-29553	NUT, (.437-14) (4 required per assembly)
		11-29553 - Nut (7/16-14) [ More info ] $2.07 10+ In Stock.
#7	66418T	BRACKET, Front (2 required per assembly)
		66418T - Bracket [ More info ] $355.58 Available to Order: Usually ships within 10 days.
#8	16-861580	STUD (2 required per assembly) Port
		16-861580 - Stud [ More info ] $8.70 Available to Order: Usually ships within 10 days.
#8	10-40001195	SCREW, (M10 x 30) (2 required per assembly) Starboard
		10-40001195 - Screw [ More info ] $5.20 Available to Order: Usually ships within 10 days.
#9	10-40001197	SCREW, (M10 x 35) (2 required per assembly)
		10-40001197 - Screw [ More info ] $15.40 $13.09 3 In Stock.
#13	66166A 4	TRUNNION (4 required per assembly)
		66166A 4 - Trunnion [ More info ] $164.00 Available to Order: Usually ships within 10 days.
#14	13-68102	LOCKWASHER, (.750) (4 required per assembly)
		13-68102 - LockWasher - Priced Individually [ More info ] $2.60 Available to Order: Usually ships within 10 days.
#15	66284A 2	BASE ASSEMBLY (2 required per assembly)
		66284A 2 - Engine Mount Base Assembly [ More info ] $145.92 $140.49 2 In Stock.
#16	11-20739	NUT, (.750-16) (2 required per assembly)
		11-20739 - Nut (.750X16) [ More info ] $5.90 10+ In Stock.
#17	14-66658	TAB WASHER (2 required per assembly)
		14-66658 - Tab Washer [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#18	816326A 2	BASE ASSEMBLY (2 required per assembly)
		816326A 2 - Mount Assembly [ More info ] $285.25 Available to Order: Usually ships within 10 days.
#19	11-816331	NUT, (.750-16) (2 required per assembly)
		11-816331 - Nut, (.750-16) [ More info ] $7.60 10+ In Stock.
