Parts for MerCruiser 80 (Sterndrive) 1966-1969 Gimbal Ring Assembly, Sender / Receiver Housing

Revise Search: All Models > 80 (Sterndrive) 1966-1969 > 2063741 - 2898029 > Gimbal Ring Assembly, Sender / Receiver Housing

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

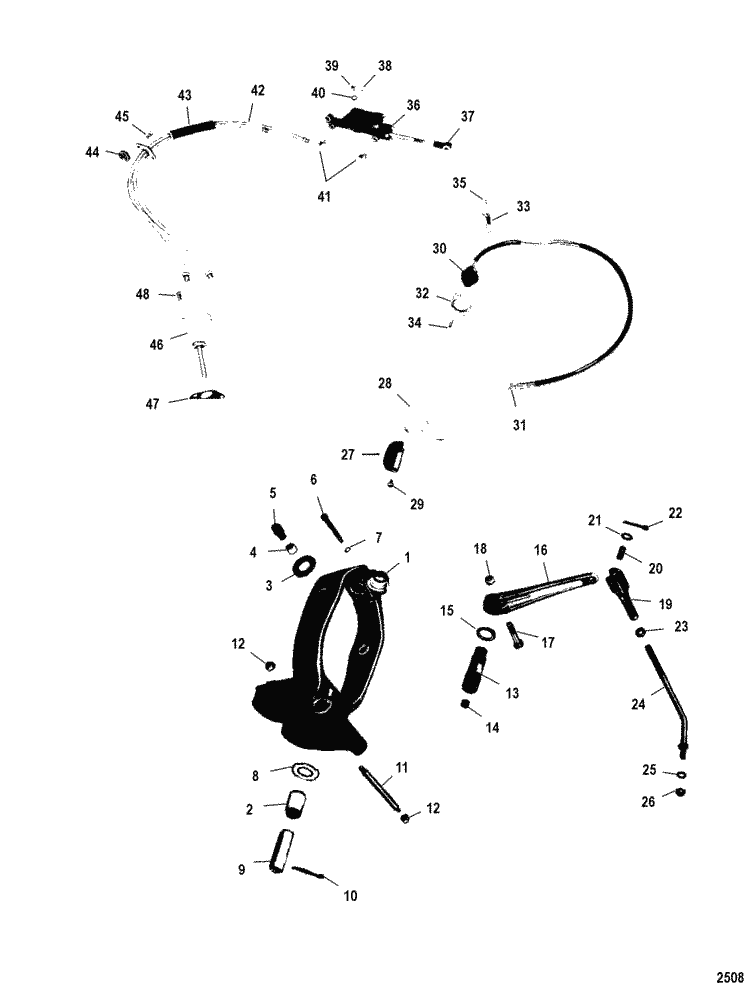

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	-38161A 2	GIMBAL RING ASSEMBLY (1 required per assembly)
		38161A 2 - Ring Assembly, NLA [ More info ] Unavailable
#2	23-38198	BUSHING (Lower) (1 required per assembly)
		23-38198 - Bushing [ More info ] $7.78 10+ In Stock.
#3	12-38268	WASHER (2 required per assembly)
		12-38268 - Washer, NLA [ More info ] Unavailable
#4	23-38267	BUSHING-Hinge Pin (2 required per assembly)
		23-38267 - Bushing, NLA [ More info ] $5.56 10+ In Stock.
#5	17-38266	HINGE PIN- Gimbal Ring to Bell Housing (2 required per assembly)
		17-38266 - Pin, NLA [ More info ] Unavailable
		17-55803 - Hinge Pin- Gimbal Ring To Bell Housing,NLA [ More info ] $6.67 10+ In Stock.
#6	10-33022	SCREW-Upper Swivel Shaft Retaining-Gimbal Ring (1 required per assembly)
		10-33022 - Screw - Priced Individually, NLA [ More info ] $1.88 10+ In Stock.
#7	12-20546	WASHER-Upper Swivel Shaft Retaining Screw (1 required per assembly)
		12-20546 - Washer, (.330 X .500 X .060) [ More info ] Unavailable
#8	12-32518	WASHER-Gimbal Housing to Gimbal Ring (Lower) (1 required per assembly)
		12-32518 - Washer, Lower Swivel Pin [ More info ] $3.80 Available to Order: Usually ships within 10 days.
#9	17-38199	SWIVEL PIN-Gimbal Housing to Gimbal Ring (Lower) (1 required per assembly)
		17-38199 - Swivel Pin, NLA [ More info ] Unavailable
#10	18-34159	COTTER PIN-Retaining-Lower Swivel Pin (1 required per assembly)
		18-34159 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-34212 - Cotter Pin - Priced Individually [ More info ] $7.77 10+ In Stock.

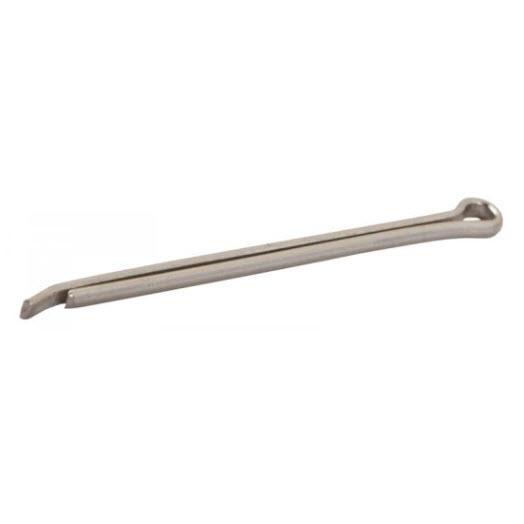

		18-54929 - Cotter Pin [ More info ] $7.90 2 In Stock.
#11	17-38269	TILT PIN-Gimbal Ring (1 required per assembly)
		17-38269 - Tilt Pin, NLA [ More info ] $5.00 7 In Stock.
#12	11-35814	NUT-Gimbal Ring Tilt Pin (2 required per assembly)
		11-35814 - Nut (5/16-24) [ More info ] $2.20 10 In Stock.
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 3 In Stock.
#13	-32582	UPPER SWIVEL SHAFT-Gimbal Ring to Gimbal Housing (1 required per assembly)
		32582 - Upper Swivel Shaft, NLA [ More info ] $89.99 2 In Stock.
#14	22-32561	PIPE PLUG-Upper Swivel Shaft (1 required per assembly)
		22-32561 - Plug - Priced Individually [ More info ] $4.43 10+ In Stock.
		22-8M0204652 - PLUG @2 [ More info ] Unavailable
#15	12-32996	WASHER-Upper Swivel Shaft (AR required per assembly) (.015)

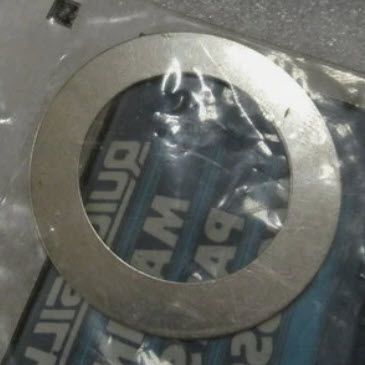

		12-32996 - Washer, Upper Swivel Shaft (.015) NLA [ More info ] $5.50 10+ In Stock.
#15	12-32997	WASHER-Upper Swivel Shaft (AR required per assembly) (.063)
		12-32997 - Washer, Upper Swivel Shaft (.063) NLA [ More info ] $9.97 10+ In Stock.
#16	-38174	STEERING LEVER-Upper Swivel Shaft (1 required per assembly)
		38174 - LEVER,NLA [ More info ] Unavailable
#17	10-32995	SCREW-Steering Lever to Upper Swivel Shaft (2 IN.) (1 required per assembly)
		10-32995 - Screw - Priced Individually [ More info ] $1.29 10+ In Stock.
		10-807204 - Screw [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#18	11-20696	NUT-Steering Lever Screw (1 required per assembly)
		11-20696 - Nut, NLA [ More info ] $9.65 10+ In Stock.
#19	-38192	YOKE-Steering Link Rod (1 required per assembly)
		38192 - YOKE,NLA [ More info ] Unavailable
#20	17-38864A 1	SWIVEL PIN ASSEMBLY-Yoke to Steering Lever (1 required per assembly)
		17-38864A 1 - Swivel Pin, NLA [ More info ] $7.00 6 In Stock.
#21	12-29629	WASHER (1 required per assembly)
		12-29629 - Washer, (.390 X .687 X .030) Stainless Steel [ More info ] $0.90 $0.76 10+ In Stock.
#22	18-29623	COTTER PIN (1 required per assembly)

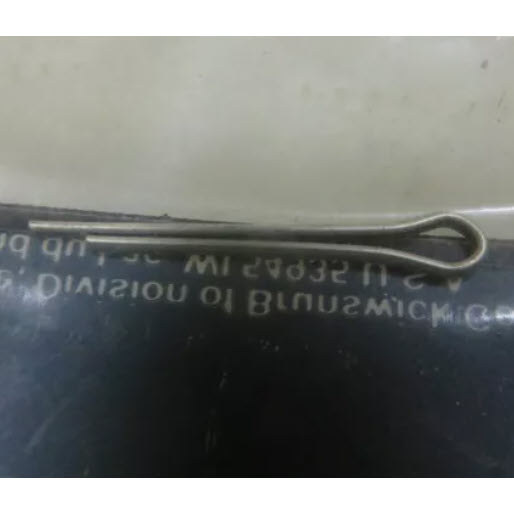

		18-29623 - Cotter Pin [ More info ] $4.99 10+ In Stock.
#23	11-20101	JAM NUT-Steering Link Rod (1 required per assembly)
		11-20101 - Nut, NLA [ More info ] $1.67 10+ In Stock.
#24	-38187A 1	STEERING LINK ROD ASSEMBLY (1 required per assembly)
		38187A 1 - LINK ROD AS,NLA [ More info ] Unavailable
#25	12-20086	WASHER-Steering Link Rod (1 required per assembly)
		12-20086 - Washer, (.390 X .620 X .060) [ More info ] $1.70 10+ In Stock.
#26	11-20509	NUT-Steering Link Rod to Steering Cable (1 required per assembly)

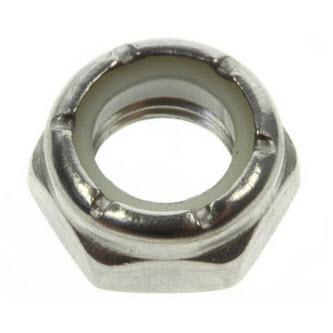

		11-20509 - Nut, (3/8X24) [ More info ] Unavailable
		11-34863 - Nut (3/8-24) [ More info ] Unavailable
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable

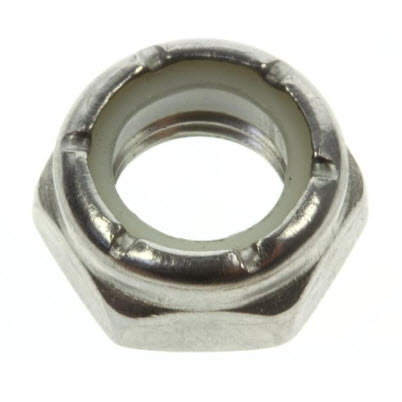

		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 7 In Stock.
#27	-38886	BUMPER-Gimbal Ring (1 required per assembly)
		38886 - Bumper, NLA [ More info ] $7.00 1 In Stock.
#28	-31897	LEVER-Tilt Stop Switch Actuating-Gimbal Ring (1 required per assembly)
		31897 - Lever [ More info ] Unavailable

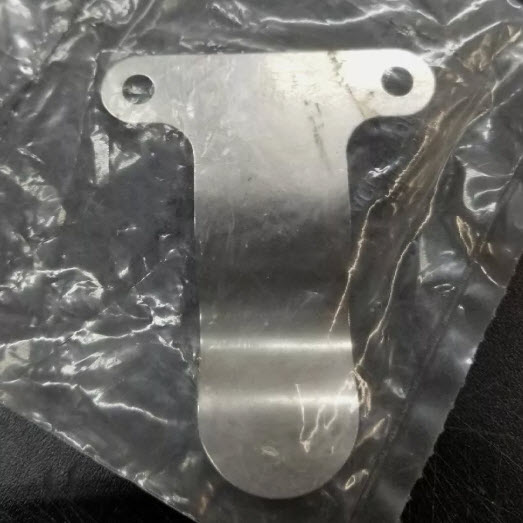

		49343 - Lever [ More info ] $8.46 5 In Stock.
#29	10-31903	SCREW-Actuating Lever and Bumper to Gimbal Ring (3/8 IN.) (2 required per assembly)
		10-31903 - Screw, NLA [ More info ] $1.80 10+ In Stock.
#30	-38296A 1	TILT STOP SWITCH ASSEMBLY-Gimbal Ring (1 required per assembly)
		38296A 1 - Switch Assembly, NLA [ More info ] Unavailable
#31	-22924	TERMINAL-Tilt Stop Switch (2 required per assembly)
		22924 - Terminal, NLA [ More info ] $1.50 6 In Stock.

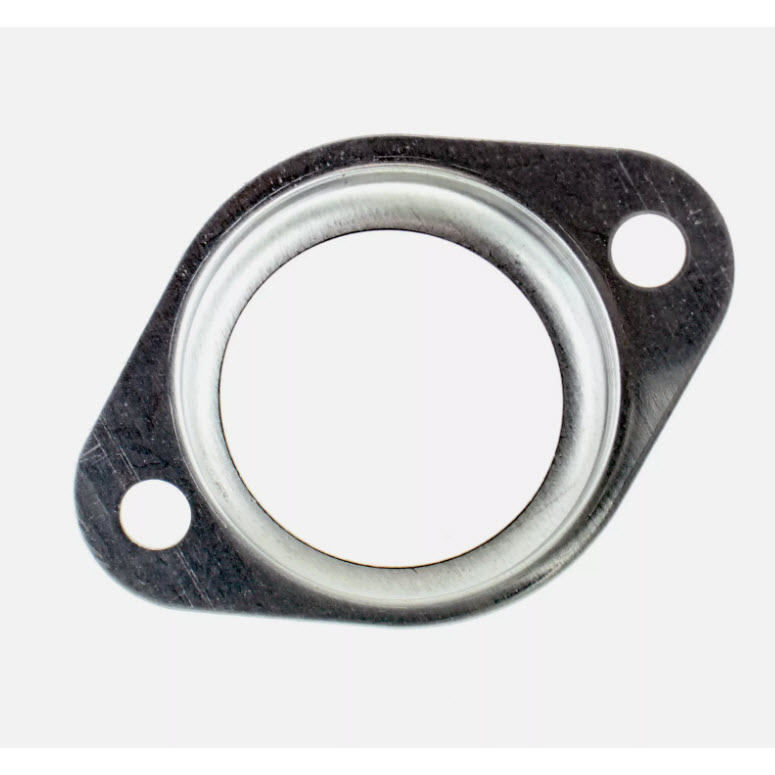

#32	-31899	RETAING PLATE-Tilt Stop Switch to Gimbal Ring (1 required per assembly)
		31899 - Plate [ More info ] $8.99 10+ In Stock.
#33	-32637	STRAP-Tilt Stop Switch Retaining (1 required per assembly)
		32637 - Strap, NLA [ More info ] $2.99 10+ In Stock.
#34	10-22387	SCREW-Retaining Plate & Strap to Gimbal Ring (1 IN.) (2 required per assembly)
		10-22387 - Screw - Priced Individually [ More info ] $0.40 10+ In Stock.
		10-34994 - Screw [ More info ] $2.40 Available to Order: Usually ships within 10 days.
#35	11-20110	NUT-Retaining Plate & Strap Screw (2 required per assembly)
		11-20110 - Nut (M10X32) [ More info ] $1.70 10+ In Stock.
#36	-38179A 2	SENDER HOUSING ASSEMBLY (1 required per assembly)
		38179A 2 - Housing, NLA [ More info ] Unavailable
#37	-38211	ROD END-Sender Housing Piston (1 required per assembly)
		38211 - Rod End [ More info ] $2.50 2 In Stock.
#38	10-38257	VENT SCREW-Sender Housing (1 required per assembly)
		10-38257 - Screw, NLA [ More info ] Unavailable
		10-62269 - Screw, NLA [ More info ] Unavailable
#39	10-28634	FILLER SCREW-Sender Housing (1 required per assembly)
		10-28634 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.59 $3.48 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.20 10+ In Stock.
#40	12-20260	WASHER-Filler Screw (1 required per assembly)
		12-20260 - Sealing Washer [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.29 $2.26 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.30 10+ In Stock.
#41	22-38214	ELBOW-Sender Housing (2 required per assembly)
		22-38214 - Elbow, NLA [ More info ] $3.33 10+ In Stock.
#42	32-38300A 2	HYDRAULIC TUBING ASSEMBLY-Sender Housing to Receiver Housing (1 required per assembly)
		32-38300A 2 - Tubing [ More info ] $28.96 3 In Stock.
		32-38300A 4 - Tubing, NLA [ More info ] $28.00 1 In Stock.
#43	23-38203	SLEEVE-Hydraulic Tubing (1 required per assembly)
		23-38203 - Sleeve [ More info ] $6.00 4 In Stock.
#44	23-38201	BUSHING-Seal-Hydraulic Tubing Cover (1 required per assembly)
		23-38201 - Bushing [ More info ] $3.00 9 In Stock.
#45	10-39965	SCREW-Hydraulic Tubing Cover to Gimgal Housing (3/4 IN.) (2 required per assembly)
		10-39965 - Screw, NLA [ More info ] Unavailable

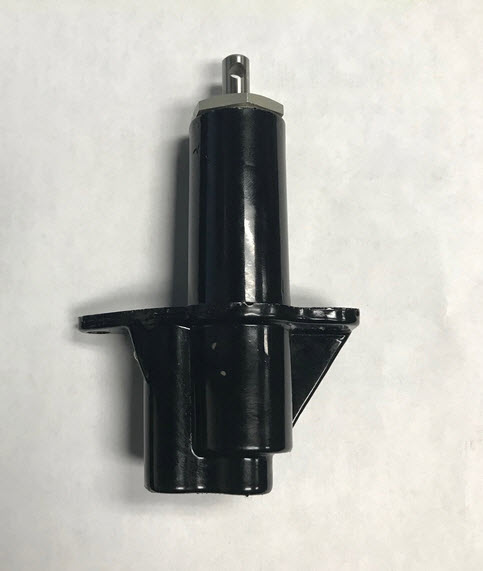

#46	-38175A 2	RECEIVER HOUSING ASSEMBLY (1 required per assembly)
		38175A 2 - Receiver Housing, Renault, NLA [ More info ] Unavailable
#47	27-38263	GASKET-Receiver Housing (1 required per assembly)
		27-38263 - Receiver Housing Gasket [ More info ] $2.78 10+ In Stock.

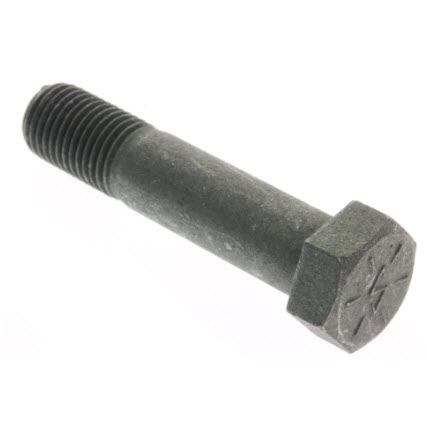

#48	10-21722	SCREW-Receiver Housing to Bell Housing (5/8 IN.) (2 required per assembly)
		10-21722 - Screw - Priced Individually, NLA [ More info ] $1.66 10+ In Stock.
