Parts for MerCruiser 5.7L MPI Ski Exhaust Manifold, Elbow & Pipes

Revise Search: All Models > 5.7L MPI Ski > 1A090000 & Up > Exhaust Manifold, Elbow & Pipes

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

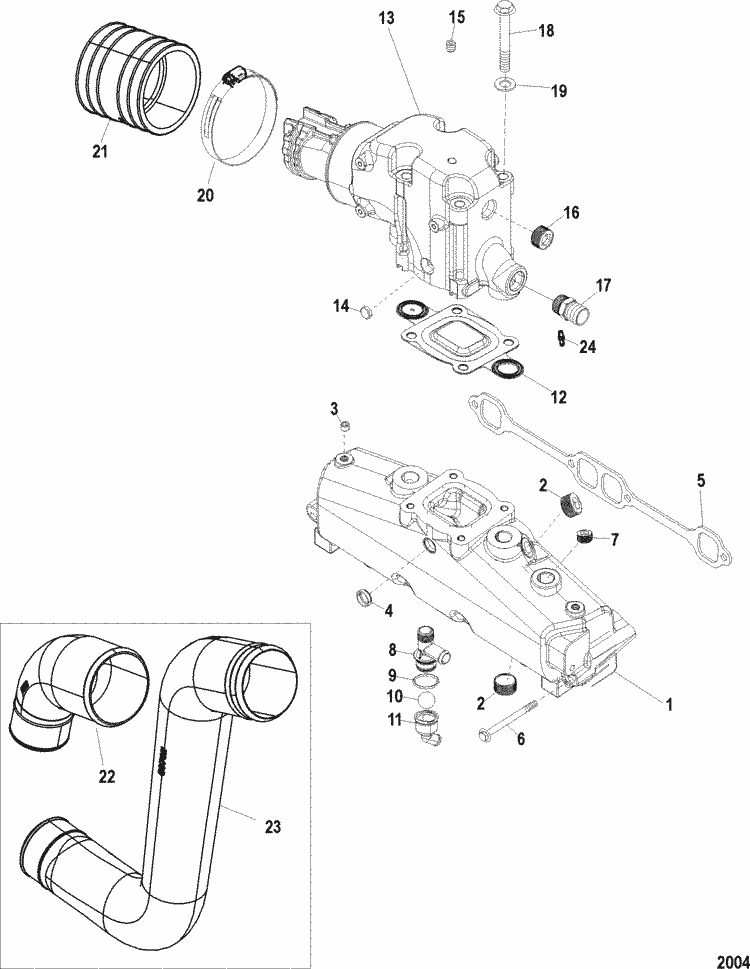

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	865049T01	MANIFOLD ASSEMBLY, Exhaust, Exhaust (2 required per assembly)
		865049T01 - Exhaust Manifold [ More info ] Unavailable
		865735A02 - Exhaust Manifold, Dry Joint [ More info ] Unavailable

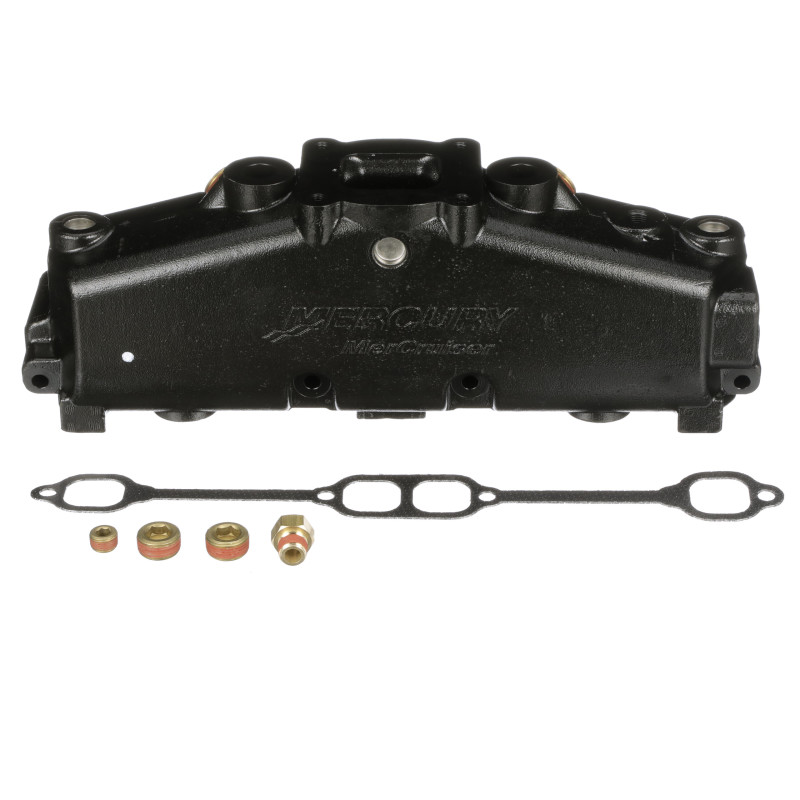

		8M0185794 - Exhaust Manifold [ More info ] $513.99 In Stock

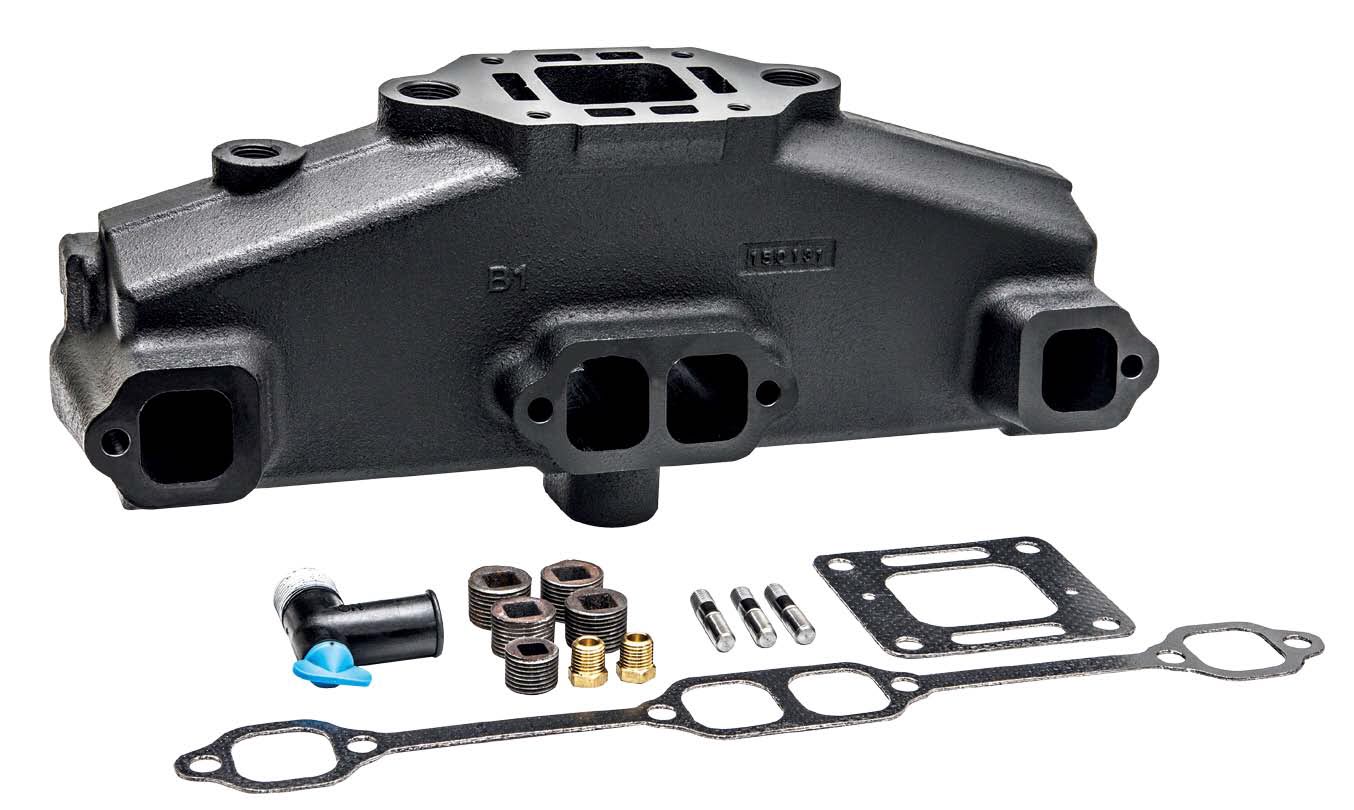

		18-1843 - Exhaust Manifold, Dry Joint, V8 Small Block GM [ More info ] $519.46 4 In Stock.

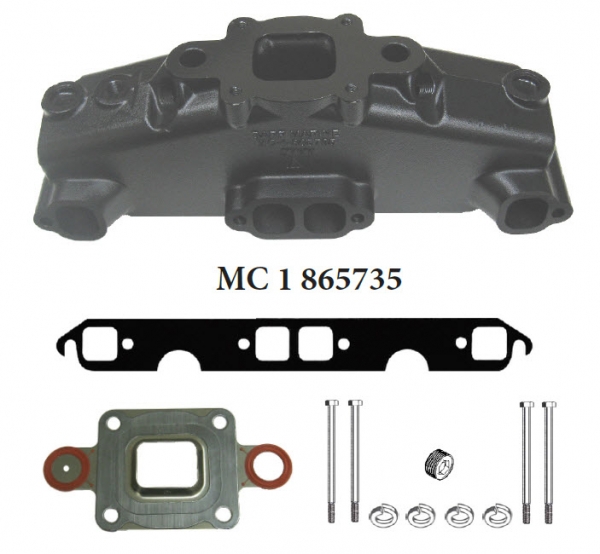

		MC-1-865735 -MerCruiser Center Discharge Dry Joint Exhaust Manifold V8 [ More info ] $593.99 $455.48 10+ In Stock.
#2	22-42861 1	FITTING, Pipe - Brass (.750-14) (4 required per assembly)
		22-42861 1 - Pipe Plug [ More info ] $7.95 10+ In Stock.
#3	22-39072 1	PLUG, Pipe (.125-27) Brass (2 required per assembly)
		22-39072 1 - Plug - Priced Individually [ More info ] $8.90 2 In Stock.

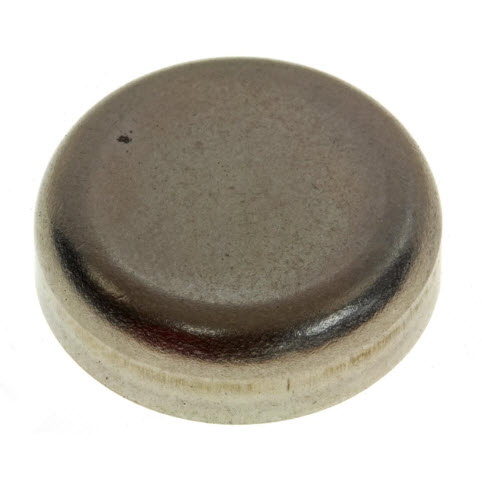

#4	19-864689	PLUG, Expansion (3 required per assembly)
		19-864689 - Plug -expand - Priced Individually [ More info ] $2.70 1 In Stock.
#5	27-33395	GASKET (2 required per assembly)
		27-33395 - Exhaust Manifold Gasket [ More info ] $13.69 10+ In Stock.
#6	10-8M2000229	SCREW, (.375-16 x 4.75) (8 required per assembly)
		8M2000229 - Screw [ More info ] Unavailable

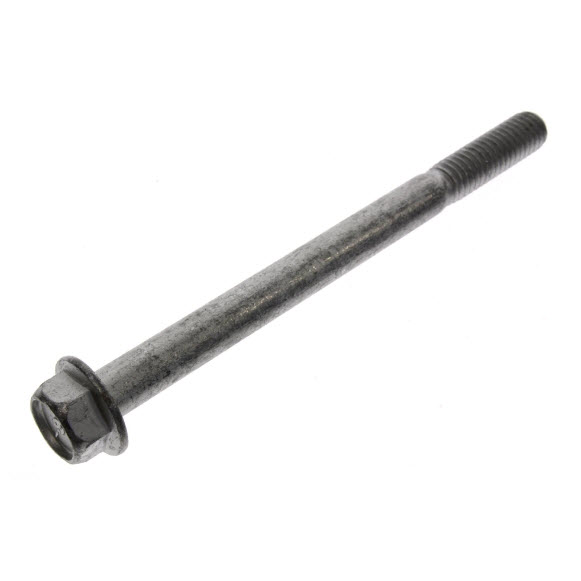

		108M0144800 - Screw - Priced Individually [ More info ] $4.00 Available to Order: Usually ships within 10 days.

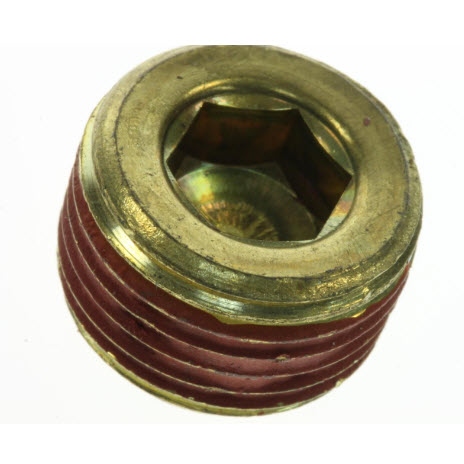

#7	22-12524	PLUG, (.375-18 x .475) Brass (1 required per assembly)
		22-12524 - Plug [ More info ] $4.90 Available to Order: Usually ships within 10 days.
#8	22-863786A 1	FITTING ASSEMBLY, Drain (2 required per assembly)

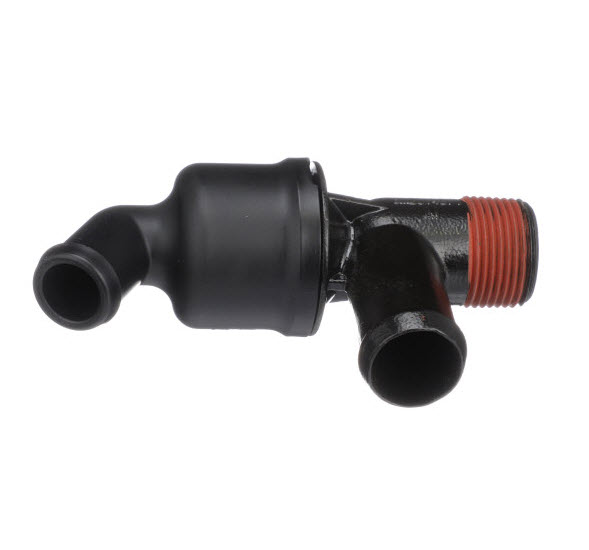

		22-863786A 1 - T Fitting Assembly [ More info ] $48.49 In Stock

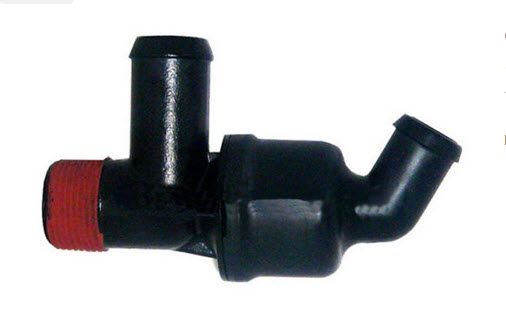

		22-05158 - Drain T-Fitting 863786A 1 [ More info ] $44.99 $34.41 4 In Stock.
#9	25-864701	O-RING, (1.112 x .103) (1 required per assembly)
		25-864701 - O-ring, (1.112 X .103) [ More info ] $3.50 Available to Order: Usually ships within 10 days.
#10	30-863129	BALL (1 required per assembly)

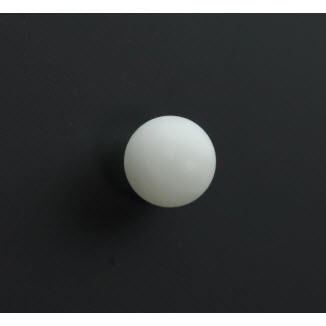

		30-863129 - Ball - Check [ More info ] $2.70 2 In Stock.
#11	862994T	FITTING (1 required per assembly)

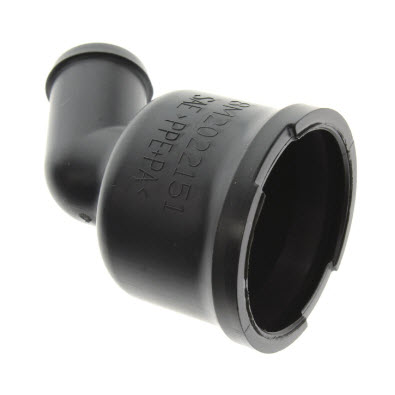

		862994T - Connector [ More info ] $9.10 Available to Order: Usually ships within 10 days.
#12	27-864850A02	GASKET, Elbow, Restrictor (2 required per assembly)
		27-864850A02 - Elbow Gasket [ More info ] $61.49 1 In Stock.

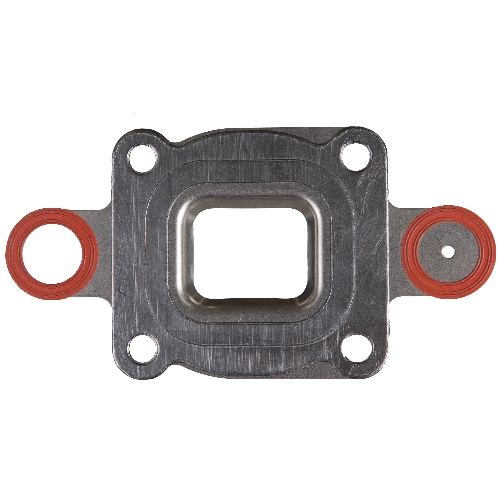

		18-0722 - Riser Gasket, Restricted, Dry Joint, 27-864850A02 [ More info ] $77.99 $67.90 10+ In Stock.

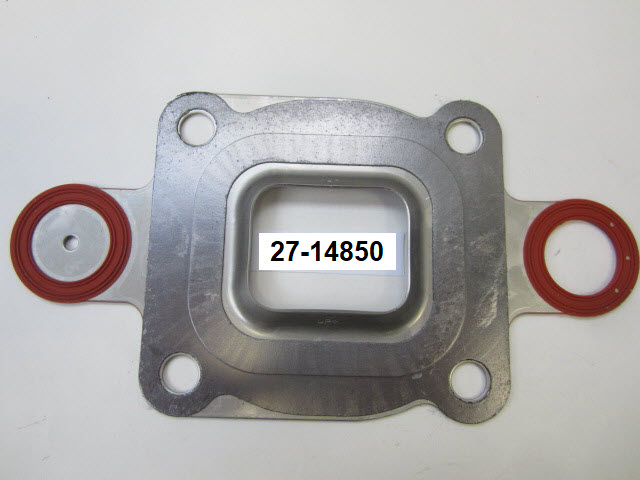

		27-14850 - Riser Gasket, Dry Joint, Restricted, 27-864850A02 [ More info ] $49.99 $38.23 6 In Stock.
#13	864309T01	ELBOW ASSEMBLY, Exhaust (1 required per assembly) Inline
		864309T01 - Exhaust Elbow [ More info ] Unavailable

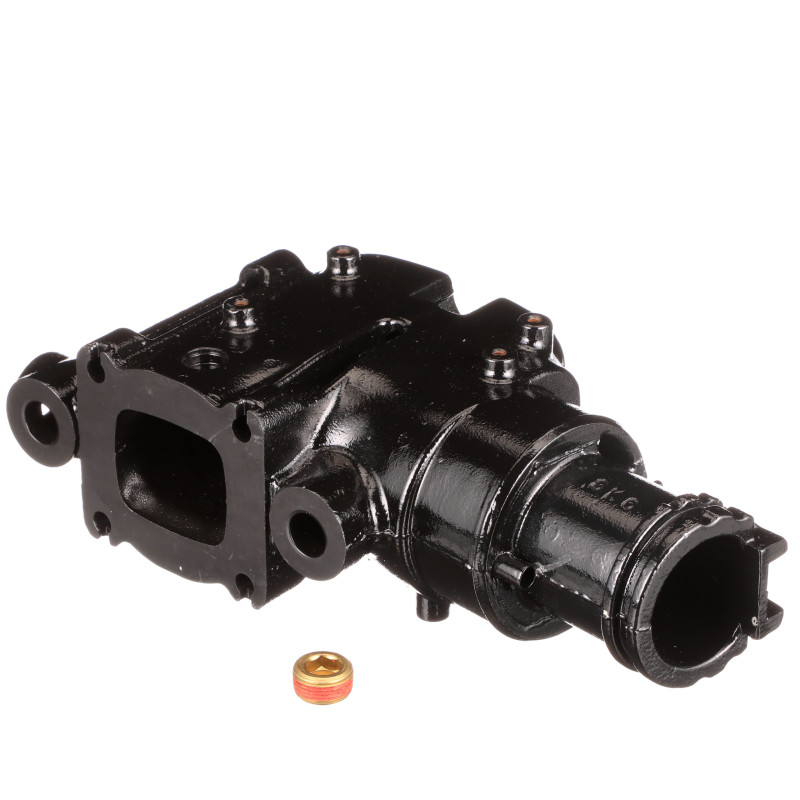

		864309T02 - Exhaust Elbow [ More info ] $398.99 In Stock

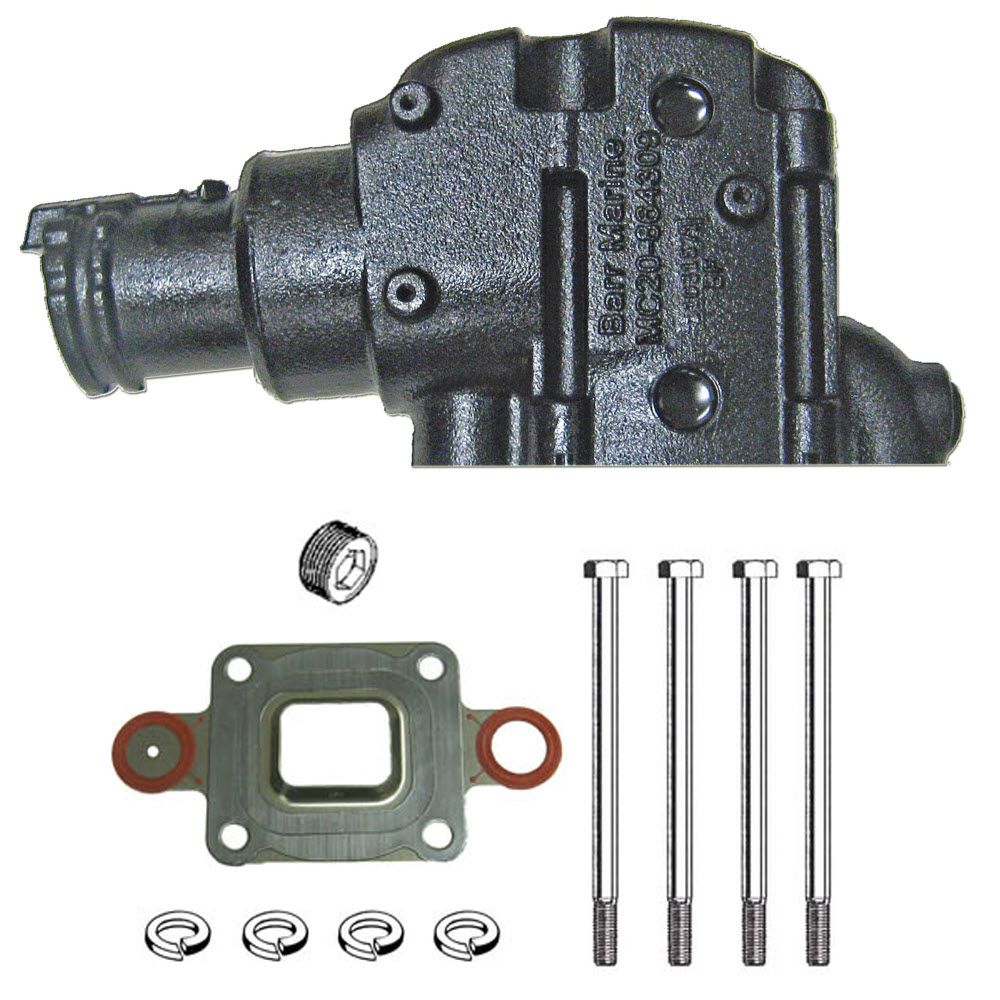

		MC-20-864309 - MerCruiser Exhaust Riser Dry Joint (7 Degree) [ More info ] $448.99 $344.29 8 In Stock.
#13	864591T02	ELBOW ASSEMBLY, Exhaust (2 required per assembly) V-Drive
		864591T02 - Exhaust Elbow [ More info ] $456.99 In Stock

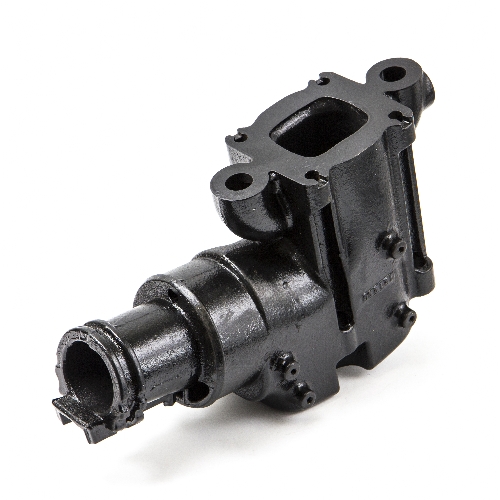

		18-1845 - Exhaust Elbow, Dry Joint, V6 and V8 [ More info ] $458.19 $406.45 Available to Order: Usually ships within 10 days.

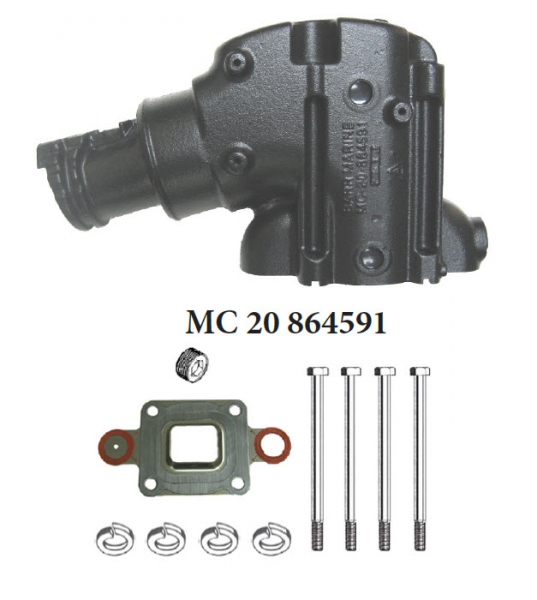

		MC-20-864591 - Dry Joint Riser, 864591T02 [ More info ] $580.99 $445.51 10+ In Stock.
#15	22-73379	PLUG, (.250-18) (1 required per assembly)

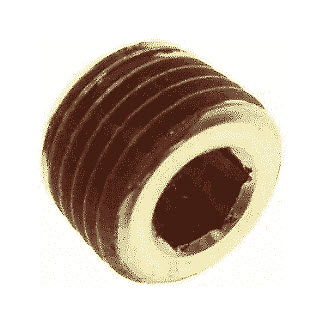

		22-73379 - Plug - Priced Individually [ More info ] Unavailable

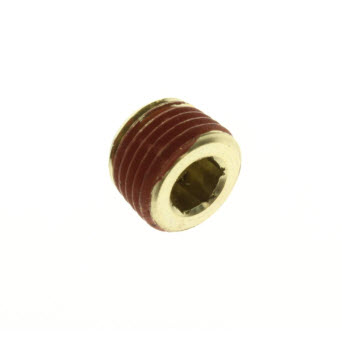

		22-8M0180564 - Plug, Sold Individually [ More info ] $7.30 3 In Stock.
#17	22-864623A 1	FITTING ASSEMBLY, With Tapped Fitting (1 required per assembly) Port
		22-864623A 1 - Fitting [ More info ] $57.92 $49.23 4 In Stock.
#17	22-866725	FITTING, Straight (.750-14), With Out Tapped Fitting (1 required per assembly) Starboard
		22-866725 - Brass Fitting, 3/4 NPT [ More info ] $17.60 Available to Order: Usually ships within 10 days.

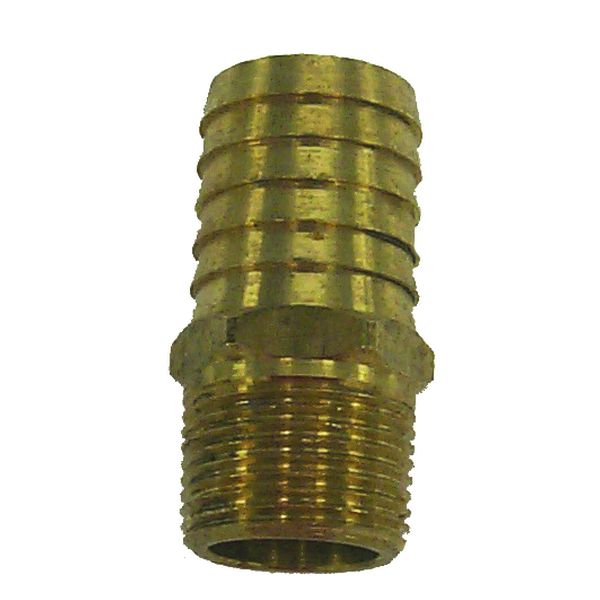

		18-4461 - Brass Connector [ More info ] $13.99 $13.35 1 In Stock.
#18	10-43749	SCREW, (.375-16 x 5.750) (8 required per assembly)
		10-43749 - Screw [ More info ] $8.50 10+ In Stock.
#18	10-864665	SCREW, (.375-16 x 7.50) (8 required per assembly) V-Drive
		10-864665 - Screw [ More info ] $10.50 Available to Order: Usually ships within 10 days.

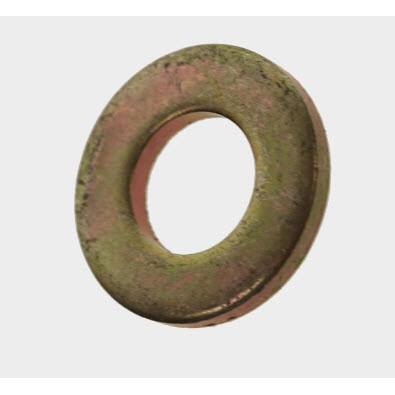

#19	12-34714	WASHER (8 required per assembly) V-Drive
		12-34714 - Washer [ More info ] $2.30 Available to Order: Usually ships within 10 days.
#20	54-815504272	CLAMP, Worm Gear (8 required per assembly)
		54-815504272 - Clamp [ More info ] $5.50 1 In Stock.
#21	32-44348001	TUBE, Exhaust (2 required per assembly)
		32-44348001 - Exhaust Tube [ More info ] $80.99 In Stock

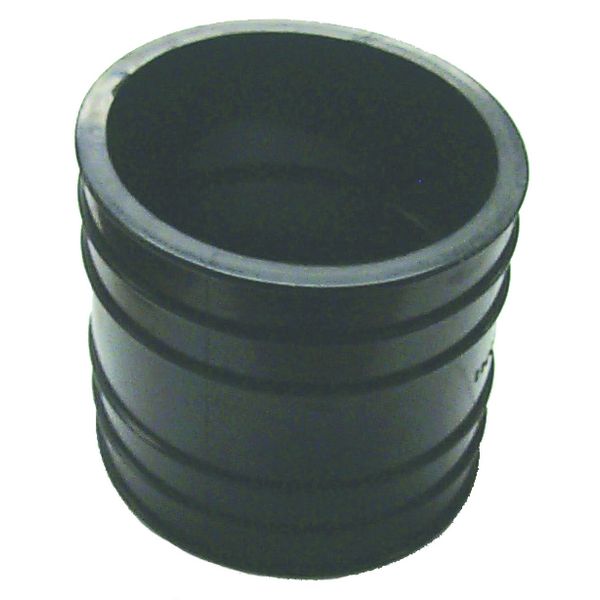

		18-2748 - Exhaust Boot 32-44348T [ More info ] $42.06 10+ In Stock.
#22	807153T	PIPE, Exhaust (2 required per assembly)

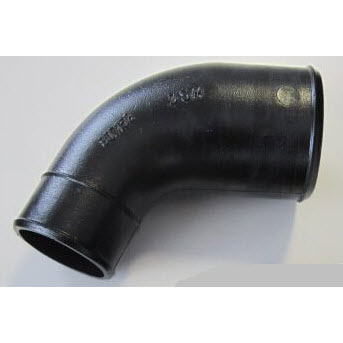

		807153T - Exhaust Pipe [ More info ] $428.29 Available to Order: Usually ships within 10 days.
#23	807611T	PIPE, Exhaust (2 required per assembly)

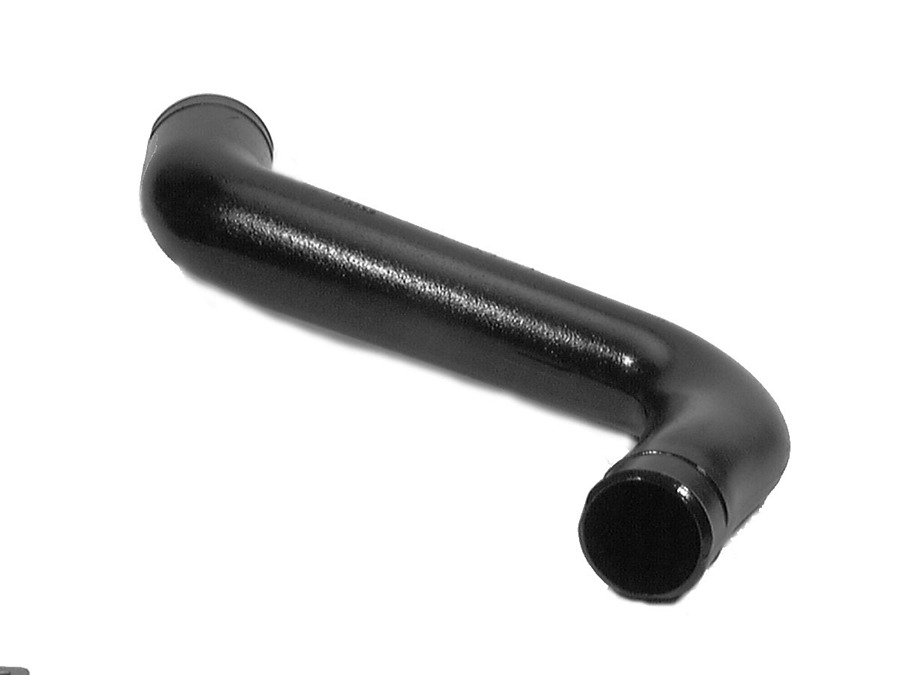

		807611T - Exhaust Pipe [ More info ] $109.83 Available to Order: Usually ships within 10 days.
#24	22-16604	FITTING, Straight (.125-27), Barb (1 required per assembly)

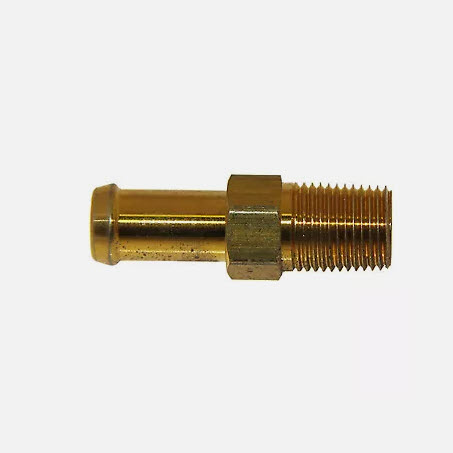

		22-16604 - Fitting [ More info ] $11.10 Available to Order: Usually ships within 10 days.
