Parts for MerCruiser 5.7L Competition Ski GM 350 V-8 1997 Fuel Pump & Fuel Filter
Tap to zoom. Scroll down to order.

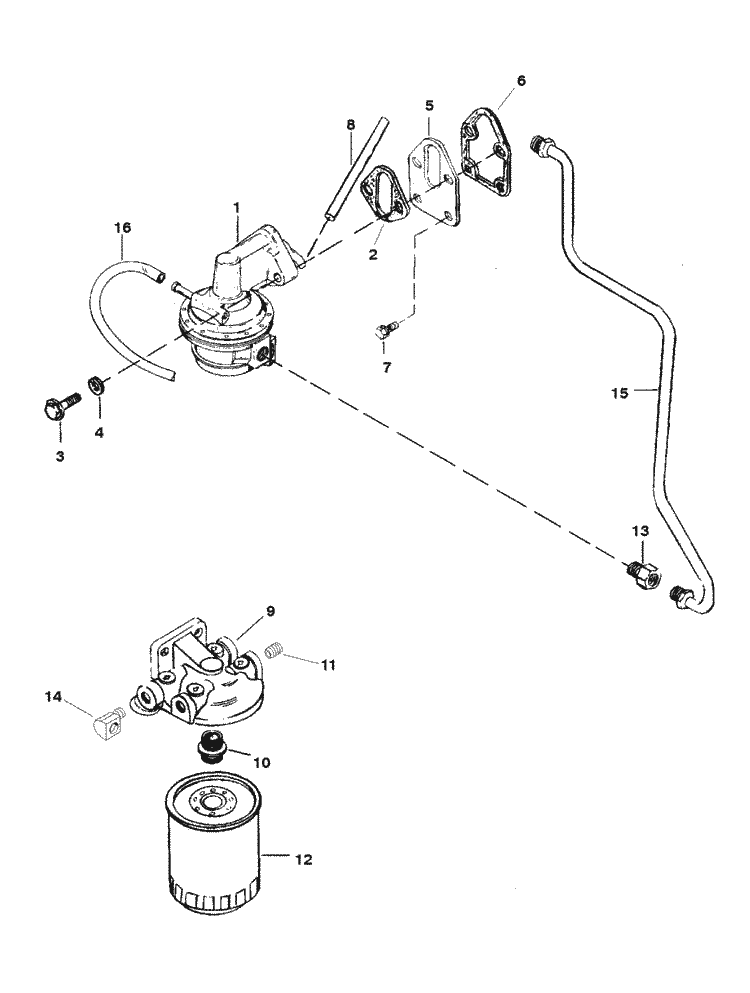

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 27-806871A96 | GASKET SET-OVERHAUL (1 required per assembly) |
#1 | 97401A 8 | PUMP-FUEL (1 required per assembly) |
97401A 8 - PUMP ASSY-FUEL [ More info ] Unavailable |
||

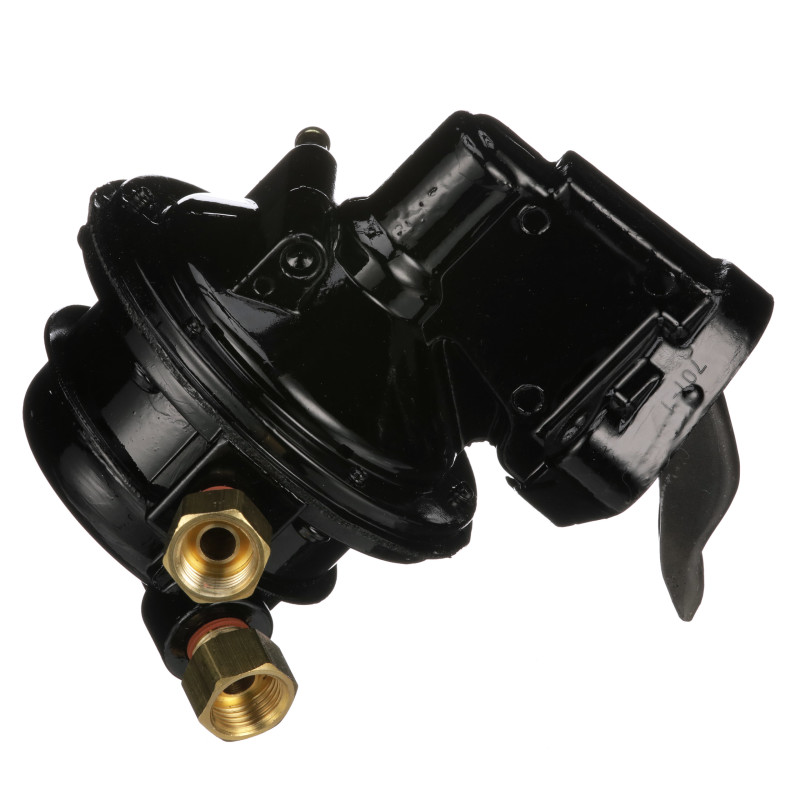

861678A 1 - 8M0058164 [ More info ] Unavailable |
||

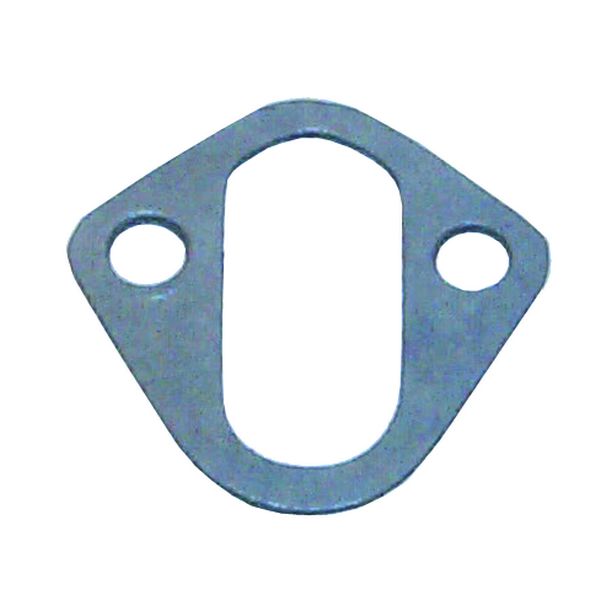

#2 | 27-34213 | GASKET-FUEL PUMP (1 required per assembly) |
#3 | 10-34354 | SCREW (3/8-16 X 1-1/2 IN.) (2 required per assembly) |
#4 | 13-35048 | LOCKWASHER (3/8 IN.) (2 required per assembly) |
#5 | 35373 | PLATE-MOUNTING (1 required per assembly) |
#6 | 27-34898 | GASKET (1 required per assembly) |

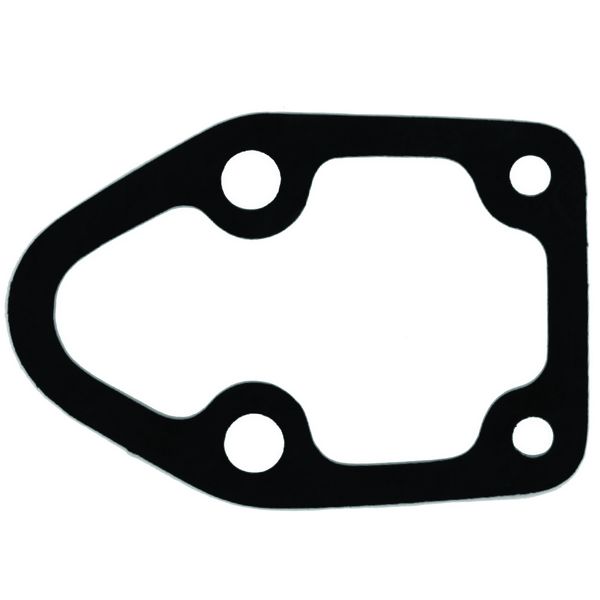

18-0876-9 - Gasket 27-34898 2-Pack [ More info ]
$9.99 $8.27 |
||
#7 | 10-35366 | SCREW (1/4-20 X 9/16 IN.) (2 required per assembly) |

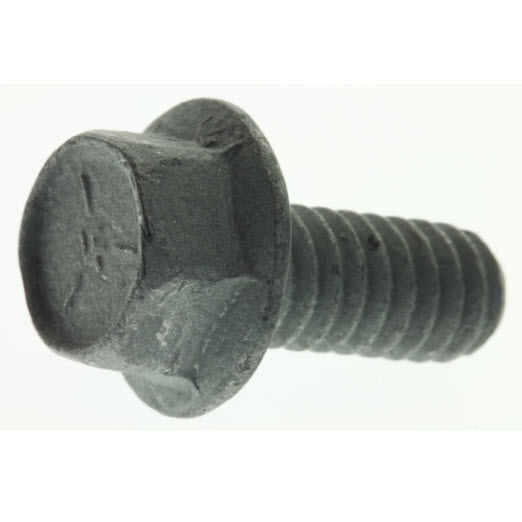

10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ] |
||
#8 | 35377 | PUSH ROD (1 required per assembly) (USE WITH FLAT LIFTER ENGINE) |
#8 | 821150 | PUSH ROD (1 required per assembly) (USE WITH ROLLER LIFTER ENGINE) |
821150 - PUSHROD,NLA [ More info ] Unavailable |
||

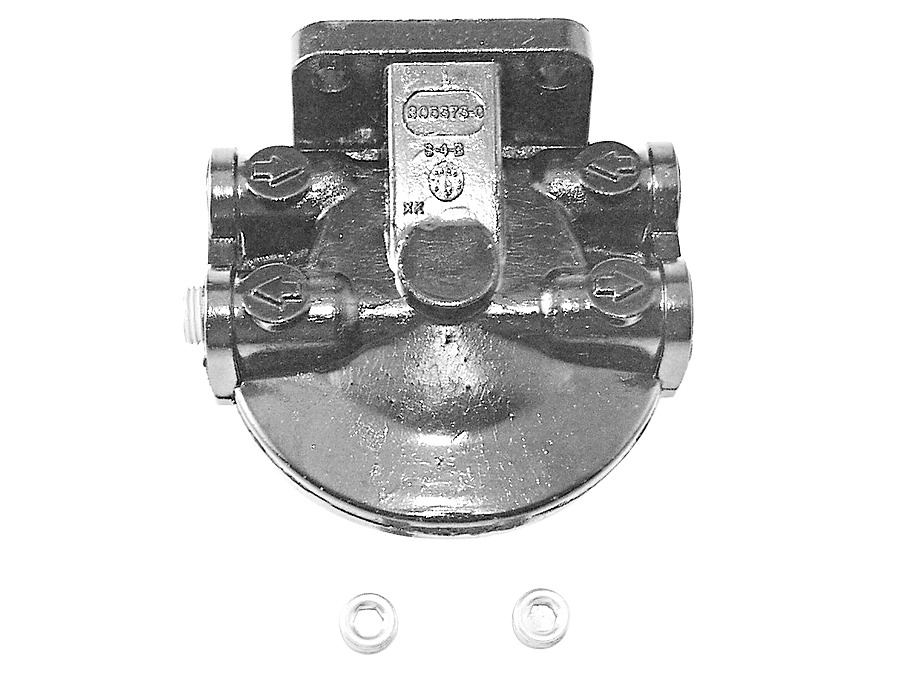

#9 | 89876A 3 | BASE ASSEMBLY (1 required per assembly) |

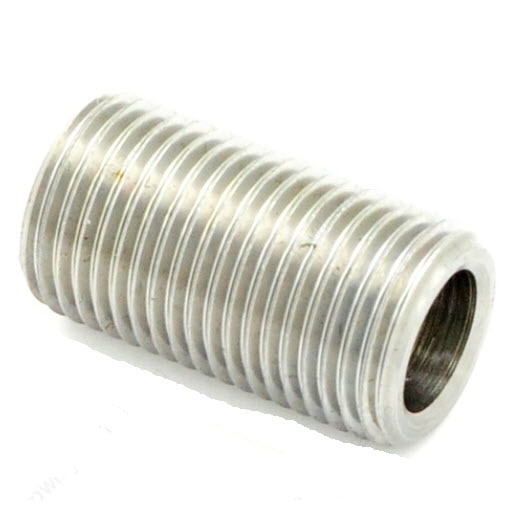

#10 | 22-816133 1 | FITTING (1 required per assembly) |
22-816133 1 - Fitting [ More info ] Unavailable |
||
#11 | 22-32561 | PIPE PLUG (3 required per assembly) |
22-8M0204652 - PLUG @2 [ More info ] Unavailable |
||

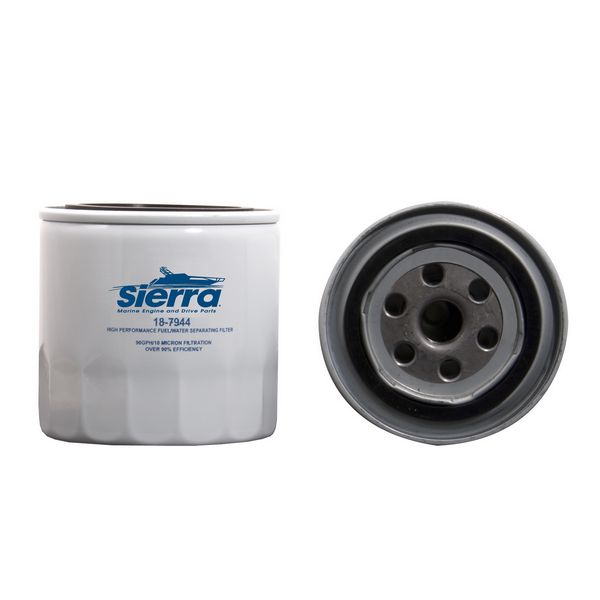

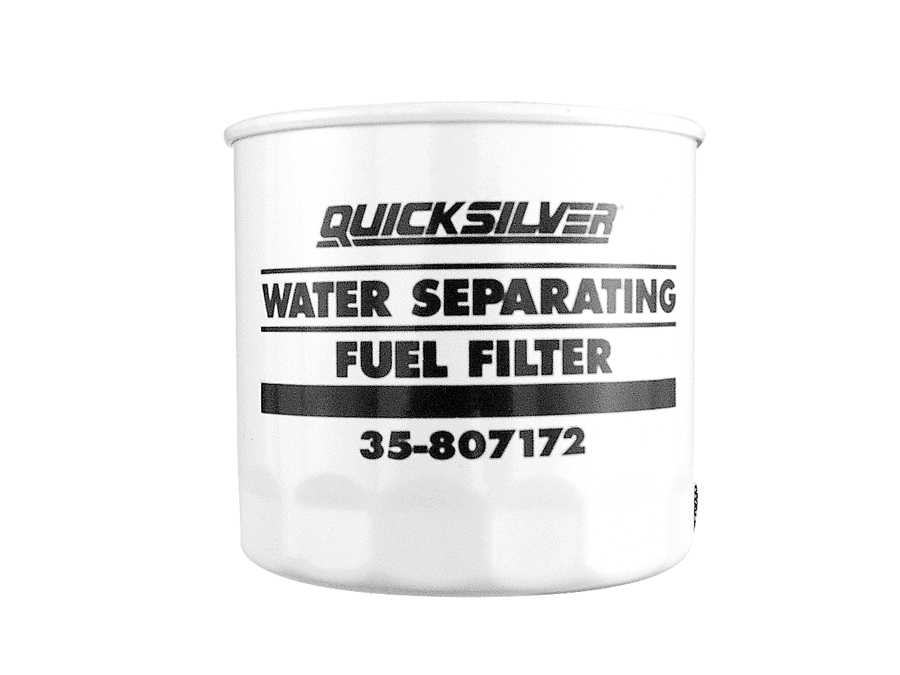

#12 | 35-807172 | FILTER-FUEL/ WATER SEPARATOR (1 required per assembly) |
35-807172 - Fuel Filter [ More info ] Unavailable |
||

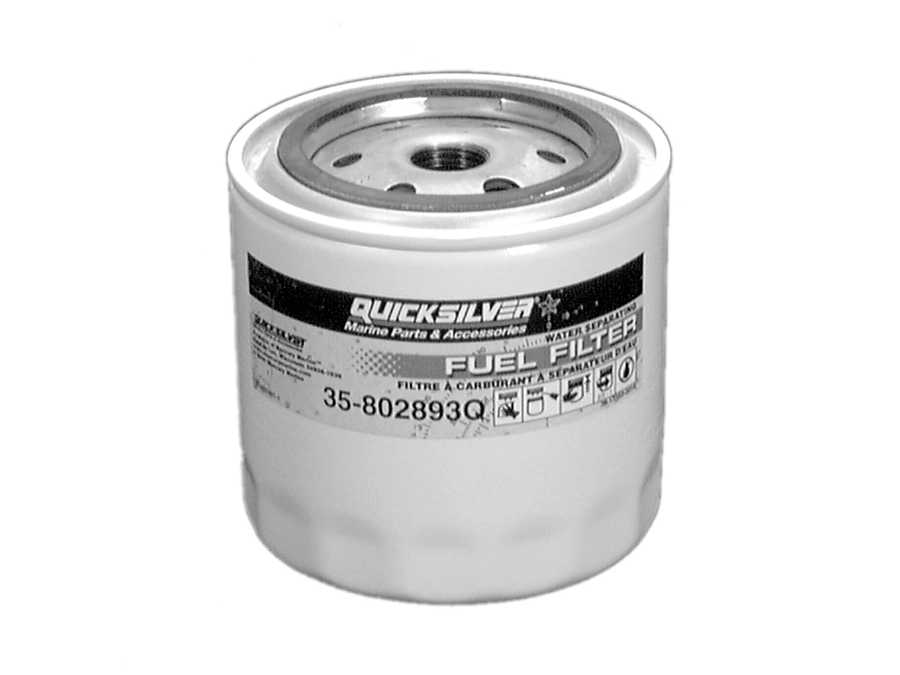

35-802893Q - FILTER-FUEL [ More info ] Unavailable |
||
35-802893Q01 - Fuel Filter - Priced Individually [ More info ] |
||
#13 | 22-33821 | CONNECTOR (1 required per assembly) |
#14 | 22-46982 | ELBOW (90 DEG.) (1 required per assembly) |
#15 | 32-807463T | LINE-FUEL (1 required per assembly) |
32-807463T - LINE ASSY-FUEL,NLA [ More info ] Unavailable |
||
#16 | 32-73815 67 | HOSE-VENT (1 required per assembly) |
