Parts for MerCruiser 350 Mag EFI Ski (TBI) GM 350 V-8 1994-1996 Oil Pan & Oil Pump
Tap to zoom. Scroll down to order.

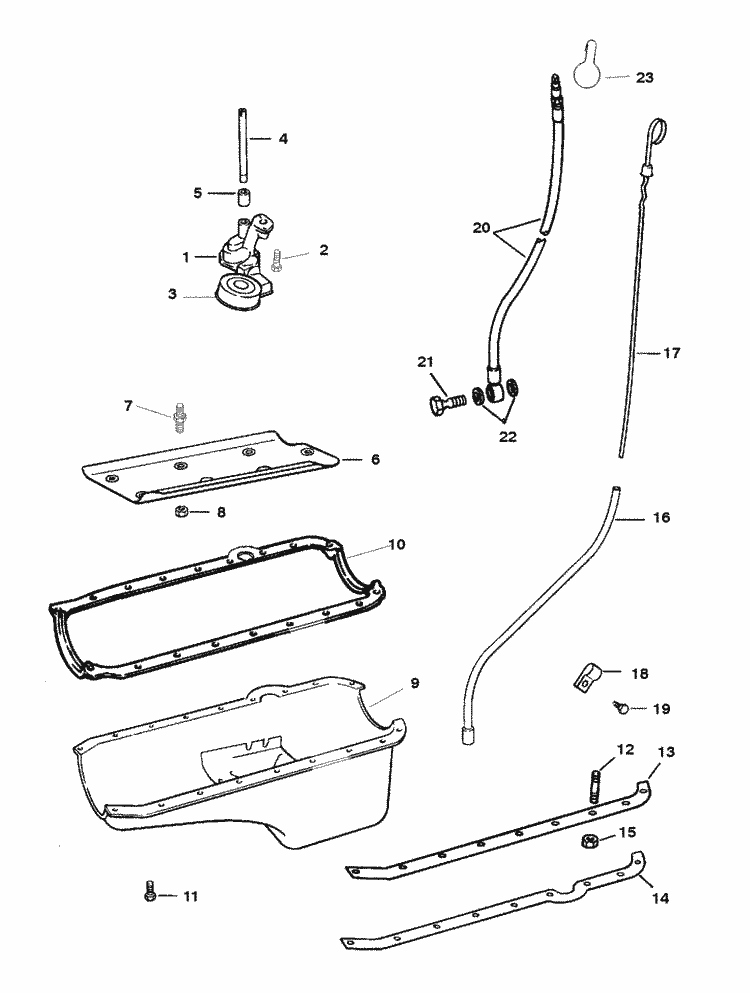

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 27-806871A96 | GASKET SET-OVERHAUL (1 required per assembly) |
#1 | 809907 | OIL PUMP (1 required per assembly) |
809907 - Oil Pump [ More info ] Unavailable |
||
809907 1 - Oil Pump [ More info ] Unavailable |
||
809907002 - Oil Pump Assembly [ More info ] Unavailable |
||
#2 | 10-17346 | BOLT (1 required per assembly) |
#3 | 809909 | SCREEN (1 required per assembly) |
809909 - Screen [ More info ] Unavailable |
||
#4 | 36184 | SHAFT (1 required per assembly) |
#5 | 23-36183 | RETAINER (1 required per assembly) |
#6 | 98602 | BAFFLE (CYLINDER BLOCK) (1 required per assembly) |
98602 - Baffle [ More info ] Unavailable |
||
#7 | 16-850090 | STUD (5 required per assembly) |
#8 | 11-850091 | NUT (5 required per assembly) |
11-850091 - Nut (3/8-16) [ More info ] Unavailable |
||
#9 | 809910 | OIL PAN (1 required per assembly) |
809910 - Oil Pan [ More info ] Unavailable |
||
#10 | 27-13865 1 | GASKET (1 required per assembly) |
27-13865 1 - Gasket [ More info ] Unavailable |
||
#11 | 10-14070 | SCREW (14 required per assembly) |
#12 | 16-11989 | STUD (4 required per assembly) |
#13 | 14257 | REINFORCEMENT (PORT) (1 required per assembly) |
#14 | 14256 | REINFORCEMENT (STARBOARD) (1 required per assembly) |
#15 | 11-11971 | NUT (4 required per assembly) |
11-11971 - Nut, Oil Pan Stud [ More info ] Unavailable |
||
#16 | 15296A 2 | TUBE (1 required per assembly) |
#17 | 16482 | DIPSTICK GAUGE (1 required per assembly) |
16482 - DIPSTICK [ More info ] Unavailable |
||
#18 | 54-805625 | CLIP (1 required per assembly) |
#19 | 10-35366 | SCREW (1 required per assembly) |
10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ] |
||
#20 | 32-805505A 1 | OIL DRAIN HOSE ASSEMBLY (1 required per assembly) |
#21 | 10-807497 | BANJO BOLT (1 required per assembly) |
#22 | 27-49955 | GASKET (2 required per assembly) |
27-49955 - Oil Pump Drain Gasket [ More info ] Unavailable |
||
18-0905-9 - Oil Pan Drain Gasket, 2 Pack, 27-49955 [ More info ]
$5.99 $4.91 |
||
#23 | 54-805524 | CLIP (1 required per assembly) |
