Parts for MerCruiser 350 Mag EFI Ski (Gen+) GM 350 V-8 1997 Starter Motor & Alternator

Revise Search: All Models > 350 Mag EFI Ski (Gen+) GM 350 V-8 1997 > 0K040006 - 0K999999 > Starter Motor & Alternator

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

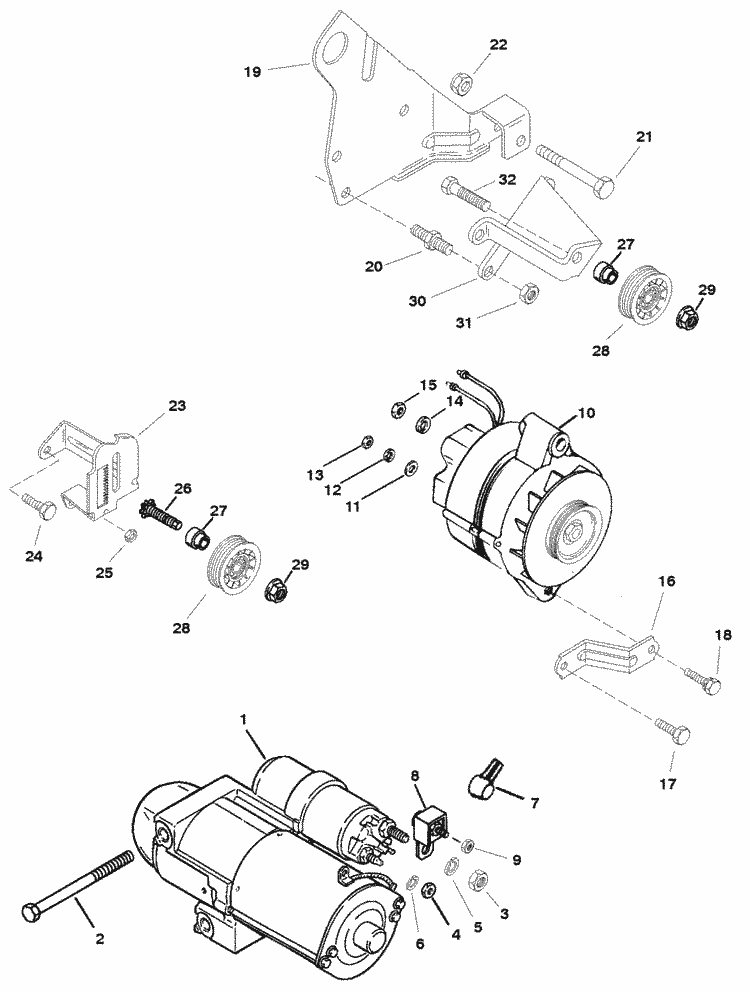

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	50-806964A 3	STARTER MOTOR ASSEMBLY (1 required per assembly) (SEE STARTER MOTOR FOR BREAKDOWN)

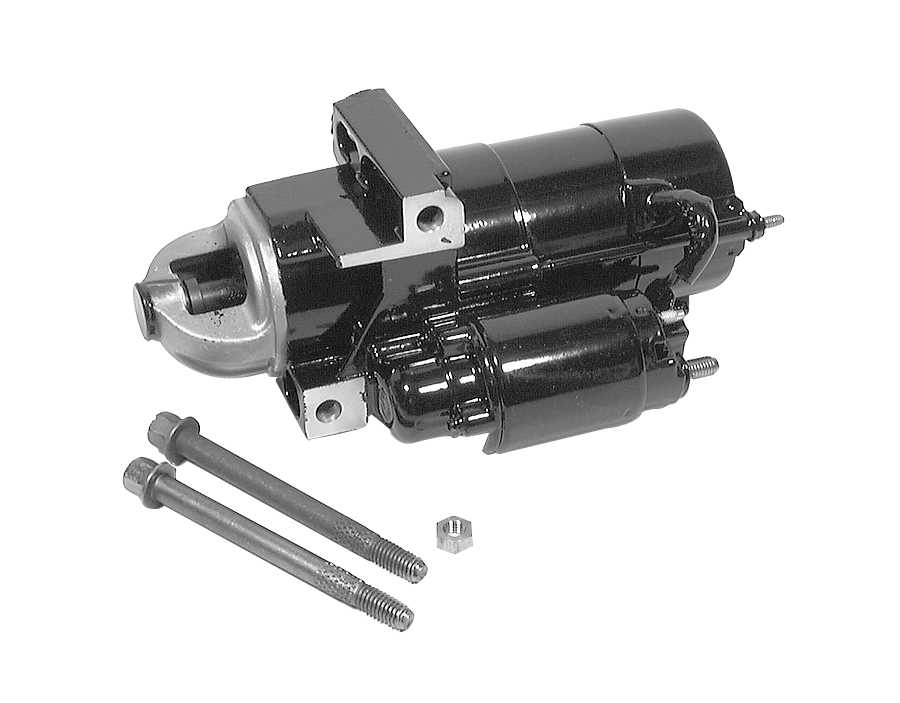

		50-806964A 3 - Starter [ More info ] Unavailable
		50-806964A 4 - Starter [ More info ] Unavailable
		50-864340A 2 - Starter Assembly [ More info ] Unavailable
		50-863007A 1 - Starter, Offset Bolt Pattern. [ More info ] $292.49 In Stock
		18-6275-1 - Inboard Starter [ More info ] $261.99 $261.03 10+ In Stock.
		18-5913-1 - Starter, 50-812428A3, Gear Reduction, Offset Bolt Pattern [ More info ] $273.99 $246.40 10+ In Stock.
		30460 - Starter, 50-806963A2, Straight Across Bolt Pattern [ More info ] $284.64 In Stock
		30433 - Premium Inboard Starter, Staggered Bolt Pattern [ More info ] $252.10 $234.43 4 In Stock.

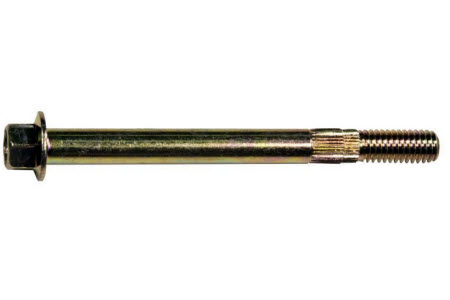

#2	10-805343 2	SCREW (3/8-16 X 4-3/8 IN.) (2 required per assembly)
		10-805343 2 - Bolt [ More info ] $16.40 Available to Order: Usually ships within 10 days.
#3	11-806949	NUT (M8-1.5) (1 required per assembly)
		11-806949 - Nut (M8 X 1.5) [ More info ] $3.70 10+ In Stock.
#4	11-40021 1	NUT (M5-0.8) (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.50 10+ In Stock.
#5	13-39107	LOCKWASHER (5/16 IN.) (1 required per assembly)
		13-39107 - LockWasher - Priced Individually [ More info ] $1.40 10+ In Stock.
#6	13-26996	LOCKWASHER (#10) (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.

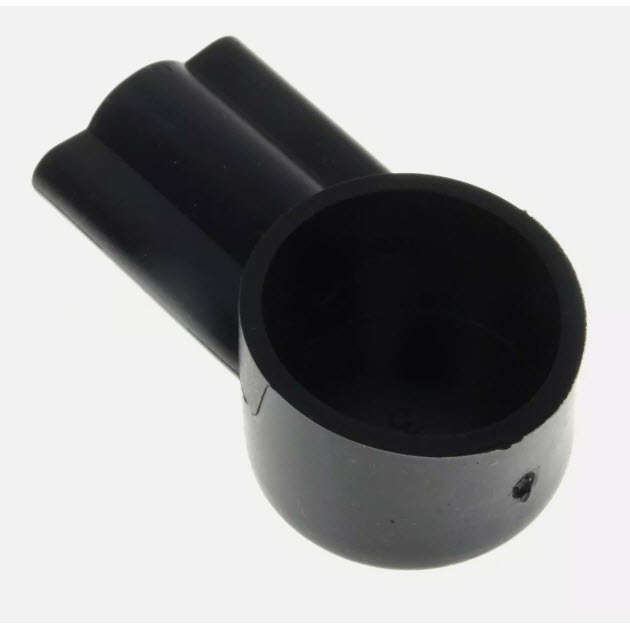

#7	85-79695	BOOT-INSULATOR (1 required per assembly)
		85-79695 - Boot (Black) [ More info ] $1.90 10+ In Stock.
		85-79695T - Insulator Boot [ More info ] $5.30 Available to Order: Usually ships within 10 days.

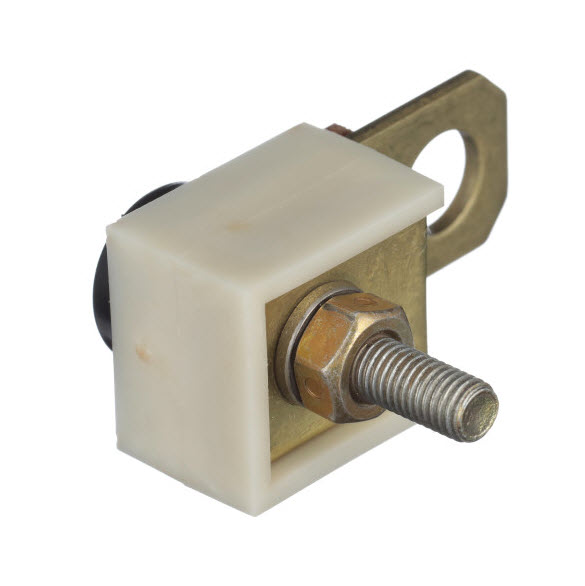

#8	88-79023A91	FUSE (90 AMP) (1 required per assembly)
		88-79023A91 - Fuse Assembly -90 Amp [ More info ] Unavailable

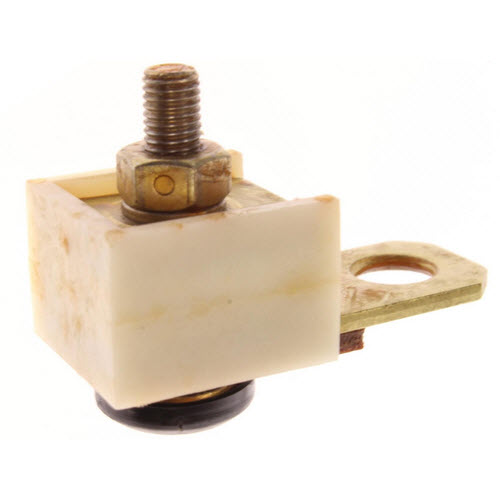

		88-8M0207795 - FUSE ASSY-90 AMP [ More info ] $49.49 In Stock

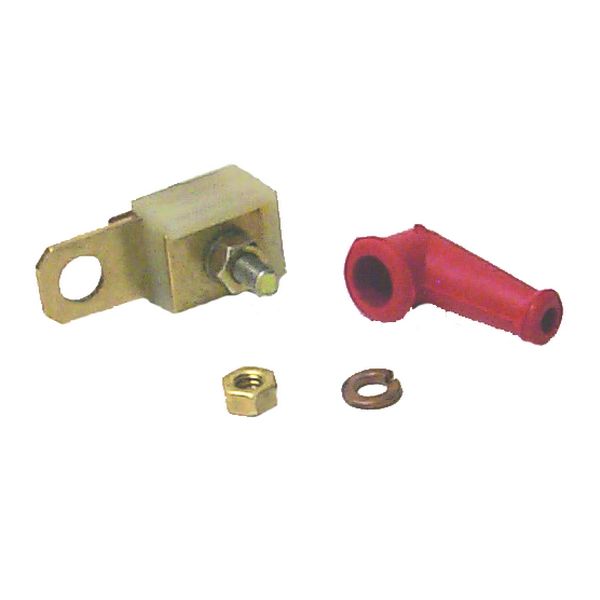

		18-8220 - Fuse Kit, 90 Amp [ More info ] $40.99 $39.23 10+ In Stock.
#9	11-21825	NUT (1/4-28) (1 required per assembly)
		11-21825 - Nut, (1/4x28) [ More info ] $1.60 10+ In Stock.
#10	807653T	ALTERNATOR ASSEMBLY (1 required per assembly) (SEE ALTERNATOR (MANDO) FOR BREAKDOWN)
		807653T - Alternator Assembly - Black [ More info ] $379.49 In Stock
		18-5960 - Alternator, 807653T [ More info ] $343.99 $303.64 In Stock
		60060 - Alternator, 807653T, 65 Amp [ More info ] $293.77 In Stock
#11	12-96457	WASHER-PHENOLIC (1 required per assembly)

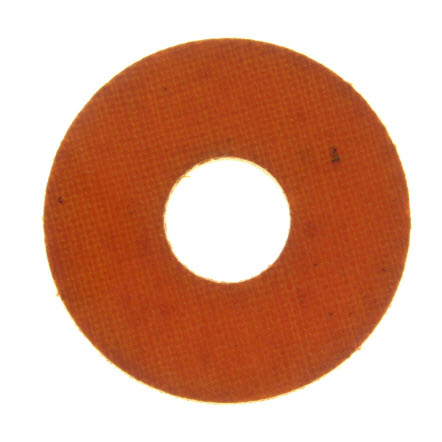

		12-96457 - Phenolic Washer [ More info ] $1.60 Available to Order: Usually ships within 10 days.

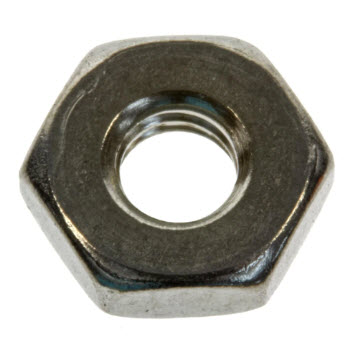

#13	11-79989	NUT (#10-24) (1 required per assembly)
		11-79989 - Nut (10 - 24) [ More info ] $2.70 10+ In Stock.
#14	13-26992	LOCKWASHER (1/4 IN.) (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#15	11-94330	NUT (1/4-20) (1 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#16	807750T	BRACE (1 required per assembly)

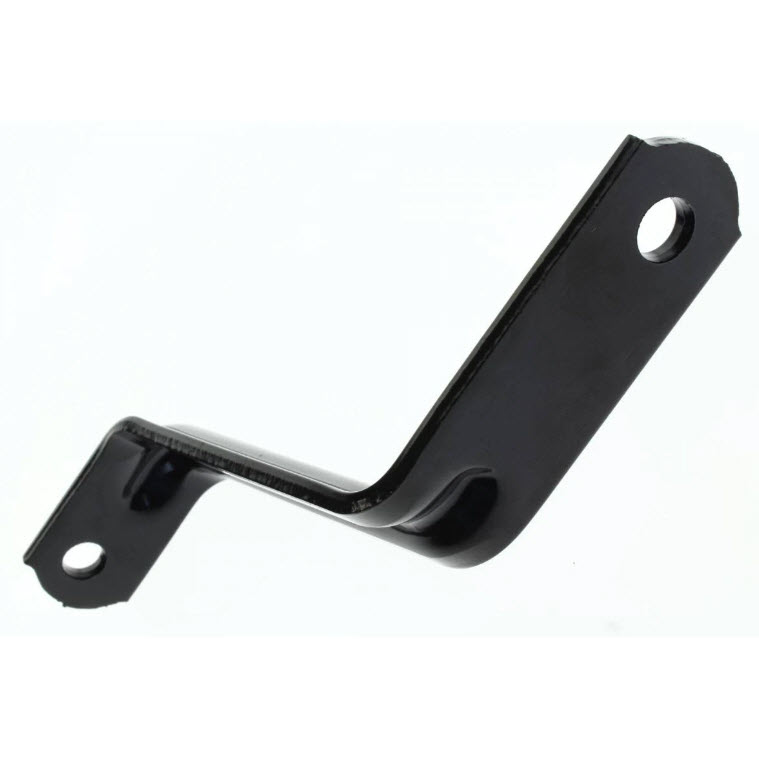

		807750T - Brace [ More info ] $39.33 In Stock
#17	10-98261	SCREW (3/8-16 X 3/4 IN.) (1 required per assembly)

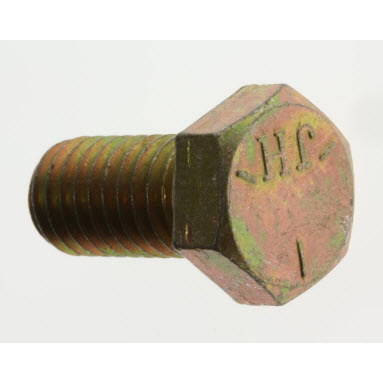

		10-98261 - Screw [ More info ] $1.20 4 In Stock.
#18	10-29198	SCREW & LOCKWASHER (5/16-18 X 7/8 IN.) (1 required per assembly)
		10-29198 - Screw w/ Lw - Priced Individually [ More info ] $4.40 $2.46 5 In Stock.
#19	860370T 1	BRACKET-ALTERNATOR (1 required per assembly)

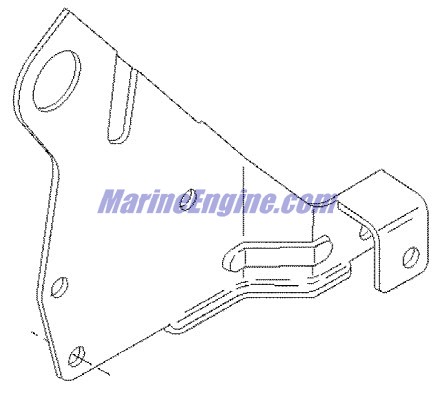

		860370T 1 - Bracket [ More info ] Unavailable
#20	16-860102	STUD (3 required per assembly)
		16-860102 - Stud [ More info ] $20.25 In Stock
#21	10-56743	SCREW (3/8-24 X 3-1/8 IN.) (1 required per assembly)
		10-56743 - Screw [ More info ] $6.80 $5.78 10+ In Stock.
#22	11-23161	NUT (3/8-24) (1 required per assembly)
		11-23161 - Nut (3/8X24) [ More info ] $2.80 10+ In Stock.
#23	807767T	BRACKET-IDLER ADJUSTMENT (1 required per assembly)

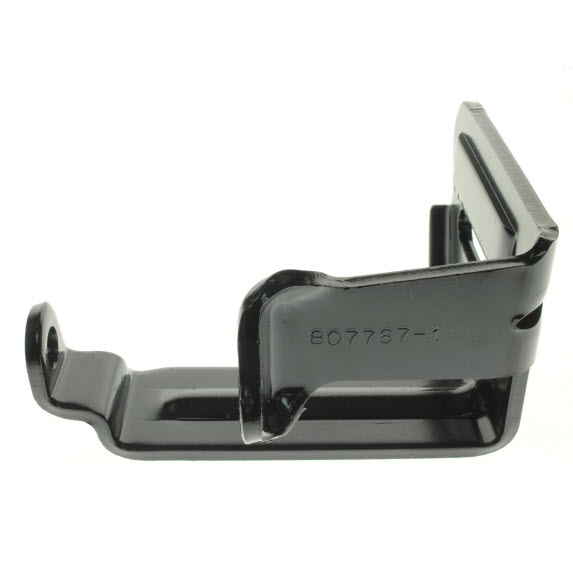

		807767T - Idler Adjustment Bracket [ More info ] $76.50 Available to Order: Usually ships within 10 days.
#25	11-29250	NUT (5/16-24) (1 required per assembly)
		11-29250 - Nut (5/16-24) [ More info ] $2.80 $1.57 10+ In Stock.
#26	43-818381 2	PINION STUD (1 required per assembly)
		43-818381 2 - Pinion Stud [ More info ] Unavailable
#27	818380	BUSHING (2 required per assembly)
		818380 - Bushing [ More info ] Unavailable
		818380T - BUSHING [ More info ] Unavailable

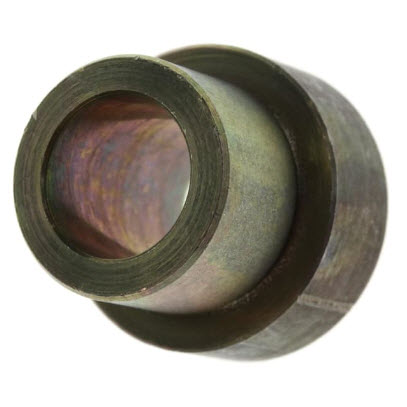

		865193 - Bushing [ More info ] $7.30 7 In Stock.
#28	807757T	PULLEY (2 required per assembly)

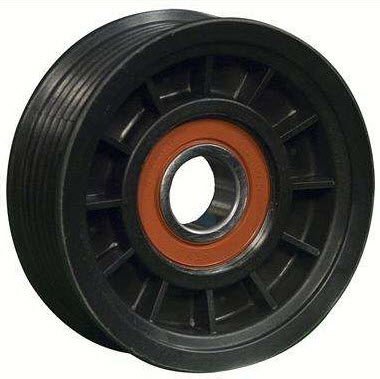

		807757T - Idler Pulley [ More info ] $57.49 2 In Stock.

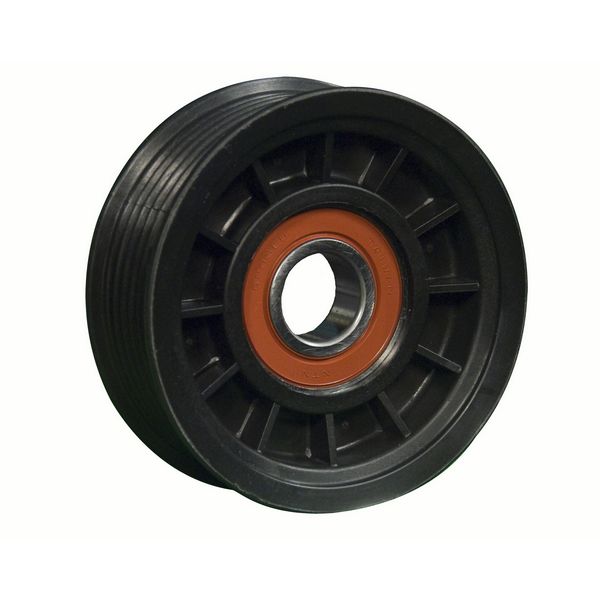

		18-6457 - Idler Pulley, 807757T [ More info ] $51.79 $49.69 2 In Stock.
#29	11-817618	NUT (7/16-20) (2 required per assembly)
		11-817618 - Nut (7/16-20) [ More info ] Unavailable
		11-859135 - Nut (7/16-20), Priced Individually [ More info ] $5.90 10+ In Stock.
#30	807753T	BRACKET-IDLER (1 required per assembly)
		807753T - Idler Bracket [ More info ] Unavailable
		807753 - Bracket-IDLER [ More info ] Unavailable
		807753T 1 - Bracket - Idler [ More info ] $57.42 Available to Order: Usually ships within 10 days.
#31	11-32219	NUT (3/8-16) (3 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.70 10+ In Stock.

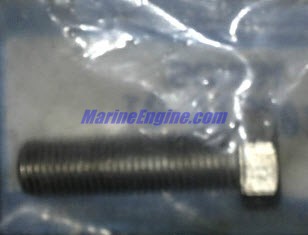

#32	10-816601	SCREW (7/16-20 X 1-1/2 IN.) (1 required per assembly)
		10-816601 - Screw [ More info ] $4.80 Available to Order: Usually ships within 10 days.

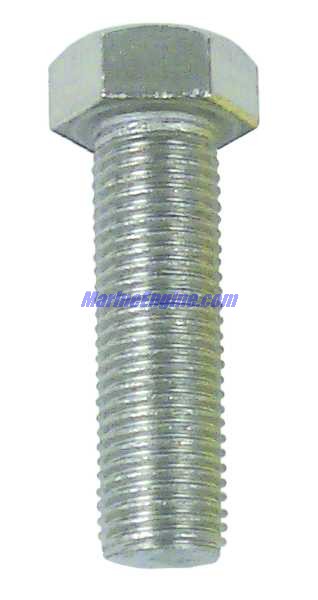

		18-3230 - Screw, 10-816601 [ More info ] $1.99 $1.51 Available to Order: Usually ships within 10 days.
