Parts for MerCruiser 3.0L GM 181 I / L4 Exhaust System
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

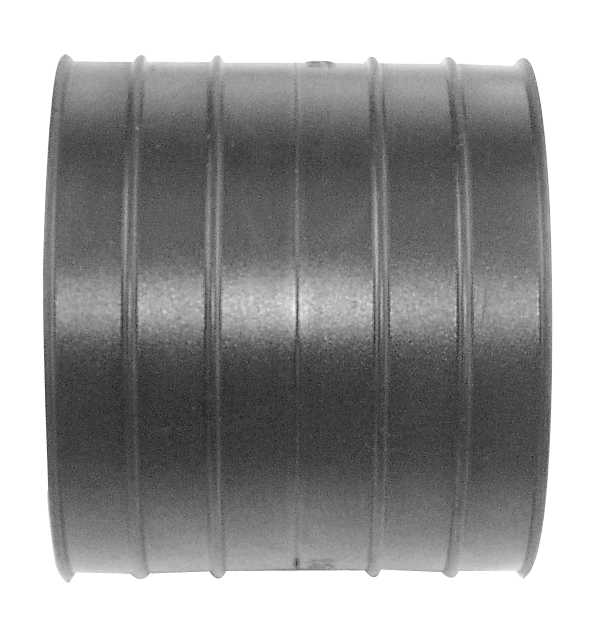

#1 | 32-44348T | TUBE, Exhaust (1 required per assembly) |
32-44348T - Exhaust Tube [ More info ] Unavailable |
||

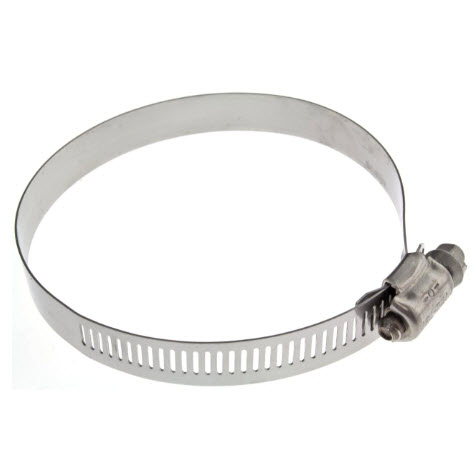

#2 | 54-815504256 | CLAMP, Worm Gear, Small (4 required per assembly) |
#3 | 54-815504272 | CLAMP, Worm Gear, Large (4 required per assembly) |
#NS | 19-807992 3 | COVER, Hose Clamp End (AR required per assembly) |
19-807992 3 - Cover-.375 - Priced Individually [ More info ] |
||
198M0074364 [ More info ] |
||
198M0074364 - Cover-Clamp - Priced Individually [ More info ] |
||
#4 | 42422A 2 | PIPE ASSEMBLY, Exhaust (1 required per assembly) |
#5 | 32-90949T | TUBE, Exhuast (1 required per assembly) |
#6 | 60930 | SHUTTER, Water (1 required per assembly) |
#7 | 42421A 5 | ELBOW ASSEMBLY, Exhaust (1 required per assembly) |
#8 | 25-43809 | GROMMET (2 required per assembly) |
#9 | 10-58640 | SCREW, (.375-16 x 1.25) (4 required per assembly) |
10-8M0113174 - Screw, .375-16, Priced Individually [ More info ] |
||
#10 | 13-41471 | LOCKWASHER, (.375) (4 required per assembly) |
