Parts for MerCruiser 3.0L GM 181 I / L4 Electrical Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 806490T | SENDER, Water Temperature (1 required per assembly) |
  |
|
806490T - Water Temperature Sender [ More info ]
|
  |
|
18-5897 - Sender, 97257A1 [ More info ]
|
| #1 | 49734 | SENDER, Water Temperature (OPT required per assembly) (Dual) |
  |
|
49734 - Sender Assembly [ More info ]
|
| #2 | 13-26996 | LOCKWASHER, (#10) Stainless Steel (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #3 | 11-68219 | NUT, (#10-32) Stainless Steel (1 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #4 | 87-815425T | SENDER ASSEMBLY, Oil Pressure (1 required per assembly) |
  |
815425T - Sender [ More info ] Unavailable |
|
  |
|
8M0068784 - Sender Assembly [ More info ]
|
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
| #4 | 37293T | SENDER ASSEMBLY, Oil Pressure (OPT required per assembly) (Dual) |
  |
|
37293T - Oil Pressure Sender [ More info ]
|
| #7 | 22-32974 | FITTING, (.125-27) Adaptor (1 required per assembly) |
  |
|
22-32974 - Fitting [ More info ]
|
| #8 | 89-96158T | SOLENOID, Starter (1 required per assembly) |
  |
89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable |
|
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
| #9 | 10-98256 | SCREW, (.250-28 x .500) (2 required per assembly) |
  |
|
10-98256 - Screw [ More info ]
|
| #10 | 11-826709109 | NUT, (.250-28) Stainless Steel (2 required per assembly) |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #12 | 11-26419 | NUT, (#8-32) Brass (2 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 11-94330 | NUT, (.250-20) Brass (2 required per assembly) |
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|

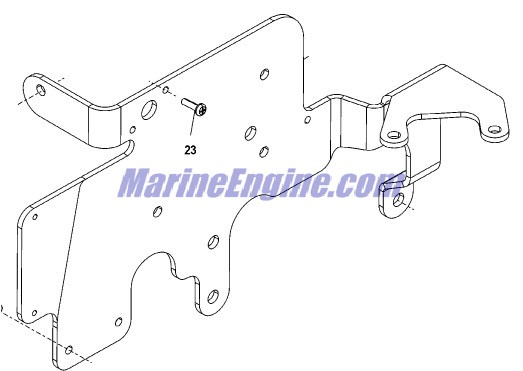

| #15 | 862080T | BRACKET, Shift With Electrical Mounting (1 required per assembly) |
  |
|
862080T - Bracket-SHIFT,NLA [ More info ]
|
| #16 | 85-97861 | INSULATOR (1 required per assembly) |
  |
|
85-97861 - Insulator [ More info ]
|
| #17 | 10-98794 | SCREW, (.375-16 x 1.00) (3 required per assembly) |
  |
10-98794 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0113180 - MTG Screw AL/BRAV TOP Cover ZZ [ More info ]
|
| #18 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor (1 required per assembly) |
 |
16-96112 - Stud [ More info ] Unavailable |
|
|
|
16-8M0113178 - Stud [ More info ]
|
| #19 | 11-826713 9 | NUT, (.250-28), Lock (1 required per assembly) |
|
|
11-826713 9 - Nut [ More info ]
|

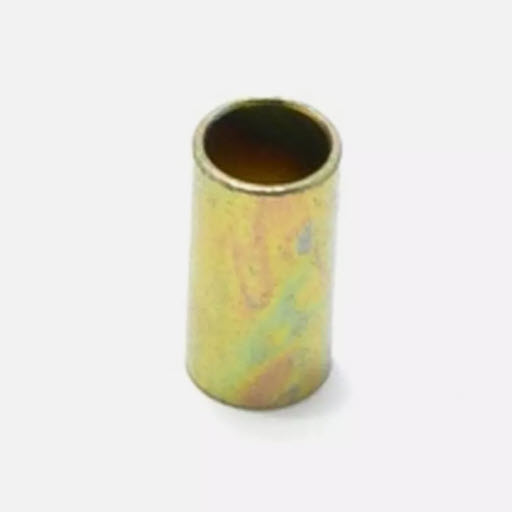

| #20 | 23-31866 | SPACER, (.256 x .313 x .625) (1 required per assembly) |
|
|
23-31866 - Spacer - .26 X .31 X .64 [ More info ]
|
| #21 | 12-20533 | WASHER (1 required per assembly) |
  |
|
12-20533 - Washer, 9/16 Inch O.D. [ More info ]
|
| #22 | 11-826708 9 | NUT, (.250-28) (1 required per assembly) |
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #23 | 10-86025 | SCREW, (#8-32 x .620) (2 required per assembly) |
  |
|
10-86025 - Screw [ More info ]
|
| #24 | 88-806950 | BREAKER, Circuit - 50 Ampere (1 required per assembly) |
  |
|
88-806950 - Circuit Breaker 50 amp w/ screw connections. Ord 88-11178A01 [ More info ] Unavailable |
| #25 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel (2 required per assembly) |
  |
|
10-68513 - Screw [ More info ]
|
| #27 | 88-79023A90 | FUSE ASSEMBLY, 90 Ampere (1 required per assembly) |
  |
88-79023A90 - Fuse Assembly -90 AMP [ More info ] Unavailable |
|
  |
|
88-79023T90 - Fuse Assembly -90 Amp [ More info ]
|
| #28 | 11-21825 | NUT, (.250-28) (1 required per assembly) |
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #29 | 85-79695 | BOOT, Insulator - Black (1 required per assembly) |
|
|
85-79695 - Boot (Black) [ More info ]
|
|
|
85-79695T - Insulator Boot [ More info ]
|
| #30 | 13-40024 7 | LOCKWASHER, (M8) (1 required per assembly) |
|
|
13-40024 7 - LockWasher Note: - Priced Individually [ More info ]
|
