Parts for MerCruiser 3.0L GM 181 I / L4 Drain System (Serial No. 0l630000 & Up)

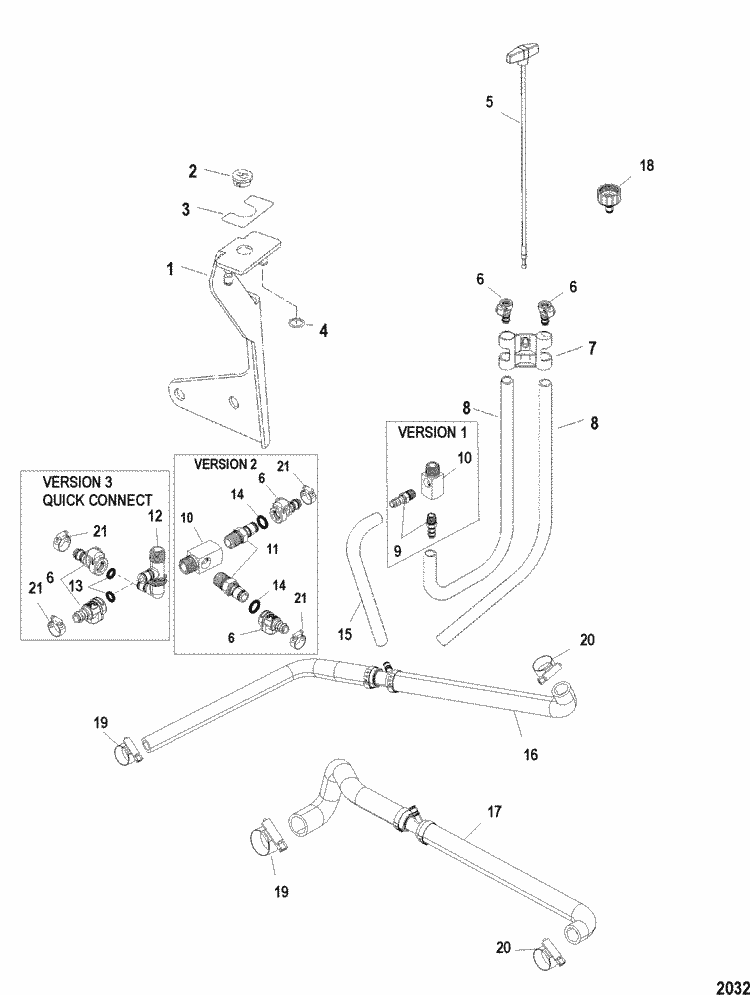

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

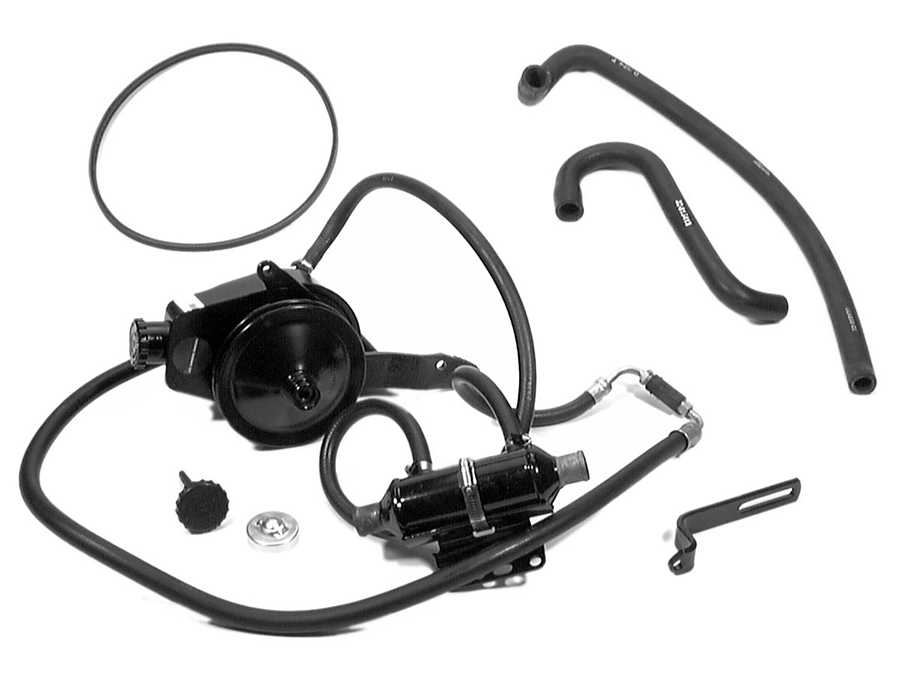

| # | 861481A 2 | POWER STEERING KIT (1 required per assembly) |
  |
|
861481A 2 - Power Steering Kit [ More info ]
|

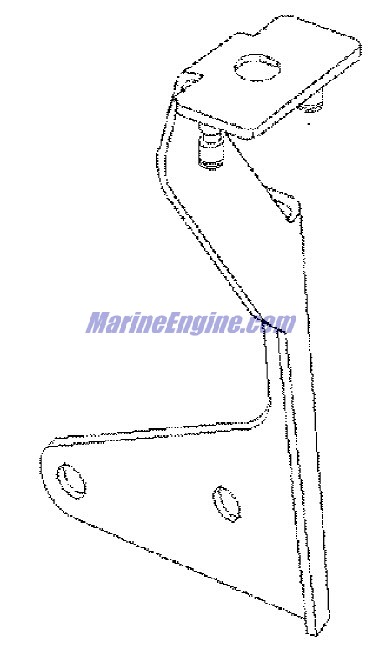

| #1 | 862226A 2 | BRACKET, Drain (1 required per assembly) |
  |
|
862226A 2 - Bracket Assembly [ More info ] Unavailable |
| #2 | 23-862298 | BUSHING (1 required per assembly) |
  |
|
23-862298 - Bushing [ More info ] Unavailable |
| #3 | 37-862230 | DECAL, Warning (1 required per assembly) |
  |
|
37-862230 - Decal [ More info ]
|
| #4 | 25-62702 1 | O-RING, (.301 x .070) (2 required per assembly) |
  |
|
25-62702 1 - O-Ring [ More info ]
|

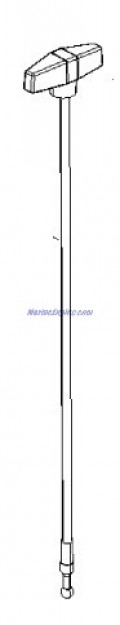

| #5 | 862257A 1 | T-HANDLE ASSEMBLY, With Cable (1 required per assembly) |
  |
|
862257A 1 - Cable/Handle Assembly [ More info ]
|

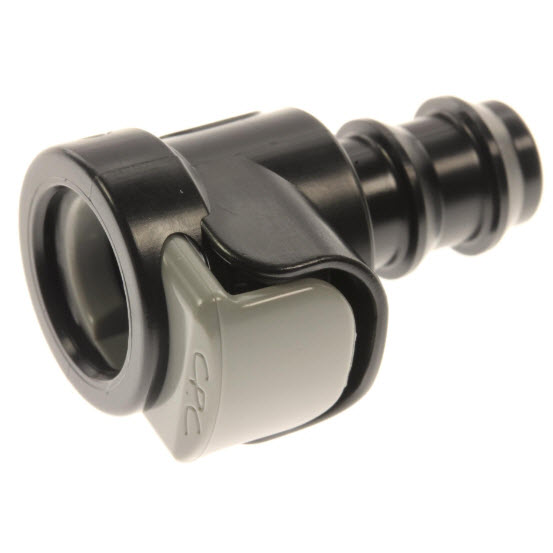

| #6 | 22-862225 | FITTING, Coupling (AR required per assembly) |
  |
|
22-862225 - Coupling Assembly [ More info ]
|

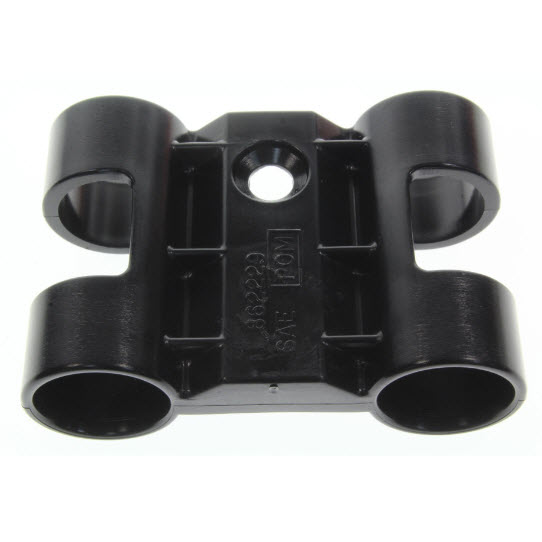

| #7 | 862229 | SLIDER (1 required per assembly) |
  |
|
|

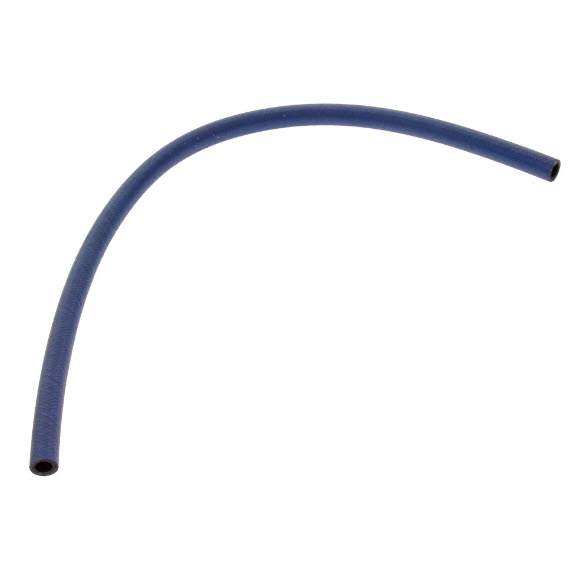

| #8 | 32-862224 1 | HOSE, Blue Drain (2 required per assembly) |
  |
32-862224 1 - Hose -21.5 Inch [ More info ] Unavailable |
|
  |
|
32-8M0062585 - Hose -22 Inch [ More info ]
|

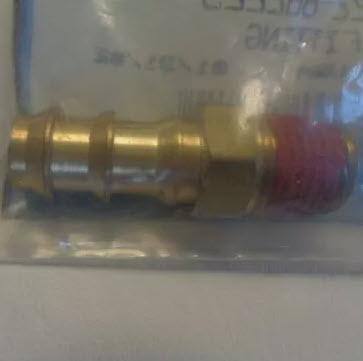

| #9 | 22-862223 | FITTING (2 required per assembly) (Version 1) |
  |
|
22-862223 - Fitting, NLA [ More info ]
|
| #10 | 22-862329 | FITTING (1 required per assembly) (Version 1 and 2) |
  |
22-862329 - Fitting-T [ More info ] Unavailable |
|
  |
|
22-862605T 1 - Adaptor Assembly [ More info ]
|
| #11 | 22-862603 | FITTING (2 required per assembly) (Version 2) |
  |
22-862603 - Adaptor -quick Cnt [ More info ] Unavailable |
|
  |
|

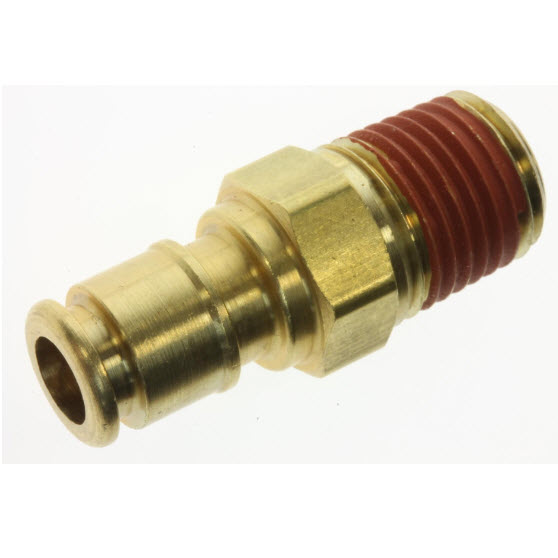

228M0180470 - Adaptor-QUICK CNT [ More info ]
|
| #12 | 22-862605T 1 | ADAPTOR ASSEMBLY, Includes O-Rings (1 required per assembly) (Version 3) |
| #15 | 32-862317 5 | HOSE (1 required per assembly) |
  |
32-8623175 - Hose [ More info ] Unavailable |
|
  |
|

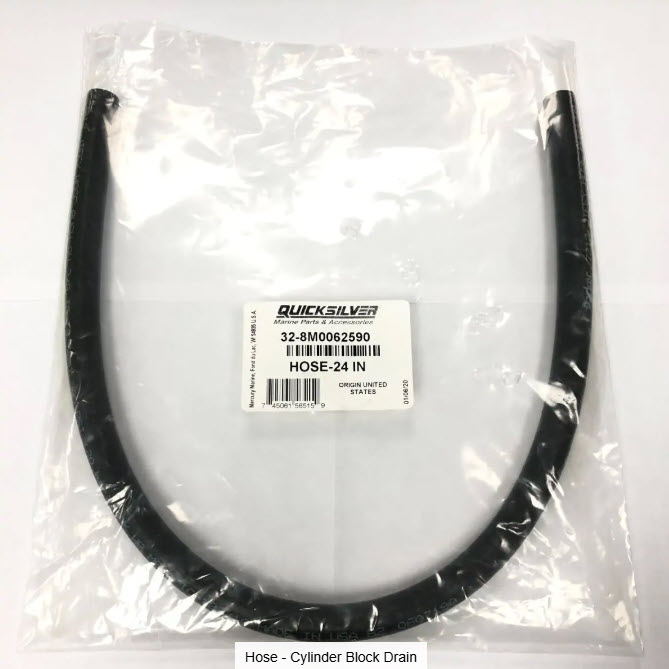

32-8M0062590 - Hose=3/8 Push Lck [ More info ]
|

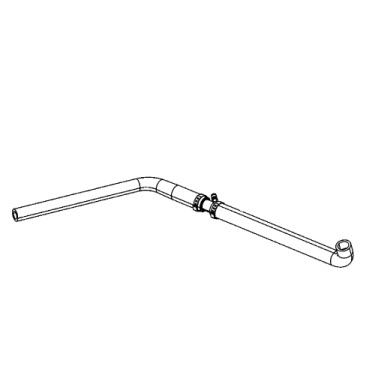

| #16 | 32-862325 | HOSE, Transom to Thermostat Housing (1 required per assembly) (With Power Steering)(Starboard) |
  |
|
32-862325 - Hose - Transom To Thermostat Housing [ More info ]
|

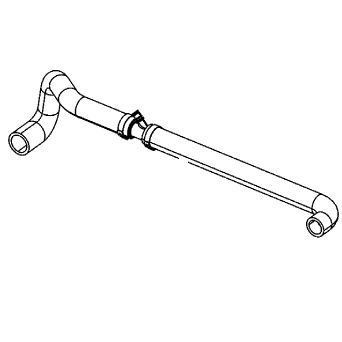

| #17 | 32-862324 | HOSE, Power Steering Cooler to Thermostat Housing (1 required per assembly) (With Power Steering)(Starboard) |
  |
|
32-862324 - Hose - Power Steering Cooler To Thermostat Housing. [ More info ]
|
| #18 | 22-862228 | FITTING, Flush (1 required per assembly) |
  |
22-862228 - Fitting [ More info ] Unavailable |
|
  |
|

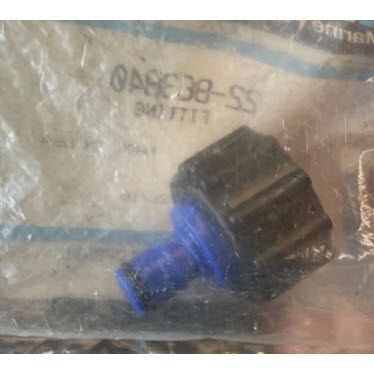

22-863840 - Fitting [ More info ]
|

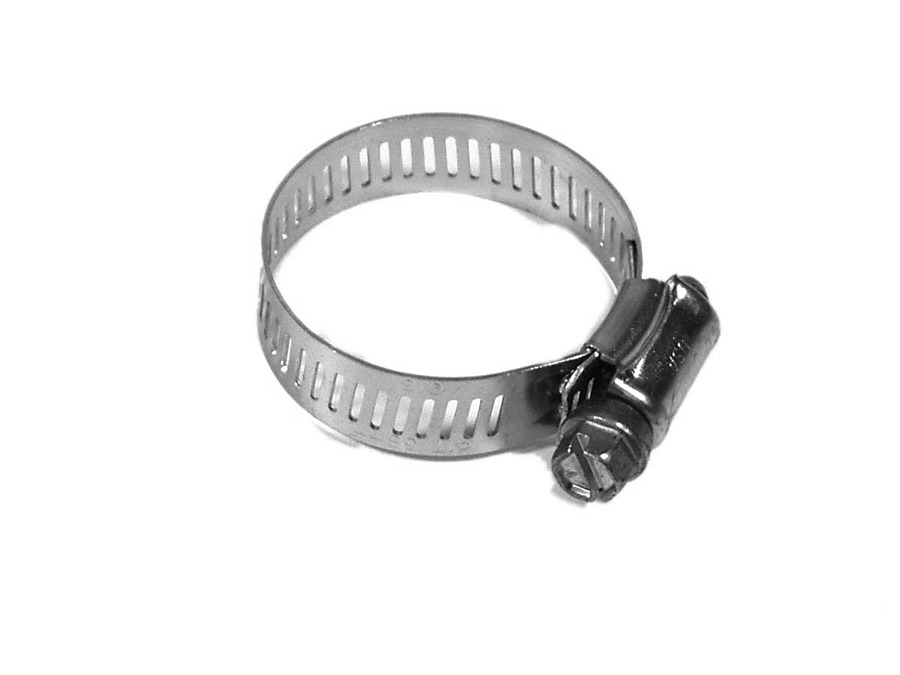

| #19 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose (2 required per assembly) (1.56 Inch Diameter) |
  |
|
54-815504216 - Clamp [ More info ]
|
| #20 | 54-815504212 | CLAMP, Worm Gear, Hose (AR required per assembly) (1.31 Inch Diameter) |
  |
|
54-815504212 - Clamp [ More info ]
|

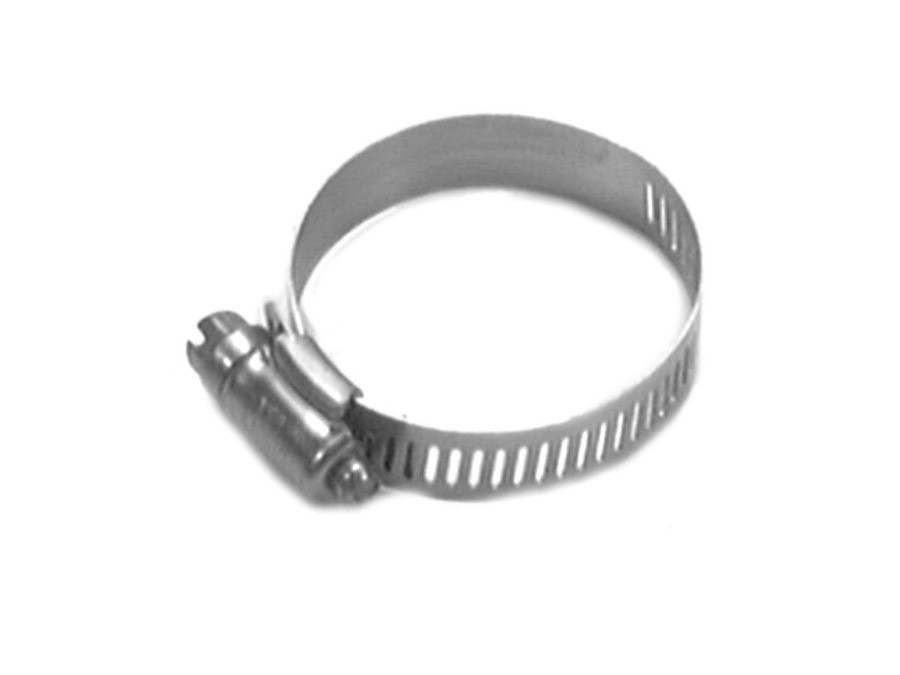

| #21 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) (AR required per assembly) (1.98 Inch Diameter) |
  |
54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable |
|
  |
|
54-8M0188622 - CLAMP [ More info ] Unavailable |
| #NS | 19-807992 3 | COVER, Hose Clamp End (AR required per assembly) |
  |
|
19-807992 3 - Cover-.375 - Priced Individually [ More info ]
|
  |
198M0074364 [ More info ] Unavailable |
|
  |
|

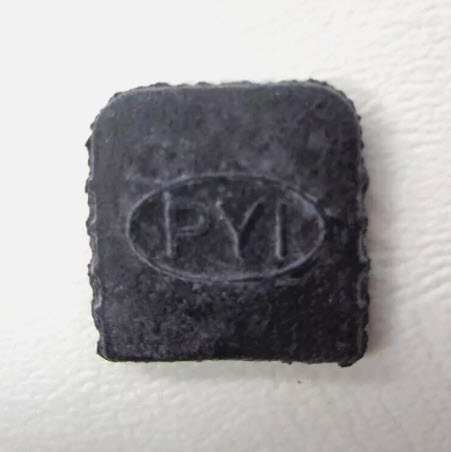

198M0074364 - Cover-Clamp - Priced Individually [ More info ]
|
