Starter Motor Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

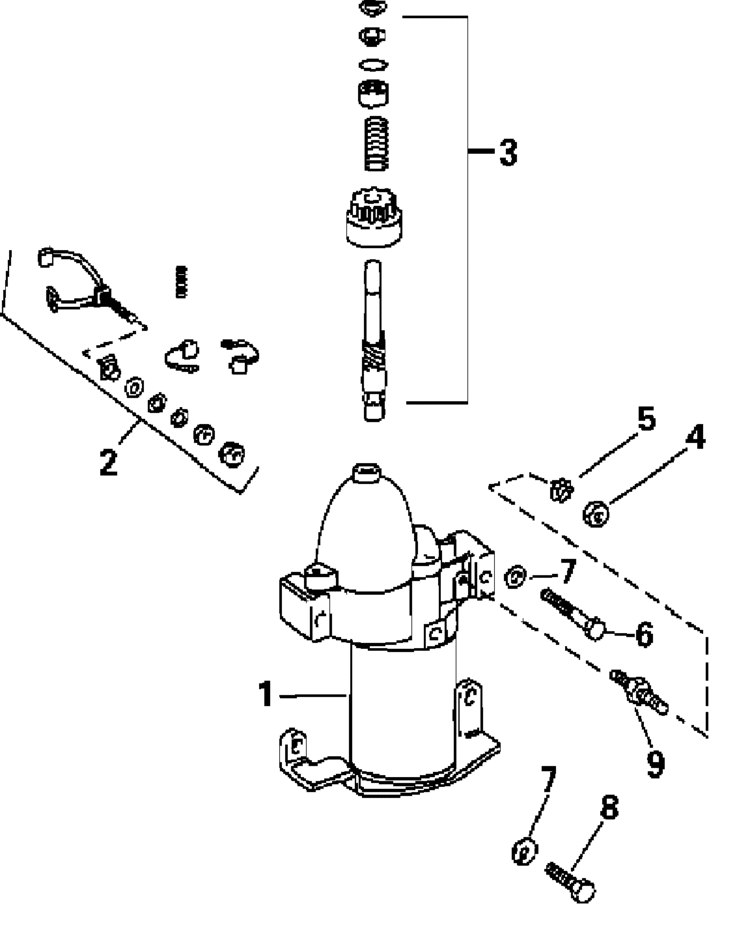

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 586731 — STARTER MOTOR ASSEMBLY (1 required per assembly) | ||
  |
|
0586731 [ More info ] Unavailable Replaced by 0586897 |
  |
|
0586897 [ More info ] Unavailable Replaced by 0586890 |
  |
|
0586890 - Starter Motor [ More info ]
|
  |
|
18-5619 - Starter, 584799 [ More info ]
|
  |
|
5387 - Outboard Starter [ More info ]
|

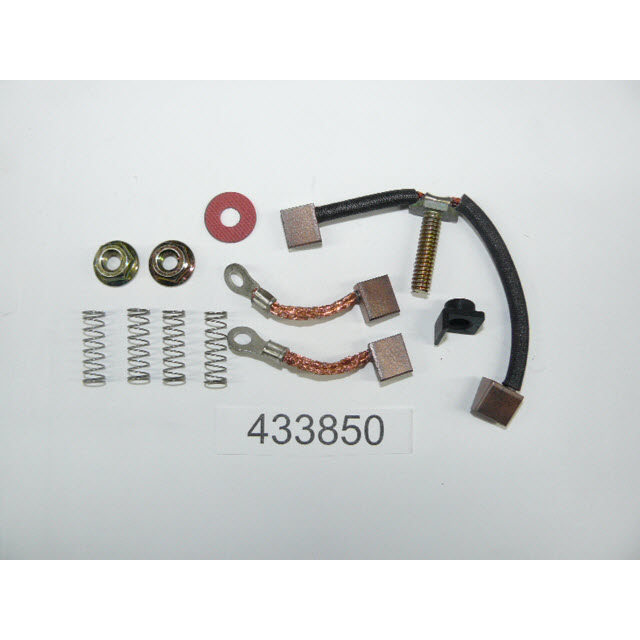

| #2 — 433850 — *BRUSH & SPRING SET (1 required per assembly) | ||
  |
|
0433850 - Brush And Spring Set [ More info ]
|
  |
|

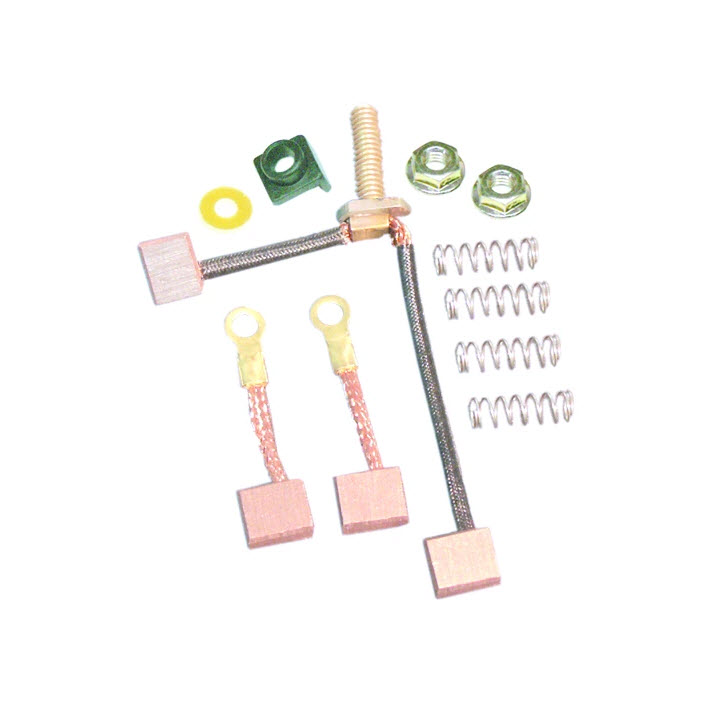

BK900 - Brush Kit [ More info ]
|

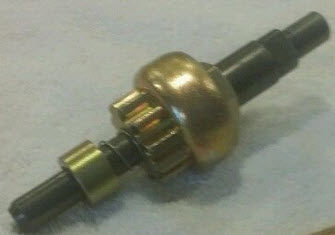

| #3 — 5000369 — *KIT, DRIVE & SHAFT (1 required per assembly) | ||
  |
|
5000369 - Starter Drive Gear and Shaft [ More info ]
|
| #4 — 328740 — NUT, GROUND (1 required per assembly) | ||
  |
|
|
| #5 — 302290 — LOCK WASHER, GROUND WIRES (1 required per assembly) | ||
  |
|
0302290 - Thrust mount Lock Washer [ More info ]
|

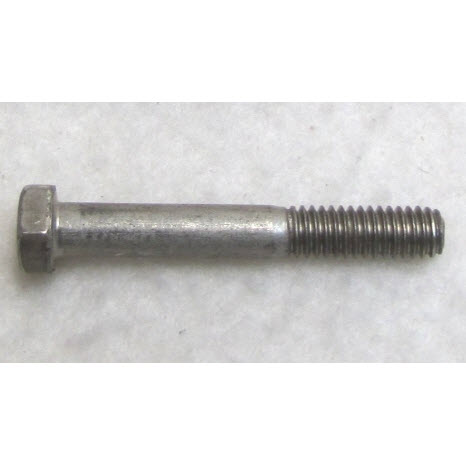

| #6 — 331644 — SCREW, STARTER, MOUNTING (2 required per assembly) | ||
  |
|
|

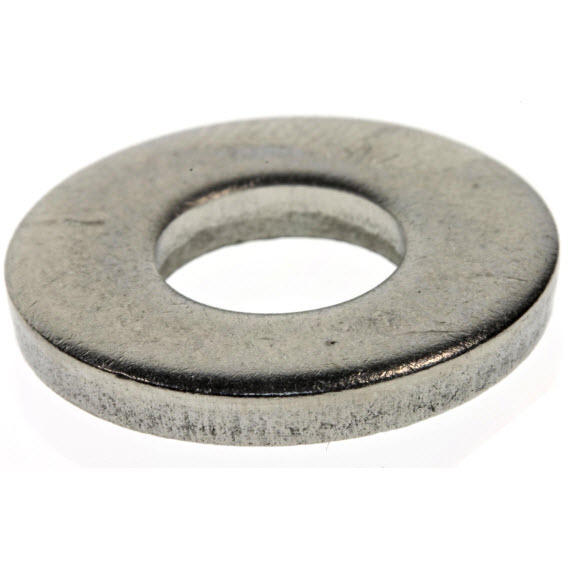

| #7 — 309543 — LOCK WASHER, SUPPORT BRACKET (4 required per assembly) | ||
  |
|
0309543 - Washer [ More info ]
|

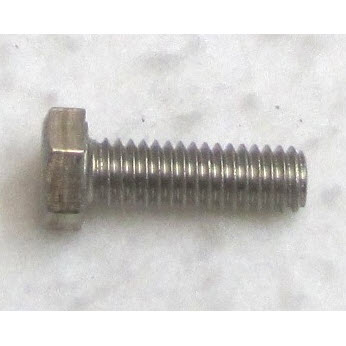

| #8 — 552940 — SCREW, SUPPORT BRACKET (2 required per assembly) | ||
  |
|
|
| #9 — 330143 — BOLT, DOUBLE END (1 required per assembly) | ||
  |
|
0330143 - Double End Bolt [ More info ]
|
