Midsection Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

Revise Search: All Years > 2003 > 250 hp > Evinrude E250FPZSTA > Midsection

NEED PARTS OR KITS?

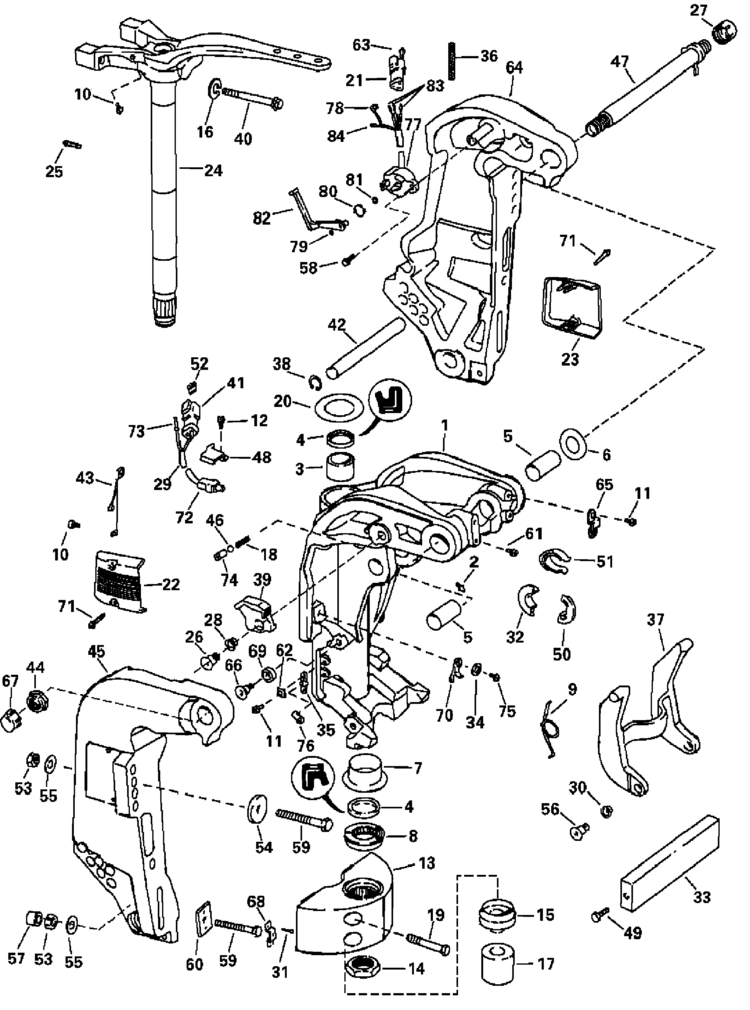

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

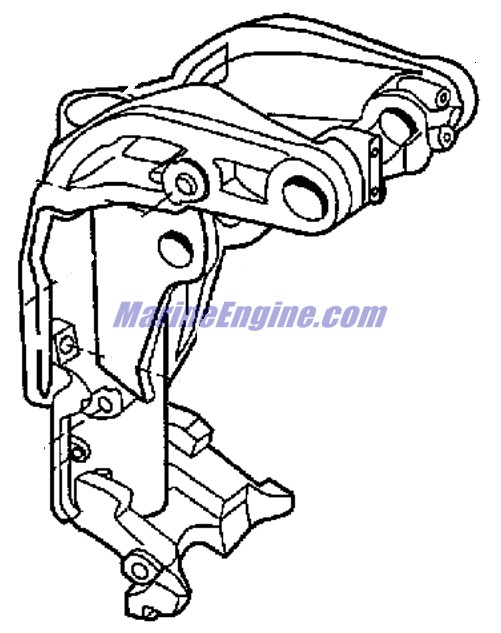

#1 — 434691 — SWIVEL BRACKET. (FPL, FHL MODELS.) (1 required per assembly)

0434691 - Swivel Bracket Assembly 20 [ More info ]

$880.23 $816.25
5 In Stock.

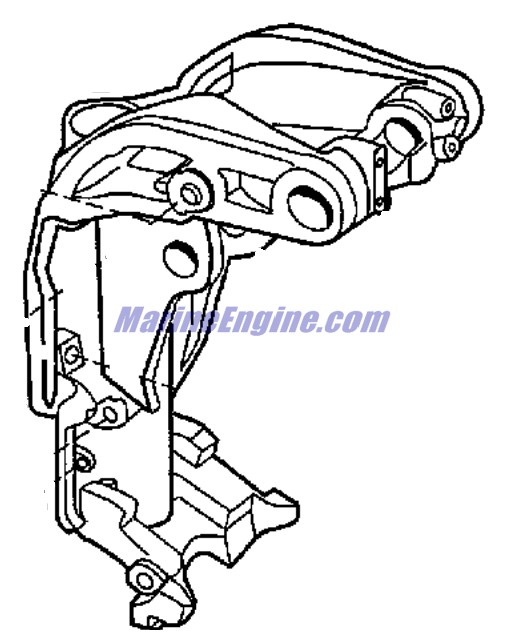

#1 — 434724 — SWIVEL BRACKET. (FPX & FCX MODELS.) (1 required per assembly)

0434724 - Swivel Bracket 25 [ More info ]

$840.98 $779.85
In Stock

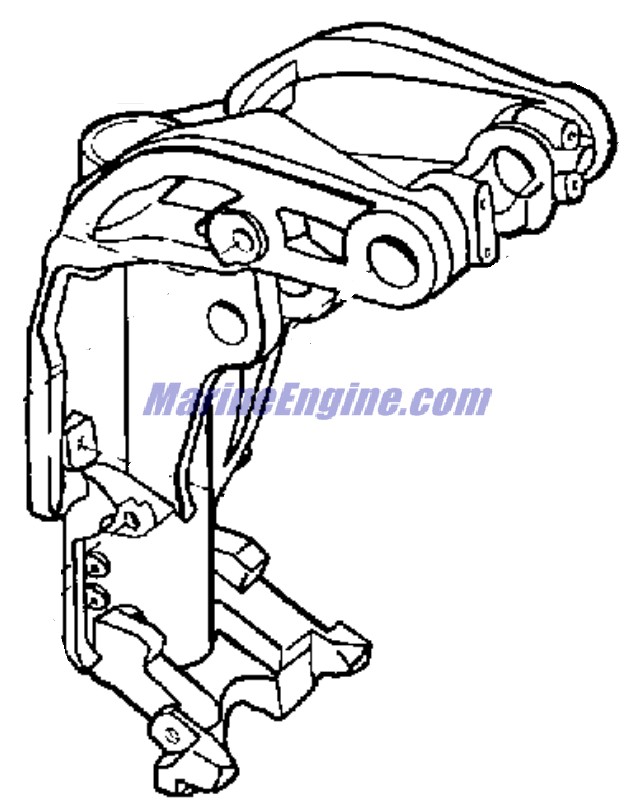

#1 — 438084 — SWIVEL BRACKET. (FPZ & FCZ MODELS.) (1 required per assembly)

0438084 - Swivel Bracket 30 [ More info ]

$1,699.31 $1,575.79
Available to Order: Usually ships within 10 days.

#2 — 313607 — *FITTING, LUBRICATION (3 required per assembly)

0313607 - Lube Fitting [ More info ]

$9.65 $6.35
10+ In Stock.

3852121 - Fitting, Volvo [ More info ]

$9.30 $9.10
Available to Order: Usually ships within 10 days.

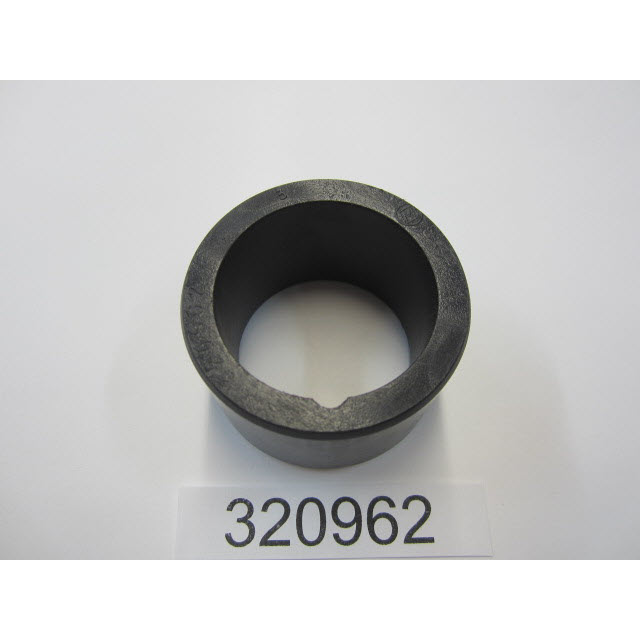

#3 — 320962 — *BUSHING (1 required per assembly)

0320962 - Swivel Bracket Bushing [ More info ]

$26.00
5 In Stock.

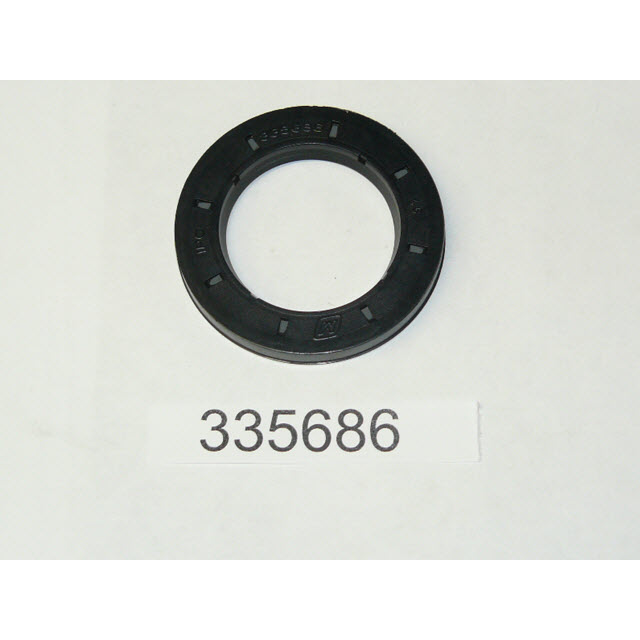

#4 — 335686 — *SEAL (2 required per assembly)

0335686 - Oil Seal [ More info ]

$13.25
9 In Stock.

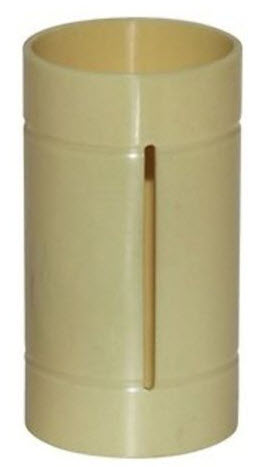

#5 — 337579 — *BUSHING, SWIVEL BRACKET (2 required per assembly)

0337579 - Bushing [ More info ]

$16.31
10+ In Stock.

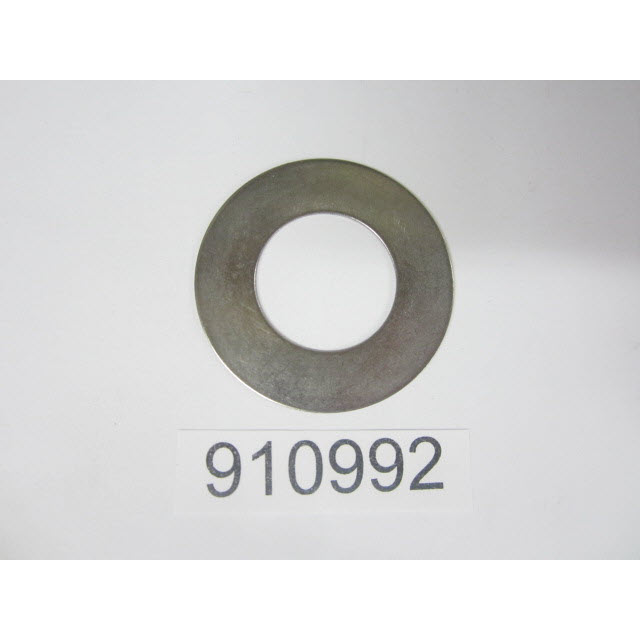

#6 — 910992 — *THRUST WASHER, TILT TUBE (2 required per assembly)

0910992 - Thrust Washer [ More info ]

$13.25
10+ In Stock.

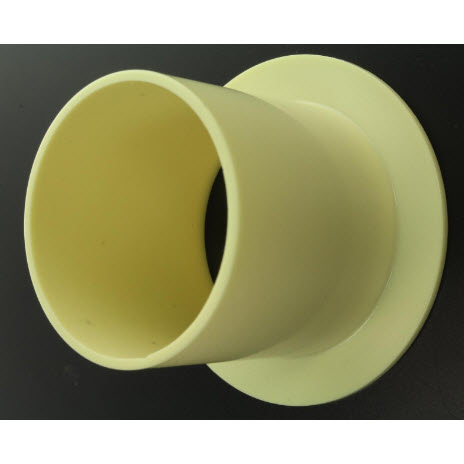

#7 — 336819 — *BUSHING, LOWER PIVOT SHAFT (1 required per assembly)

0336819 - Bushing, Lower Pivot Shaft [ More info ]

$18.35
Available to Order: Usually ships within 10 days.

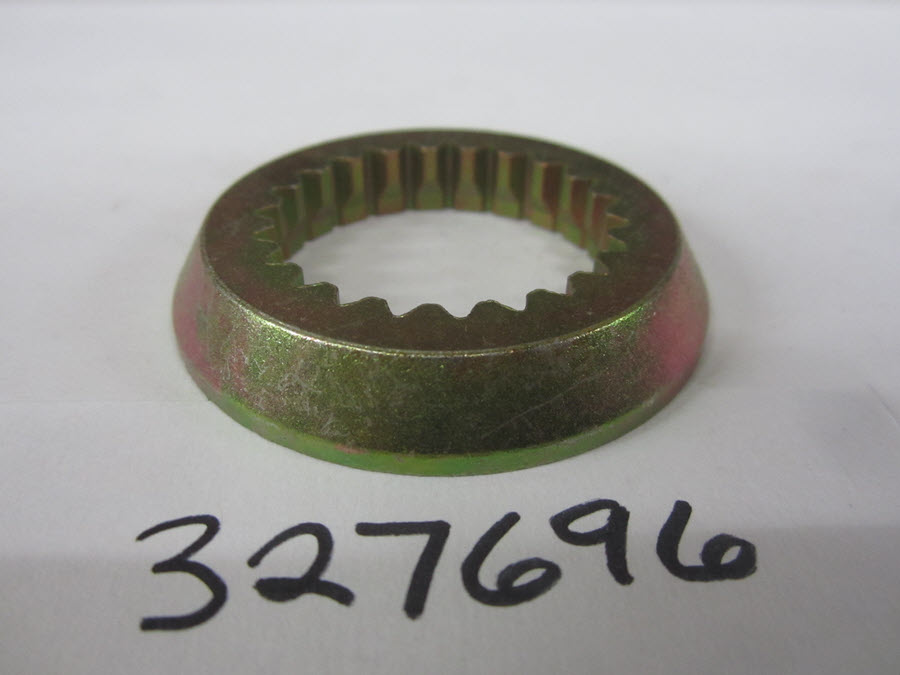

#8 — 327696 — KEEPER, PIVOT SHAFT (1 required per assembly)

0327696 - Keeper, Pivot Shaft [ More info ]

$24.98
9 In Stock.

#9 — 336210 — SPRING, TRAIL LOCK TO BRACKET (1 required per assembly)

0336210 - Trail Lock Spring [ More info ]

$11.72
6 In Stock.

#10 — 335200 — SCREW, GROUND LEAD (2 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#11 — 335200 — SCREW, RETAINER (2 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#12 — 335200 — SCREW, BRACKET, TILT LIMIT (1 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

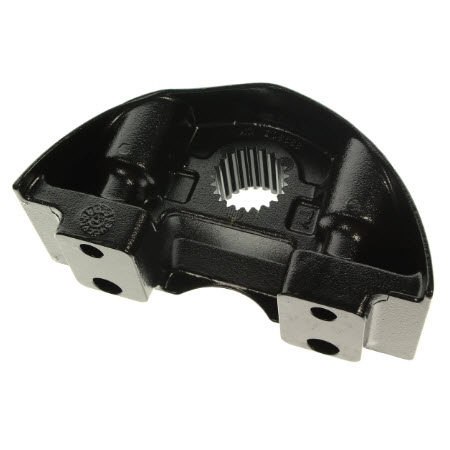

#13 — 340006 — MOUNT BRACKET. (FPL, FHL MODELS.) (1 required per assembly)

0340006 - Bracket, Mount -20 [ More info ]

$429.41
1 In Stock.

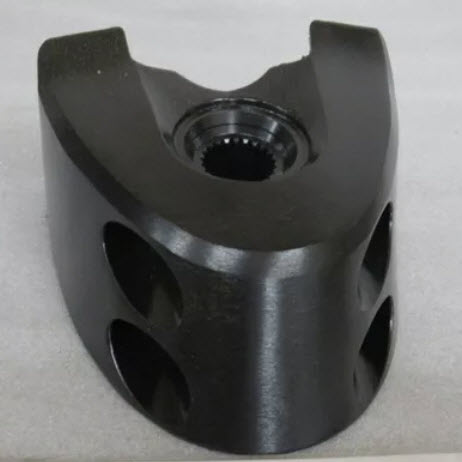

#13 — 338744 — MOUNT BRACKET. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (1 required per assembly)

0338744 - Bracket, Mount [ More info ]

$590.57 $122.37
3 In Stock.

#14 — 320746 — NUT, MOUNT BRACKET (1 required per assembly)

0320746 - Lock Nut [ More info ]

$30.08
6 In Stock.

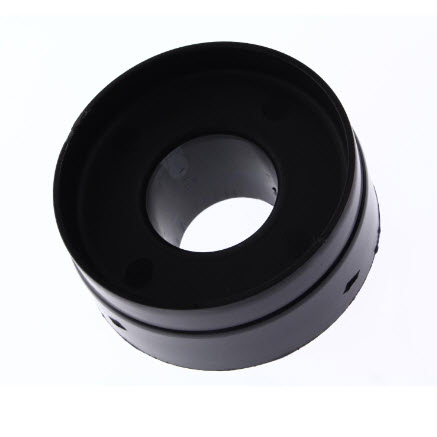

#15 — 912233 — RETAINER, PIVOT SHAFT SEAL. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (1 required per assembly)

0912233 - Retainer - Pivot Shaft Seal [ More info ]

$18.35
Available to Order: Usually ships within 10 days.

#16 — 313169 — LOCK WASHER, MOUNT BOLT (2 required per assembly)

0313169 - Washer [ More info ]
Unavailable

0322624 - Washer [ More info ]

$4.75
10+ In Stock.

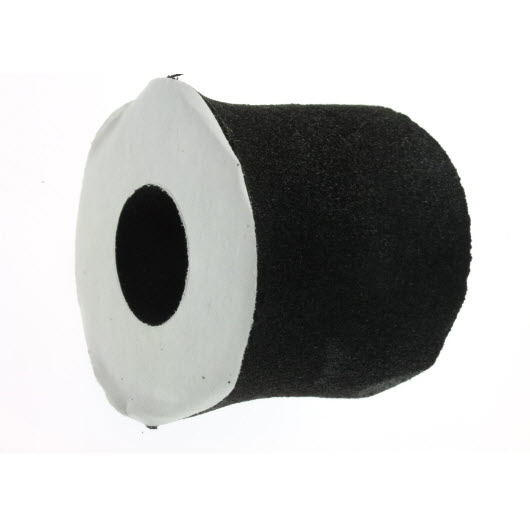

#17 — 911312 — SEAL, STEERING TUBE. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (1 required per assembly)

0911312 - Seal, Steering Tube, Pivot Shaft [ More info ]

$22.94
Available to Order: Usually ships within 10 days.

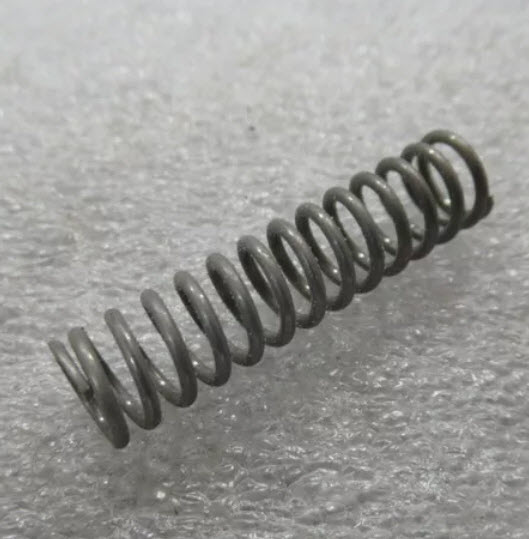

#18 — 336230 — SPRING, DETENT, TILT LOCK (1 required per assembly)

0336230 - Detent Spring [ More info ]

$11.72
1 In Stock.

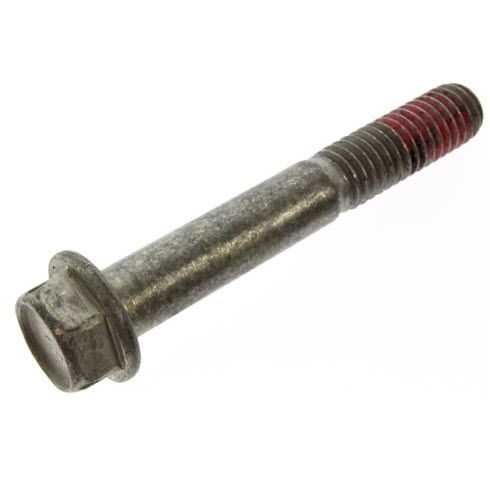

#19 — 334936 — SCREW, MOUNT (4 required per assembly)

0334936 - Screw, Mount [ More info ]

$41.81
Available to Order: Usually ships within 10 days.

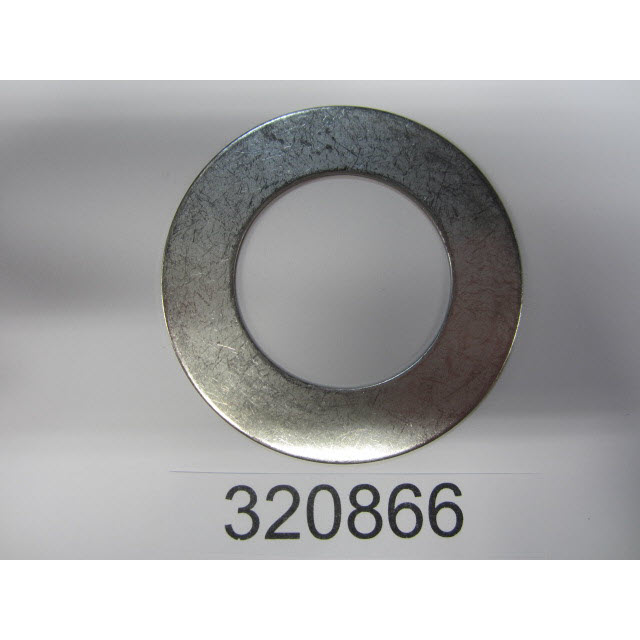

#20 — 320866 — THRUST WASHER, PIVOT SHAFT (1 required per assembly)

0320866 - Thrust Washer, Pivot Shaft [ More info ]

$13.25
6 In Stock.

#21 — 514686 — CONNECTOR, SENDING UNIT, 3-PIN (1 required per assembly)

0514686 - Connector, 3 Pin Receptacle [ More info ]

$15.29
1 In Stock.

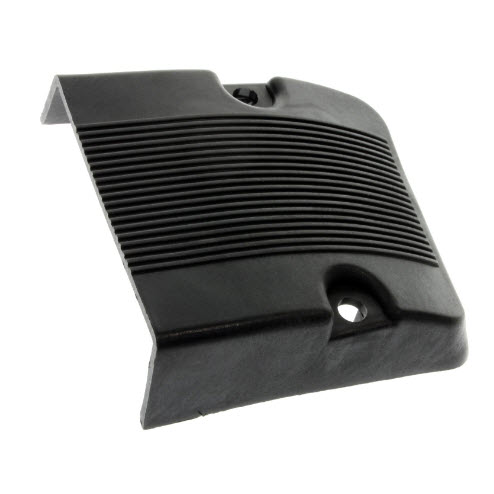

#22 — 335474 — COVER, STERN BRACKET, STBD. (OPTIONAL.) (1 required per assembly)

0335474 - Stern Bracket Cover [ More info ]

$16.31 $11.92
10+ In Stock.

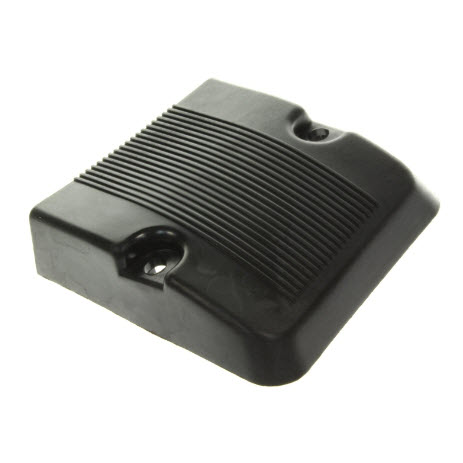

#23 — 335475 — COVER, STERN BRACKET, PORT. (OPTIONAL.) (1 required per assembly)

0335475 - Stern Bracket Cover [ More info ]

$16.31 $5.09
10+ In Stock.

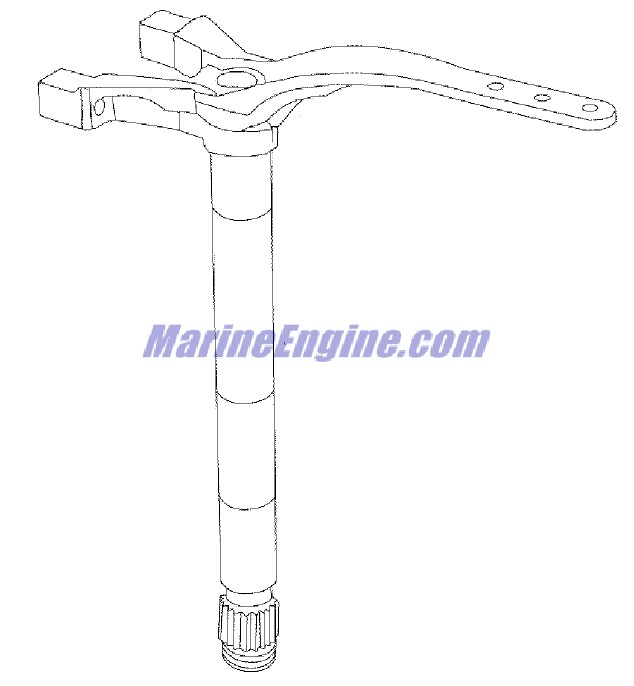

#24 — 439471 — STEERING ARM ASSY. (FPL, FHL MODELS.) (1 required per assembly)

0439471 - Steering Arm & Shaft 20 [ More info ]
Unavailable

5009552 - STEER ARM&Shaft 20 Inch (5009552) [ More info ]

$425.33
Available to Order: Usually ships within 10 days.

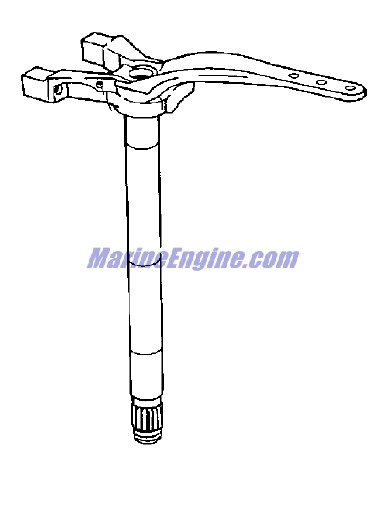

#24 — 437698 — STEERING ARM ASSY. (FPX & FCX MODELS.) (1 required per assembly)

0437698 - Steering Arm & Shaft 25 [ More info ]
Unavailable

5009553 - STEER ARM&Shaft 25 Inch (5009553) [ More info ]

$619.64
Available to Order: Usually ships within 10 days.

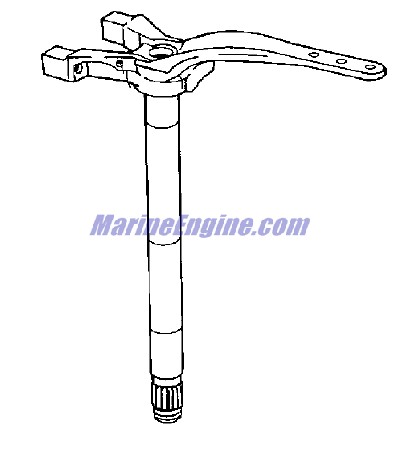

#24 — 437699 — STEERING ARM ASSY. (FPZ & FCZ MODELS.) (1 required per assembly)

0437699 - Steering Arm & Shaft 30 [ More info ]
Unavailable

5009554 - STEER ARM&SHFT 30 [ More info ]

$490.61
Available to Order: Usually ships within 10 days.

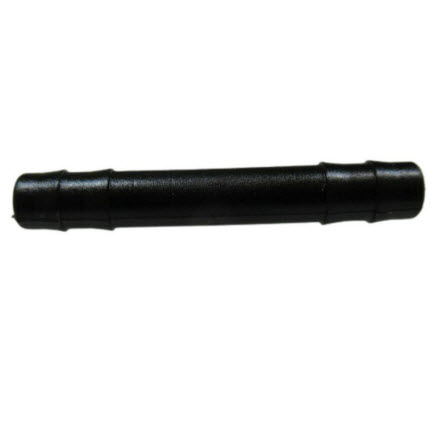

#25 — 123692 — CONNECTOR, SPEEDO HOSE. (FPL, FHL MODELS.) (1 required per assembly)

0123692 - Hose Connector [ More info ]

$1.66
Available to Order: Usually ships within 10 days.

#26 — 335481 — SCREW, TILT LEVER TO BRACKET (1 required per assembly)

0335481 - Shoulder Screw [ More info ]

$26.00
1 In Stock.

#27 — 337586 — WIPER, TILT TUBE (1 required per assembly)

0337586 - Wiper Nut [ More info ]

$15.29
4 In Stock.

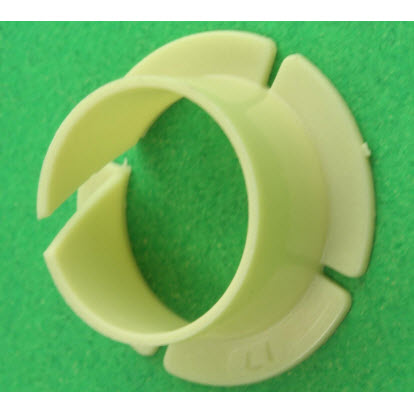

#28 — 335486 — BUSHING, TILT LEVER (1 required per assembly)

0335486 - Tilt Lever Bushing [ More info ]

$11.72
3 In Stock.

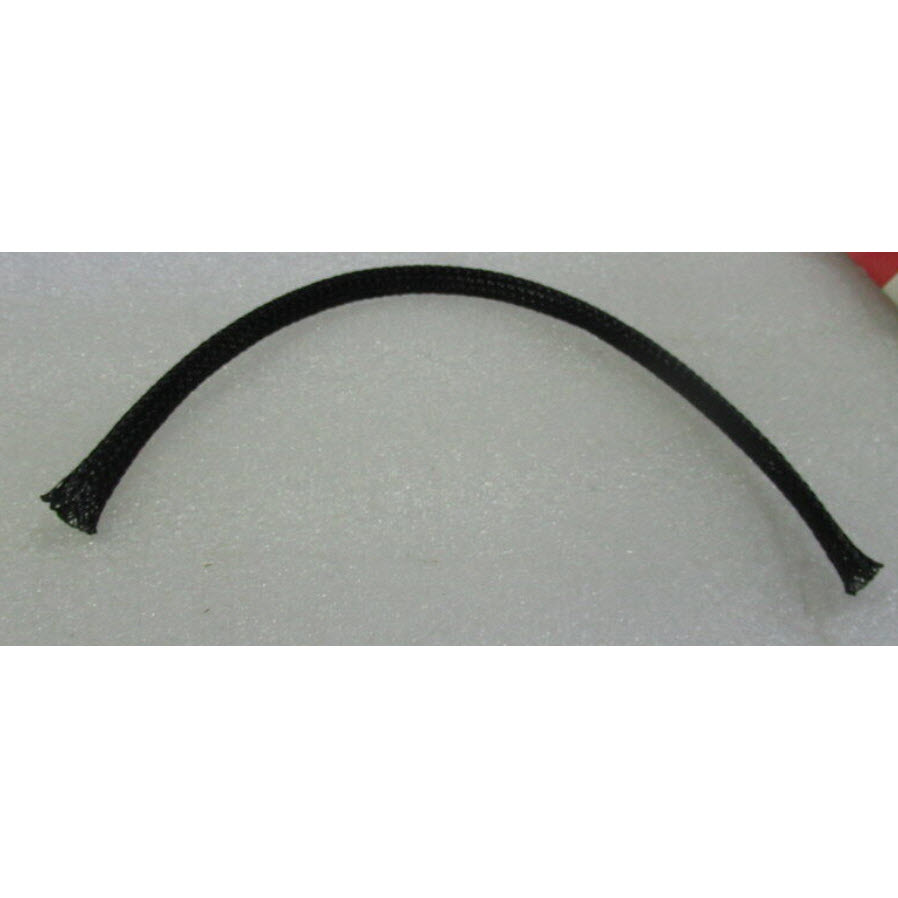

#29 — 512937 — SLEEVE, TILT LIMIT LEAD (1 required per assembly)

0512937 - Sleeve [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

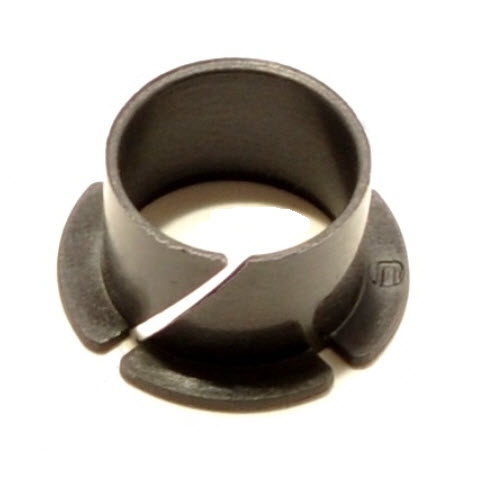

#30 — 335701 — BUSHING, TRAIL ARM (2 required per assembly)

0335701 - Bushing, Trail Arm [ More info ]

$11.72
1 In Stock.

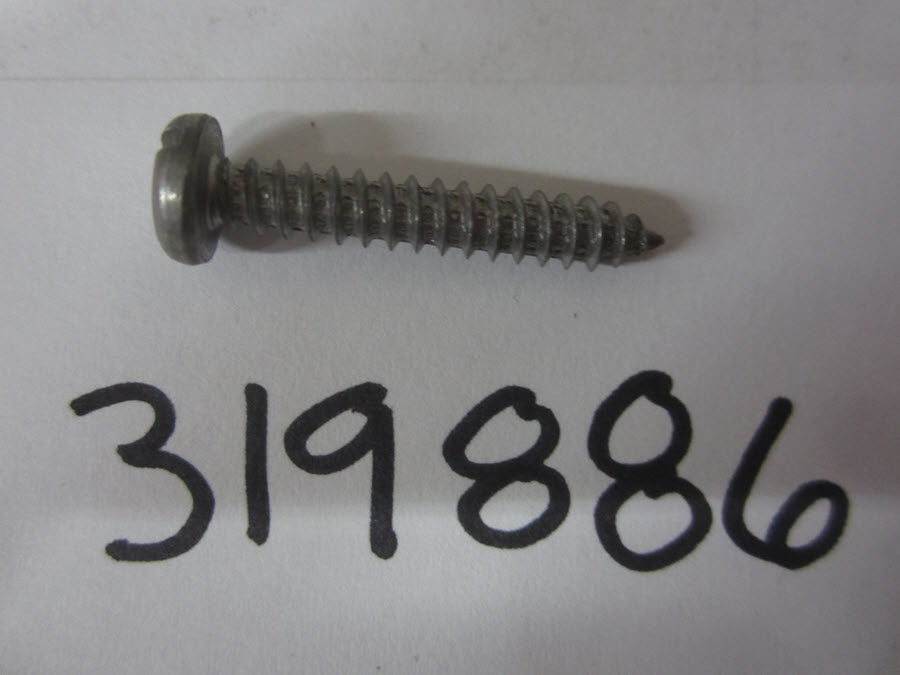

#31 — 319886 — SCREW, TRANSOM SCREW RETAINER (4 required per assembly)

0319886 - Screw, Retainer Plate [ More info ]

$4.26 $0.88
10+ In Stock.

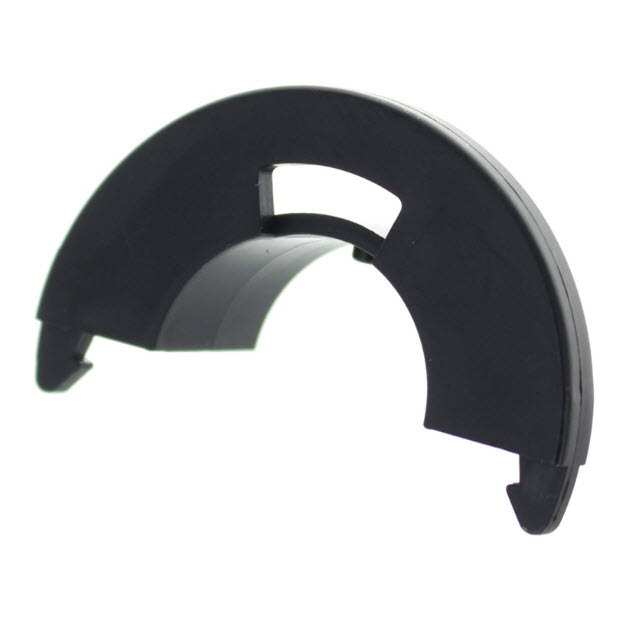

#32 — 337592 — COLLAR, TILT LIMIT, TOP (1 required per assembly)

0337592 - Tilt Limit Collar [ More info ]

$11.72 $2.43
7 In Stock.

#33 — 433580 — ANODE, STERN BRACKET (1 required per assembly)

0433580 - Anode, Zinc, Stern Bracket [ More info ]
Unavailable

5007089 - Anode, Aluminum [ More info ]

$29.99
10+ In Stock.

5010190 - Anode & Screw Kit [ More info ]

$52.01
10+ In Stock.

18-6115 - Anode, Zinc [ More info ]

$47.79 $41.75
1 In Stock.

18-6115 - Anode, Zinc [ More info ]

$47.79 $41.75
1 In Stock.

#34 — 328702 — WASHER, CLIP (1 required per assembly)

0328702 - Washer [ More info ]

$4.44 $1.74
10+ In Stock.

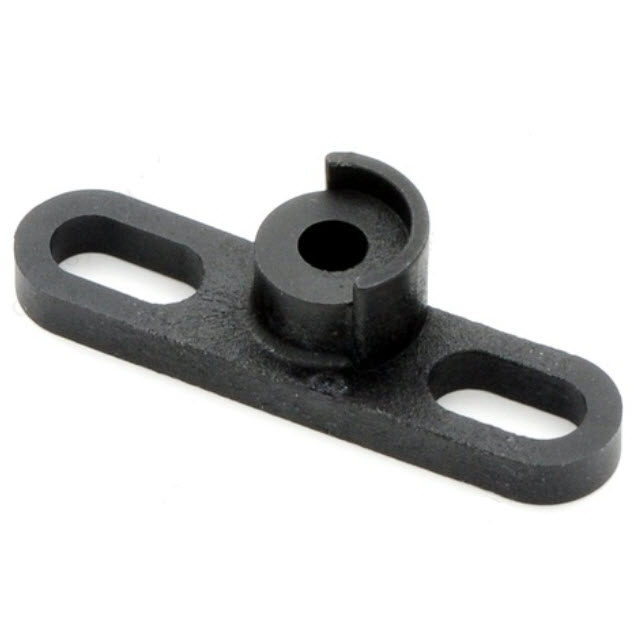

#35 — 336467 — SUPPORT, TRAIL LOCK (1 required per assembly)

0336467 - Retainer Support [ More info ]

$13.25
Available to Order: Usually ships within 10 days.

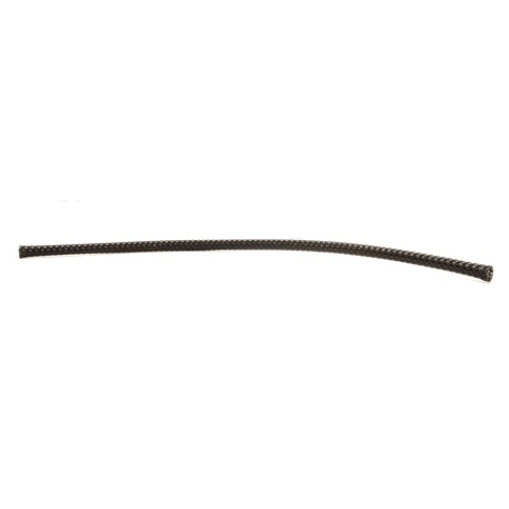

#36 — 513817 — SLEEVE, SENDING UNIT LEADS (1 required per assembly)

0513817 - Braided Sleeve [ More info ]

$9.65
1 In Stock.

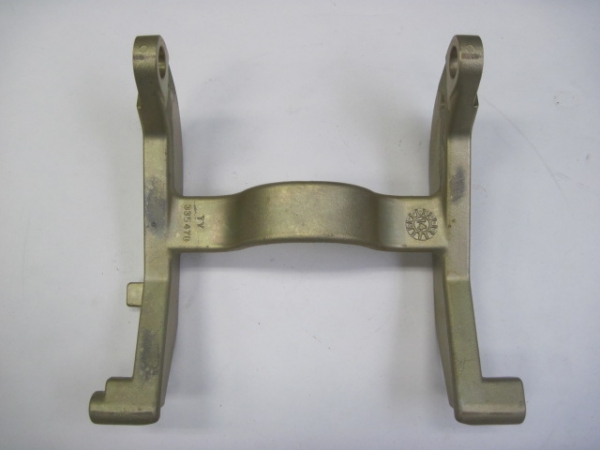

#37 — 335470 — ARM, TRAIL LOCK (1 required per assembly)

0335470 - Arm, Trail Lock [ More info ]

$187.16
Available to Order: Usually ships within 10 days.

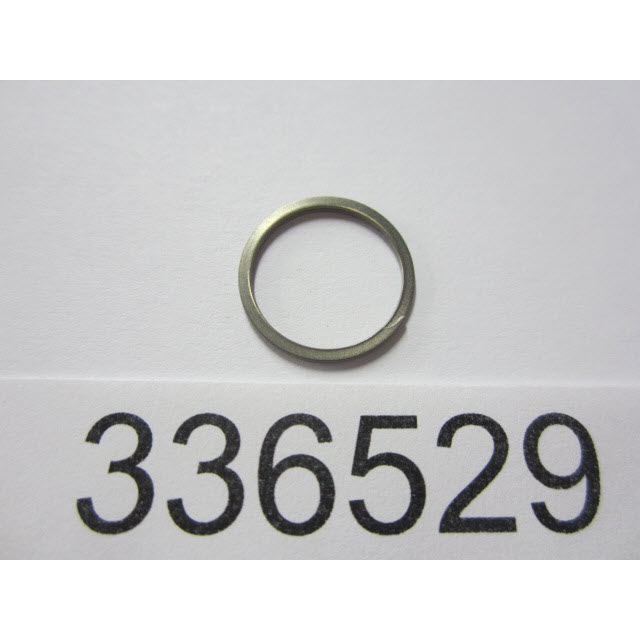

#38 — 336529 — RETAINING RING, ROD (2 required per assembly)

0336529 - Ring, Retainer [ More info ]

$11.72
10+ In Stock.

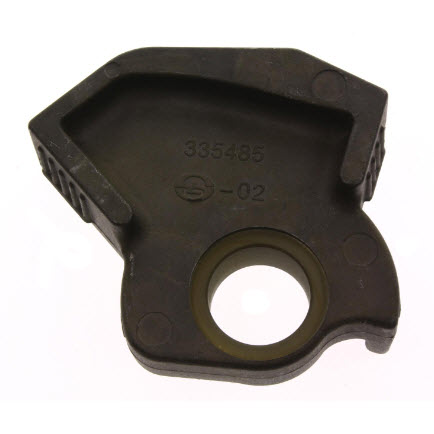

#39 — 335485 — LEVER, TILT LOCK (1 required per assembly)

0335485 - Tilt Lock Lever [ More info ]

$41.30
Available to Order: Usually ships within 10 days.

#40 — 912345 — SCREW, UPPER MOUNT (2 required per assembly)

0912345 - Screw, Upper Mount [ More info ]
Unavailable

#41 — 514696 — CONNECTOR, 2-PIN (1 required per assembly)

0514696 - Connector, 2Pin Rcpt [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

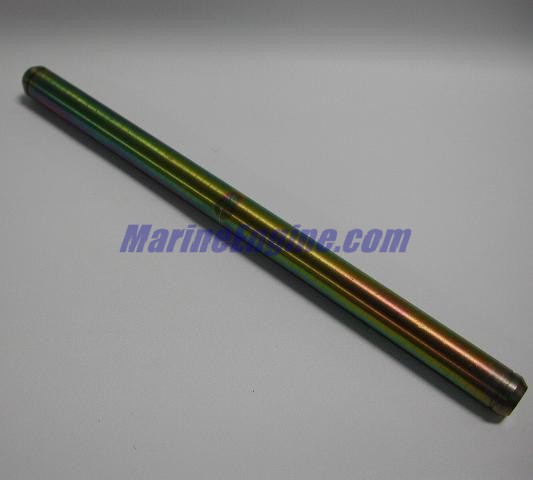

#42 — 336525 — ROD, TRIM LIMITER (1 required per assembly)

0336525 - Trim Limiter Rod [ More info ]

$64.99
5 In Stock.

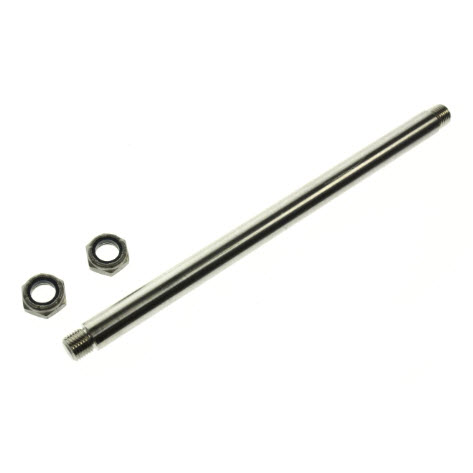

5009389 - Trim Limit Rod Kit [ More info ]

$89.75
Available to Order: Usually ships within 10 days.

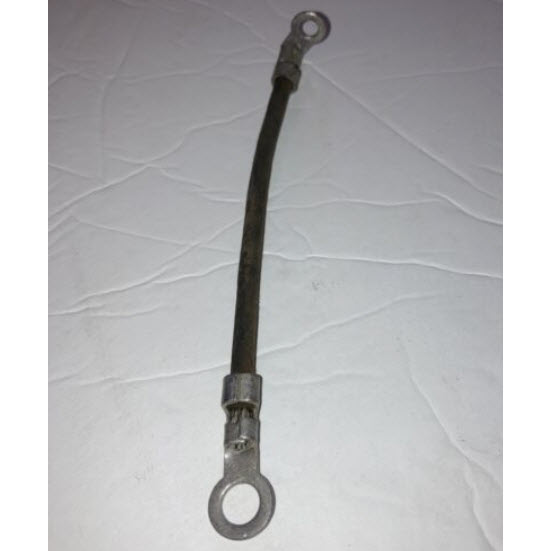

#43 — 584262 — LEAD ASSY, GROUND (1 required per assembly)

0584262 - Lead Assembly, Bonding [ More info ]

$20.00
7 In Stock.

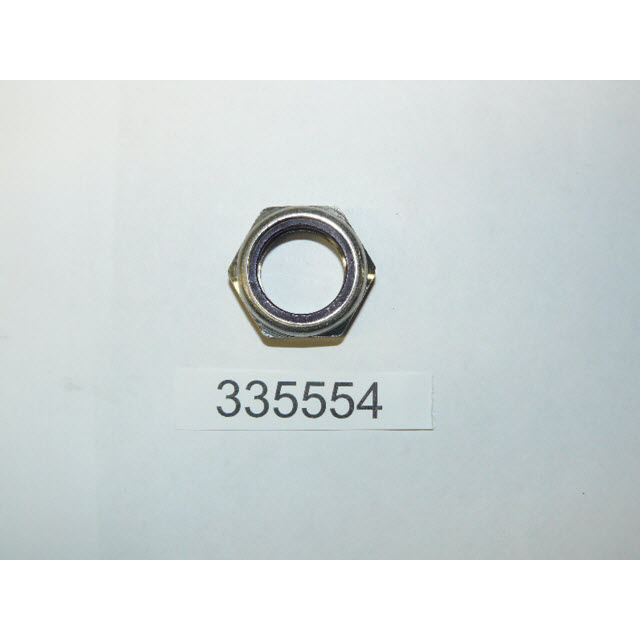

#44 — 335554 — NUT, TILT TUBE (1 required per assembly)

0335554 - Lock Nut [ More info ]

$11.99
6 In Stock.

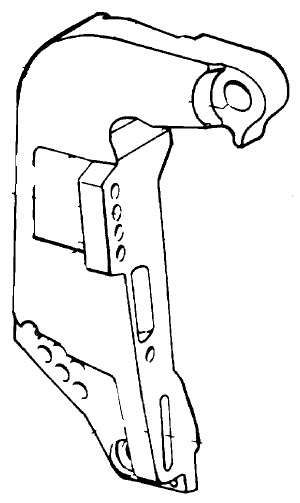

#45 — 336506 — STERN BRACKET, STARBOARD (1 required per assembly)

0336506 - Stern Bracket - Stbd, NLA [ More info ]
Unavailable

0351922 - Stern Bracket - Stbd [ More info ]
Unavailable

#46 — 336209 — BALL, DETENT, TILT LOCK (1 required per assembly)

0336209 - Ball, Detent Detent -tlt Lk [ More info ]

$11.72
1 In Stock.

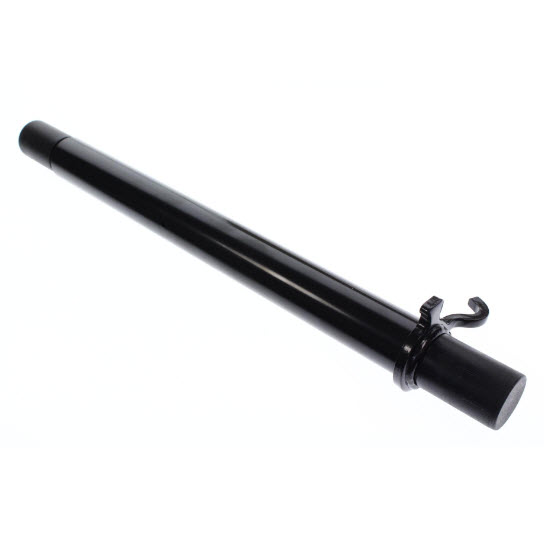

#47 — 435007 — TILT TUBE ASSY (1 required per assembly)

0435007 - Tilt Tube, Stainless Steel [ More info ]

$276.41 $202.12
3 In Stock.

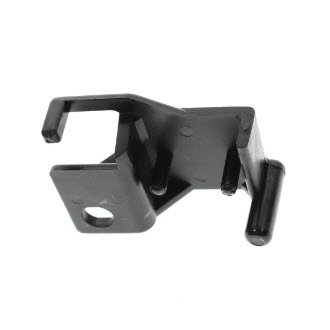

#48 — 336171 — BRACKET, TILT LIMIT SWITCH (1 required per assembly)

0336171 - Bracket, Mounting [ More info ]

$13.25
1 In Stock.

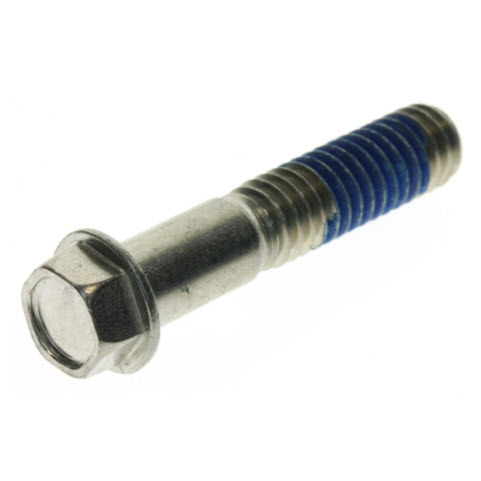

#49 — 324816 — SCREW, ANODE (2 required per assembly)

0324816 - Exhaust Housing Screw - Stainless Steel [ More info ]

$16.31 $11.92
10+ In Stock.

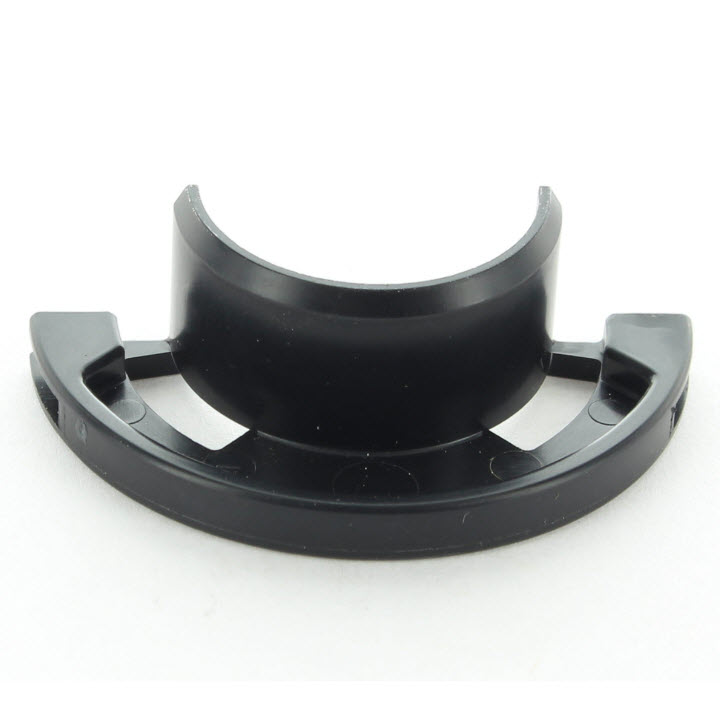

#50 — 337593 — COLLAR, TILT LIMIT, TILT TUBE (1 required per assembly)

0337593 - Tilt Limit Collar [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

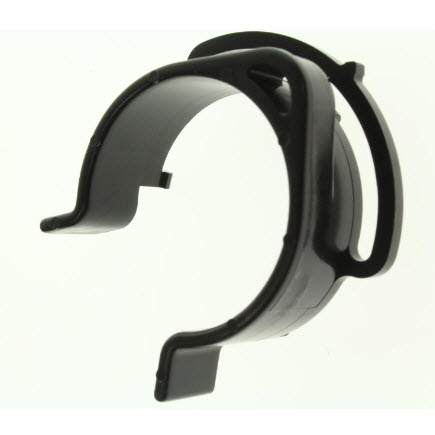

#51 — 337591 — CAM, TILT LIMIT SWITCH (1 required per assembly)

0337591 - Tilt Limit Switch Cam [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

#52 — 514697 — WEDGE, 2-PIN (1 required per assembly)

0514697 - Lock Wedge 2 Pin Receptacle [ More info ]

$3.13
Available to Order: Usually ships within 10 days.

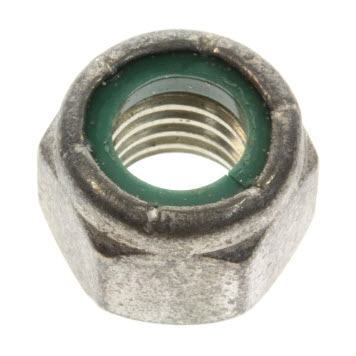

#53 — 313623 — NUT, STERN BRACKET SCREW (4 required per assembly)

0313623 - Nut [ More info ]

$8.00
10+ In Stock.

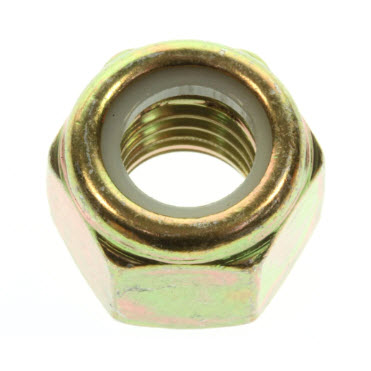

0363254 - NUT LOCK 1 2 [ More info ]

$3.41
Available to Order: Usually ships within 10 days.

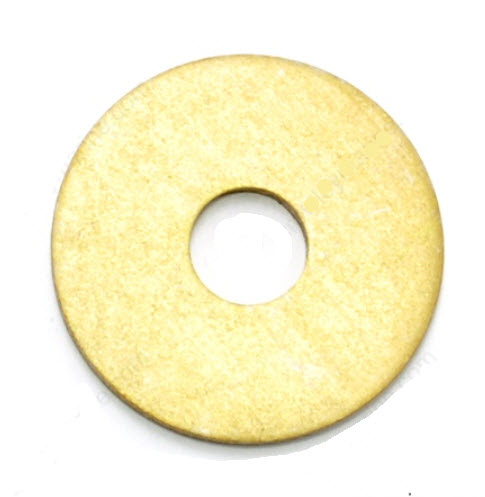

#54 — 307238 — WASHER, MOUNTING SCREWS (2 required per assembly)

0307238 - Washer [ More info ]

$13.25 $4.13
10+ In Stock.

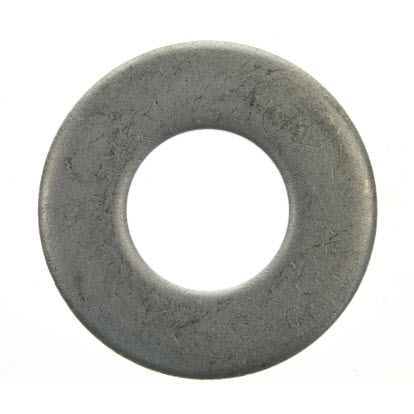

#55 — 320248 — WASHER, MOUNTING SCREWS (4 required per assembly)

0320248 - Washer [ More info ]

$6.54
10+ In Stock.

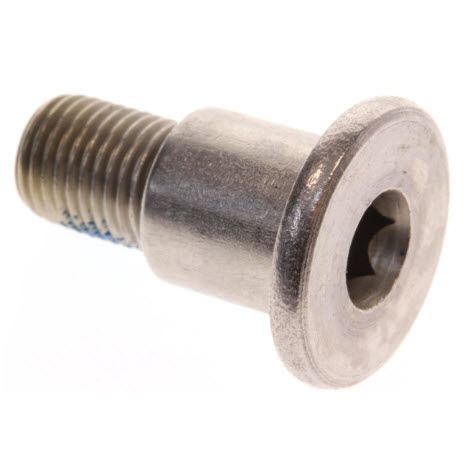

#56 — 335487 — SCREW, TRAIL ARM TO BRACKET (2 required per assembly)

0335487 - Shoulder Screw [ More info ]

$20.39
Available to Order: Usually ships within 10 days.

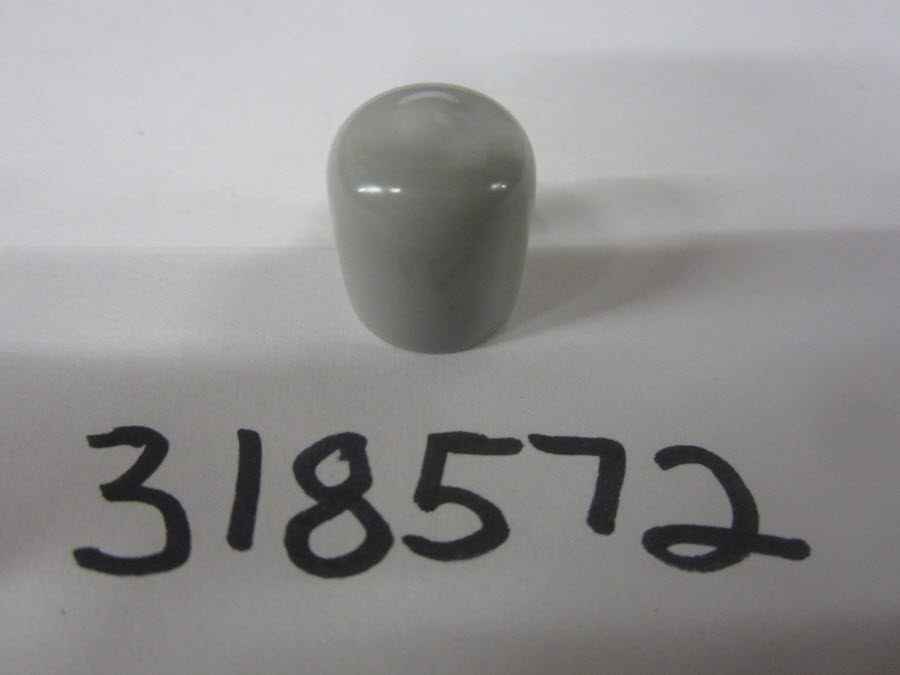

#57 — 318572 — CAP, MOUNTING SCREWS (4 required per assembly)

0318572 - Cap -tran Scr [ More info ]

$3.13 $2.30
10+ In Stock.

#58 — 328744 — SCREW, SENDING UNIT (2 required per assembly)

0328744 - Screw [ More info ]

$9.65
10+ In Stock.

#59 — 327053 — SCREW, BRACKET TO TRANSOM, 3 IN. (76MM) (1 required per assembly)

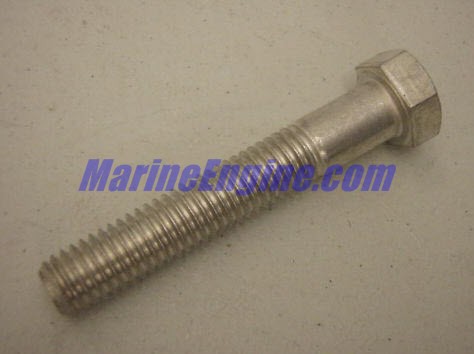

		0327053 - 3 Steering Arm Bolt [ More info ] Unavailable
		0318573 - Lower Support To Transom Bolt [ More info ] $27.99 $6.72 10+ In Stock.

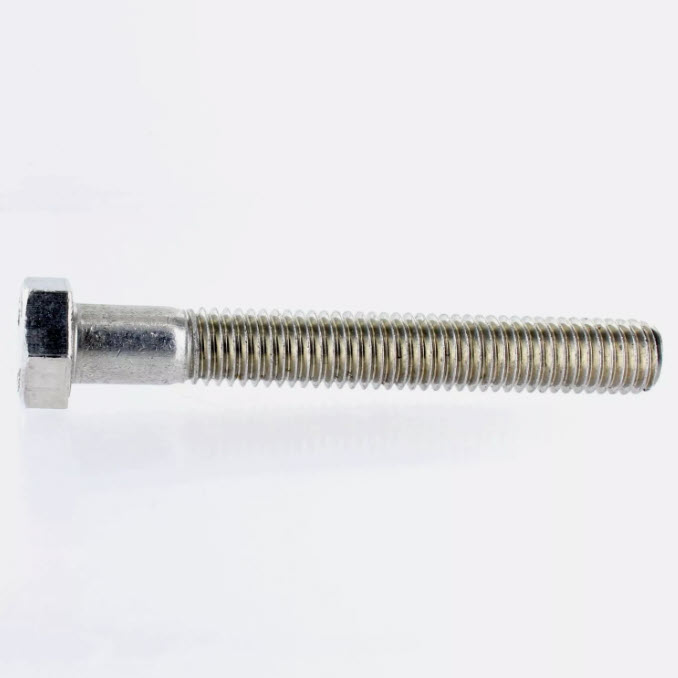

		3587962 - Screw, Volvo [ More info ] $6.30 $6.10 Available to Order: Usually ships within 10 days.

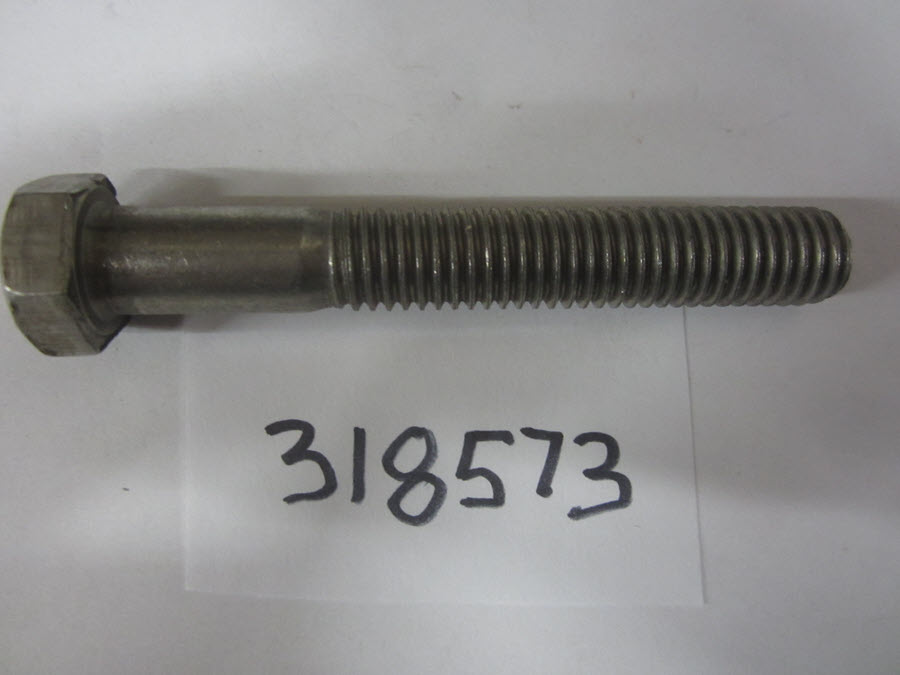

#59 — 318573 — (1 required per assembly)

0318573 - Lower Support To Transom Bolt [ More info ]

$27.99 $6.72
10+ In Stock.

3587962 - Screw, Volvo [ More info ]

$6.30 $6.10
Available to Order: Usually ships within 10 days.

#59 — 336676 — SCREW, BRACKET TO TRANSOM, 4 3/4 IN. (121MM), STANDARD (1 required per assembly)

0336676 - Transom Bolt, 4 3/4 Inch [ More info ]
Unavailable

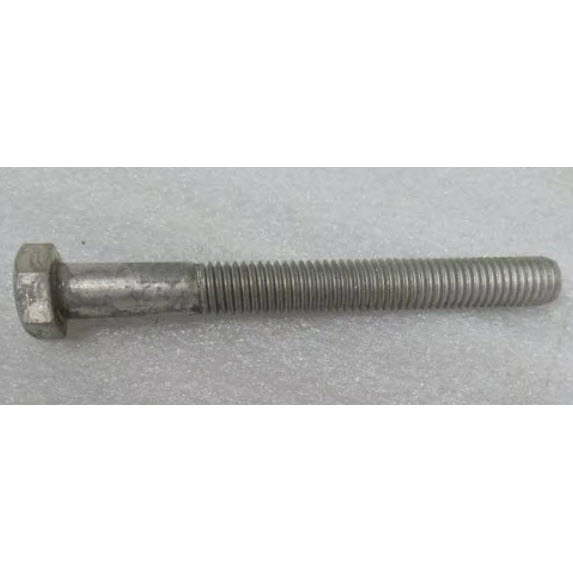

363012 - BOLT_1/2-13X4.75 (363012) [ More info ]

$7.10
Available to Order: Usually ships within 10 days.

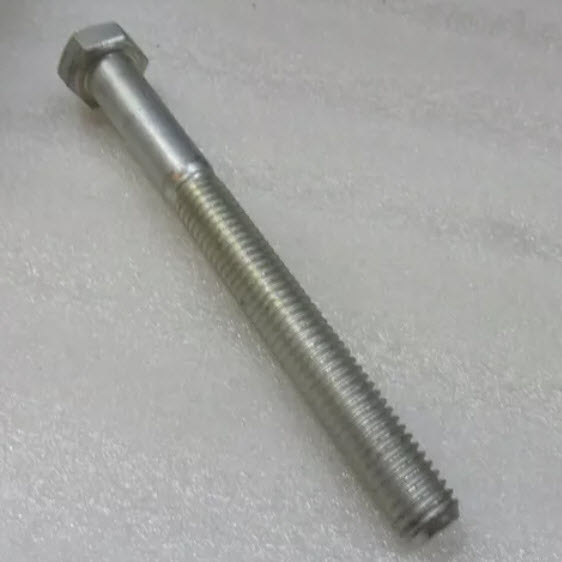

#59 — 331578 — SCREW, BRACKET TO TRANSOM, 5 IN. (127MM) (1 required per assembly)

0331578 - Transom Bolt, 5 Inch [ More info ]

$8.99
10+ In Stock.

#59 — 321577 — SCREW, BRACKET TO TRANSOM, 6 IN. (152MM) (1 required per assembly)

0321577 - Transom Bolt, 6 Inch [ More info ]

$15.00
10+ In Stock.

0354101 - Transom Bolt, 6 Inch [ More info ]

$26.19
10+ In Stock.

0358240 - 0358240 - BOLT 1/2-13 X 5.75 [ More info ]
Unavailable
Replaced by 0363011

363011 - BOLT_1/2-13X5.75 (363011) [ More info ]

$18.35
Available to Order: Usually ships within 10 days.

#60 — 318272 — PLATE, MOUNTING SCREWS (2 required per assembly)

0318272 - Plate, Stern Bracket to Transom [ More info ]

$11.72 $7.71
10+ In Stock.

#61 — 335200 — SCREW, SWIVEL BRACKET (2 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#62 — 336853 — CLIP, SUPPORT (2 required per assembly)

0336853 - Clip [ More info ]

$17.33 $11.42
1 In Stock.

#63 — 514682 — WEDGE, 3-PIN (1 required per assembly)

0514682 - Lock Wedge - 3 Pin Receptacle [ More info ]

$4.26
Available to Order: Usually ships within 10 days.

#64 — 336505 — STERN BRACKET, PORT (1 required per assembly)

0336505 - Stern Bracket - Port, NLA [ More info ]
Unavailable

0351921 - Stern Bracket - Port [ More info ]

$496.73
Available to Order: Usually ships within 10 days.

#65 — 513787 — RETAINER, LIMIT SWITCH LEADS (1 required per assembly)

0513787 - Retainer, Limit Switch [ More info ]

$7.37
2 In Stock.

#66 — 335487 — SCREW, THRUST ROLLER, SWIVEL BRACKET (2 required per assembly)

0335487 - Shoulder Screw [ More info ]

$20.39
Available to Order: Usually ships within 10 days.

#67 — 317894 — CAP, TILT TUBE (1 required per assembly)

0317894 - Tilt Tube Plug [ More info ]

$9.93
2 In Stock.

#68 — 318273 — RETAINER, MOUNTING SCREWS (2 required per assembly)

0318273 - Retainer [ More info ]

$10.70
10+ In Stock.

#69 — 335949 — THRUST ROLLER (2 required per assembly)

0335949 - Thrust Roller [ More info ]

$32.56
Available to Order: Usually ships within 10 days.

#70 — 336172 — RETAINER, TRAIL ARM (1 required per assembly)

0336172 - Retainer, Trail Arm [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

#71 — 337580 — SCREW, COVER TO STERN BRACKET. (OPTIONAL.) (4 required per assembly)

0337580 - Screw [ More info ]

$7.95
8 In Stock.

#72 — 586405 — SWITCH ASSY., TILT LIMIT (1 required per assembly)

0586405 - SWITCH Assy, Tilt limit [ More info ]
Unavailable

0587359 - Limit Switch [ More info ]

$35.18
Available to Order: Usually ships within 10 days.

#73 — 514679 — *TERMINAL, PIN (2 required per assembly)

0514679 - Pin Terminal [ More info ]

$0.77
10+ In Stock.

913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]

$13.53 $12.61
1 In Stock.

#74 — 334241 — GUIDE, BALL DETENT, TILT LOCK (1 required per assembly)

0334241 - Guide [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#75 — 342191 — SCREW, RETAINER TO BRACKET (1 required per assembly)

0342191 - Screw [ More info ]

$9.65
10+ In Stock.

#76 — 335814 — RETAINER, TRAIL LOCK SPRING (2 required per assembly)

0335814 - Retainer, Trail Lock [ More info ]

$11.72
10+ In Stock.

#77 — 586408 — SENDING UNIT ASSY (1 required per assembly)

0586408 - SENDING UNIT Assy [ More info ]

$119.99
1 In Stock.

0587144 - Sending Unit Assembly [ More info ]

$183.59
1 In Stock.

#78 — 513871 — *TERMINAL, RING (1 required per assembly)

0513871 - Ring Terminal [ More info ]

$0.77
Available to Order: Usually ships within 10 days.

#79 — 511527 — *RETAINER (1 required per assembly)

0511527 - Retainer [ More info ]

$9.65
2 In Stock.

#80 — 511528 — *SPRING (1 required per assembly)

0511528 - Spring [ More info ]
Unavailable

#81 — 320689 — *NUT (1 required per assembly)

0320689 - Nut [ More info ]

$9.65
4 In Stock.

#82 — 342386 — *ARM (1 required per assembly)

0342386 - Arm, Tilt and Trim Sender [ More info ]

$13.25
Available to Order: Usually ships within 10 days.

#83 — 514679 — *TERMINAL, PIN (3 required per assembly)

0514679 - Pin Terminal [ More info ]

$0.77
10+ In Stock.

913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]

$13.53 $12.61
1 In Stock.

#84 — 3854047 — *TERMINAL, RING (1 required per assembly)

3854047 - Lead Assembly, Bonding [ More info ]
Unavailable

Revise Search: All Years > 2003 > 250 hp > Evinrude E250FPZSTA > Midsection

« Previous

All Engine Brands

Outboard Motor Parts

Inboard & Sterndrive Engine Parts

Manufacturer Catalogs

All Engine Brands

Outboard Motor Repair Manuals

Inboard & Sterndrive Engine Manuals

Shop by Accessory Category

Please Note

Join the Forum

Discussion Topics

Outboard Motors Directory

Inboard & Sterndrive Engines Directory

Contact / About

Ordering Questions

Returns

Midsection Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor
