Intake Manifold Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

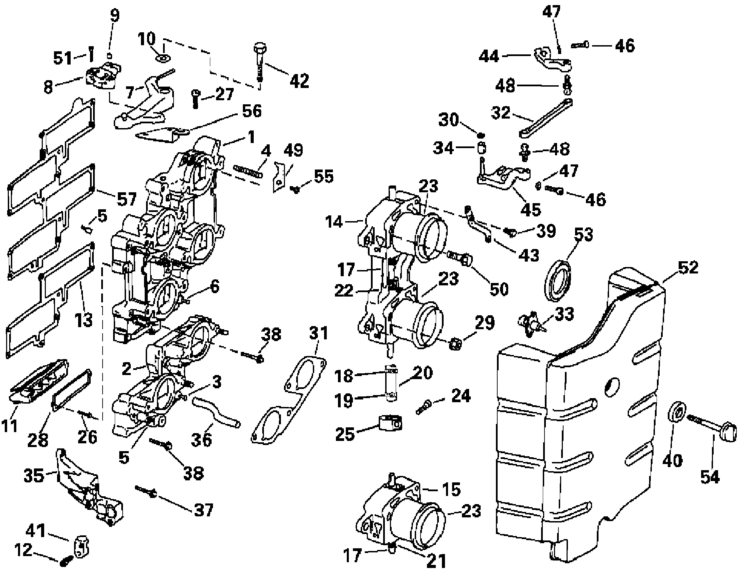

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 5000886 — INTAKE MANIFOLD ASSY, UPPER (1 required per assembly) | ||
  |
|
5000886 - Intake Manifold 200/225FFI [ More info ]
|
| #2 — 5000887 — INTAKE MANIFOLD ASSY, LOWER (1 required per assembly) | ||
  |
|
5000887 - Intake Manifold 200/225FFI [ More info ]
|
| #3 — 325659 — *FITTING (2 required per assembly) | ||
  |
|
|
| #4 — 314616 — *STUD (6 required per assembly) | ||
  |
|
|
| #5 — 345705 — *FITTING, RECIRC TO INTAKE MANIFOLD (6 required per assembly) | ||
  |
|
0345705- Nipple [ More info ] Unavailable |
| #6 — 349181 — FITTING, UPPER MFLD TO VAP SEP (1 required per assembly) | ||
  |
|
|
| #7 — 347254 — THROTTLE CAM (1 required per assembly) | ||
  |
|
0347254 - Throttle Cam [ More info ]
|
| #8 — 5001770 — SENSOR, THROTTLE POSITION (1 required per assembly) | ||
  |
5001770 - Throttle Position Sensor [ More info ] Unavailable |
|
  |
|
0764617 - Sensor & Cap Assembly [ More info ]
|
| #9 — 346040 — *CAP, THROTTLE POSITION (1 required per assembly) | ||
  |
|
|
| #10 — 127386 — WASHER, THROTTLE CAM (1 required per assembly) | ||
  |
|
0127386 - Washer [ More info ]
|
| #11 — 5000323 — REED BOX ASSY (6 required per assembly) | ||
  |
|
5000323 - Reed Box Assembly [ More info ]
|
| #12 — 328725 — SCREW, TRUNNION COVER (2 required per assembly) | ||
  |
|
|
  |
|
18-1596 - Screw, Housing, 328725 [ More info ]
|
| #13 — 331532 — GASKET, LOWER INTAKE MANIFOLD. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
  |
|
0331532 - Lower Intake Manifold Gasket [ More info ]
|
  |
|
18-0161 - Gasket, 331532 [ More info ]
|
| #14 — 5004642 — THROTTLE BODY, UPPER (2 required per assembly) | ||
  |
5004642 - BODY AY,THROTTLE [ More info ] Unavailable |
|
  |
|
5006411 - Throttle Body Assembly [ More info ] Unavailable |
| #15 — 5004643 — THROTTLE BODY, LOWER (2 required per assembly) | ||
  |
|
5004643 - Throttle Body Assembly [ More info ] Unavailable |
| #17 — 303261 — *ROLL PIN (4 required per assembly) | ||
  |
|
0303261 - Roll Pin [ More info ]
|
| #18 — 346785 — *CLAMP, 14.5MM (2 required per assembly) | ||
  |
|
0346785 - Clamp - 14.5mm [ More info ]
|
  |
|
18-9132-9 - Oetiker Clamp 9/16 inch, 14.5 mm, 10 Pack [ More info ]
|
| #19 — 346786 — *CLAMP, 15.7MM (2 required per assembly) | ||
  |
|
0346786 - Clamp - 15.7mm [ More info ]
|
  |
|
18-9133-9 - Oetiker Clamp 5/8 inch, 15.7 mm, 10 Pack [ More info ]
|
| #20 — 348995 — *HOSE, SHAFT CONNECTION (2 required per assembly) | ||
  |
|
|
| #21 — 335075 — *SPRING, LOWER (2 required per assembly) | ||
  |
|
0335075 - Spring [ More info ]
|
| #22 — 332254 — *SPRING, UPPER (2 required per assembly) | ||
  |
|
0332254 - Spring [ More info ]
|
| #23 — 344565 — *ADAPTER, AIR SILENCER (6 required per assembly) | ||
  |
|
0344565 - Adaptor, [ More info ] Unavailable |
| #24 — 349724 — *SCREW, COUPLER UPPER TO LOWER (2 required per assembly) | ||
  |
|
0349724 - Screw, Coupler Upper To Lower [ More info ]
|
| #25 — 348994 — *COUPLER, UPPER TO LOWER (2 required per assembly) | ||
  |
|
0348994 - Coupler [ More info ]
|
| #26 — 332265 — SCREW, REED BOX (12 required per assembly) | ||
  |
|
0332265 - Screw, Reed Box [ More info ]
|
| #27 — 335200 — SCREW, THROTTLE CAM BRACKET (1 required per assembly) | ||
  |
|
|
| #28 — 332266 — GASKET, LEAF PLATE. (INCLUDED IN POWERHEAD GASKET SET.) (6 required per assembly) | ||
  |
|
0332266 - Leaf Plate Gasket [ More info ]
|
  |
|
18-0130-9 - Gasket 332266 2-Pack [ More info ]
|
  |
|
18-0130-9 - Gasket 332266 2-Pack [ More info ]
|
| #29 — 316355 — NUT, THROTTLE BODY TO MANIFOLD (6 required per assembly) | ||
  |
|
0316355 - Carburetor Mounting Nut [ More info ]
|
 |
|
3852142 - Nut, Volvo [ More info ]
|
| #30 — 324678 — O-RING, ROLLER (1 required per assembly) | ||
  |
|
0324678 - Retaining Ring [ More info ]
|
| #31 — 332319 — GASKET, THROTTLE BODY. (INCLUDED IN POWERHEAD GASKET SET.) (3 required per assembly) | ||
  |
|
0332319 - Carburetor Mounting Gasket [ More info ]
|
  |
|
18-0987-9 - Gasket 332319 2-Pack [ More info ]
|
  |
|
18-0987-9 - Gasket 332319 2-Pack [ More info ]
|
| #32 — 341622 — LINK, SHELL (1 required per assembly) | ||
  |
|
0341622 - Link, Shell [ More info ]
|
| #33 — 3010673 — SENSOR, AIR TEMPERATURE (1 required per assembly) | ||
  |
|
3010673 - Air Temperature Sensor [ More info ]
|
| #34 — 432639 — ROLLER, CAM FOLLOWER (1 required per assembly) | ||
  |
|
0432639 - Cam Follower Roller [ More info ]
|
| #35 — 341898 — TRUNNION BLOCK (1 required per assembly) | ||
  |
|
0341898 - Trunnion Bracket [ More info ]
|
  |
|
5007027 - Trunnion Kit Assembly [ More info ]
|
| #36 — 344783 — HOSE, AIR SILENCER DRAIN (1 required per assembly) | ||
  |
|
0344783 - Air Silencer Drain Hose [ More info ]
|
| #37 — 324430 — SCREW, BLOCK TO MANIFOLD (2 required per assembly) | ||
  |
|
0324430 - Impeller Housing Screw [ More info ]
|
| #38 — 319126 — SCREW, MANIFOLD, SHORT (18 required per assembly) | ||
  |
|
|
| #39 — 335200 — SCREW, BRACKET (2 required per assembly) | ||
|
|
|
| #40 — 340840 — SEAL, KNOB TO AIR SILENCER (2 required per assembly) | ||
  |
|
0340840 - Seal, Air Box [ More info ]
|
| #41 — 329271 — COVER, TRUNNION (2 required per assembly) | ||
  |
|
0329271 - Trunnion Cover [ More info ]
|

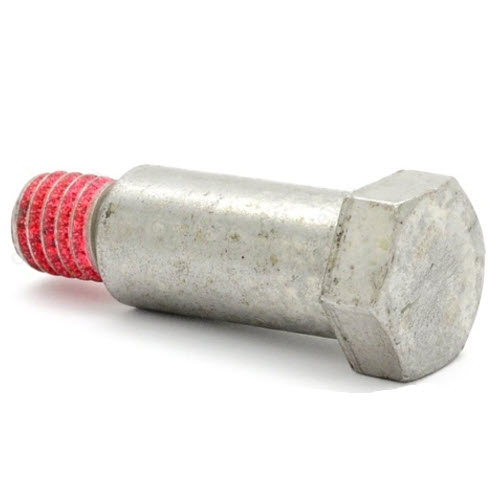

| #42 — 347338 — SCREW, THROTTLE CAM (1 required per assembly) | ||
  |
|
0347338 - Shoulder Screw [ More info ]
|
| #43 — 5000727 — BRACKET, AIR SILENCER (2 required per assembly) | ||
  |
|
5000727 - Bracket & Nut Assembly [ More info ] Unavailable |
| #44 — 437687 — LEVER ASSY, PORT (1 required per assembly) | ||
  |
|
0437687 - Lever & Ball Assembly [ More info ]
|
| #45 — 5004319 — LEVER ASSY, STARBOARD (1 required per assembly) | ||
  |
|
5004319 - Lever & Pin Assembly [ More info ]
|
| #46 — 349064 — *SCREW (2 required per assembly) | ||
  |
|
0349064 - Screw [ More info ] Unavailable |
| #47 — 332609 — *WASHER (2 required per assembly) | ||
  |
|
0332609 - Washer [ More info ]
|
| #48 — 339083 — *BALL JOINT (1 required per assembly) | ||
  |
|
0339083 - Joint, Ball [ More info ] Unavailable |
| #49 — 343985 — POINTER, TIMING (1 required per assembly) | ||
  |
|
0343985 - Timing Pointer [ More info ]
|
| #50 — 317624 — SCREW, THROTTLE BODY TO MANIFOLD (6 required per assembly) | ||
  |
|
0317624 - Screw, Bracket To Pilot Shaft [ More info ]
|
| #51 — 306644 — SCREW, THROTTLE SENSOR (2 required per assembly) | ||
  |
|
|
| #52 — 439767 — AIR SILENCER & SEAL (1 required per assembly) | ||
  |
|
0439767 - Air Silencer and Seal Assembly [ More info ]
|
| #53 — 339581 — *SEAL, AIR SILENCER TO THROTTLE BODY (6 required per assembly) | ||
  |
|
|
| #54 — 439922 — KNOB ASSY, COVER TO THROTTLE BODY (2 required per assembly) | ||
  |
|
0439922 - Carburetor Cover Knob and Screw [ More info ]
|
| #55 — 310379 — SCREW, TIMING POINTER (1 required per assembly) | ||
  |
|
|
| #56 — 347106 — BRACKET, THROTTLE CAM (1 required per assembly) | ||
  |
|
0347106 - Bracket [ More info ]
|
| #57 — 328622 — GASKET, MANIFOLD UPPER TO C/C. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
  |
|
0328622 - Manifold To Crankcase Gasket [ More info ]
|
  |
|
18-0142 - Gasket, 328622 [ More info ]
|
