Gearcase - Fcx & Fcz Models Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

Revise Search: All Years > 2003 > 250 hp > Evinrude E250FPZSTA > Gearcase - Fcx & Fcz Models

NEED PARTS OR KITS?

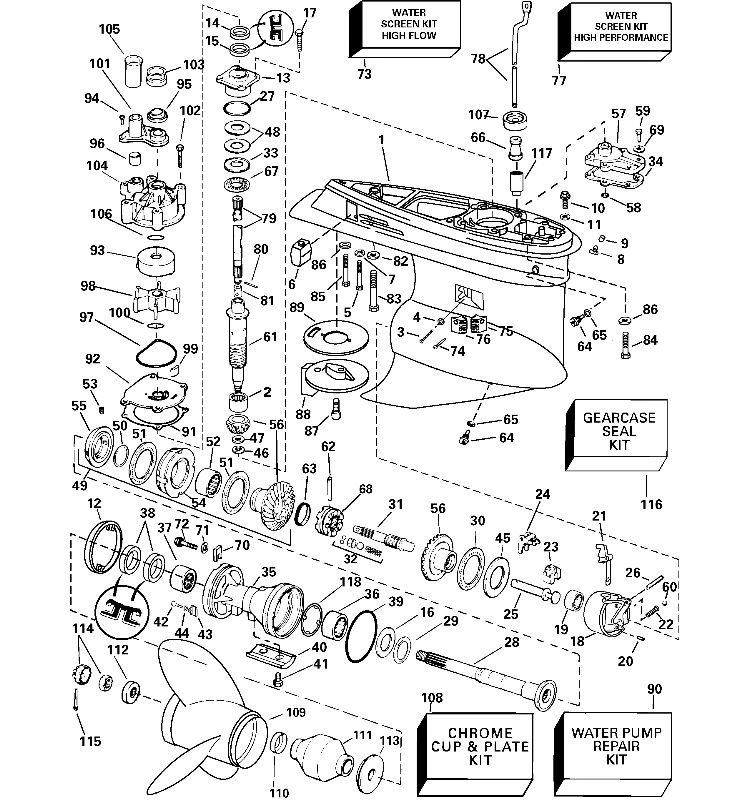

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• If no prop is listed, try our prop finder.

COMPLETE GEARCASE?
• A complete lower unit may be available for less than $950. Find one HERE

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

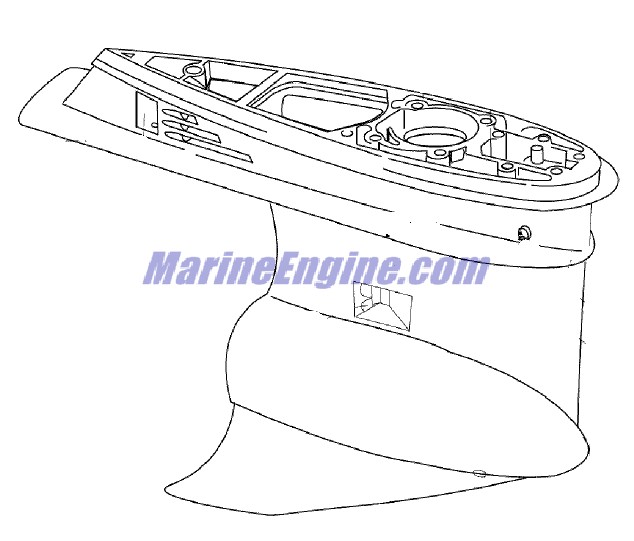

#0 — 5004634 — GEARCASE ASSY, COMPLETE (1 required per assembly)
		5004634 [ More info ] Unavailable Replaced by 5005550
		5005550 - Gearcase Assy, Complete, White [ More info ] Unavailable
		5007399 - Gearcase Assy, Complete, Counter Rotation - White. Less Drive Shaft And Shift Shaft [ More info ] Unavailable
		5009322 [ More info ] Unavailable Replaced by 5009368
		5009368 - Gearcase Assembly,M2 CORO WHT [ More info ] Unavailable

#0 — 337061 — *SCREW, WATER INTAKE SCREENS. (NOT SHOWN.) (2 required per assembly)

0337061 - Screw, Intake Screen [ More info ]

$6.23
Available to Order: Usually ships within 10 days.

#0 — 348479 — *SCREEN, WTR INTAKE-HIGH PERF, PORT. (NOT SHOWN.) (1 required per assembly)

0348479 - Water Inlet Screen Port side [ More info ]

$9.65
1 In Stock.

#0 — 348480 — *SCREEN, WTR INTAKE-HIGH PERF, STBD. (NOT SHOWN.) (1 required per assembly)

0348480 - Water Inlet Screen Starboard Side [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#0 — 338551 — *CUP, IMPELLER-(CHROME). (NOT SHOWN.) (1 required per assembly)

0338551 - Impeller Housing Cup [ More info ]

$112.92
1 In Stock.

#0 — 338552 — *PLATE, IMPELLER HSG-(CHROME). (NOT SHOWN.) (1 required per assembly)

0338552 - Water Pump Plate [ More info ]

$109.64 $22.71
9 In Stock.

#1 — 5001589 — *GEARCASE & BEARING ASSY (1 required per assembly)

5001589 - Gearcase Housing & Bearing Assy [ More info ]
Unavailable

#2 — 387817 — **BEARING, PINION (1 required per assembly)

0387817 - Roller Bearing [ More info ]

$69.49 $51.19
10 In Stock.

18-1117 - Bearing, 387817, 31-42647A1 [ More info ]

$53.99 $47.94
4 In Stock.

#3 — 324852 — **SCREW, PINION BEARING (1 required per assembly)

0324852 - Retaining Screw [ More info ]

$8.56
10+ In Stock.

#4 — 332584 — ***SEAL, PINION BRG SCREW (1 required per assembly)

0332584 - Seal [ More info ]

$3.44
10+ In Stock.

18-7475-9 - O-Ring (Pack of 5), 0332583, 332584 [ More info ]

$14.49
10+ In Stock.

#5 — 341219 — **SCREW, ANODE (1 required per assembly)

0341219 - Anode Screw, See Dimensions on Detail Page [ More info ]

$13.99
10+ In Stock.

#6 — 436745 — **ANODE (1 required per assembly)

0436745 - Anode and Insert, Aluminum [ More info ]

$23.49 $19.23
10+ In Stock.

18-6024 - Anode, Zinc, 436745 [ More info ]

$18.49 $16.74
2 In Stock.

#7 — 307161 — **LOCKWASHER, ANODE (1 required per assembly)

0307161 - LockWasher [ More info ]

$2.55
7 In Stock.

#8 — 336535 — *NIPPLE, PITOT TUBE (1 required per assembly)

0336535 - NIPPLE [ More info ]

$7.22
10+ In Stock.

#9 — 305749 — *CAP, PITOT TUBE FITTING (1 required per assembly)

0305749 - Nipple Plug [ More info ]

$17.33
10+ In Stock.

#10 — 341220 — *SCREW, PITOT SEAL (1 required per assembly)

0341220 - Screw, Pitot Tube [ More info ]

$6.54
1 In Stock.

#11 — 437330 — *WASHER & SEAL ASSY, PITOT TUBE. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0437330 - Washer And Seal Assembly [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#12 — 346462 — *RING, PROPELLER SEAL (1 required per assembly)

0346462 - Ring [ More info ]

$14.99
Available to Order: Usually ships within 10 days.

#13 — 439476 — *BEARING HSG ASSY, DRIVESHAFT (1 required per assembly)

0439476 - Drive Shaft Bearing Housing and Seal Assembly [ More info ]

$140.99 $120.13
10+ In Stock.

#14 — 329922 — **SEAL, UPPER. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0329922 - Oil Retainer [ More info ]

$12.49
10+ In Stock.

18-2061 - Seal, 329922 [ More info ]

$8.39 $7.31
7 In Stock.

#15 — 329923 — **SEAL, LOWER. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0329923 - Oil Retainer [ More info ]

$13.49
10+ In Stock.

18-2062 - Seal 329923 [ More info ]

$9.99 $8.89
10+ In Stock.

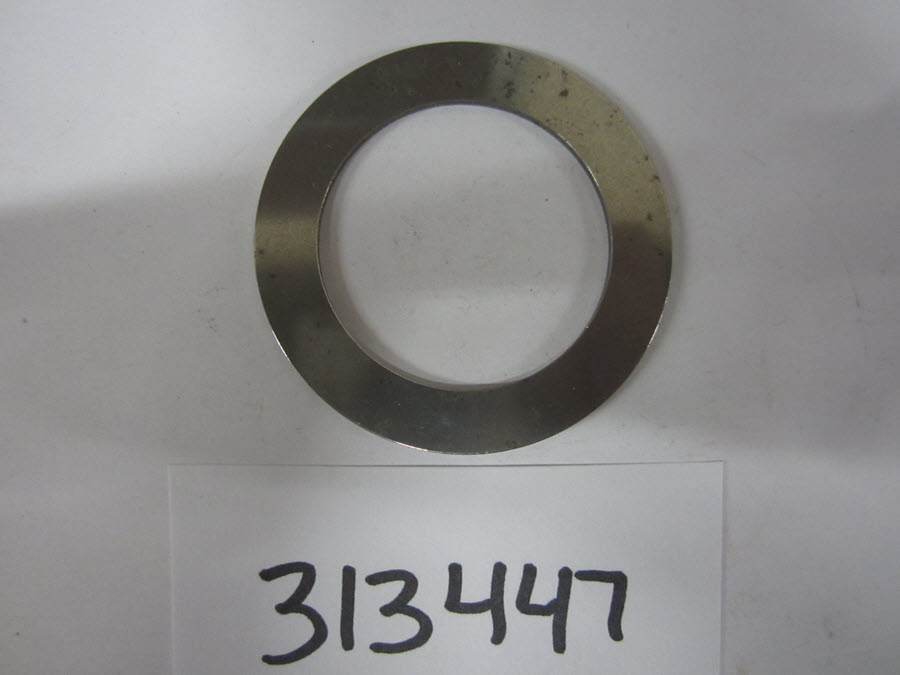

#16 — 313447 — *THRUST WASHER, PROPSHAFT (1 required per assembly)

0313447 - Washer [ More info ]

$17.49 $17.17
10+ In Stock.

#17 — 317624 — *SCREW, HOUSING TO GEARCASE (4 required per assembly)

0317624 - Screw, Bracket To Pilot Shaft [ More info ]

$4.00
10+ In Stock.

#18 — 5001602 — *BEARING HSG ASSY, REV GEAR (1 required per assembly)

5001602 - Shifter Housing Assembly [ More info ]

$500.30
Available to Order: Usually ships within 10 days.

#19 — 389039 — **BEARING, REV GEAR (1 required per assembly)

0389039 - Forward Gear Bearing [ More info ]

$89.49 $83.30
8 In Stock.

#20 — 331880 — **PIN, HOUSING (1 required per assembly)

0331880 - Pin [ More info ]

$4.74
7 In Stock.

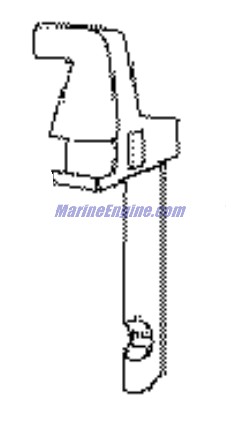

#21 — 347378 — *DETENT, SHIFT (1 required per assembly)

0347378 - Detent [ More info ]

$89.75
Available to Order: Usually ships within 10 days.

#22 — 911962 — *SPRING, DETENT (1 required per assembly)

0911962 - Detent Spring [ More info ]

$4.11
3 In Stock.

#23 — 334163 — *CRADLE, SHIFT (1 required per assembly)

0334163 - Cradle, Shift [ More info ]

$27.49 $22.51
2 In Stock.

18-3766 - Shift Cradle, 334163 [ More info ]

$23.99 $22.00
In Stock

#24 — 322938 — *LEVER, SHIFT (1 required per assembly)

0322938 - Shift Lever [ More info ]

$55.99 $45.84
9 In Stock.

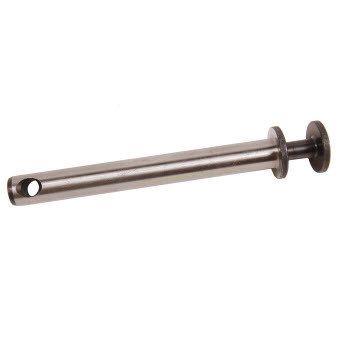

#25 — 348484 — *SHAFT, SHIFT (1 required per assembly)

0348484 - Shifter Shaft [ More info ]

$85.16 $17.65
10+ In Stock.

#26 — 328825 — *PIN, SHIFT LEVER (1 required per assembly)

0328825 - Shifter Arm Pin [ More info ]

$9.01 $4.56
10+ In Stock.

#27 *— 314728 — O-RING, DRIVESHAFT BEARING HSG. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)**
		0314728 - O-Ring - Drive Shaft [ More info ] Unavailable
		0354731 - O-Ring [ More info ] $5.67 10+ In Stock.
		18-7130 - O-Ring 314728 [ More info ] $1.99 $1.65 7 In Stock.

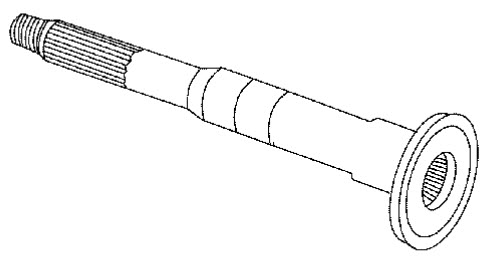

#28 — 5001578 — *PROPELLER SHAFT (1 required per assembly)

5001578 - Propeller Shaft Assembly [ More info ]

$657.49 $612.04
Available to Order: Usually ships within 10 days.

#29 — 382408 — *THRUST BEARING, PROPSHAFT (1 required per assembly)

0382408 - Bearing Assembly [ More info ]

$11.99
10+ In Stock.

18-1366 - Bearing, 382408 [ More info ]

$12.19
Available to Order: Usually ships within 10 days.

#30 — 389042 — *THRUST BEARING, REVERSE GEAR (1 required per assembly)

0389042 - Forward Gear Thrust Bearing [ More info ]

$66.49 $65.30
4 In Stock.

18-1370 - Thrust Bearing Forward Gear (V4 [ More info ]

$71.69 $68.16
In Stock

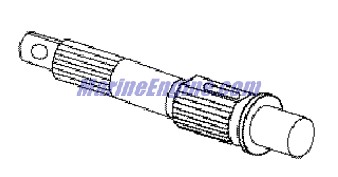

#31 — 5000249 — *CLUTCH SHAFT ASSY (1 required per assembly)

5000249 - Clutch Shaft Assembly [ More info ]

$423.29
Available to Order: Usually ships within 10 days.

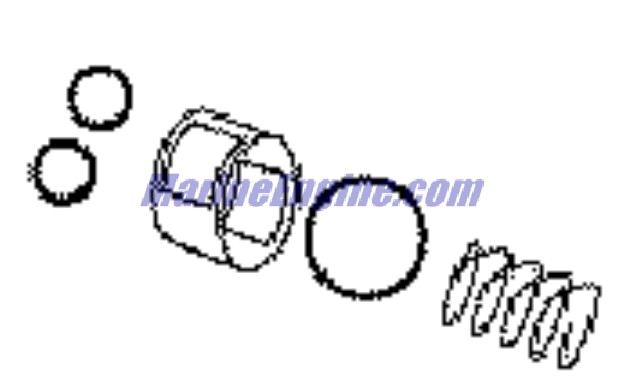

#32 — 5005096 — **KIT, CLUTCH SHAFT RETAINER (1 required per assembly)

5005096 - Clutch Detent Kit [ More info ]

$24.33 $14.79
10+ In Stock.

#33 — 327656 — *THRUST WASHER, DRIVESHAFT (1 required per assembly)

0327656 - Thrust Washer [ More info ]

$17.49
10 In Stock.

#34 — 324670 — *GASKET, SHIFT ROD COVER. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0324670 - Shift Rod Cover Gasket [ More info ]
Unavailable

0352165 - Shift Rod Cover Gasket [ More info ]

$4.56
10+ In Stock.

18-0313 - Gasket 352165 [ More info ]

$3.99
Available to Order: Usually ships within 10 days.

18-0110-9 - Gasket (2PK) [ More info ]

$7.99
3 In Stock.

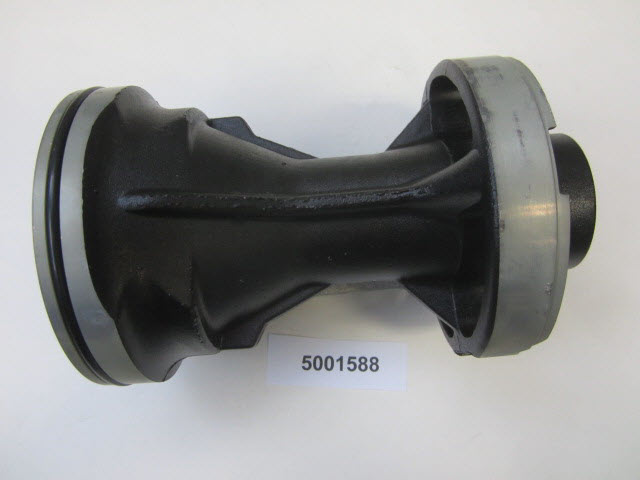

#35 — 5001588 — *BEARING HSG ASSY, PROPSHAFT (1 required per assembly)

5001588 - Prop Shaft Housing Assembly [ More info ]

$224.99 $202.49
3 In Stock.

#36 — 431926 — **NEEDLE BEARING ASSY, FRONT (1 required per assembly)

0431926 - Needle Bearing [ More info ]

$42.32
Available to Order: Usually ships within 10 days.

#37 — 436752 — **NEEDLE BEARING ASSY, REAR (1 required per assembly)

0436752 - Needle Bearing [ More info ]

$20.99 $17.20
6 In Stock.

#38 — 334950 — **SEAL, PROPSHAFT. (CONTENTS OF GEARCASE SEAL KIT.) (2 required per assembly)

0334950 - Prop Shaft Seal [ More info ]

$23.49 $19.23
10+ In Stock.

18-8367 - Seal, 334950 [ More info ]

$21.99 $20.84
10+ In Stock.

#39 — 326849 — **O-RING, PROPSHAFT SHAFT HSG. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0326849 - O-Ring - Propshaft Shaft Housing [ More info ]

$7.34 $3.72
10+ In Stock.

#40 — 431708 — **ANODE, BEARING HOUSING (1 required per assembly)

0431708 - Anode, Aluminum, Bearing Housing [ More info ]

$23.99 $23.56
10+ In Stock.

18-6095 - Anode, Zinc, 431708 [ More info ]

$22.19 $21.11
2 In Stock.

#41 — 908158 — **SCREW, ANODE (2 required per assembly)

0908158 - Screw [ More info ]

$5.11 $2.88
10+ In Stock.

3852050 - Screw, Volvo [ More info ]

$4.00
2 In Stock.

#42 — 916070 — *SCREW, WEDGE (1 required per assembly)

0916070 - Screw [ More info ]

$4.44
Available to Order: Usually ships within 10 days.

#43 — 349001 — *WEDGE, PROPSHAFT HSG TO GC (1 required per assembly)

0349001 - Wedge [ More info ]

$17.33
Available to Order: Usually ships within 10 days.

#44 — 345998 — *WASHER, WEDGE SCREW (1 required per assembly)

0345998 - Spring Washer [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#45 — 327669 — *THRUST WASHER, REVERSE GEAR (1 required per assembly)

0327669 - Thrust Washer [ More info ]

$47.99 $47.14
7 In Stock.

#46 — 314730 — *NUT, PINION TO DRIVESHAFT (1 required per assembly)

0314730 - Pinion To Driveshaft Nut [ More info ]

$18.49
10+ In Stock.

18-3719 - Nut, 11-35921, 314730 [ More info ]

$4.99 $4.47
4 In Stock.

#47 — 350038 — *WASHER, PINION NUT (1 required per assembly)

0350038 - Washer [ More info ]

$3.13
Available to Order: Usually ships within 10 days.

#48 — 323362 — *SHIM, 0.003 IN. (0,07MM) (1 required per assembly)

0323362 - .003" Inch Shim [ More info ]

$6.23
10+ In Stock.

#48 — 323361 — *SHIM, 0.004 IN. (0,10MM) (1 required per assembly)

0323361 - Shim, Bearing Housing, .004 inch, 10mm [ More info ]

$6.67
10+ In Stock.

#48 — 314745 — *SHIM, 0.005 IN. (0,12MM) (1 required per assembly)

0314745 - Bearing Housing Shim .005 inch, 12mm [ More info ]

$6.78
10+ In Stock.

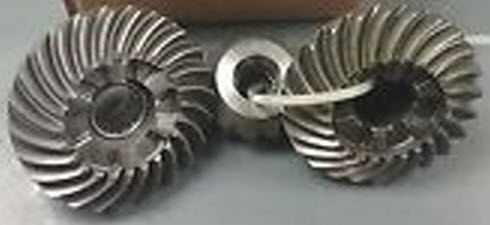

#49 — 5001586 — *GEAR SET ASSY (1 required per assembly)

5001586 - Gear Set, Counter Rotation-Magnum [ More info ]

$1,780.49 $1,524.06
Available to Order: Usually ships within 10 days.

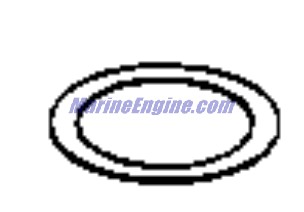

#50 — 338717 — **SHIM, 0.003 IN. (0,07MM) (1 required per assembly)

0338717 - Shim -.0030 [ More info ]

$11.72
5 In Stock.

#50 — 338718 — **SHIM, 0.004 IN. (0,10MM) (1 required per assembly)

0338718 - Shim -.0040 [ More info ]

$11.72 $2.43
9 In Stock.

#50 — 338719 — **SHIM, 0.005 IN. (0,12MM) (1 required per assembly)

0338719 - Shim -.0050 [ More info ]

$11.72
5 In Stock.

#51 — 385043 — **THRUST BEARING, FWD GEAR (2 required per assembly)

0385043 - Thrust Bearing [ More info ]

$36.49 $29.88
6 In Stock.

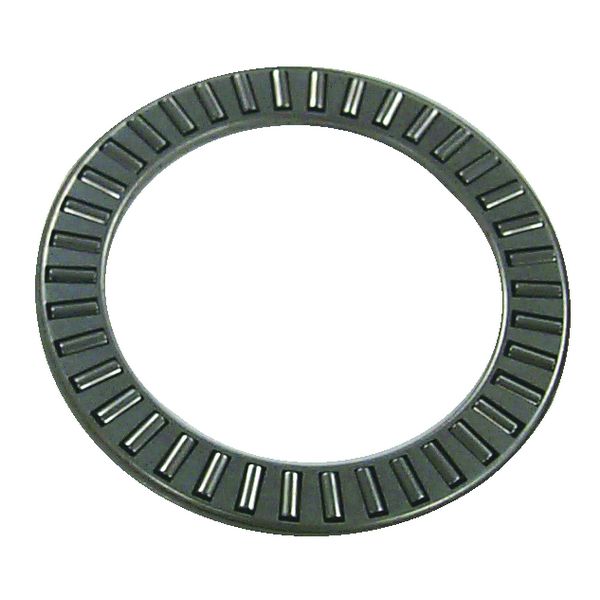

18-1371 - Bearing, 385043 [ More info ]

$34.09 $32.36
In Stock

#52 — 389039 — **BEARING, FWD GEAR (1 required per assembly)

0389039 - Forward Gear Bearing [ More info ]

$89.49 $83.30
8 In Stock.

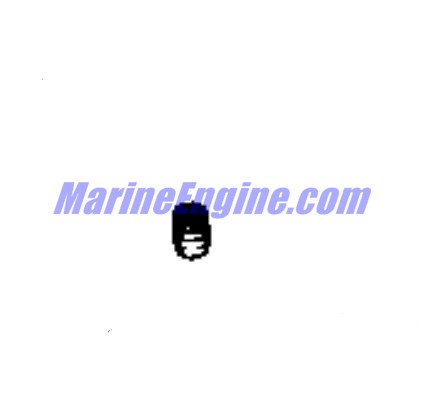

#53 — 338716 — **SET SCREW, THRUST FLANGE (4 required per assembly)

0338716 - SET Screw [ More info ]

$5.97 $1.24
2 In Stock.

#54 — 333885 — **HOUSING, FWD GEAR (1 required per assembly)

0333885 - Bearing Housing [ More info ]

$395.75
Available to Order: Usually ships within 10 days.

#55 — 337796 — **THRUST FLANGE, FWD GEAR (1 required per assembly)

0337796 - Flange, Thrust [ More info ]

$402.89
Available to Order: Usually ships within 10 days.

#56 — 5001585 — **GEAR SET, FWD, REV, PINION (1 required per assembly)

5001585 - Gear Set, Mag Counter Rotation [ More info ]

$754.49 $702.35
Available to Order: Usually ships within 10 days.

#57 — 5004598 — *COVER & SEAL ASSY, SHIFT ROD (1 required per assembly)

5004598 - Cover And Seal Assembly [ More info ]
Unavailable

5006241 - Shift Rod Cover [ More info ]

$60.17
10+ In Stock.

#58 — 318372 — **O-RING, SHIFT ROD. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0318372 - O Ring - Shift Rod [ More info ]

$3.44
10+ In Stock.

18-7137-9 - O-Ring 318372 (PK5) [ More info ]

$9.99 $8.61
Available to Order: Usually ships within 10 days.

18-7137-9 - O-Ring 318372 (PK5) [ More info ]

$9.99 $8.61
Available to Order: Usually ships within 10 days.

#59 — 302325 — *SCREW, SHIFT ROD COVER (6 required per assembly)

0302325 - Screw [ More info ]

$6.23 $3.16
10+ In Stock.

18-1597 - Screw, Housing, 302325 [ More info ]

$5.26 $1.93
1 In Stock.

#60 — 160084 — *BALL, DETENT (1 required per assembly)

0160084 - Ball [ More info ]

$6.23
10+ In Stock.

#61 — 347371 — *DRIVESHAFT, LOWER (1 required per assembly)

0347371 - Drive Shaft, Lower [ More info ]
Unavailable

0356900 - Lower Drive Shaft [ More info ]

$235.49 $219.21
1 In Stock.

#62 — 313448 — *PIN, CLUTCH DOG (1 required per assembly)

0313448 - Pin [ More info ]

$6.89
4 In Stock.

#63 — 324369 — *SPRING, CLUTCH DOG PIN (1 required per assembly)

0324369 - Clutch Dog Spring [ More info ]

$6.23
10+ In Stock.

18-2399 - Spring, 324369 [ More info ]

$2.99
Available to Order: Usually ships within 10 days.

#64 — 318544 — *SCREW, FILL & DRAIN. (CONTENTS OF GEARCASE SEAL KIT.) (2 required per assembly)

0318544 - Fill and Drain Plug [ More info ]

$21.99 $18.01
10+ In Stock.

18-4249 - Drain Screw, 318544 Allen Type [ More info ]

$15.19 $14.95
2 In Stock.

18-2378 - Magnetic Drain Screw, Slotted 318544 [ More info ]

$15.59 $14.36
10+ In Stock.

#65 — 311598 — **SEAL, FILL & DRAIN SCREW (1 required per assembly)

0311598 - Drain Plug Washer [ More info ]

$1.58
10+ In Stock.

#66 — 321122 — *SPACER, SHIFT ROD COVER. (FCX - MODELS. FCZ - MODELS.) (1 required per assembly)

0321122 - Shift Rod Spacer [ More info ]

$14.27
10+ In Stock.

#67 — 387656 — *THRUST BEARING, DRIVESHAFT (1 required per assembly)

0387656 - Thrust Bearing [ More info ]

$47.49 $46.63
10+ In Stock.

#68 — 337774 — *SHIFTER, CLUTCH DOG (1 required per assembly)

0337774 - Shifter Clutch Dog [ More info ]

$150.99 $140.55
Available to Order: Usually ships within 10 days.

18-2216 - Clutch, 337774 [ More info ]

$156.59 $141.52
2 In Stock.

#69 — 328702 — *WASHER, SHIFT ROD COVER SCREW (6 required per assembly)

0328702 - Washer [ More info ]

$4.44 $1.74
10+ In Stock.

#70 — 333957 — *TAB, RETAINER (2 required per assembly)

0333957 - Retaining Tab [ More info ]

$36.99 $22.48
10+ In Stock.

#71 — 328743 — *WASHER, TAB SCREW (2 required per assembly)

0328743 - Washer [ More info ]

$5.97 $3.39
10+ In Stock.

#72 — 350271 — *SCREW, RETAINER TAB (2 required per assembly)

0350271 - Screw [ More info ]

$12.99
10+ In Stock.

#73 — 5005063 — *WATER SCREEN KIT, HIGH FLOW (1 required per assembly)

5005063 - Water Intake Screen Kit, High Flow [ More info ]

$30.08
Available to Order: Usually ships within 10 days.

#74 — 337061 — **SCREW, WATER INTAKE SCREENS (2 required per assembly)

0337061 - Screw, Intake Screen [ More info ]

$6.23
Available to Order: Usually ships within 10 days.

#75 — 350264 — **SCREEN, WTR INTAKE-HIGH FLOW, PORT (1 required per assembly)

0350264 - Water Inlet Screen [ More info ]

$13.25
Available to Order: Usually ships within 10 days.

#76 — 350265 — **SCREEN, WTR INTAKE-HIGH FLOW, STBD (1 required per assembly)

0350265 - Water Inlet Screen [ More info ]

$13.25
Available to Order: Usually ships within 10 days.

#77 — 5005124 — WATER SCREEN KIT, HIGH PERF (1 required per assembly)

5005124 - Water Intake Screen High Flow Kit [ More info ]

$30.08
Available to Order: Usually ships within 10 days.

#78 — 347301 — SHIFT ROD. (FCX - MODELS.) (1 required per assembly)

0347301 - Shift Rod 25 Inch Magnum [ More info ]

$106.58
Available to Order: Usually ships within 10 days.

#78 — 347391 — SHIFT ROD. (FCZ - MODELS.) (1 required per assembly)

0347391 - Shift Rod 30 Inch Magnum [ More info ]

$105.05
Available to Order: Usually ships within 10 days.

#79 — 5000623 — DRIVESHAFT ASSY, UPPER. (FCX - MODELS.) (1 required per assembly)

5000623 - Drive Shaft. FHX MODELS [ More info ]

$200.00
1 In Stock.

5007672 - Upper Drive Shaft Kit -25 [ More info ]

$483.98
Available to Order: Usually ships within 10 days.

92-306-04-25B - Drive Shaft replaces 5000623 [ More info ]

$149.00 $149.00
Available to Order

#79 — 5000628 — DRIVESHAFT ASSY, UPPER. (FCZ - MODELS.) (1 required per assembly)

5000628 [ More info ]
Unavailable
Replaced by 5007673

5007673 - Upper Drive Shaft Assembly [ More info ]

$1,267.63 $1,175.49
1 In Stock.

#80 — 311538 — *ROLL PIN, DRIVESHAFT (1 required per assembly)

0311538 - Roll Pin [ More info ]

$6.23
7 In Stock.

#81 — 338504 — *RETAINER, DRIVESHAFT (1 required per assembly)

0338504 - Retainer, Drive Shaft [ More info ]

$6.23
10+ In Stock.

#82 — 330265 — WASHER, MOUNTING SCREW, 7/16 IN. (1 required per assembly)

0330265 - Washer [ More info ]

$6.23
Available to Order: Usually ships within 10 days.

3854496 - Washer, Volvo [ More info ]

$2.20
4 In Stock.

#83 — 331998 — SCREW, MOUNTING, 7/16 IN. X 3.50 IN. (1 required per assembly)

0331998 - Screw, Gearcase To Housing [ More info ]

$30.08
Available to Order: Usually ships within 10 days.

#84 — 331999 — SCREW, MOUNTING, 3/8 IN. X 1.75 IN. (4 required per assembly)

0331999 - Screw, Gearcase Housing [ More info ]

$2.50
10+ In Stock.

0358287 - Screw, 3/8-16 X 1.75 [ More info ]

$4.62
4 In Stock.

#85 — 330263 — SCREW, MOUNTING, 3/8 IN. X 3.50 IN. (1 required per assembly)

0330263 - Screw, Gearcase To Housing [ More info ]
Unavailable

0358288 - Screw, 3/8-16 X 3.5 [ More info ]

$4.74
2 In Stock.

#86 — 330266 — WASHER, MOUNTING SCREW, 3/8 IN. (5 required per assembly)

0330266 - Washer [ More info ]

$9.65
10+ In Stock.

#87 — 313715 — SCREW, TRIM TAB (1 required per assembly)

0313715 - Trim Tab Screw [ More info ]

$12.99
10+ In Stock.

#88 — 338743 — TRIM TAB (1 required per assembly)

0338743 - Trim Tab, Counter Rotation [ More info ]

$64.25
Available to Order: Usually ships within 10 days.

#89 — 331409 — SEAL, TRIM TAB (1 required per assembly)

0331409 - Seal [ More info ]

$17.33
Available to Order: Usually ships within 10 days.

#90 — 5001595 — WATER PUMP REPAIR KIT (1 required per assembly)

5001595 - Water Pump Kit with Housing [ More info ]

$107.79 $83.95
10+ In Stock.

18-3315-2 - Water Pump Kit With Housing [ More info ]

$90.99 $79.53
7 In Stock.

#91 — 338484 — *GASKET, IMPELLER PLATE. (CONTENTS OF GEARCASE SEAL KIT.) (1 required per assembly)

0338484 - Water Pump Gasket [ More info ]

$4.56
10+ In Stock.

18-2557-9 - Gasket 338484 2-Pack [ More info ]

$7.75 $5.69
8 In Stock.

#92 — 338485 — *PLATE, IMPELLER HSG-(STAINLESS) (1 required per assembly)

0338485 - Water Pump Plate [ More info ]

$15.49
1 In Stock.

#93 — 338486 — *CUP, IMPELLER-(STAINLESS) (1 required per assembly)

0338486 - Impeller Housing Cup [ More info ]

$18.49 $18.16
5 In Stock.

#94 — 306643 — *SCREW, COVER TO IMPELLER HSG (2 required per assembly)

0306643 - Screw [ More info ]

$4.00
10+ In Stock.

#95 — 320943 — *GROMMET, PUMP TO EXH HSG (1 required per assembly)

0320943 - Impeller Housing Grommet [ More info ]

$11.15
10+ In Stock.

#96 — 314008 — *GROMMET, WATER TUBE TO COVER (1 required per assembly)

0314008 - Water Tube Grommet [ More info ]

$3.77
10+ In Stock.

#97 — 331353 — *SEAL, IMPELLER HOUSING PLATE (1 required per assembly)

0331353 - Seal [ More info ]

$12.49
10+ In Stock.

18-7963 - O-Ring 331353 [ More info ]

$10.99 $9.78
7 In Stock.

#98 — 5001593 — *IMPELLER ASSY (1 required per assembly)

5001593 - Impeller Kit [ More info ]

$48.81 $39.96
10+ In Stock.

18-3059 - Impeller, 5001593 [ More info ]

$30.49 $29.84
10+ In Stock.

#99 — 331107 — *KEY, IMPELLER (1 required per assembly)

0331107 - Impeller Key [ More info ]

$1.49
10+ In Stock.

#100 — 302035 — *O-RING, IMPELLER TO PLATE (1 required per assembly)

0302035 - Spacer to Impeller Housing O-Ring [ More info ]

$4.00
10+ In Stock.

#101 — 338893 — *COVER, IMPELLER HOUSING (1 required per assembly)

0338893 - Impeller Housing Cover [ More info ]

$11.49
10+ In Stock.

#102 — 302325 — *SCREW, IMPELLER HOUSING (4 required per assembly)

0302325 - Screw [ More info ]

$6.23 $3.16
10+ In Stock.

18-1597 - Screw, Housing, 302325 [ More info ]

$5.26 $1.93
1 In Stock.

#103 — 338601 — *GROMMET, SLEEVE TO EXH HSG. (FCX, FCZ - MODELS.) (1 required per assembly)

0338601 - Pump To Housing Grommet [ More info ]

$6.78
9 In Stock.

#104 — 435959 — *IMPELLER HOUSING (1 required per assembly)

0435959 - Impeller Housing [ More info ]

$9.99
3 In Stock.

5007968 - Impeller Housing Assembly [ More info ]

$12.99
8 In Stock.

0360347 - Impeller Housing [ More info ]

$21.99 $21.59
Available to Order: Usually ships within 10 days.

18-4571 - Housing, Water Pump, 360347 [ More info ]

$11.35 $9.86
1 In Stock.

#105 — 338636 — *SLEEVE, PUMP COVER EXTENSION. (FCX - MODELS.) (1 required per assembly)

0338636 - Sleeve [ More info ]

$6.00
6 In Stock.

0354580 - Sleeve [ More info ]

$15.29
3 In Stock.

#105 — 338667 — *SLEEVE, PUMP COVER EXTENSION. (FCZ - MODELS.) (1 required per assembly)

0338667 - Sleeve. CZ Only [ More info ]

$6.24
10 In Stock.

0354579 - Sleeve [ More info ]

$16.31 $3.38
10+ In Stock.

#106 — 331188 — *O-RING, CUP TO HOUSING (1 required per assembly)

0331188 - O RING [ More info ]

$5.67
10+ In Stock.

18-7143-9 - O-Ring 25-65936 (5-Pack) [ More info ]

$9.26
Available to Order: Usually ships within 10 days.

#107 — 321008 — GROMMET, EXH HSG TO SHIFT ROD (1 required per assembly)

0321008 - Exhaust Housing to Shift Rod Grommet [ More info ]

$6.33
10+ In Stock.

#108 — 435526 — CHROME, CUP & PLATE KIT (1 required per assembly)

0435526 - Cup and Plate Assembly Only, No Impeller [ More info ]

$205.01
1 In Stock.

#109 — 0 — PROPELLER. (REFER TO EVINRUDE / JOHNSON GENUINE PARTS PROPELLER CHART.) (1 required per assembly)

#110 — 313926 — *SLEEVE, PROPELLER BUSHING (1 required per assembly)

0313926 - Sleeve [ More info ]

$9.65
10+ In Stock.

3850831 - Sleeve - Volvo Penta (3850831) [ More info ]

$7.70 $7.47
Available to Order: Usually ships within 10 days.

#111 — 175401 — *BUSHING, S.S. PROPELLER (1 required per assembly)

0175401 - Prop Bushing Assembly [ More info ]
Unavailable

#111 — 387157 — *BUSHING, ALUM. PROPELLER (1 required per assembly)

0387157 - Propeller Hub, 15 Spline [ More info ]

$77.99
Available to Order: Usually ships within 10 days.

#112 — 320570 — SPACER, PROPELLER NUT (1 required per assembly)

0320570 - Spacer Prop Nut [ More info ]

$30.97 $25.35
10+ In Stock.

#113 — 126870 — THRUST BUSHING, PROPELLER (1 required per assembly)

0126870 - Thrust Bushing [ More info ]

$44.49 $30.03
10+ In Stock.

3852020 - Bushing,Volvo [ More info ]

$58.40
In Stock

#114 — 398042 — NUT & KEEPER, PROPELLER (1 required per assembly)

0398042 - Prop Nut & Keeper [ More info ]
Unavailable

5008966 - Nut and Keeper, 398042 [ More info ]

$16.49
10+ In Stock.

3850984 - Propeller Nut - Volvo Penta (3850984) [ More info ]

$27.00
2 In Stock.

18-3708-1 - Nut Kit, 398042 [ More info ]

$10.99
3 In Stock.

#115 — 306394 — COTTER PIN, PROPELLER NUT (1 required per assembly)

0306394 - Cotter Pin [ More info ]

$1.10
10+ In Stock.

3852056 - Split Pin, Volvo [ More info ]

$1.00
4 In Stock.

#116 — 5000411 — GEARCASE SEAL KIT (1 required per assembly)
		5000411 - Gearcase Seal Kit [ More info ] Unavailable
		5006373 - Lower Unit Gearcase Seal Kit [ More info ] $125.99 $109.95 10+ In Stock.
		26-03951 - Seal Kit, 5006373 [ More info ] $91.99 7 In Stock.
