Extension Cable Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

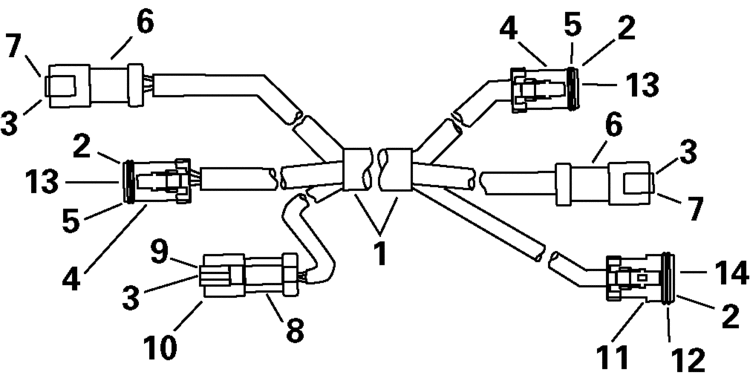

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 176334 — EXTENSION HARNESS, 10 FT. (3M) (1 required per assembly) | ||
  |
|

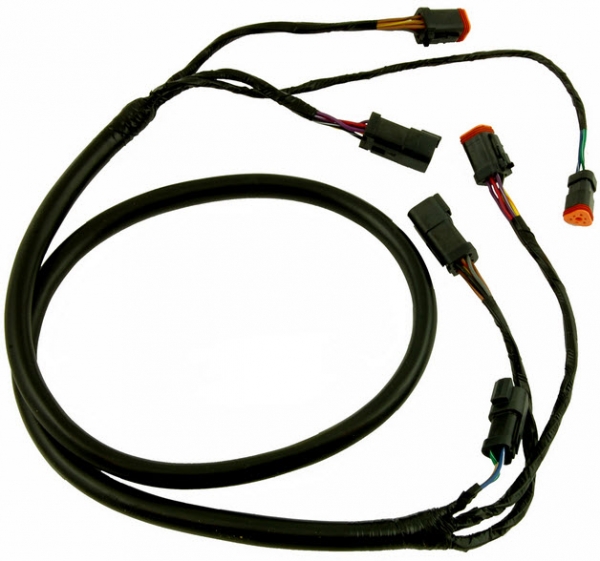

0176334 - Extension Harness Cable Assembly, 10 Ft [ More info ]
|
| #2 — 514680 — *TERMINAL, SOCKET (15 required per assembly) | ||
  |
|
0514680 - Socket Terminal, Sold Individually [ More info ]
|
  |
|
913-4680 - Terminal Deutsch (20 Pcs) 913-4680 [ More info ]
|
| #3 — 514679 — *TERMINAL, PIN (15 required per assembly) | ||
  |
|
0514679 - Pin Terminal [ More info ]
|
  |
|
913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]
|
| #4 — 514687 — *CONNECTOR, 6 SOCKET (2 required per assembly) | ||
  |
|
0514687 - Connector, 6 Socket Plug [ More info ]
|
| #5 — 514790 — **SEAL, 6 SOCKET (1 required per assembly) | ||
  |
|
0514790 - Seal, 6 Lead Plug [ More info ]
|
| #6 — 514688 — *CONNECTOR, 6 PIN (2 required per assembly) | ||
  |
|
0514688 - Connector, 6 Pin Receptalce [ More info ]
|
| #7 — 514684 — *LOCK WEDGE, 6 PIN (2 required per assembly) | ||
  |
|
0514684 - Lock Wedge, 6 Pin Connector [ More info ]
|
| #8 — 514685 — CONNECTOR, 3 SOCKET (1 required per assembly) | ||
  |
|
0514685 - Connector, 3 Socket Plug [ More info ]
|
| #9 — 514789 — **SEAL, 3 SOCKET (1 required per assembly) | ||
  |
|
0514789 - Seal, 3 Socket [ More info ]
|
| #10 — 514682 — *LOCK WEDGE, 3 PIN (1 required per assembly) | ||
  |
|
0514682 - Lock Wedge - 3 Pin Receptacle [ More info ]
|
| #11 — 514686 — *CONNECTOR, 3 SOCKET (1 required per assembly) | ||
  |
|
0514686 - Connector, 3 Pin Receptacle [ More info ]
|
| #12 — 514789 — *SEAL, 3 SOCKET (1 required per assembly) | ||
|
|
0514789 - Seal, 3 Socket [ More info ]
|
| #13 — 514683 — *LOCK WEDGE, 6 SOCKET (2 required per assembly) | ||
  |
|
0514683 - Lock Wedge, 6 Socket Plug [ More info ]
|
| #14 — 514681 — *LOCK WEDGE, 3 SOCKET (1 required per assembly) | ||
  |
|
0514681 - Lock Wedge, 3 Socket Plug [ More info ]
|
