Exhaust Housing Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

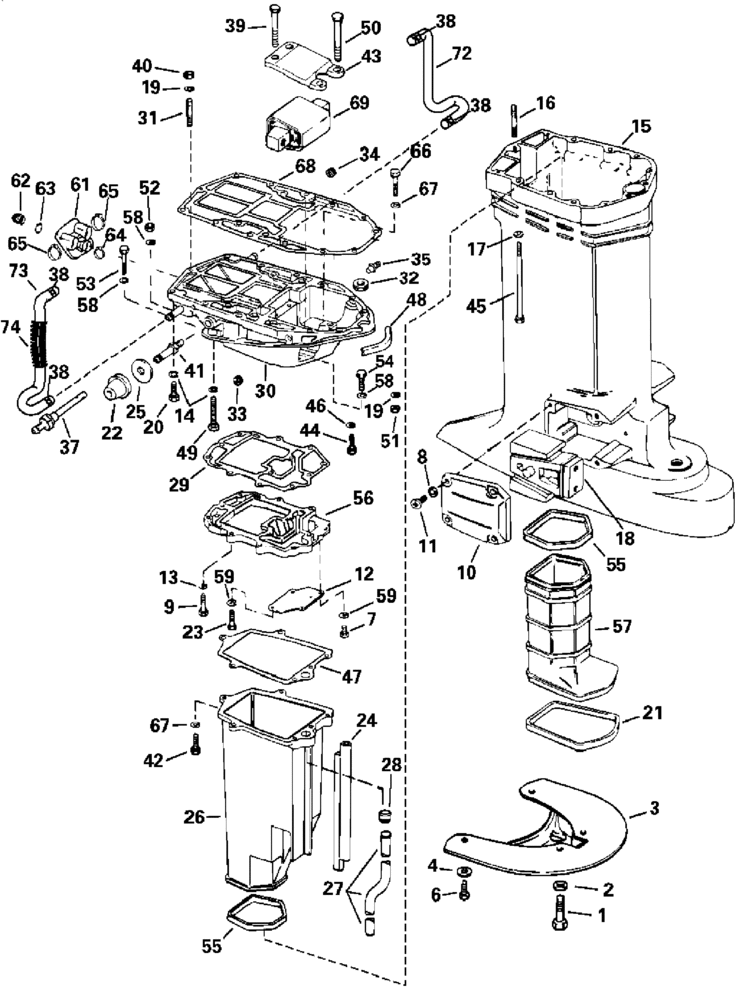

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 910736 — SCREW, PLATE & DEFLECTOR. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (2 required per assembly) | ||
  |
|
0910736 - Screw, Plate & Deflector [ More info ]
|

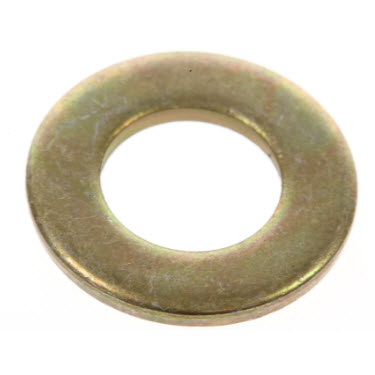

| #2 — 301250 — WASHER, SPRAY DEFLECTOR. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (2 required per assembly) | ||
  |
|
0301250 - Washer [ More info ]
|

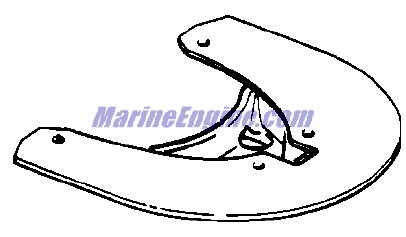

| #3 — 345776 — SPRAY DEFLECTOR. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (1 required per assembly) | ||
  |
|
0345776 - Spray Deflector [ More info ]
|
| #4 — 911201 — WASHER, SPRAY PLATE. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (2 required per assembly) | ||
 |
|
0911201 - Washer [ More info ]
|
| #6 — 910741 — SCREW, SPRAY PLATE. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (2 required per assembly) | ||
  |
|

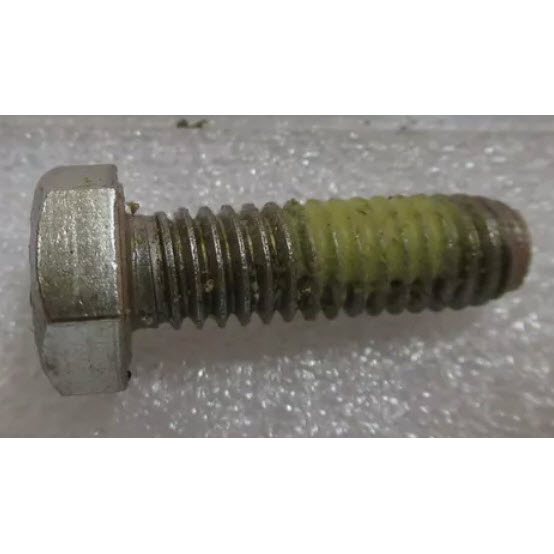

0910741 - Screw, Spray Plate [ More info ]
|
| #7 — 124341 — SCREW, COVER, SHORT (2 required per assembly) | ||
  |
|
0124341 - Mounting Bolt [ More info ]
|
| #8 — 301250 — WASHER, SCREW, MOUNT COVER (8 required per assembly) | ||
|
|
0301250 - Washer [ More info ]
|

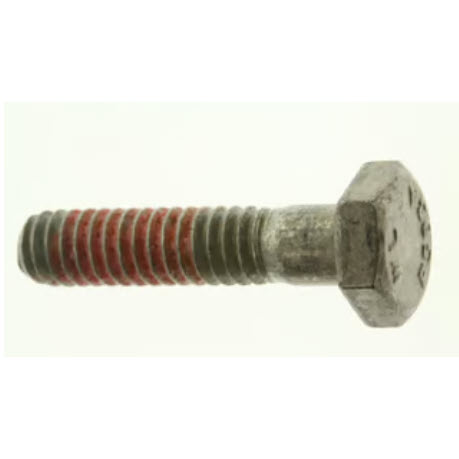

| #9 — 312978 — SCREW, PLATE TO ADAPTER (4 required per assembly) | ||
  |
|
|
| #10 — 338741 — COVER, MOUNT BRACKET LOWER (2 required per assembly) | ||
  |
|

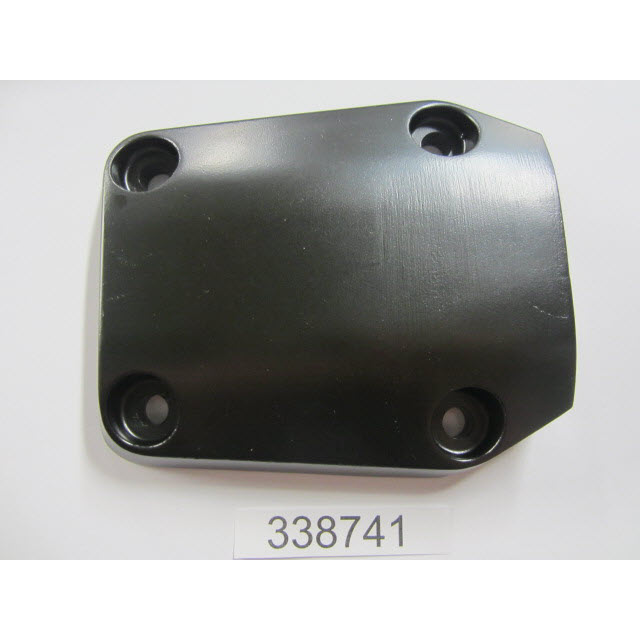

0338741 - Lower Mount Bracket Cover [ More info ]
|

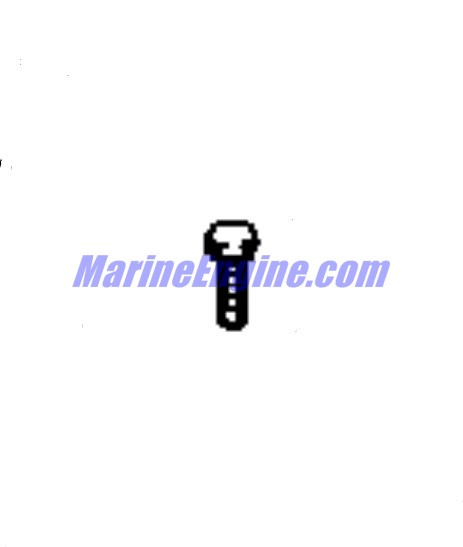

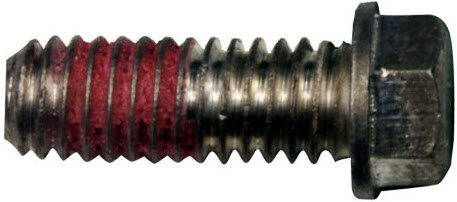

| #11 — 341013 — SCREW, COVER (8 required per assembly) | ||
  |
|
0341013 - Screw, Cover [ More info ]
|
  |
|
3852454 - Screw, Volvo [ More info ]
|

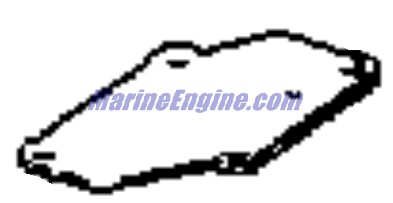

| #12 — 333565 — COVER, WATER PLATE (1 required per assembly) | ||
  |
|
|
| #13 — 302290 — LOCK WASHER, PLATE TO ADAPTER (4 required per assembly) | ||
  |
|
0302290 - Thrust mount Lock Washer [ More info ]
|
| #14 — 308688 — LOCK WASHER, CYLINDER TO ADAPTER (6 required per assembly) | ||
  |
|
0308688 - Washer [ More info ]
|

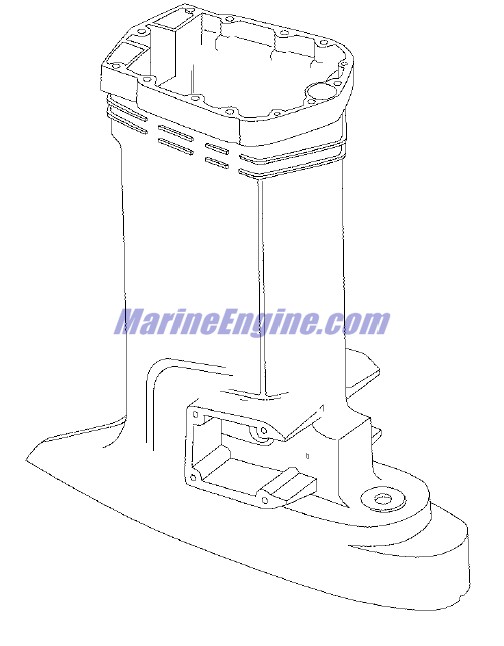

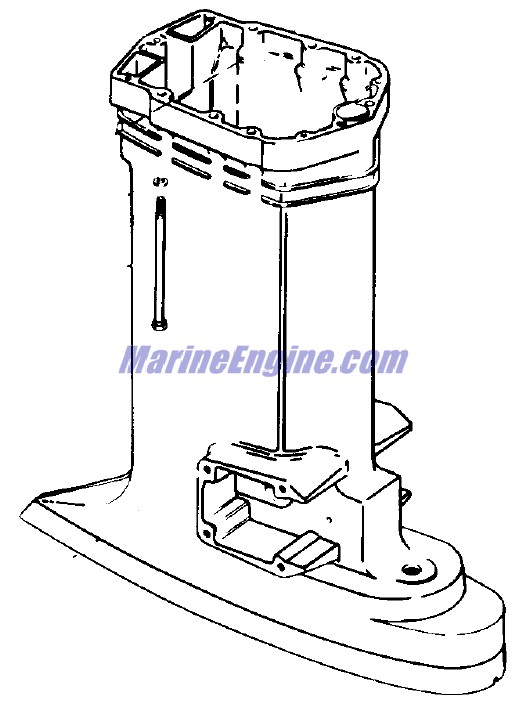

| #15 — 5004215 — EXHAUST HOUSING. (FPL MODELS; FHL MODELS) (1 required per assembly) | ||
  |
|
5004215 - Housing & Stud Assembly [ More info ] Unavailable |
| #15 — 435479 — EXHAUST HOUSING. (FPX & FCX MODELS.) (1 required per assembly) | ||
  |
|
0435479 - Exhaust Housing Assembly, 25 [ More info ]
|

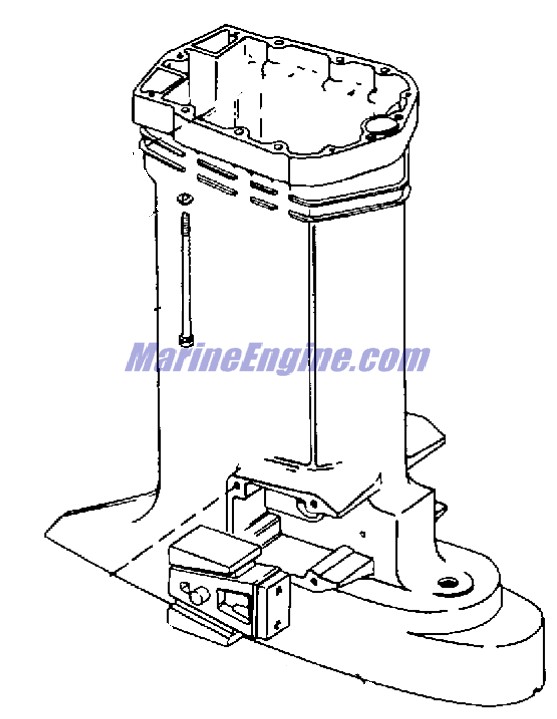

| #15 — 435130 — EXHAUST HOUSING. (FPZ & FCZ MODELS.) (1 required per assembly) | ||
  |
|
0435130 - Exhaust Housing, Out 30 [ More info ]
|
| #16 — 316040 — *STUD, EXHAUST HOUSING (1 required per assembly) | ||
  |
|
|
|
|
3852141 - Stud, Volvo [ More info ]
|
| #17 — 308688 — WASHER, EXHAUST HOUSING (6 required per assembly) | ||
|
|
0308688 - Washer [ More info ]
|
| #18 — 434629 — RUBBER MOUNT, LOWER. (FPL & FHL MODELS.) (2 required per assembly) | ||
  |
|

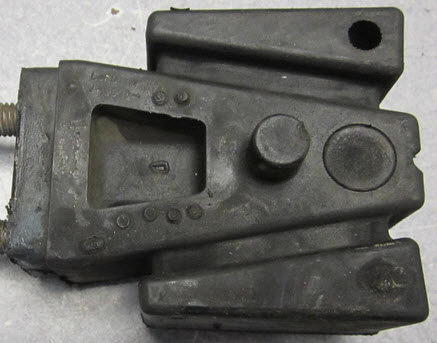

0434629 - Rubber Mount, Lower [ More info ]
|

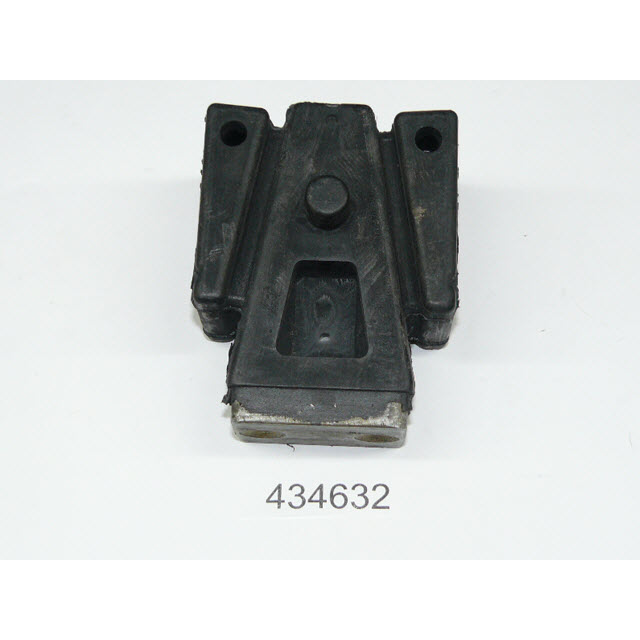

| #18 — 434632 — RUBBER MOUNT, LOWER. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (2 required per assembly) | ||
  |
|
0434632 - Rubber Mount, Lower [ More info ] Unavailable |
| #19 — 301250 — WASHER, CRANKCASE MOUNTING (3 required per assembly) | ||
|
|
0301250 - Washer [ More info ]
|
| #20 — 309484 — SCREW, CYLINDER TO ADAPTER, SHORT (4 required per assembly) | ||
  |
|
|
|
|

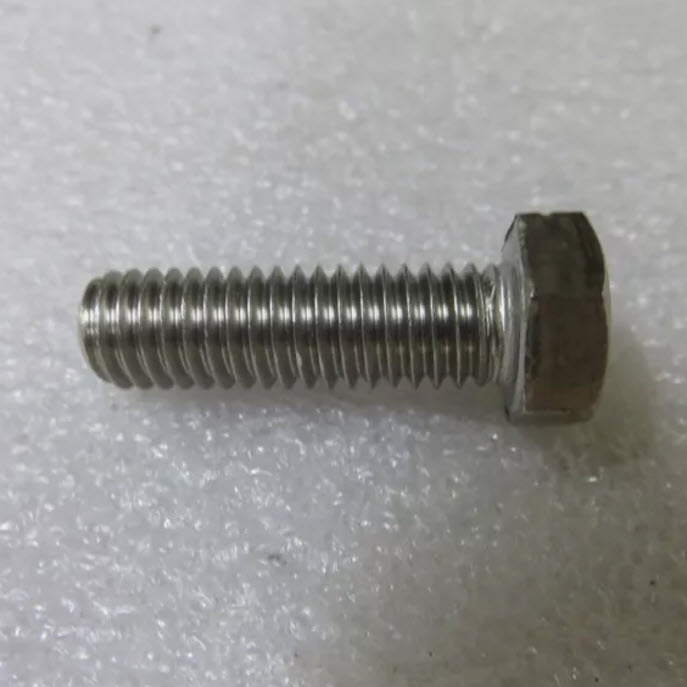

959968 - Screw, Volvo Penta - Volvo Penta (959968) [ More info ]
|
| #21 — 320961 — SEAL, GEARCASE TO INNER HOUSING (1 required per assembly) | ||
  |
|

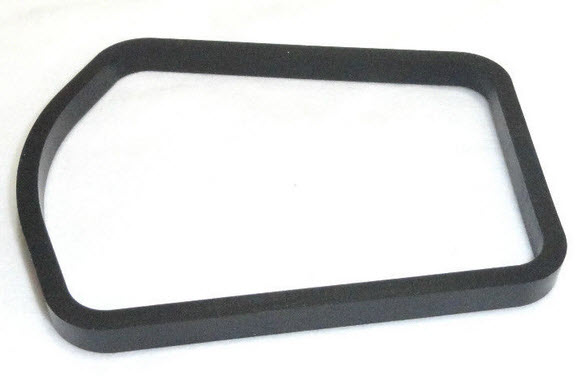

0320961 - Seal, Gearcase To Exhaust Housing [ More info ]
|
  |
|

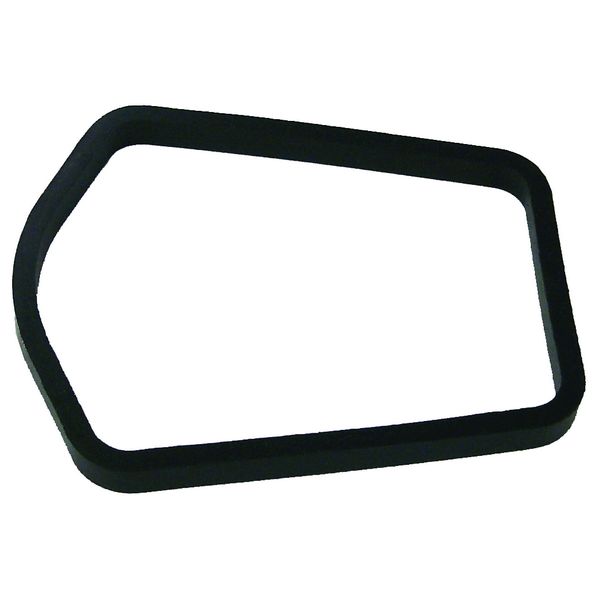

18-8353 - Seal, 320961 [ More info ]
|

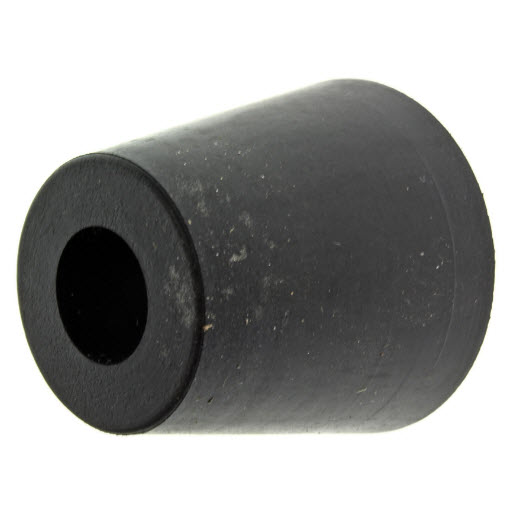

| #22 — 349557 — MOUNT, ENGINE COVER (2 required per assembly) | ||
  |
|
0349557 - Mount [ More info ] Unavailable |

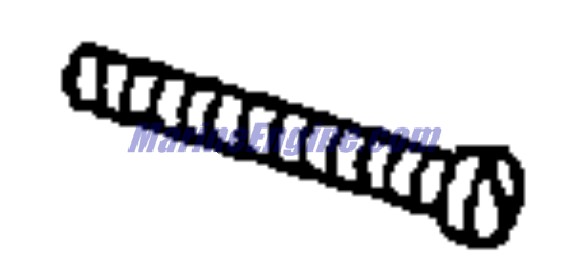

| #23 — 333165 — SCREW, COVER, LONG (2 required per assembly) | ||
  |
|
|

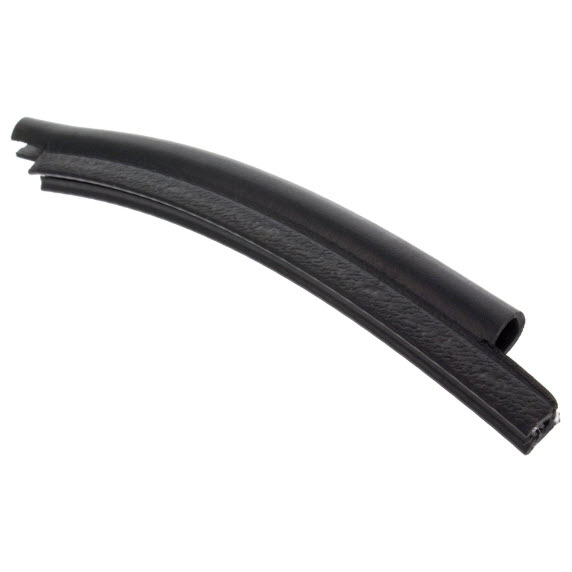

| #24 — 334118 — SEAL, EXHAUST HOUSING, FRONT (1 required per assembly) | ||
  |
|
|

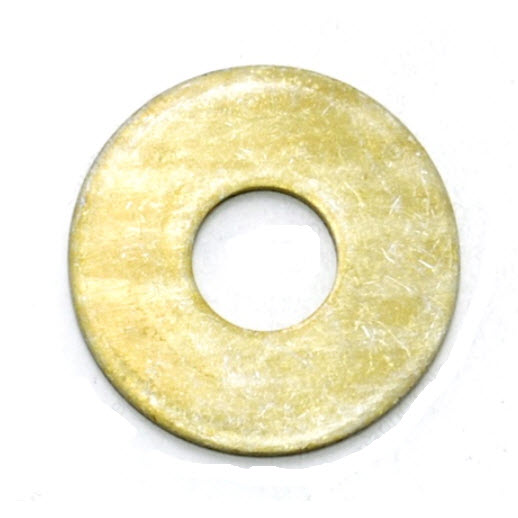

| #25 — 349556 — WASHER, MOUNT (2 required per assembly) | ||
  |
|
0349556 - Washer [ More info ]
|

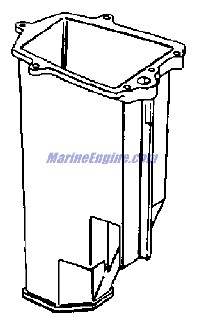

| #26 — 338597 — EXHAUST HOUSING, INNER, UPPER (1 required per assembly) | ||
  |
|
0338597 - Exhaust Housing, Inner [ More info ] Unavailable |

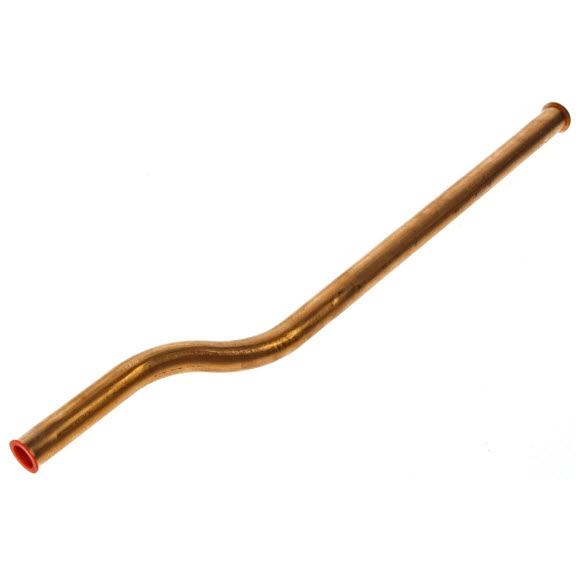

| #27 — 346897 — WATER TUBE. (FPL MODELS; FHL MODELS) (1 required per assembly) | ||
  |
|

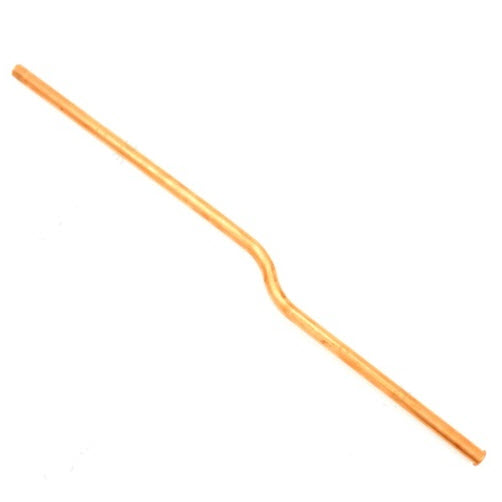

0346897 - Water Tube 20 [ More info ]
|

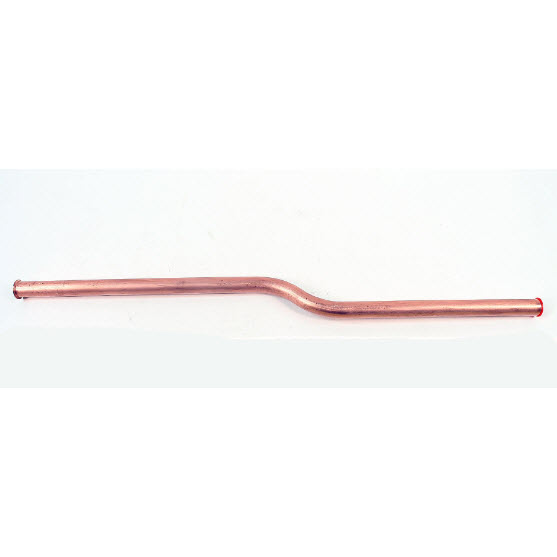

| #27 — 346898 — WATER TUBE. (FPX & FCX MODELS.) (1 required per assembly) | ||
  |
|
0346898 - Water Tube 25 [ More info ] Unavailable |
| #27 — 346899 — WATER TUBE. (FPZ & FCZ MODELS.) (1 required per assembly) | ||
  |
|
0346899 - Water Tube 30 [ More info ]
|

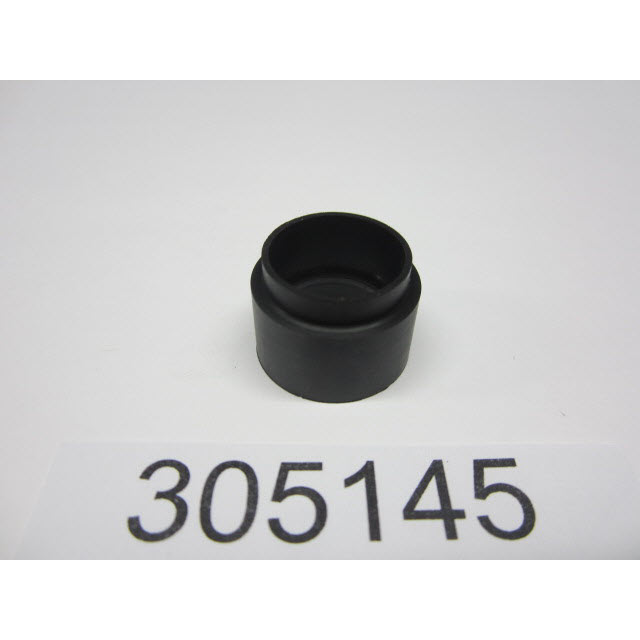

| #28 — 305145 — GROMMET, WATER TUBE (1 required per assembly) | ||
  |
|
0305145 - Water Tube Grommet [ More info ]
|
| #29 — 343809 — GASKET, PLATE TO ADAPTER (1 required per assembly) | ||
  |
|

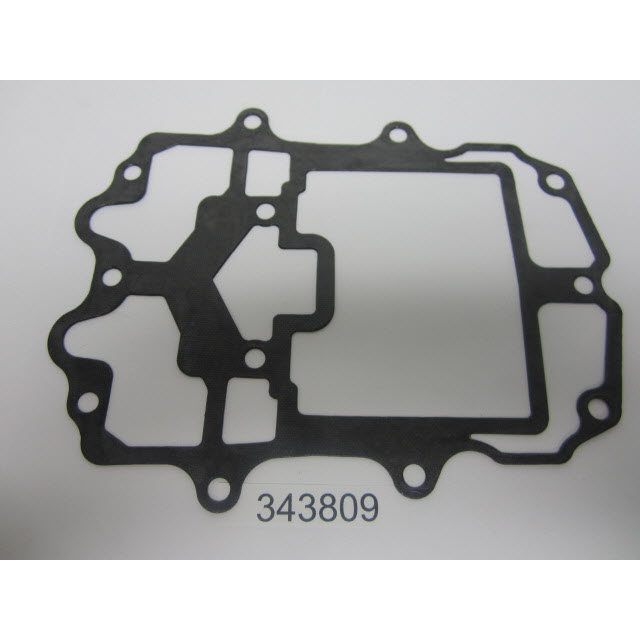

0343809 - Plate To Adapter Gasket [ More info ]
|

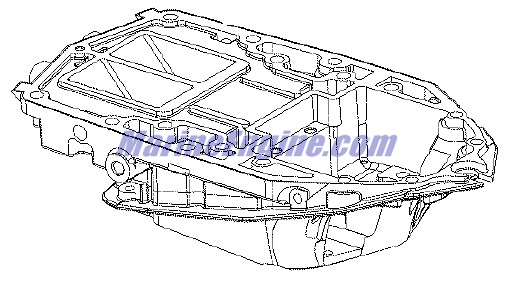

| #30 — 5001496 — ADAPTER, EXHAUST HOUSING (1 required per assembly) | ||
  |
5001496 - Exhaust Housing Adaptor [ More info ] Unavailable |
|
  |
|

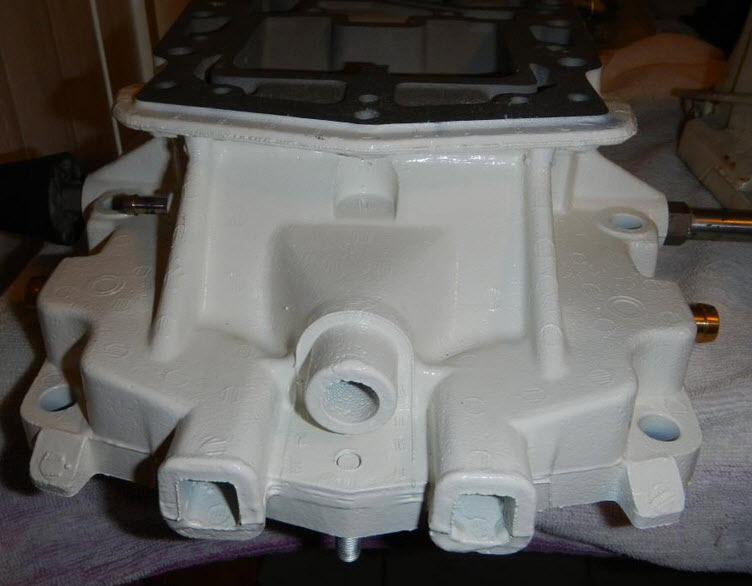

5007589 - Powerhead Adaptor Kit [ More info ]
|
| #31 — 314616 — *STUD, ADAPTER (1 required per assembly) | ||
  |
|
|
| #32 — 339717 — *GROMMET, SHIFT ROD (1 required per assembly) | ||
  |
|

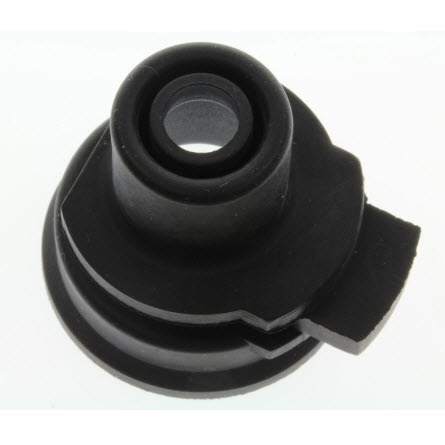

0339717 - Shift Rod Grommet [ More info ]
|
| #33 — 321164 — *PLUG, STARBOARD, FRONT (1 required per assembly) | ||
  |
|
0321164 - Manifold Plug, Large [ More info ]
|
| #34 — 321164 — *PLUG, PORT, REAR (1 required per assembly) | ||
|
|
0321164 - Manifold Plug, Large [ More info ]
|
| #35 — 345702 — *NIPPLE, VAP SEP TO ADAPTER (1 required per assembly) | ||
  |
|
|

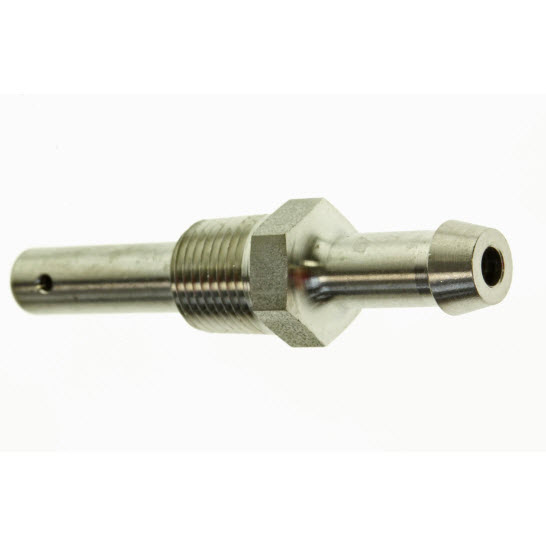

| #37 — 5001298 — *NIPPLE, EXHAUST BACK PRESSURE (1 required per assembly) | ||
  |
|
5001298- Fitting, Exhaust Back Pressure [ More info ]
|
| #38 — 346151 — CLAMP, 21MM, ADPT HOSES (4 required per assembly) | ||
  |
|

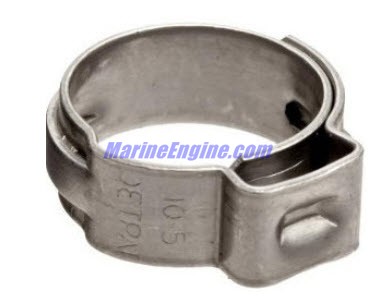

0346151 - Clamp - 21mm [ More info ]
|
  |
|
18-9135-9 - Oetiker Clamp 13/16 inch, 21 mm, 10 Pack [ More info ]
|
| #39 — 330930 — SCREW, UPPER MOUNT (2 required per assembly) | ||
  |
|

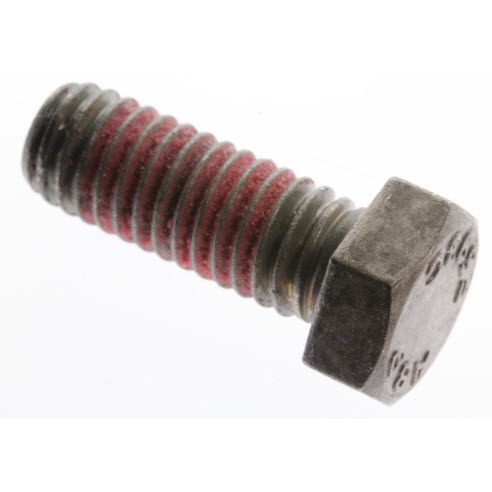

0330930 - Screw, Mount, Short [ More info ]
|

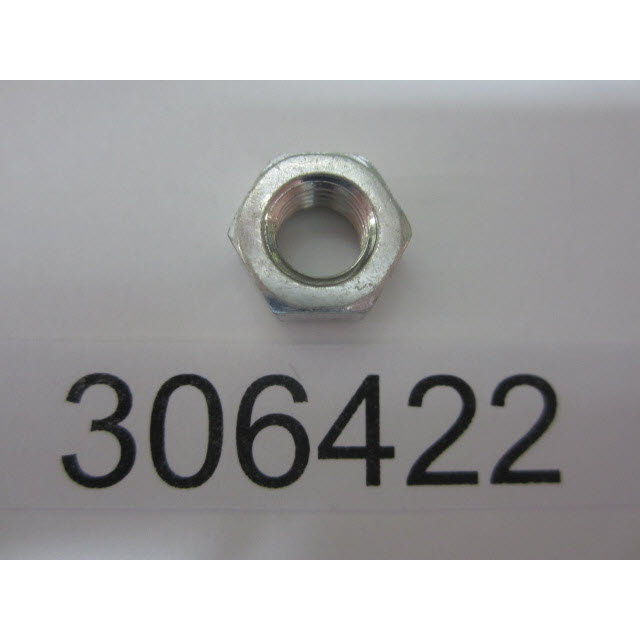

| #40 — 306422 — NUT, CRANKCASE TO ADAPTER (1 required per assembly) | ||
  |
|
|
| #41 — 329743 — STUD, COVER MOUNT (2 required per assembly) | ||
  |
|
|
| #42 — 341010 — SCREW, INNER HOUSING TO ADAPTER (3 required per assembly) | ||
  |
|

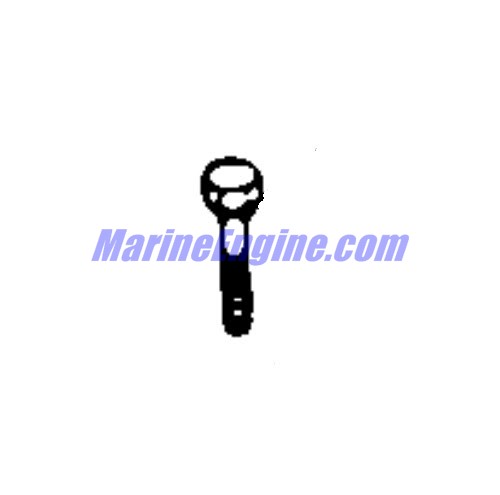

0341010 - Screw, Adapter To Inner Housing [ More info ]
|

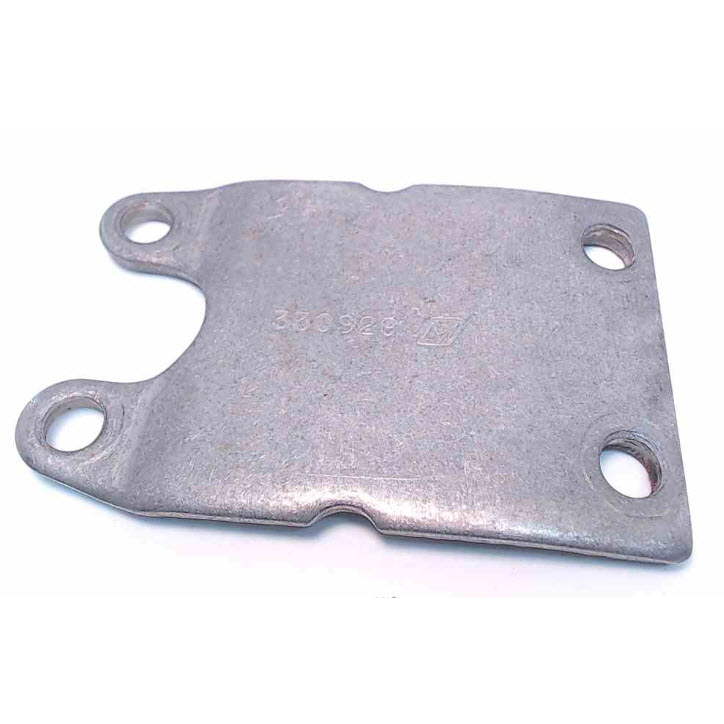

| #43 — 330929 — PLATE, UPPER MOUNT (1 required per assembly) | ||
  |
|
0330929 - Plate - Upper Mount [ More info ]
|
| #44 — 306503 — SCREW, ADAPTER TO CRANKCASE (2 required per assembly) | ||
  |
|
|
| #45 — 332128 — SCREW, EXHAUST HOUSING TO C/C (6 required per assembly) | ||
  |
0332128 - Exhaust Housing Screw [ More info ] Unavailable |
|
  |
|

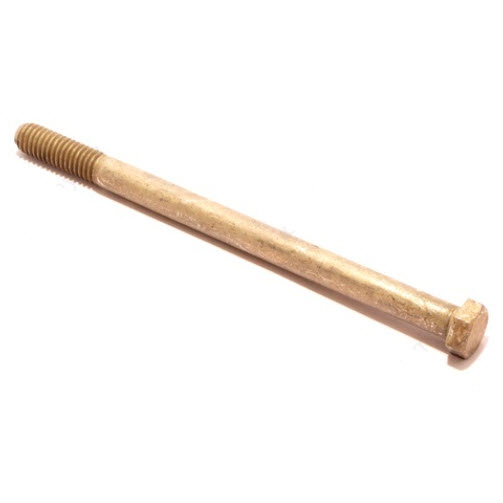

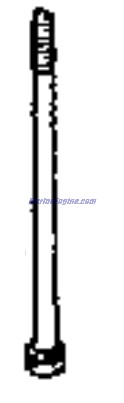

0355037 - Screw, Exhaust Housing To Crankcase [ More info ]
|
| #46 — 306470 — LOCK WASHER (2 required per assembly) | ||
  |
|
0306470 - Lock Washer [ More info ]
|
| #47 — 334113 — GASKET, INNER EXH HSG TO WATER PLATE (1 required per assembly) | ||
  |
|

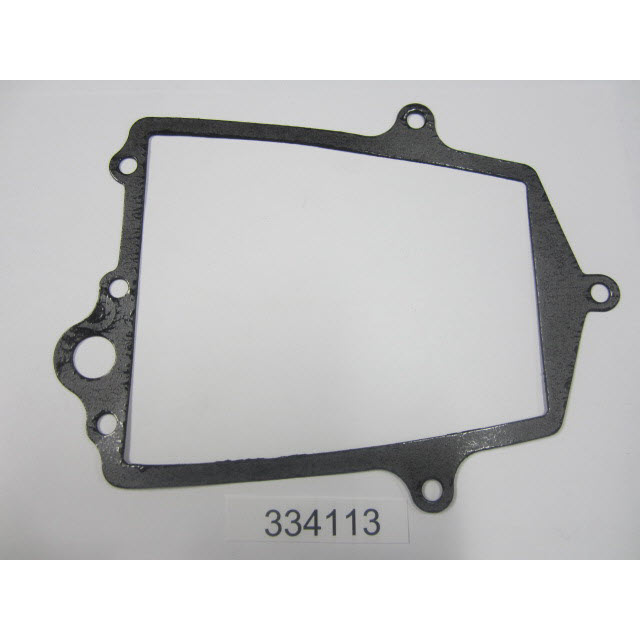

0334113 - Inner Exhaust Housing To Water Plate Gasket [ More info ]
|

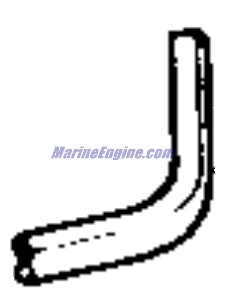

| #48 — 333434 — SEAL, COVER TO ADAPTER (1 required per assembly) | ||
  |
|
0333434 - Seal, Cover to Adapter [ More info ] Unavailable |

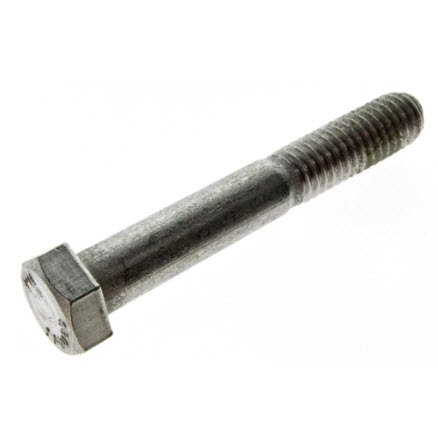

| #49 — 911042 — SCREW, ADAPTER TO CYLINDER, LONG (2 required per assembly) | ||
  |
|
|

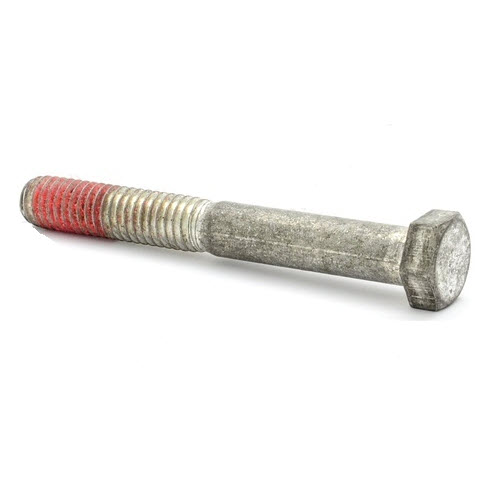

| #50 — 330931 — SCREW, UPPER MOUNT (2 required per assembly) | ||
  |
|
|
| #51 — 306422 — NUT, POWERHEAD TO ADAPTER (2 required per assembly) | ||
|
|
|
| #52 — 328742 — NUT, ADAPTER TO OUTER HOUSING (1 required per assembly) | ||
  |
|
|
| #53 — 341009 — SCREW, ADAPTER TO OUTER HOUSING (2 required per assembly) | ||
  |
|

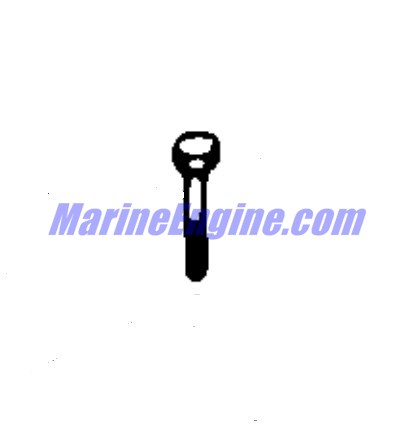

0341009 - Screw, Adapter To Outer Housing [ More info ]
|
| #54 — 341011 — SCREW, ADAPTER TO HOUSING, OUTER (2 required per assembly) | ||
  |
|
|

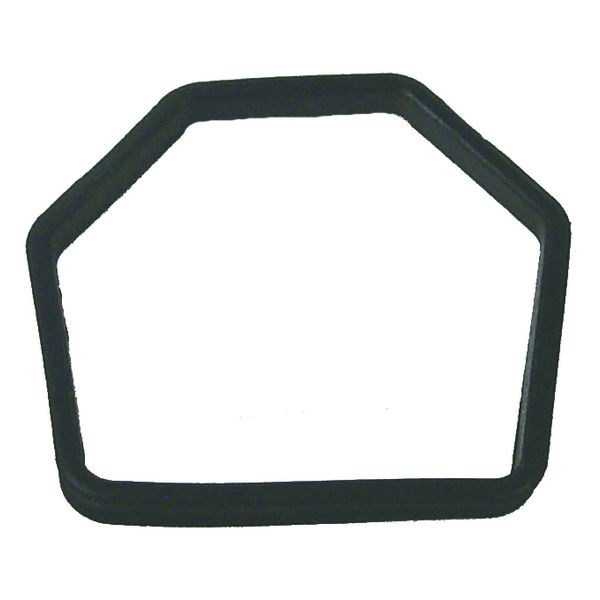

| #55 — 320936 — SEAL, EXHAUST HOUSING (2 required per assembly) | ||
  |
|

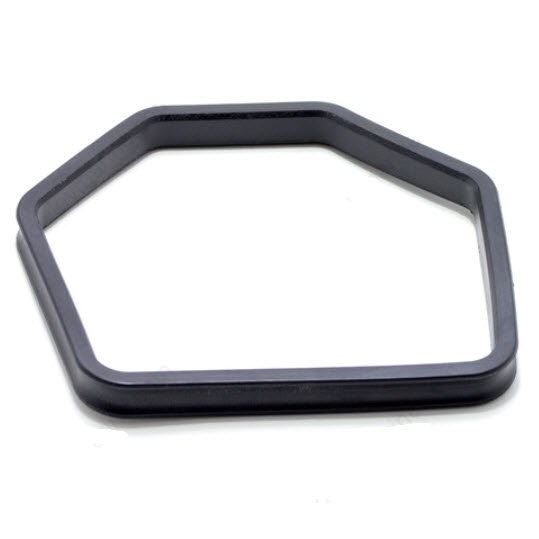

0320936 - Exhaust Housing Seal [ More info ]
|
  |
|
18-0540 - Seal, 320936, Rubber Gasket [ More info ]
|
| #56 — 347251 — WATER PLATE (1 required per assembly) | ||
  |
|
0347251 - Water Plate [ More info ] Unavailable |
| #57 — 341197 — HOUSING, EXHAUST LOWER INNER. (FPL MODELS; FHL MODELS) (1 required per assembly) | ||
  |
|

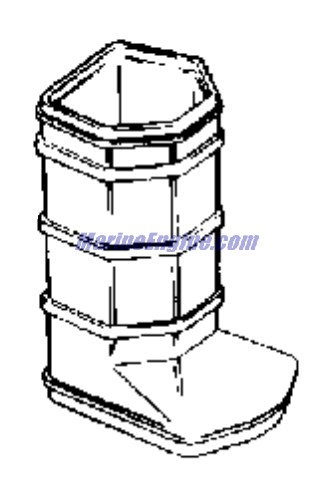

0341197 - Inner Exhaust Housing, 20 Inch [ More info ]
|
| #57 — 338664 — HOUSING, EXHAUST LOWER INNER. (FPX & FCX MODELS. FPZ & FCZ MODELS.) (1 required per assembly) | ||
  |
|

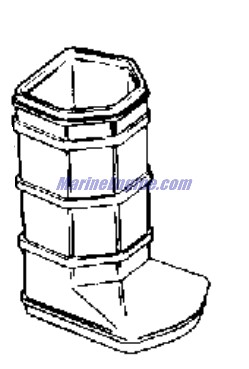

0338664 - Inner Exhaust Housing, Lower [ More info ]
|

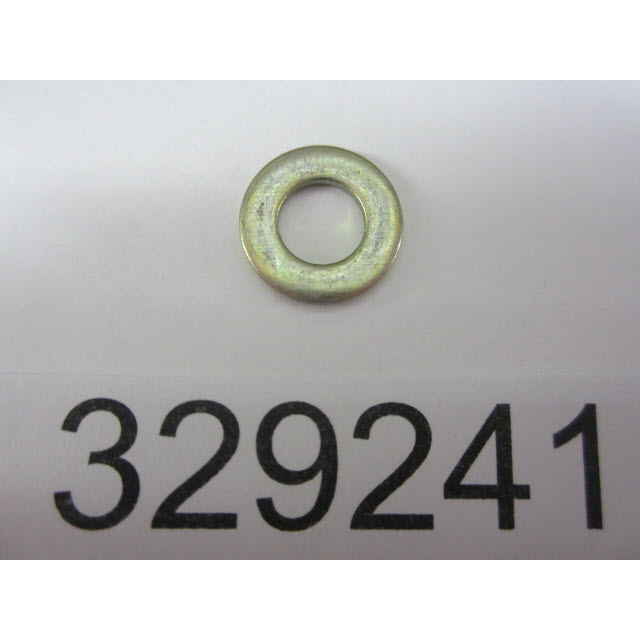

| #58 — 329241 — WASHER (5 required per assembly) | ||
  |
|
0329241 - Washer [ More info ]
|
  |
|
3852193 - Washer, Volvo [ More info ]
|
| #59 — 302290 — LOCK WASHER, COVER (2 required per assembly) | ||
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|

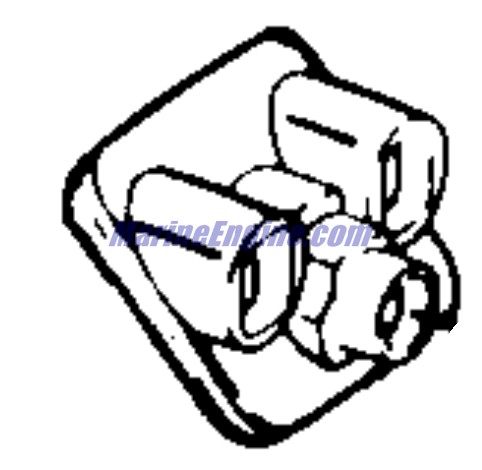

| #61 — 345586 — GROMMET ASSY (1 required per assembly) | ||
  |
|
0345586 - Grommet And Insert [ More info ]
|

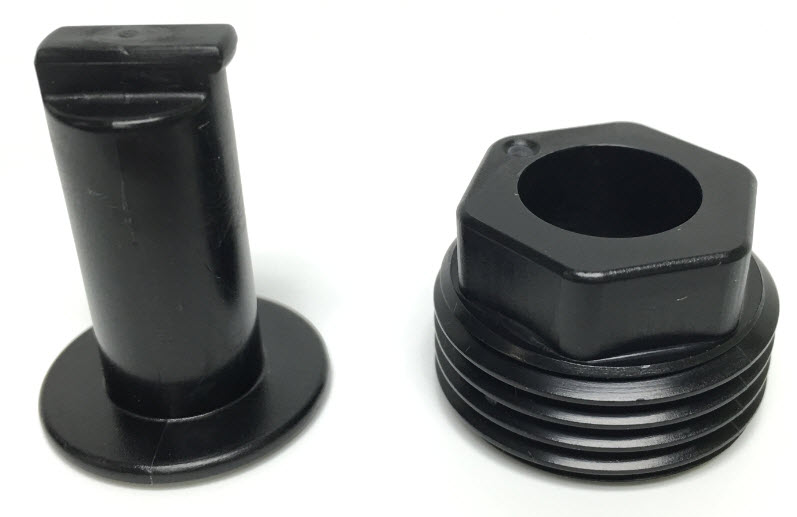

| #62 — 436726 — PLUG, OVERBOARD INDICATOR (1 required per assembly) | ||
  |
|
0436726 - Plug and Nozzle Assembly [ More info ]
|

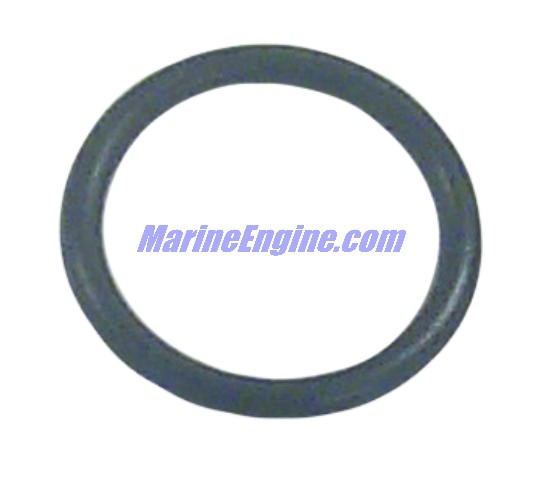

| #63 — 301967 — O-RING, OVERBOARD INDICATOR (1 required per assembly) | ||
  |
|

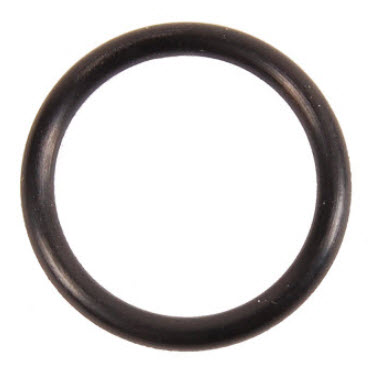

0301967 - Spacer O-Ring [ More info ]
|
  |
|
18-7440-1-9 - O-Ring (PK2) [ More info ]
|

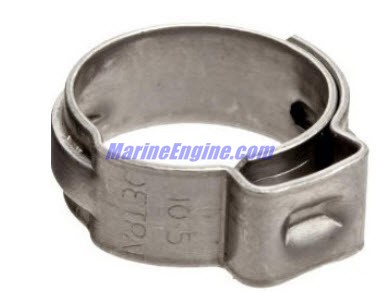

| #64 — 349759 — CLAMP, GROMMET TO ADAPTER 31.6MM (1 required per assembly) | ||
  |
|
0349759 - Clamp - 31.6mm [ More info ]
|
  |
|
18-9138-9 - Oetiker Clamp 1 1/4 inch, 25.6 mm, 10 Pack [ More info ]
|
| #65 — 349729 — CLAMP, GROMMET TO ADAPTER 41.0MM (2 required per assembly) | ||
  |
|

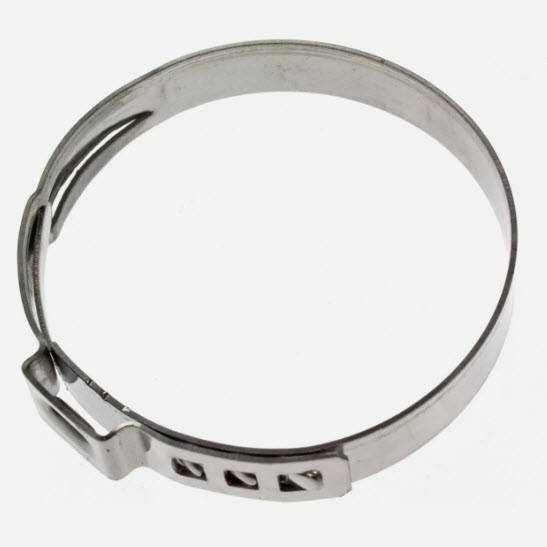

0349729 - Clamp - 41 mm [ More info ]
|
  |
|
18-9139-9 - Oetiker Clamp 1 5/8 inch, 41 mm, 10 Pack [ More info ]
|
| #66 — 341010 — SCREW, ADAPTER TO INNER HOUSING (3 required per assembly) | ||
|
|
0341010 - Screw, Adapter To Inner Housing [ More info ]
|
| #67 — 302290 — LOCK WASHER (6 required per assembly) | ||
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|

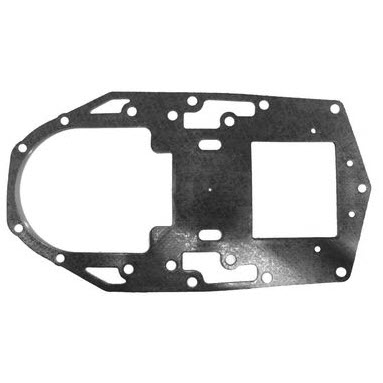

| #68 — 347205 — GASKET, ADAPTER TO POWERHEAD. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
|
|
0347205 [ More info ] Unavailable Replaced by 0351535 |
  |
|
0351535 - Powerhead Adaptor Gasket [ More info ]
|
| #69 — 432017 — RUBBER MOUNT ASSY (1 required per assembly) | ||
  |
|
0432017 - Mount Assembly - Rubber [ More info ] Unavailable |

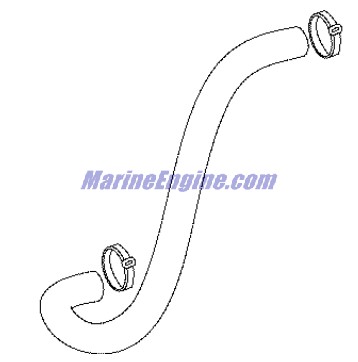

| #72 — 347233 — HOSE, ADAPTER TO C/C PORT (1 required per assembly) | ||
  |
|
|

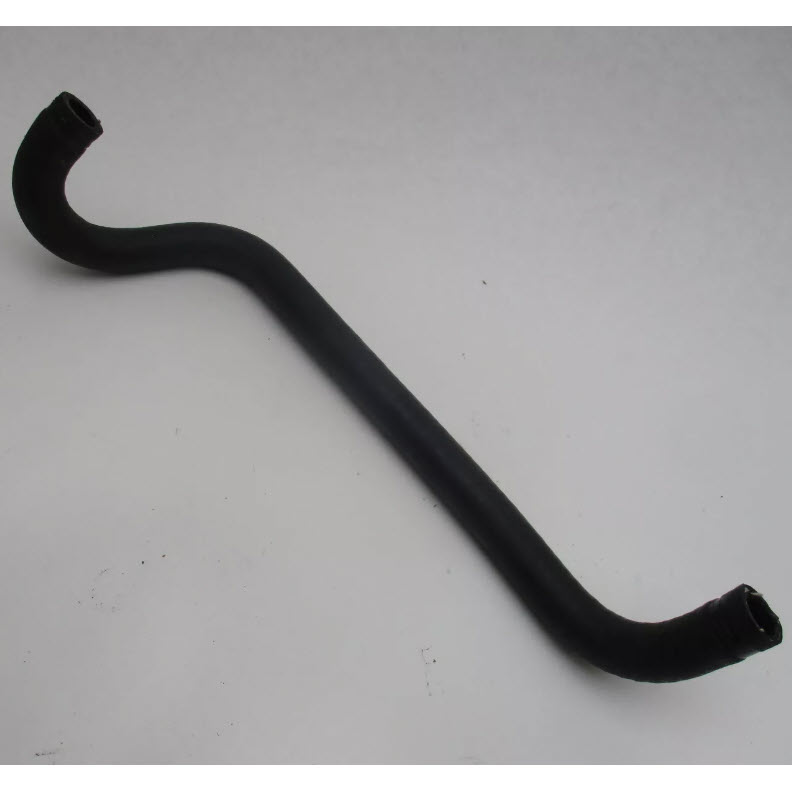

| #73 — 347234 — HOSE, ADAPTER TO C/C STBD (1 required per assembly) | ||
  |
|
|
| #74 — 0 — TUBING, CONVOLUTED. (CUT TO LENGTH FROM, P/N 3010591.) (1 required per assembly) |
