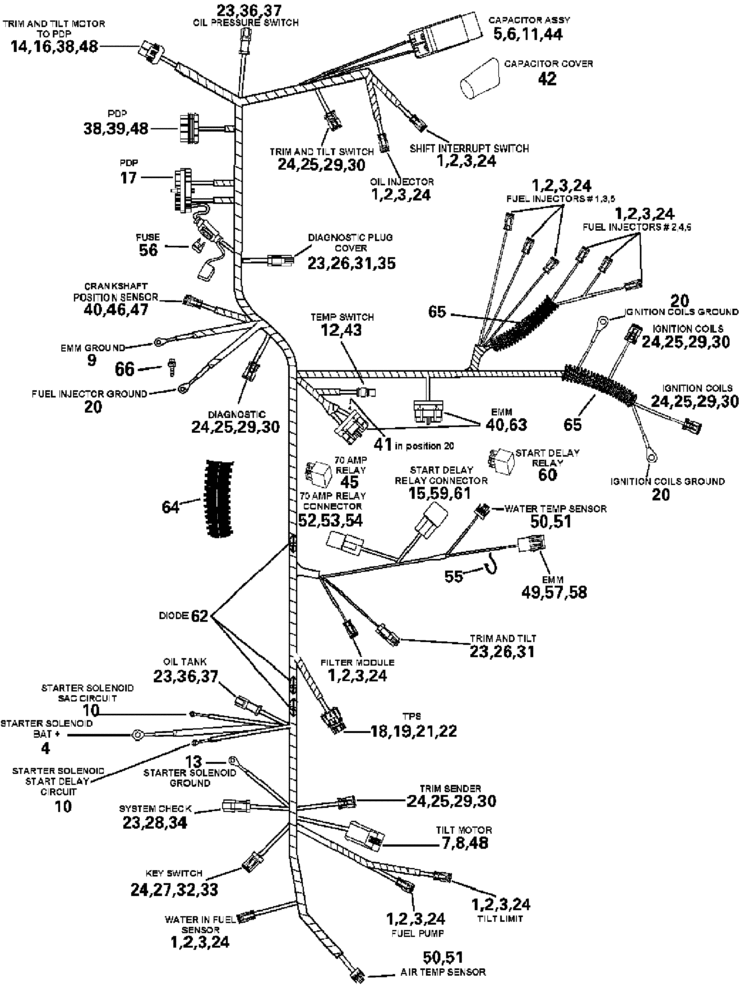

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

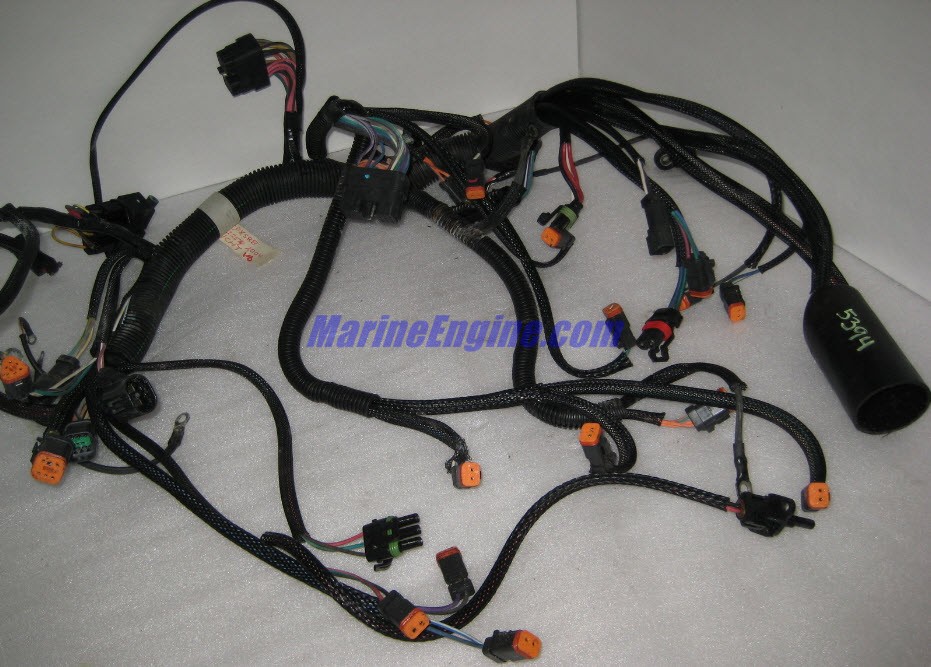

#0 — 586727 — ENGINE HARNESS ASSY (1 required per assembly)

0586727 - CABLE AY MOTOR DI [ More info ]
Unavailable

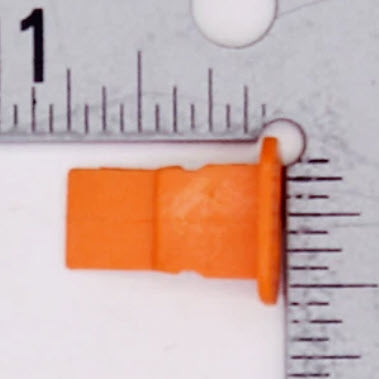

#1 — 127287 — *LOCK WEDGE, 2-SOCKET (12 required per assembly)

0127287 - Lock Wedge, 2 socket plug [ More info ]

$6.54
Available to Order: Usually ships within 10 days.

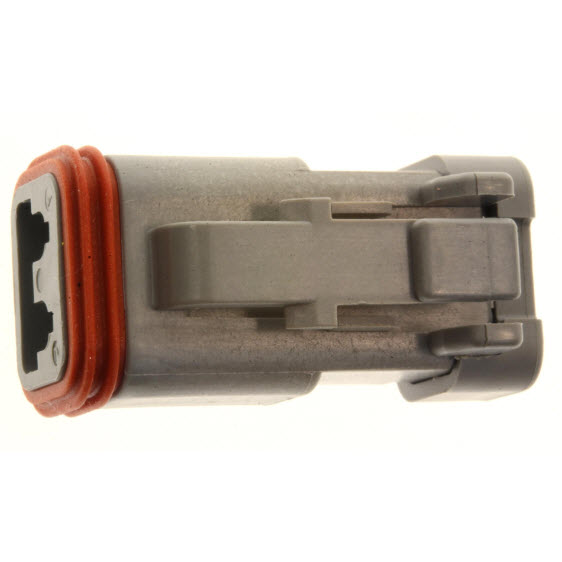

#2 — 176295 — *CONNECTOR, 2-SOCKET (12 required per assembly)

0176295 - Connector, 2 Socket Plug [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

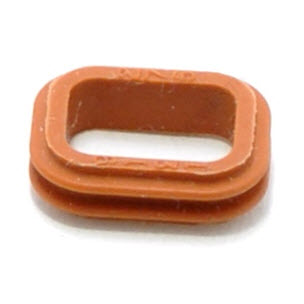

#3 — 514788 — **SEAL, 2-SOCKET (12 required per assembly)

0514788 - Seal, 2 Socket [ More info ]

$9.65 $3.01
7 In Stock.

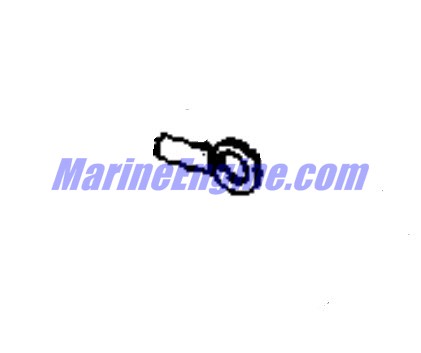

#4 — 204053 — *RING TERMINAL, SOLENOID BAT + (1 required per assembly)

0204053 - Ring Terminal [ More info ]
Unavailable

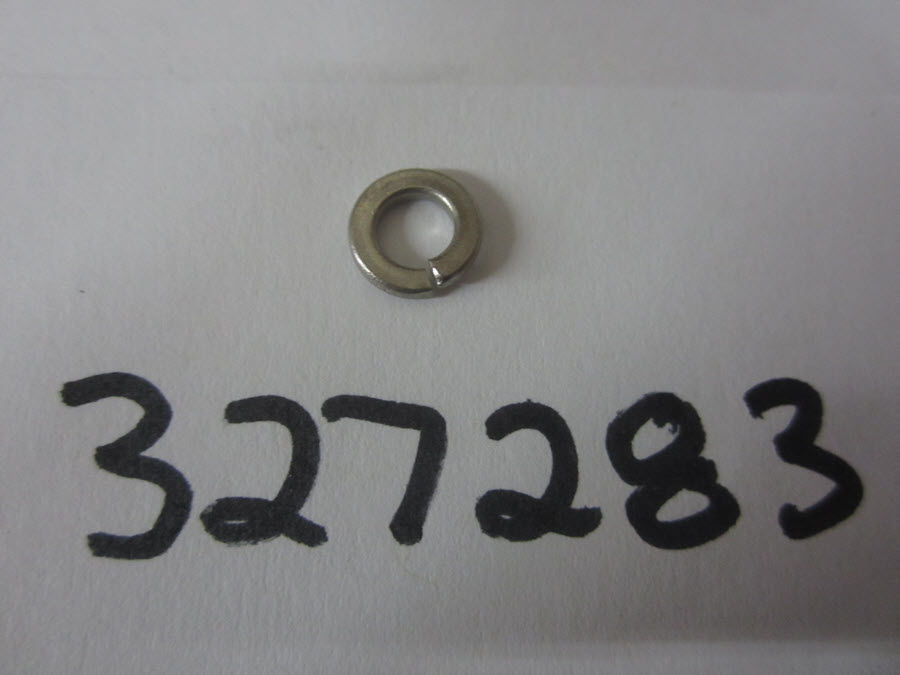

#5 — 327283 — *LOCK WASHER, CAPACITOR SCREW (4 required per assembly)

0327283 - Washer [ More info ]

$5.40 $1.68
10+ In Stock.

#6 — 332067 — *SCREW, CAPACITOR (2 required per assembly)

0332067 - Screw [ More info ]

$7.95
8 In Stock.

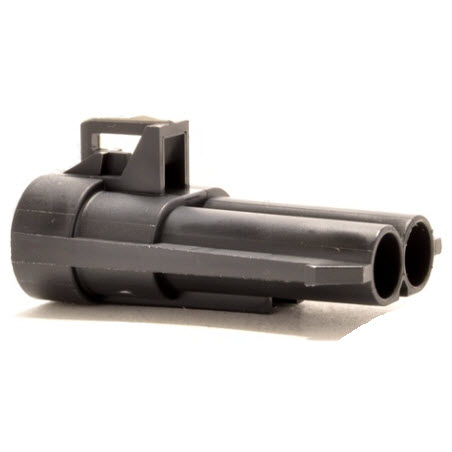

#7 — 3010484 — *CONNECTOR, TRIM MOTOR (1 required per assembly)

3010484 - Connector, 2Pin Rcpt [ More info ]

$11.72
2 In Stock.

#8 — 3010485 — *TERMINAL (2 required per assembly)

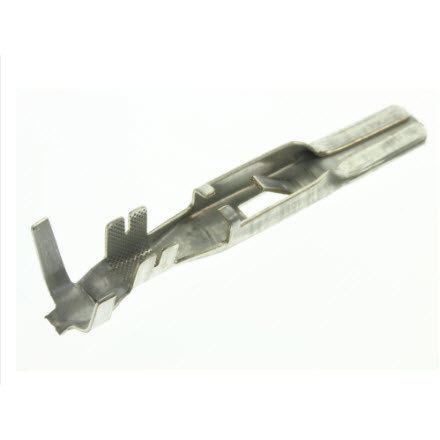

3010485 - Terminal [ More info ]

$11.72
4 In Stock.

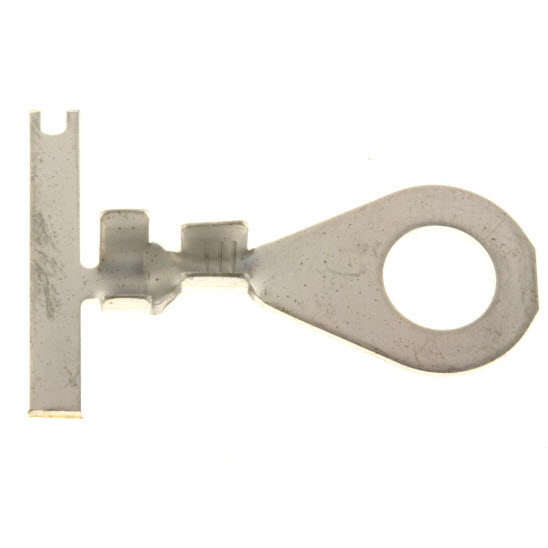

#9 — 510818 — *RING TERMINAL, EMM GROUND (1 required per assembly)

0510818 - Ring Terminal [ More info ]

$2.99
Available to Order: Usually ships within 10 days.

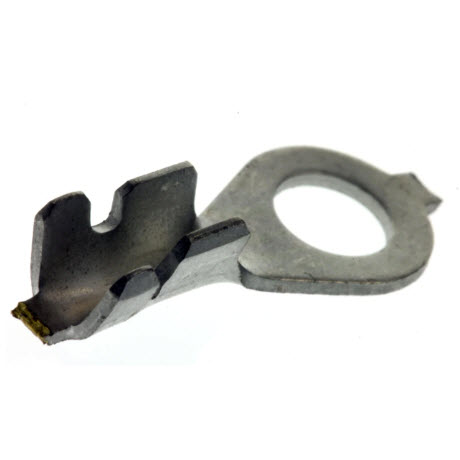

#10 — 511829 — *RING TERMINAL (2 required per assembly)

0511829 - Ring Terminal [ More info ]

$0.77
Available to Order: Usually ships within 10 days.

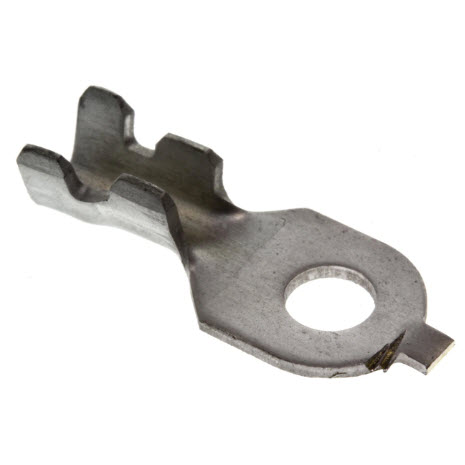

#11 — 512550 — *RING TERMINAL, CAPACITOR (2 required per assembly)

0512550 - Ring - Terminal [ More info ]

$2.99 $0.48
10+ In Stock.

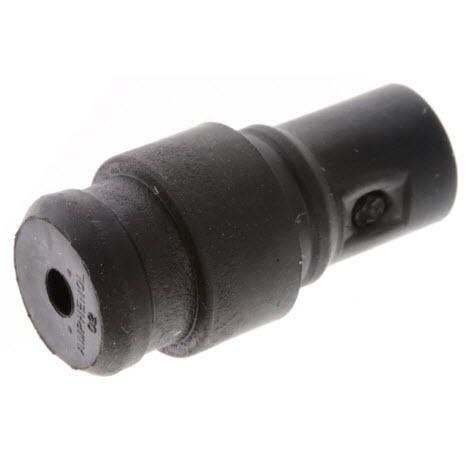

#12 — 513356 — *CONNECTOR, TEMPERATURE SWITCH (1 required per assembly)

0513356 - Connector, One Socket Plug [ More info ]

$14.49 $6.22
10+ In Stock.

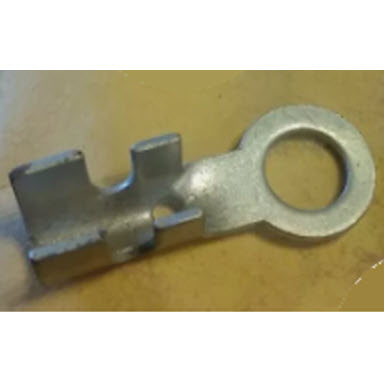

#13 — 204363 — *RING TERMINAL, STR SOLENOID GRD (1 required per assembly)

0204363 - Terminal 61868-1 [ More info ]

$2.99 $0.48
7 In Stock.

#14 — 3010049 — *CONNECTOR, TNT MOTOR TO PDP (1 required per assembly)

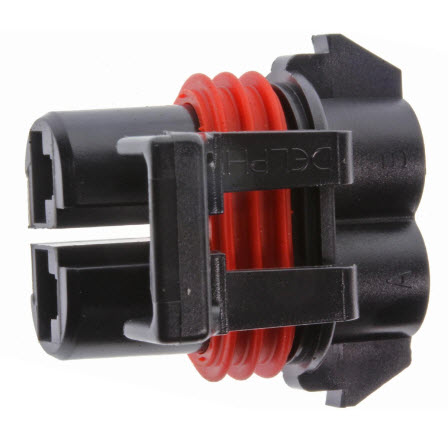

3010049 - Connector, 2 Pin Plug [ More info ]

$16.31
Available to Order: Usually ships within 10 days.

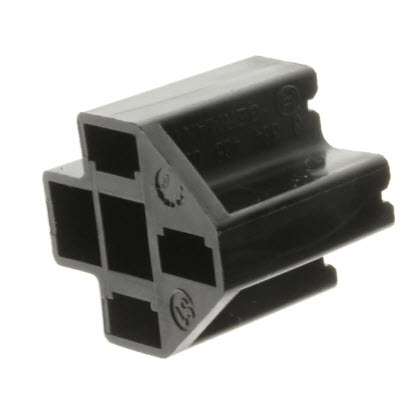

#15 — 511866 — *CONNECTOR, START DELAY (1 required per assembly)

0511866 - Connector [ More info ]

$15.29
7 In Stock.

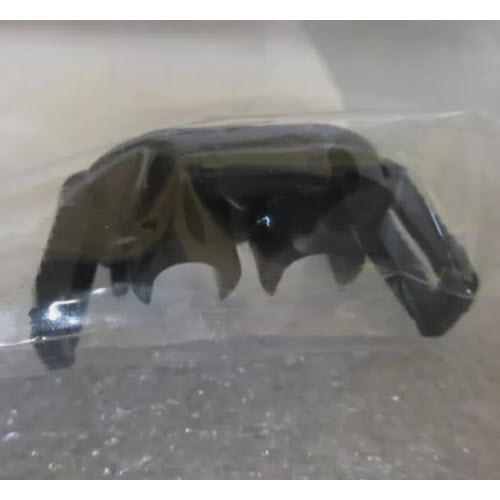

#16 — 3010050 — *SECONDARY LOCK (1 required per assembly)

3010050 - Lock, Secondary [ More info ]

$7.95
Available to Order: Usually ships within 10 days.

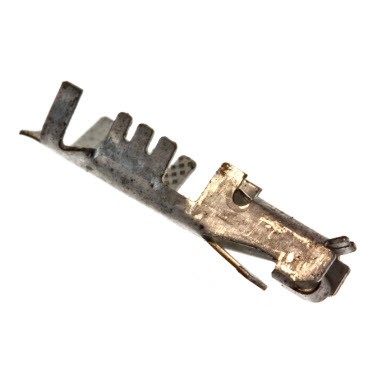

#17 — 513439 — *TERMINAL, SOCKET (14 required per assembly)

0513439 - Terminal, Socket [ More info ]

$6.33
3 In Stock.

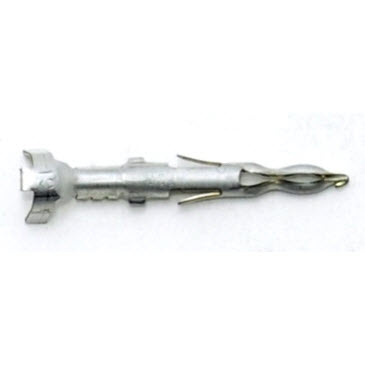

#18 — 513773 — *TERMINAL, PIN-TPS (3 required per assembly)

0513773 - Terminal, Pin [ More info ]

$2.33 $0.37
8 In Stock.

#19 — 514485 — *SEAL, WIRE (3 required per assembly)

0514485 - Seal, Lead Wire [ More info ]

$9.65
1 In Stock.

#20 — 600138 — *RING TERMINAL-GROUND (3 required per assembly)

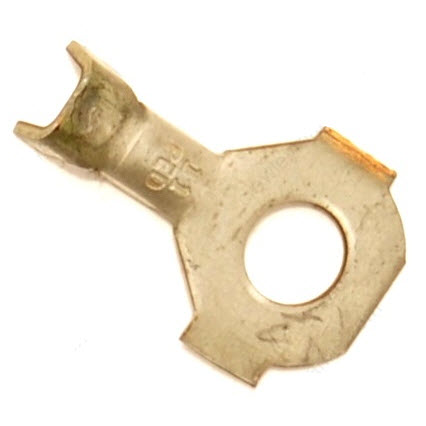

0600138 - Ring Terminal [ More info ]

$3.85
Available to Order: Usually ships within 10 days.

#21 — 514591 — *CONNECTOR, TPS (1 required per assembly)

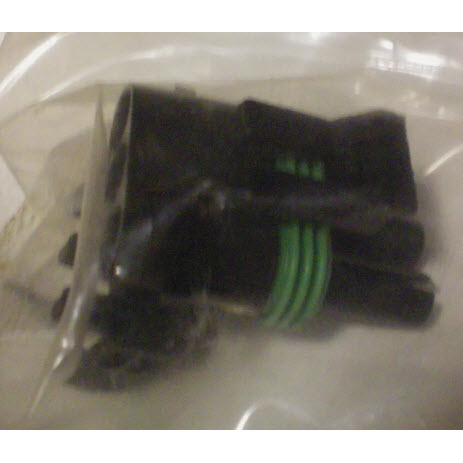

0514591 - Connector, 3-Pin Plug [ More info ]

$7.25 $4.41
10+ In Stock.

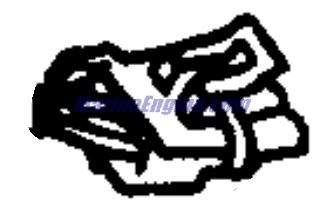

#22 — 3010398 — **SEAL, TPS CONNECTOR (1 required per assembly)

3010398 - Seal, 3-Pin Plug [ More info ]

$7.25 $4.41
10+ In Stock.

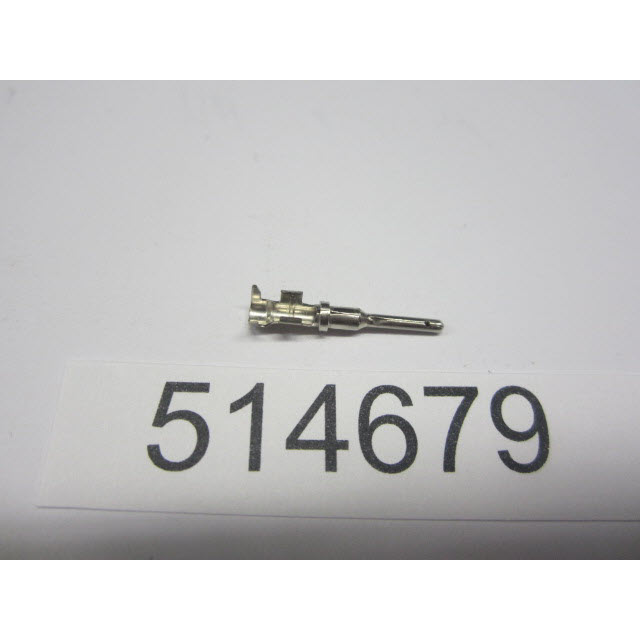

#23 — 514679 — *TERMINAL, PIN (14 required per assembly)

0514679 - Pin Terminal [ More info ]

$0.77
10+ In Stock.

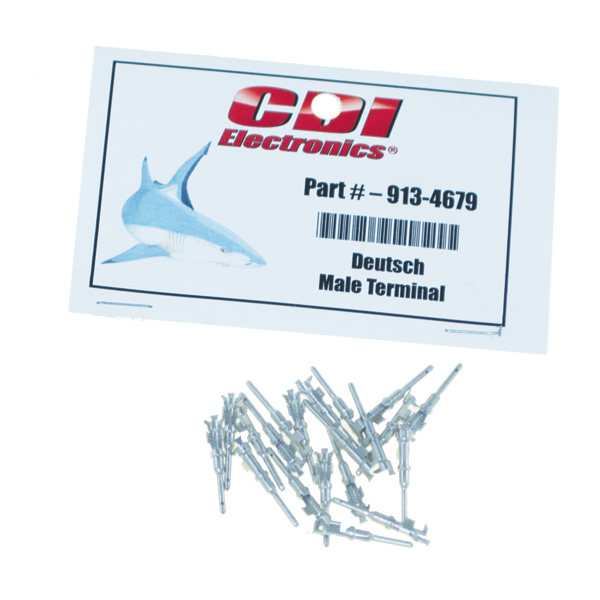

913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]

$13.53 $12.61
1 In Stock.

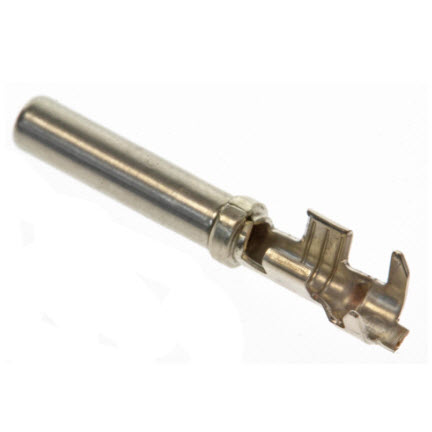

#24 — 514680 — *TERMINAL, SOCKET (45 required per assembly)

0514680 - Socket Terminal, Sold Individually [ More info ]

$2.99 $1.52
10+ In Stock.

913-4680 - Terminal Deutsch (20 Pcs) 913-4680 [ More info ]

$28.38 $27.55
1 In Stock.

#25 — 514681 — *LOCK WEDGE, 3-SOCKET (5 required per assembly)

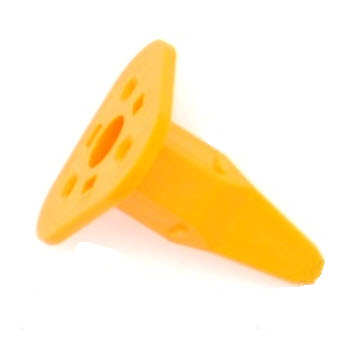

0514681 - Lock Wedge, 3 Socket Plug [ More info ]

$4.26 $1.33
3 In Stock.

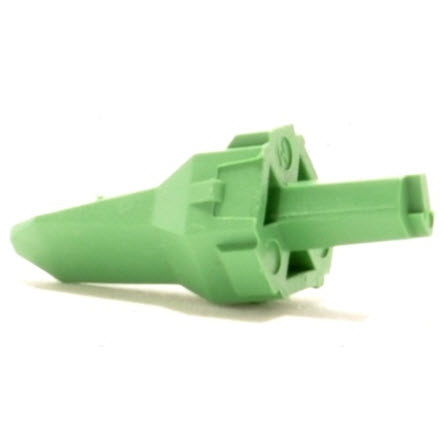

#26 — 514682 — *LOCK WEDGE, 3-PIN (2 required per assembly)

0514682 - Lock Wedge - 3 Pin Receptacle [ More info ]

$4.26
Available to Order: Usually ships within 10 days.

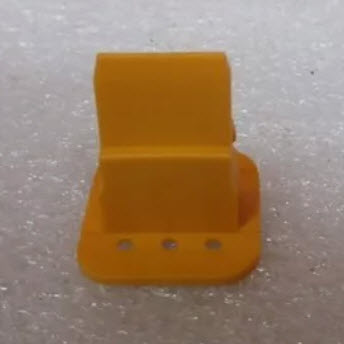

#27 — 514683 — *LOCK WEDGE, 6-SOCKET (1 required per assembly)

0514683 - Lock Wedge, 6 Socket Plug [ More info ]

$4.26 $0.88
2 In Stock.

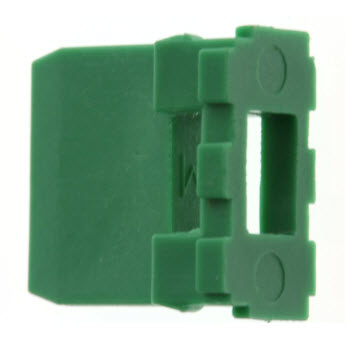

#28 — 514684 — *LOCK WEDGE, 6-PIN (1 required per assembly)

0514684 - Lock Wedge, 6 Pin Connector [ More info ]

$3.13
Available to Order: Usually ships within 10 days.

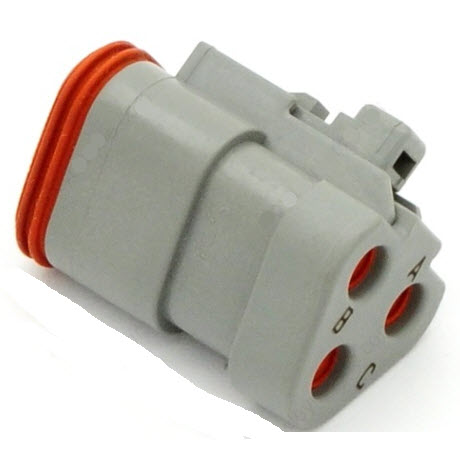

#29 — 514685 — *CONNECTOR, 3 SOCKET (5 required per assembly)

0514685 - Connector, 3 Socket Plug [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

#30 — 514789 — **SEAL (5 required per assembly)

0514789 - Seal, 3 Socket [ More info ]

$11.72 $3.65
7 In Stock.

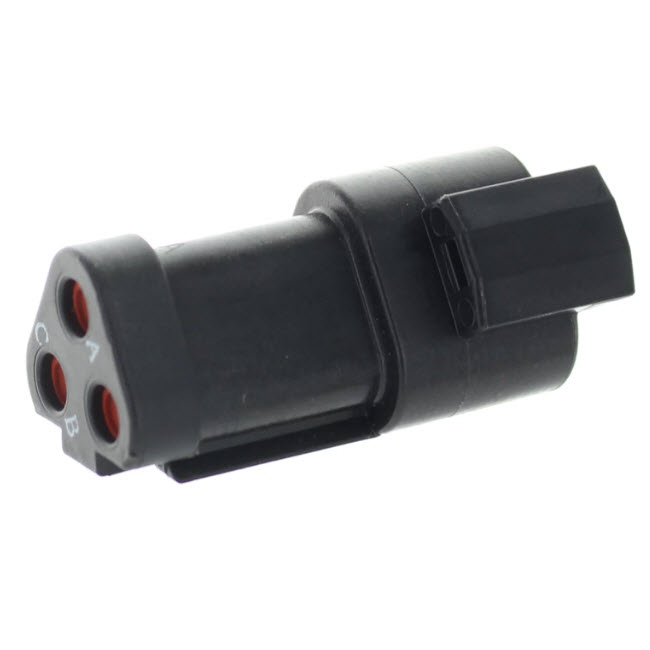

#31 — 514686 — *CONNECTOR, 3 PIN (2 required per assembly)

0514686 - Connector, 3 Pin Receptacle [ More info ]

$15.29
1 In Stock.

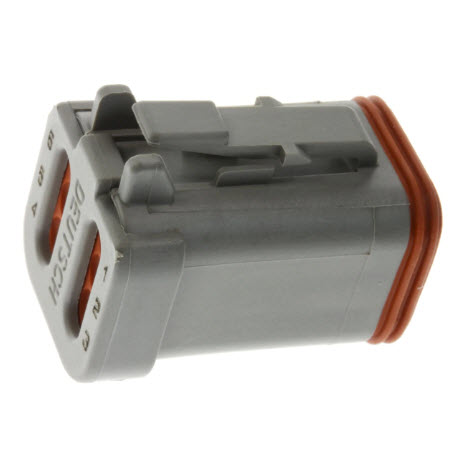

#32 — 514687 — *CONNECTOR, 6-SOCKET (1 required per assembly)

0514687 - Connector, 6 Socket Plug [ More info ]

$22.94
4 In Stock.

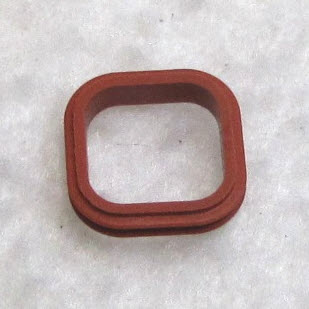

#33 — 514790 — **SEAL, 6-SOCKET (1 required per assembly)

0514790 - Seal, 6 Lead Plug [ More info ]

$9.65 $2.01
9 In Stock.

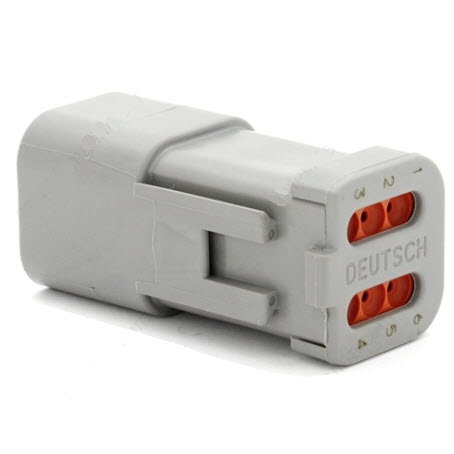

#34 — 514688 — *CONNECTOR, 6-PIN (1 required per assembly)

0514688 - Connector, 6 Pin Receptalce [ More info ]

$21.41 $4.44
2 In Stock.

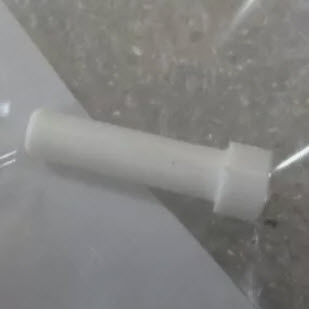

#35 — 514690 — *PLUG, VACANT HOLE (2 required per assembly)

0514690 - Sealing Plug [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

#36 — 514696 — *CONNECTOR, 2-PIN (2 required per assembly)

0514696 - Connector, 2Pin Rcpt [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

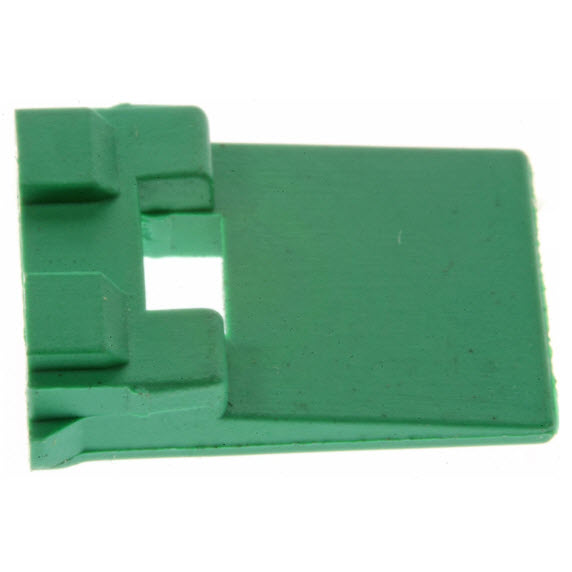

#37 — 514697 — *LOCK WEDGE, 2-PIN (2 required per assembly)

0514697 - Lock Wedge 2 Pin Receptacle [ More info ]

$3.13
Available to Order: Usually ships within 10 days.

#38 — 514823 — *TERMINAL (6 required per assembly)

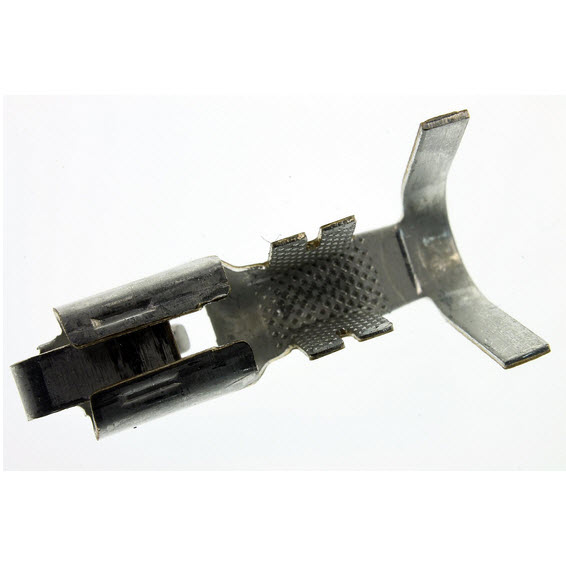

0514823 - Terminal [ More info ]

$5.55
Available to Order: Usually ships within 10 days.

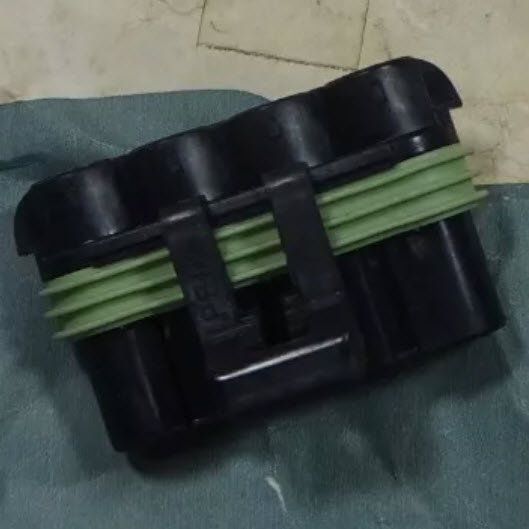

#39 — 514824 — *CONNECTOR, 4-SOCKET (1 required per assembly)

0514824 - Connector, 4-Way [ More info ]

$8.99 $7.51
10+ In Stock.

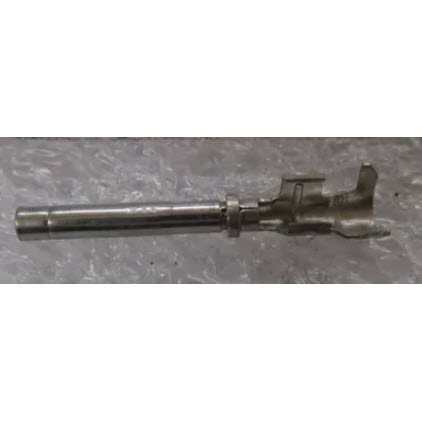

#40 — 514856 — *TERMINAL (49 required per assembly)

0514856 - Terminal, Deutsch [ More info ]

$2.00 $1.67
10+ In Stock.

#41 — 514858 — *PLUG, VACANT HOLE (1 required per assembly)

0514858 - L/P 4.00 [ More info ]
Unavailable

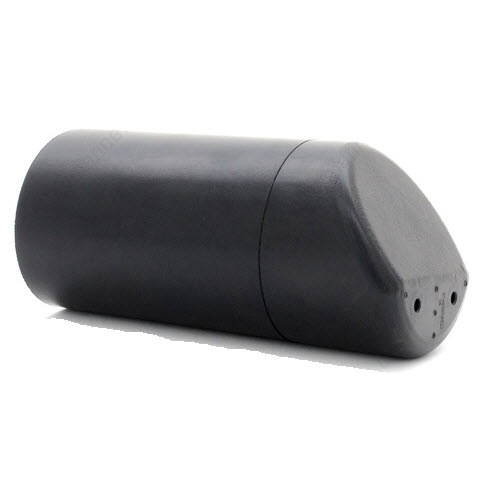

#42 — 514889 — *COVER, CAPACITOR (1 required per assembly)

0514889 - Capacitor Cover [ More info ]

$23.96
Available to Order: Usually ships within 10 days.

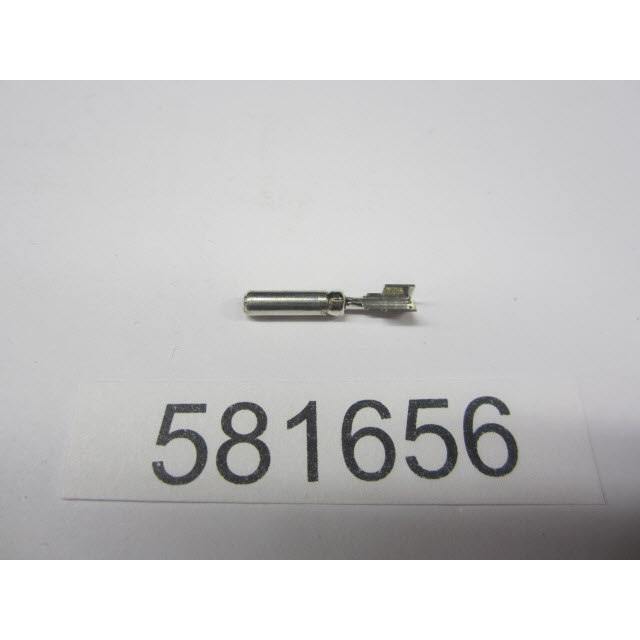

#43 — 581656 — *TERMINAL, SOCKET (1 required per assembly)

0581656 - Female Terminal Socket [ More info ]

$5.00
10+ In Stock.

973-1656 - Female Amphenol Sockets, 20 Pack, 581656 [ More info ]

$26.06
In Stock

#44 — 3010206 — *CAPACITOR (1 required per assembly)

3010206 - Capacitor, Filter [ More info ]

$328.43
Available to Order: Usually ships within 10 days.

#45 — 586397 — *RELAY, 70 AMP (1 required per assembly)

0586397 - Relay Assembly, 70 Amp [ More info ]

$53.03
4 In Stock.

#46 — 3010593 — *CONNECTOR, CPS (1 required per assembly)

3010593 - Connector, 2 Pin [ More info ]
Unavailable

#47 — 3010594 — *LOCK WEDGE, CPS (1 required per assembly)

3010594 - Lock Wedge [ More info ]
Unavailable

#48 — 3010023 — *SEAL, TERMINAL (8 required per assembly)

3010023 - Seal, Terminal [ More info ]

$7.95
Available to Order: Usually ships within 10 days.

#49 — 513667 — *TERMINAL, RECEPTACLE (2 required per assembly)

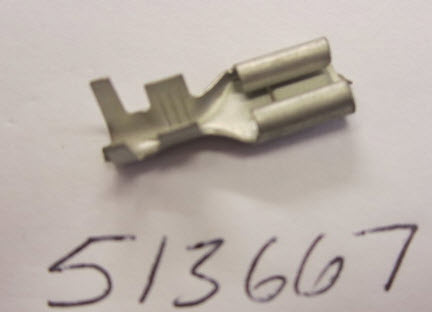

0513667 - Terminal - .312 [ More info ]

$6.33 $1.00
7 In Stock.

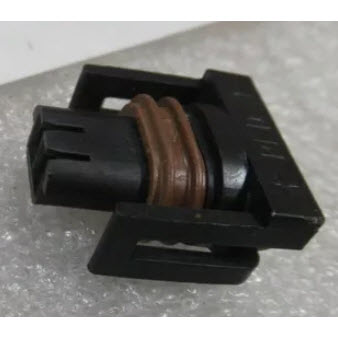

#50 — 3010124 — *CONNECTOR, 2-PIN (2 required per assembly)

3010124 - Connector, 2 Pin Plug [ More info ]

$30.08
Available to Order: Usually ships within 10 days.

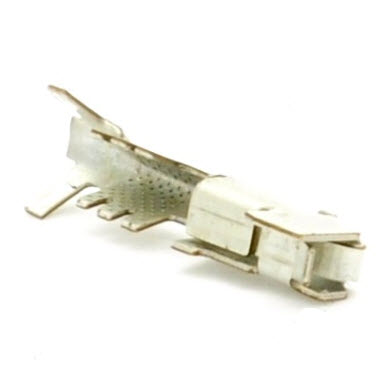

#51 — 3010125 — *TERMINAL, SOCKET (4 required per assembly)

3010125 - Terminal, Socket [ More info ]

$5.40
5 In Stock.

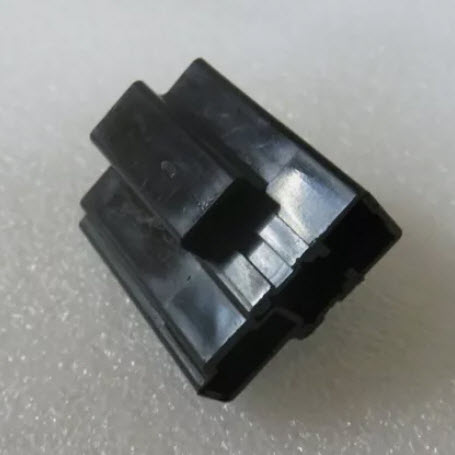

#52 — 3010126 — *CONNECTOR, RELAY (1 required per assembly)

3010126 - Connector, Relay [ More info ]

$42.32
Available to Order: Usually ships within 10 days.

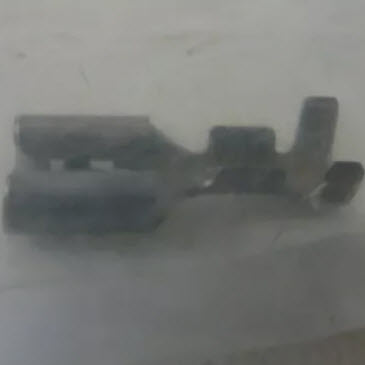

#53 — 3010128 — *TERMINAL, RECEPTACLE (2 required per assembly)

3010128 - Terminal, RCPT-1/4 [ More info ]

$9.65 $2.01
5 In Stock.

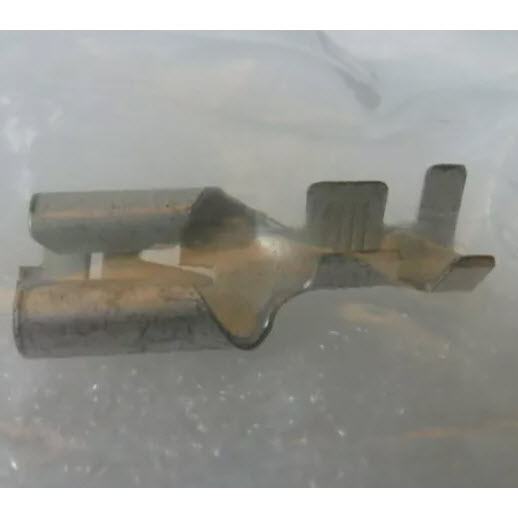

#54 — 3010129 — *TERMINAL, RECEPTACLE (2 required per assembly)

3010129 - Terminal, RCPT-3/8 [ More info ]

$9.65 $2.01
3 In Stock.

#55 — 317893 — TIE STRAP (4 required per assembly)

0317893 - Tie Strap [ More info ]

$0.36
10+ In Stock.

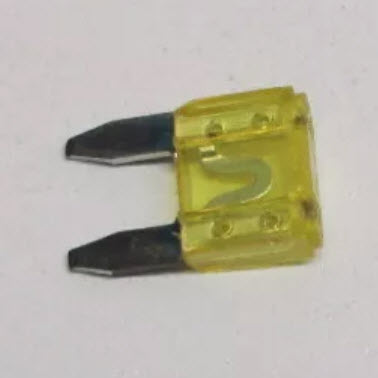

#56 — 514768 — *FUSE, 20 AMP (1 required per assembly)

0514768 - MiniFuse, 20 Amp [ More info ]

$3.89 $2.19
10+ In Stock.

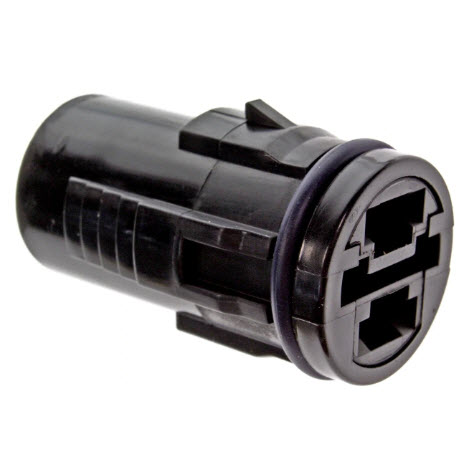

#57 — 513664 — *CONNECTOR, 2 CONNECTOR, EMM (1 required per assembly)

0513664 - Connector, 2 Socket [ More info ]

$33.14
3 In Stock.

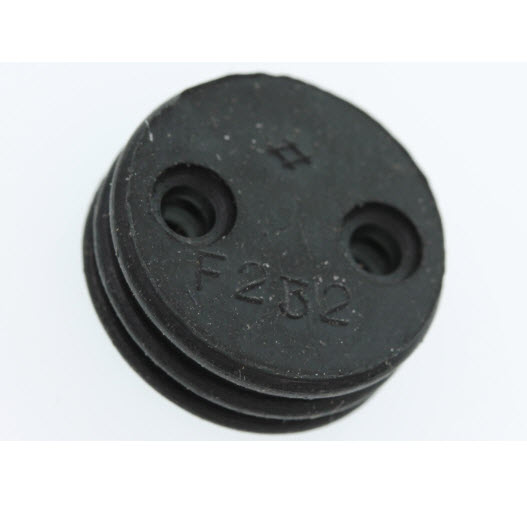

#58 — 513665 — *SEAL (1 required per assembly)

0513665 - Connector Plug [ More info ]

$14.27
8 In Stock.

3852251 - Plug, Volvo [ More info ]

$3.10 $3.00
Available to Order: Usually ships within 10 days.

#59 — 513166 — *TERMINAL, RECEPTACLE (2 required per assembly)

0513166 - Terminal -42946-2 [ More info ]

$2.99
Available to Order: Usually ships within 10 days.

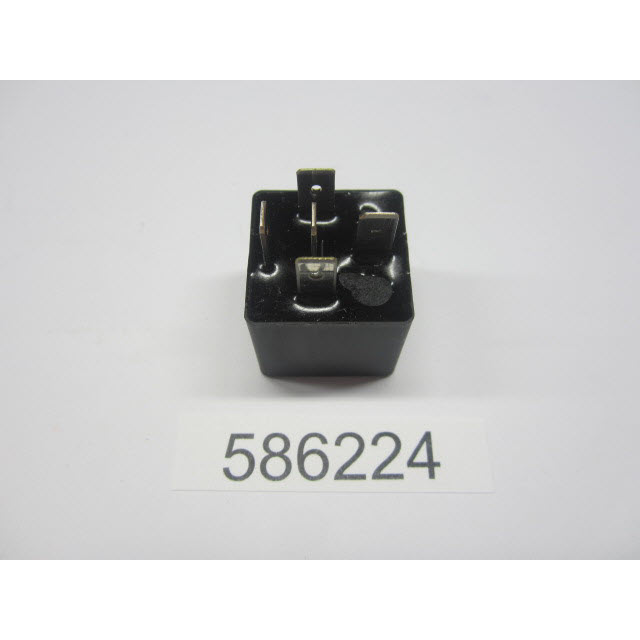

#60 — 586224 — *RELAY, START DELAY (1 required per assembly)

0586224 - Relay [ More info ]

$26.49 $23.85
10+ In Stock.

3857533 - Relay - Volvo Penta (3857533) [ More info ]

$34.90
Available to Order: Usually ships within 10 days.

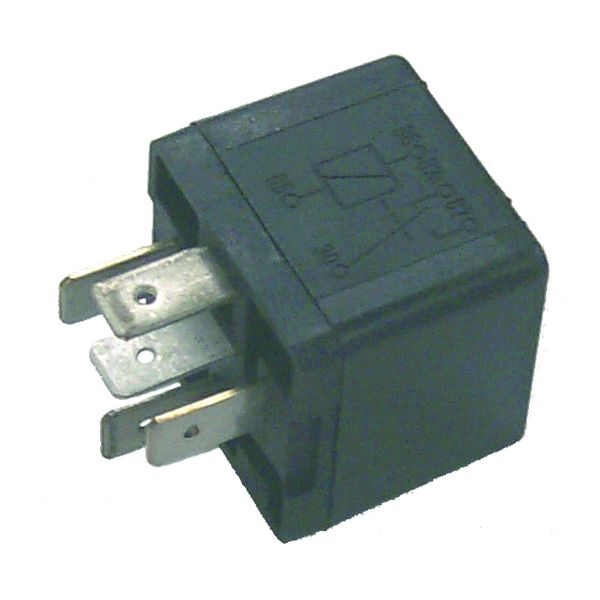

18-5705 - Relay 586224 [ More info ]

$24.99 $21.74
10+ In Stock.

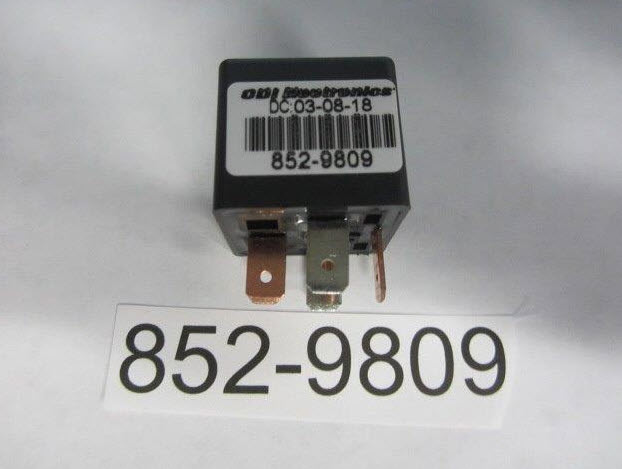

852-9809 - Relay, 586224 [ More info ]

$18.99 $6.96
Available to Order: Usually ships within 10 days.

R473 - Relay [ More info ]

$21.65 $21.04
6 In Stock.

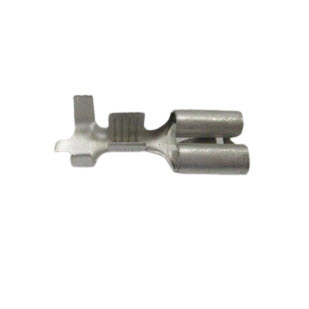

#61 — 513167 — *TERMINAL, RECEPTACLE (2 required per assembly)

0513167 - Terminal, Rcpt .250 [ More info ]

$2.99 $1.17
10+ In Stock.

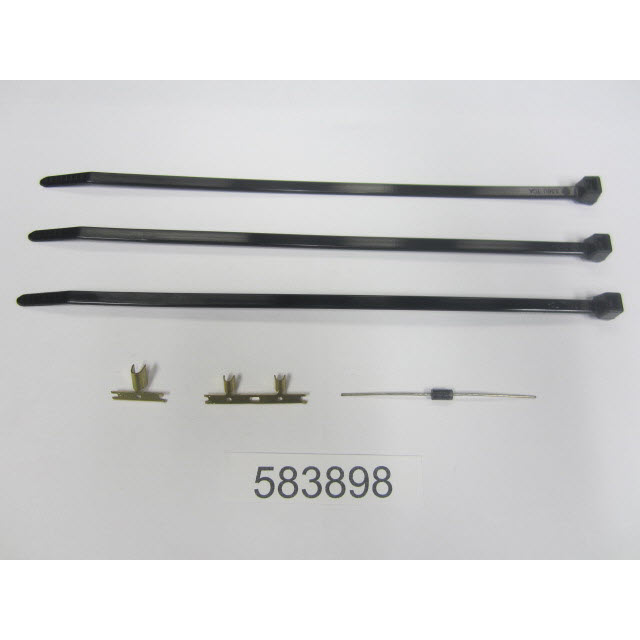

#62 — 583898 — *DIODE KIT (3 required per assembly)

0583898 - Diode Kit [ More info ]

$27.49
10+ In Stock.

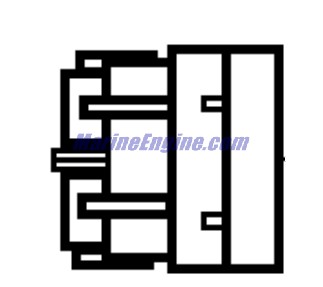

#63 — 514740 — *CONNECTOR - 24 PIN (2 required per assembly)

0514740 - L/P 54.97 [ More info ]
Unavailable

#64 — 0 — *TUBING, CONVOLUTED. (CUT TO LENGTH FROM, P/N 3010592.) (1 required per assembly)

#65 — 0 — *TUBING, CONVOLUTED. (CUT TO LENGTH FROM, P/N 3010608.) (1 required per assembly)

#66 — 335200 — SCREW, GROUND LEADS TO C/C (1 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.
