Electrical System Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

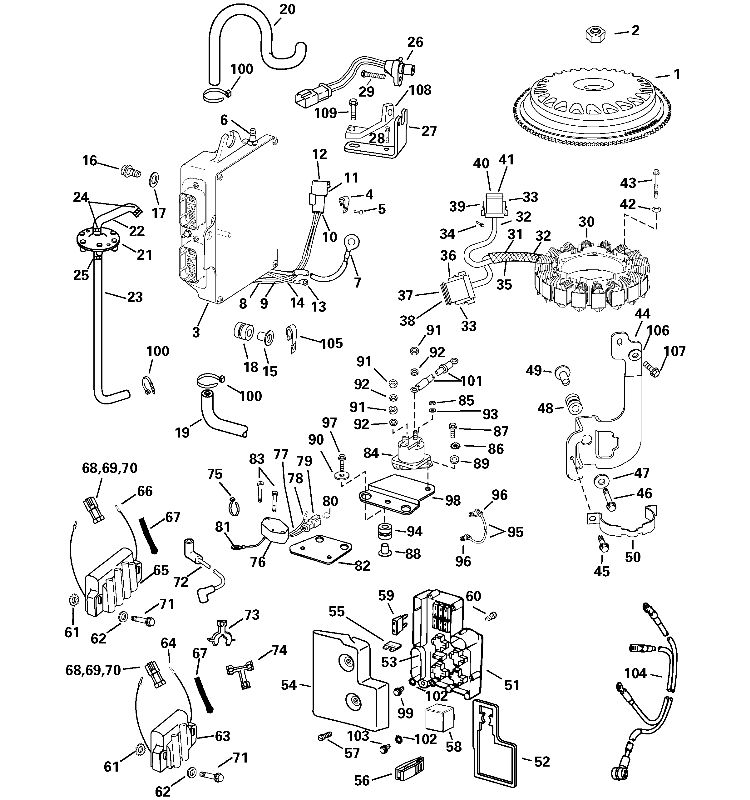

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

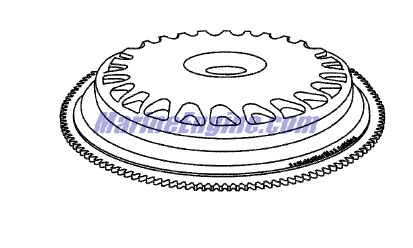

| #1 — 586653 — FLYWHEEL ASSY (1 required per assembly) | ||
  |
|
0586653 - Flywheel Assembly, 20/40A [ More info ]
|

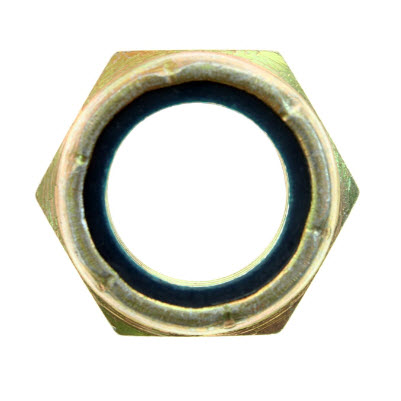

| #2 — 326042 — NUT, FLYWHEEL (1 required per assembly) | ||
  |
|
|
| #3 — 0 — EMM, 250HP. (CALL DEALER SUPPORT SERVICES.) (1 required per assembly) |

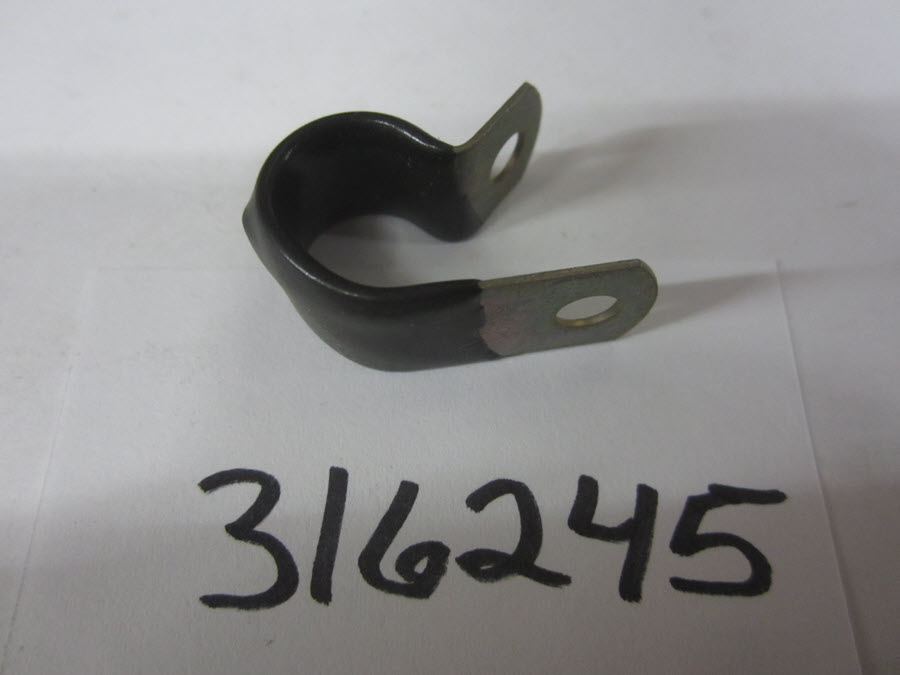

| #4 — 316245 — *CLAMP, LEADS TO CASE (1 required per assembly) | ||
  |
|
0316245 - Clamp - Cable [ More info ]
|

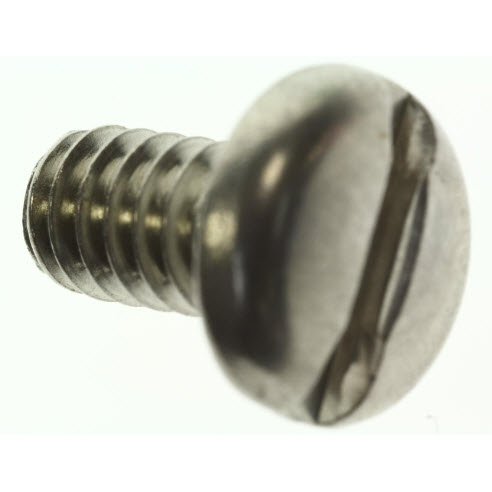

| #5 — 328714 — *SCREW, CLAMP TO EMM (1 required per assembly) | ||
  |
|
|

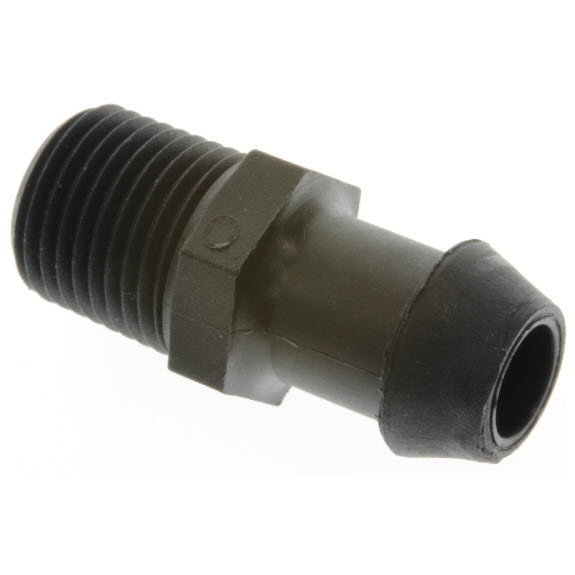

| #6 — 330272 — *FITTING, EMM WATER (2 required per assembly) | ||
  |
|
0330272 - Nipple [ More info ]
|
| #7 — 204363 — *TERMINAL, RING - GROUND (1 required per assembly) | ||
  |
|
0204363 - Terminal 61868-1 [ More info ]
|
| #8 — 317893 — *TIE STRAP (3 required per assembly) | ||
  |
|
0317893 - Tie Strap [ More info ]
|
| #9 — 320107 — *TIE STRAP (1 required per assembly) | ||
  |
|
0320107 - Fuel Hose Tie Strap, ramped face, Sold Individually [ More info ]
|

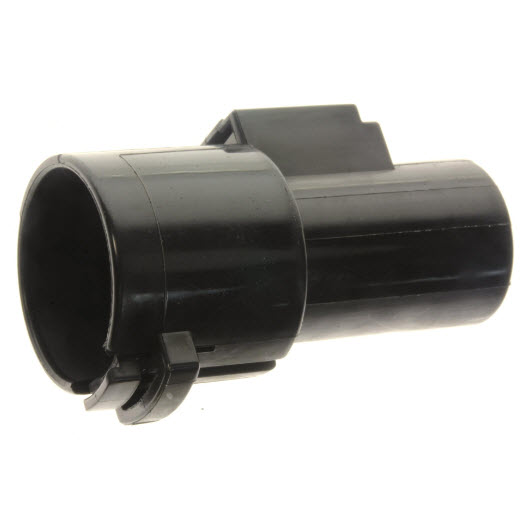

| #10 — 513663 — *CONNECTOR, 2 SOCKET (1 required per assembly) | ||
  |
|
0513663 - Connector, 2 Cont Rcpt [ More info ]
|
| #11 — 513665 — *PLUG, SEAL (1 required per assembly) | ||
  |
|
0513665 - Connector Plug [ More info ]
|
 |
|
3852251 - Plug, Volvo [ More info ]
|

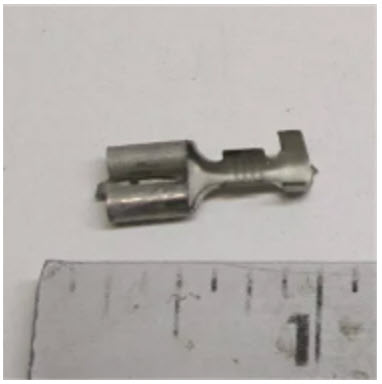

| #12 — 513666 — *TERMINAL, BLADE (2 required per assembly) | ||
  |
|
0513666 - Terminal -8232-4252 [ More info ]
|
| #13 — 514158 — *TERMINAL, RING (1 required per assembly) | ||
  |
|
0514158 - Terminal, Ring #1/4 [ More info ] Unavailable |

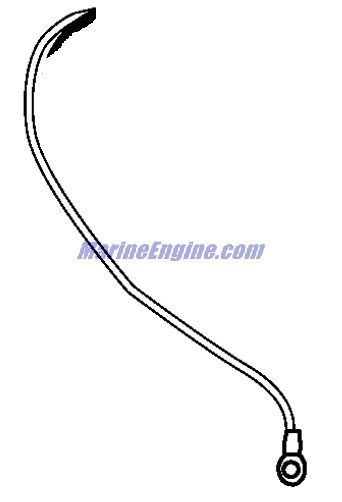

| #14 — 5004456 — *FUSIBLE LINK KIT, AUX BATTERY (1 required per assembly) | ||
  |
|
5004456 - Fusible Link Assembly [ More info ]
|
| #15 — 338558 — SPACER, FLANGED, EMM MOUNT (4 required per assembly) | ||
  |
|
0338558 - Flanged Spacer [ More info ]
|

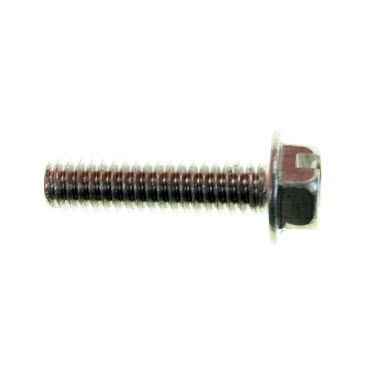

| #16 — 333710 — SCREW, EMM (4 required per assembly) | ||
  |
|
|
| #17 — 328703 — WASHER, EMM (4 required per assembly) | ||
  |
|
0328703 - Washer [ More info ]
|
  |
|
3852193 - Washer, Volvo [ More info ]
|
| #18 — 333040 — ISOLATOR, EMM (4 required per assembly) | ||
  |
|
0333040 - Isolator [ More info ]
|

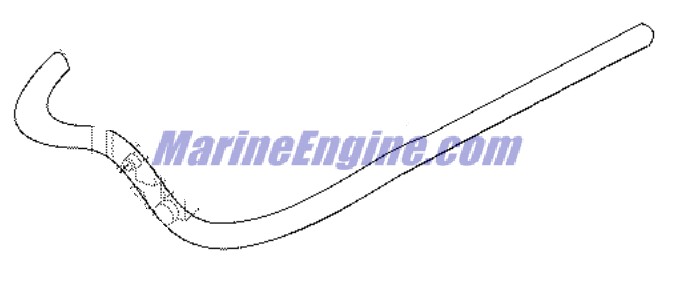

| #19 — 347034 — HOSE, VAPOR SEPARATOR TO EMM (1 required per assembly) | ||
  |
|
|
| #20 — 350136 — HOSE, EMM TO COVER PLATE (1 required per assembly) | ||
  |
|
|

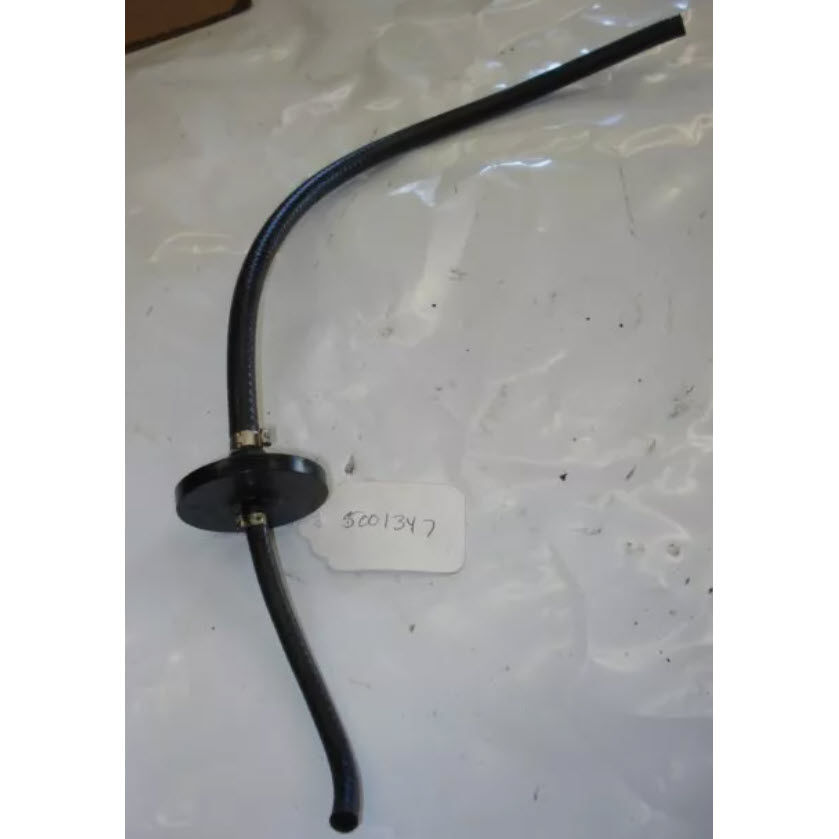

| #21 — 5001347 — DIAPHRAGM & HOSE ASSY, EXHAUST (1 required per assembly) | ||
  |
|
5001347 - Diaphragm Assembly [ More info ] Unavailable |

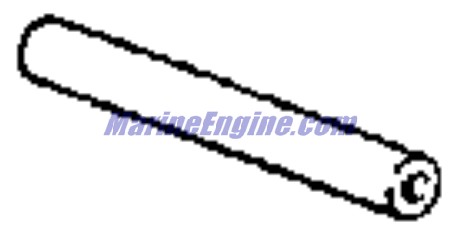

| #22 — 339746 — *HOSE, DIAPHRAGM TO EMM (1 required per assembly) | ||
  |
|
0339746 - Hose [ More info ] Unavailable |

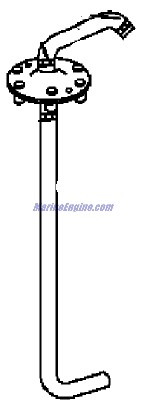

| #23 — 350338 — *HOSE, EXH PRESSURE TO DIAPHRAGM (1 required per assembly) | ||
  |
|
|

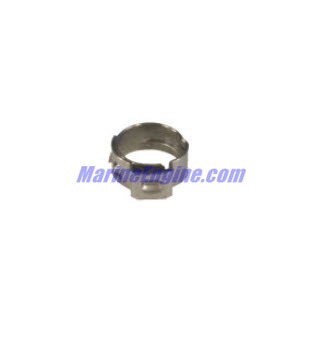

| #24 — 346930 — *CLAMP, 9.5MM (1 required per assembly) | ||
  |
|
0346930 - Clamp - 9.5mm [ More info ]
|
  |
|
18-9126-9 - Oetiker Clamp, 3/8 inch, 9.5 mm, 10 Pack [ More info ]
|

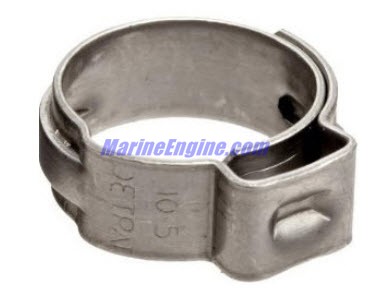

| #25 — 346931 — *CLAMP, 14MM (1 required per assembly) | ||
  |
|
0346931 - Clamp - 14mm [ More info ]
|
  |
|
18-9131-9 - Oetiker Clamp 35/64 inch, 14 mm, 10 Pack [ More info ]
|
| #26 — 586452 — SENSOR ASSY, CRANK POSITION (1 required per assembly) | ||
  |
|
0586452 - Sensor Assembly, Magnetic [ More info ]
|

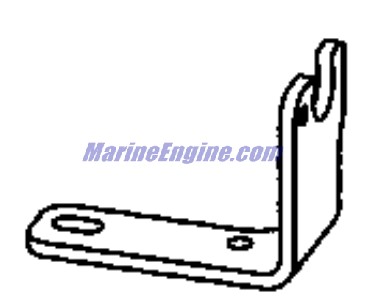

| #27 — 346466 — BRACKET, CPS (1 required per assembly) | ||
  |
|
0346466 - Sensor Bracket (cps) [ More info ]
|
| #28 — 328725 — SCREW, CPS MOUNT (1 required per assembly) | ||
  |
|
|
  |
|
18-1596 - Screw, Housing, 328725 [ More info ]
|
| #29 — 329217 — SCREW, CPS TO BRACKET (1 required per assembly) | ||
  |
|
|
| #30 — 586571 — STATOR ASSY (1 required per assembly) | ||
  |
|
0586571 [ More info ] Unavailable Replaced by 0586950 |
  |
|

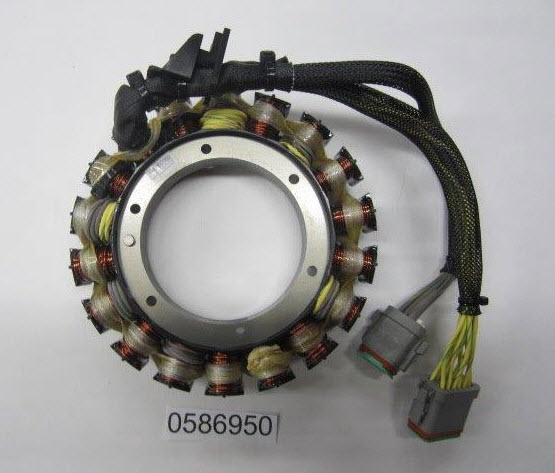

0586950 - Stator Assembly, Switcher [ More info ]
|
| #31 — 317893 — *TIE STRAP (3 required per assembly) | ||
|
|
0317893 - Tie Strap [ More info ]
|
| #32 — 320107 — TIE STRAP (7 required per assembly) | ||
|
|
0320107 - Fuel Hose Tie Strap, ramped face, Sold Individually [ More info ]
|
| #33 — 514680 — *TERMINAL, SOCKET (18 required per assembly) | ||
  |
|
0514680 - Socket Terminal, Sold Individually [ More info ]
|
  |
|
913-4680 - Terminal Deutsch (20 Pcs) 913-4680 [ More info ]
|
| #34 — 514690 — *PLUG, SEAL (2 required per assembly) | ||
  |
|
0514690 - Sealing Plug [ More info ]
|
| #35 — 3010861 — *SLEEVE (1 required per assembly) | ||
  |
|
3010861 - Sleeve [ More info ] Unavailable |

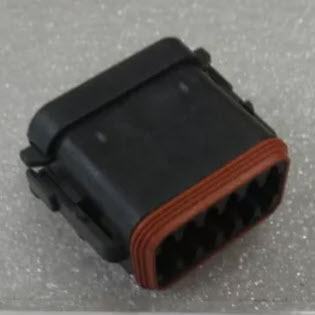

| #36 — 3010885 — *CONNECTOR, 12 PIN (1 required per assembly) | ||
  |
|
3010885 - Connector, 12P-DEUTSCH [ More info ]
|
| #37 — 3011034 — **SEAL (1 required per assembly) | ||
  |
|
3011034 - Seal, 12 Lead Plug [ More info ]
|

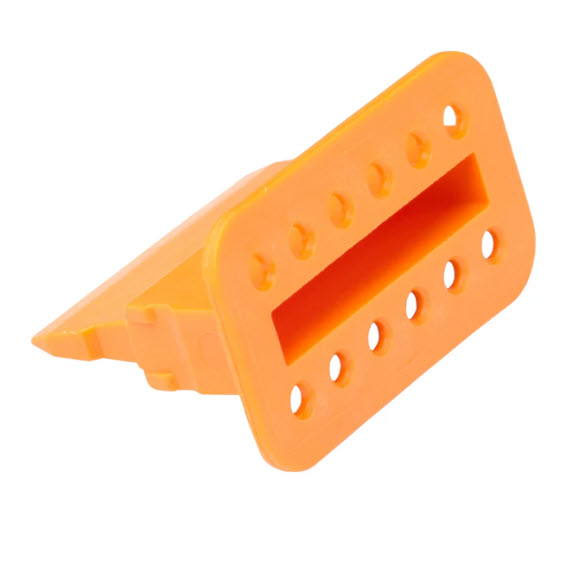

| #38 — 3010959 — *LOCKWEDGE, 12 PIN (1 required per assembly) | ||
  |
|
3010959 - Wedge, Lock - 12Pin [ More info ]
|
| #39 — 3011030 — *CONNECTOR, 8 PIN (1 required per assembly) | ||
  |
|
3011030 - Connector, 8P-DEUTSCH [ More info ]
|
| #40 — 3011033 — **SEAL (1 required per assembly) | ||
  |
|
3011033 - Seal, 8 Lead Plug [ More info ]
|
| #41 — 3011031 — *LOCKWEDGE, 8 PIN (1 required per assembly) | ||
  |
|
3011031 - Wedge, Lock - 8P [ More info ]
|
| #42 — 306311 — LOCK WASHER, STATOR SCREW (6 required per assembly) | ||
  |
0306311 - LockWasher [ More info ] Unavailable |
|
  |
|
360252 - Flat Washer - BRP (360252) [ More info ]
|

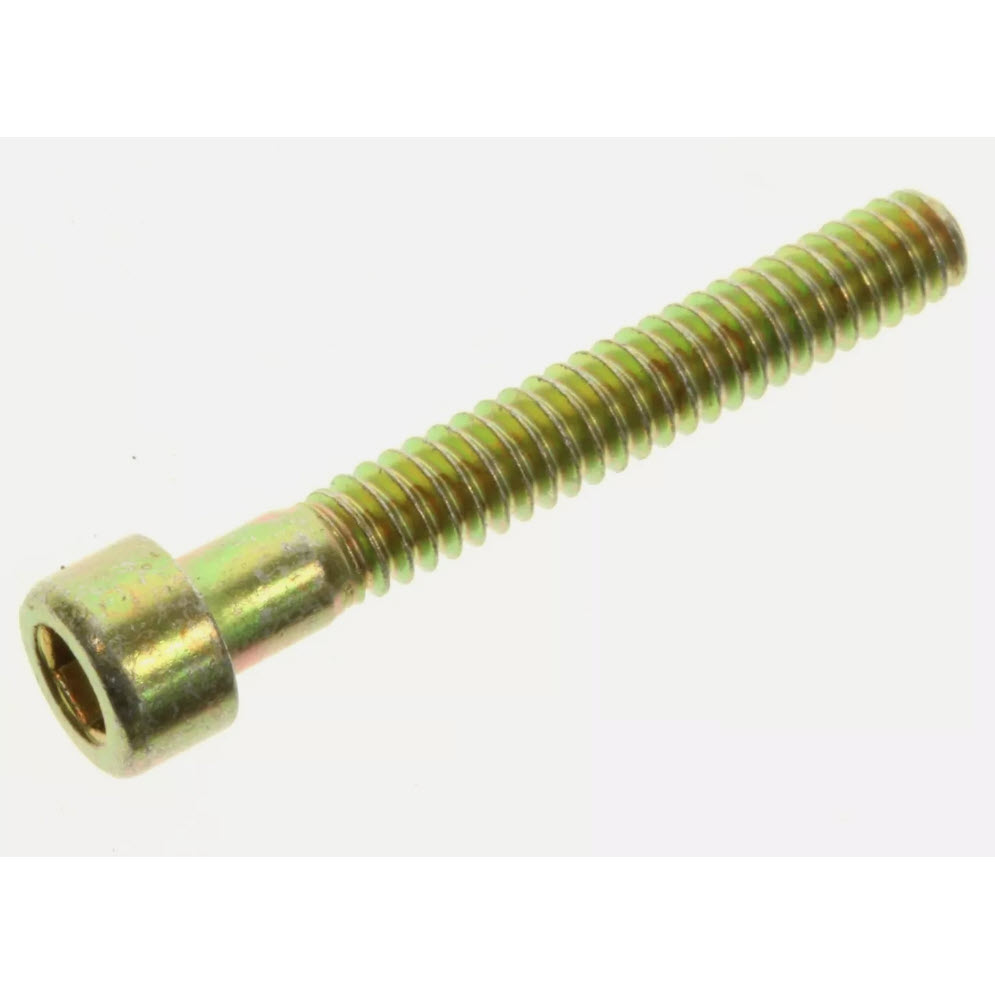

| #43 — 343525 — SCREW, STATOR MOUNTING (6 required per assembly) | ||
  |
|
0343525 - Screw, Stator [ More info ]
|

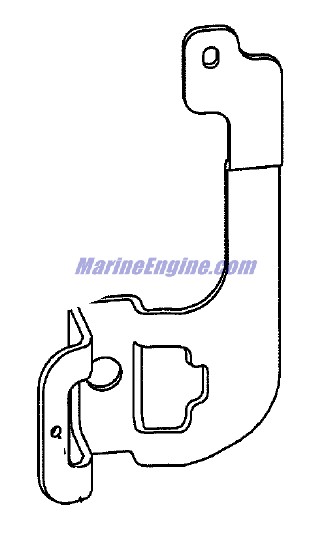

| #44 — 347236 — BRACKET, CAPACITOR (1 required per assembly) | ||
  |
|
0347236 - Bracket [ More info ]
|
| #45 — 332226 — SCREW, CLAMP TO BRACKET (1 required per assembly) | ||
  |
|
|
| #46 — 333710 — SCREW, CAPACITOR MOUNT BRACKET (1 required per assembly) | ||
|
|
|
| #47 — 328703 — WASHER (1 required per assembly) | ||
|
|
0328703 - Washer [ More info ]
|
|
|
3852193 - Washer, Volvo [ More info ]
|
| #48 — 333040 — ISOLATOR (1 required per assembly) | ||
|
|
0333040 - Isolator [ More info ]
|
| #49 — 338558 — SPACER, FLANGED (1 required per assembly) | ||
|
|
0338558 - Flanged Spacer [ More info ]
|

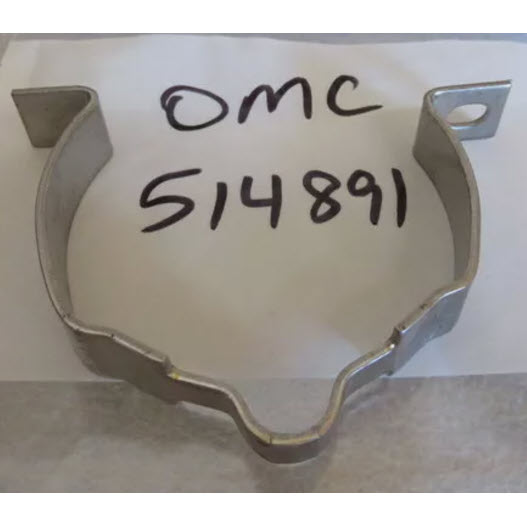

| #50 — 514891 — CLAMP, CAPACITOR (1 required per assembly) | ||
  |
|
|

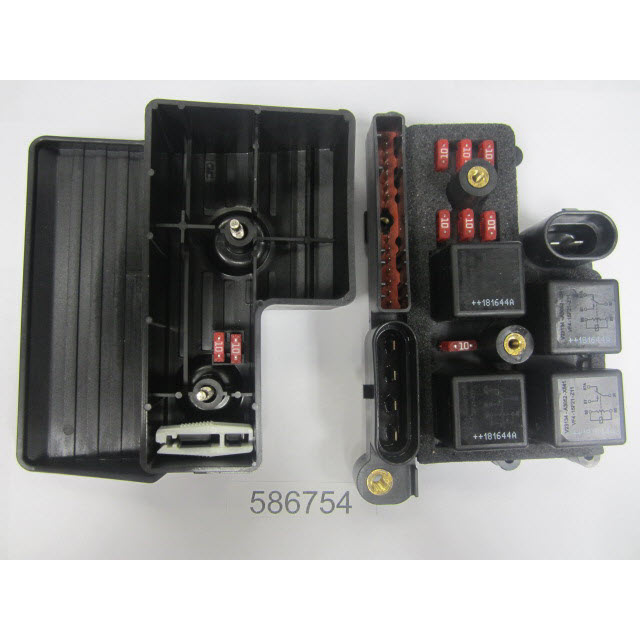

| #51 — 586754 — POWER DISTRIBUTION PANEL (1 required per assembly) | ||
  |
|
0586754 - Power Distribution Panel - Fuse & Relay Assembly [ More info ] Unavailable |

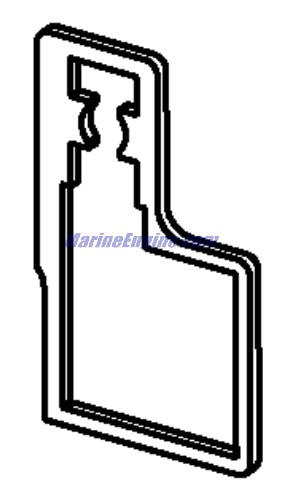

| #52 — 345004 — *SEAL, COVER (1 required per assembly) | ||
  |
|
0345004 - Seal [ More info ] Unavailable |

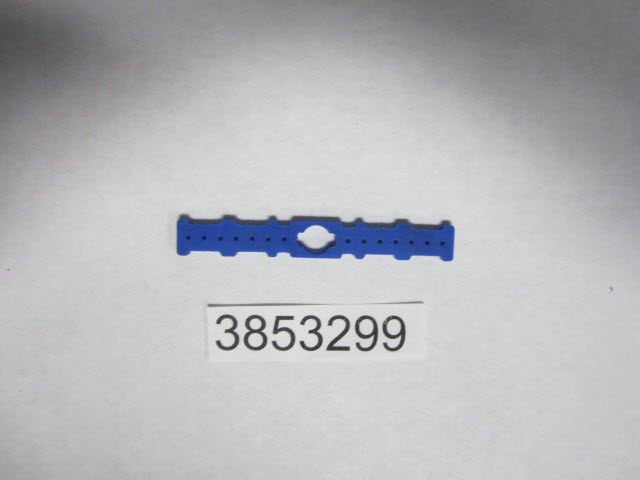

| #53 — 3853299 — *GASKET, CONNECTOR (1 required per assembly) | ||
  |
|
3853299 - Connector Gasket [ More info ]
|
  |
|
3853299 - Gasket Volvo Penta (V2) - Volvo Penta (3853299) [ More info ]
|

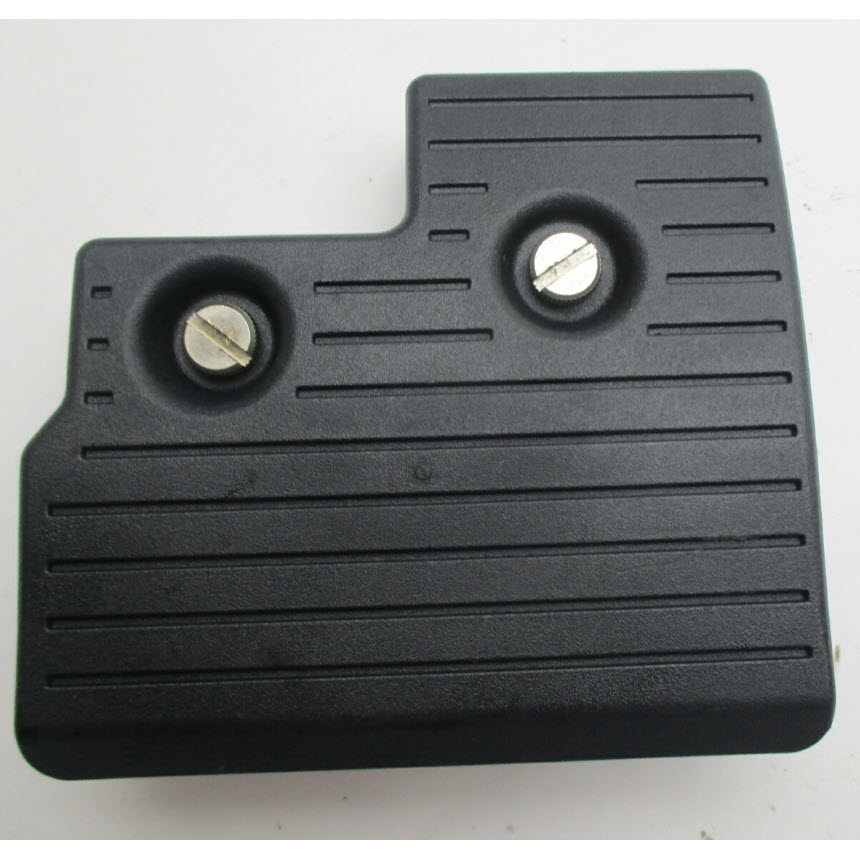

| #54 — 586300 — *COVER ASSY (1 required per assembly) | ||
  |
|
0586300 - Fuse Cover Assembly [ More info ]
|
| #55 — 514766 — **FUSE, 10 AMP, SPARE (2 required per assembly) | ||
  |
|
0514766 - MiniFuse, 10AMP [ More info ]
|

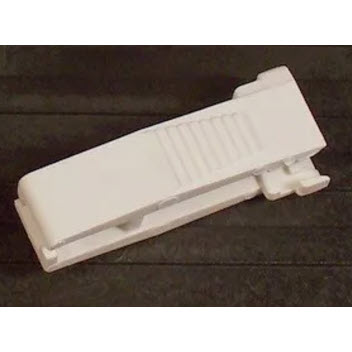

| #56 — 345005 — **FUSE, PULLER (1 required per assembly) | ||
  |
|
0345005 - Fuse Puller [ More info ]
|
| #57 — 344233 — **SCREW (2 required per assembly) | ||
  |
|
0344233 - Screw, Cover. Not Shown [ More info ]
|
| #58 — 586224 — *RELAY ASSY (4 required per assembly) | ||
  |
|
|
  |
|
3857533 - Relay - Volvo Penta (3857533) [ More info ]
|
  |
|
18-5705 - Relay 586224 [ More info ]
|
  |
|
852-9809 - Relay, 586224 [ More info ]
|
  |
|
|
| #59 — 514766 — *FUSE, 10 AMP (7 required per assembly) | ||
|
|
0514766 - MiniFuse, 10AMP [ More info ]
|
| #60 — 328649 — SCREW, FUSE & RELAY TO BRACKET (5 required per assembly) | ||
  |
|
|
| #61 — 328701 — LOCK WASHER, COIL (8 required per assembly) | ||
  |
|
0328701 - LockWasher [ More info ]
|
  |
|

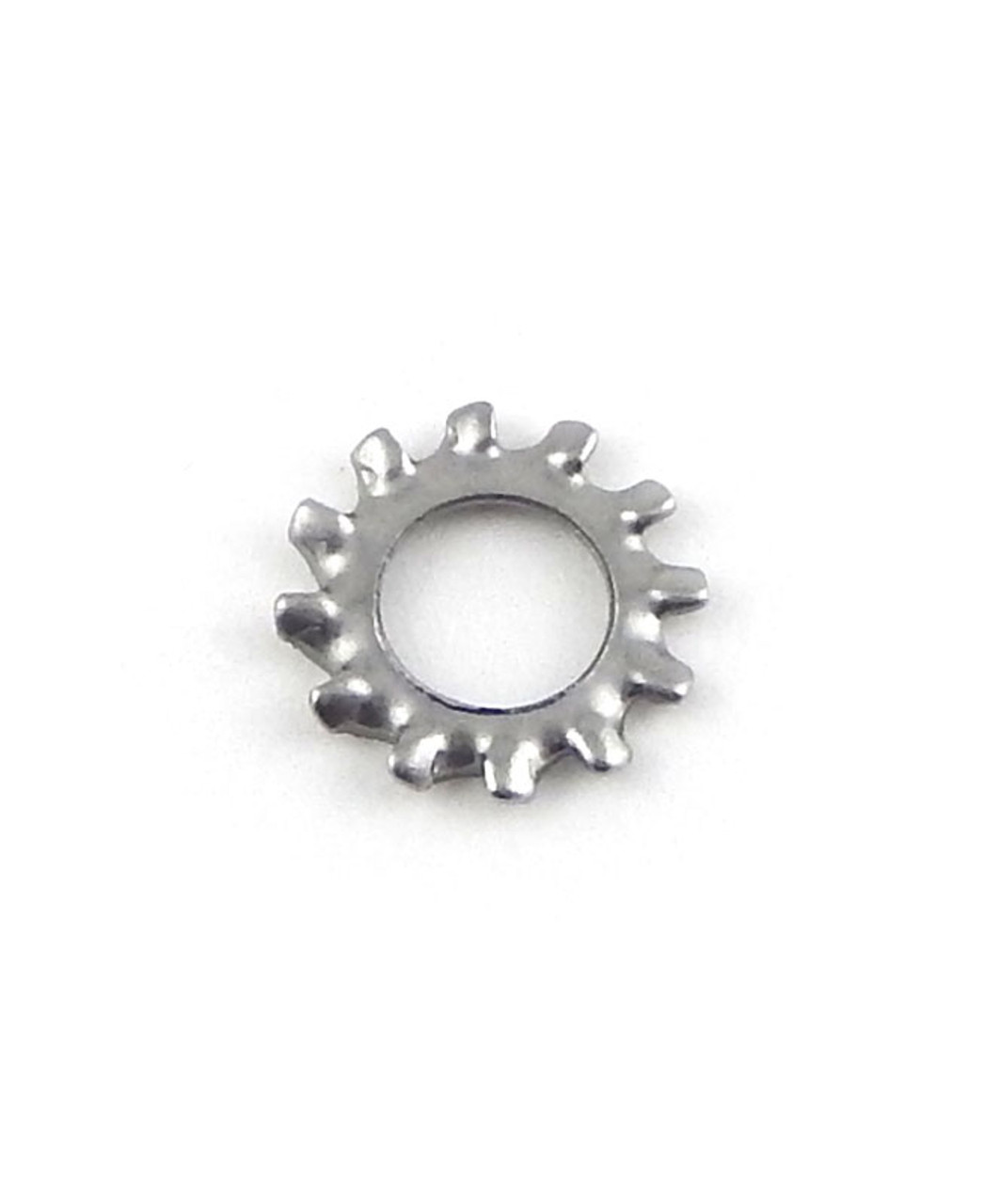

3852182 - Washer, Volvo [ More info ]
|
| #62 — 328703 — FLAT WASHER, COIL MOUNTING (8 required per assembly) | ||
|
|
0328703 - Washer [ More info ]
|
|
|
3852193 - Washer, Volvo [ More info ]
|

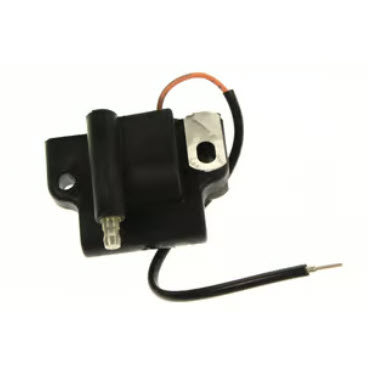

| #63 — 586749 — COIL ASSY, SINGLE (2 required per assembly) | ||
  |
|
0586749 - Ignition Coil Assembly - Single [ More info ]
|
  |
|

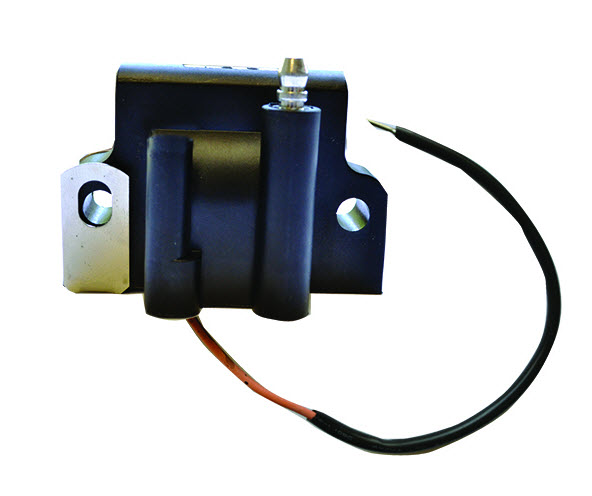

183-0002 - Ignition Coil, 586749 [ More info ]
|
| #64 — 514679 — *TERMINAL, PIN (2 required per assembly) | ||
  |
|
0514679 - Pin Terminal [ More info ]
|
  |
|
913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]
|
| #65 — 586745 — COIL ASSY, DUAL (2 required per assembly) | ||
  |
|
0586745 - Ignition Coil Assembly, Dual, See Note on Detail Page [ More info ] Unavailable |
  |
|

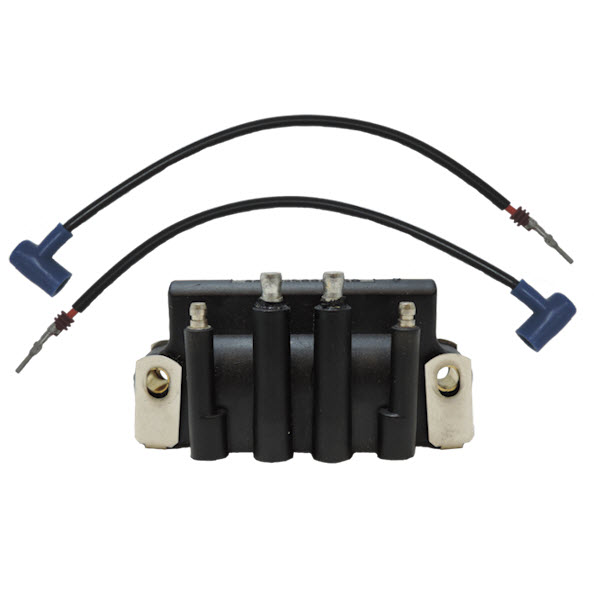

183-3741 - Ignition Coil, Ficht, 4/6 Cylinder, Dual Coil [ More info ]
|
| #66 — 514679 — *TERMINAL, PIN (4 required per assembly) | ||
|
|
0514679 - Pin Terminal [ More info ]
|
|
|
913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]
|
| #67 — 0 — **TUBING, SLEEVE - PRIMARY LEADS. (CUT TO LENGTH FROM P/N 3011044.) (1 required per assembly) |
| #68 — 514682 — LOCKWEDGE (2 required per assembly) | ||
  |
|
0514682 - Lock Wedge - 3 Pin Receptacle [ More info ]
|
| #69 — 514686 — CONNECTOR, 3 PIN (2 required per assembly) | ||
  |
|
0514686 - Connector, 3 Pin Receptacle [ More info ]
|
| #70 — 514789 — *SEAL (2 required per assembly) | ||
  |
|
0514789 - Seal, 3 Socket [ More info ]
|

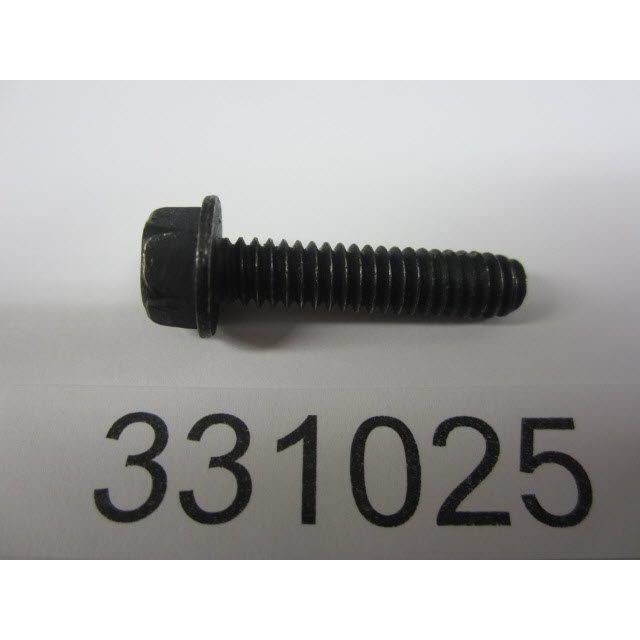

| #71 — 331025 — SCREW, COIL MOUNTING (8 required per assembly) | ||
  |
|
|
| #72 — 5004960 — LEAD ASSY, SPARK PLUG (6 required per assembly) | ||
  |
5004960 - LEAD Assy, Spark plug [ More info ] Unavailable |
|
  |
|

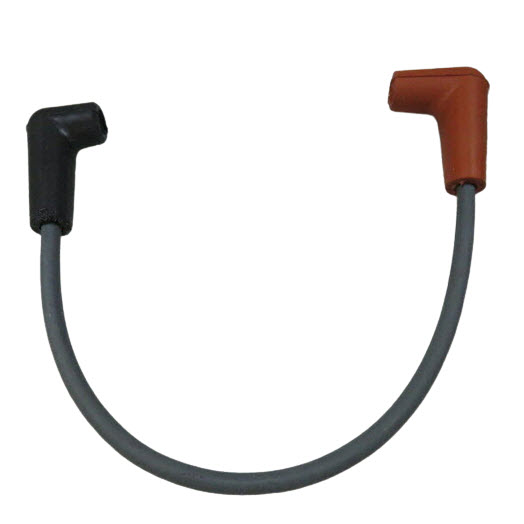

5005810 - Lead Assembly, H/T-supp [ More info ]
|

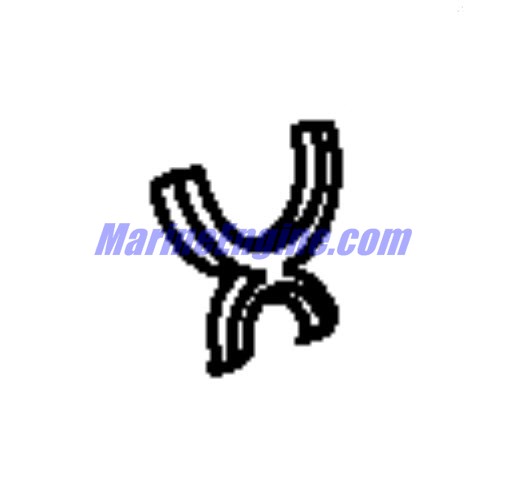

| #73 — 350056 — RETAINER, HIGH TENSION LEADS / INJECTOR (12 required per assembly) | ||
  |
|
0350056 - Spacer [ More info ]
|

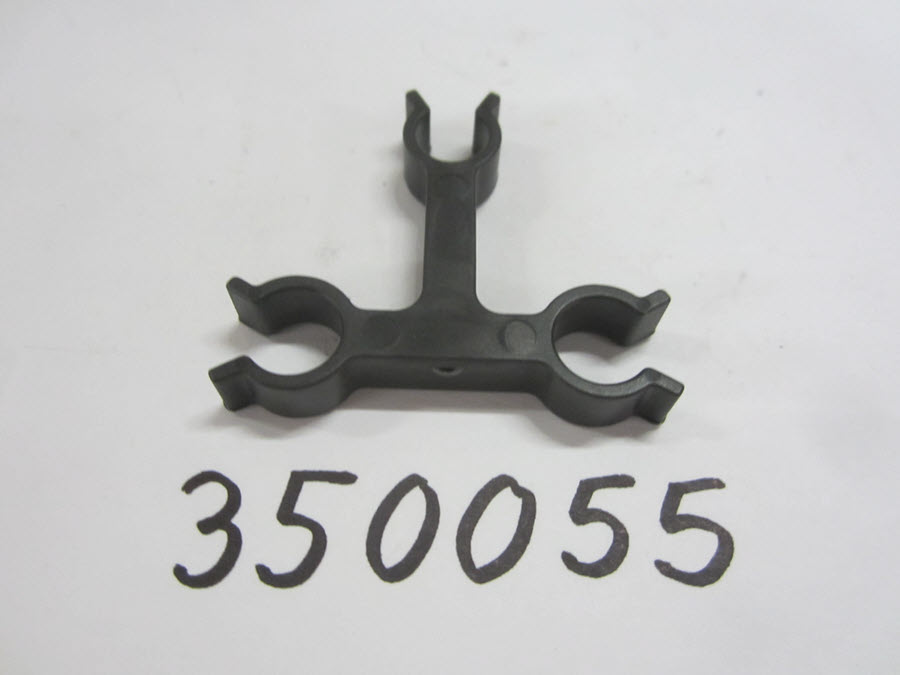

| #74 — 350055 — RETAINER, HIGH TENSION LEADS (6 required per assembly) | ||
  |
|
0350055 - Spacer [ More info ]
|

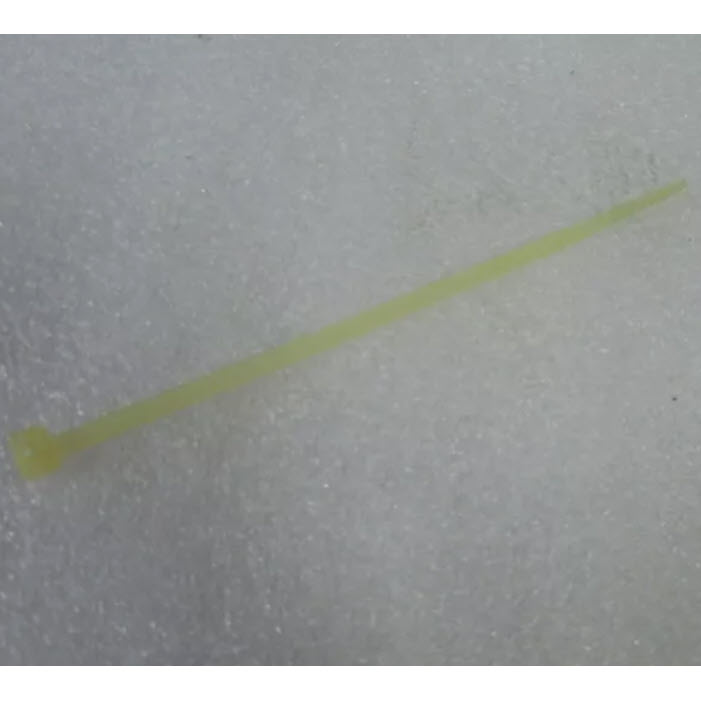

| #75 — 318322 — TIE STRAP (1 required per assembly) | ||
  |
|
0318322 - Tie Strap [ More info ]
|

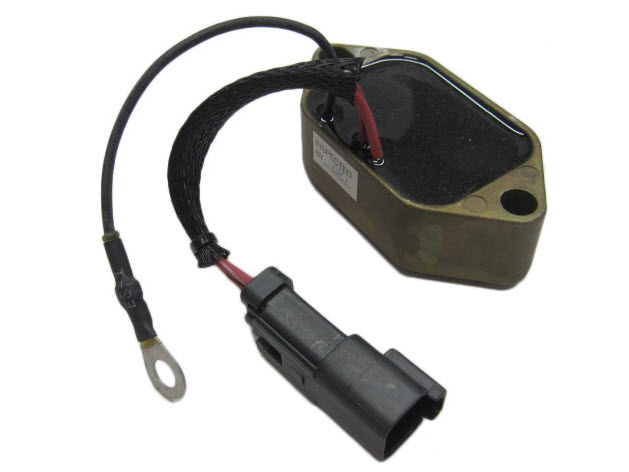

| #76 — 586546 — MODULE, FILTER (1 required per assembly) | ||
  |
|
0586546 - Filter Module Assembly [ More info ]
|
| #77 — 317893 — *TIE STRAP (1 required per assembly) | ||
|
|
0317893 - Tie Strap [ More info ]
|
| #78 — 514679 — *TERMINAL, PIN (2 required per assembly) | ||
|
|
0514679 - Pin Terminal [ More info ]
|
|
|
913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]
|
| #79 — 514696 — *CONNECTOR, 2 PIN (1 required per assembly) | ||
  |
|
0514696 - Connector, 2Pin Rcpt [ More info ]
|
| #80 — 514697 — *LOCKWEDGE, 2 PIN (1 required per assembly) | ||
  |
|
0514697 - Lock Wedge 2 Pin Receptacle [ More info ]
|
| #81 — 510818 — *TERMINAL, RING (1 required per assembly) | ||
  |
|
0510818 - Ring Terminal [ More info ]
|

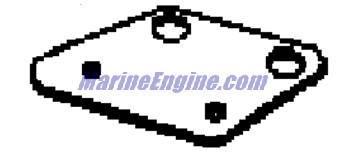

| #82 — 349993 — BRACKET, FILTER ASSY TO C/C (1 required per assembly) | ||
  |
|
0349993 - Bracket [ More info ] Unavailable |
| #83 — 324334 — SCREW, FILTER ASSY TO BRACKET (2 required per assembly) | ||
  |
|
|

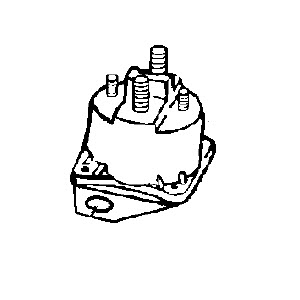

| #84 — 586730 — SOLENOID (1 required per assembly) | ||
  |
|
0586730 [ More info ] Unavailable Replaced by 0586842 |
  |
|
0586842 - Solenoid [ More info ]
|
  |
|

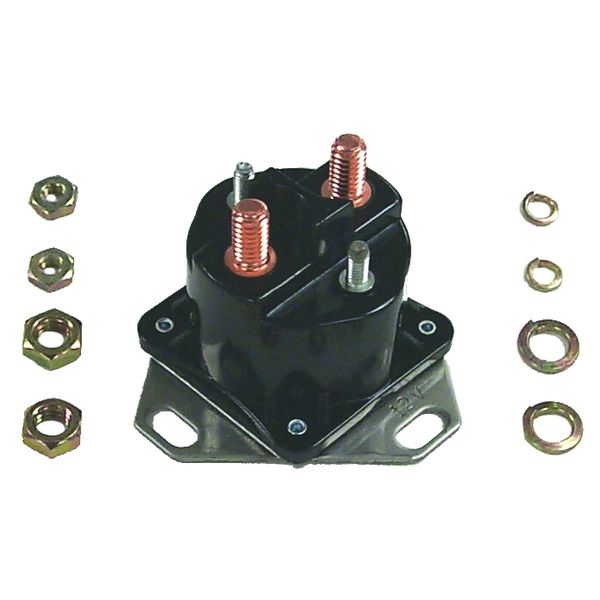

18-5801 - Solenoid 89-76416A1, 985 [ More info ]
|
  |
|
SW394 - Solenoid [ More info ]
|

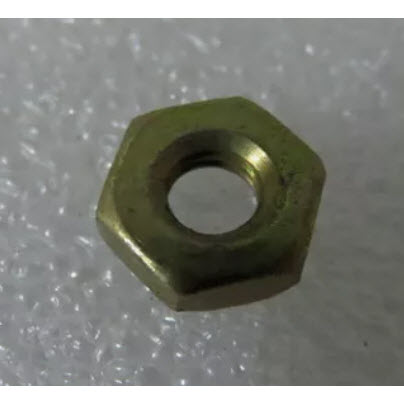

| #85 — 306556 — NUT, SMALL (2 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut [ More info ]
|
| #86 — 328701 — LOCK WASHER (1 required per assembly) | ||
|
|
0328701 - LockWasher [ More info ]
|
|
|
3852182 - Washer, Volvo [ More info ]
|
| #87 — 335200 — SCREW, SOLENOID (2 required per assembly) | ||
  |
|
|
| #88 — 338558 — SPACER, SOLENOID BRACKET (2 required per assembly) | ||
|
|
0338558 - Flanged Spacer [ More info ]
|
| #89 — 328703 — WASHER, SOLENOID BRACKET (2 required per assembly) | ||
|
|
0328703 - Washer [ More info ]
|
|
|
3852193 - Washer, Volvo [ More info ]
|
| #90 — 328701 — WASHER, SOLENOID (2 required per assembly) | ||
|
|
0328701 - LockWasher [ More info ]
|
|
|
3852182 - Washer, Volvo [ More info ]
|

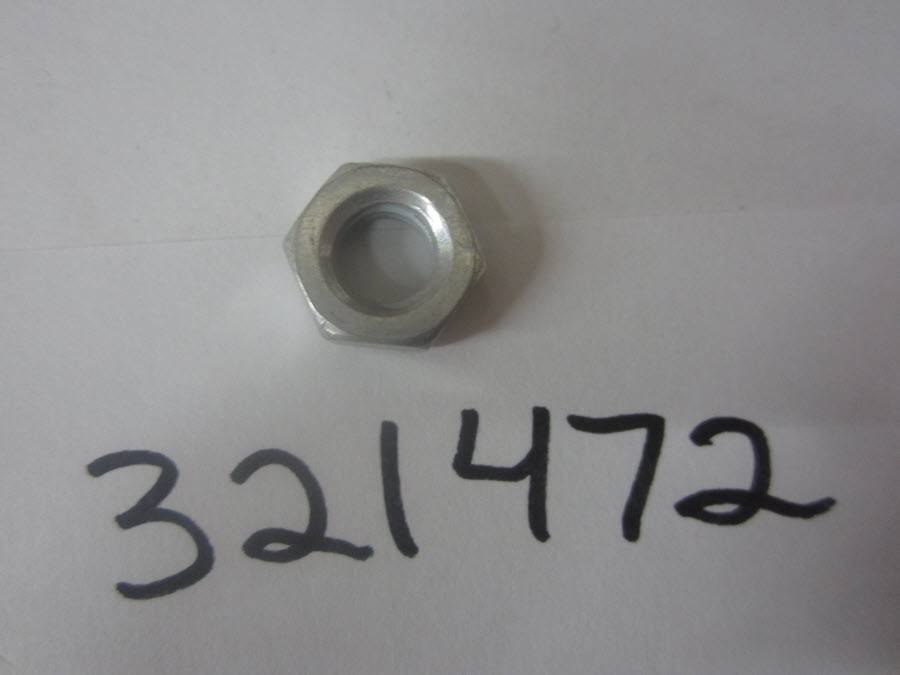

| #91 — 321472 — NUT, LARGE (3 required per assembly) | ||
  |
|
|

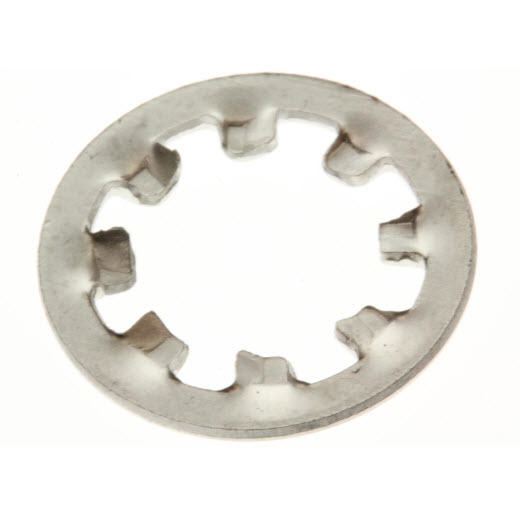

| #92 — 331259 — LOCK WASHER, LARGE (3 required per assembly) | ||
  |
|
0331259 - LockWasher [ More info ]
|

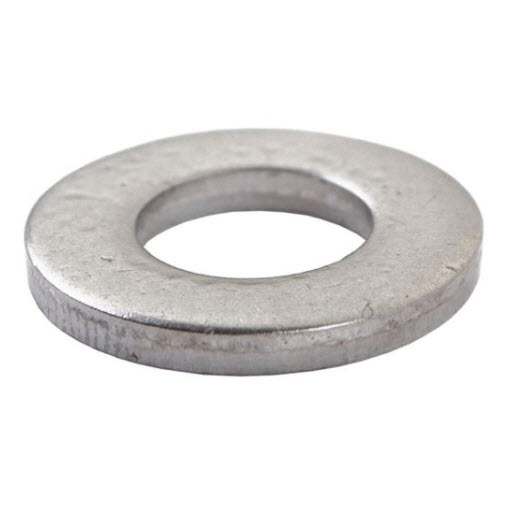

| #93 — 304454 — LOCK WASHER, SMALL (2 required per assembly) | ||
  |
|
0304454 - LockWasher [ More info ]
|
| #94 — 333040 — ISOLATOR, SOLENOID BRACKET (1 required per assembly) | ||
|
|
0333040 - Isolator [ More info ]
|

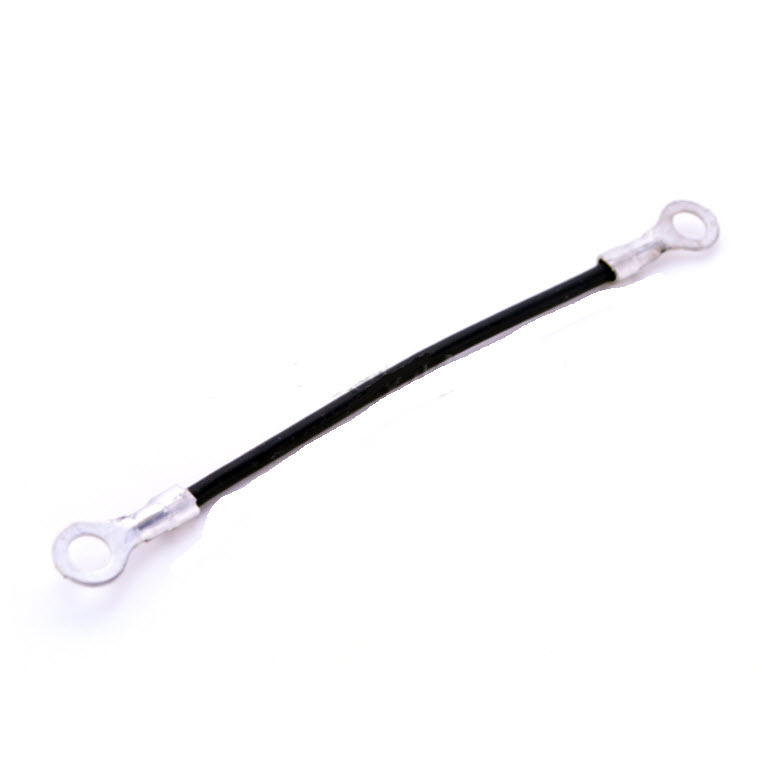

| #95 — 376349 — LEAD, SOLENOID GROUND (1 required per assembly) | ||
  |
|
|
| #96 — 514158 — *TERMINAL, RING (2 required per assembly) | ||
|
|
0514158 - Terminal, Ring #1/4 [ More info ] Unavailable |
| #97 — 324334 — SCREW, SOLENOID BRACKET (2 required per assembly) | ||
|
|
|

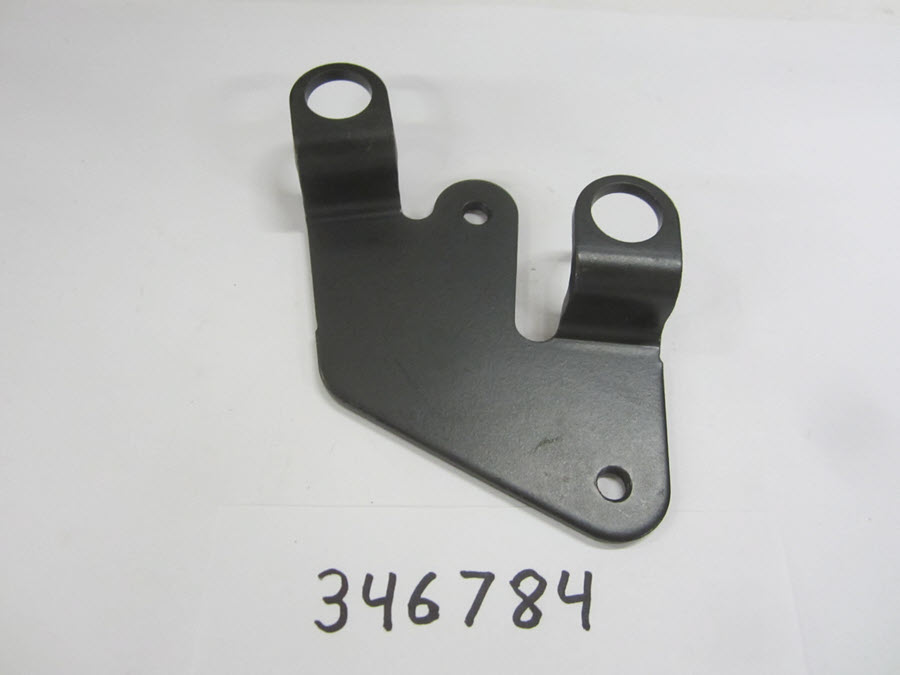

| #98 — 346784 — BRACKET, SOLENOID (1 required per assembly) | ||
  |
|
0346784 - Bracket [ More info ]
|
| #99 — 335200 — SCREW, AUXILIARY BATTERY LEAD (1 required per assembly) | ||
|
|
|
| #100 — 320107 — TIE STRAP (1 required per assembly) | ||
|
|
0320107 - Fuel Hose Tie Strap, ramped face, Sold Individually [ More info ]
|

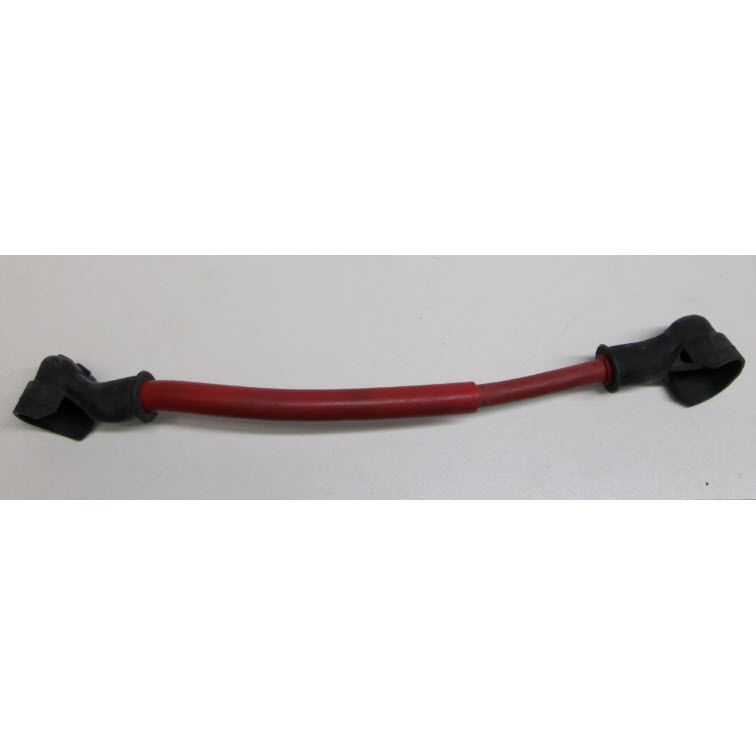

| #101 — 386721 — LEAD, SOLENOID TO STARTER (1 required per assembly) | ||
  |
|
0386721 - Cable Assembly [ More info ]
|

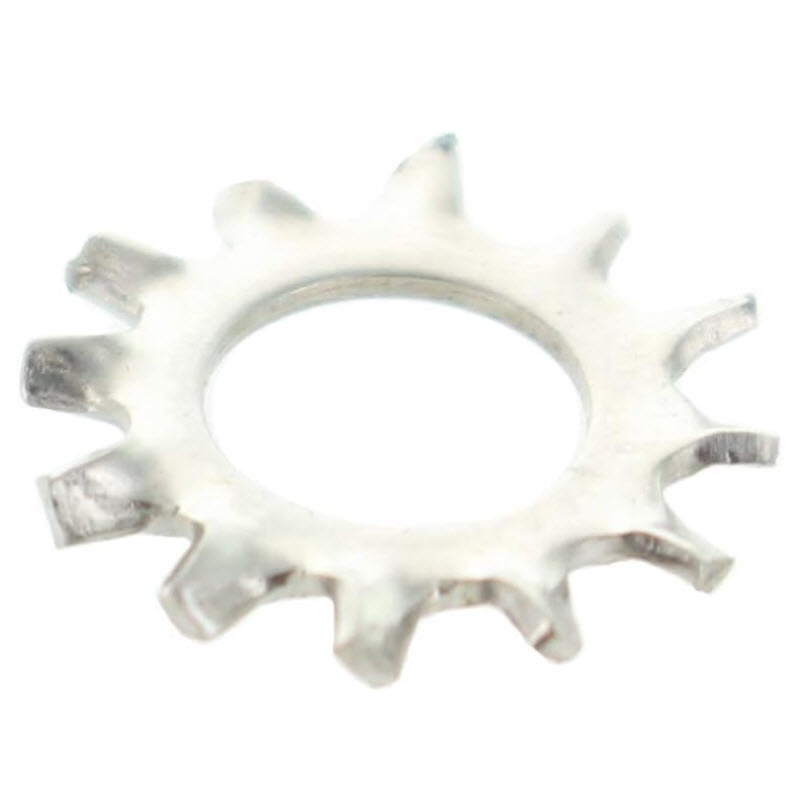

| #102 — 303701 — WASHER, SCREW NEG BATTERY LEAD (2 required per assembly) | ||
  |
|
0303701 - LockWasher [ More info ]
|
| #103 — 332226 — SCREW, NEG BAT LEAD TO PDP BRKT (1 required per assembly) | ||
|
|
|

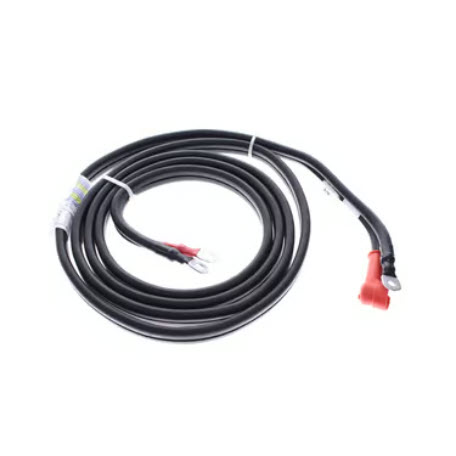

| #104 — 584348 — BATTERY CABLE (1 required per assembly) | ||
  |
|
0584348 - Battery Cable, 4 Gauge, 124 Inch Long [ More info ]
|

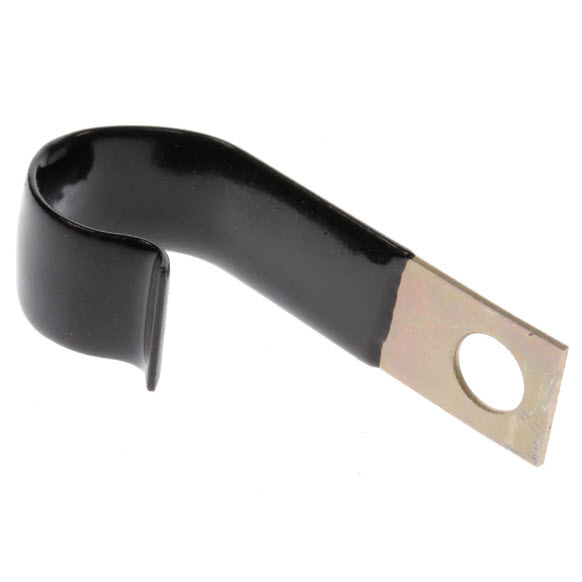

| #105 — 330151 — CLAMP, EMM HOSE & WIRES (1 required per assembly) | ||
  |
|
0330151 - J Clamp [ More info ]
|
| #106 — 303701 — LOCKWASHER (1 required per assembly) | ||
|
|
0303701 - LockWasher [ More info ]
|
| #107 — 333673 — SCREW, BRACKET TO C/C (1 required per assembly) | ||
  |
|
0333673 - Screw, Clamp [ More info ]
|
|
|
|

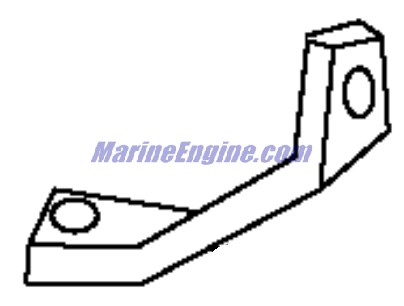

| #108 — 350936 — BRACE, CPS BRACKET (1 required per assembly) | ||
  |
|
|
| #109 — 324334 — SCREW, CPS BRACKET BRACE (1 required per assembly) | ||
|
|
|
