Cylinder & Crankcase Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

Revise Search: All Years > 2003 > 250 hp > Evinrude E250FPZSTA > Cylinder & Crankcase

NEED PARTS OR KITS?

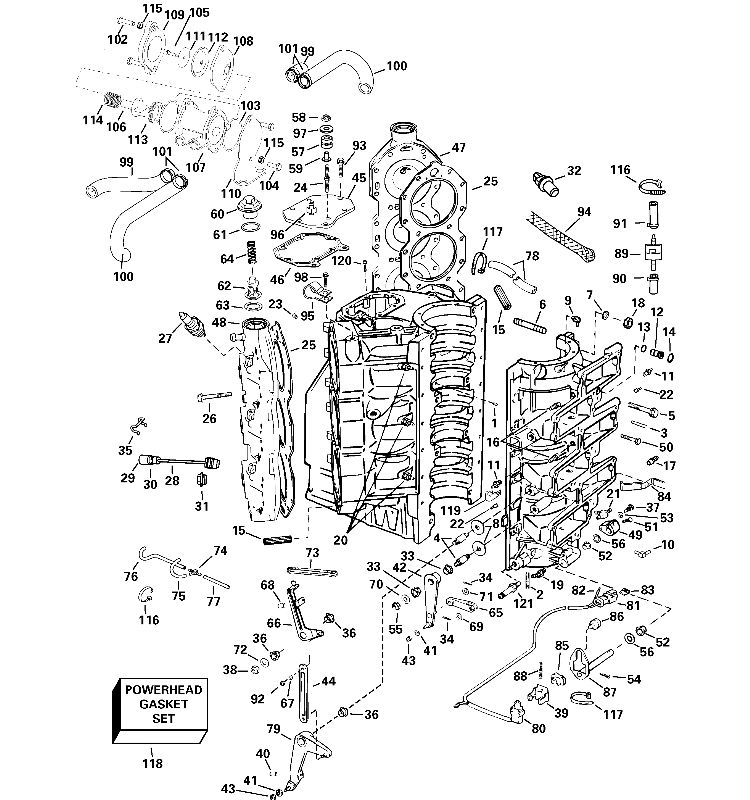

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#0 — 5004930 — 200 HP CYL & CRANKCASE ASSY (1 required per assembly)

5004930 [ More info ]
Unavailable
Replaced by 5006416

5006416 - Cylinder & Crankcase Assembly [ More info ]

$1,098.90 $668.13
10+ In Stock.

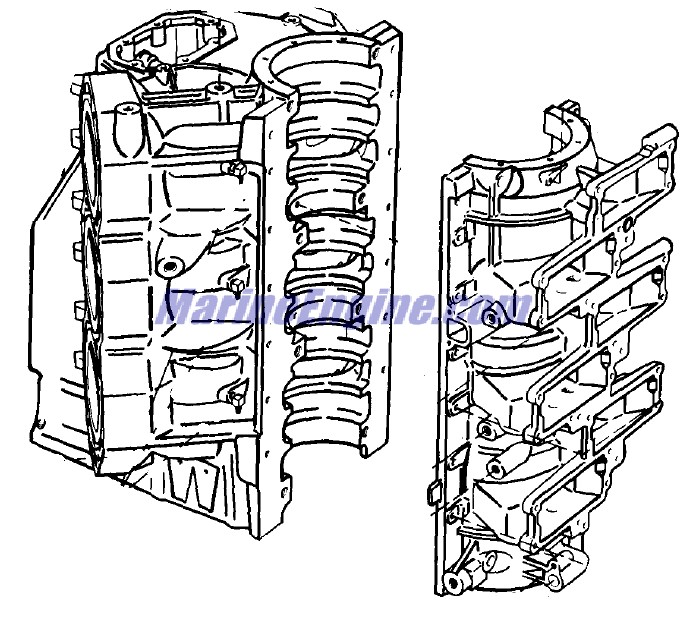

#0 — 5001488 — 225/250 HP CYL & CRANKCASE ASSY (1 required per assembly)

5001488 - Cylinder & Crankcase V6 FFI [ More info ]
Unavailable

#0 — 5001495 — VALVE, PRESSURE RELIEF. NOT SHOWN (1 required per assembly)

5001495 - Blow Off Valve Assembly [ More info ]

$498.77
Available to Order: Usually ships within 10 days.

#1 — 304178 — *PIN, DOWEL BEARING (2 required per assembly)

0304178 - Bearing Dowel [ More info ]

$9.65 $6.35
10+ In Stock.

#2 — 314616 — *STUD, CRANKCASE TO ADAPTER (2 required per assembly)

0314616 - Stud [ More info ]

$24.98
10+ In Stock.

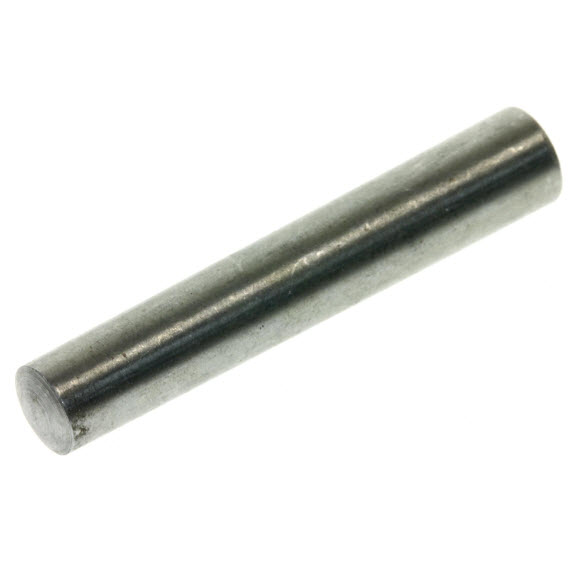

#3 — 331095 — *PIN, TAPER (2 required per assembly)

0331095 - Taper Pin - Cylinder [ More info ]

$7.95
Available to Order: Usually ships within 10 days.

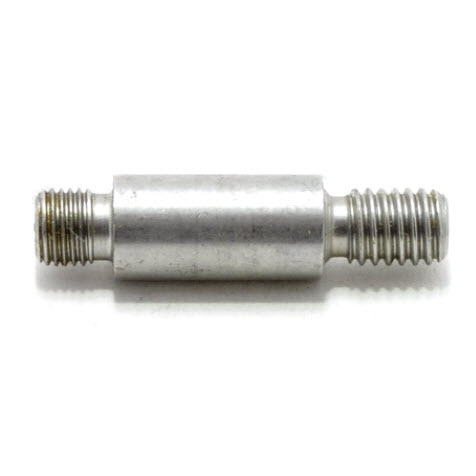

#4 — 338653 — *STUD, SHIFT & THROTTLE LEVERS (3 required per assembly)

0338653 - Stud [ More info ]

$26.99
10+ In Stock.

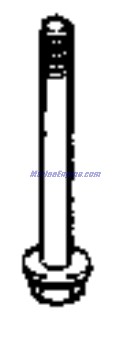

#5 — 914024 — *SCREW, CYLINDER TO CRANKCASE (6 required per assembly)

0914024 - Screw, Cylinder To Crankcase [ More info ]

$14.49
Available to Order: Usually ships within 10 days.

#6 — 348843 — *STUD, CYLINDER TO CRANKCASE (2 required per assembly)

0348843 - Stud [ More info ]

$18.35
1 In Stock.

#7 — 330265 — *WASHER, STUD C/C (2 required per assembly)

0330265 - Washer [ More info ]

$6.23
Available to Order: Usually ships within 10 days.

3854496 - Washer, Volvo [ More info ]

$2.30 $2.20
4 In Stock.

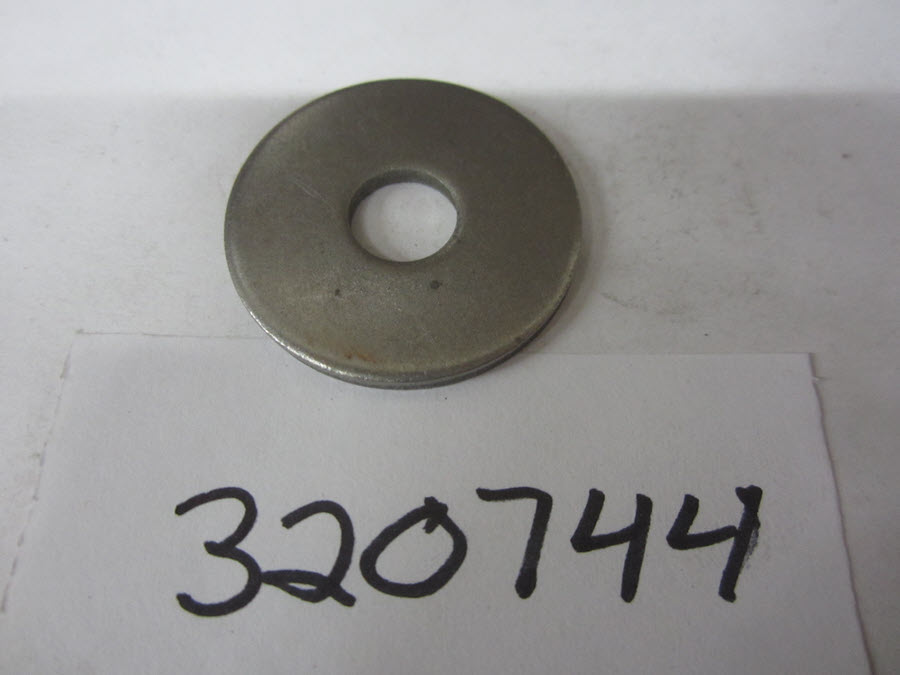

#8 — 320744 — *WASHER, STUD, SHIFT & THROTTLE LEVERS (3 required per assembly)

0320744 - Shift Lever Washer [ More info ]

$4.99
10+ In Stock.

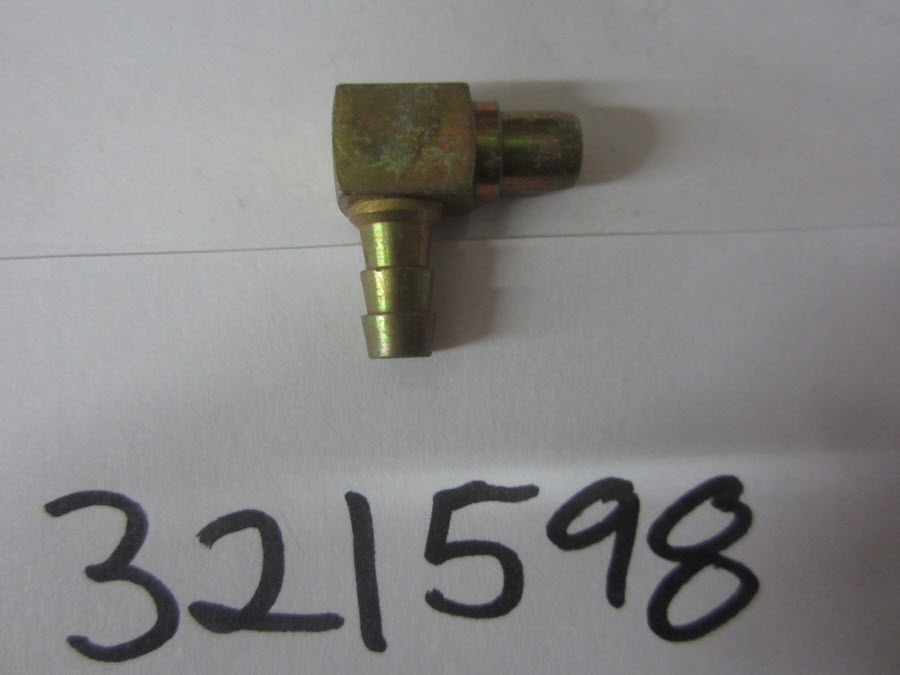

#9 — 321598 — *FITTING, DRAIN, UPPER MAIN (1 required per assembly)

0321598- Nipple [ More info ]

$14.27
10 In Stock.

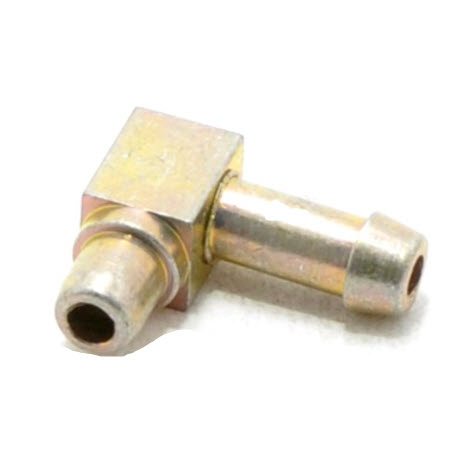

#10 — 348471 — *FITTING DRAIN, LOWER MAIN (1 required per assembly)

0348471- Nipple [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

#11 — 436194 — *CHECK VALVE, RECIRCULATION (6 required per assembly)

0436194 - Check Valve [ More info ]

$107.09 $78.32
4 In Stock.

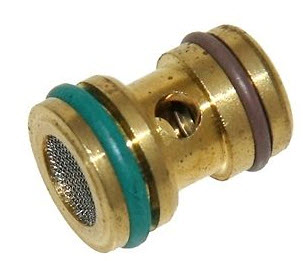

#12 — 436385 — *CHECK VALVE ASSY (6 required per assembly)

0436385 - Check Valve [ More info ]

$33.99 $33.38
6 In Stock.

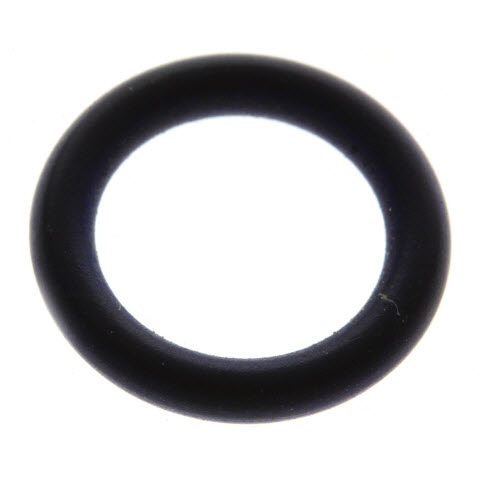

#13 — 324660 — **O-RING, LARGE (1 required per assembly)

0324660 - O-Ring [ More info ]

$5.85
9 In Stock.

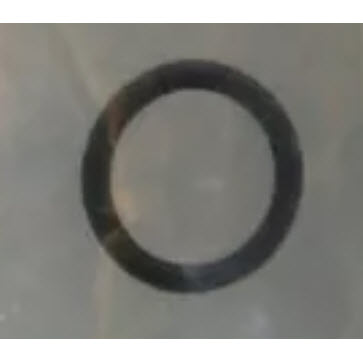

#14 — 340052 — **O-RING, SMALL (1 required per assembly)

0340052 - O-Ring [ More info ]

$6.41 $1.12
9 In Stock.

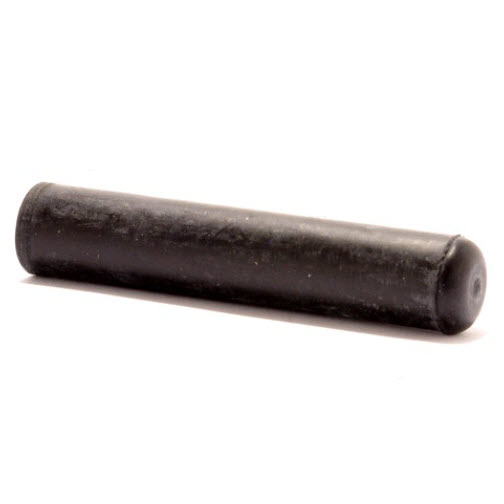

#15 — 346237 — *WATER DAM (6 required per assembly)

0346237 - Dam, Water [ More info ]

$14.27
Available to Order: Usually ships within 10 days.

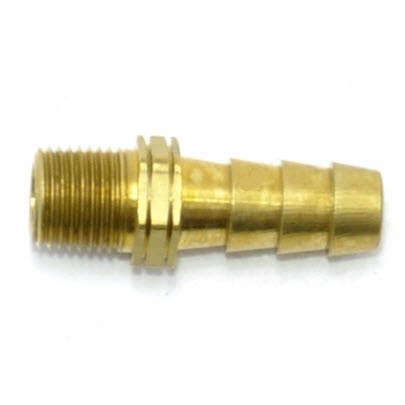

#16 — 345702 — *FITTING, OIL PUMP PULSE (2 required per assembly)

0345702- Nipple [ More info ]

$14.27
2 In Stock.

#17 — 345702 — *FITTING, FUEL PUMP PULSE (2 required per assembly)

0345702- Nipple [ More info ]

$14.27
2 In Stock.

#18 — 332291 — *NUT, STUD C/C (2 required per assembly)

0332291 - Tilt Bolt Nut [ More info ]

$7.95
Available to Order: Usually ships within 10 days.

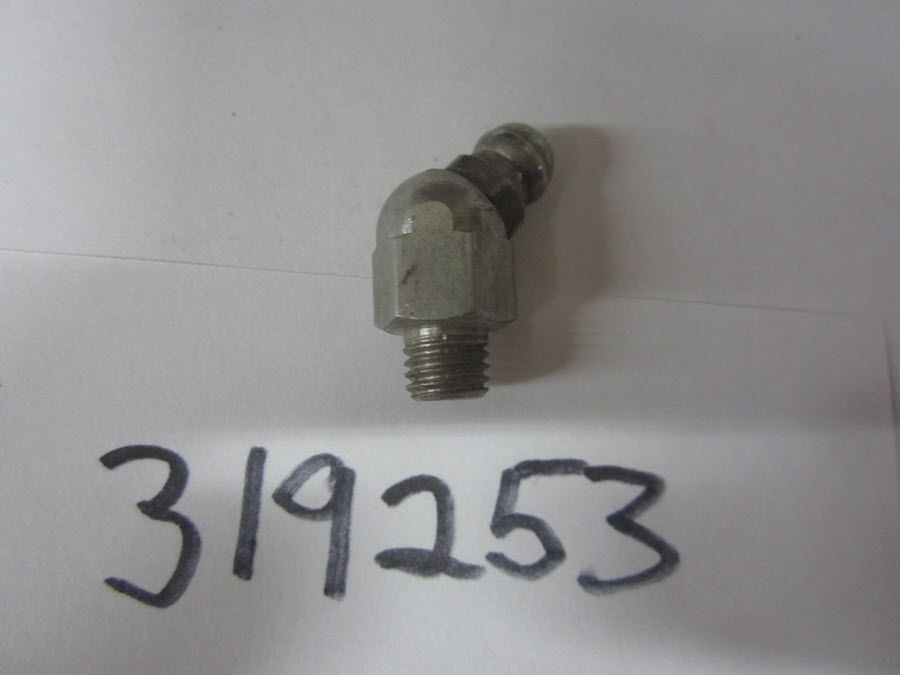

#19 — 319253 — *GREASE FITTING, SHIFT LEVER (1 required per assembly)

0319253 - Lubrication Fitting [ More info ]

$24.98 $7.79
10+ In Stock.

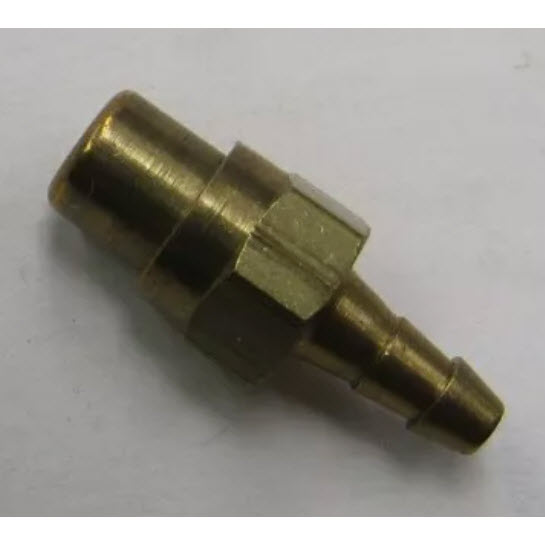

#20 — 5000477 — *CHECK VALVE, RECIRCULATION (6 required per assembly)

5000477 - Check Valve Assembly [ More info ]

$30.08 $21.99
10+ In Stock.

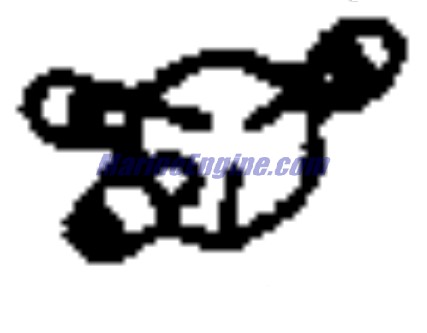

#21 — 345207 — *TEE, LOWER BEARING VENT (1 required per assembly)

0345207 - Tee [ More info ]

$7.99 $4.86
2 In Stock.

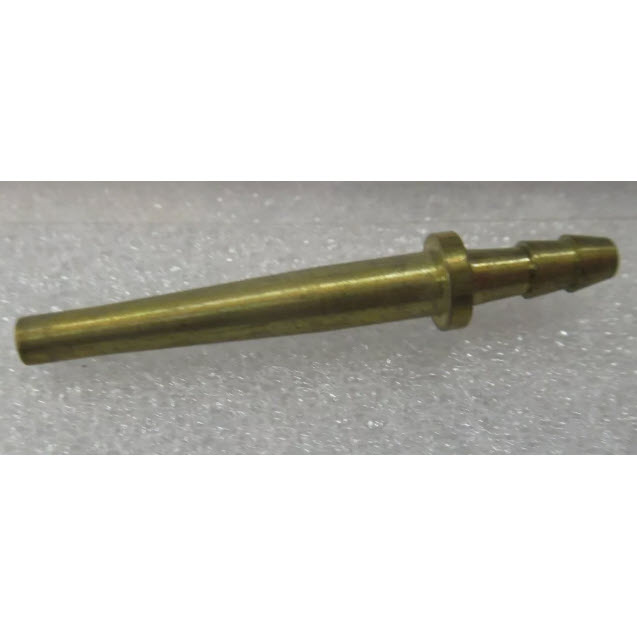

#22 — 344821 — *NIPPLE, OIL INLET (6 required per assembly)

0344821- Nipple [ More info ]

$22.94 $11.63
10+ In Stock.

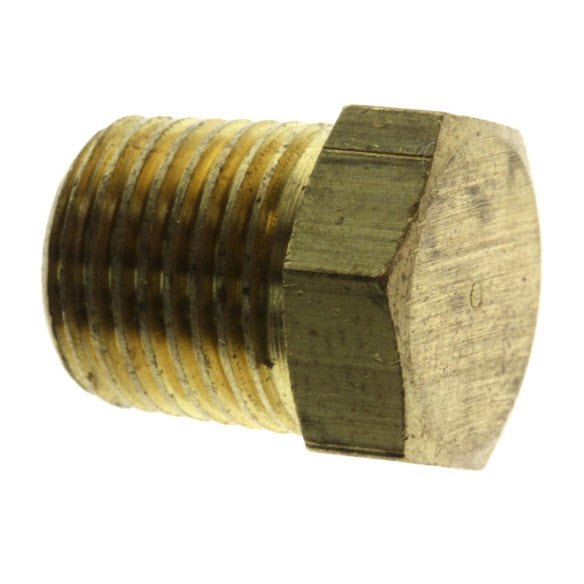

#23 — 332135 — *PLUG, WATER PRESSURE (1 required per assembly)

0332135 - Plug [ More info ]

$11.72
Available to Order: Usually ships within 10 days.

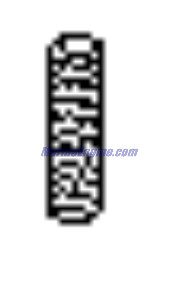

#24 — 344402 — STUD, WATER PRESSURE RELIEF VALVE (2 required per assembly)

0344402 - Stud [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

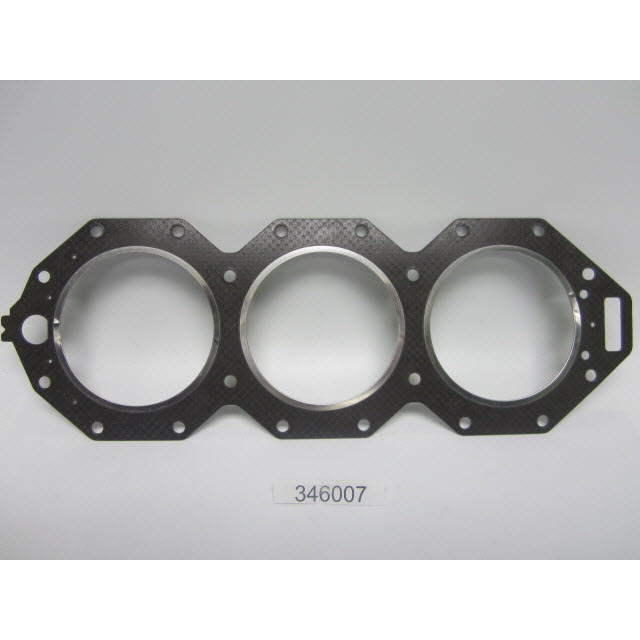

#25 — 346007 — GASKET, CYLINDER HEAD (2 required per assembly)

0346007 - Cylinder Head Gasket V6 [ More info ]

$67.49 $55.25
8 In Stock.

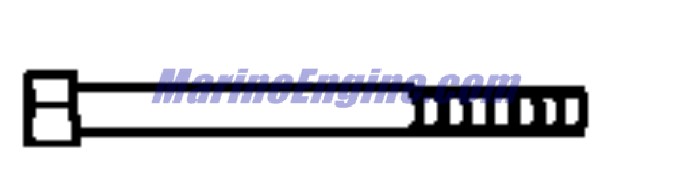

#26 — 345943 — SCREW, CYLINDER HEAD (40 required per assembly)

0345943 - Screw, Cylinder Head [ More info ]
Unavailable

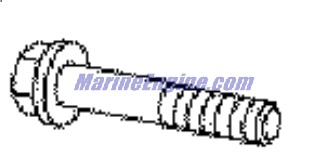

0352913 - Bolt, Cylinder Head [ More info ]

$21.41
Available to Order: Usually ships within 10 days.

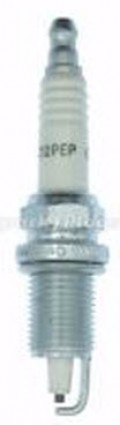

#27 — 5001866 — SPARK PLUG CHAMPION QC12PEP (6 required per assembly)

5001866 - Spark Plug - QC12PEP [ More info ]
Unavailable

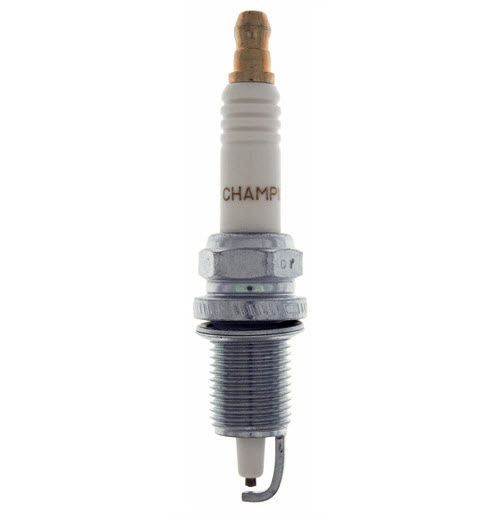

QC12PEP - Champion Spark Plug ( #956M) [ More info ]

$12.80
10+ In Stock.

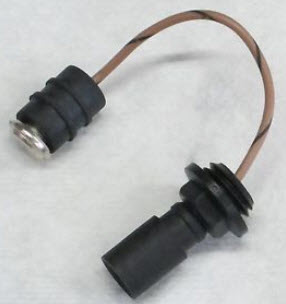

#28 — 585038 — TEMPERATURE SWITCH, STARBOARD (1 required per assembly)

0585038 - Temperature Switch, Starboard [ More info ]

$82.10
1 In Stock.

#29 — 511469 — *TERMINAL, PIN (1 required per assembly)

0511469 - Male Terminal [ More info ]

$1.33
10+ In Stock.

973-1469 - Male Amphenol Pins, 20 Pack, 511469 [ More info ]

$15.39
8 In Stock.

#30 — 513357 — *CONNECTOR (1 required per assembly)

0513357 - Connector, One Pin Receptacle [ More info ]

$16.31
9 In Stock.

#31 — 329562 — *COVER, TEMPERATURE SWITCH (1 required per assembly)

0329562 - Temperature Switch Cover [ More info ]

$14.27
10+ In Stock.

#32 — 3010674 — TEMPERATURE SENSOR, PORT (1 required per assembly)

3010674 - Engine Temperature Sensor [ More info ]

$52.01
10+ In Stock.

#33 — 308532 — BUSHING, SHIFT ARM (2 required per assembly)

0308532 - Bushing [ More info ]

$6.12
10+ In Stock.

#34 — 305650 — COTTER PIN (2 required per assembly)

0305650 - Cotter Pin [ More info ]

$1.32
10+ In Stock.

3852052 - Cotter Pin - Volvo Penta (3852052) [ More info ]

$1.00
2 In Stock.

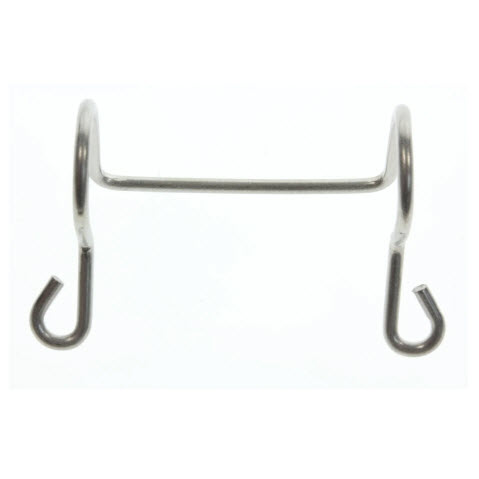

#35 — 512741 — RETAINER, TEMP SWITCH CONNECTOR (1 required per assembly)

0512741 - Retainer [ More info ]

$131.06
10+ In Stock.

#36 — 308532 — BUSHING, THROTTLE LEVERS (4 required per assembly)

0308532 - Bushing [ More info ]

$6.12
10+ In Stock.

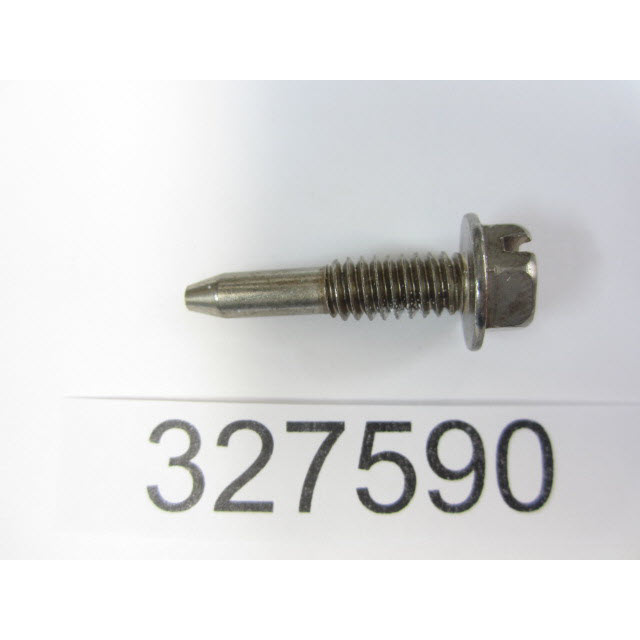

#37 — 327590 — PIN, SHIFT ROD LEVER SCREW (1 required per assembly)

0327590 - Shift Lever Pin [ More info ]

$14.27
5 In Stock.

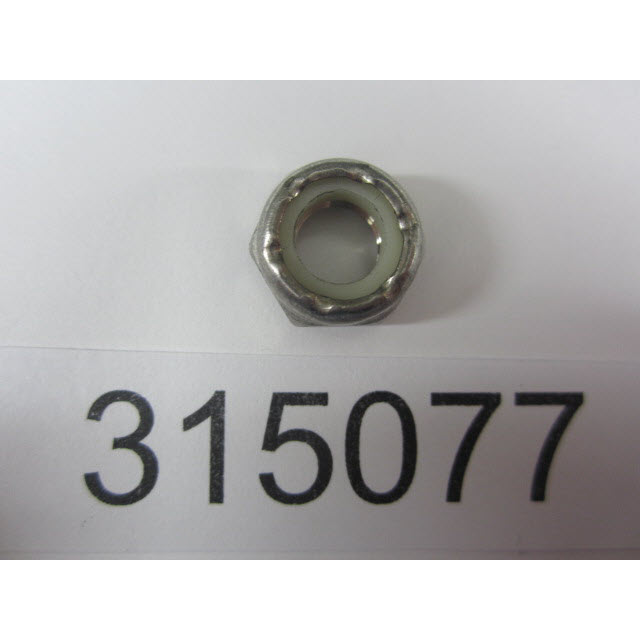

#38 — 315077 — LOCKNUT, THROTTLE LEVERS (2 required per assembly)

0315077 - Lock Nut [ More info ]

$9.65 $6.35
10+ In Stock.

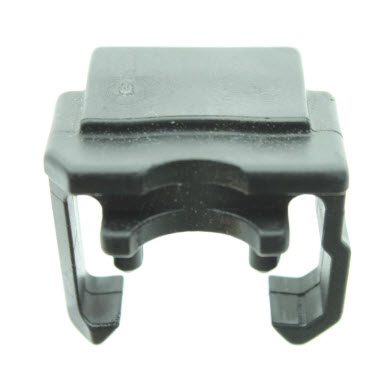

#39 — 513134 — BRACKET, SHIFT ASSIST (1 required per assembly)

0513134 - Bracket [ More info ]

$29.32
2 In Stock.

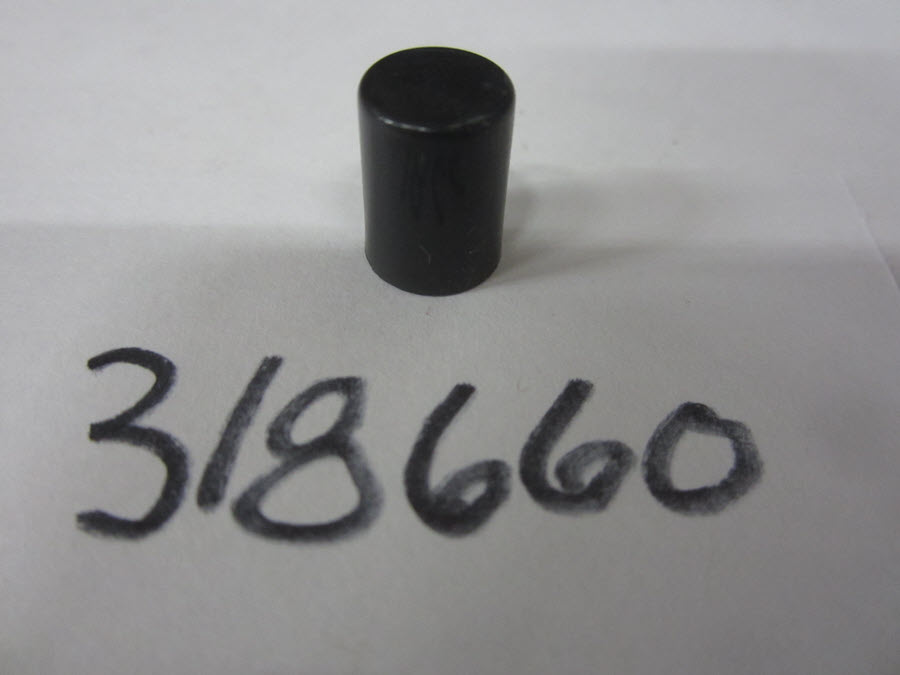

#40 — 318660 — BUMPER, SCREW, THROTTLE STOP (1 required per assembly)

0318660 - Throttle Stop Cap [ More info ]

$9.65
4 In Stock.

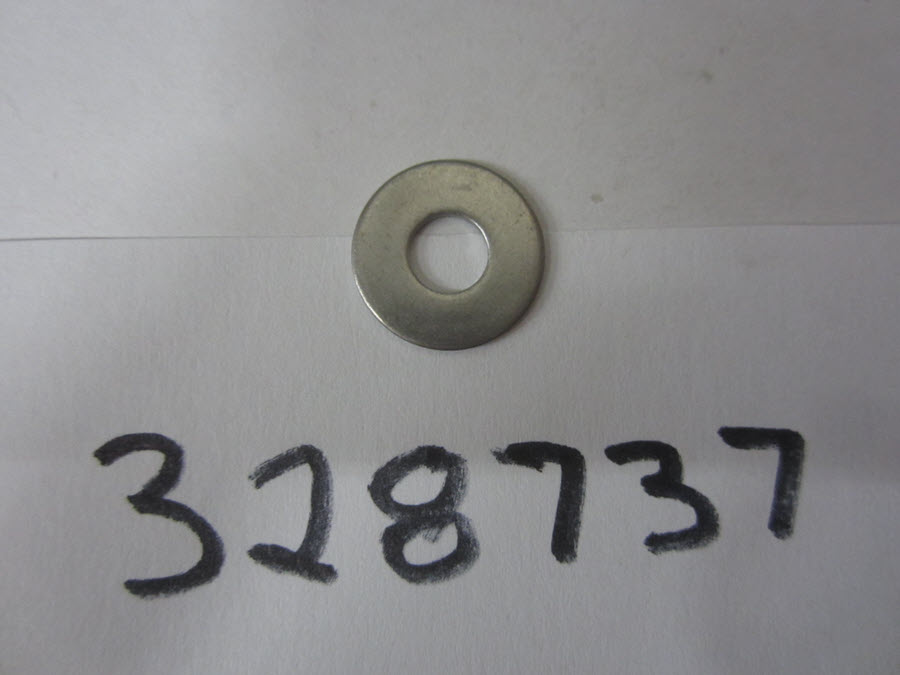

#41 — 328737 — WASHER, SHIFT & THROTTLE LEVER (2 required per assembly)

0328737 - Washer [ More info ]

$7.95 $4.03
10+ In Stock.

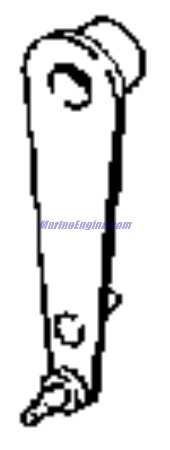

#42 — 433481 — SHIFT ARM (1 required per assembly)

0433481 - Shift Arm [ More info ]

$37.53
10+ In Stock.

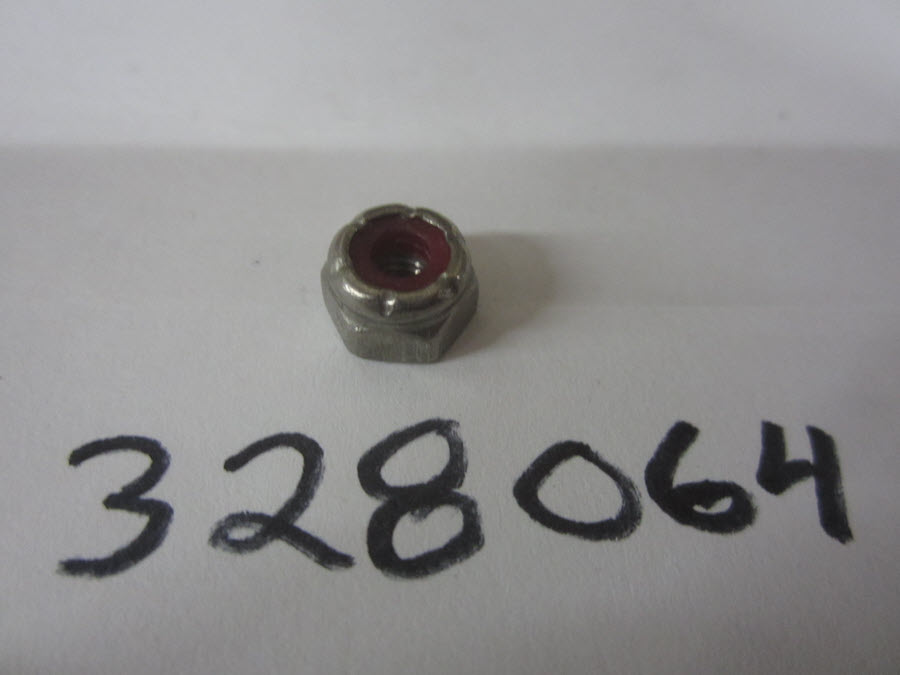

#43 — 328064 — NUT, THROTTLE ARM & SHIFT LEVER (2 required per assembly)

0328064 - Nut [ More info ]

$10.70 $5.42
10+ In Stock.

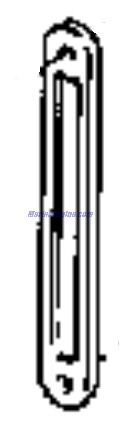

#44 — 331224 — LINK, THROTTLE LEVERS (1 required per assembly)

0331224 - Link [ More info ]

$11.72 $8.56
2 In Stock.

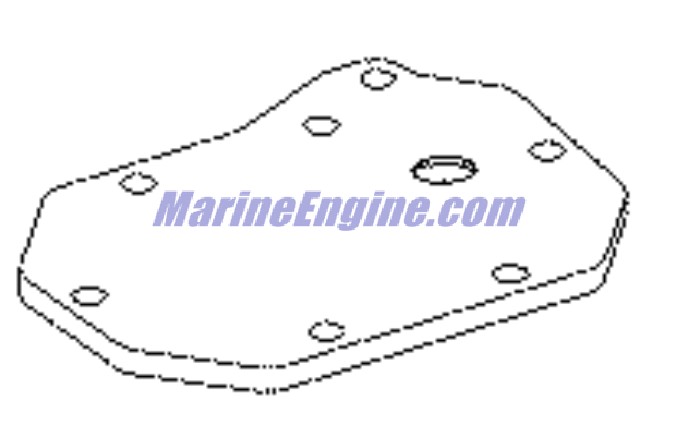

#45 — 347318 — COVER, WATER PLENUM (1 required per assembly)

0347318 - Water Cover Plate [ More info ]

$53.03
2 In Stock.

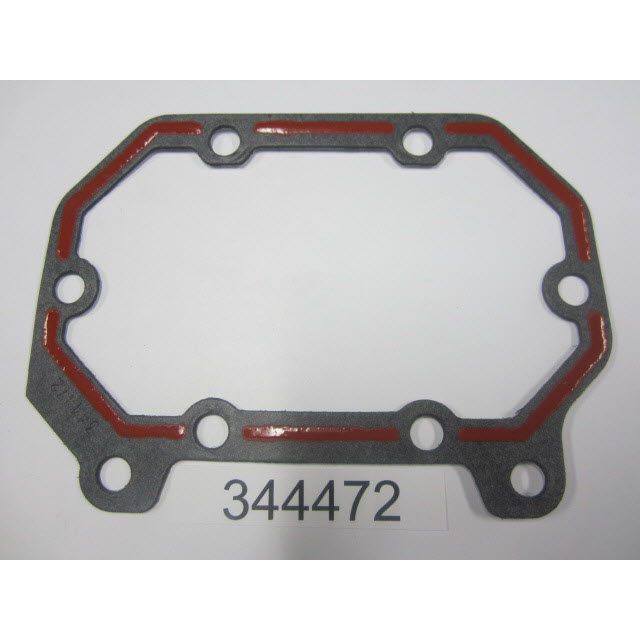

#46 — 344472 — GASKET, WATER PLENUM COVER (1 required per assembly)

0344472 - Rectifier/Regulator To Cylinder Block Gasket [ More info ]

$7.67
10+ In Stock.

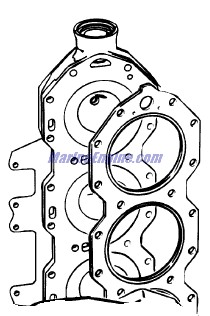

#47 — 5004931 — CYLINDER HEAD, PORT, 200 (1 required per assembly)

5004931 - Cylinder Head Assembly - Port [ More info ]

$259.20 $157.59
2 In Stock.

#47 — 5001486 — CYLINDER HEAD, PORT, 225, 250 (1 required per assembly)

5001486 - Cylinder Head Assembly - Port [ More info ]

$245.25 $149.11
3 In Stock.

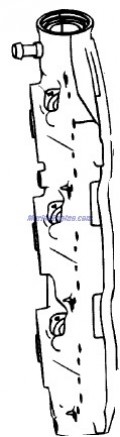

#48 — 5004932 — CYLINDER HEAD, STBD, 200 (1 required per assembly)

5004932 - Cylinder Head Assembly - Stbd [ More info ]

$552.83
Available to Order: Usually ships within 10 days.

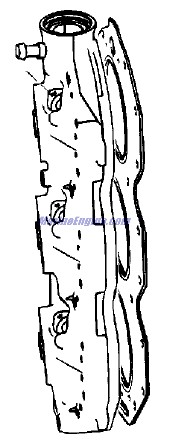

#48 — 5001487 — CYLINDER HEAD, STBD, 225, 250 (1 required per assembly)

5001487 - Cylinder Head Assembly - Stbd [ More info ]

$225.00 $136.80
10 In Stock.

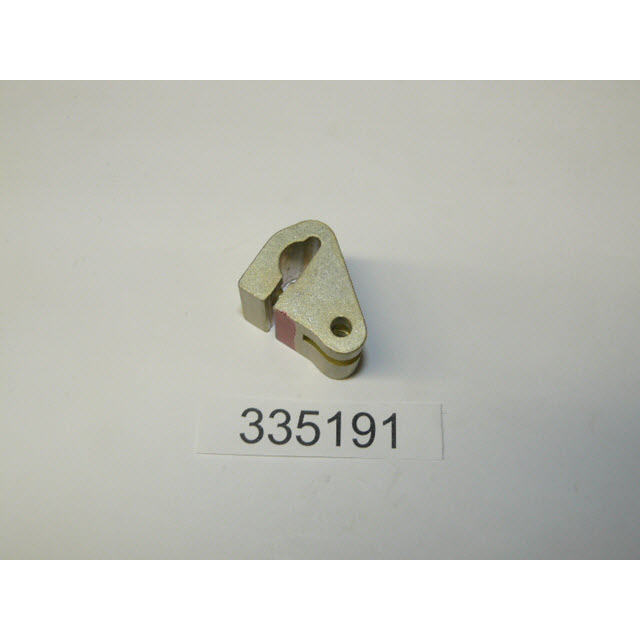

#49 — 335191 — LEVER, SHIFT ROD (1 required per assembly)

0335191 - Shift Rod Lever [ More info ]

$43.85
5 In Stock.

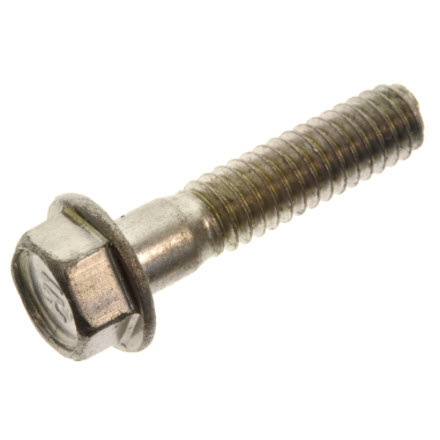

#50 — 324334 — SCREW, CYLINDER TO CRANKCASE (12 required per assembly)

0324334 - Screw [ More info ]

$6.13
10+ In Stock.

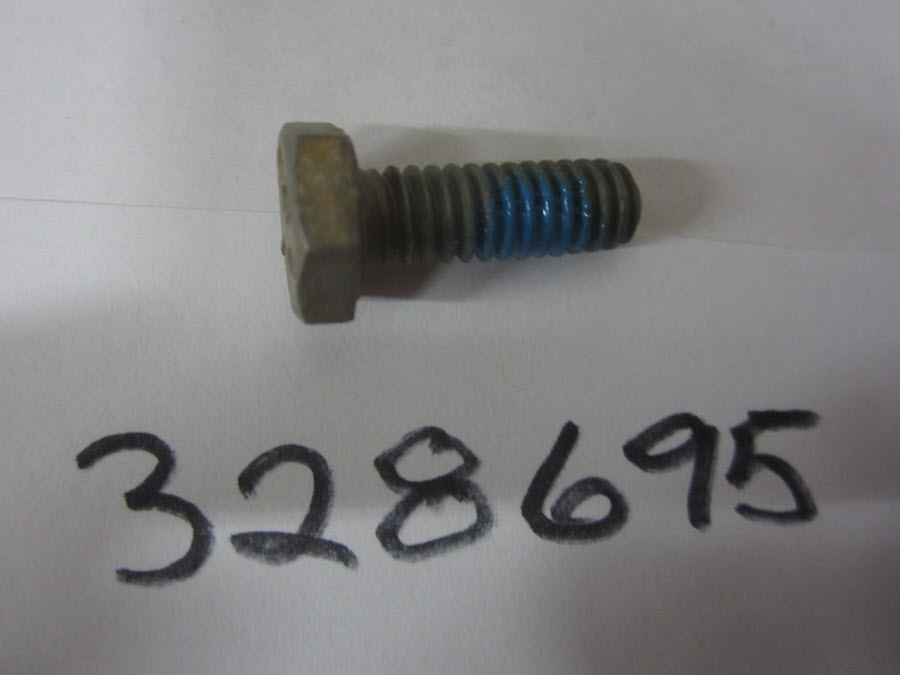

#51 — 328695 — SCREW, LEVER SHIFT ROD (1 required per assembly)

0328695 - Screw [ More info ]

$9.65
10+ In Stock.

#52 — 312708 — BUSHING, SHIFT LEVER (2 required per assembly)

0312708 - Bushing [ More info ]

$7.95
10+ In Stock.

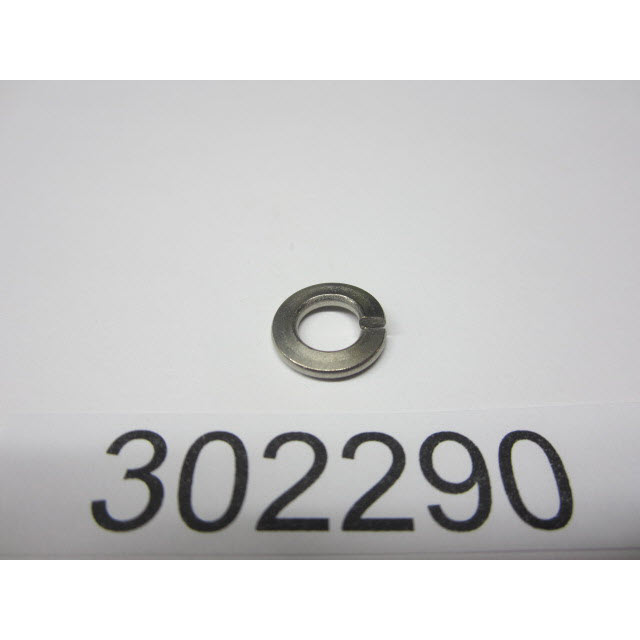

#53 — 302290 — WASHER, SCREW, SHIFT LEVER (1 required per assembly)

0302290 - Thrust mount Lock Washer [ More info ]

$1.40 $0.80
10+ In Stock.

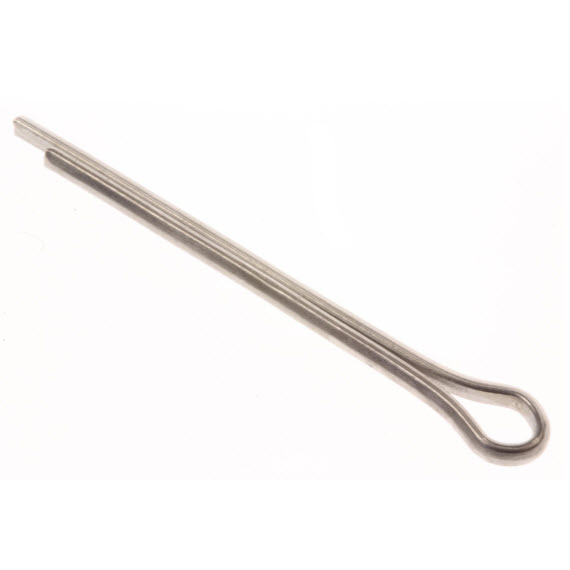

#54 — 330145 — COTTER PIN, SHIFT LEVER (1 required per assembly)

0330145 - Cotter Pin [ More info ]

$0.66 $0.36
10+ In Stock.

#55 — 315077 — LOCKNUT, SHIFT ARM (1 required per assembly)

0315077 - Lock Nut [ More info ]

$9.65 $6.35
10+ In Stock.

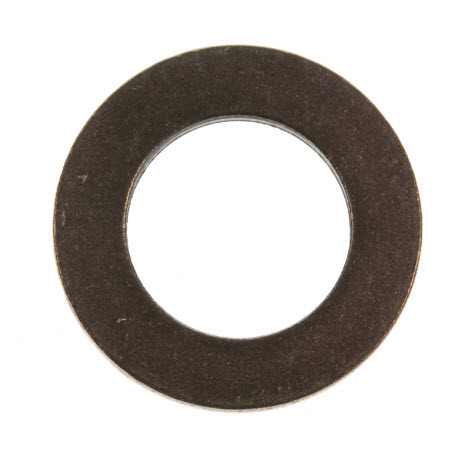

#56 — 202026 — WASHER, SHIFT LEVER (2 required per assembly)

0202026 - Washer [ More info ]

$9.65
10+ In Stock.

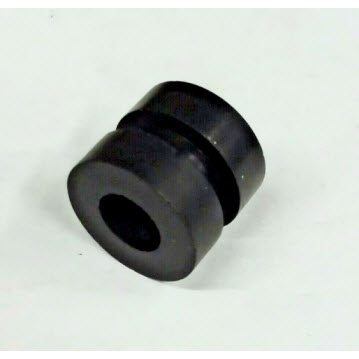

#57 — 333040 — ISOLATOR, WTR PRESSURE RELIEF MOUNT (2 required per assembly)

0333040 - Isolator [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

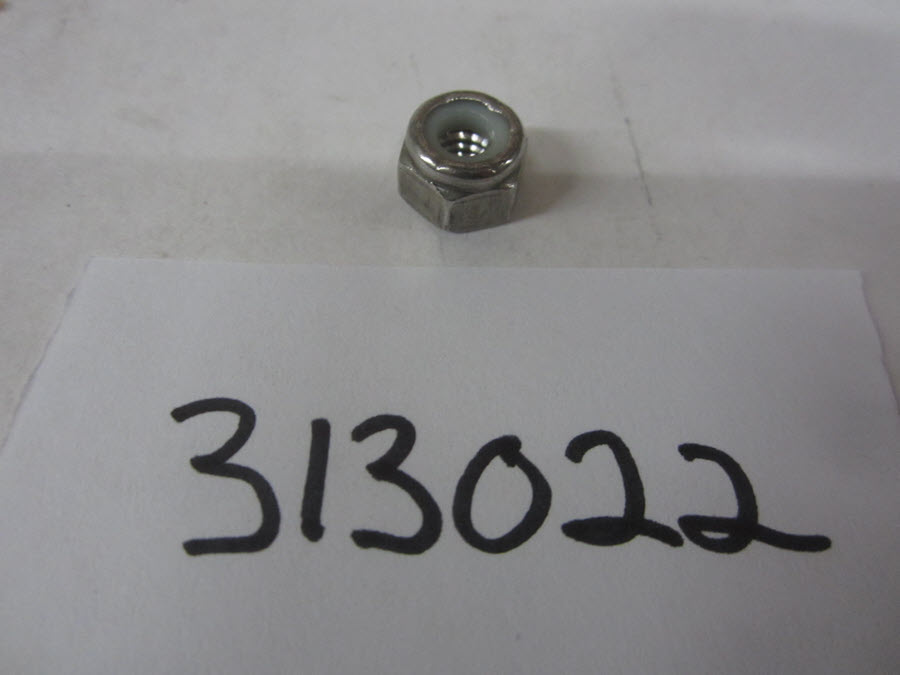

#58 — 313022 — LOCK NUT, WTR PRESSURE RELIEF MOUNT (2 required per assembly)

0313022 - Nut [ More info ]

$10.70 $7.83
10+ In Stock.

3852118 - Nut, Volvo [ More info ]

$6.70 $6.50
Available to Order: Usually ships within 10 days.

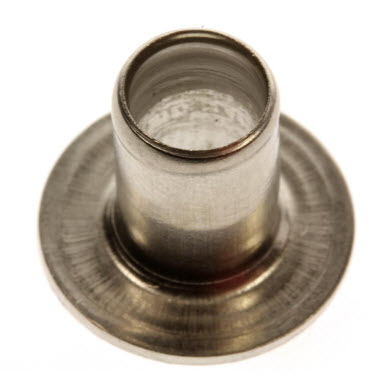

#59 — 338558 — SPACER, FLANGED (2 required per assembly)

0338558 - Flanged Spacer [ More info ]

$14.27
2 In Stock.

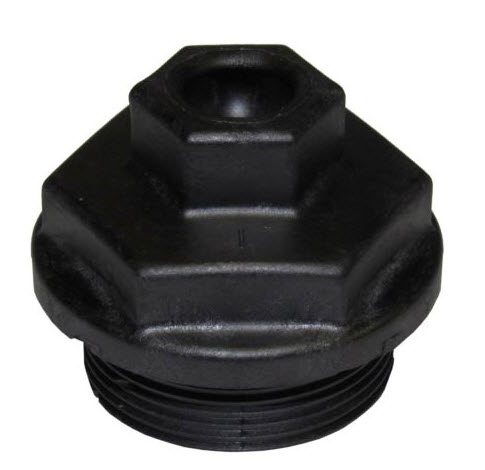

#60 — 344771 — COVER, THERMOSTAT (2 required per assembly)

0344771 - Thermostat Cover [ More info ]

$35.69
7 In Stock.

#61 — 301917 — O-RING, THERMOSTAT COVER (2 required per assembly)

0301917 - O-Ring [ More info ]

$1.22
10+ In Stock.

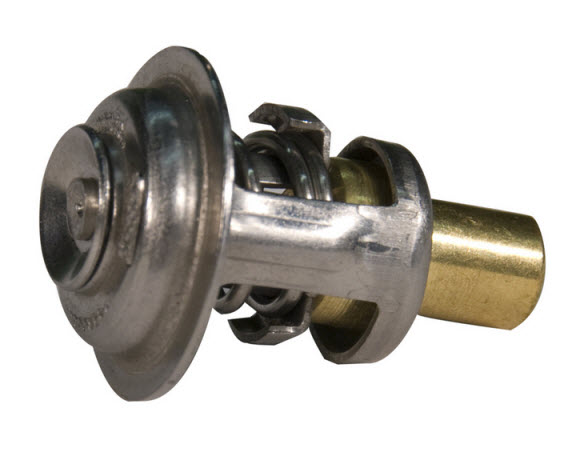

#62 — 5001036 — THERMOSTAT ASSY (2 required per assembly)

5001036 - Thermostat, 130 Degrees [ More info ]

$34.99 $28.66
10+ In Stock.

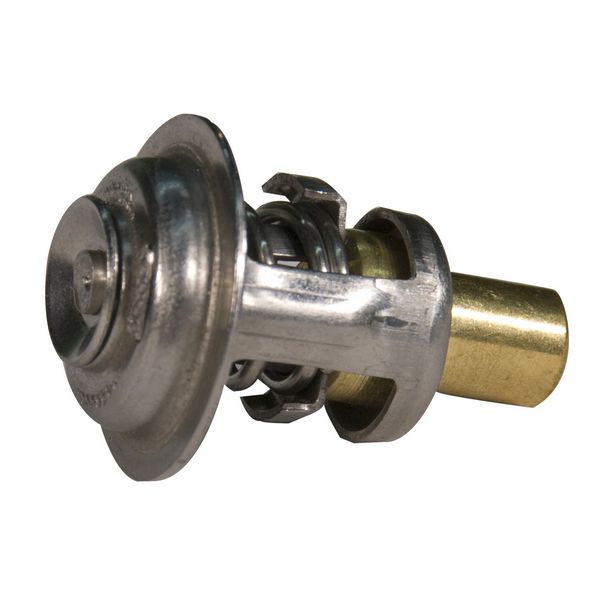

18-3546 - Thermostat, 130 Degrees, 5001036 [ More info ]

$39.69 $35.20
2 In Stock.

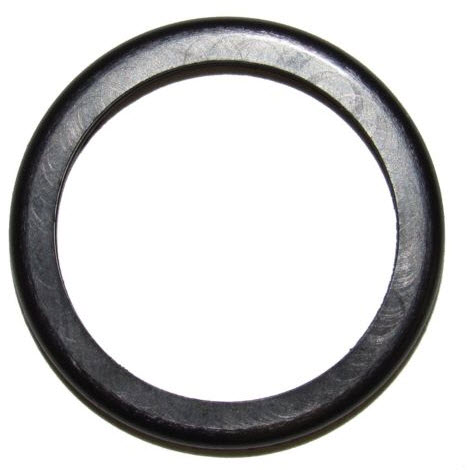

#63 — 339299 — SEAL, THERMOSTAT TO CYL HEAD (2 required per assembly)

0339299 - Thermostat Seal [ More info ]

$8.23
10+ In Stock.

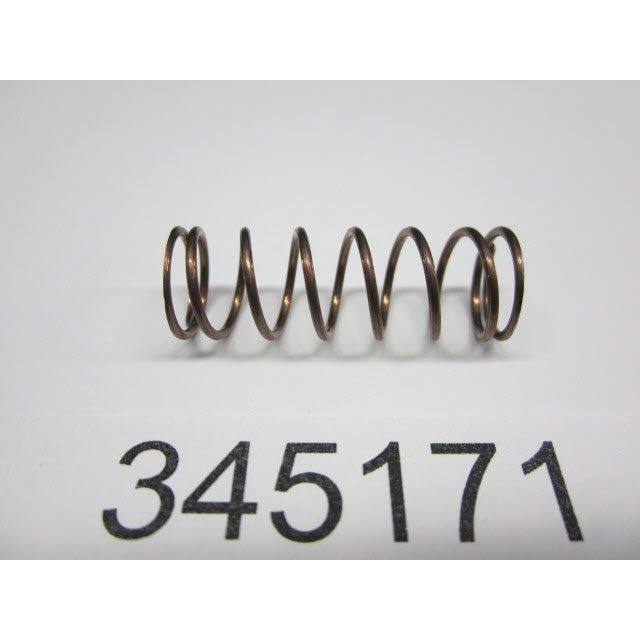

#64 — 345171 — SPRING, THERMOSTAT (2 required per assembly)

0345171 - Thermostat Spring [ More info ]

$14.27
10 In Stock.

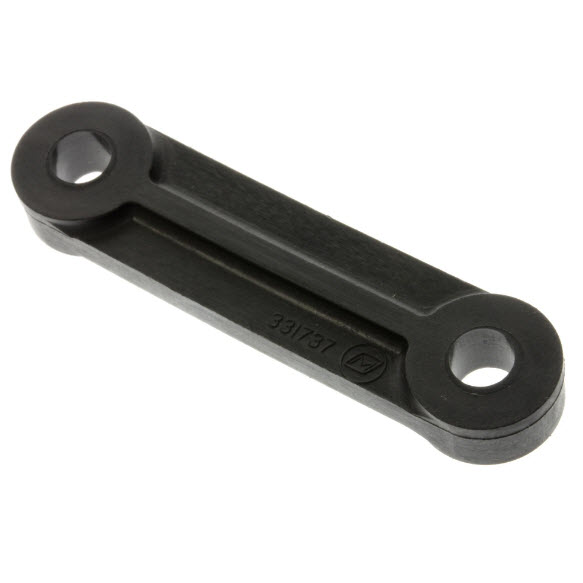

#65 — 331737 — LINK, SHIFT LEVER (1 required per assembly)

0331737 - Link [ More info ]

$11.72 $3.65
10+ In Stock.

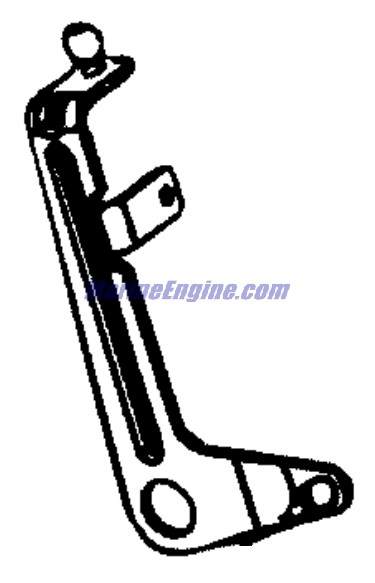

#66 — 5001497 — THROTTLE LEVER, UPPER (1 required per assembly)

5001497 - Throttle Lever Assembly [ More info ]
Unavailable

#67 — 328737 — WASHER, LINK (2 required per assembly)

0328737 - Washer [ More info ]

$7.95 $4.03
10+ In Stock.

#68 — 318660 — CAP, THROTTLE STOP, UPPER (1 required per assembly)

0318660 - Throttle Stop Cap [ More info ]

$9.65
4 In Stock.

#69 — 328702 — WASHER, SHIFT LEVER TO LINK (1 required per assembly)

0328702 - Washer [ More info ]

$4.44 $1.74
10+ In Stock.

#70 — 330266 — WASHER, SHIFT ARM (1 required per assembly)

0330266 - Washer [ More info ]

$9.65
10+ In Stock.

#71 — 328702 — WASHER, LINK TO SHIFT ARM (1 required per assembly)

0328702 - Washer [ More info ]

$4.44 $1.74
10+ In Stock.

#72 — 330266 — WASHER, THROTTLE LEVERS (2 required per assembly)

0330266 - Washer [ More info ]

$9.65
10+ In Stock.

#73 — 346912 — LINK, THROTTLE (1 required per assembly)

0346912 - Link, Shell [ More info ]

$15.80 $8.02
5 In Stock.

#74 — 325569 — TEE, RECIRCULATION (4 required per assembly)

0325569 - Tee Connector, Primer Hose [ More info ]

$11.72
10+ In Stock.

#75 — 345364 — HOSE, CHECK VALVE TO TEE (4 required per assembly)

0345364 - Hose [ More info ]
Unavailable

#79 — 5005094 — THROTTLE LEVER, LOWER (1 required per assembly)

5005094 - Throttle Lever Assembly [ More info ]

$74.45
Available to Order: Usually ships within 10 days.

#80 — 586437 — SWITCH & CABLE (1 required per assembly)

0586437 - Shift Switch & Cable [ More info ]
Unavailable

#81 — 514679 — *TERMINAL (2 required per assembly)

0514679 - Pin Terminal [ More info ]

$0.77
10+ In Stock.

913-4679 - Terminal Deutsch (20 Pcs) 913-4679 [ More info ]

$13.53 $12.61
1 In Stock.

#82 — 514696 — *CONNECTOR, 2-PIN (1 required per assembly)

0514696 - Connector, 2Pin Rcpt [ More info ]

$15.29
Available to Order: Usually ships within 10 days.

#83 — 514697 — *LOCK WEDGE, 2-PIN (1 required per assembly)

0514697 - Lock Wedge 2 Pin Receptacle [ More info ]

$3.13
Available to Order: Usually ships within 10 days.

#84 — 334169 — RETAINER (1 required per assembly)

0334169 - Retainer [ More info ]
Unavailable

#85 — 513811 — BRACKET, SLIDER (1 required per assembly)

0513811 - Bracket, Slider [ More info ]

$7.95
2 In Stock.

#86 — 331404 — PIN (1 required per assembly)

0331404 - Pin [ More info ]

$52.01 $38.03
3 In Stock.

#87 — 431908 — SHIFT LEVER & SHAFT (1 required per assembly)

0431908 - Lever & Shaft [ More info ]

$135.65
Available to Order: Usually ships within 10 days.

#88 — 333749 — SPRING (1 required per assembly)

0333749 - Spring [ More info ]

$13.25 $8.72
10 In Stock.

#89 — 348478 — CHECK VALVE, MAIN BEARING (1 required per assembly)

0348478 - Check Valve [ More info ]
Unavailable

5009201 - Check Valve [ More info ]

$16.31
Available to Order: Usually ships within 10 days.

#92 — 328064 — NUT, LINK TO THROTTLE LEVER (2 required per assembly)

0328064 - Nut [ More info ]

$10.70 $5.42
10+ In Stock.

#93 — 335687 — SCREW, PLATE TO C/C (3 required per assembly)

0335687 - Screw [ More info ]

$7.95 $5.82
10+ In Stock.

#94 — 513816 — BRAIDED SLEEVE (1 required per assembly)

0513816 - Braided Sleeve [ More info ]

$4.26
Available to Order: Usually ships within 10 days.

#95 — 511411 — LOOP CLAMP, HARNESS WIRES (1 required per assembly)

0511411 - Clamp [ More info ]

$4.00 $2.43
6 In Stock.

#96 — 345702 — FITTING, ELBOW (1 required per assembly)

0345702- Nipple [ More info ]

$14.27
2 In Stock.

#97 — 328703 — WASHER (2 required per assembly)

0328703 - Washer [ More info ]

$6.78
10+ In Stock.

3852193 - Washer, Volvo [ More info ]

$6.30 $6.10
10+ In Stock.

#98 — 335200 — SCREW, CLAMP (1 required per assembly)

0335200 - Screw [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#99 — 347248 — *HOSE, VALVE TO HEAD (2 required per assembly)

0347248 - Hose [ More info ]

$16.31
Available to Order: Usually ships within 10 days.

#100 — 347247 — *HOSE, HEAD TO VALVE (2 required per assembly)

0347247 - Hose [ More info ]

$55.58
Available to Order: Usually ships within 10 days.

#101 — 346152 — *CLAMP, 25.6MM (4 required per assembly)

0346152 - Clamp - 25.6mm [ More info ]

$3.60
10+ In Stock.

18-9136-9 - Oetiker Clamp 1 inch, 25.6 mm, 10 Pack [ More info ]

$19.09 $14.04
1 In Stock.

#102 — 124341 — *SCREW, COVER (2 required per assembly)

0124341 - Mounting Bolt [ More info ]

$9.07 $5.97
9 In Stock.

#103 *— 314728 — O-RING, HOUSING COVER (2 required per assembly)**
		0314728 - O-Ring - Drive Shaft [ More info ] Unavailable
		0354731 - O-Ring [ More info ] $5.67 10+ In Stock.
		18-7130 - O-Ring 314728 [ More info ] $1.99 $1.65 7 In Stock.
