Crankshaft And Pistons Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

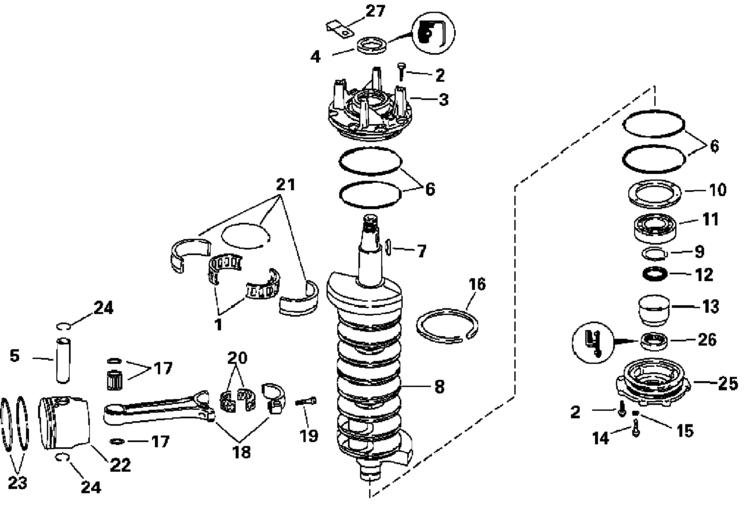

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 387041 — RETAINER & NEEDLE SET (2 required per assembly) | ||
  |
|
0387041 - Retainer and Needle Set [ More info ]
|
  |
|

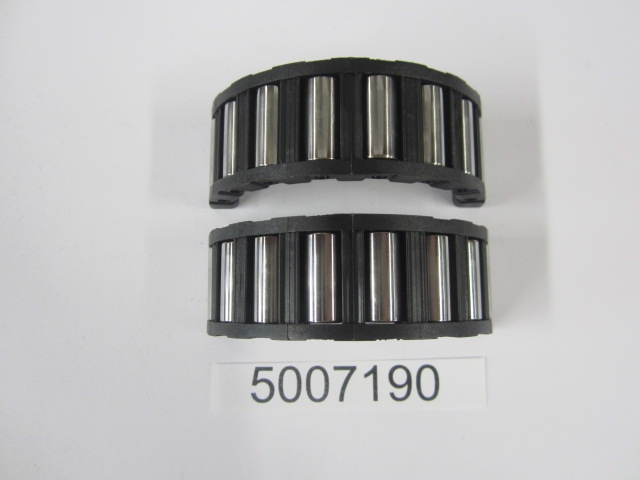

5007190 - Retainer and Needle Set, Center Main Bearing [ More info ]
|
  |
|

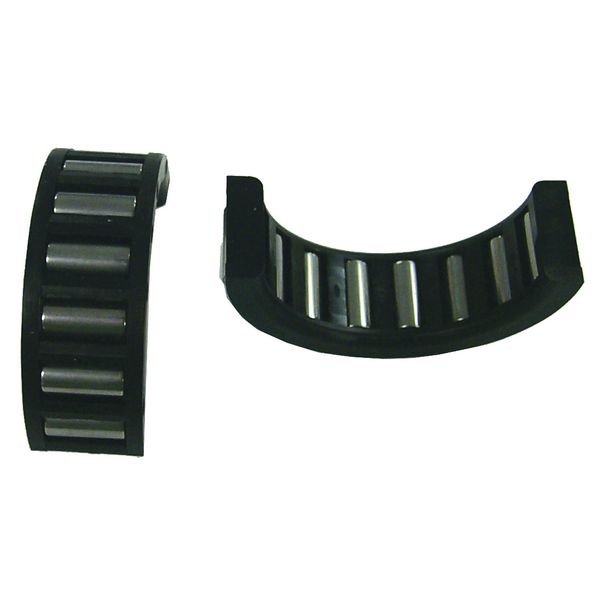

18-1353 - Bearing, 387041 [ More info ]
|

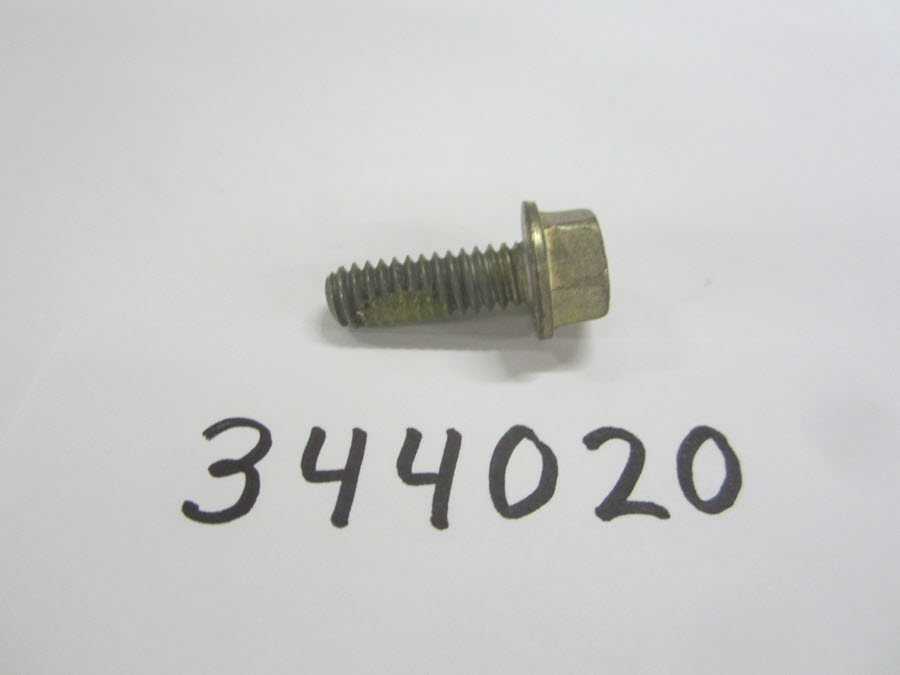

| #2 — 344020 — SCREW, CRANKCASE HEAD (16 required per assembly) | ||
  |
|
0344020 - Screw, Crankcase Head [ More info ]
|
| #3 — 5001115 — HEAD ASSY, UPPER (1 required per assembly) | ||
  |
|
5001115 - Crankcase Bearing Head & Seal [ More info ]
|

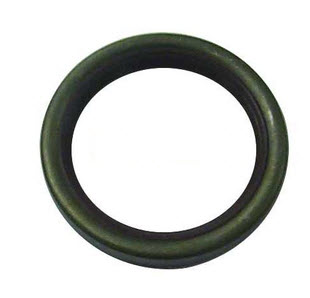

| #4 — 339620 — *SEAL, UPPER. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
  |
|

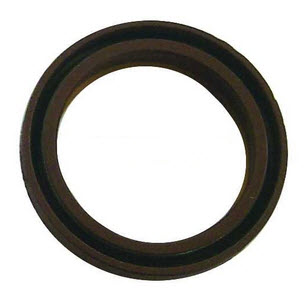

0339620 - Oil Seal [ More info ]
|
  |
|

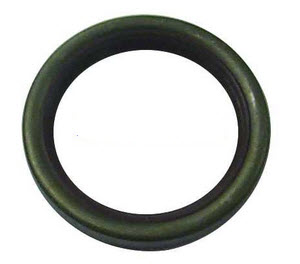

18-2074 - Seal 339620 [ More info ]
|
| #5 — 326764 — WRIST PIN (6 required per assembly) | ||
  |
|

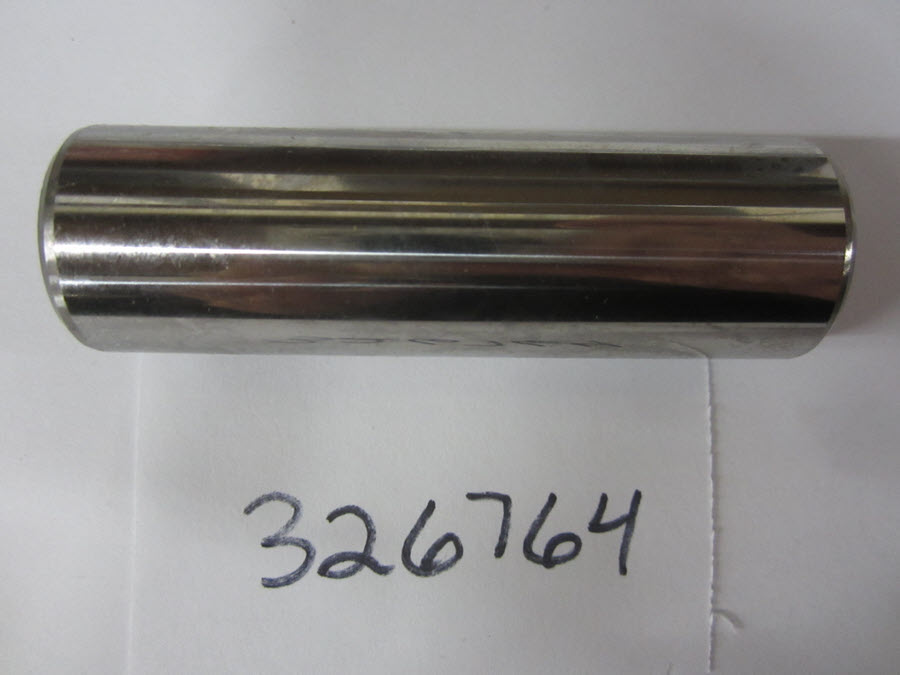

0326764 - Wrist Pin [ More info ]
|
| #6 — 326741 — O-RING, BEARING HOUSING. (INCLUDED IN POWERHEAD GASKET SET.) (4 required per assembly) | ||
  |
|
0326741 - O-Ring [ More info ]
|

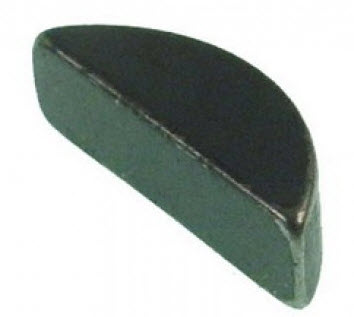

| #7 — 307480 — KEY, FLYWHEEL (1 required per assembly) | ||
  |
|
0307480 - Flywheel Key [ More info ]
|
| #8 — 434771 — CRANKSHAFT ASSY (1 required per assembly) | ||
  |
|

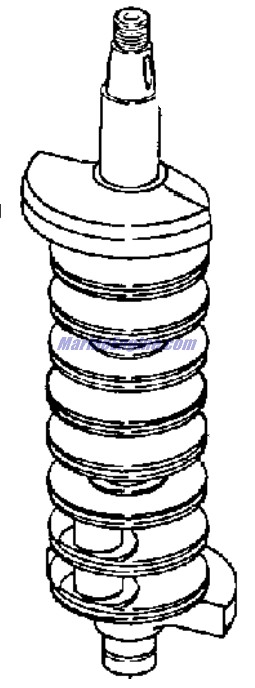

0434771 - CrankShaft, Sleeve & O-Ring Assembly [ More info ]
|

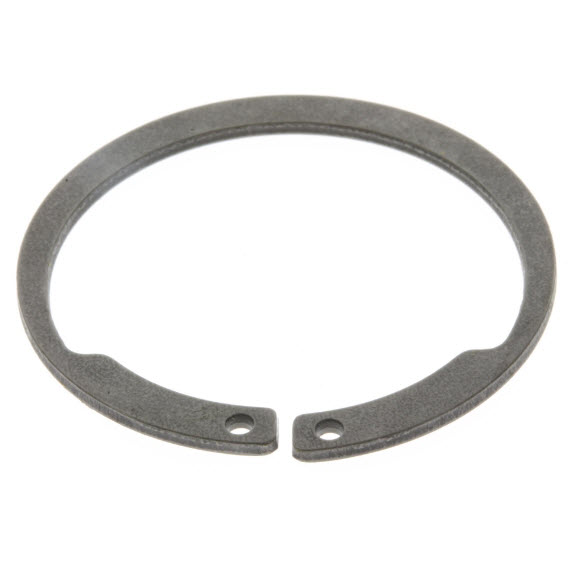

| #9 — 326047 — *RING, RETAINING, BEARING (1 required per assembly) | ||
  |
|
0326047 - Retaining Ring [ More info ]
|

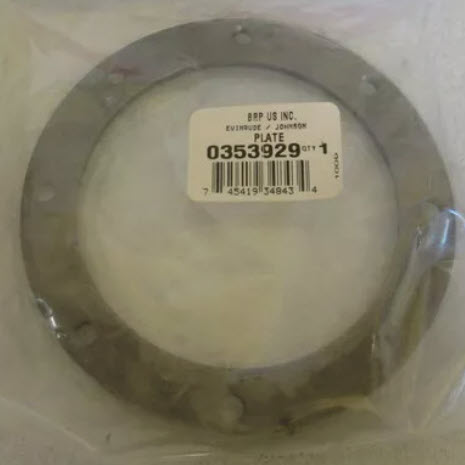

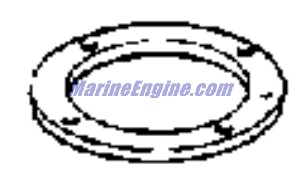

| #10 — 326748 — *PLATE, LOWER BEARING (1 required per assembly) | ||
  |
0326748 - Plate [ More info ] Unavailable |
|
  |
|
|

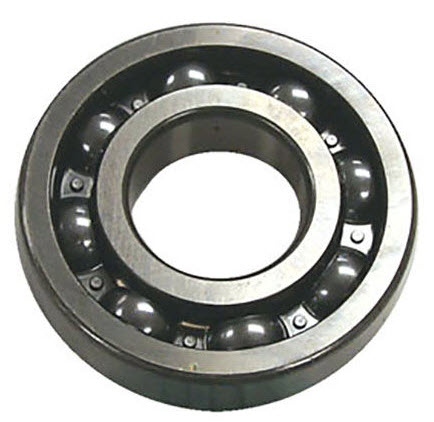

| #11 — 390641 — *BEARING, BALL (1 required per assembly) | ||
  |
|
0390641 - Ball Bearing, Crankshaft [ More info ]
|
| #12 — 337087 — *O-RING, SLEEVE. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
  |
|
0337087 - O-Ring - Sleeve [ More info ]
|

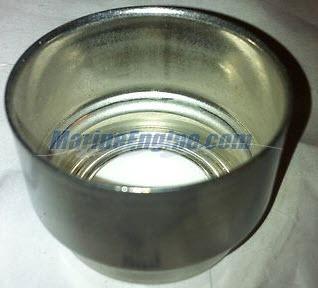

| #13 — 336988 — *SLEEVE, CRANKSHAFT (1 required per assembly) | ||
  |
|
0336988 - Sleeve [ More info ]
|
| #14 — 332590 — SCREW, LOWER BEARING RETAINER (4 required per assembly) | ||
  |
|
0332590 - Screw, Lower Bearing Retainer [ More info ]
|
| #15 — 332585 — *SEAL. (INCLUDED IN POWERHEAD GASKET SET.) (4 required per assembly) | ||
  |
|
|
  |
|

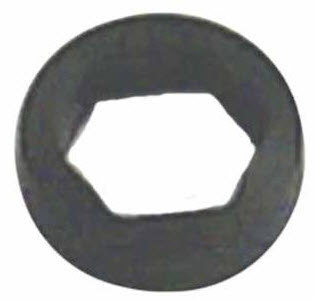

18-0559 - Seal, 332585 [ More info ]
|

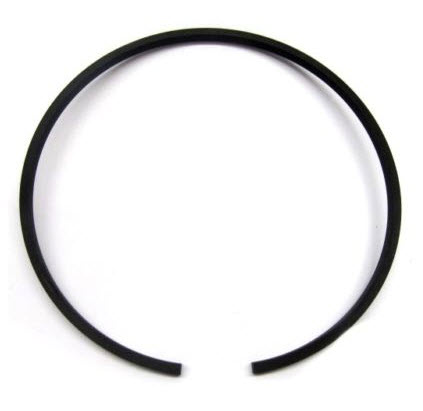

| #16 — 326749 — SEAL RING (9 required per assembly) | ||
  |
|
0326749 - Crank Seal Ring [ More info ]
|
| #17 — 348495 — BEARING, WRIST PIN (6 required per assembly) | ||
  |
|

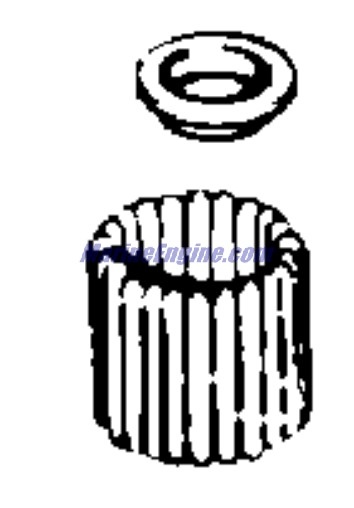

0348495 - Bearing Kit [ More info ]
|

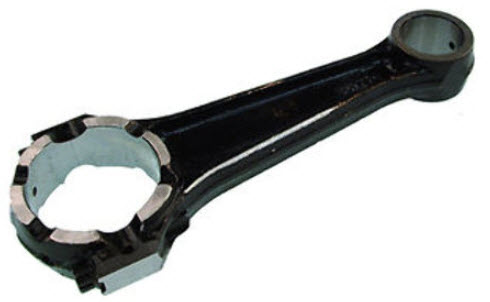

| #18 — 5000643 — ROD ASSY, CONNECTING (6 required per assembly) | ||
  |
5000643 - Connecting Rod Assembly [ More info ] Unavailable |
|
  |
|
5008367 [ More info ] Unavailable Replaced by 5009039 |
  |
|
5009039 - Connecting Rod Assembly [ More info ]
|

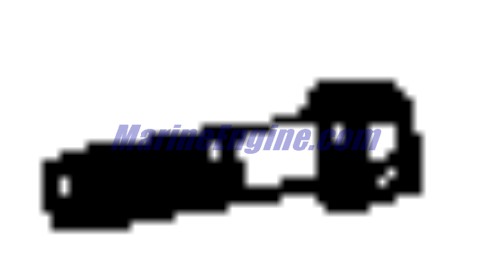

| #19 — 346044 — *SCREW, ROD CAP (2 required per assembly) | ||
  |
|
0346044 - Screw, Rod Cap [ More info ]
|
| #20 — 396041 — RETAINER SET (6 required per assembly) | ||
  |
|

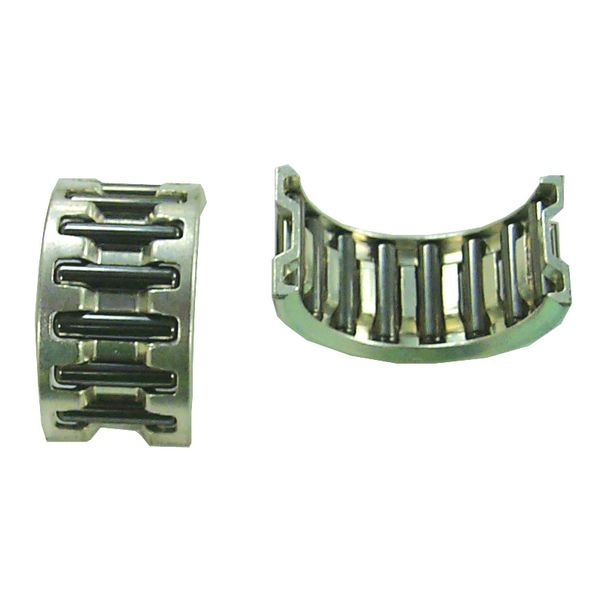

0396041 - Bearing Retainer and Needle Set [ More info ]
|

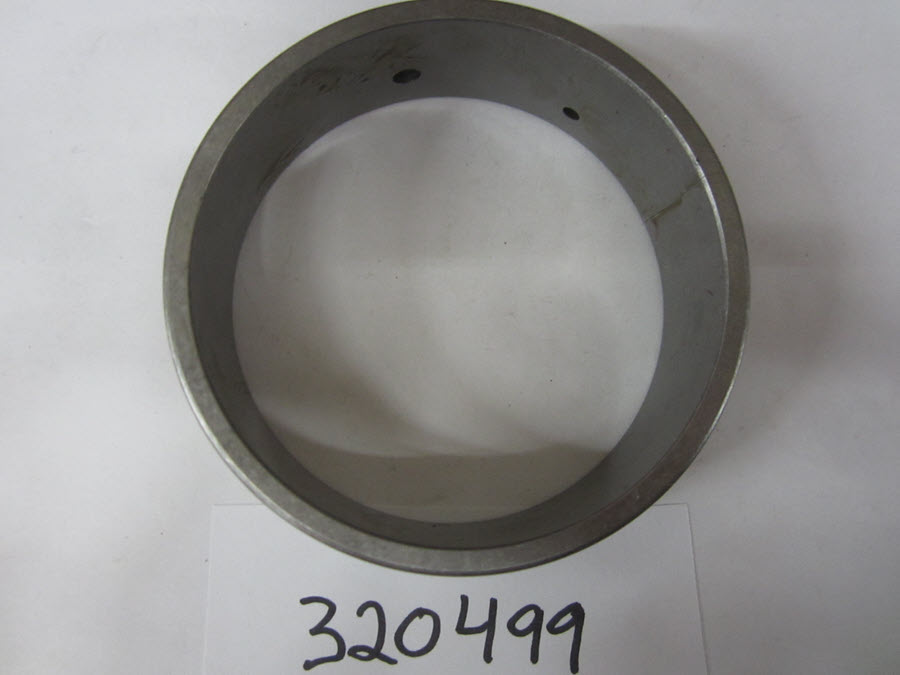

| #21 — 320499 — SPLIT SLEEVE, CENTER BEARING (2 required per assembly) | ||
  |
|

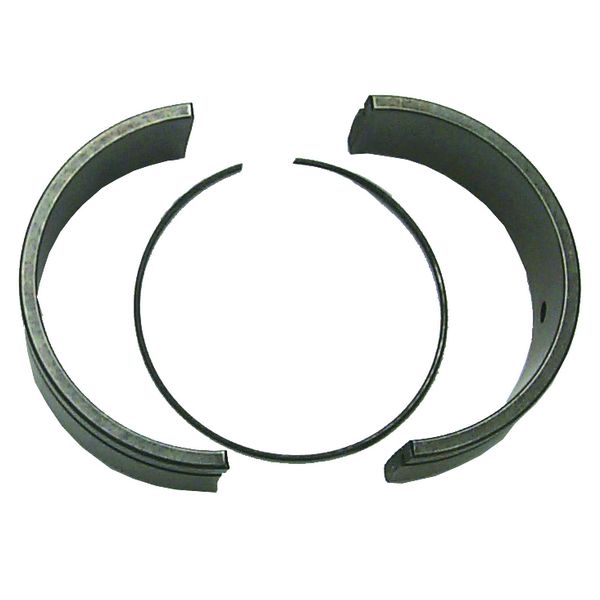

0320499 - Split Liner, Bearing [ More info ]
|
  |
|
0352960 - Split Liner, Bearing [ More info ]
|

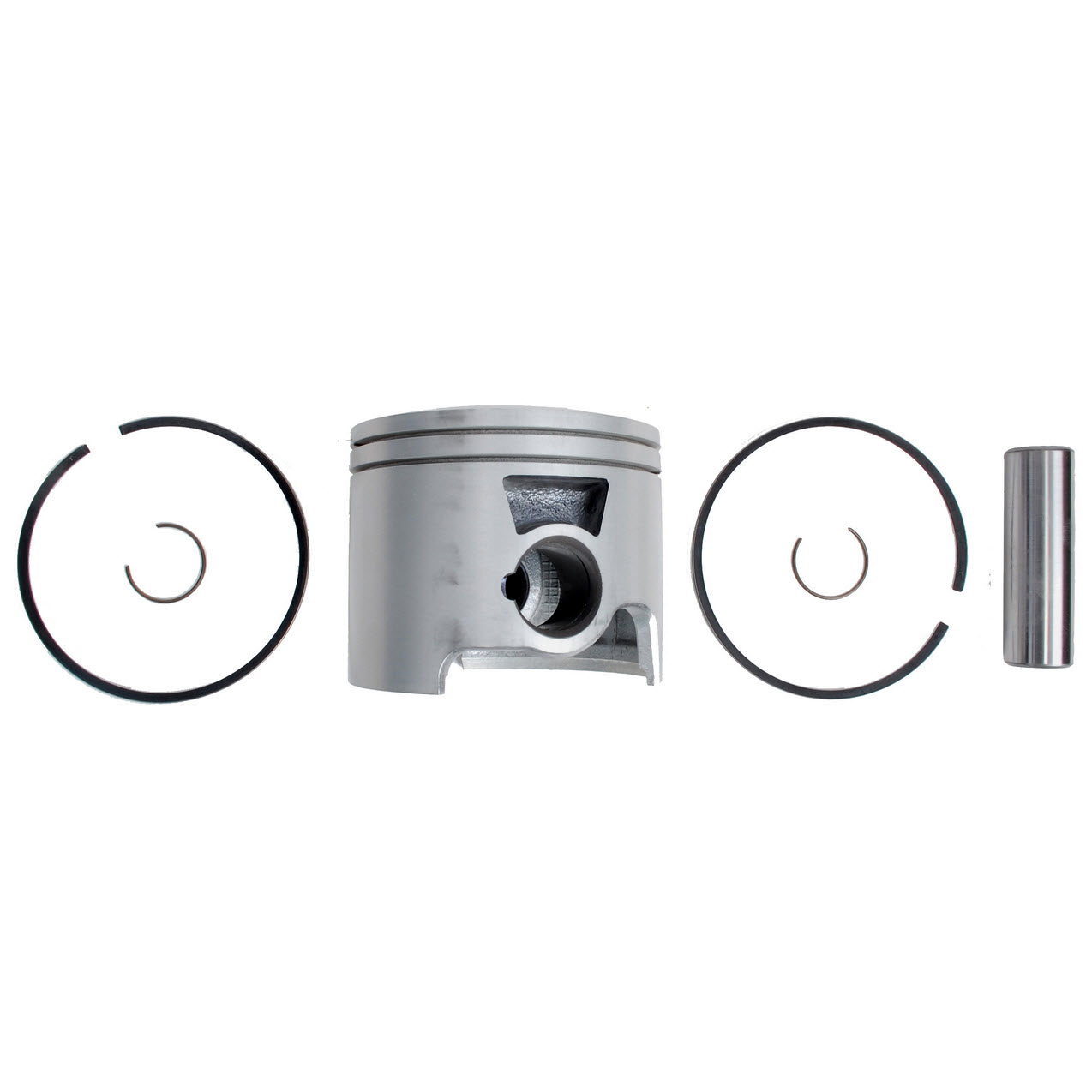

| #22 — 5005243 — PISTON & RING ASSY, PORT - STANDARD. NEW P/N FOR 2003 (3 required per assembly) | ||
  |
|
5005243 [ More info ] Unavailable Replaced by 5006733 |
  |
|

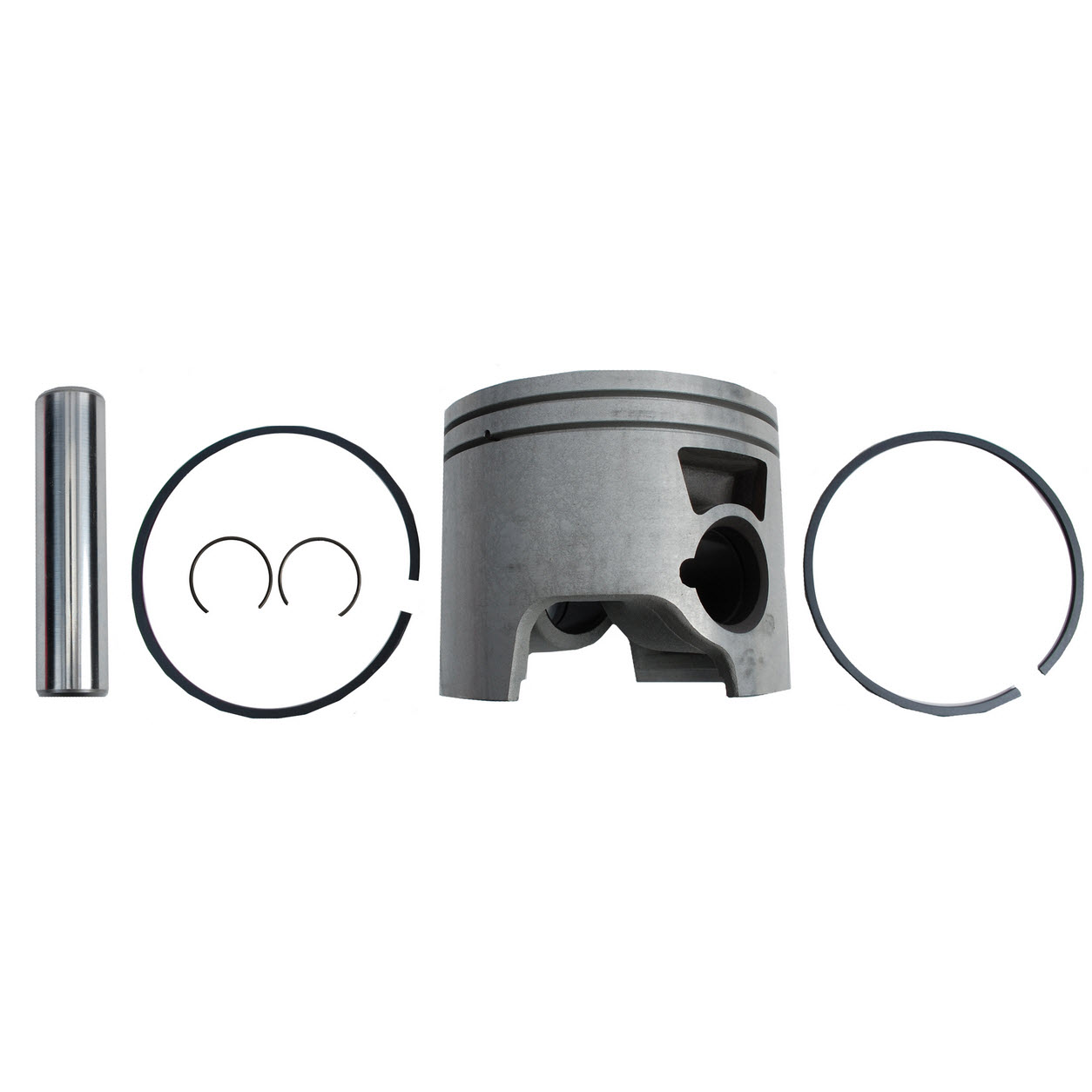

5006733 - Piston And Ring Kit Std [ More info ]
|
| #22 — 5005244 — PISTON & RING ASSY, STBD - STANDARD. NEW P/N FOR 2003 (3 required per assembly) | ||
  |
|
5005244 [ More info ] Unavailable Replaced by 5006734 |
  |
|
5006734 - Piston And Ring Kit Std [ More info ]
|
| #22 — 5005247 — PISTON & RING ASSY, PORT - OS 0.020IN.. NEW P/N FOR 2003 (3 required per assembly) | ||
  |
5005247 - Piston & Ring .020 [ More info ] Unavailable |
|
  |
|

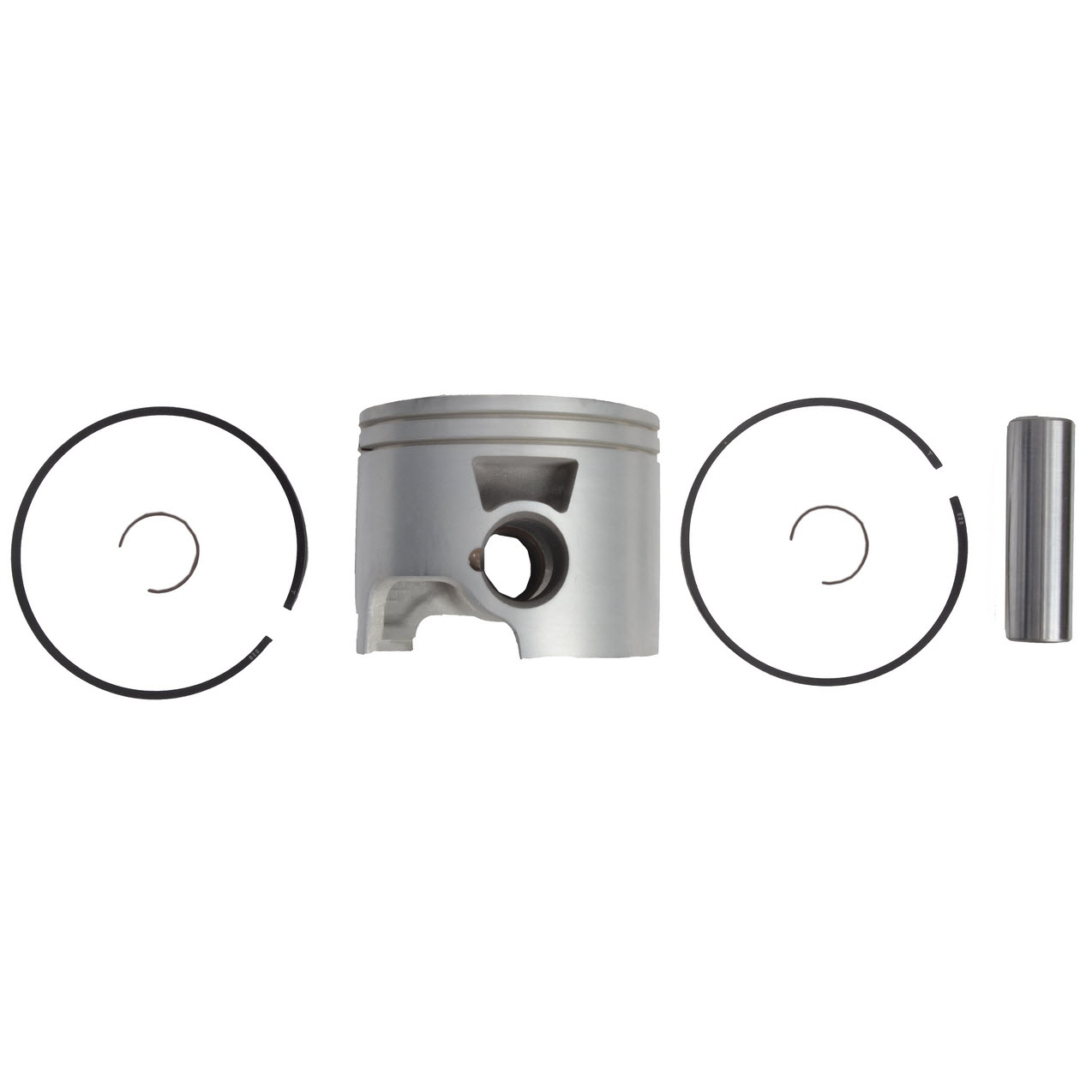

5006731 - Piston & Ring Kit [ More info ]
|
| #22 — 5005248 — PISTON & RING ASSY, STBD - OS 0.020IN.. NEW P/N FOR 2003 (3 required per assembly) | ||
  |
5005248 - Piston & Ring .020 [ More info ] Unavailable |
|
  |
|

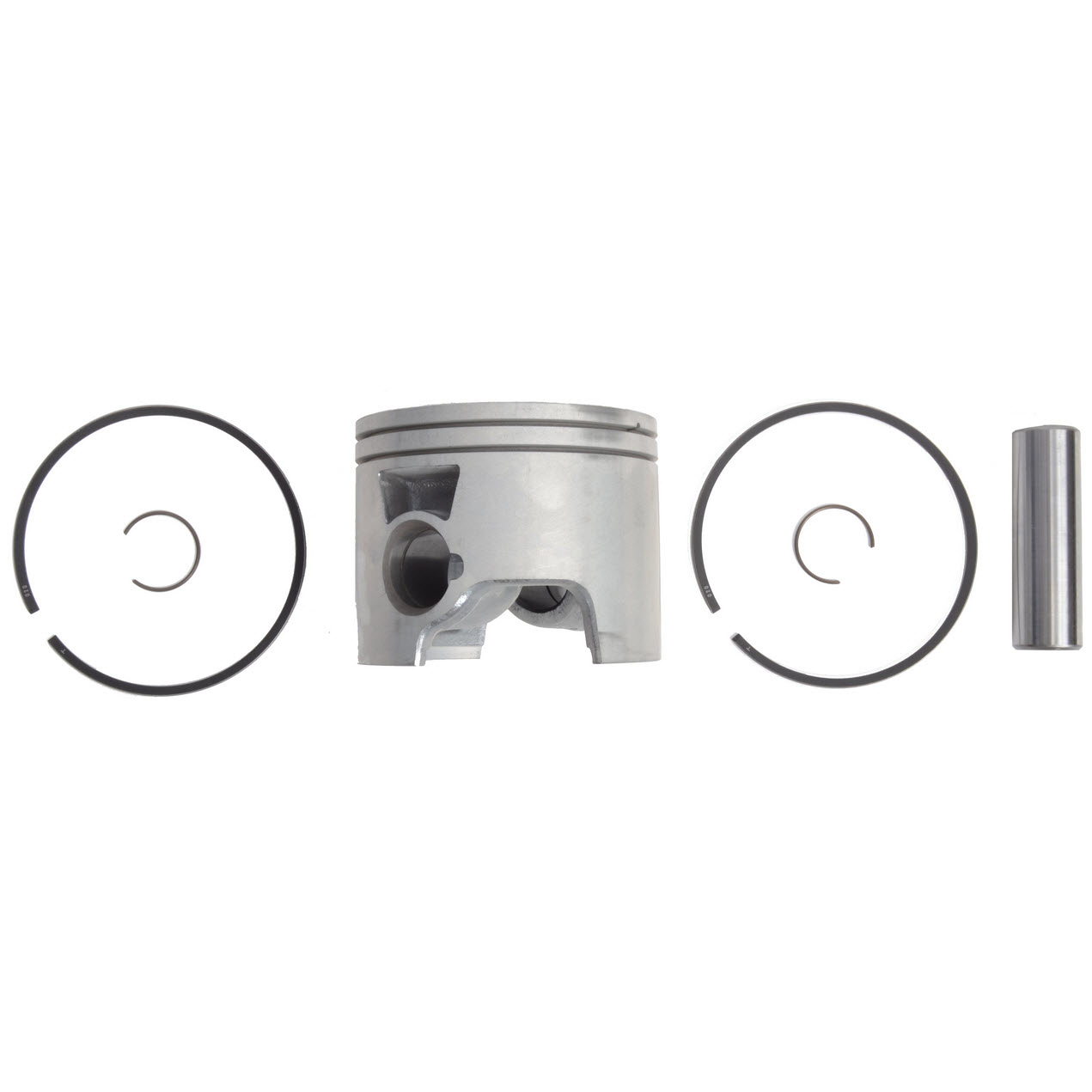

5006732 - Piston & Ring Kit [ More info ]
|
| #23 — 5005046 — *RING SET, STANDARD (6 required per assembly) | ||
  |
|

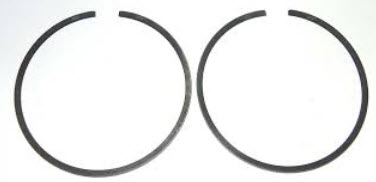

5005046 - Piston Ring Set, Standard [ More info ]
|
| #23 — 5004935 — *RING SET, OVERSIZE - 0.020IN. (6 required per assembly) | ||
  |
|
5004935 - Piston Ring Assembly - 020 [ More info ]
|
| #24 — 326765 — *RETAINING RING (12 required per assembly) | ||
  |
|
0326765 - Retaining Ring [ More info ]
|

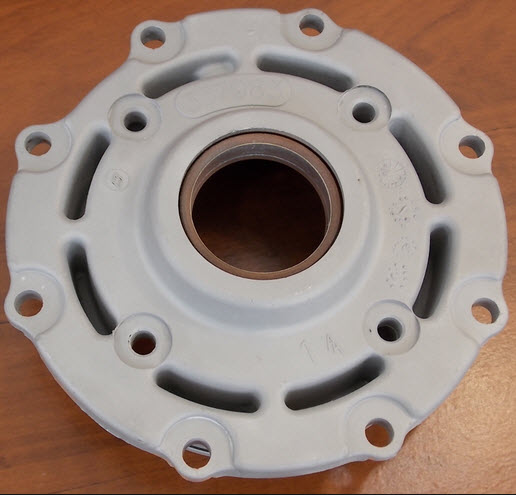

| #25 — 434792 — CRANKCASE HEAD ASSY, LOWER (1 required per assembly) | ||
  |
0434792 - Crankcase Head Assembly [ More info ] Unavailable |
|
  |
|
5007695 - Crankcase Head Kit Assembly [ More info ]
|
| #26 — 332942 — *SEAL. (INCLUDED IN POWERHEAD GASKET SET.) (1 required per assembly) | ||
  |
|
|
  |
|
|
  |
|
18-2075 - Seal, 332942 [ More info ]
|

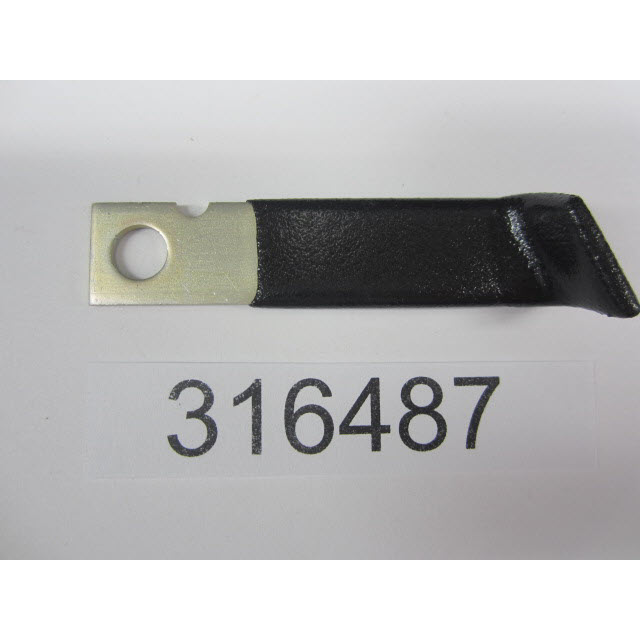

| #27 — 316487 — RETAINER, THROTTLE SENSOR LEAD (1 required per assembly) | ||
  |
|
0316487 - Retainer [ More info ]
|
