Battery Terminal Kit Parts for 2003 Evinrude 250 hp E250FPZSTA Outboard Motor

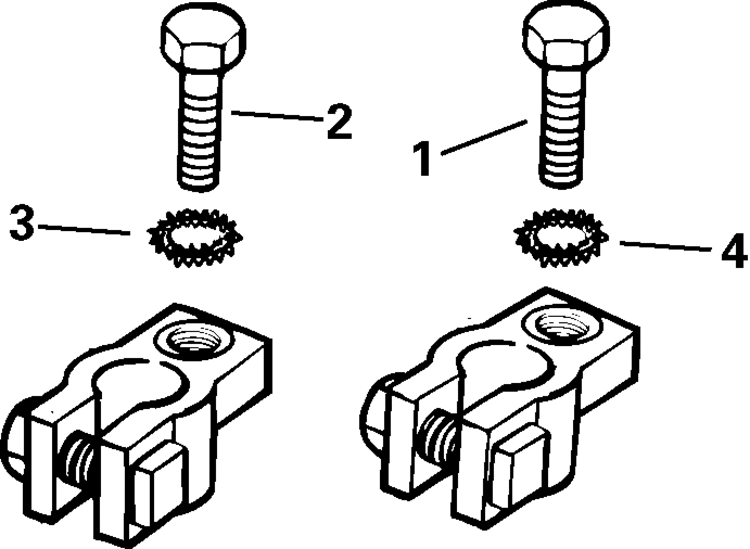

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0 — 385407 — BATTERY TERMINAL KIT (1 required per assembly) | ||
  |
|

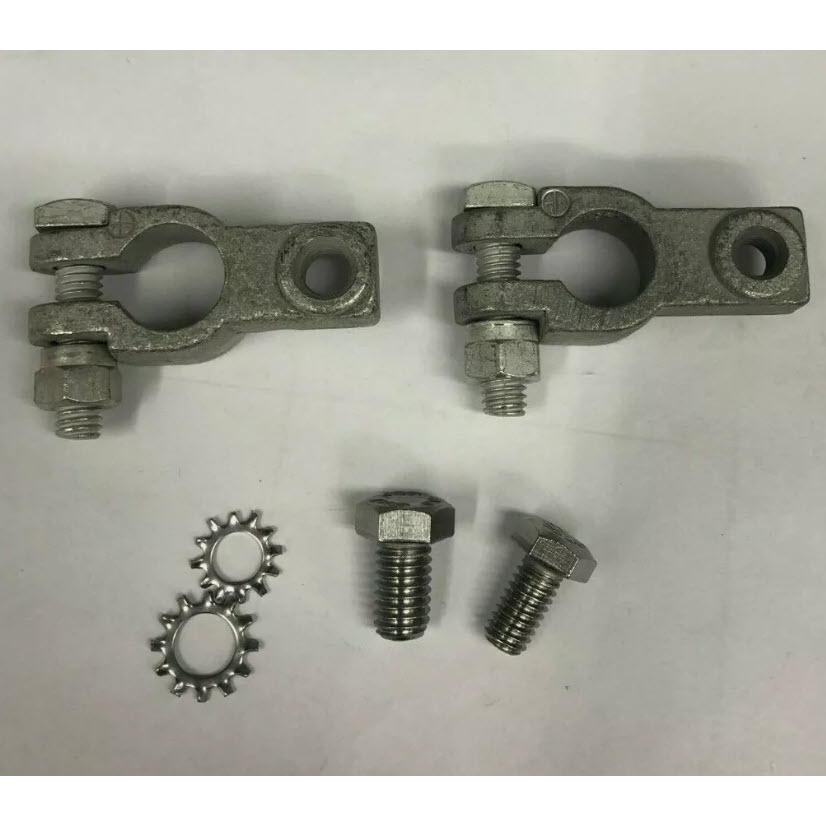

0385407 - Battery Terminal Kit [ More info ]
|
| #1 — 305513 — *SCREW, POSITIVE (1 required per assembly) | ||
  |
|
0305513 - Positive Terminal Screw [ More info ]
|
| #2 — 330437 — *SCREW, NEGATIVE (1 required per assembly) | ||
  |
|

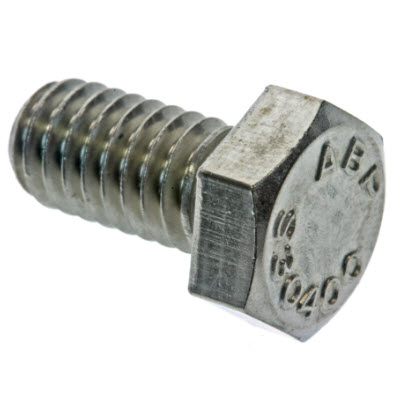

0330437 - Screw, Clamp [ More info ]
|
  |
|

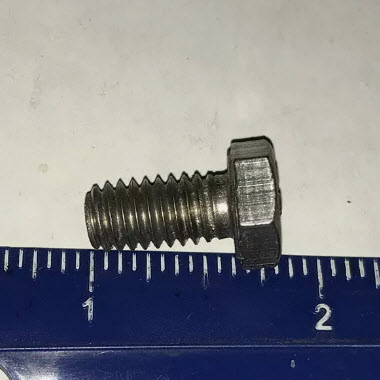

3852201 - Screw, Volvo [ More info ]
|
| #3 — 306486 — *WASHER, SCREW, NEGATIVE (1 required per assembly) | ||
  |
|

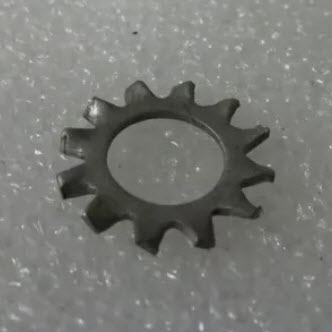

0306486 - LockWasher [ More info ]
|
| #4 — 307161 — *WASHER, SCREW, POSITIVE (1 required per assembly) | ||
  |
|
0307161 - LockWasher [ More info ]
|
