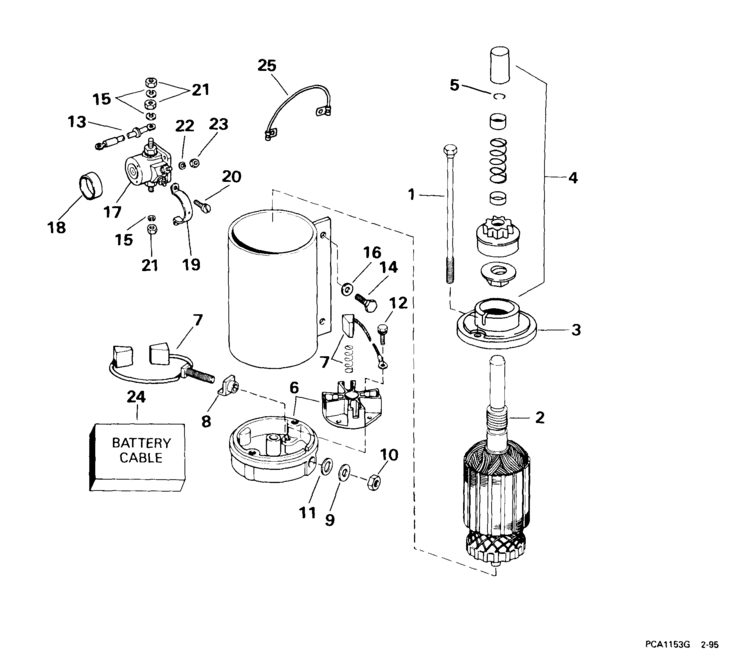

Electric Starter & Solenoid Parts for 1999 Johnson 50 hp J50ELEER Outboard Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

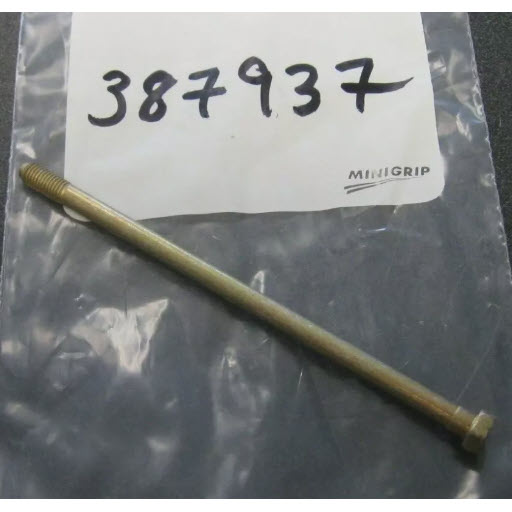

| #1 — 387937 — THRU BOLT PACKAGE (1 required per assembly) | ||
  |
|
0387937 - Thru Bolt [ More info ]
|
| #2 — 585270 — ARMATURE ASSY. (1 required per assembly) | ||
  |
|
0585270 - ARMATURE AY [ More info ] Unavailable |
| #3 — 585264 — CAP ASSY. (1 required per assembly) | ||
  |
|
0585264 - Drive End Cap [ More info ]
|
| #4 — 586101 — DRIVE ASSY. (1 required per assembly) | ||
  |
|

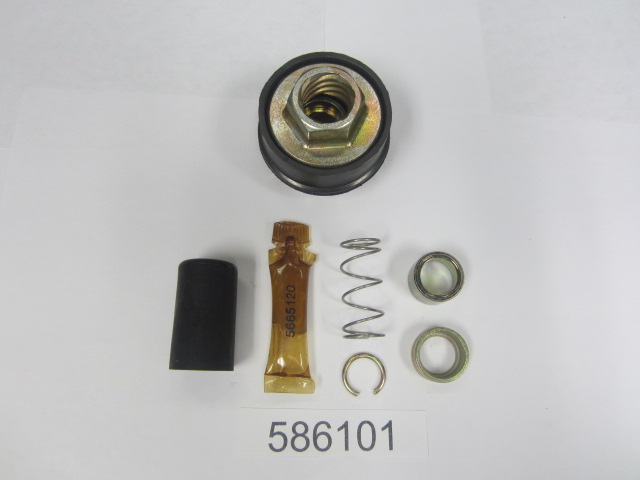

0586101 - Starter Drive Kit [ More info ]
|
  |
|

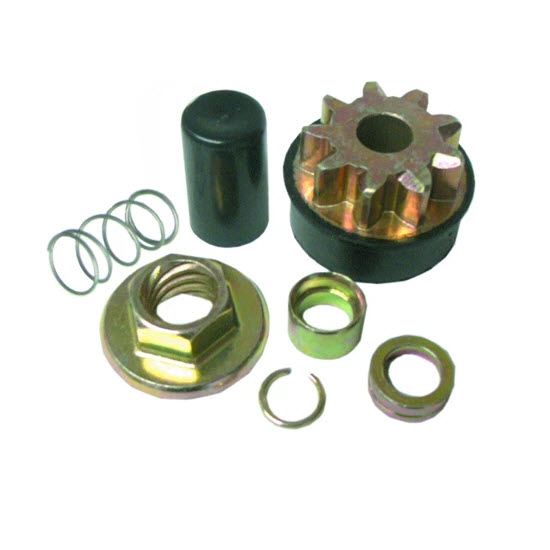

DVK89 - Starter Drive [ More info ]
|
| #5 — 342721 — RING, STARTER DRIVE (1 required per assembly) | ||
  |
|
0342721 - Starter Drive Ring [ More info ]
|
| #6 — 585266 — CAP ASSY., COMMUTATOR (1 required per assembly) | ||
  |
|
0585266 - Commutator Cap [ More info ]
|
  |
|
SR372 - Outboard Starter Repair Kit [ More info ]
|

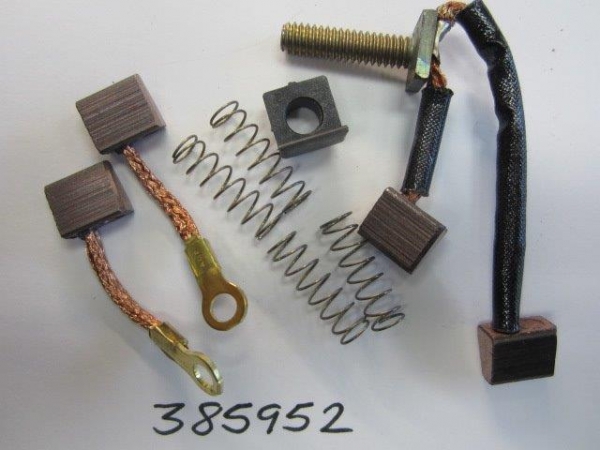

| #7 — 385952 — BRUSH & SPRING SET (1 required per assembly) | ||
  |
|
0385952 - Brush & Spring Set [ More info ]
|
  |
|

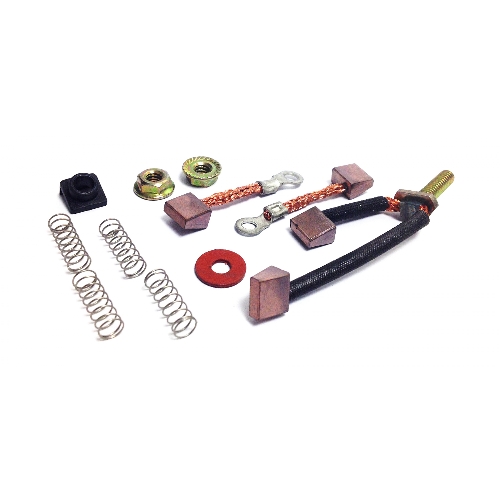

18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #8 — 316743 — BUSHING, INSULATION (1 required per assembly) | ||
  |
|

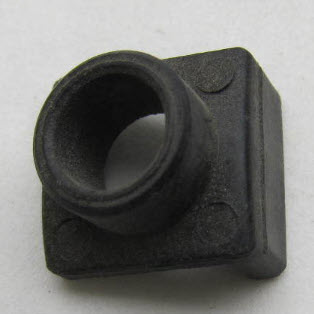

0316743 - Bushing [ More info ]
|
| #9 — 316749 — WASHER, PLAIN (1 required per assembly) | ||
  |
|

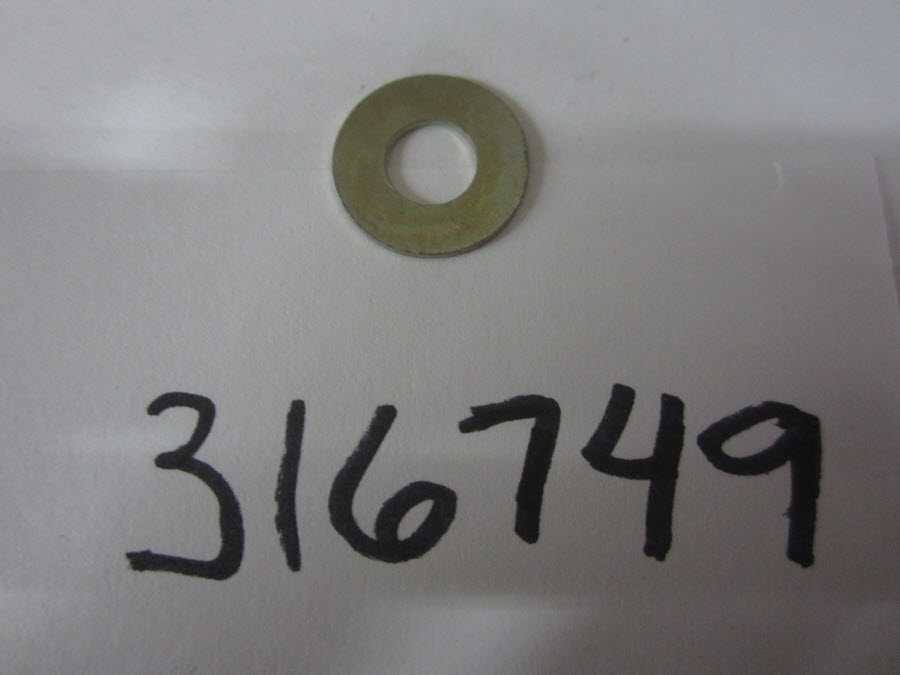

0316749 - Washer [ More info ]
|
| #10 — 328741 — NUT, INPUT STUD (1 required per assembly) | ||
  |
|
0328741 - Spark Adjust Nut [ More info ]
|

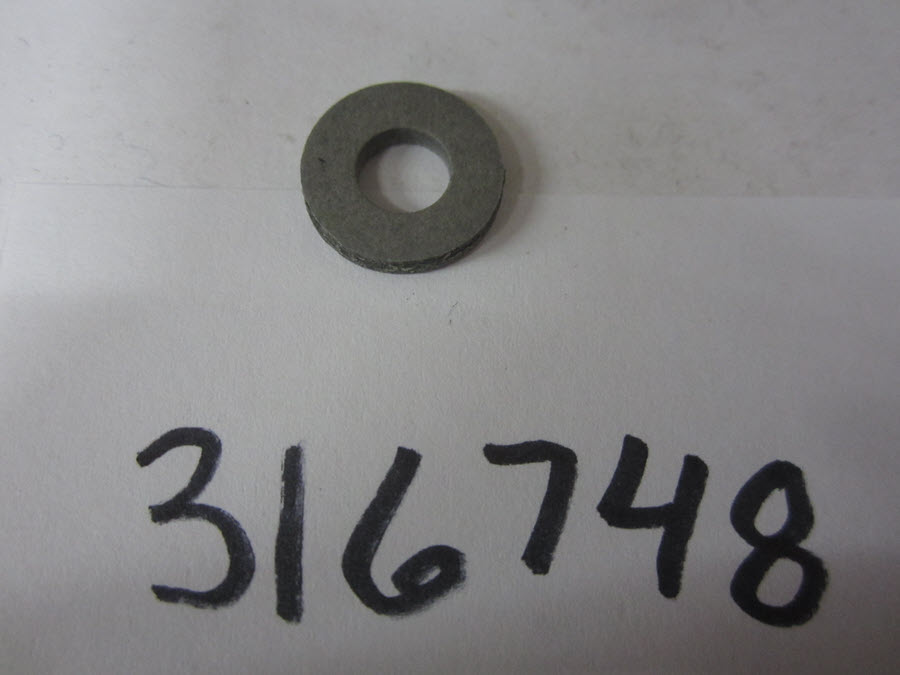

| #11 — 316748 — WASHER, INSULATION (1 required per assembly) | ||
  |
|
0316748 - Washer [ More info ]
|
| #12 — 316746 — BOLT & LOCK WASHER (2 required per assembly) | ||
  |
|
0316746 - . Bolt And Lockwasher [ More info ] Unavailable |

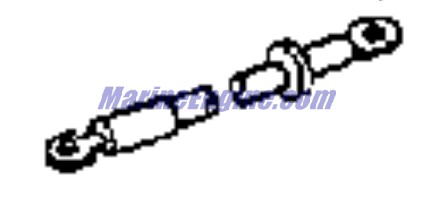

| #13 — 585177 — LEAD, STARTER TO SOLENOID (1 required per assembly) | ||
  |
|
0585177 - Cable Assembly, 6 Ga 13 [ More info ] Unavailable |

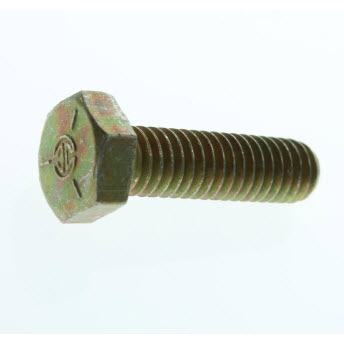

| #14 — 302479 — SCREW, STARTER MOUNTING (3 required per assembly) | ||
  |
|
0302479 - Bracket to Motor Cover Screw, 1-1/8 Inch long [ More info ]
|
  |
|

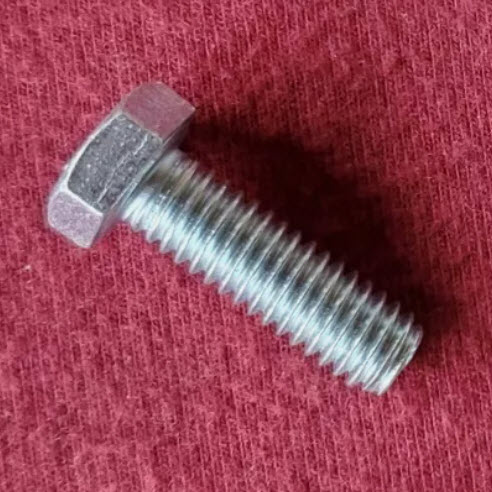

955525 - Screw, Volvo [ More info ]
|
| #15 — 331259 — LOCK WASHER, TERMINAL (3 required per assembly) | ||
  |
|
0331259 - LockWasher [ More info ]
|
| #16 — 306470 — LOCK WASHER (3 required per assembly) | ||
  |
|
0306470 - Lock Washer [ More info ]
|
| #17 — 586180 — SOLENOID ASSY. (1 required per assembly) | ||
  |
|
0586180 - Starter Solenoid [ More info ]
|
  |
|

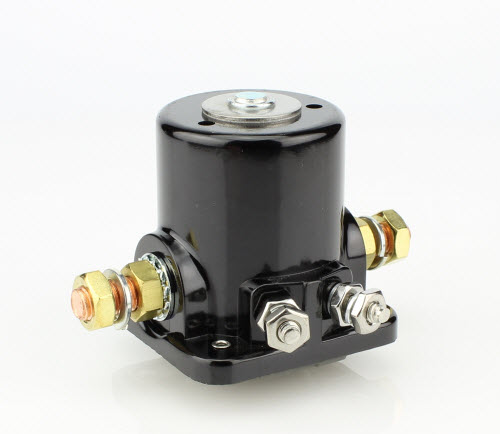

18-5808 - Solenoid, 586180 [ More info ]
|
  |
|
SW622 - Solenoid [ More info ]
|
| #18 — 311217 — SLEEVE, SOLENOID (1 required per assembly) | ||
  |
|

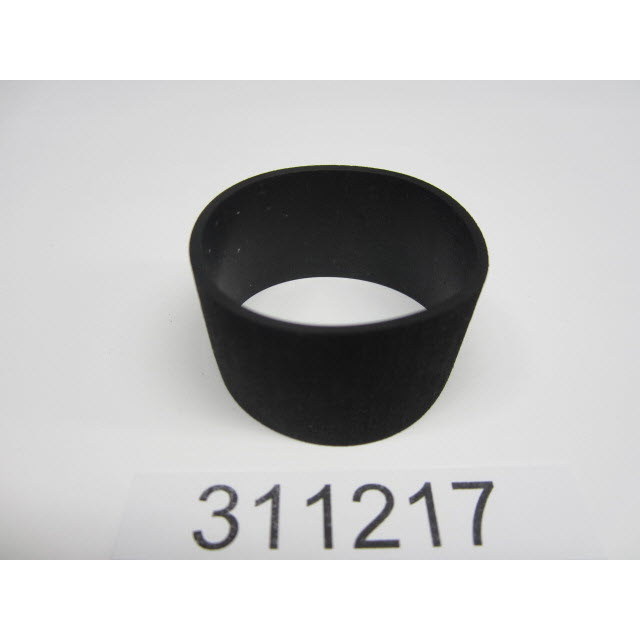

0311217 - Solenoid Sleeve [ More info ]
|

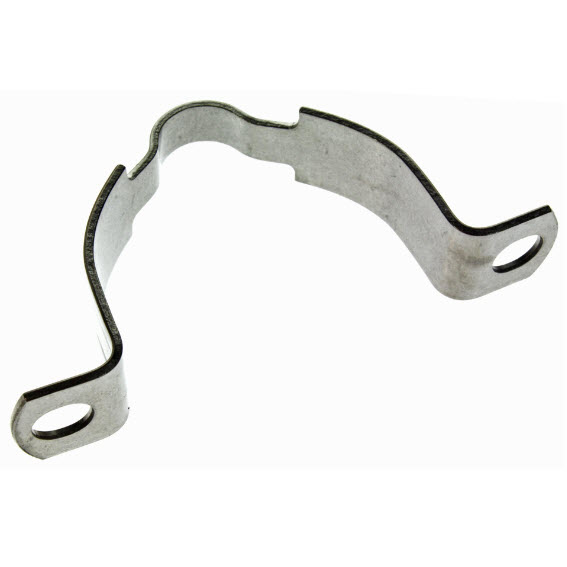

| #19 — 330112 — CLAMP, SOLENOID MOUNTING (1 required per assembly) | ||
  |
|
0330112 - Clamp - Solenoid Mounting [ More info ]
|

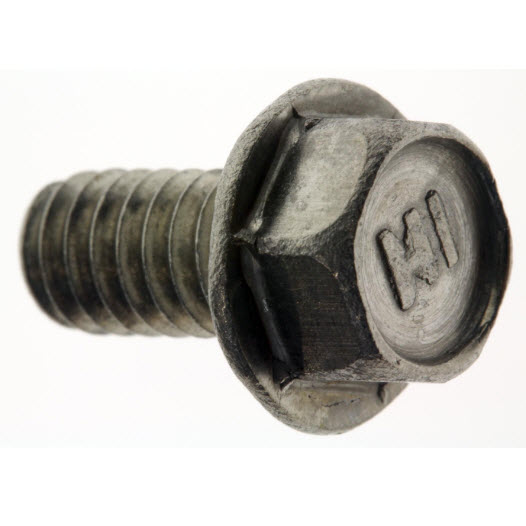

| #20 — 306010 — SCREW, SOLENOID MOUNTING (2 required per assembly) | ||
  |
0306010 - Screw [ More info ] Unavailable |
|
  |
|
|
  |
|
3852115 - Screw, Volvo [ More info ]
|
  |
|
3852053 - Screw, Volvo [ More info ]
|
| #21 — 311349 — NUT, TERMINAL (3 required per assembly) | ||
  |
|
|
| #22 — 304454 — LOCK WASHER, TERMINAL (2 required per assembly) | ||
  |
|
0304454 - LockWasher [ More info ]
|
| #23 — 306556 — NUT, TERMINAL (2 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut [ More info ]
|

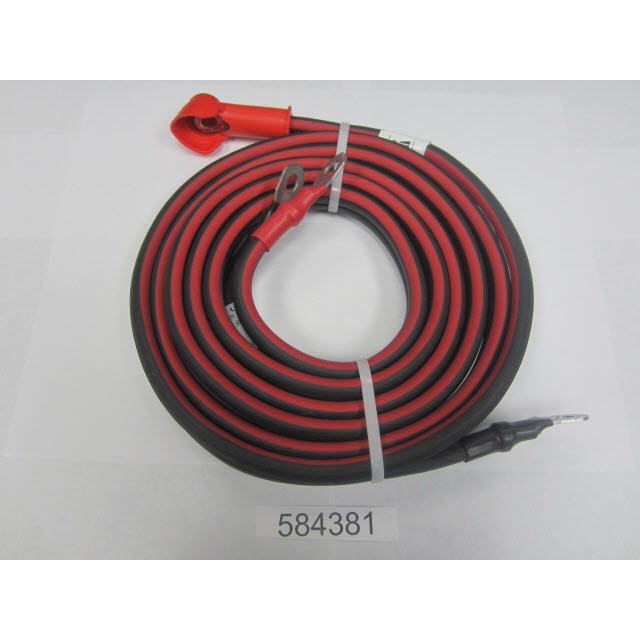

| #24 — 584381 — BATTERY CABLE (1 required per assembly) | ||
  |
|
0584381 - Battery Cable, 6 Gauge, 100 Inch Long [ More info ]
|
| #25 — 580733 — LEAD, SOLENOID GROUND (1 required per assembly) | ||
  |
|
0580733 - Ground Lead [ More info ] Unavailable |
| #586279 — 586279 — STARTER MOTOR ASSY.. NOT SHOWN . (1 required per assembly) | ||
  |
|

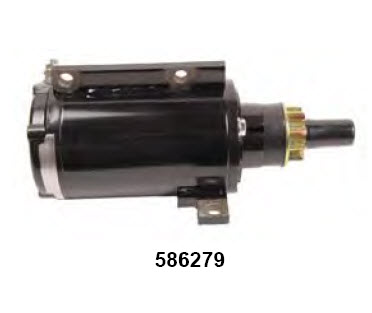

0586279 - Starter Motor [ More info ]
|
  |
|

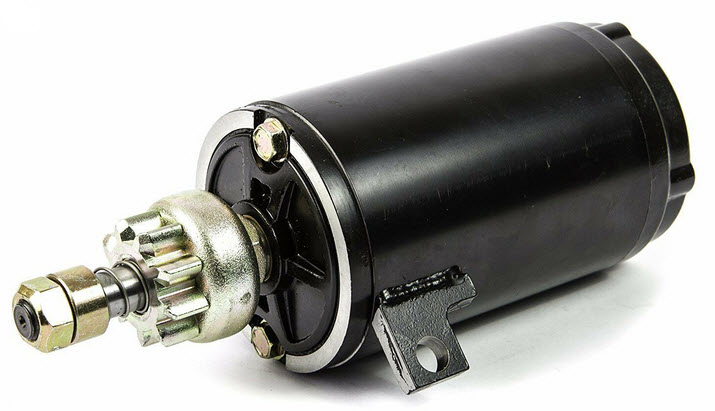

18-5624 - Starter, 585056 [ More info ]
|
  |
|

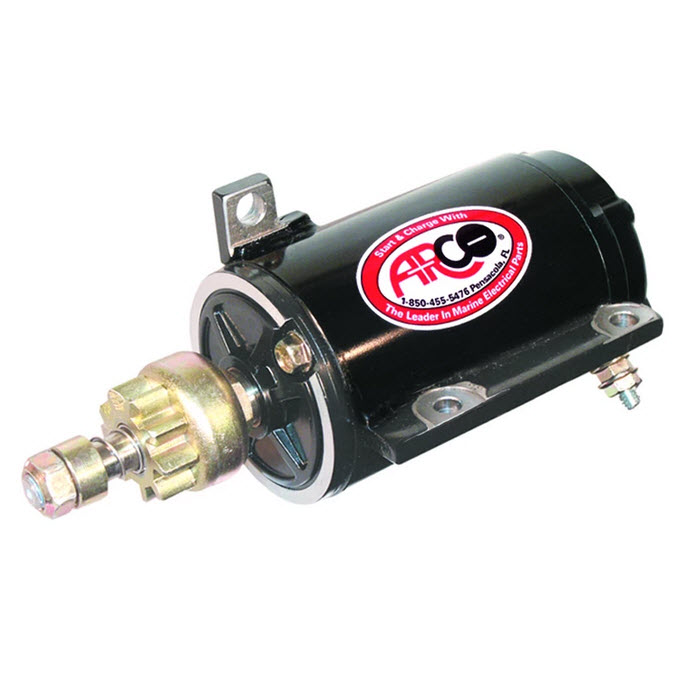

5389 - Outboard Starter [ More info ]
|
