Rewind Starter Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

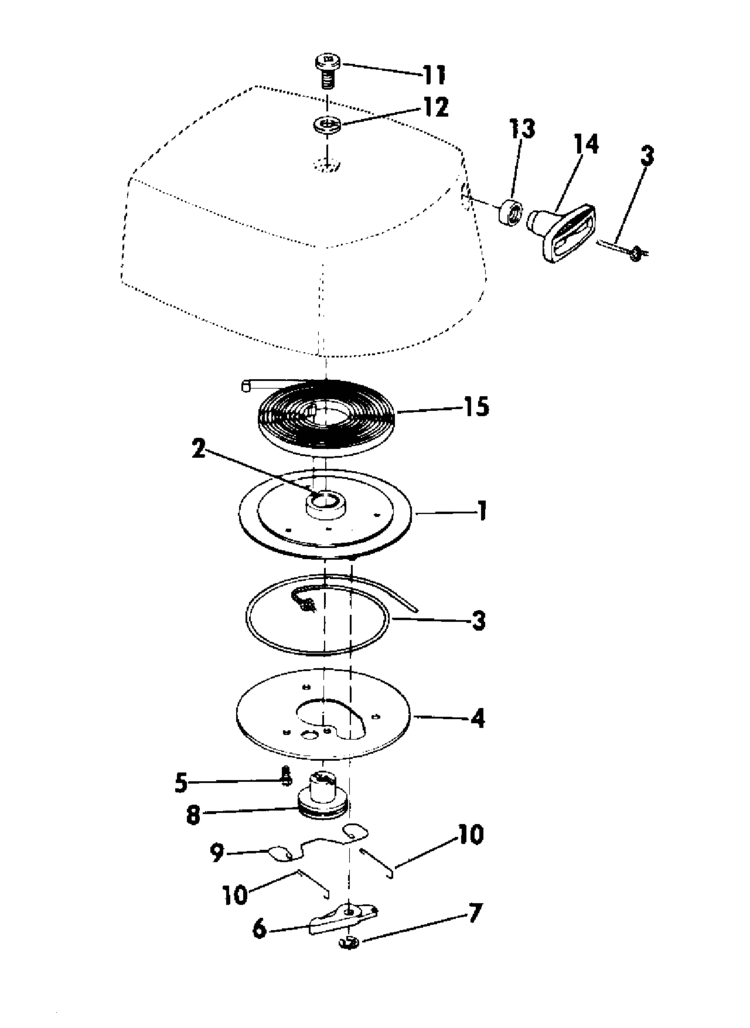

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 384443 — PULLEY & PIN. NOT SHOWN (1 required per assembly) | ||
 |
0384443 - Pulley & Pin [ More info ] Unavailable |
|
|
0391022 - Pulley & Pin Assembly [ More info ] Unavailable |
|
  |
|

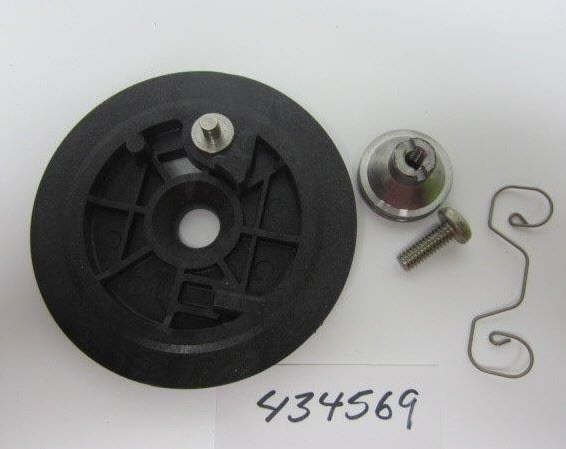

0434569 - Pulley and Pin Kit [ More info ] Unavailable |
| #2 — 316375 — ROLL PIN (1 required per assembly) | ||
|
|
0316375 - Roll Pin [ More info ]
|
| #3 — 0 — ROPE. CUT FROM 100FT. ROLL PART NO. 316706. CUTTING LENGTH 64" (1 required per assembly) |
| #4 — 316371 — PLATE, PULLEY (1 required per assembly) | ||
|
|
0316371 - Plate [ More info ] Unavailable |
| #5 — 602821 — SCREW, PLATE TO PULLEY (4 required per assembly) | ||
|
|
0602821 - L/P 2.42 [ More info ] Unavailable |

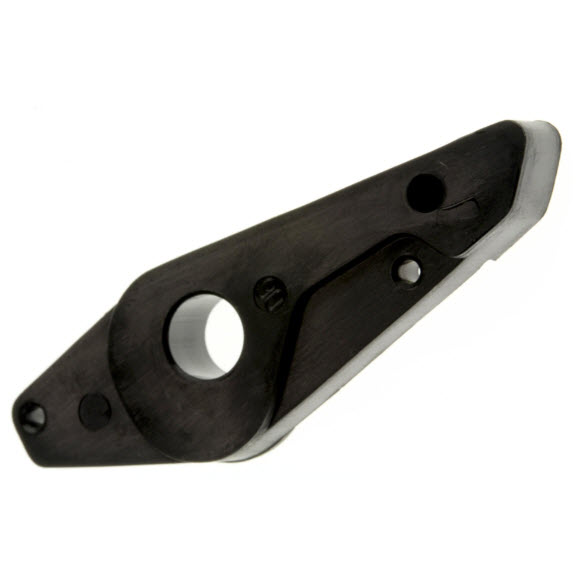

| #6 — 203698 — PAWL, STARTER (1 required per assembly) | ||
  |
|
0203698 - Starter Pawl, Sold Individually [ More info ]
|
  |
|

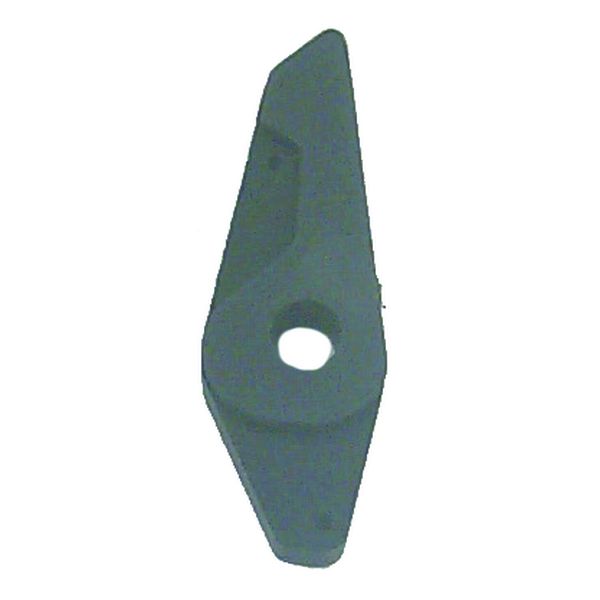

18-6513-9 - Starter Pawl (Pack of 3) [ More info ]
|

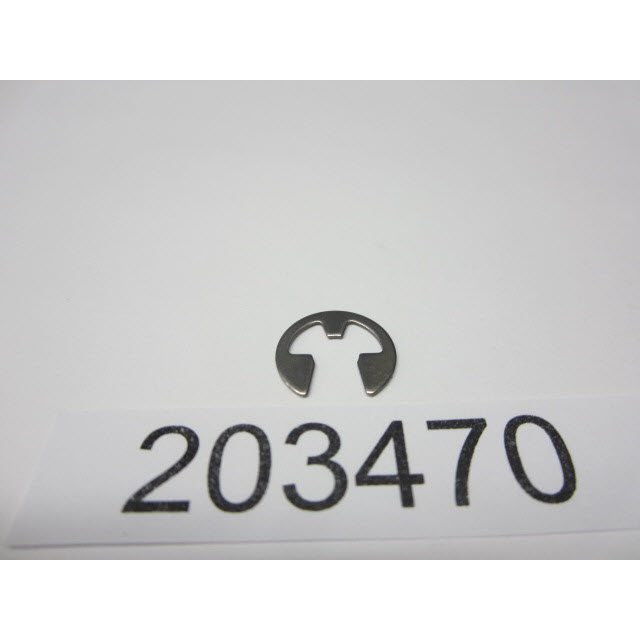

| #7 — 203470 — RETAINING RING (1 required per assembly) | ||
  |
|
0203470 - Retaining Ring [ More info ]
|

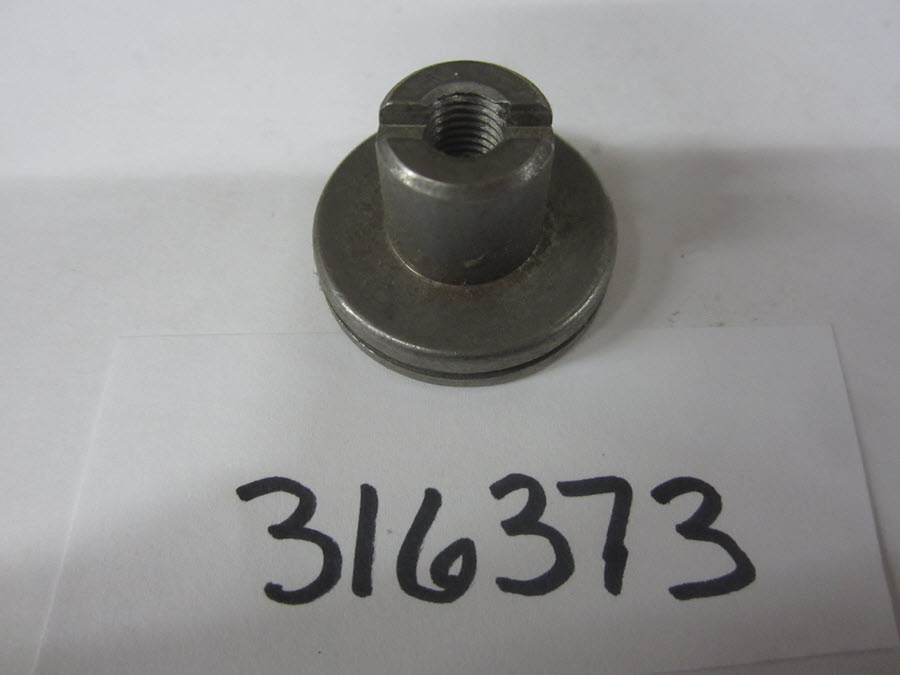

| #8 — 316373 — SPINDLE, PULLEY (1 required per assembly) | ||
  |
|
0316373 - Spindle [ More info ]
|
|
|
0434569 - Pulley and Pin Kit [ More info ] Unavailable |
| #9 — 316372 — FRICTION SPRING (1 required per assembly) | ||
  |
|

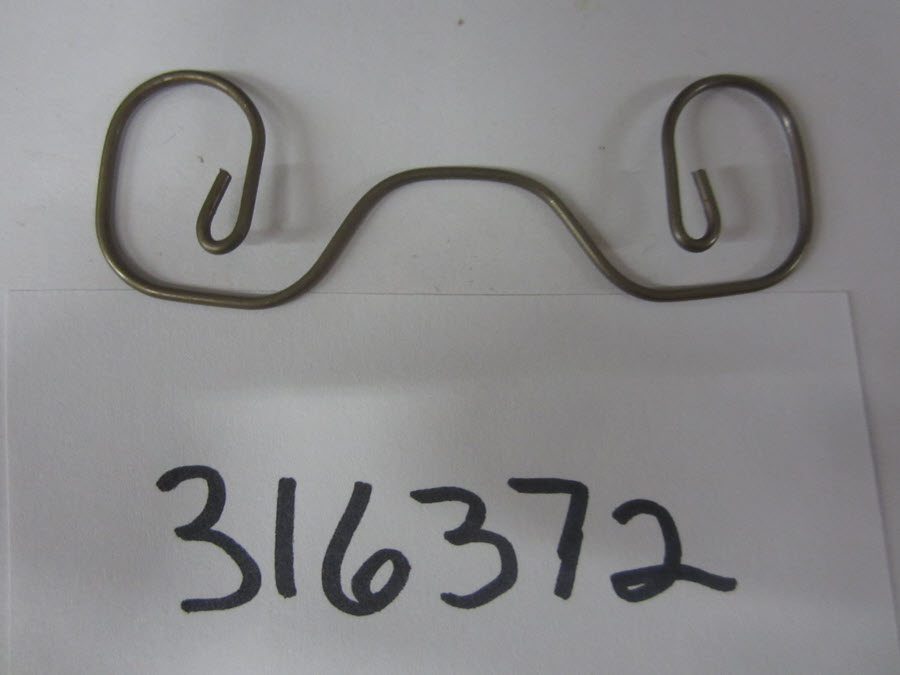

0316372 - Friction Spring [ More info ]
|
| #10 — 203700 — LINK, SPRING TO PAWL (2 required per assembly) | ||
  |
|

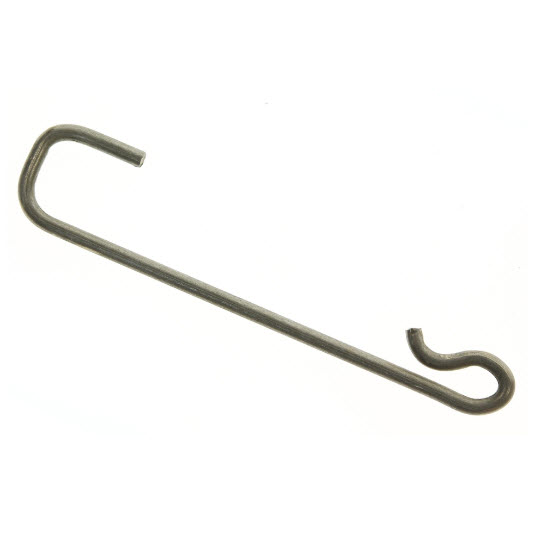

0203700 - Spring to Pawl Link [ More info ]
|

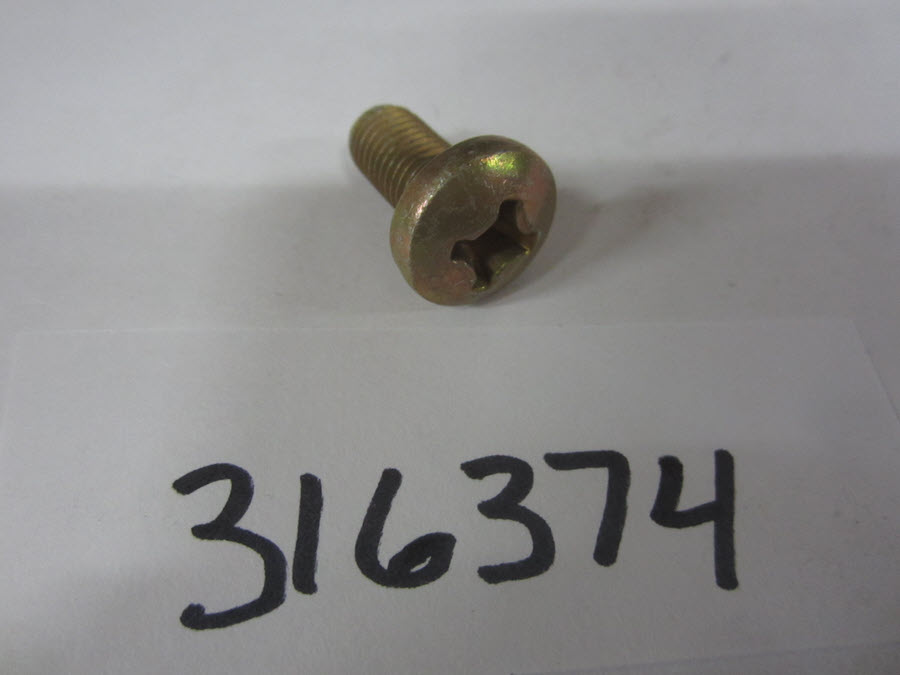

| #11 — 316374 — SCREW, SPINDLE TO HSG (1 required per assembly) | ||
  |
|
0316374 - Screw, Spindle To Housing [ More info ]
|
| #12 — 306799 — LOCKWASHER, SCREW (1 required per assembly) | ||
  |
|

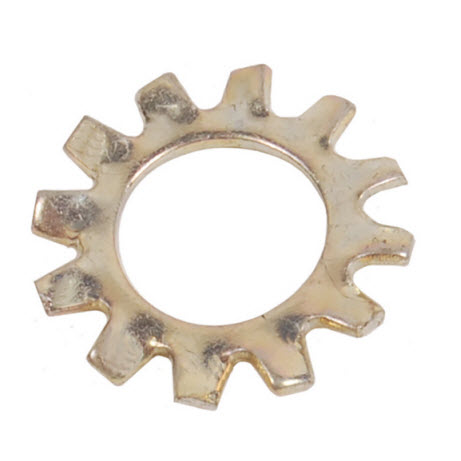

0306799 - Lock Washer [ More info ]
|
| #13 — 311371 — BUMPER, HANDLE (1 required per assembly) | ||
  |
|
0311371 - Starter Handle Bumper [ More info ]
|
  |
|
0391451 - Starter Handle & Bumper, Anchor Not Req [ More info ]
|
| #14 — 311372 — HANDLE, STARTER (1 required per assembly) | ||
  |
|

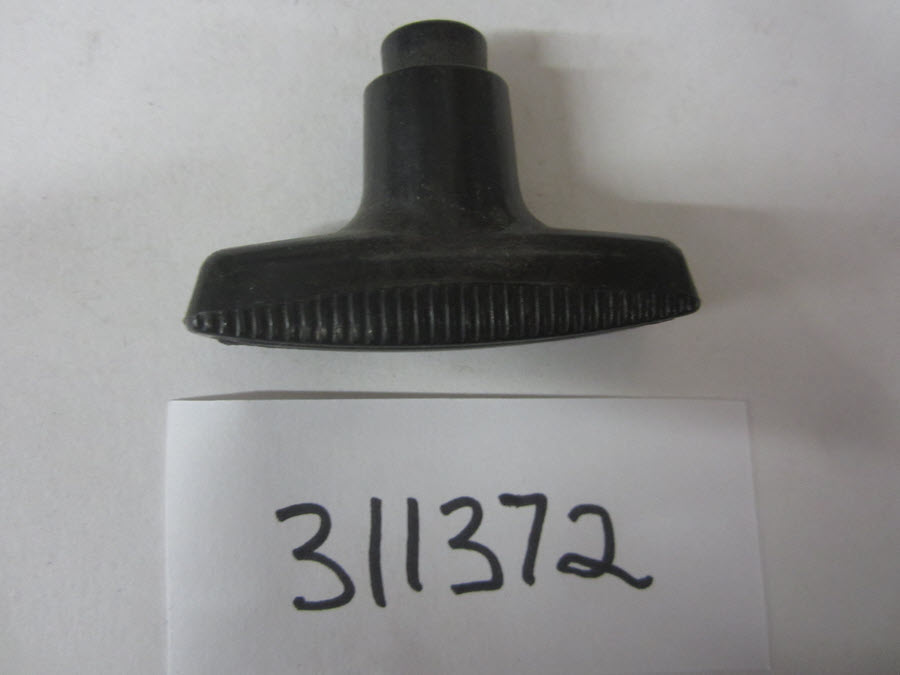

0311372 - Starter Handle [ More info ]
|
| #15 — 312932 — SPRING, STARTER (1 required per assembly) | ||
  |
|

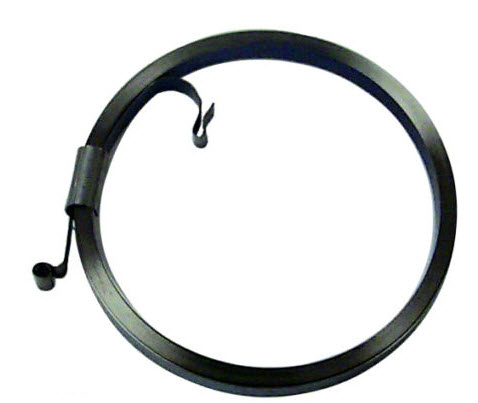

0312932 - Starter Rewind Spring [ More info ]
|
  |
|

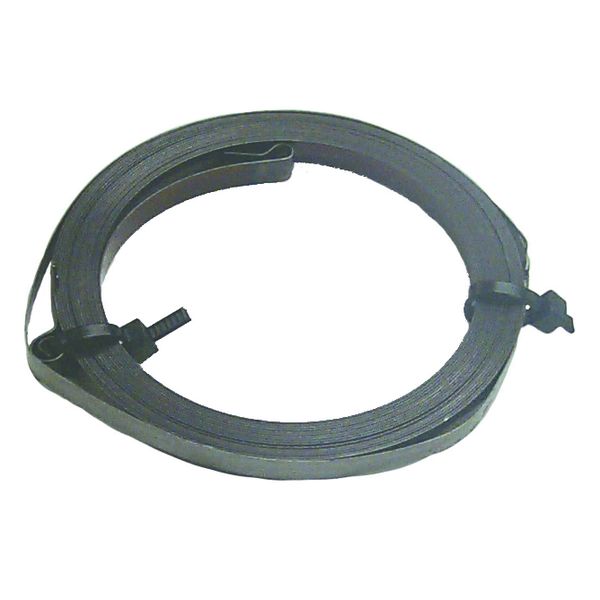

18-6511 - Rewind Spring 312932 [ More info ]
|

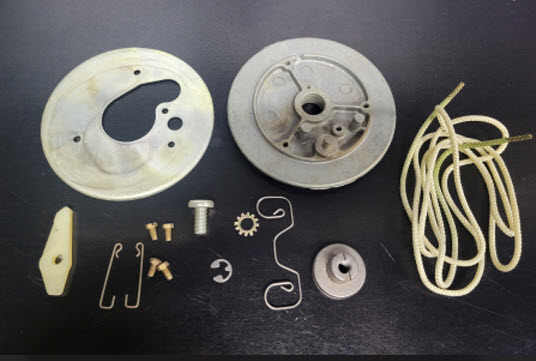

| #384788 — 384788 — REWIND STARTER ASSY (1 required per assembly) | ||
  |
|
0384788 - Rewind Starter Assembly [ More info ] Unavailable |
