Gearcase Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

Revise Search: All Years > 1974 > 2 hp > Evinrude 2402E > Gearcase

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• If no prop is listed, try our prop finder.

COMPLETE GEARCASE?
• A complete lower unit may be available for less than $950. Find one HERE

Engine section

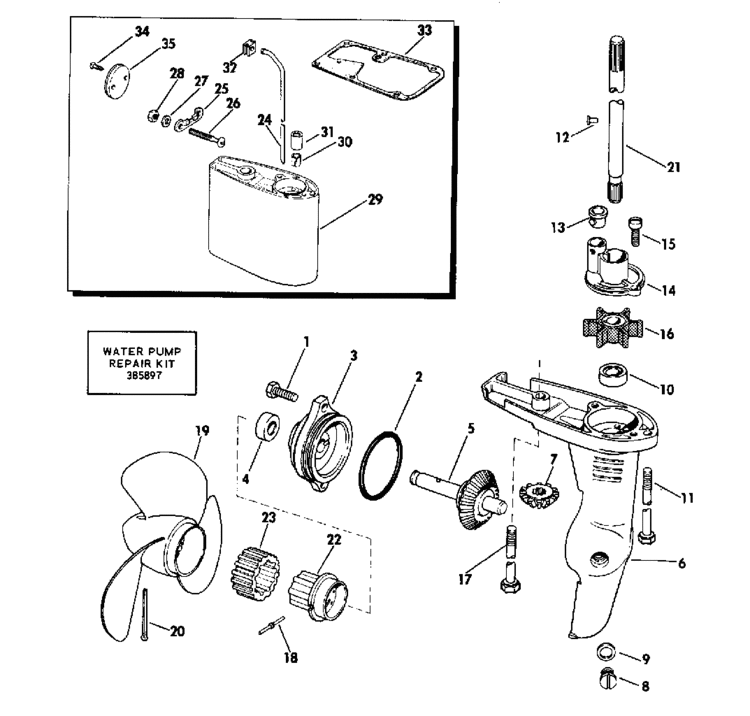

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1 — 300646 — SCREW, GEARCASE HD. TO G'CASE (2 required per assembly)

0300646 - Screw [ More info ]

$9.65 $4.90
10+ In Stock.

#2 — 310327 — O-RING, GEARCASE HEAD (1 required per assembly)

0310327 - O-Ring, Gearcase Head [ More info ]

$4.56
10+ In Stock.

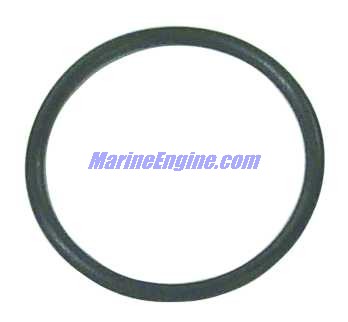

18-7173-9 - O-Ring (PK5) 310327, 25-30224 [ More info ]

$14.99 $12.47
Available to Order: Usually ships within 10 days.

18-7173-9 - O-Ring (PK5) 310327, 25-30224 [ More info ]

$14.99 $12.47
Available to Order: Usually ships within 10 days.

#3 — 383341 — GEARCASE HD&BUSH.ASSY. (1 required per assembly)

0383341 - Gearcase Head, NLA [ More info ]

$90.00
1 In Stock.

#4 — 300599 — SEAL, GEARCASE HEAD (1 required per assembly)
		0300599 - Oil Retainer Seal [ More info ] Unavailable
		0327031 - Oil Seal [ More info ] $13.49 10+ In Stock.
		18-2035 - Seal, 327031 [ More info ] $10.99 $9.95 4 In Stock.

#5 — 382222 — PROP .SHAFT & GEAR ASSY (1 required per assembly)

0382222 - Shaft & Gear [ More info ]

$76.99
10+ In Stock.

#6 — 385898 — GEARCASE & BUSH. ASSY (1 required per assembly)

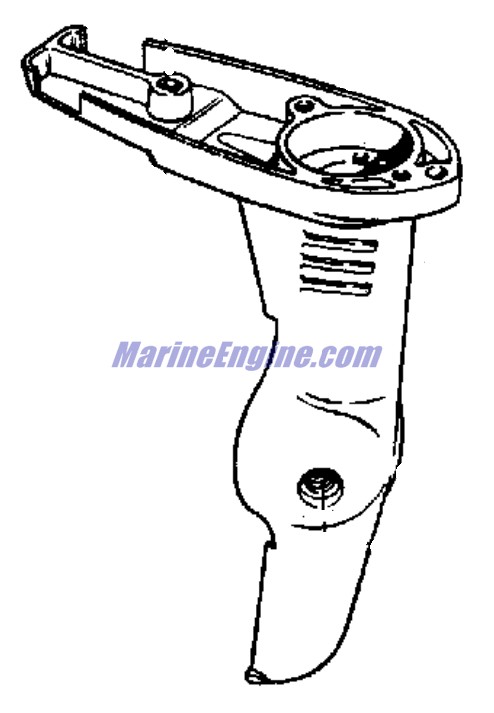

0385898 - Gearcase & Bushing [ More info ]

$80.00
2 In Stock.

0389066 - Gearcase Housing and Bushing Assembly, NLA [ More info ]
Unavailable

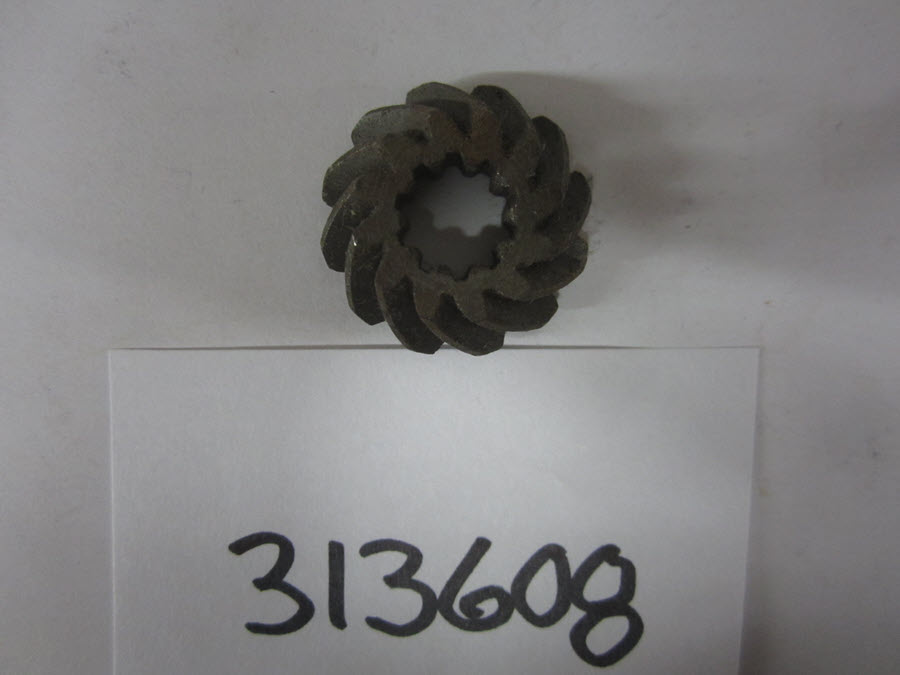

#7 — 313608 — PINION, DRIVESHAFT (1 required per assembly)

0313608 - Pinion, Driveshaft [ More info ]

$43.99
10+ In Stock.

#8 — 307551 — PLUB, GEARCASE (1 required per assembly)

0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]

$7.34
10+ In Stock.

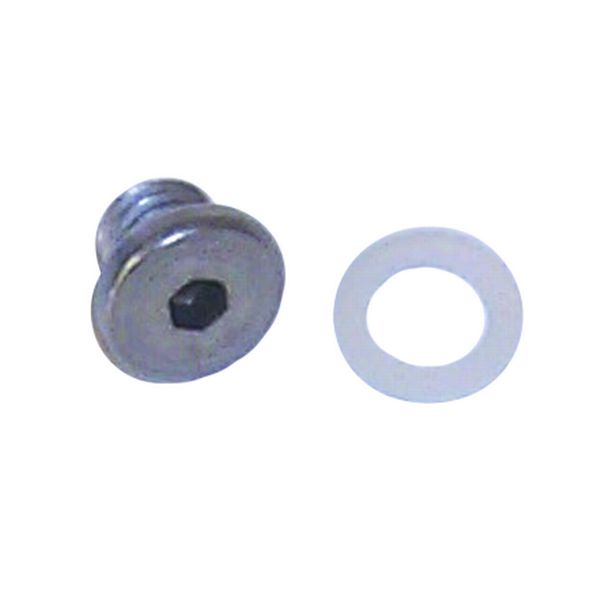

18-4255 - Drain Screw, 307551 Allen Type, Gasket Included [ More info ]

$4.89 $4.43
Available to Order: Usually ships within 10 days.

18-2387 - Drain Plug Slotted or Allen - No Gasket [ More info ]

$8.69 $7.75
6 In Stock.

#9 — 311598 — WASHER (1 required per assembly)

0311598 - Drain Plug Washer [ More info ]

$1.58
10+ In Stock.

#10 — 300599 — SEAL (1 required per assembly)
		0300599 - Oil Retainer Seal [ More info ] Unavailable
		0327031 - Oil Seal [ More info ] $13.49 10+ In Stock.
		18-2035 - Seal, 327031 [ More info ] $10.99 $9.95 4 In Stock.

#11 — 302030 — SCREW, GEARCASE TO HSG., FRT. (1 required per assembly)

0302030 - Screw, Bracket [ More info ]
Unavailable

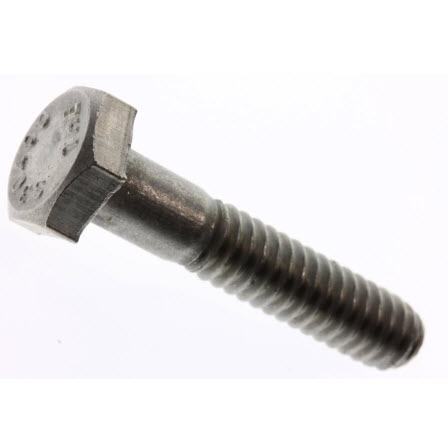

0303398 - Screw, NLA [ More info ]

$4.99
10+ In Stock.

#11 — 315221 — SCREW, GEARCASE MTG., LONG 5" EXTENSION KIT (1 required per assembly)

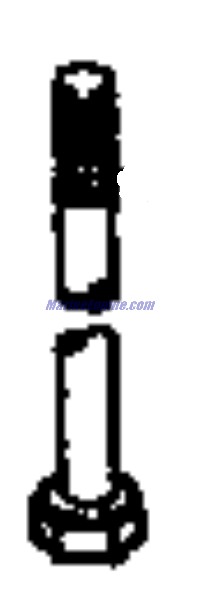

0315221 - Screw, Gearcase Mtg (Long) NLA [ More info ]

$19.99
9 In Stock.

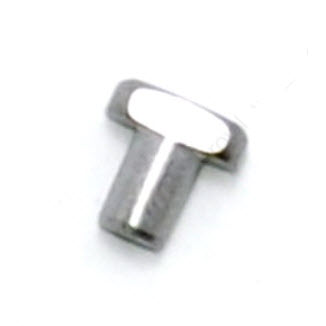

#12 — 306196 — DRIVEPIN, IMPELLER. CONTENT OF WATER PUMP REPAIR KIT (1 required per assembly)

0306196 - Impeller Drive Pin [ More info ]

$9.65 $7.41
10+ In Stock.

#13 — 317372 — GROMMET, WATER TUBE. CONTENT OF WATER PUMP REPAIR KIT (1 required per assembly)

0317372 - Water Tube Grommet [ More info ]

$17.59
10+ In Stock.

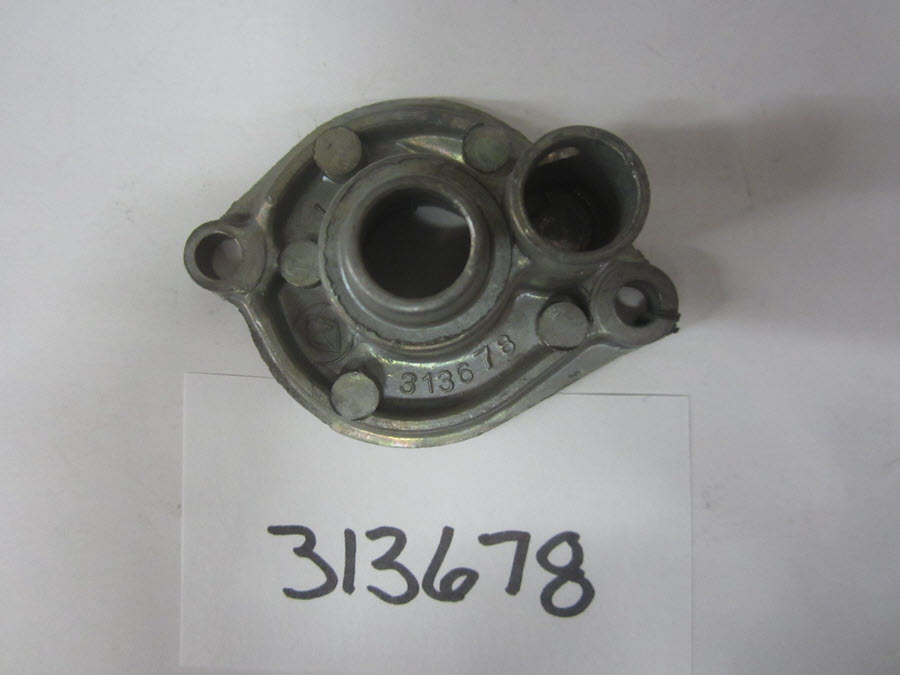

#14 — 313678 — COVER, WATER PUMP. CONTENT OF WATER PUMP REPAIR KIT (1 required per assembly)

0313678 - Water Pump Cover [ More info ]

$83.59
10+ In Stock.

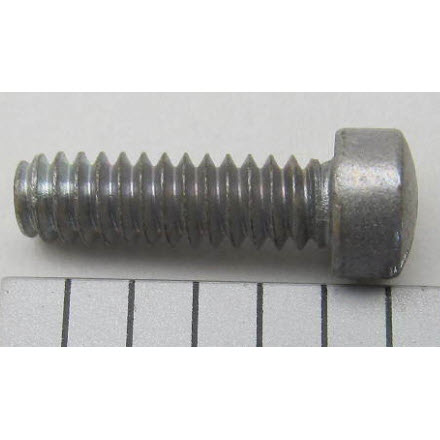

#15 — 306357 — SCREW, WATER PUMP ASSY.. CONTENT OF WATER PUMP REPAIR KIT (2 required per assembly)

0306357 - Screw, Short, 5/18 In (16mm) [ More info ]

$6.59 $5.50
10+ In Stock.

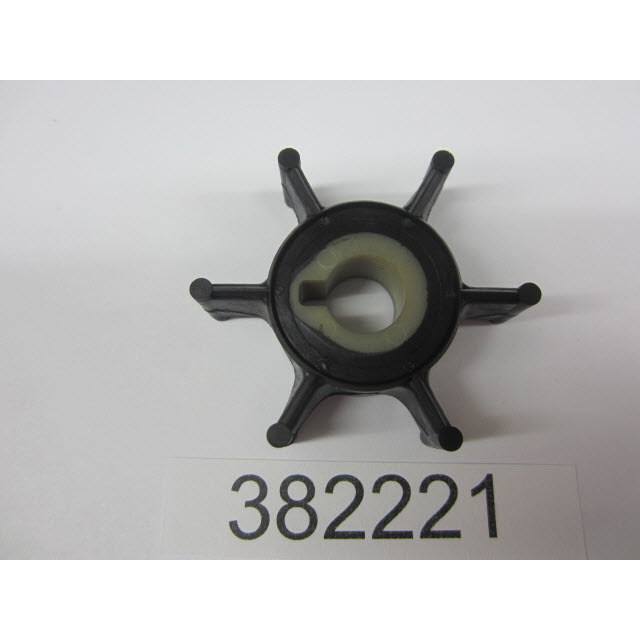

#16 — 382221 — IMPELLER ASSY., WATER PUMP. CONTENT OF WATER PUMP REPAIR KIT (1 required per assembly)

0382221 - Impeller, See Details Page for Important Size Information [ More info ]

$22.49
10+ In Stock.

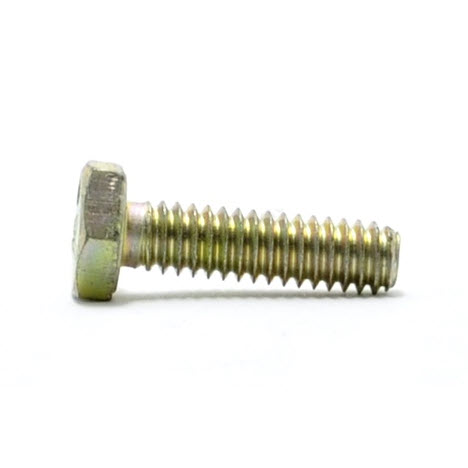

#17 — 313332 — SCREW, GEARCASE TO HSG., STD. (1 required per assembly)

0313332 - Screw [ More info ]

$5.49
10+ In Stock.

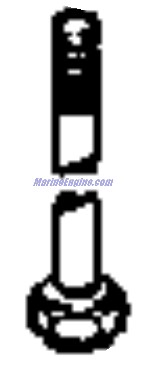

#17 — 315220 — SCREW, GEARCASE MOUNTING 5" EXTENSION KIT (1 required per assembly)

0315220 [ More info ]
Unavailable
Replaced by 0330666

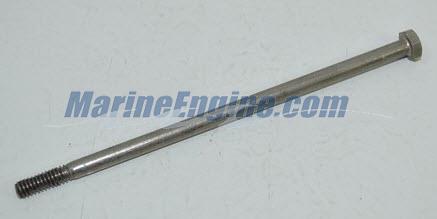

0330666 - Screw, Gearcase to Exhaust Housing [ More info ]
Unavailable

#18 — 316558 — DRIVE PIN, PROPELLER (1 required per assembly)
		0316558 - Propeller Drive Pin [ More info ] Unavailable
		0326032 - DRIVE PIN 10PK [ More info ] Unavailable

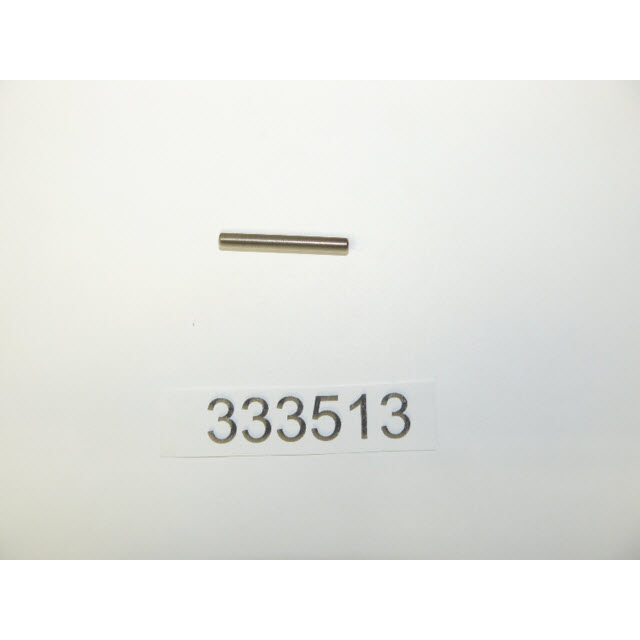

		0333513 - Drive Pin [ More info ] $4.74 10+ In Stock.

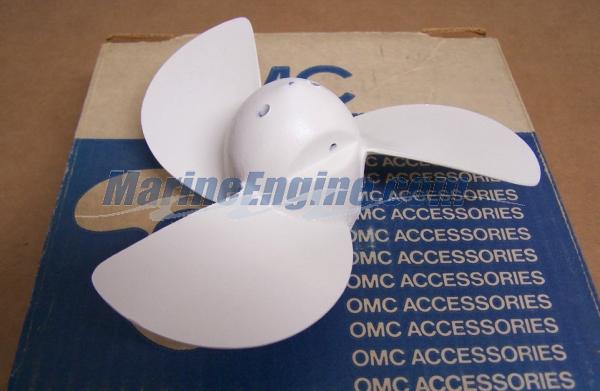

#19 — 316557 — PROPELLER (7-1/4 X 4-1/2) (1 required per assembly)
		0316557 - Propeller(7-1/4X1/2) [ More info ] Unavailable

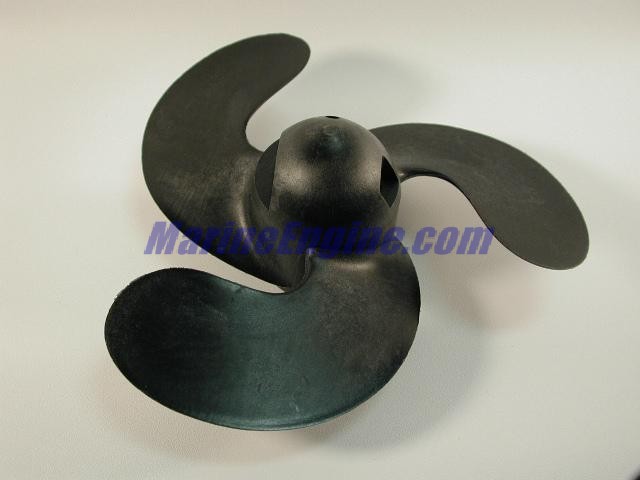

		0329568 - Propeller, 7-1/4 X 4, Plastic [ More info ] $39.99 1 In Stock.

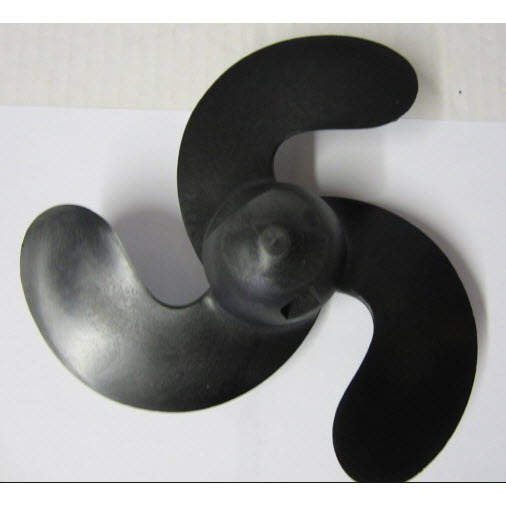

		0125990 - Plastic Prop, 7.5X4 [ More info ] $47.16 $44.00 9 In Stock.

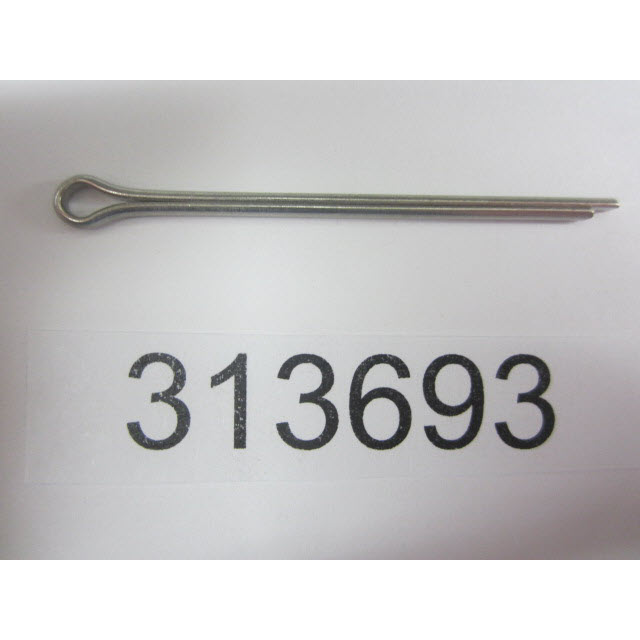

#20 — 313693 — COTTER PIN, PROPELLER NUT (1 required per assembly)

0313693 - COTTER PIN [ More info ]

$1.40
10+ In Stock.

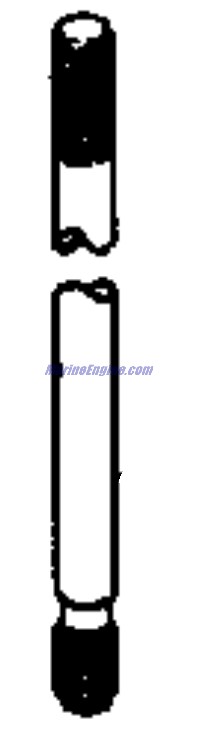

#21 — 313382 — DRIVESHAFT, STD (1 required per assembly)

0313382 - Drive Shaft Std/15 [ More info ]
Unavailable

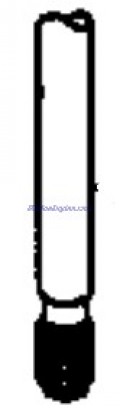

#21 — 315216 — DRIVESHAFT, LONG 5" EXTENSION KIT (1 required per assembly)

0315216 - Drive Shaft NLA [ More info ]
Unavailable

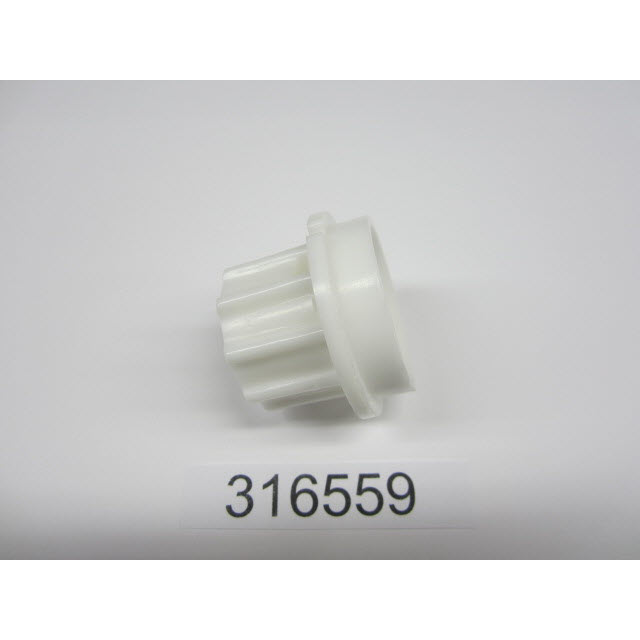

#22 — 316559 — CLUTCH HUB, PROP. (1 required per assembly)

0316559 - Propeller Clutch Hub, 1.5 & 2HP [ More info ]

$32.99
7 In Stock.

#23 — 315471 — RING, PROP. CLUTCH (1 required per assembly)

0315471 - Propeller Clutch Ring [ More info ]

$33.65
10+ In Stock.

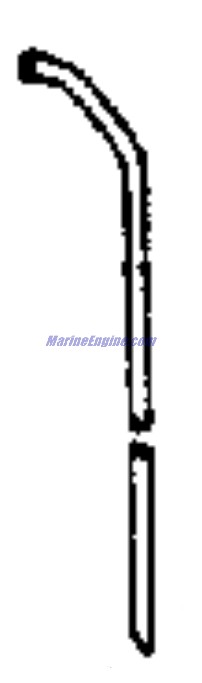

#24 — 315218 — WATER TUBE, LONG 5" EXTENSION KIT (1 required per assembly)

0315218 - Water Tube [ More info ]
Unavailable

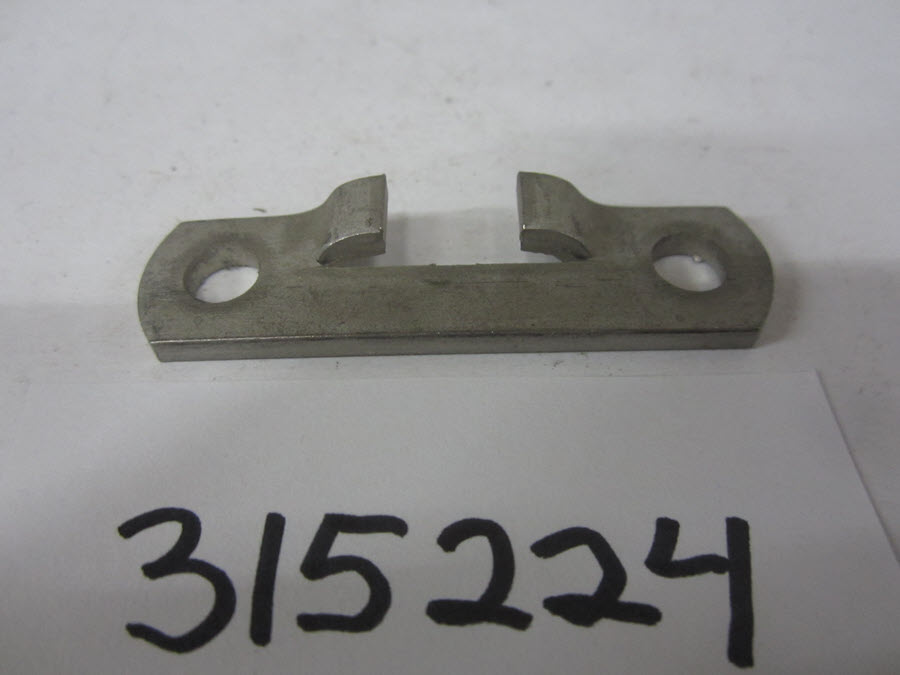

#25 — 315224 — CLAMP, STERN BRACKET 5" EXTENSION KIT (1 required per assembly)

0315224 - Clamp - Stern Bracket [ More info ]

$1.25 $0.76
10 In Stock.

#26 — 315225 — SCREW, CLAMP 5" EXTENSION KIT (2 required per assembly)

0315225 - Screw, Clamp, 5 Inch Extention [ More info ]
Unavailable

#27 — 305940 — WASHER, CLAMP SCREW 5" EXTENSION KIT (2 required per assembly)

0305940 - Washer [ More info ]

$3.30 $2.77
10+ In Stock.

#28 — 301472 — NUT, CLAMP SCREW 5" EXTENSION KIT (2 required per assembly)

0301472 - Nut [ More info ]

$1.25
10+ In Stock.

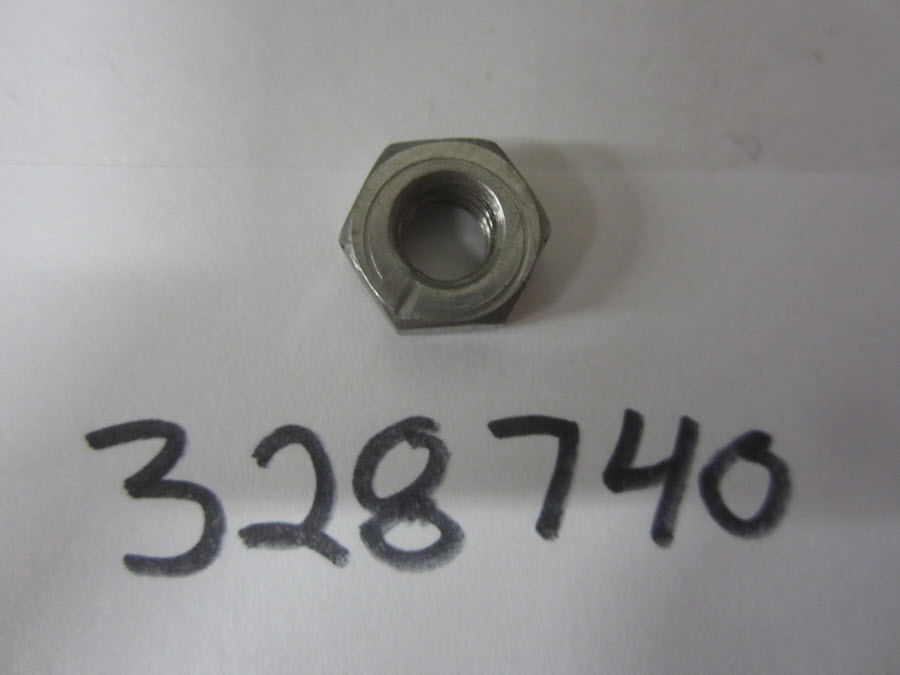

0328740 - Nut [ More info ]

$5.40
10+ In Stock.

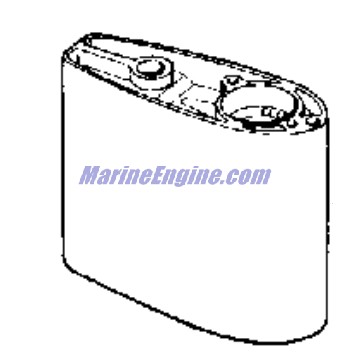

#29 — 386011 — GEARCASE EXTENSION ASSY. 5" EXTENSION KIT (1 required per assembly)
		0386011 - Gearcase Extension Assy. (5 Inch Longer Parts) [ More info ] $100.00 3 In Stock.
		0391666 [ More info ] Unavailable Replaced by 0394477

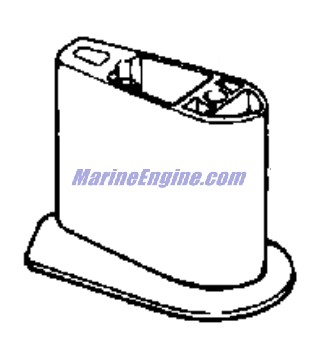

		0394477 - Gearcase Ext. Assy. 5 In. Longer Parts [ More info ] $117.67 1 In Stock.

#30 — 310674 — BUSHING, DRIVESHAFT 5" EXTENSION KIT (1 required per assembly)

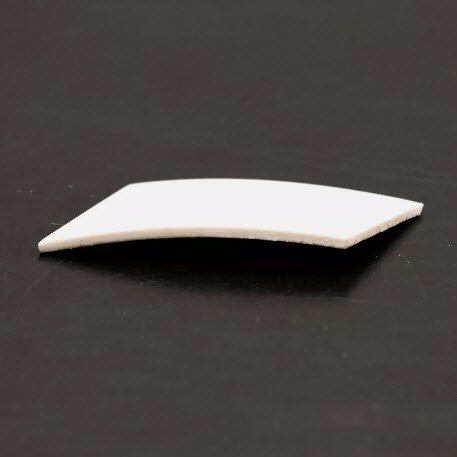

0310674 - Drive Shaft Bushing [ More info ]

$16.31
Available to Order: Usually ships within 10 days.

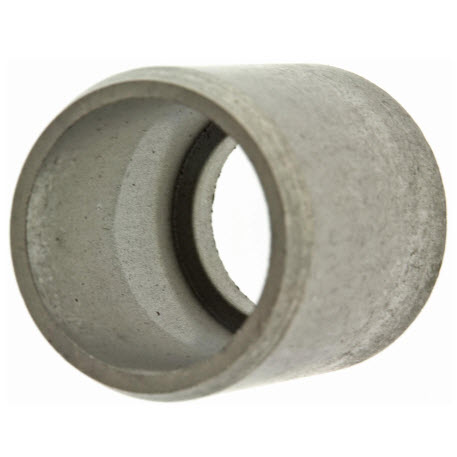

#31 — 312321 — SLEEVE, DRIVESHAFT 5" EXTENSION KIT (1 required per assembly)
		0312321 [ More info ] Unavailable Replaced by 0326988

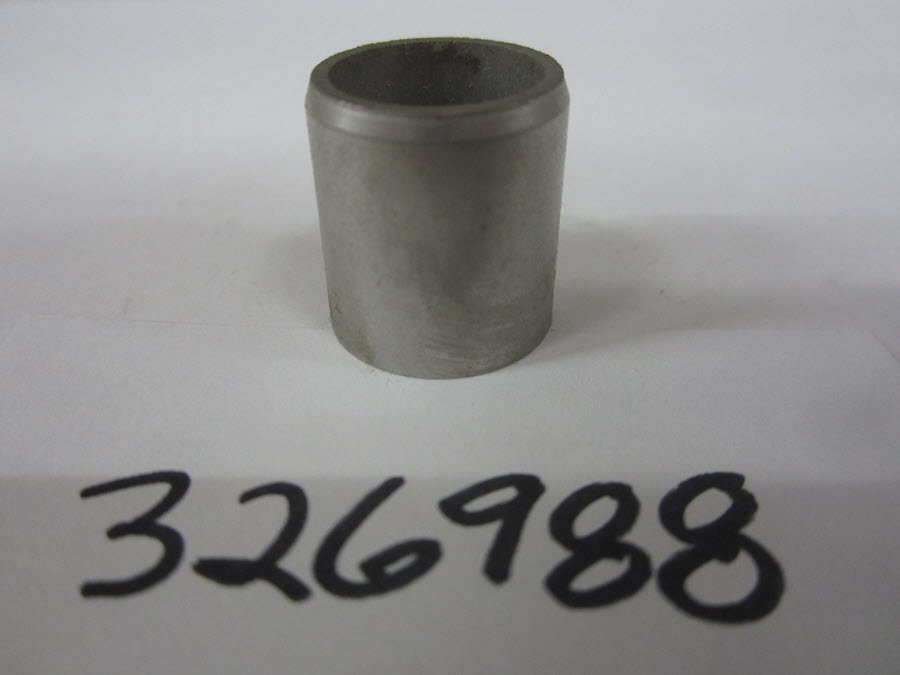

		0326988 [ More info ] Unavailable Replaced by 0326742
		0326742 - Sleeve [ More info ] $18.35 10+ In Stock.
