Fuel Tank Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

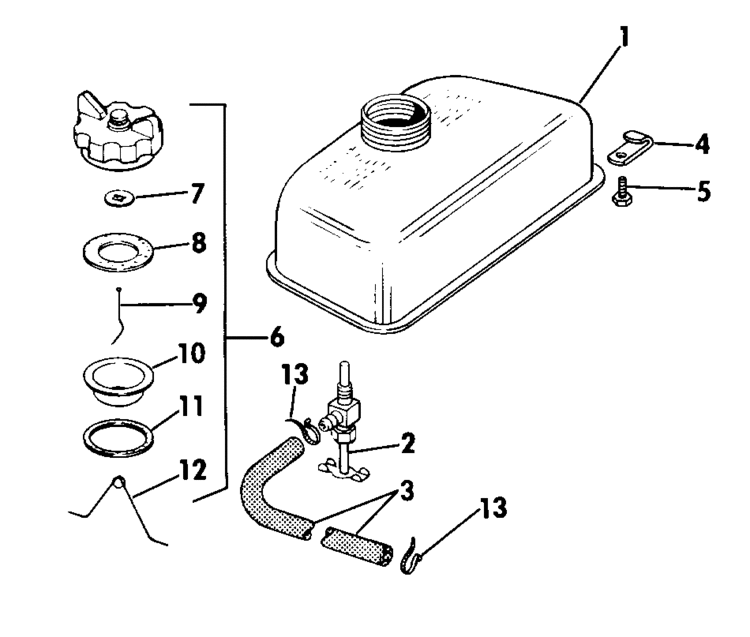

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 279606 — GAS TANK ASSY (1 required per assembly) | ||
 |
|
0279606 - Fuel Tank [ More info ] Unavailable |
| #2 — 677052 — SHUT-OFF VALVE (1 required per assembly) | ||
  |
|

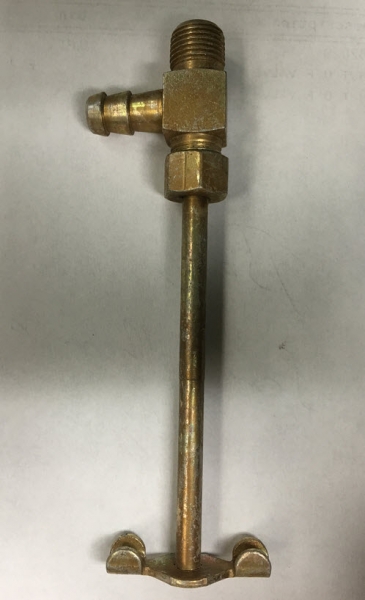

0677052 - SHUT OFF VALVE [ More info ]
|
  |
|

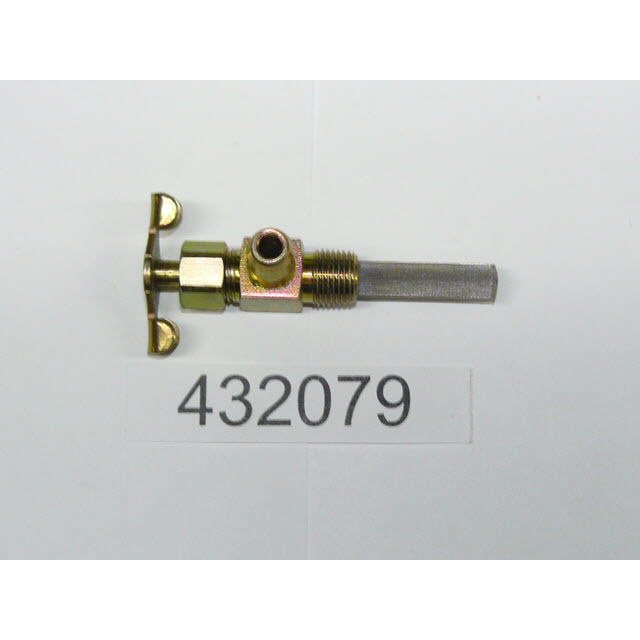

0432079 - Shut Off Valve [ More info ]
|
| #3 — 319718 — HOSE, TANK TO CARB. (1 required per assembly) | ||
|
|
0319718 [ More info ] Unavailable Replaced by 0322748 |
|
|
0322748 [ More info ] Unavailable Replaced by 0333485 |
|
0333485 - Hose, Sold by the Foot [ More info ] Unavailable |
|
  |
|

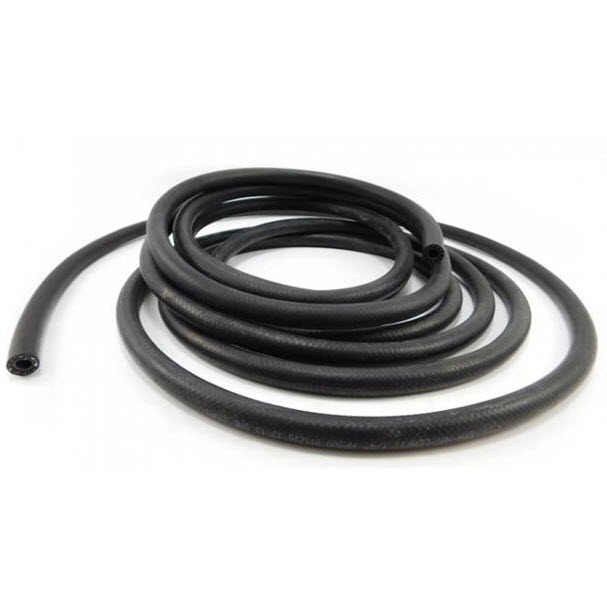

0772572 - 1/4 Inch Hose sold by the foot [ More info ]
|
| #4 — 316451 — CLAMP, TANK TO BRKT (4 required per assembly) | ||
  |
|

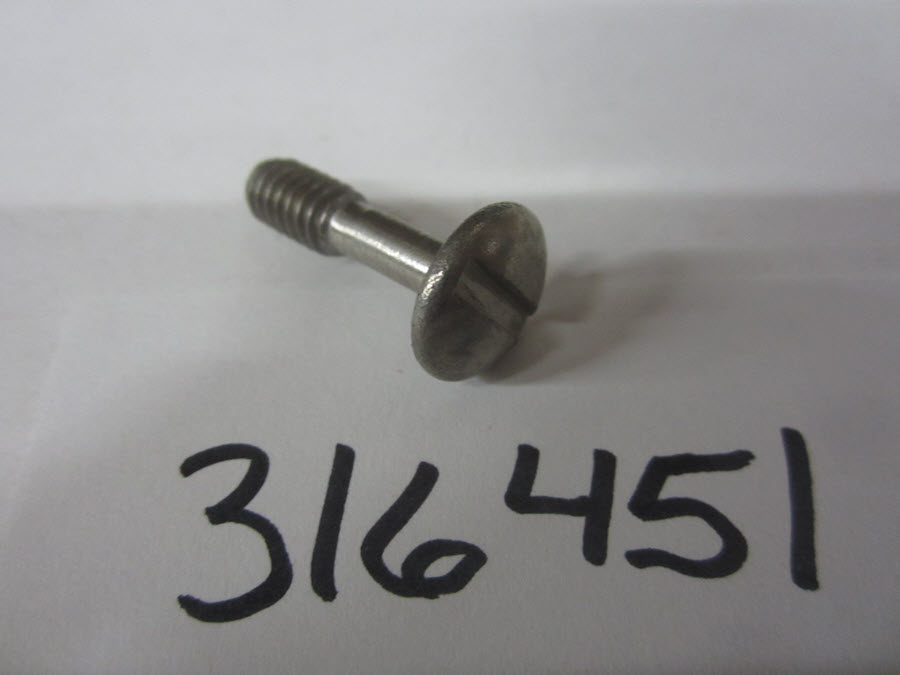

0316451 - Clamp, Tank to Bracket [ More info ]
|
| #5 — 316194 — SCREW, TANK TO BRKT. (4 required per assembly) | ||
|
0316194 - Screw [ More info ] Unavailable |
|
  |
|

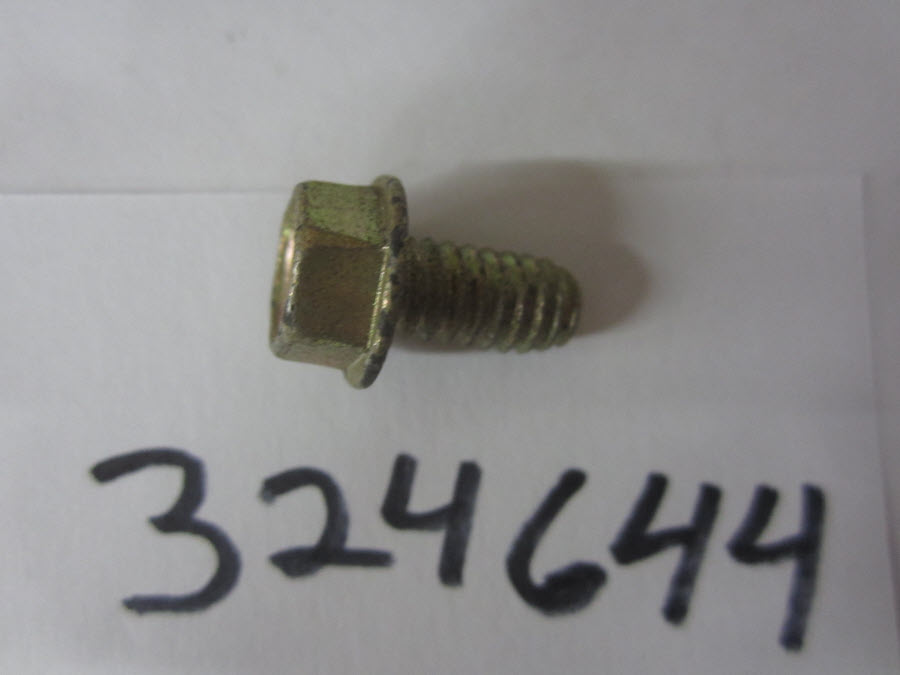

0324644 - Screw, Solenoid Mounting [ More info ]
|
| #6 — 382706 — GAS CAP ASSY (1 required per assembly) | ||
  |
|

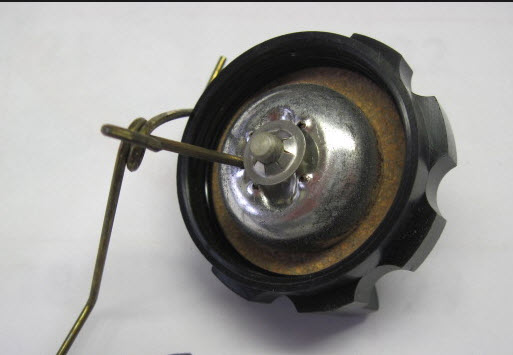

0382706 - Gas Cap [ More info ] Unavailable |
| #7 — 313973 — FASTENER (1 required per assembly) | ||
  |
|
0313973 - Retainer [ More info ]
|
| #8 — 314316 — GASKET (1 required per assembly) | ||
|
|
0314316 -Cup To Gas Cap Gasket [ More info ] Unavailable |
| #9 — 160261 — ESCUTCHEON PIN (1 required per assembly) | ||
|
|
0160261 - Escutchen Pin [ More info ]
|
| #10 — 314782 — CUP, INNER (1 required per assembly) | ||
|
|
0314782 - INNER CUP [ More info ]
|
| #11 — 121528 — GASKET (1 required per assembly) | ||
  |
|

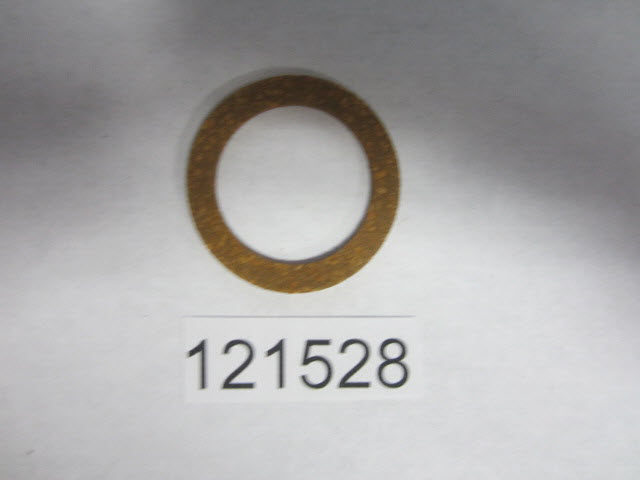

0121528 - Tank Cap Gasket [ More info ] Unavailable |
| #12 — 120430 — HOOK, CAP RETAINING (1 required per assembly) | ||
|
|
0120430 [ More info ] Unavailable Replaced by 0552331 |
  |
|
0552331 - Anchor, Cap [ More info ]
|
| #13 — 320107 — CLAMP STRAP, HOSE (2 required per assembly) | ||
  |
|
0320107 - Fuel Hose Tie Strap, ramped face, Sold Individually [ More info ]
|
