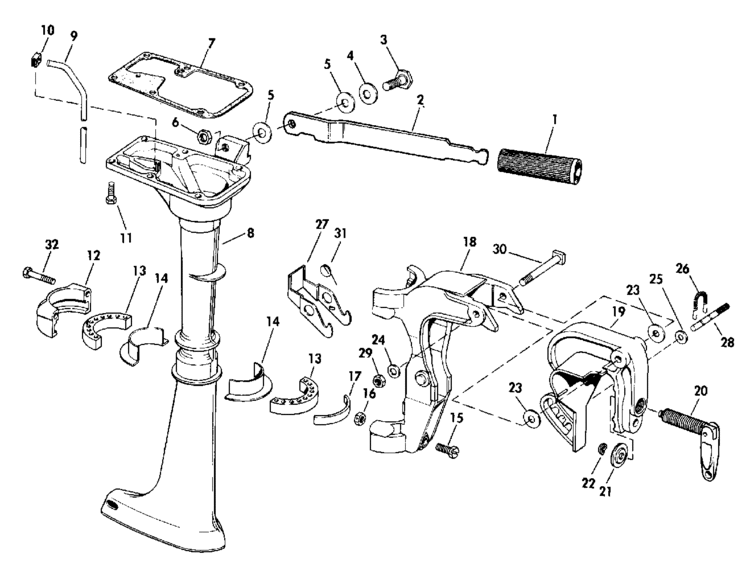

Exhaust Housing Parts for 1974 Evinrude 2 hp 2402E Outboard Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 205972 — GRIP, STEERING HANDLE (1 required per assembly) | ||
 |
|
0205972 [ More info ] Unavailable Replaced by 0207906 |
  |

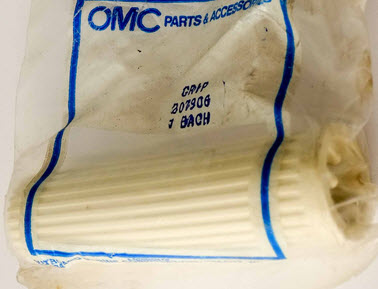

0207906 - Handle Grip [ More info ] Unavailable |
|
  |

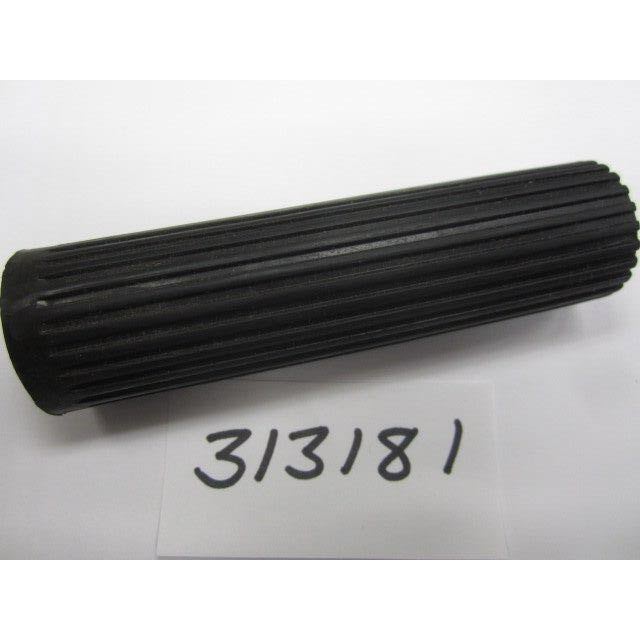

0313181 - Steering Handle Grip [ More info ] Unavailable |
|
  |
|

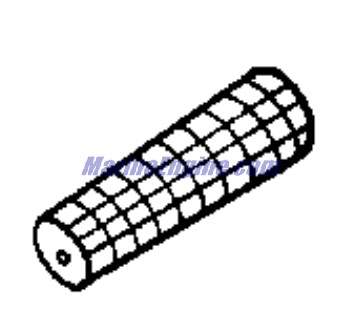

0115220 - Grip Handle [ More info ] Unavailable |
| #2 — 316469 — HANDLE, STEERING (1 required per assembly) | ||
  |
|

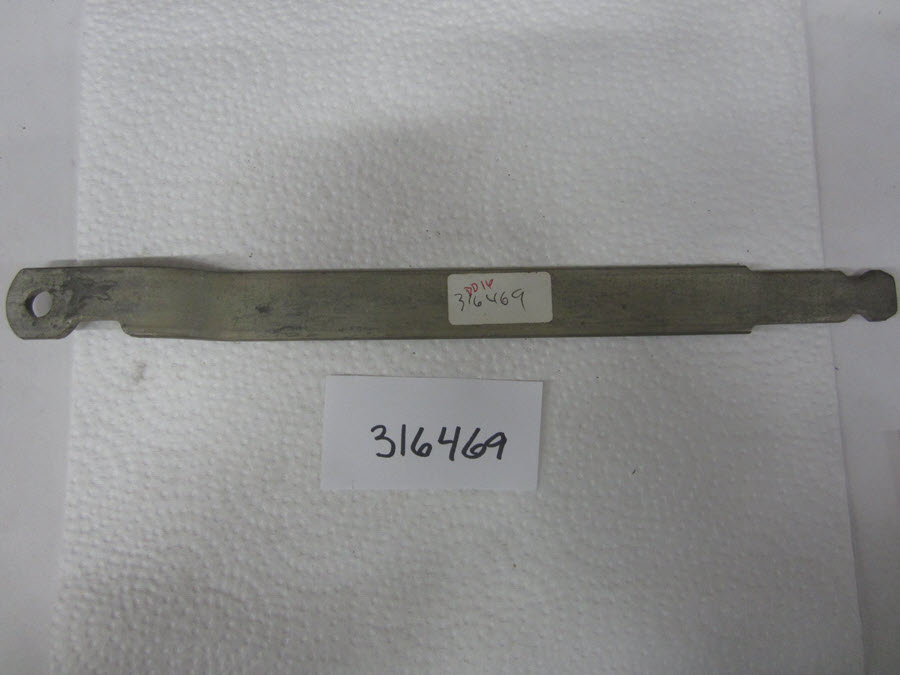

0316469 - Steering Handle [ More info ]
|

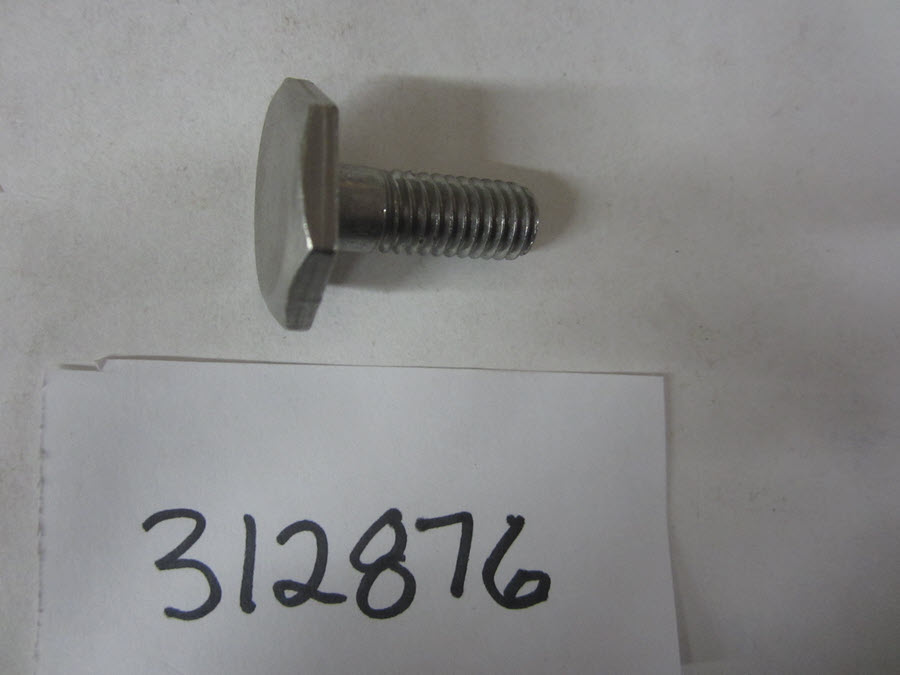

| #3 — 312876 — SCREW, STEERING HANDLE (1 required per assembly) | ||
  |
|
0312876 - Screw, Steering Handle [ More info ]
|
| #4 — 312874 — SPRING WASHER, STRG. HANDLE (1 required per assembly) | ||
  |
|

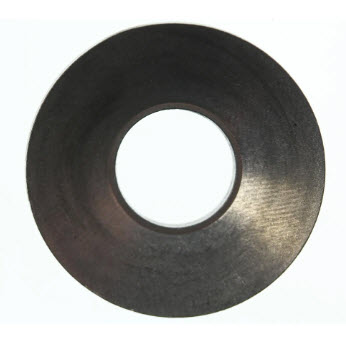

0312874 - Washer [ More info ]
|

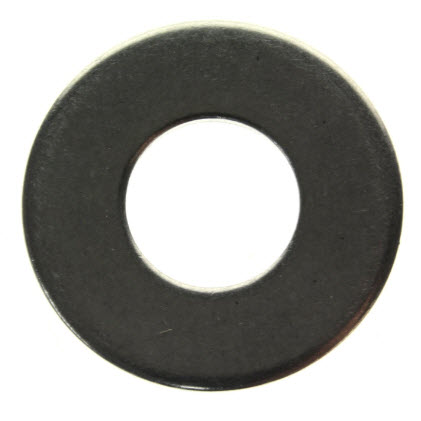

| #5 — 304376 — WASHER, STEERING HANDLE (2 required per assembly) | ||
  |
|
0304376 - Steerig Handle Washer [ More info ]
|
| #6 — 309602 — LOCK NUT, STEERING HANDLE (1 required per assembly) | ||
  |
|
|

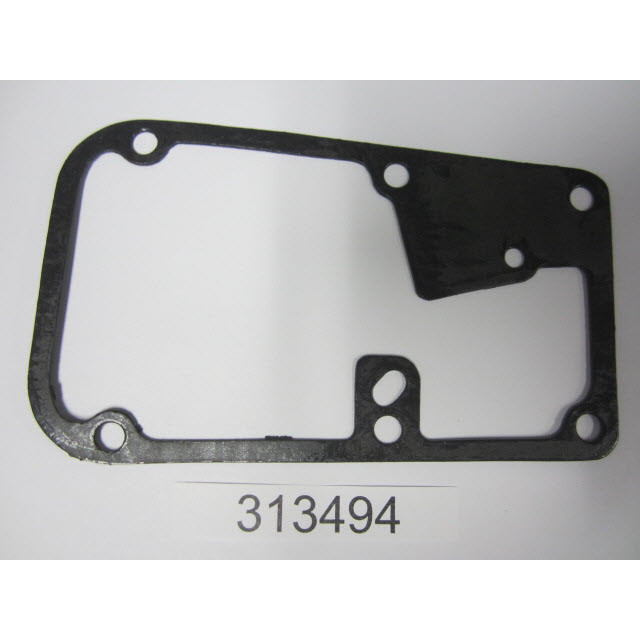

| #7 — 313494 — GASKET, CYL. TO EXHAUST HSG. (1 required per assembly) | ||
  |
|
0313494 - Cylinder To Exhaust Housing Gasket [ More info ]
|
| #8 — 313634 — HOUSING, EXHAUST (1 required per assembly) | ||
|
|
0313634 - Exhaust Housing [ More info ] Unavailable |
| #9 — 313951 — WATER TUBE, STD. (1 required per assembly) | ||
  |
|

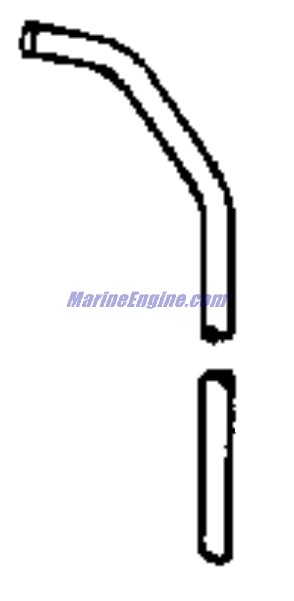

0313951 - Water Tube [ More info ] Unavailable |

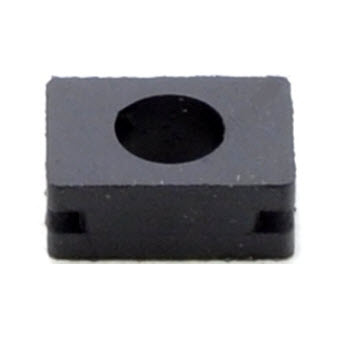

| #10 — 310258 — GROMMET, WATER TUBE (1 required per assembly) | ||
  |
|
0310258 - Water Tube Grommet [ More info ]
|
| #11 — 300646 — SCREW, CYLINDER TO EXHAUST HSG. (6 required per assembly) | ||
  |
|
|
| #12 — 314044 — RETAINER, PIVOT BEARING (2 required per assembly) | ||
  |
|

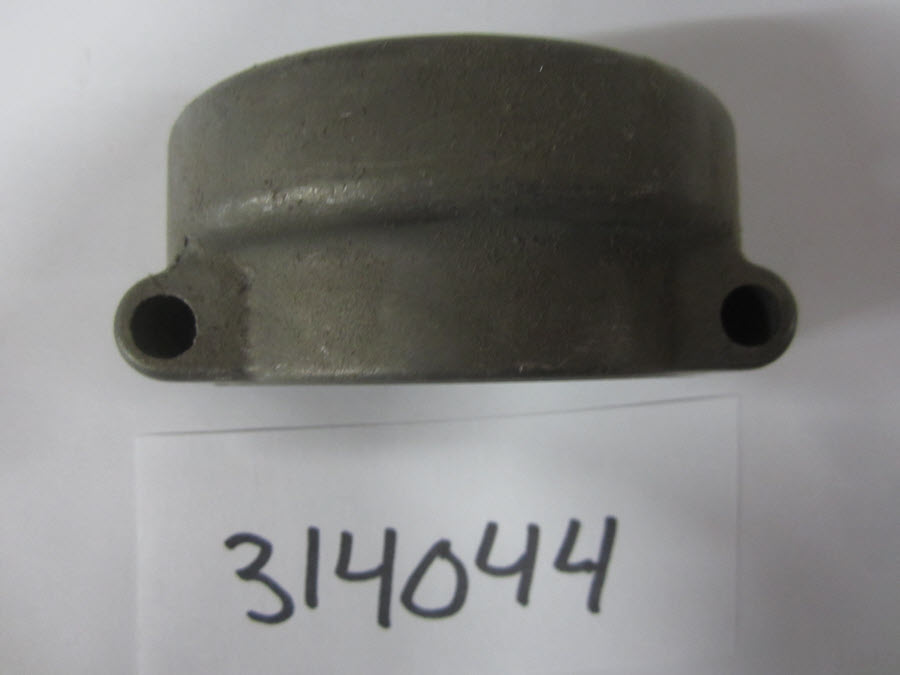

0314044 - Retainer [ More info ]
|
| #13 — 314046 — VIBRATION DAMPENER, PIVOT BEARING, UPPER AND LOWER (2 required per assembly) | ||
  |
0314046 - Vibration, Dampener Pivot Bearing, Upper [ More info ] Unavailable |
|
  |
|
0334759 - Vibration Dampener [ More info ] Unavailable |
| #14 — 314042 — PIVOT BRG., UPPER AND LOWER (4 required per assembly) | ||
  |
|

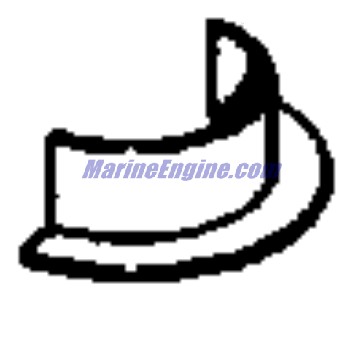

0314042 - Pivot Bearing Upper and Lower [ More info ]
|

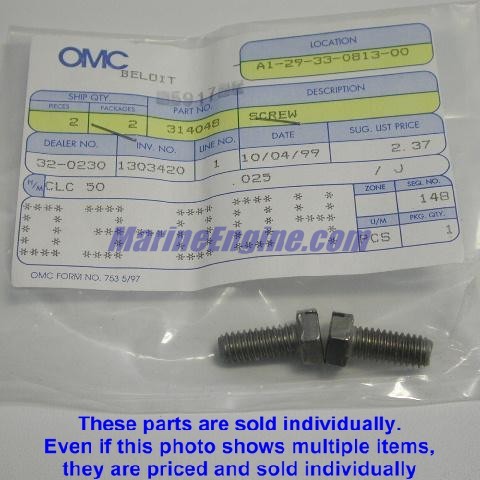

| #15 — 314048 — SCREW, ADJ.FRICTION BRAKE (1 required per assembly) | ||
  |
|
0314048 - Screw, Adjust, Friction Brake [ More info ]
|
| #16 — 313838 — NUT, SCREW, FRICTION ADJ. (1 required per assembly) | ||
  |
|
|
| #17 — 314047 — BRAKE, FRICTION (1 required per assembly) | ||
|
|
|
| #18 — 313780 — SWIVEL BRACKET (1 required per assembly) | ||
|
|
0313780 - Swivel Bracket [ More info ]
|
|
0324654 - Swivel Bracket [ More info ] Unavailable |
|
|
|
0332392 - Swivel Bracket [ More info ] Unavailable |
| #19 — 386419 — STERN BRACKET AND CLAMP SCREW ASSEMBLY (1 required per assembly) | ||
|
|
0386419 [ More info ] Unavailable Replaced by 0391957 |
  |
|
0391957 - Stern Bracket And Clamp Screw Assembly [ More info ]
|
  |
0398030 - Stern Bracket & Clamp Screw Assembly [ More info ] Unavailable |
|
  |
|
0398325 - Stern Bracket & Clamp Screw [ More info ] Unavailable |
| #20 — 375742 — CLAMP SCR.& HAND.ASSY. (1 required per assembly) | ||
|
0375742 - Clamp Screw [ More info ] Unavailable |
|
  |
|

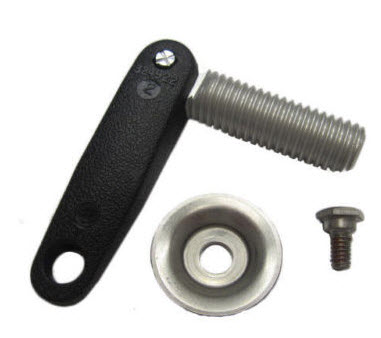

0388346 - Clamp Screw [ More info ]
|
  |
|

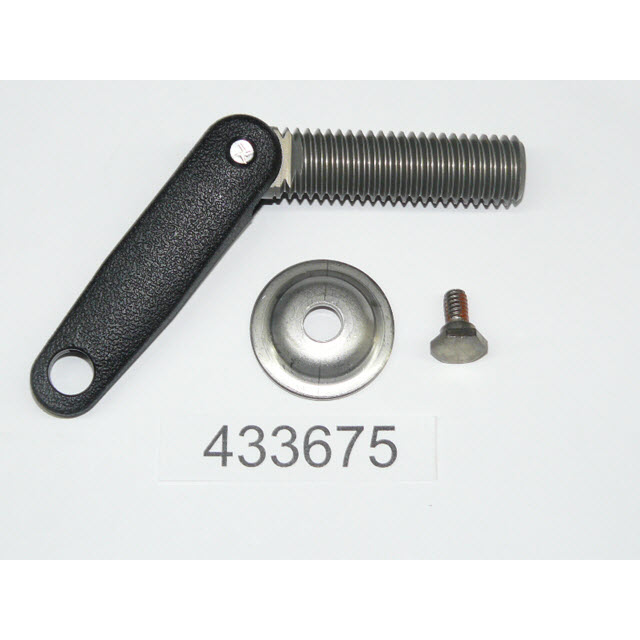

0433675 - Clamp Screw [ More info ]
|
| #21 — 307561 — PLATE, SWIVEL (1 required per assembly) | ||
  |
0307561 - Swivel Plate [ More info ] Unavailable |
|
  |
|

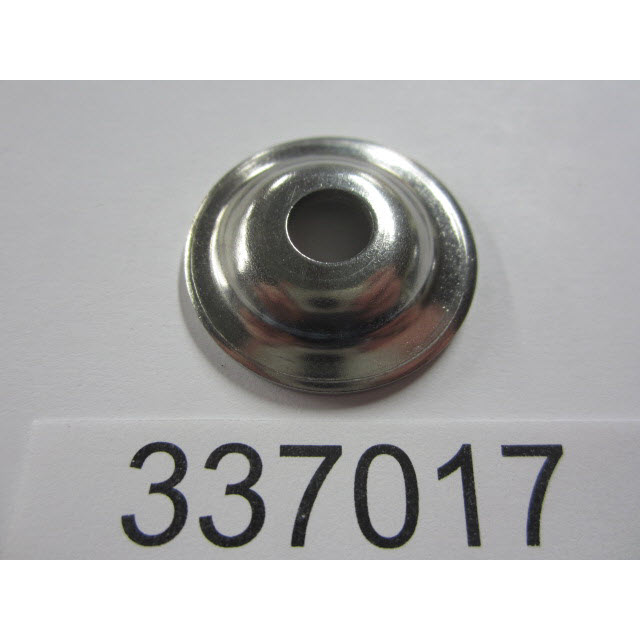

0337017 - Swivel Plate [ More info ]
|

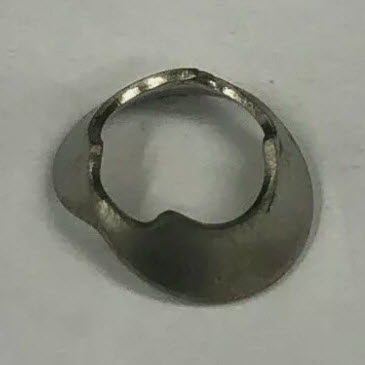

| #22 — 302420 — RETAINER (1 required per assembly) | ||
  |
|
0302420 - Swivel Plate Retainer [ More info ]
|
| #23 — 314041 — WASHER (2 required per assembly) | ||
|
|
0314041 - Washer [ More info ]
|
| #24 — 306453 — WASHER, TILTING BOLT (1 required per assembly) | ||
  |
|

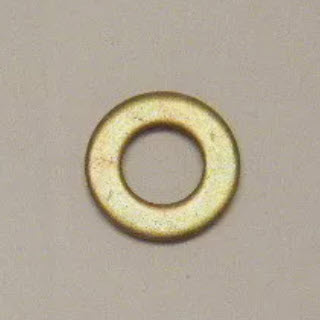

0306453 - Washer [ More info ]
|
| #25 — 308090 — WASHER, TILT ANGLE ADJ. ROD (2 required per assembly) | ||
|
|
0308090 - Washer [ More info ]
|

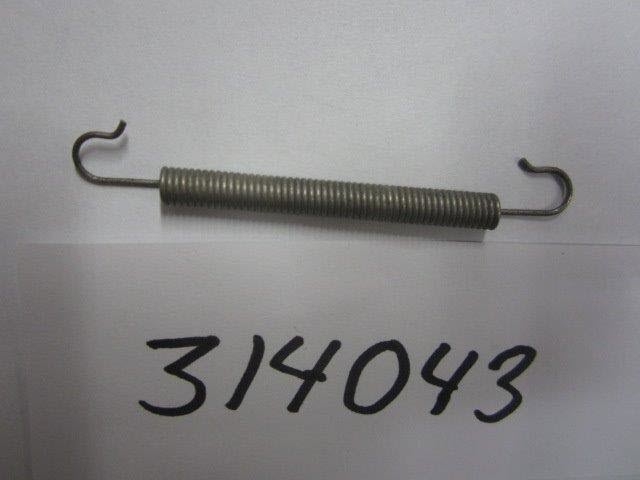

| #26 — 314043 — SPRING, TILT LEVER (1 required per assembly) | ||
  |
|
0314043 - Tilt Lever Spring [ More info ]
|

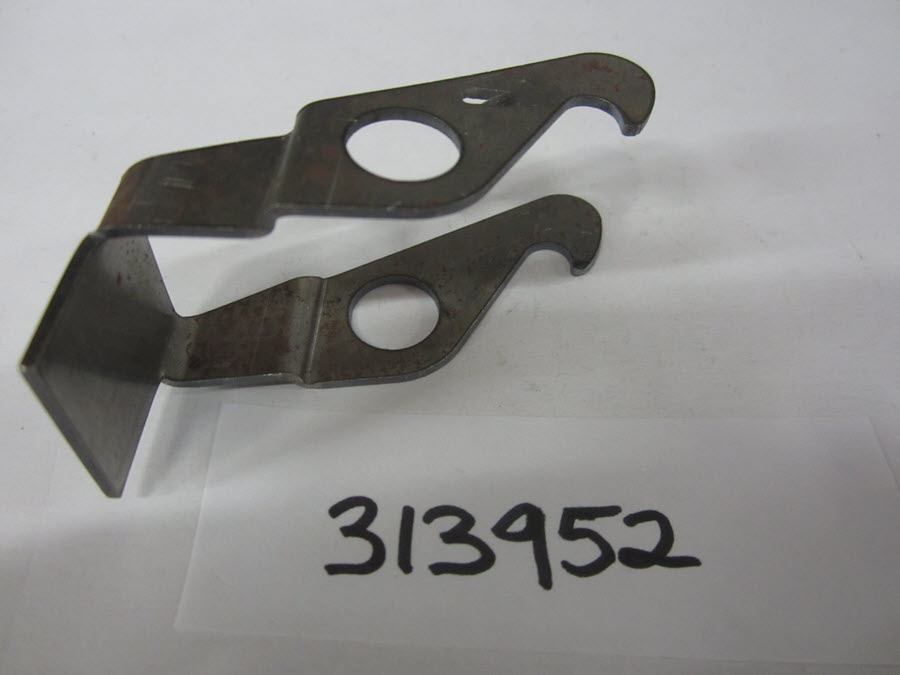

| #27 — 313952 — LEVER, REVERSE LOCK (1 required per assembly) | ||
  |
|
0313952 - Reverse Lock Lever [ More info ]
|
| #28 — 313937 — ROD, TILT (1 required per assembly) | ||
  |
|
0313937 [ More info ] Unavailable Replaced by 0333515 |
  |
|

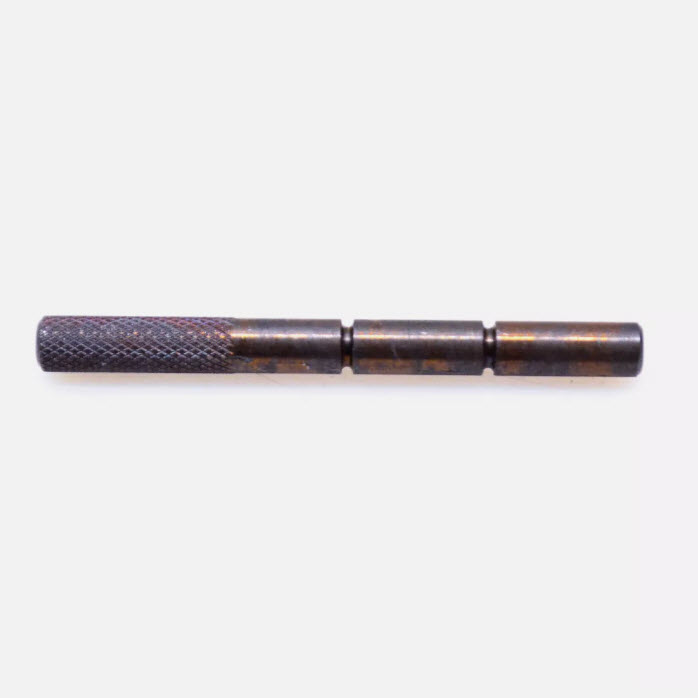

0333515 - Tilt Adjustment Rod [ More info ]
|
| #29 — 302861 — NUT, TILTING BOLT (1 required per assembly) | ||
  |
|
0302861 [ More info ] Unavailable Replaced by 0912072 |
  |
|

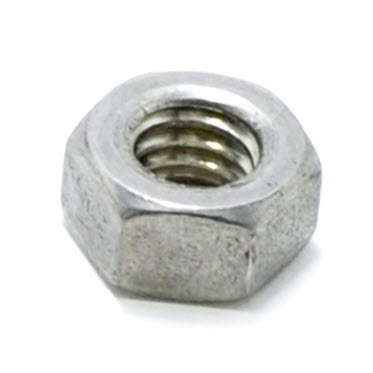

0912072 - Adjustment Rod Nut [ More info ]
|
| #30 — 314040 — BOLT, TILTING (1 required per assembly) | ||
  |
|
0314040 [ More info ] Unavailable Replaced by 0332228 |
  |
|
0332228 - Tilting Bolt [ More info ] Unavailable |

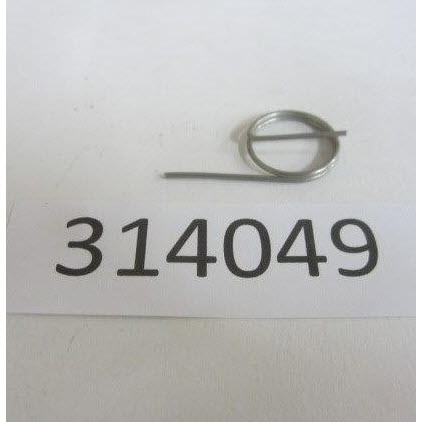

| #31 — 314049 — SPRING, REVERSE LOCK (1 required per assembly) | ||
  |
|
0314049 - Reverse Lock Spring [ More info ]
|
| #32 — 306778 — SCREW, RETAINER (4 required per assembly) | ||
  |
|

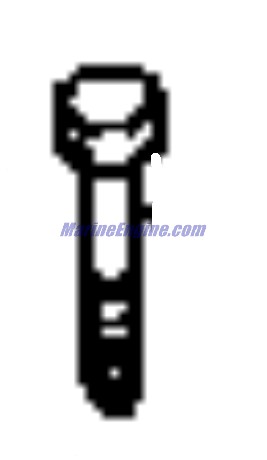

0306778 - Retainer Screw [ More info ] Unavailable |
