Cylinder & Crankcase Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

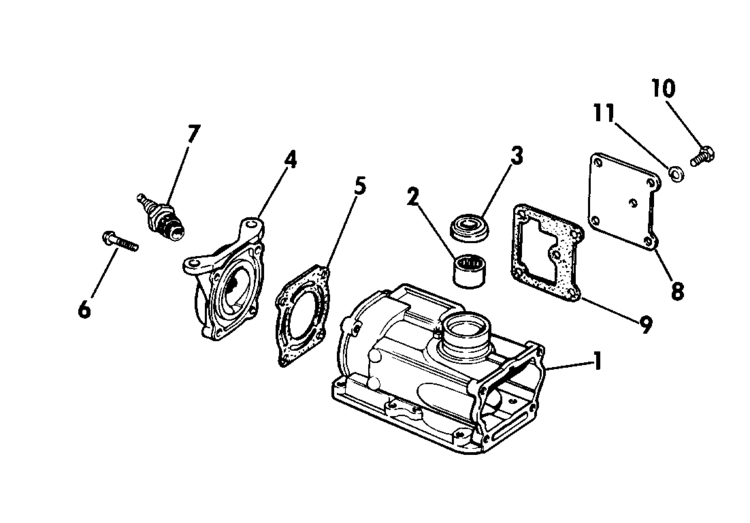

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 383011 — CYLINDER ASSY (1 required per assembly) | ||
  |
|

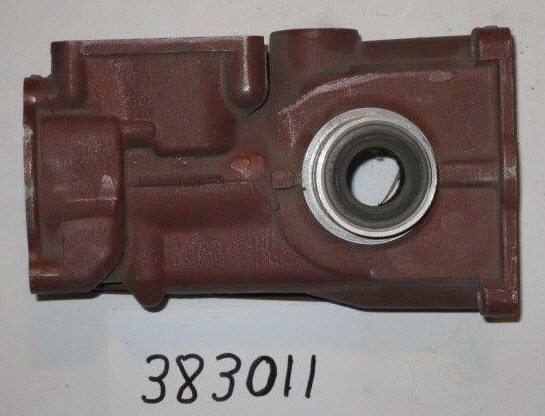

0383011 - Cylinder and Seal Assembly [ More info ] Unavailable |
| #2 — 382307 — NEEDLE BEARING (1 required per assembly) | ||
  |
|
0382307 - Needle Bearing [ More info ]
|

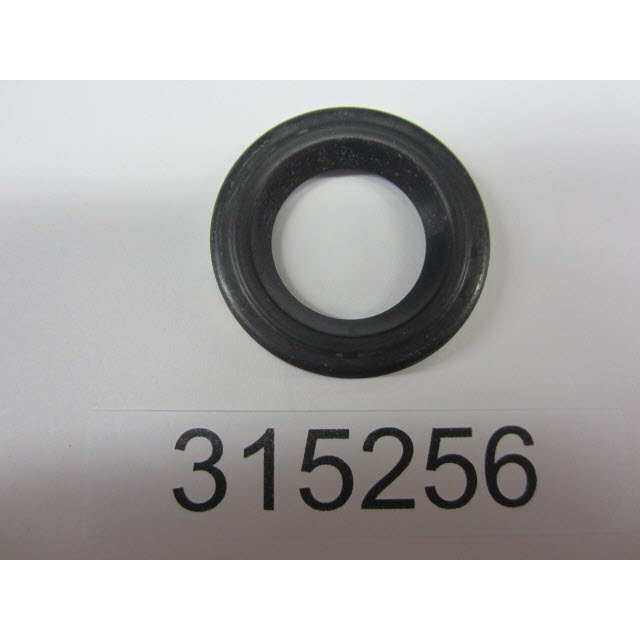

| #3 — 315256 — SEAL, SHAFT TO CYLINDER (1 required per assembly) | ||
  |
|
0315256 - Crankshaft Seal [ More info ]
|
| #4 — 316513 — CYLINDER HEAD (1 required per assembly) | ||
  |
|

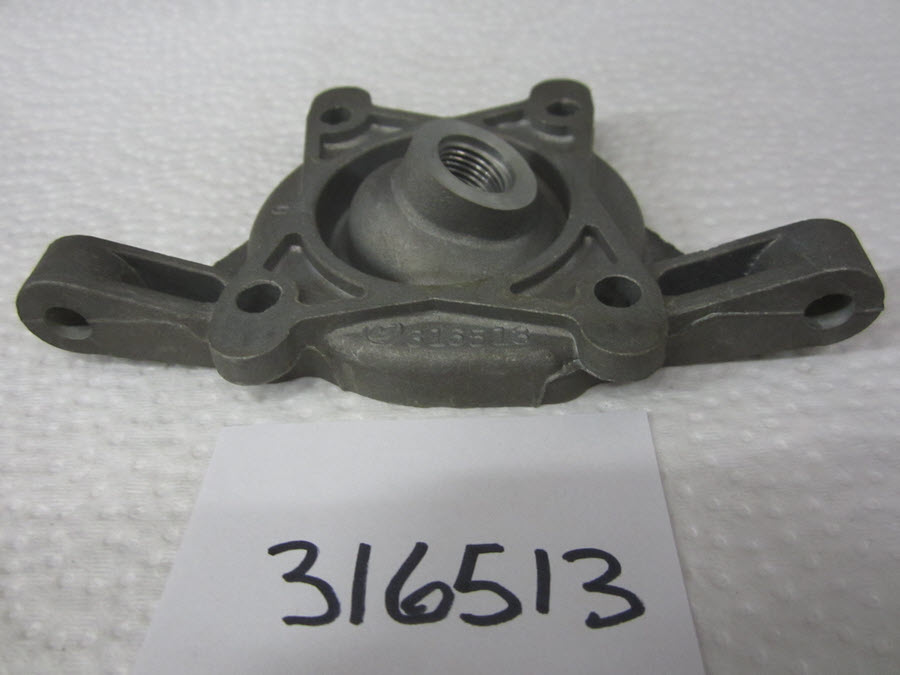

0316513 - Cylinder Head [ More info ]
|
 |
0327324 - Cylinder Head [ More info ] Unavailable |
|
|
|
0432670 - Cylinder Head [ More info ] Unavailable |
| #5 — 313782 — GASKET, CYLINDER HEAD (1 required per assembly) | ||
  |
|

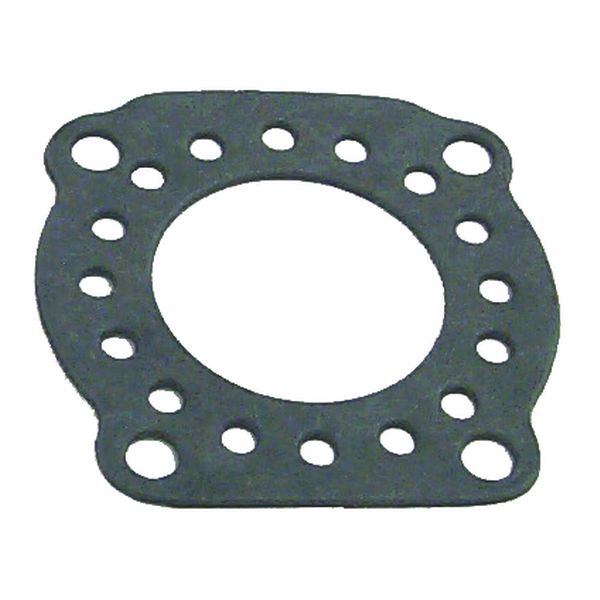

0313782 - Cylinder Head Gasket [ More info ]
|
| #6 — 309905 — SCREW, CYLINDER HEAD (4 required per assembly) | ||
  |
|

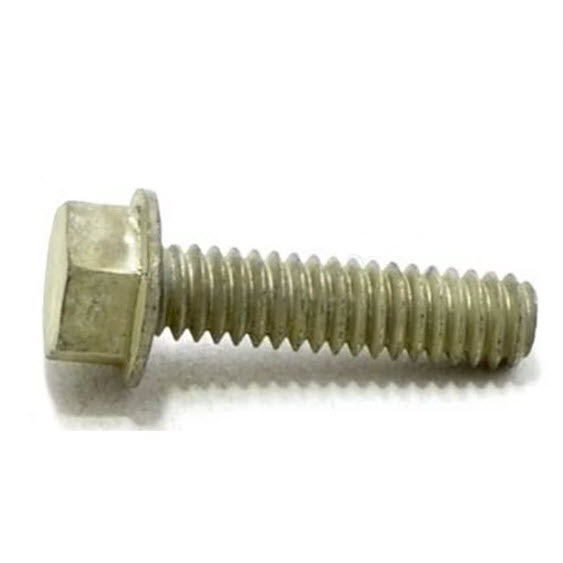

0309905 - Cylinder Head Screw [ More info ]
|
|
|
3855578 - Screw - Volvo Penta (3855578) [ More info ]
|
| #7 — 593871 — SPARK PLUG, CHAMPION J6J. WE RECOMMEND CHAMPION AND AC SPARK PLUGS (1 required per assembly) | ||
  |
|
0593871 - 0593871 - SPARK PLG J6C 8 [ More info ] Unavailable Replaced by 0502895 |
  |
|

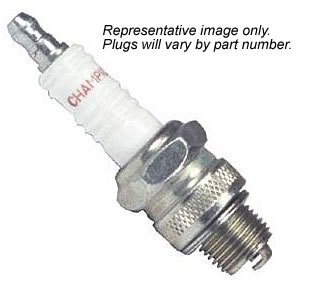

0502895 - J 6C Spark Plug [ More info ] Unavailable |
  |
|

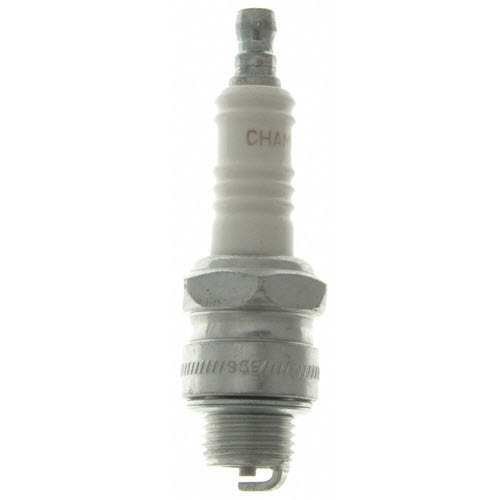

J6C - Champion Spark Plug ( #823) [ More info ]
|
|
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
| #7 — 384734 — SPARK PLUG, AC M44C. WE RECOMMEND CHAMPION AND AC SPARK PLUGS (1 required per assembly) | ||
|
|
0384734 [ More info ] Unavailable Replaced by 0593871 |
|
|
0593871 - 0593871 - SPARK PLG J6C 8 [ More info ] Unavailable Replaced by 0502895 |
|
|
0502895 - J 6C Spark Plug [ More info ] Unavailable |
|
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
|
|
J6C - Champion Spark Plug ( #823) [ More info ]
|

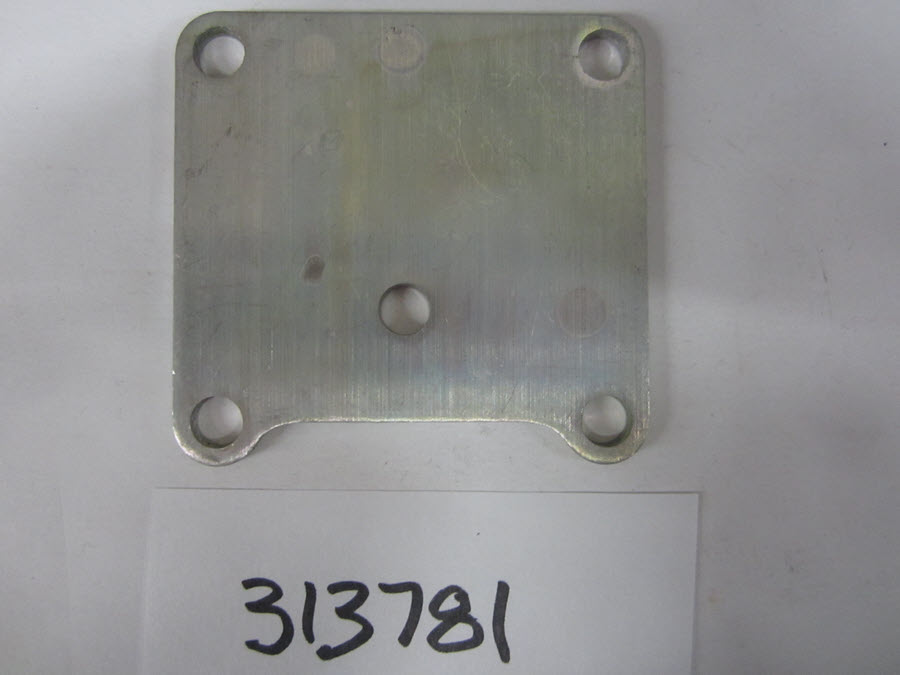

| #8 — 313781 — PLATE, EXHAUST COVER (1 required per assembly) | ||
  |
|
|
| #9 — 313783 — GASKET, COVER PLATE (1 required per assembly) | ||
  |
|

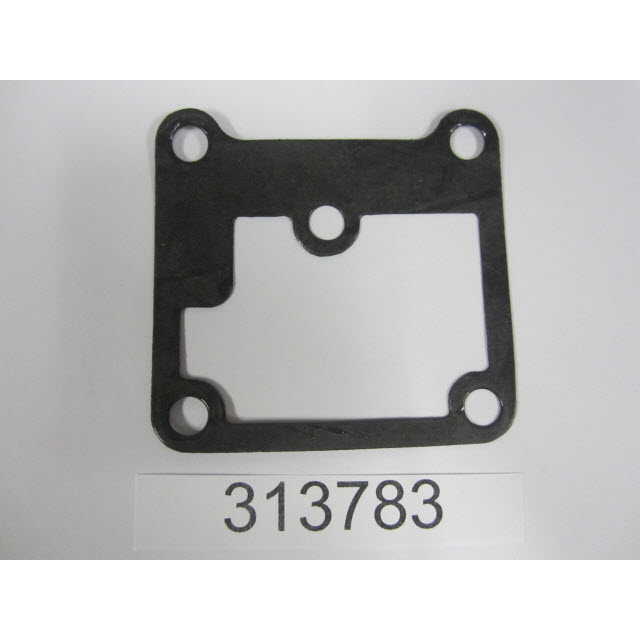

0313783 - Cover Plate Gasket [ More info ]
|
| #10 — 306487 — SCREW, COVER PLATE (5 required per assembly) | ||
  |
|

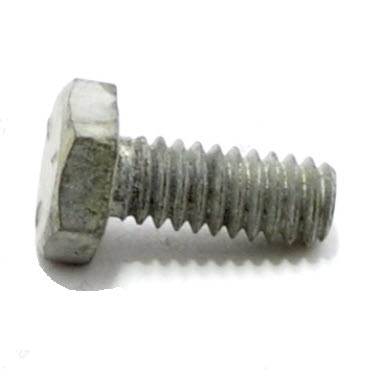

0306487 - Hex Cap Screw [ More info ]
|
  |
|

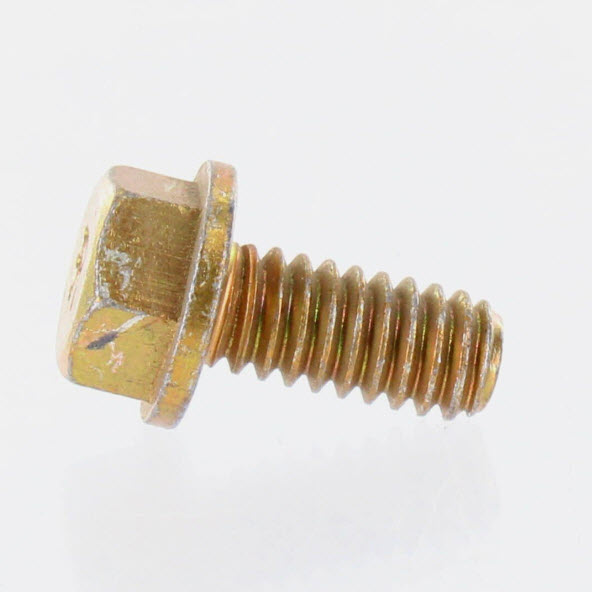

3852053 - Screw, Volvo [ More info ]
|

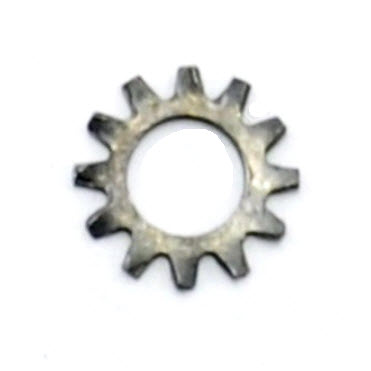

| #11 — 306488 — WASHER (1 required per assembly) | ||
  |
|
0306488 - Cable Ground Lock Washer [ More info ]
|

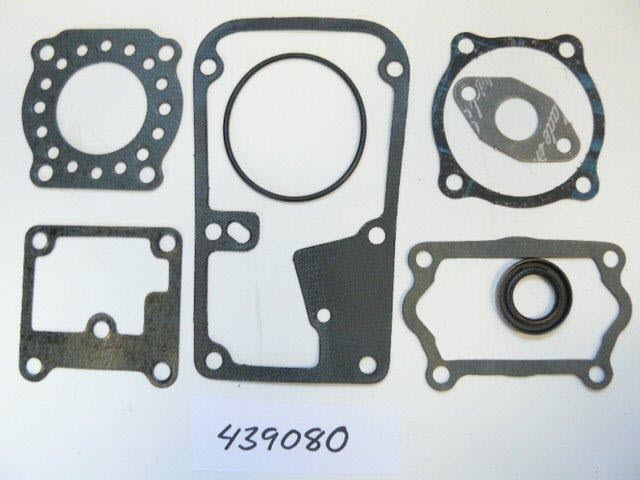

| #383012 — 383012 — POWERHEAD GASKET SET (LESS CYL. HEAD GASKET) (1 required per assembly) | ||
|
0383012 - 439080 Gasket Set [ More info ] Unavailable |
|
  |
|
0439080 - Powerhead Gasket Set [ More info ]
|
