Crankshaft & Piston Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

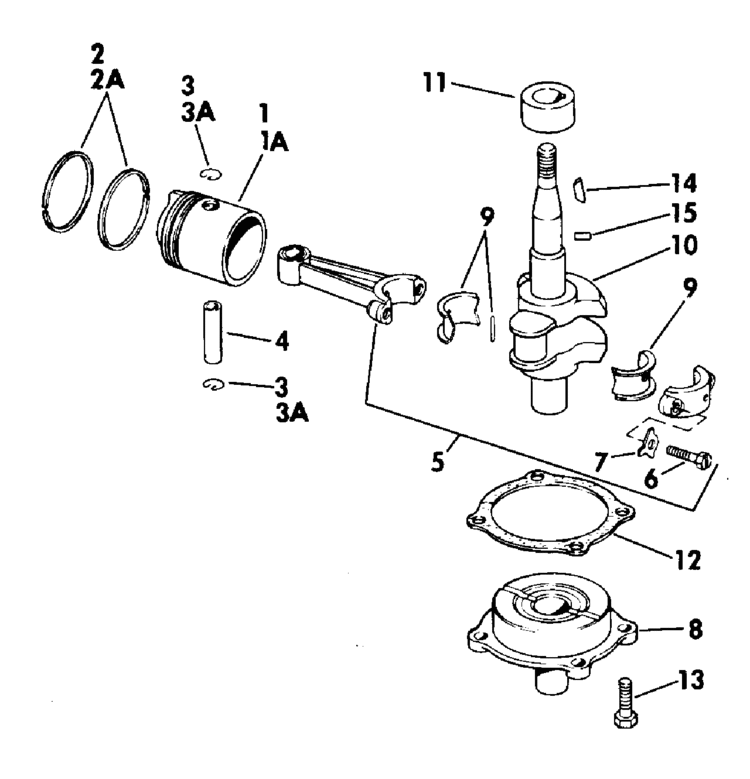

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 384651 — PISTON ASSY.,STD (1 required per assembly) | ||
  |
0384651 - Piston, Standard [ More info ] Unavailable |
|
  |
0396997 - Piston and Rings [ More info ] Unavailable |
|
  |
|
0432739 - Piston and Rings [ More info ] Unavailable |
| #2 — 383920 — RING SET, STD (1 required per assembly) | ||
  |
|
0383920 Piston Ring Set, Standard, For One Piston Only [ More info ]
|
| #3 — 120960 — RETAINING RING (2 required per assembly) | ||
  |
|
0120960 - Circlip [ More info ]
|
| #4 — 203151 — WRIST PIN (1 required per assembly) | ||
  |
|
0203151 - Wrist Pin [ More info ] Unavailable |
| #5 — 383010 — CONNECTING ROD ASSY (1 required per assembly) | ||
 |
|
0383010 - Connecting Rod Assembly [ More info ]
|

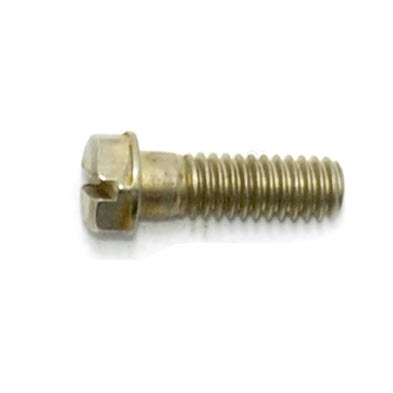

| #6 — 307560 — SCREW, ROD CAP (2 required per assembly) | ||
  |
|
0307560 - Screw, Rod Cap [ More info ]
|
| #7 — 307558 — LOCKPLATE, SCREW (2 required per assembly) | ||
  |
|
0307558 - Lock Plate [ More info ]
|

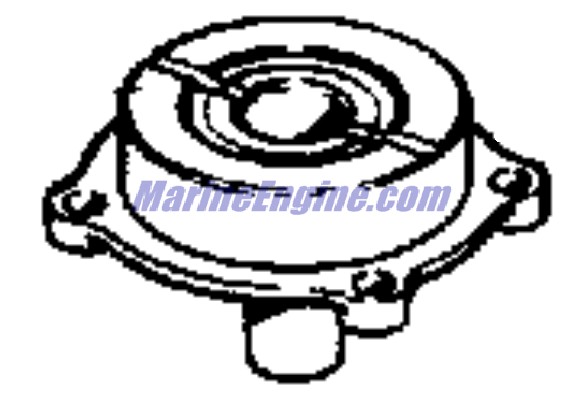

| #8 — 383231 — BEARING HOUSING ASSY (1 required per assembly) | ||
  |
|
0383231 - Housing Assembly [ More info ] Unavailable |

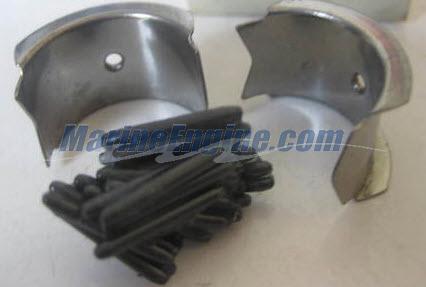

| #9 — 378371 — LINERS & NEEDLES, ROD (1 required per assembly) | ||
  |
|
0378371 - Liners & Needles, Rod [ More info ] Unavailable |
  |
|

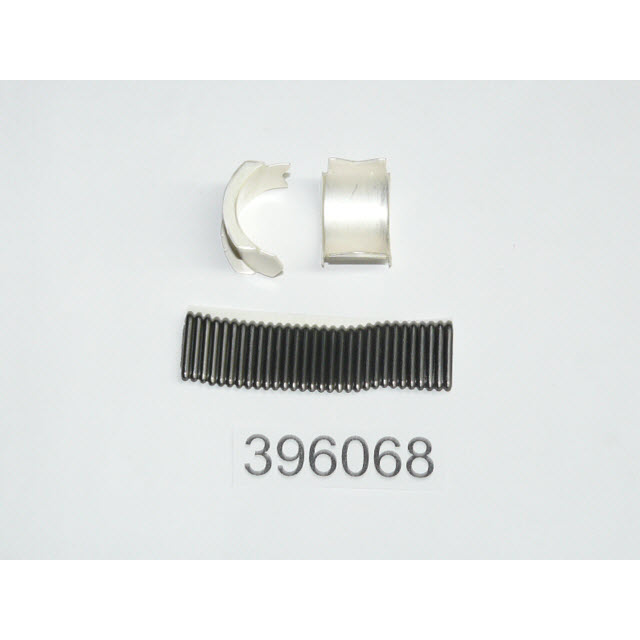

0396068 - Bearing Liner and Needles Kit [ More info ]
|
| #10 — 384666 — PISTON ASSY., .030 O.S. (1 required per assembly) | ||
  |
0384666 - Piston, .030 Oversize [ More info ] Unavailable |
|
  |
|
0396569 [ More info ] Unavailable Replaced by 0396998 |
  |
0396998 - Piston Only 0.030 no Rings [ More info ] Unavailable |
|
  |
|
0432740 - Piston & Ring -.030 [ More info ] Unavailable |
| #10 — 314696 — CRANKSHAFT (1 required per assembly) | ||
|
|
0314696 [ More info ] Unavailable Replaced by 0328838 |
|
|
0328838 - Crankshaft [ More info ]
|
| #11 — 510167 — CAM, MAGNETO (1 required per assembly) | ||
  |
|
0510167 - Cam, Magneto [ More info ]
|

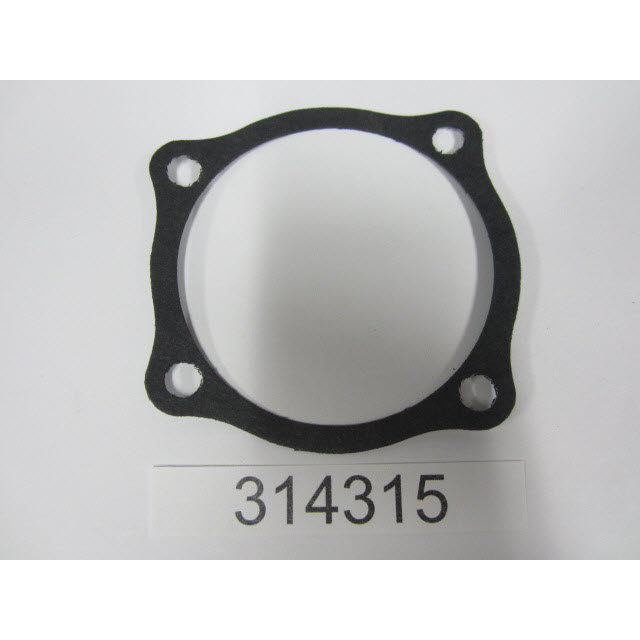

| #12 — 314315 — GASKET, HOUSING (1 required per assembly) | ||
  |
|
0314315 - Bearing Housing Gasket [ More info ]
|

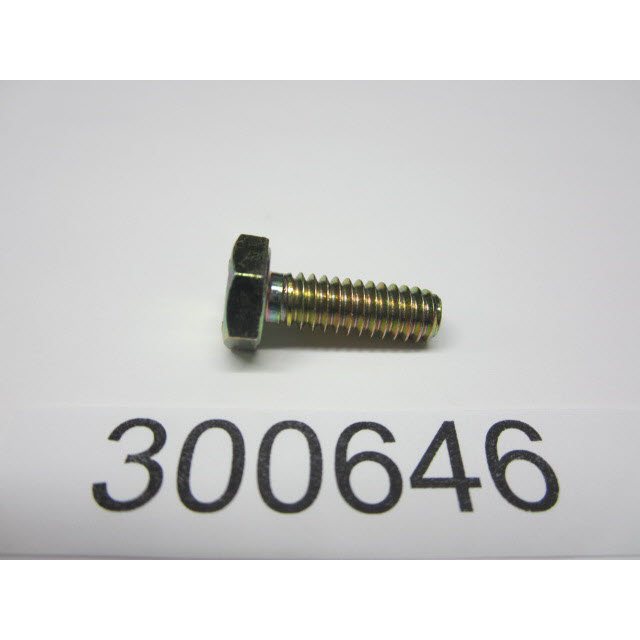

| #13 — 300646 — SCREW, HOUSING (4 required per assembly) | ||
  |
|
|
| #14 — 120395 — KEY, FLYWHEEL (1 required per assembly) | ||
  |
|
|
| #15 — 314213 — PIN, CAM TO SHAFT (1 required per assembly) | ||
|
|
|

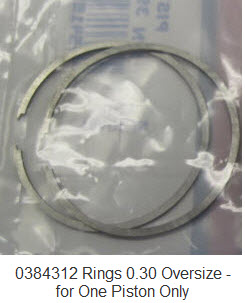

| #20 — 384312 — RING SET, .030 O.S. (1 required per assembly) | ||
  |
|
0384312 - Piston Ring Set 0.30 Oversize, For One Piston Only [ More info ] Unavailable |
| #30 — 120960 — RETAINING RING (2 required per assembly) | ||
|
|
0120960 - Circlip [ More info ]
|
