Carburetor Parts for 1974 Evinrude 2 hp 2402E Outboard Motor

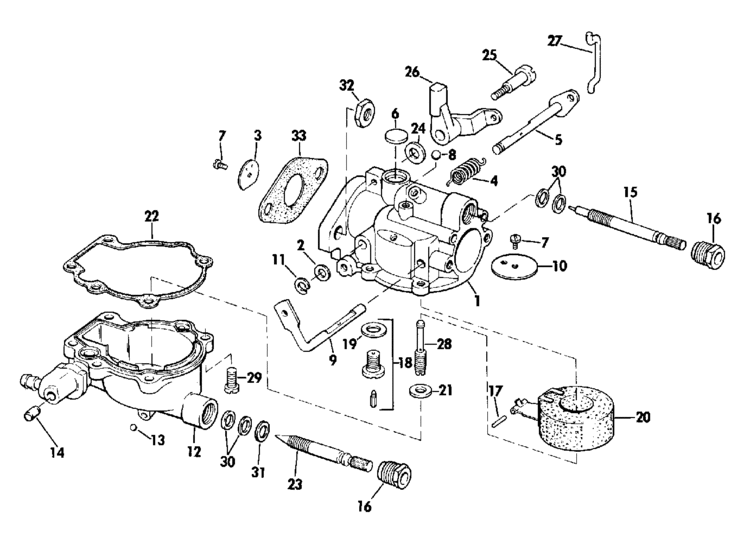

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 386184 — BODY ASSY (1 required per assembly) | ||
  |
|
0386184 - Carburetor Body Assembly, NLA [ More info ] Unavailable |
| #2 — 303048 — WASHER (1 required per assembly) | ||
  |
|
0303048 [ More info ] Unavailable Replaced by 0330191 |
  |
|
0330191 - Washer [ More info ]
|
| #3 — 302983 — THROTTLE VALVE (1 required per assembly) | ||
  |
|
0302983 - Throttle Valve [ More info ]
|

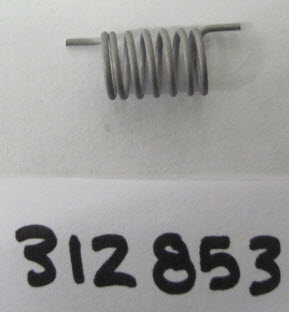

| #4 — 312853 — SPRING, THROTTLE RETURN (1 required per assembly) | ||
  |
|
0312853 - Spring [ More info ]
|
| #5 — 381774 — THROTTLE SHAFT (1 required per assembly) | ||
  |
|
0381774 - L/P 6.35 [ More info ] Unavailable |
| #6 — 306442 — EXPANSION PLUG. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
|
0306442 - Expansion Plug [ More info ]
|
| #7 — 312852 — SCREW, THROT. & CHOKE VALVE (2 required per assembly) | ||
  |
|
0312852 - Valve Screw [ More info ]
|
| #8 — 304201 — LEAD SHOT (5 required per assembly) | ||
  |
|
0304201 - Lead Shot [ More info ]
|

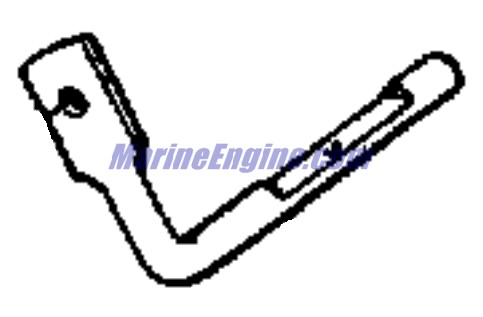

| #9 — 313465 — CHOKE SHAFT (1 required per assembly) | ||
  |
|
0313465 - Choke Shaft [ More info ]
|
| #10 — 320178 — CHOKE VALVE (1 required per assembly) | ||
 |
0320178 - Choke Valve [ More info ] Unavailable |
|
|
|
0333187 - Choke Valve [ More info ]
|
| #11 — 202755 — RETAINER, THROTTLE SHAFT (1 required per assembly) | ||
|
|
0202755 - Throttle Shaft Retainer [ More info ]
|
  |
|
0203949 - Retainer [ More info ]
|
| #12 — 382999 — FLOAT CHAMBER ASSY. (1 required per assembly) | ||
|
|
0382999 - Float Bowl,NLA [ More info ] Unavailable |
| #13 — 304201 — LEAD SHOT (1 required per assembly) | ||
|
|
0304201 - Lead Shot [ More info ]
|

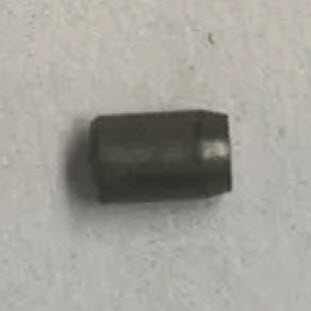

| #14 — 301732 — PLUG (1 required per assembly) | ||
  |
|
|
| #15 — 316453 — NEEDLE VALVE, LOW SPEED (1 required per assembly) | ||
  |
|
0316453 - Low Speed Needle Valve [ More info ]
|
  |

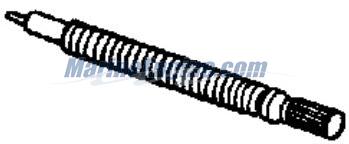

0390145 - Slow Speed Needle Valve [ More info ] Unavailable |
|
  |
|

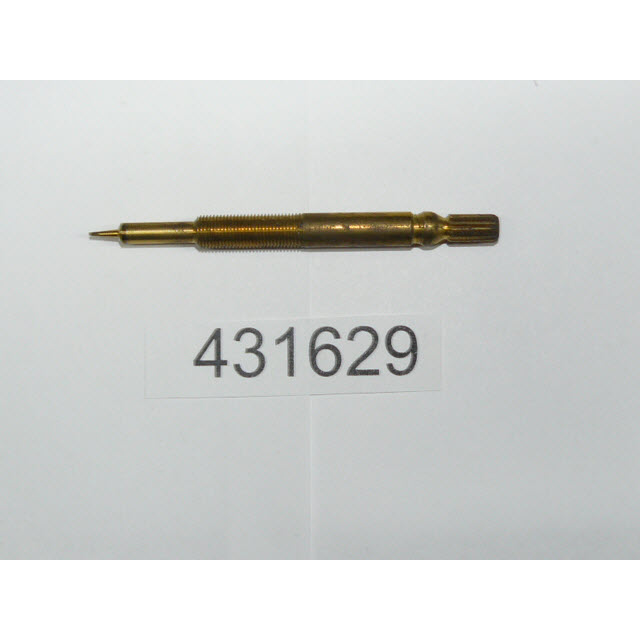

0431629 - Low Speed Needle Valve Assembly, See Note [ More info ]
|
| #16 — 300179 — NUT, LOW SPEED NEEDLE VALVE (2 required per assembly) | ||
  |
|
0300179 - Gland Nut [ More info ]
|
| #17 — 300096 — HINGE PIN, FLOAT ARM. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
|
0300096 - Hinge Pin [ More info ]
|

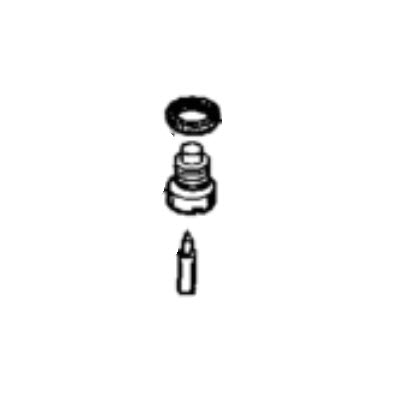

| #18 — 382889 — VALVE, SEAT & GASKET ASSY. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
0382889 - Float Valve [ More info ] Unavailable |
|
  |
|
0396522 - Float Valve Assembly [ More info ]
|
  |
|
18-7094 - Needle And Seat 396522 [ More info ]
|
| #19 — 301996 — GASKET. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
|
0301996 - Float Valve Washer [ More info ]
|
| #20 — 375919 — FLOAT AND ARM. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
0375919 - Cork Float and Arm [ More info ] Unavailable |
|
  |
|
0396514 - Float And Arm [ More info ]
|
| #21 — 302984 — GASKET. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
0302984 - Nozzle To Bow Gasket [ More info ] Unavailable |
|
  |
0331181 - Gasket [ More info ] Unavailable |
|
  |
|
0344037 - Gasket - Sold individually [ More info ]
|
| #22 — 302994 — GASKET. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
0302994 - Bowl Gasket [ More info ] Unavailable |
|
  |
0331203 - Float Bowl Gasket, Sold Individually [ More info ] Unavailable |
|
  |
|
0338886 - Float Bowl Gasket, Sold Individually [ More info ]
|
  |
|
18-2890-9 - Float Bowl Gasket 338886 2-Pack [ More info ]
|

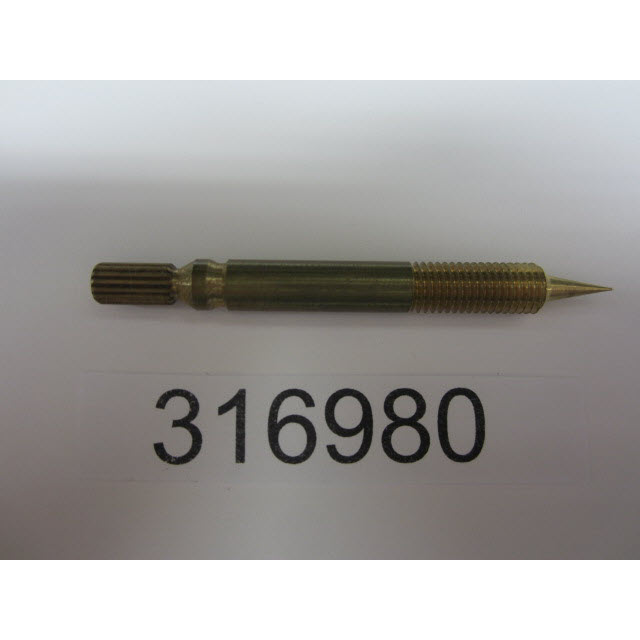

| #23 — 316980 — NEEDLE VALVE, HIGH SPEED (1 required per assembly) | ||
  |
|
0316980 - High Speed Needle Valve [ More info ]
|

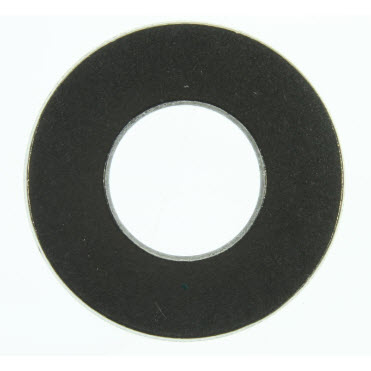

| #24 — 303952 — WASHER, SHOULDER SCREW (1 required per assembly) | ||
  |
|
0303952 - Washer [ More info ]
|

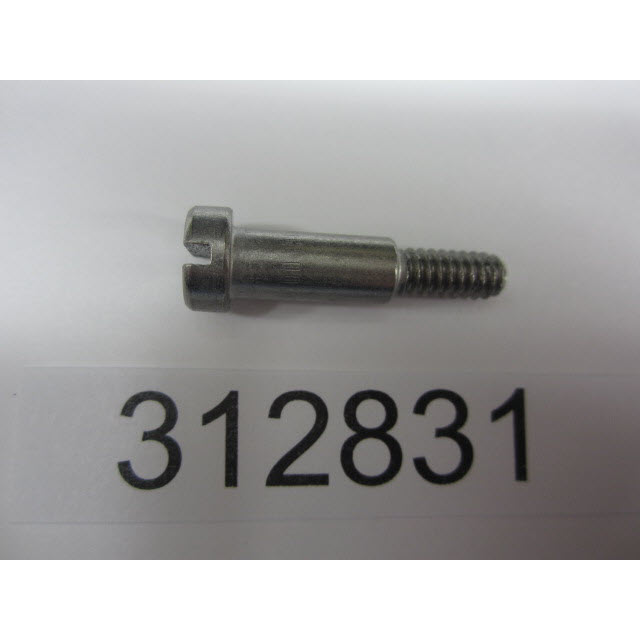

| #25 — 312831 — SHOULDER SCREW (1 required per assembly) | ||
  |
|
0312831 - Screw, Cam Follower [ More info ]
|

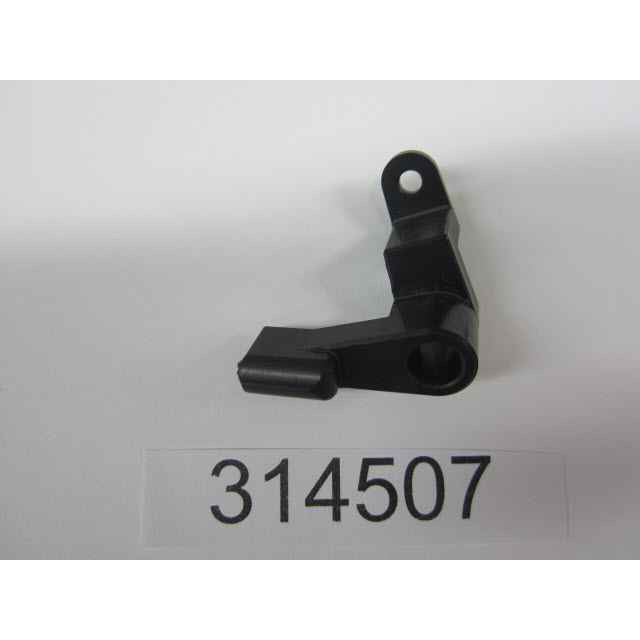

| #26 — 314507 — CAM FOLLOWER (1 required per assembly) | ||
  |
|
0314507 - Cam Follower [ More info ]
|

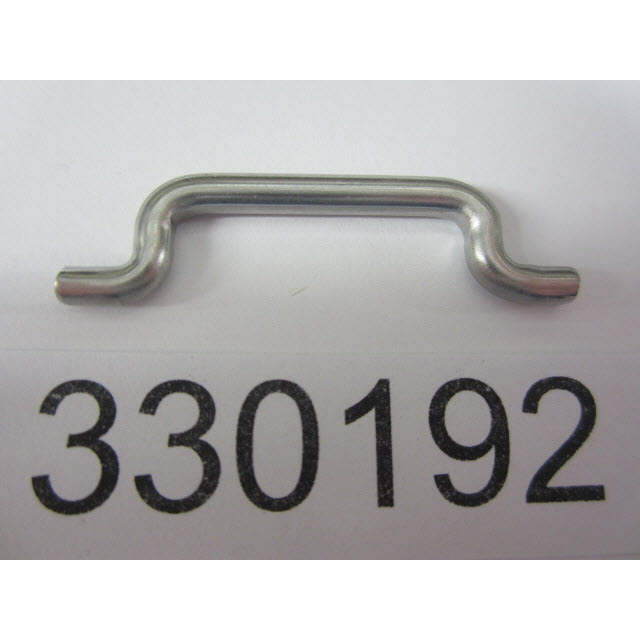

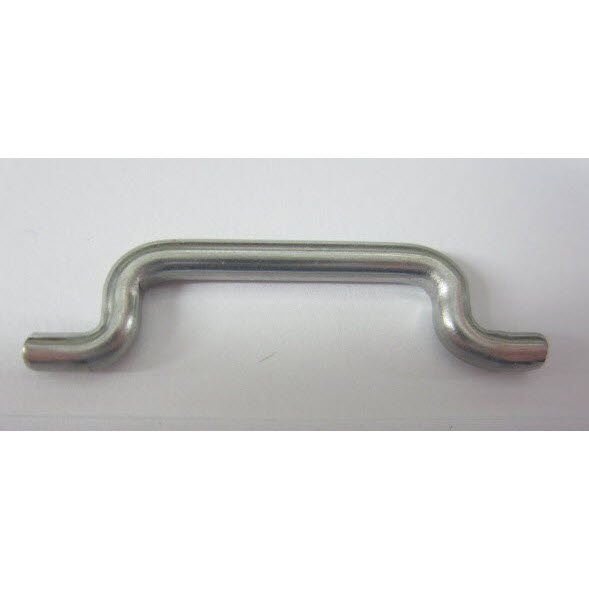

| #27 — 312830 — LINK, CAM FOLLOWER (1 required per assembly) | ||
  |
0312830 - Cam Follower Link [ More info ] Unavailable |
|
  |
|
0330192 - Link, Cam Follower [ More info ] Unavailable |
| #28 — 314264 — NOZZLE, HIGH SPEED (1 required per assembly) | ||
|
|
0314264 - High Speed Nozzle [ More info ]
|
| #29 — 307045 — SCREW (5 required per assembly) | ||
  |
|
0307045 - Float Chamber Mounting Screw [ More info ]
|
| #30 — 307583 — PACKING, LOW SPEED VALVE. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (4 required per assembly) | ||
  |
|
0307583 - Needle Valve Packing Washer [ More info ]
|
  |
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|
  |
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|

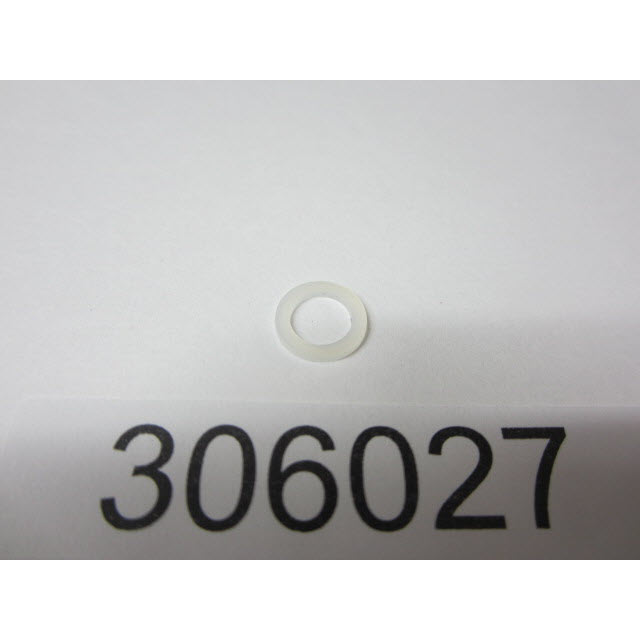

| #31 — 306027 — WASHER, PACKING. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (2 required per assembly) | ||
  |
|
0306027 - Washer [ More info ]
|
| #32 — 306338 — NUT (2 required per assembly) | ||
  |
|
0306338 [ More info ] Unavailable Replaced by 0328742 |
  |
|
|

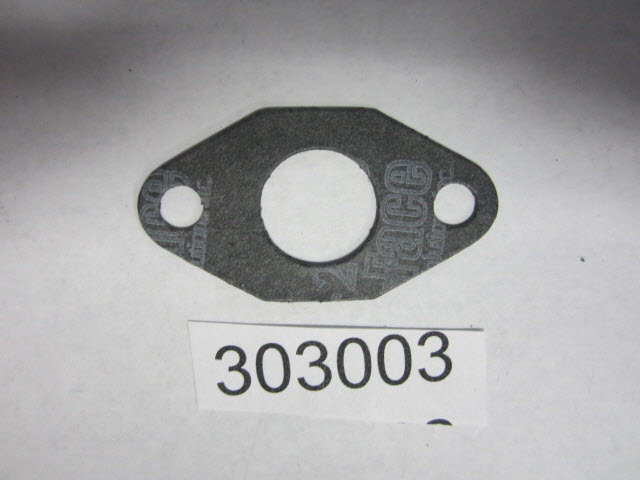

| #33 — 303003 — GASKET. ALSO AVAILABLE IN CARBURETOR REPAIR KIT #382978 (1 required per assembly) | ||
  |
|
0303003 - Carburetor Mount Gasket [ More info ]
|
| #386182 — 386182 — CARBURETOR ASSY., COMPLETE (1 required per assembly) | ||
|
|
0386182 - Carburetor, NLA [ More info ] Unavailable |
