Fuel Tank Group Parts for 1967 Johnson 5 hp LD-12 Outboard Motor

Revise Search: All Years > 1967 > 5 hp > Johnson LD-12 > Fuel Tank Group

NEED PARTS OR KITS?

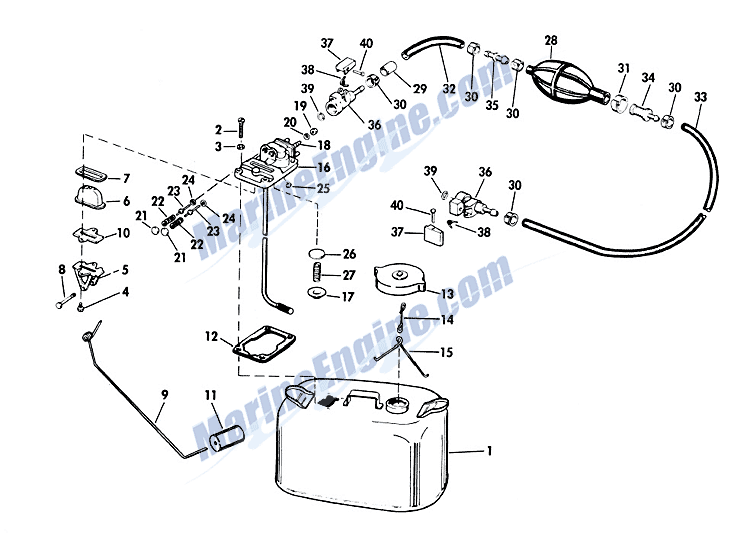

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#0 — 377433 — (1 required per assembly)
		0377433 [ More info ] Unavailable Replaced by 0386940
		0386940 [ More info ] Unavailable Replaced by 0393535
		0393535 [ More info ] Unavailable Replaced by 0398549
		0398549 - Hose And Bulb Assembly [ More info ] Unavailable
		0176748 - FUEL HOSE & PRIMER BULB [ More info ] Unavailable
		0775635 [ More info ] Unavailable Replaced by 5008609

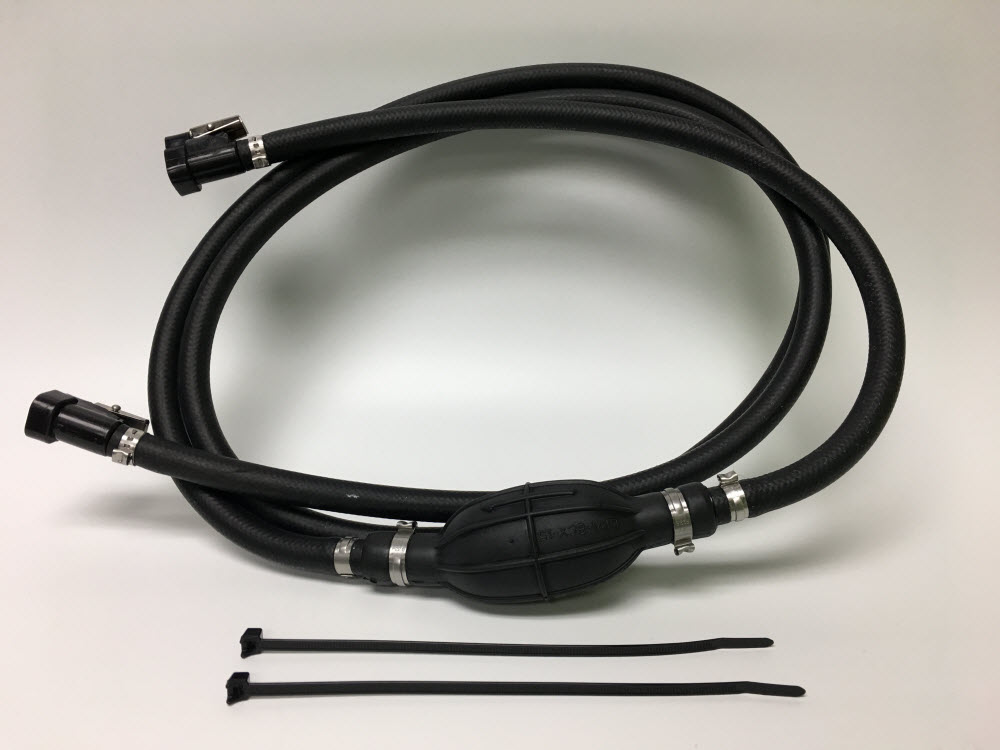

		5008609 - Fuel Hose and Primer Bulb Assembly [ More info ] $81.39 $75.76 10+ In Stock.

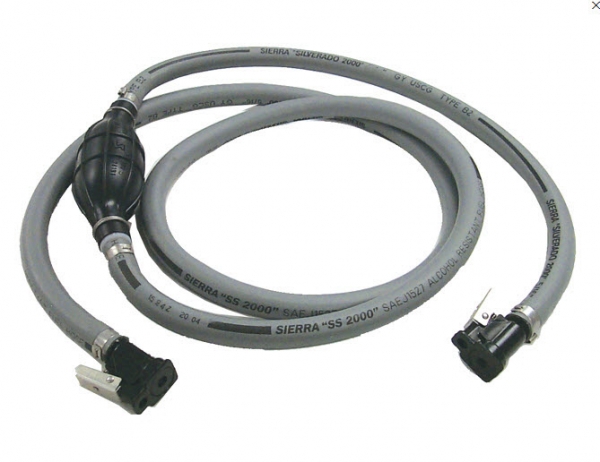

		18-8009EP-2 - EPA Fuel Line Assembly, 3/8 Hose, OMC, J/E, BRP [ More info ] $75.39 $69.10 10+ In Stock.

#0 — 379780 — (1 required per assembly)

0379780 - Decal Set 6 GAL T [ More info ]
Unavailable

#1 — 381015 — (1 required per assembly)
		0381015 [ More info ] Unavailable Replaced by 0392909
		0392909 [ More info ] Unavailable Replaced by 0394181
		0394181 [ More info ] Unavailable Replaced by 0395741
		0395741 [ More info ] Unavailable Replaced by 0398458
		0398458 - Fuel Tank [ More info ] Unavailable
		0175981 - Fuel Tank [ More info ] Unavailable

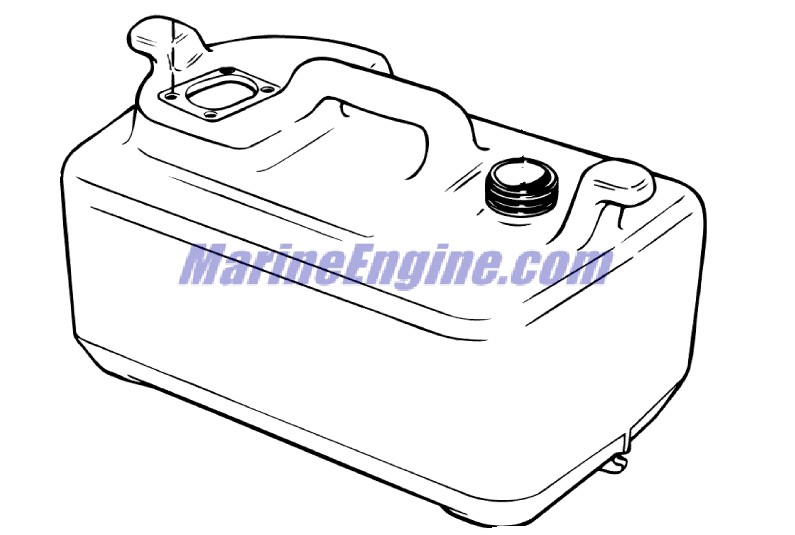

		0763900 [ More info ] Unavailable Replaced by 5008623

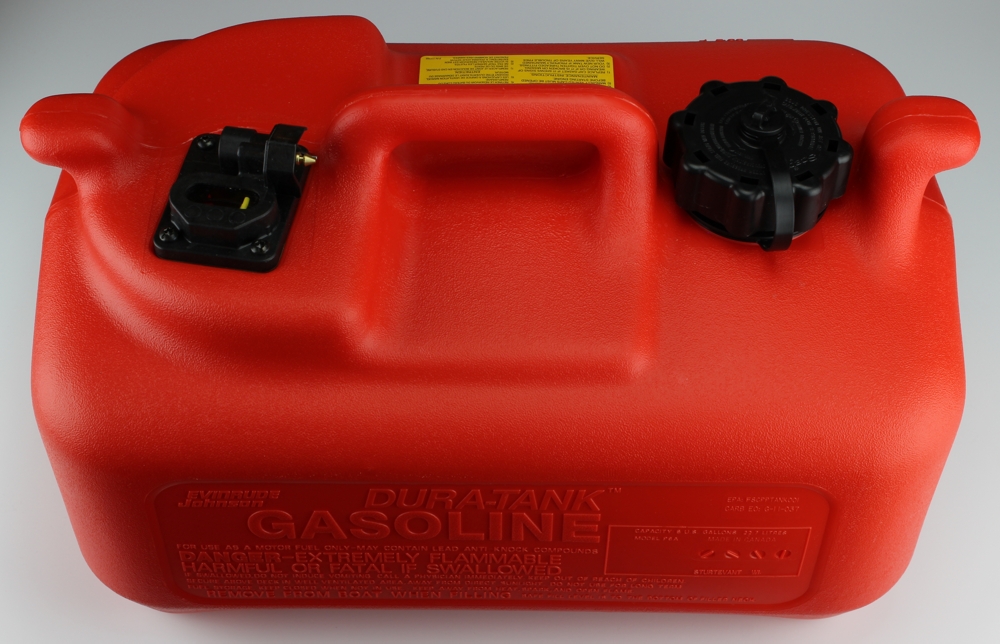

		5008623 - Fuel Tank - 6 Gallon, EPA Compliant [ More info ] $166.99 $165.98 10+ In Stock.

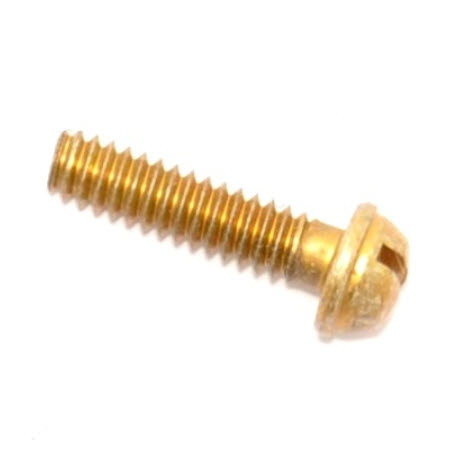

#2 — 304888 — (4 required per assembly)

0304888 - Manifold Screw [ More info ]

$4.39
10+ In Stock.

#3 — 305863 — (4 required per assembly)

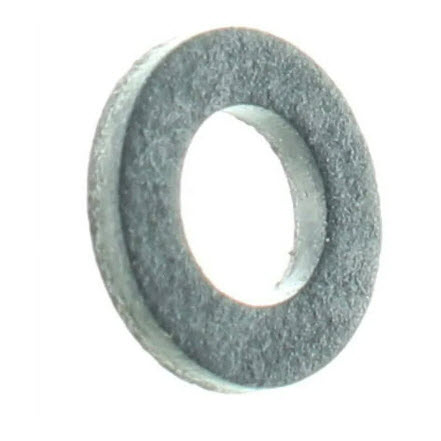

0305863 - Washer [ More info ]

$7.95 $5.24
10+ In Stock.

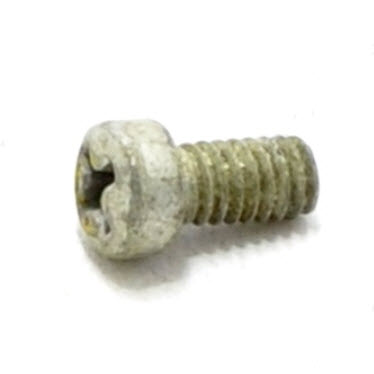

#4 — 310849 — (2 required per assembly)

0310849 - Indicator Support Screw [ More info ]

$2.19 $1.82
10+ In Stock.

#5 — 312191 — (1 required per assembly)

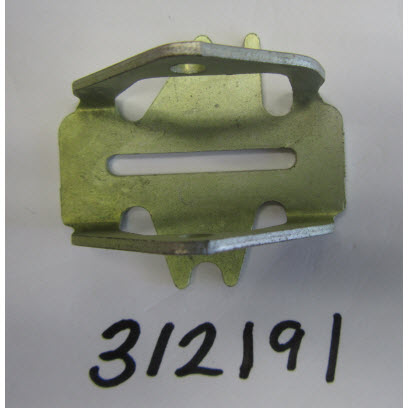

0312191 - Indicator Support [ More info ]

$18.99 $11.55
10 In Stock.

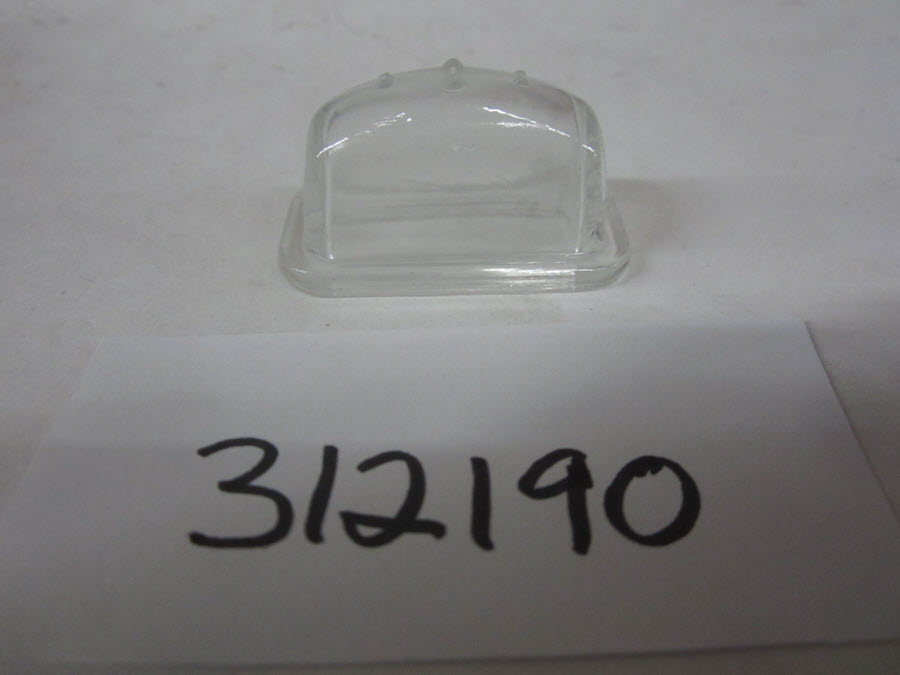

#6 — 312190 — (1 required per assembly)

0312190 - Indicator Lens [ More info ]

$20.89 $12.71
10+ In Stock.

#7 — 312192 — (1 required per assembly)

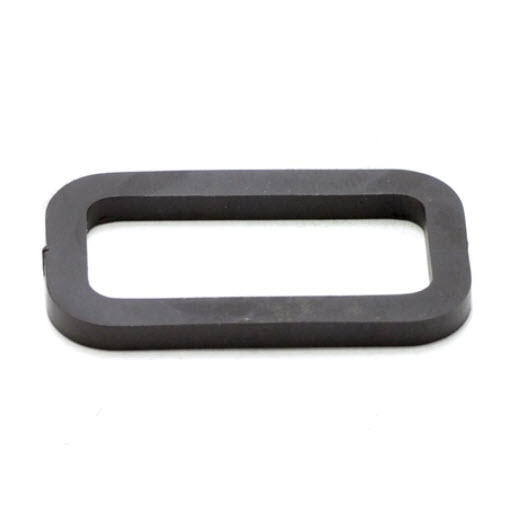

0312192 - Seal, Lens to Valve Housing [ More info ]

$14.99
10+ In Stock.

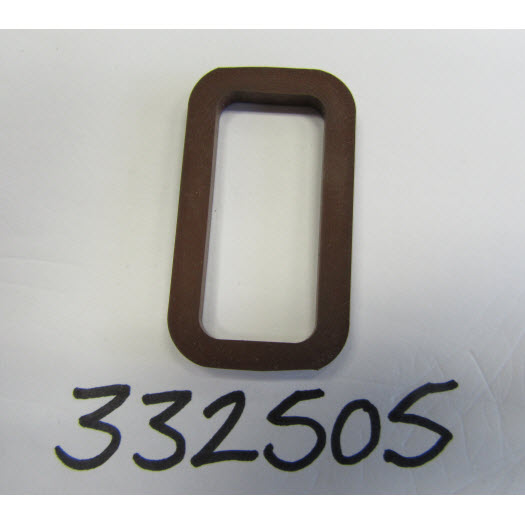

0332505 - Seal, Lens to Valve Housing [ More info ]

$36.29 $22.07
10+ In Stock.

#8 — 305821 — (1 required per assembly)

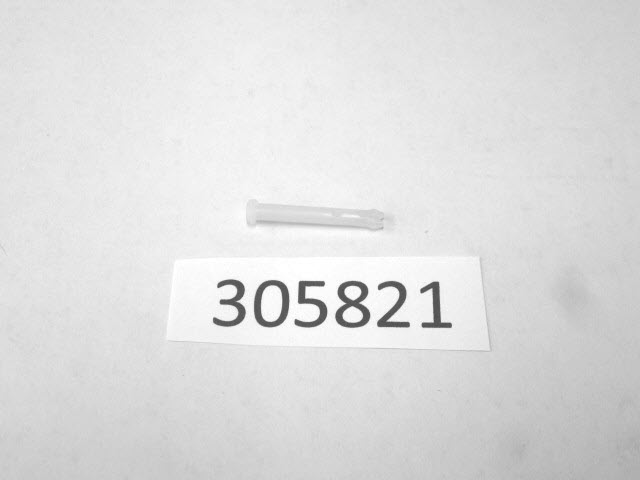

0305821 - Hinge Pin [ More info ]

$10.99
10+ In Stock.

#9 — 310845 — (1 required per assembly)

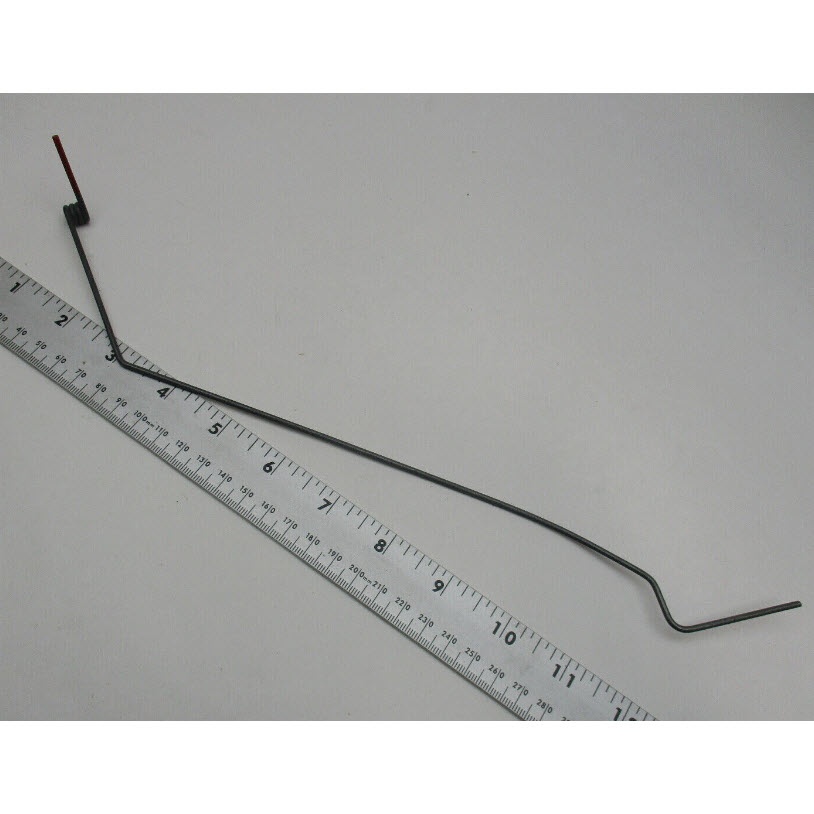

0310845 - Indicator [ More info ]

$10.00
10+ In Stock.

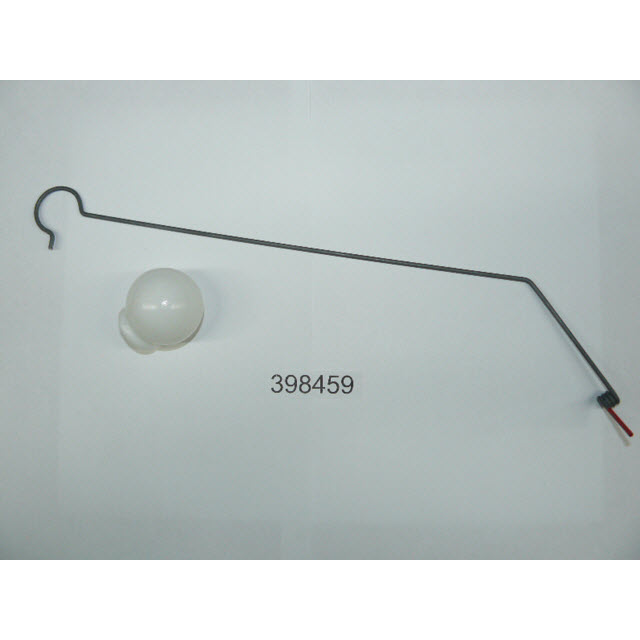

0398459 - Float and Indicator [ More info ]
Unavailable

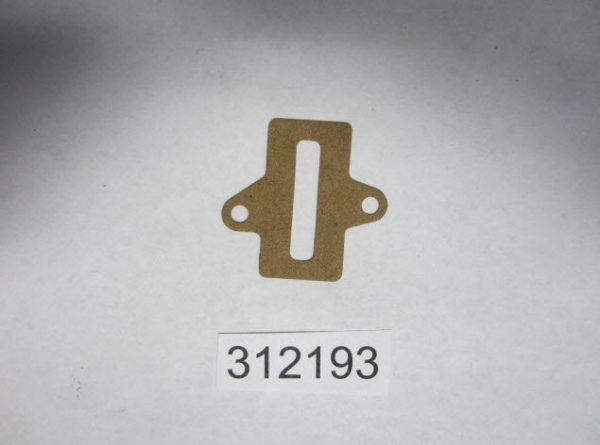

#10 — 312193 — (1 required per assembly)

0312193 - Indicator Support Gasket [ More info ]

$7.69
10+ In Stock.

#11 — 302559 — (1 required per assembly)

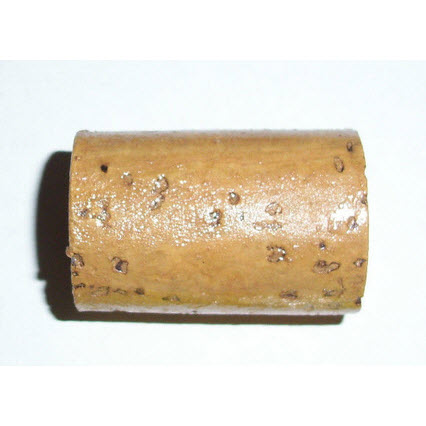

0302559 - Indicator Float [ More info ]

$13.25
10+ In Stock.

#12 — 310984 — (1 required per assembly)
		0310984 - Fuel Tank to Housing Gasket [ More info ] Unavailable

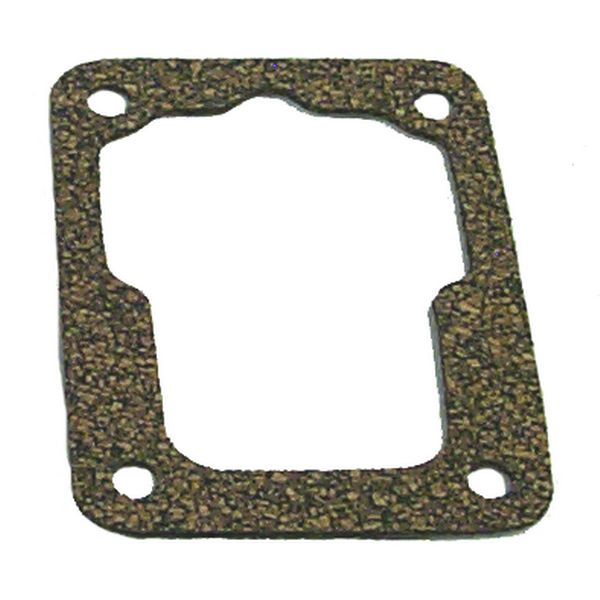

		0332403 - Housing To Tank Gasket [ More info ] Unavailable

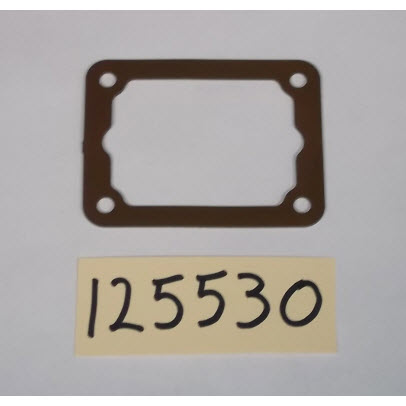

		0125530 - Housing to Tank Gasket Sold Individually [ More info ] $7.78 10+ In Stock.
		18-2881-9 - Gasket 125530 2-Pack [ More info ] $10.99 $8.79 10+ In Stock.

#13 — 377536 — (1 required per assembly)
		0377536 - Fuel Cap [ More info ] Unavailable
		0388938 - Gas Cap [ More info ] Unavailable
		0775634 [ More info ] Unavailable Replaced by 0763525

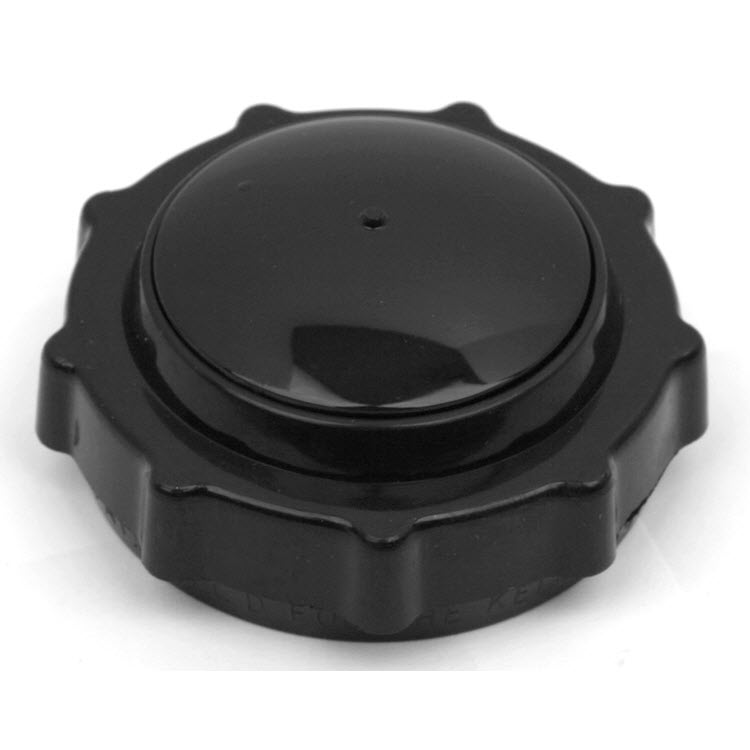

		0763525 - Cap Assembly NO VENT [ More info ] $16.99 $16.68 8 In Stock.

#14 — 305994 — (1 required per assembly)

0305994 [ More info ]
Unavailable
Replaced by 0323369

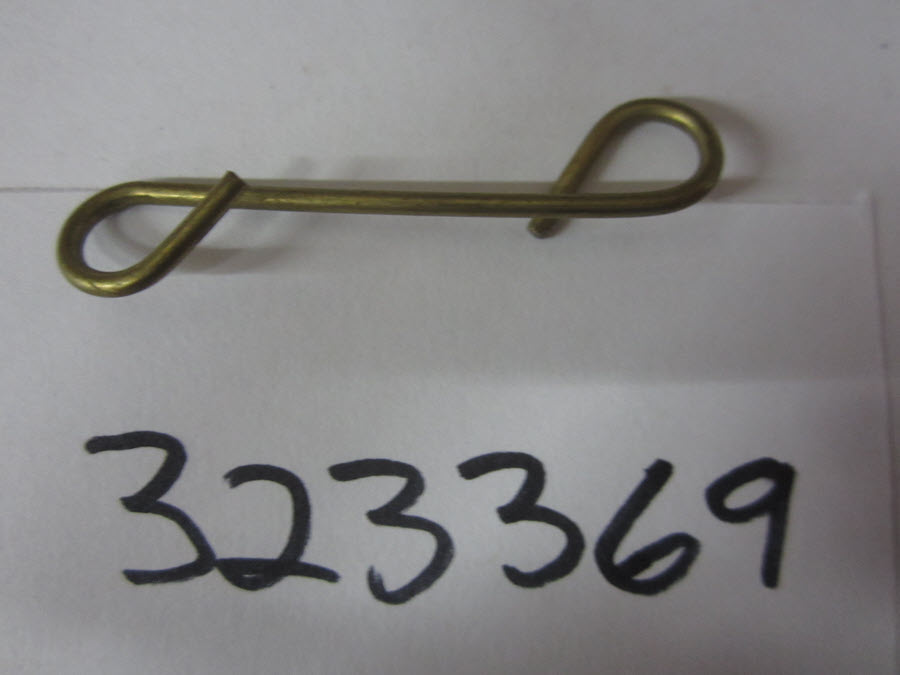

0323369 - Anchor Link -cap [ More info ]

$10.70 $2.23
10+ In Stock.

#15 — 552331 — (1 required per assembly)

0552331 - Anchor, Cap [ More info ]

$11.72 $7.71
10+ In Stock.

#16 — 381016 — (1 required per assembly)
		0381016 - Housing and Fuel Pickup [ More info ] Unavailable

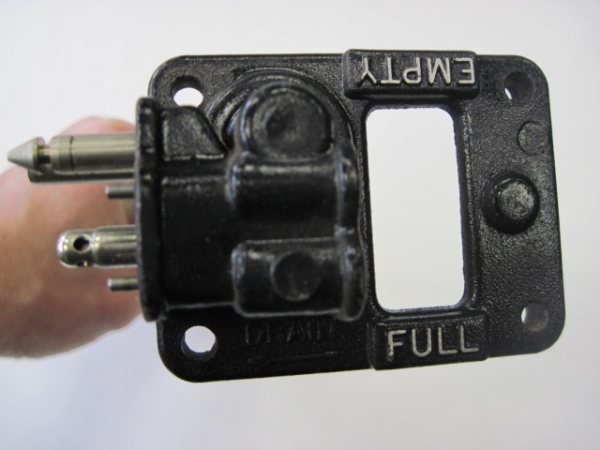

		0392935 - Housing and Fuel Pickup [ More info ] Unavailable

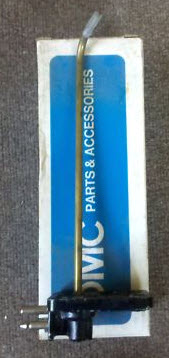

		0398409 - Fuel Housing and Pickup [ More info ] Unavailable

#17 — 307861 — (1 required per assembly)

0307861 - Disc Valve Spring Retainer [ More info ]

$21.99 $13.38
10+ In Stock.

#18 — 308081 — (1 required per assembly)

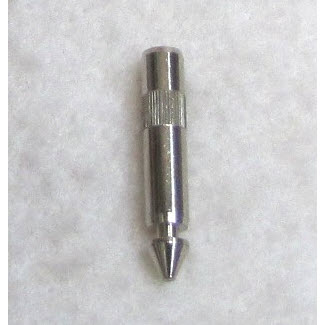

0308081 - Guide Pin [ More info ]

$27.49 $22.98
10+ In Stock.

#19 — 307857 — (1 required per assembly)

0307857 - Valve Retainer [ More info ]

$17.59
10+ In Stock.

#20 — 307858 — (1 required per assembly)

0307858 - Quad Ring [ More info ]
Unavailable

0332488 - Ring, Quad Ring [ More info ]

$7.69
10+ In Stock.

#21 — 303405 — (2 required per assembly)

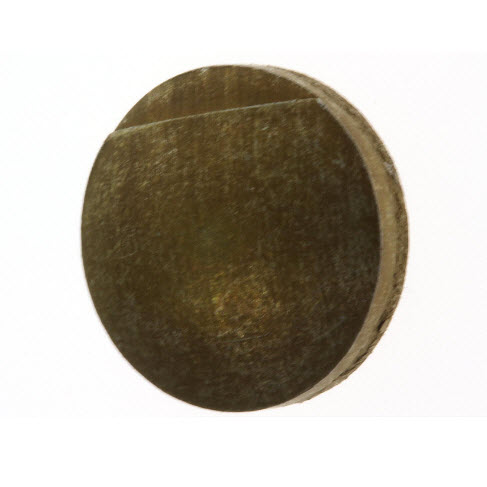

0303405 - Core Plug [ More info ]

$7.95 $5.24
10+ In Stock.

#22 — 307856 — (2 required per assembly)

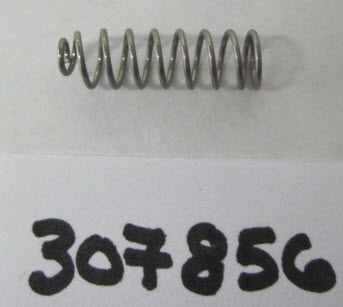

0307856 - Valve Spring [ More info ]

$15.39
10+ In Stock.

#23 — 305859 — (2 required per assembly)

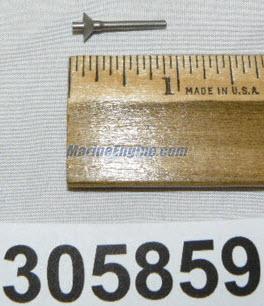

0305859 - Release Valve [ More info ]

$20.89
10+ In Stock.

#24 — 305857 — (2 required per assembly)

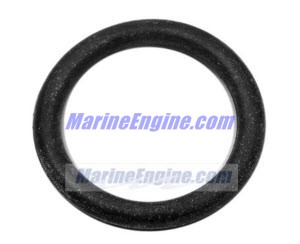

0305857 [ More info ]
Unavailable
Replaced by 0322598

0322598 - Valve Seat O-Ring [ More info ]

$5.11
10+ In Stock.

#25 — 305243 — (1 required per assembly)

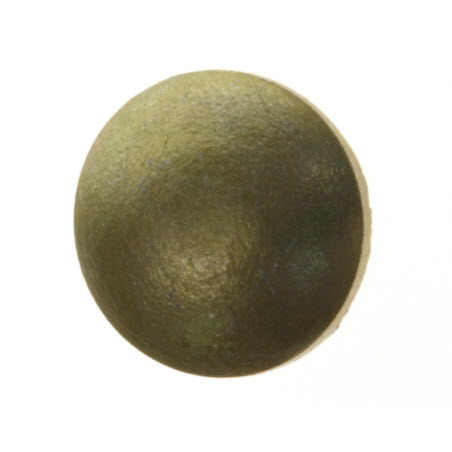

0305243 - Core Plug [ More info ]

$11.72 $7.71
10+ In Stock.

#26 — 307862 — (1 required per assembly)

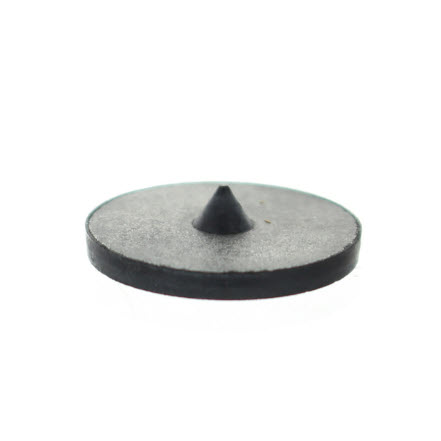

0307862 - Disc Valve [ More info ]

$15.39 $12.86
10+ In Stock.

#27 — 307860 — (1 required per assembly)

0307860 - Disc Valve Spring [ More info ]

$13.19 $8.03
10+ In Stock.

#28 — 553164 — (1 required per assembly)
		0553164 - BULB,Pimer [ More info ] $5.35 4 In Stock.
		0328487 - 393641 BULB ONLY,NO FITTINS [ More info ] Unavailable
		0393641 [ More info ] Unavailable Replaced by 0174511
		0174511 [ More info ] Unavailable Replaced by 0775638
		0775638 [ More info ] Unavailable Replaced by 5008605

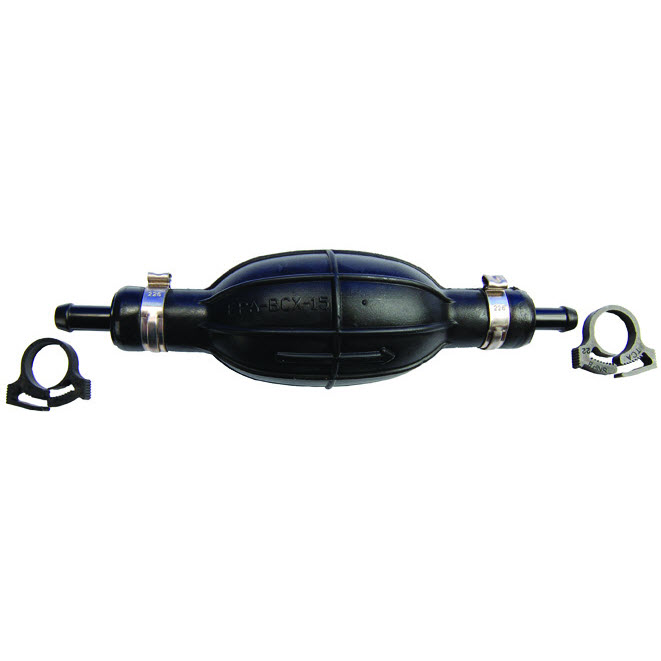

		5008605 - Primer Bulb Kit 5/16 [ More info ] $35.49 $34.85 10+ In Stock.
		18-8004EP-1 - Primer Bulb 5/16 Inch [ More info ] $34.79 $31.85 10+ In Stock.

#29 — 306801 — (1 required per assembly)

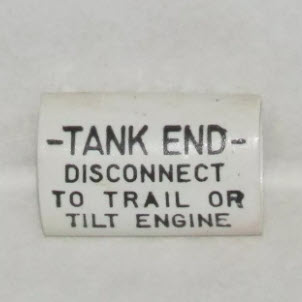

0306801 - Sleeve,Hose [ More info ]

$3.45
5 In Stock.

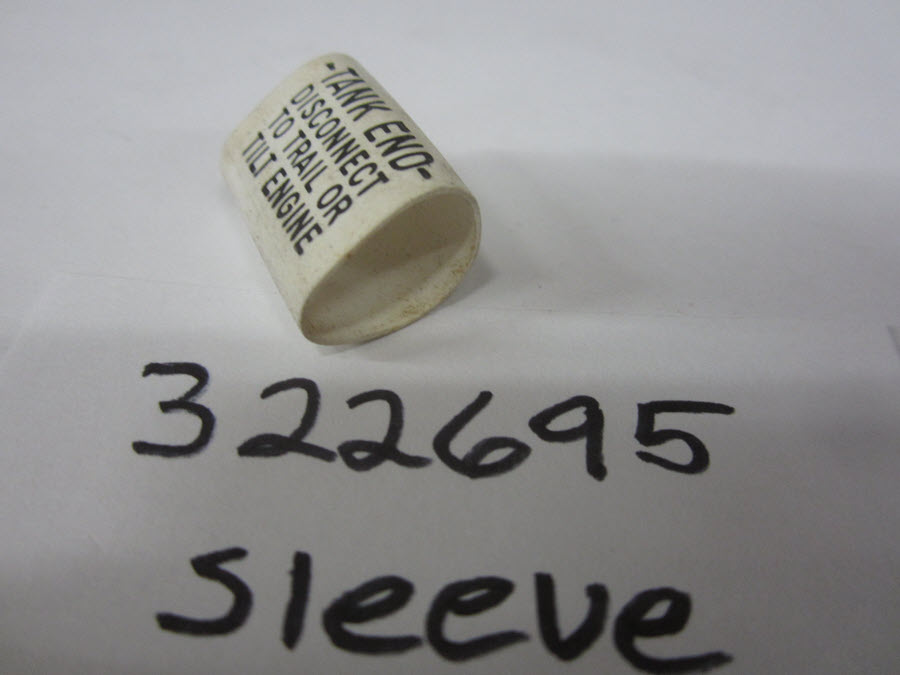

0322695 - Sleeve [ More info ]
Unavailable

#30 — 303596 — (5 required per assembly)

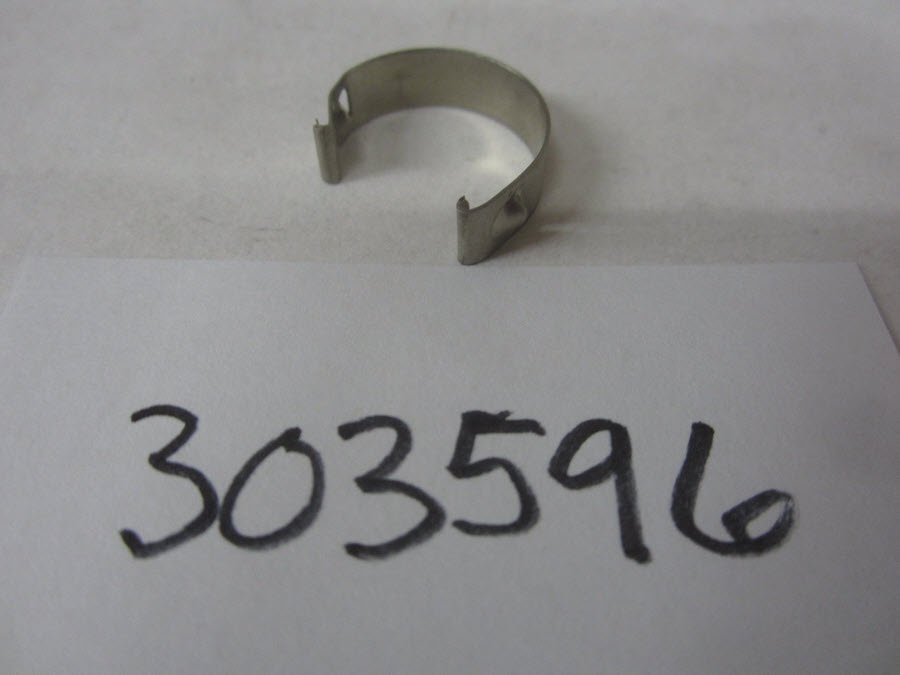

0303596 - Hose Clamp [ More info ]

$6.59
10+ In Stock.

#31 — 553166 — (1 required per assembly)

0553166 - Hose Clamp [ More info ]

$3.01 $1.38
10+ In Stock.

#32 — 305871 — (1 required per assembly)
		0305871 [ More info ] Unavailable Replaced by 0328488
		0328488 [ More info ] Unavailable Replaced by 0772572
		0772572 - 1/4 Inch Hose sold by the foot [ More info ] $5.90 10+ In Stock.

#33 — 305872 — (1 required per assembly)

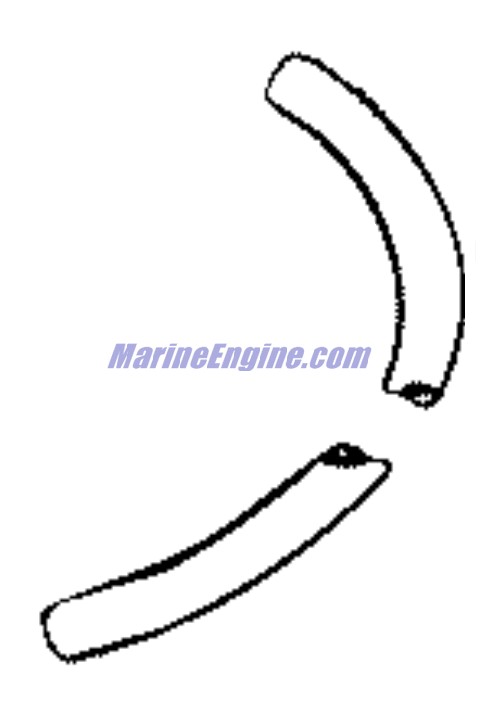

		0305872 [ More info ] Unavailable Replaced by 0328489
		0328489 [ More info ] Unavailable Replaced by 0333341
		0333341 - Fuel Line 5/16 Inch, Sold by the Foot [ More info ] Unavailable

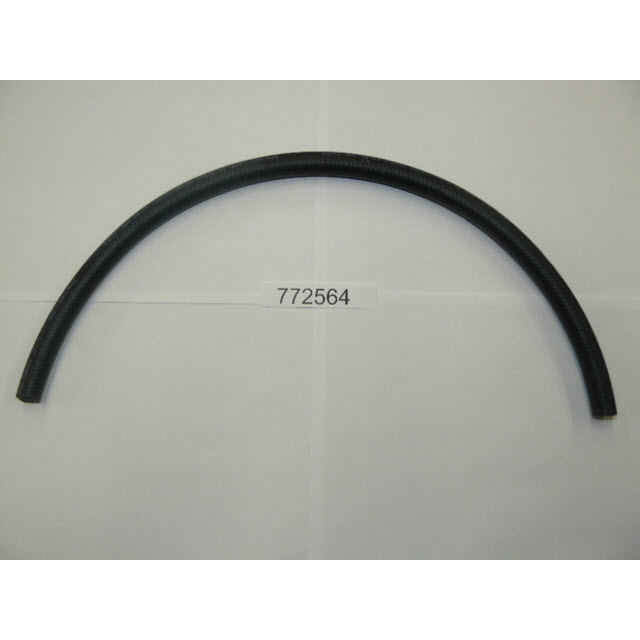

		0772564 - Fuel Line 5/16 Inch, Sold by the Foot [ More info ] $9.31 10+ In Stock.

#34 — 592242 — (1 required per assembly)

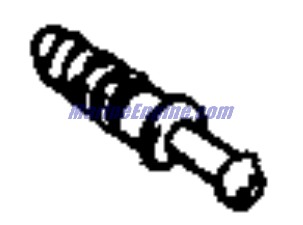

		0592242 [ More info ] Unavailable Replaced by 0383720
		0383720 - Outlet Valve [ More info ] Unavailable

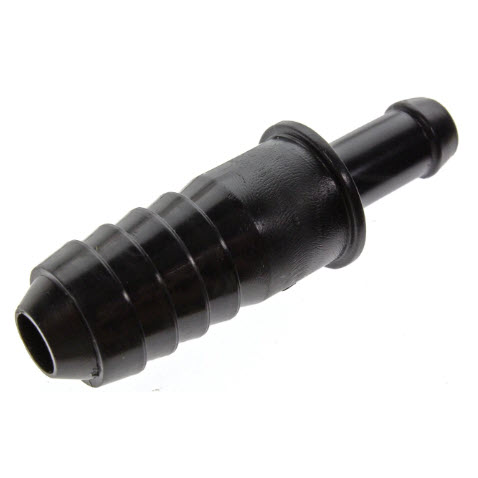

		0396462- Outlet Valve [ More info ] $11.72 $3.65 10+ In Stock.

#35 — 591841 — (1 required per assembly)

0591841 [ More info ]
Unavailable
Replaced by 0383719

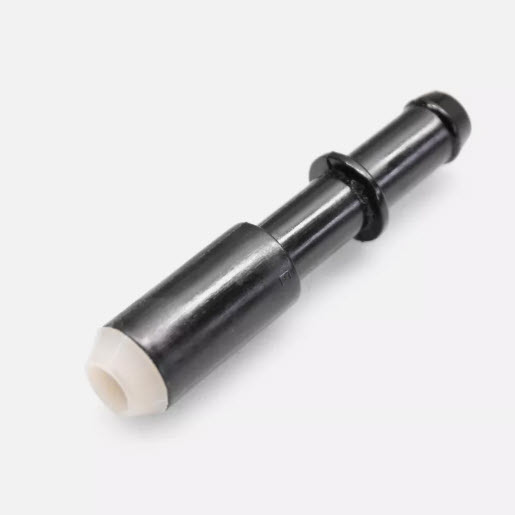

0383719 - Nipple And Valve - 3.75 Inch [ More info ]

$1.50
10+ In Stock.

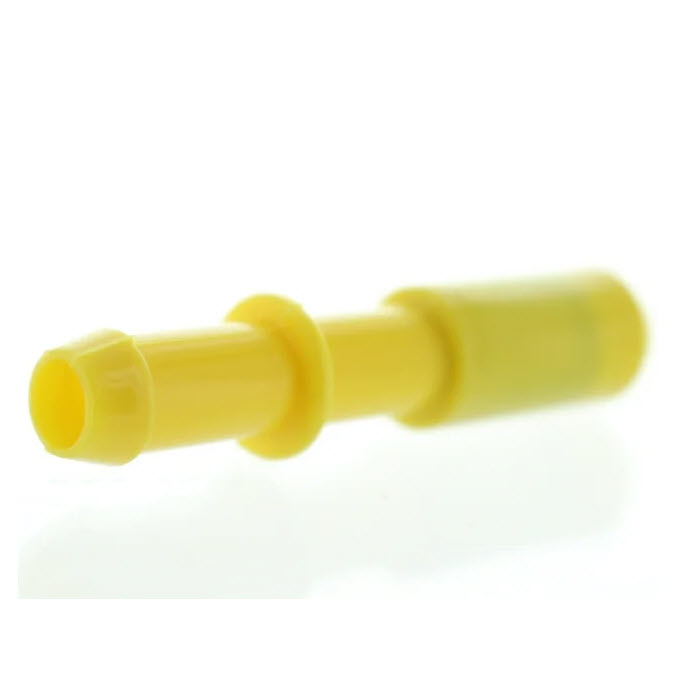

0396461- Inlet Valve [ More info ]

$4.99
10+ In Stock.

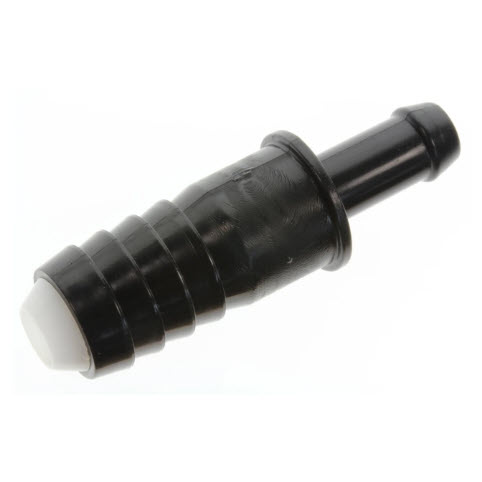

0397525- Inlet Nipple and Valve [ More info ]

$13.25 $2.75
3 In Stock.

#36 — 376156 — (2 required per assembly)
		0376156 [ More info ] Unavailable Replaced by 0173247
		0173247 - CONNECTOR KIT [ More info ] Unavailable
		0174508 - FUEL HOSE CONN. [ More info ] Unavailable

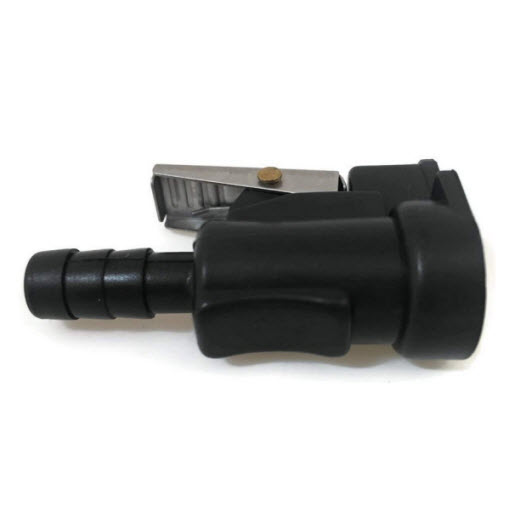

		0176745 - Fuel Hose Connector Kit [ More info ] Unavailable

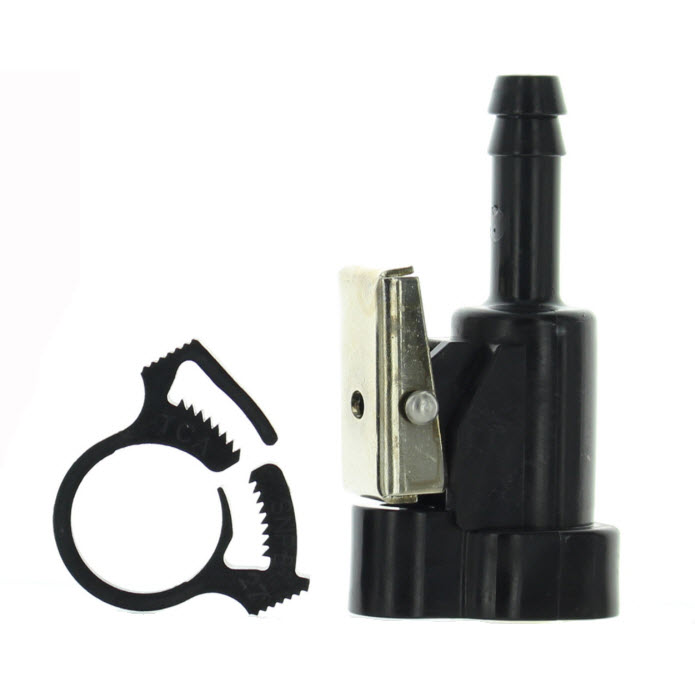

		0775640 - Fuel Connector Kit, 5/16 Inch Hose Barb [ More info ] $9.45 10+ In Stock.

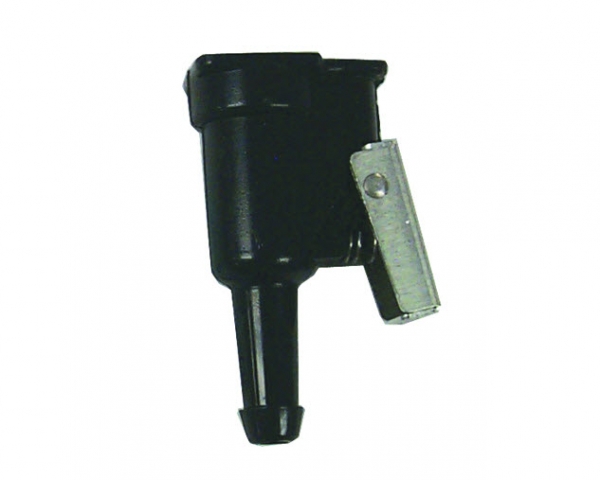

		18-8056 - Connector, 775640 [ More info ] $8.49 10+ In Stock.

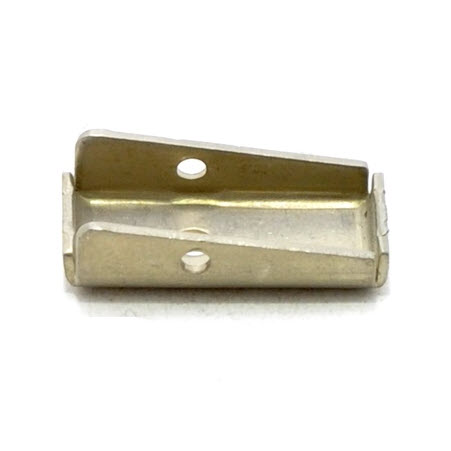

#37 — 301830 — (1 required per assembly)

0301830 - Connector Lock [ More info ]

$8.52 $1.77
10+ In Stock.

#38 — 301829 — (1 required per assembly)

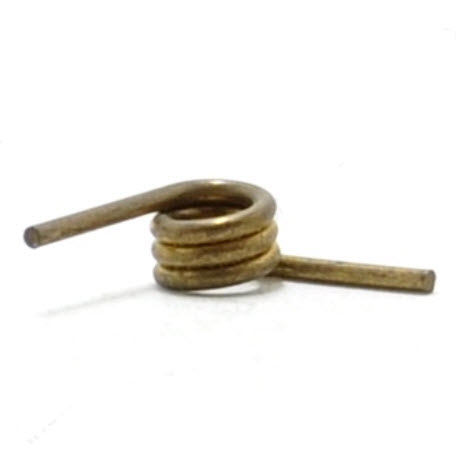

0301829 - Spring [ More info ]

$9.65
Available to Order: Usually ships within 10 days.

#39 — 303598 — (1 required per assembly)
		0303598 - O-Ring [ More info ] Unavailable

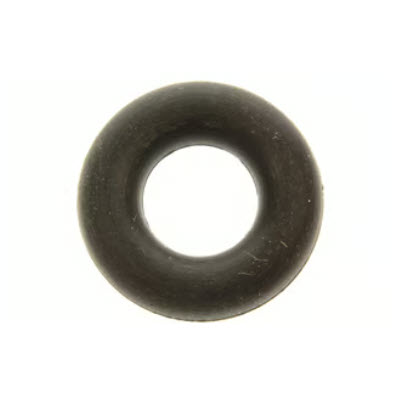

		0334913 - O-Ring [ More info ] $3.50 $1.96 10+ In Stock.

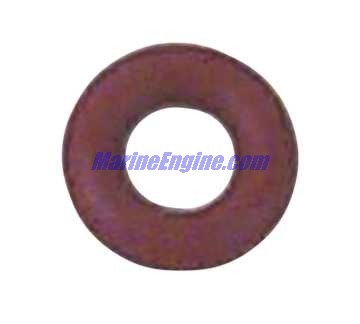

		18-7150 - O-Ring 334913 [ More info ] $2.89 $2.43 10+ In Stock.
